| Specifications | Parameter Range | Applicable Scenarios | Thickness / Transmittance | Power Output |
|---|---|---|---|---|

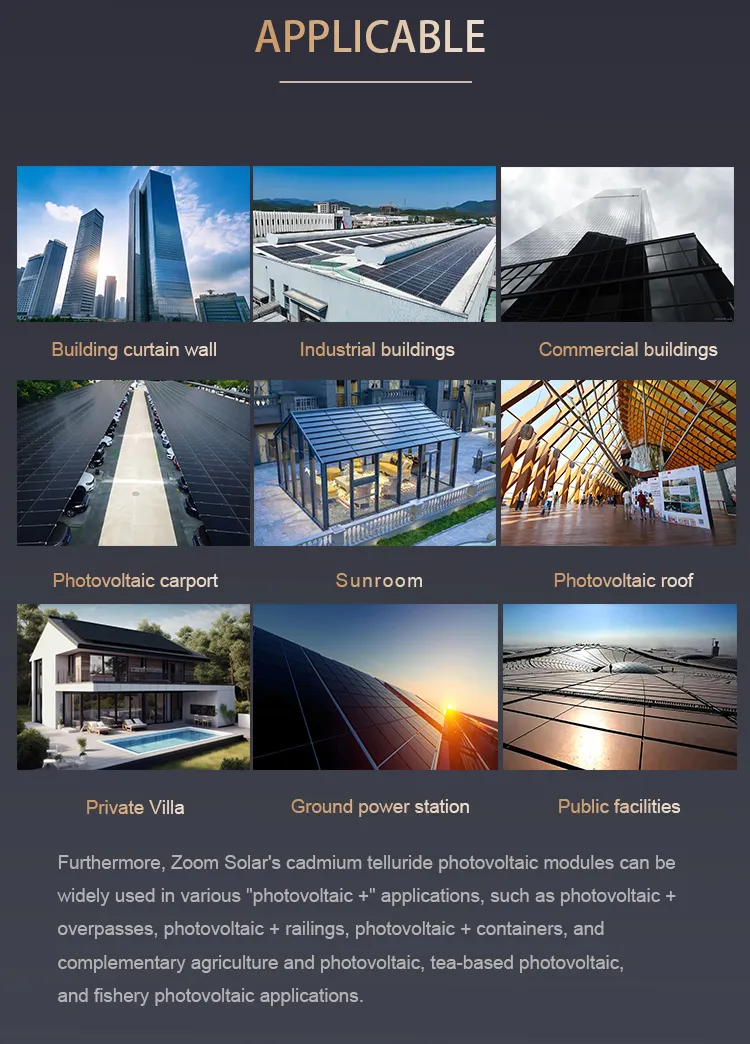

| Home | 1200×600mm / 1600×800mm | Home Roofs / Balcony Railings | 10-12mm / 10%-60% | 100W-300W/unit |
| Commercial | 2400×1200mm / 3000×1500mm | Factory Walls / Power Plants | 22mm / 10%-60% | 500W-1000W/unit |

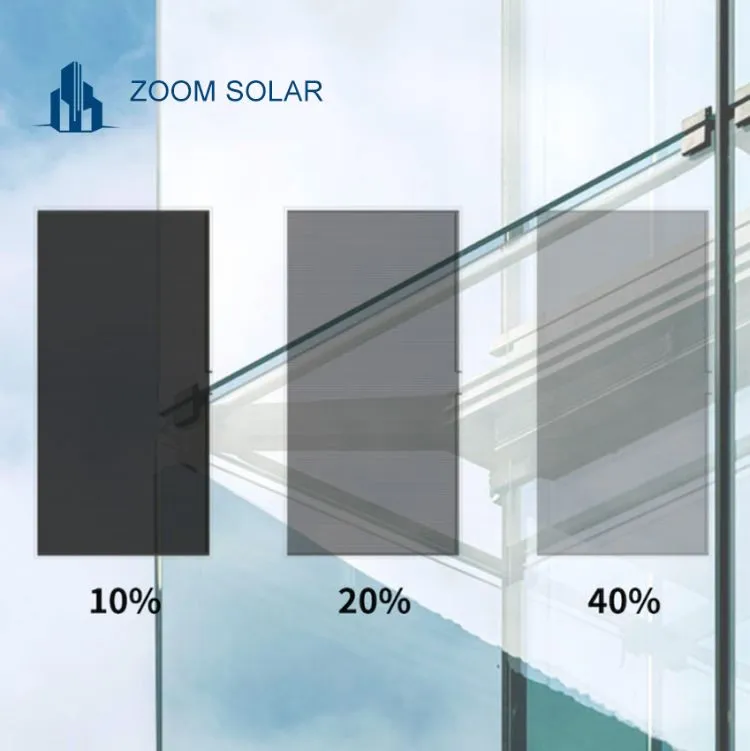

| Custom | 1000-4000mm available | Special Curtain Walls | 6-20mm / 10%-60% | Calculated by size |

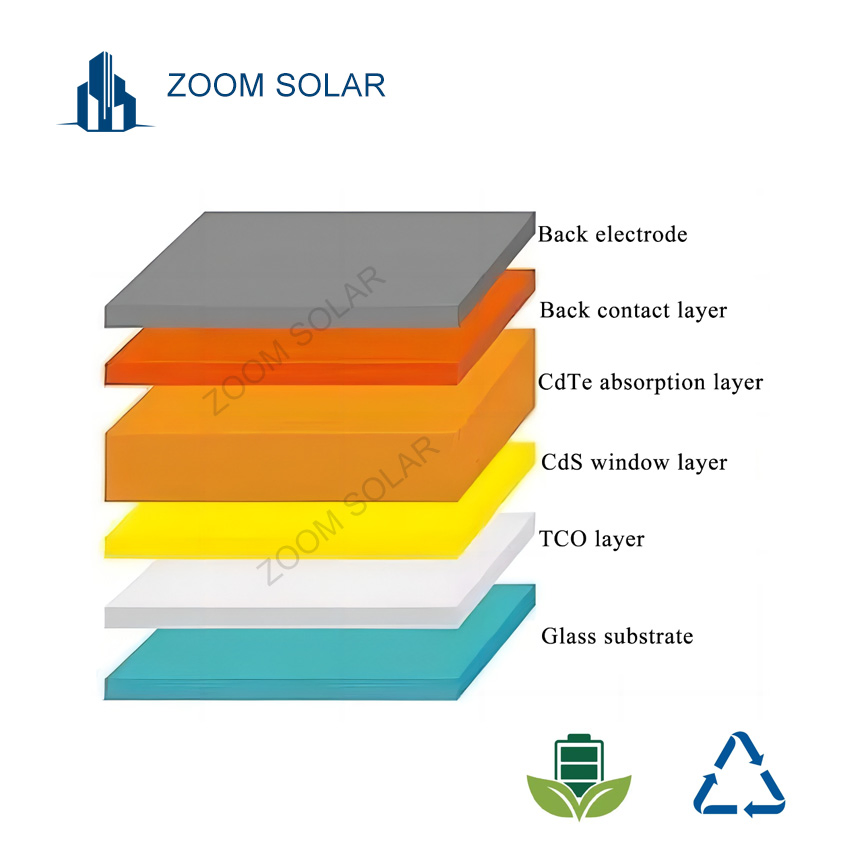

The structure consists of five layers: glass substrate, transparent conductive oxide layer (TCO), cadmium sulfide (CdS) window layer, cadmium telluride (CdTe) absorption layer, and back contact layer/electrode.
CdTe absorbs the entire spectrum efficiently. Performance in early morning, evening, or hazy conditions is significantly better than crystalline silicon cells.
With a coefficient of -0.21~0.25%/ºC, these cells maintain higher power generation efficiency in high-temperature environments compared to traditional silicon cells.
High spectral compatibility allows 90% visible light absorption with only 1μm thickness. No light-induced degradation characteristics ensure long-term stability.
Our R&D team specializes in high-efficiency, high-stability, and low-cost inverted perovskite thin-film solar cells. We utilize advanced thin-film deposition instruments including close-space sublimation (CSS) and vapor transfer deposition (VTD) to drive the industrialization of large-area thin-film technologies.
