Product Description

📑 Basic Specification
Condition
New
Certification
CE
Material
Monocrystalline Silicon
Transport Package
Master Carton
Trademark
OEM
Origin
China
HS Code
8504401400
Production Capacity
10000000 PCS/Month
📦 Packaging & Delivery
Package Size
10.00cm * 10.00cm * 10.00cm
Gross Weight
1.000kg
🔆 Product Description

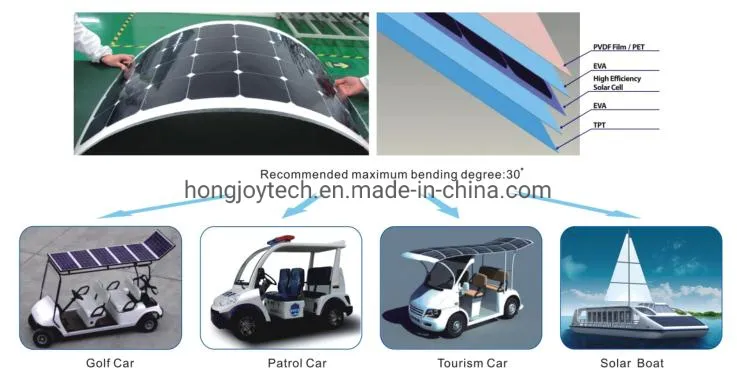

High Efficiency Bendable PV modules

The high efficiency bendable PV modules(Flexible modules) adopt the world's highest conversion efficiency back-contact solar cells, the efficiency of the module is 30% higher than that of the conventional ones. As these modules are bendable, high efficiency bendable PV modules are widely applied to electric golf cars, patrol cars, tourism cars, yachts, roof power generation systems, backpacks, tents etc.

High Efficiency Bendable PV modules
Product Specification (100 Watt)

100 Watt Monocrystalline Bendable Photovoltaic Module made with high efficiency back-contact solar cells.

Parameter Symbol Value
Max PowerPmax100W
Max Power VoltageVmp17.8V
Open Circuit VoltageVoc21.6V
Maximum System VoltageVoc600V
Temp Co-efficient (Power)--0.38%/ºC
Temp Co-efficient (Voltage)--60.8mV/ºC
Temp Co-efficient (Current)-2.2mA/ºC
Cell Efficiency-21%
Number of Cells in Series-32
Max Power tolerance-±5%
WeightKGS2.0KG
Dimensionmm1060*540*3
Selection Table for More Options
Pm Voc Isc Vmp Imp C-eff N.W. Dimension(mm)
18W23.7V0.98A19.8V0.91A20.30%0.50kg434*277*3
30W21.2V1.83A17.6V1.70A19.50%0.75kg535*378*3
50W21.2V3.05A17.6V2.84A21.50%1.20kg545*535*3
60W42.3V1.86A35.2V1.71A19.20%1.46kg725*535*3
80W18.5V5.58A15.4V5.19A19.60%1.80kg922*540*3
90W21.4V5.52A17.6V5.12A19.00%2.00kg1050*540*3
95W21.4V5.77A17.7V5.37A20.00%2.00kg1050*535*3
100W21.6V5.97A17.8V5.62A21.00%2.00kg1050*540*3
110W23.7V5.91A19.8V5.56A20.60%2.22kg1175*540*3
120W26.4V5.87A22.0V5.45A20.50%2.45kg1305*540*3
130W29.4V5.76A24.4V5.32A20.00%2.67kg1435*540*3
135W29.6V5.90A24.6V5.49A20.70%2.67kg1435*540*3
Customized Solutions & Product Showcase

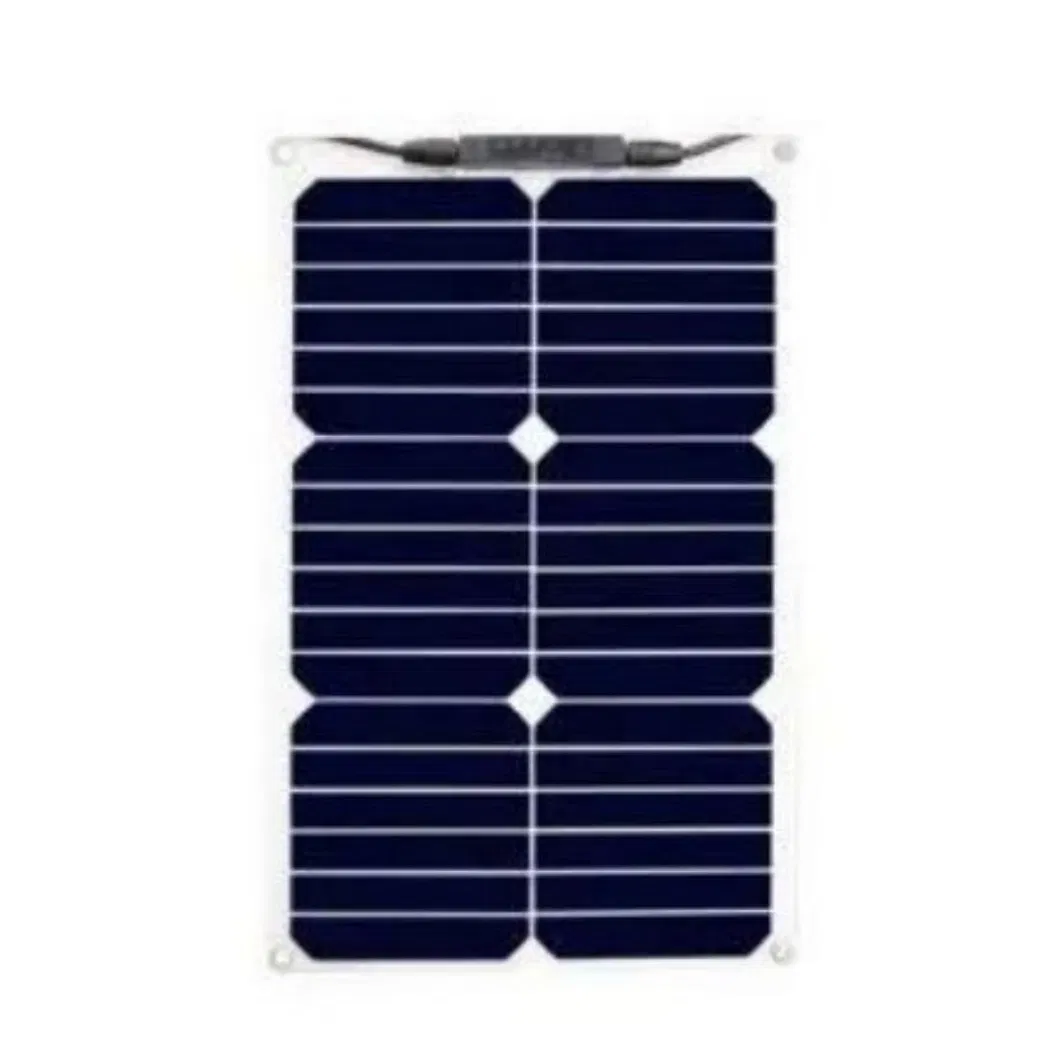

Solar Panel Showcase 1

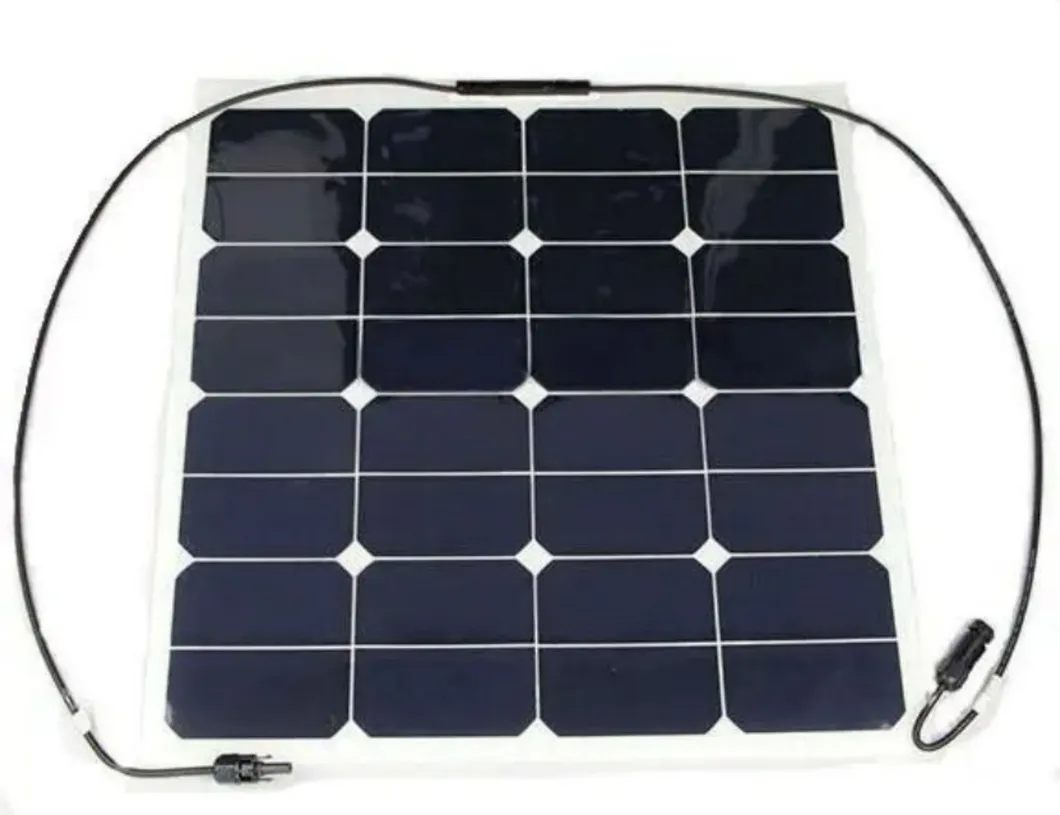

Solar Panel Showcase 2

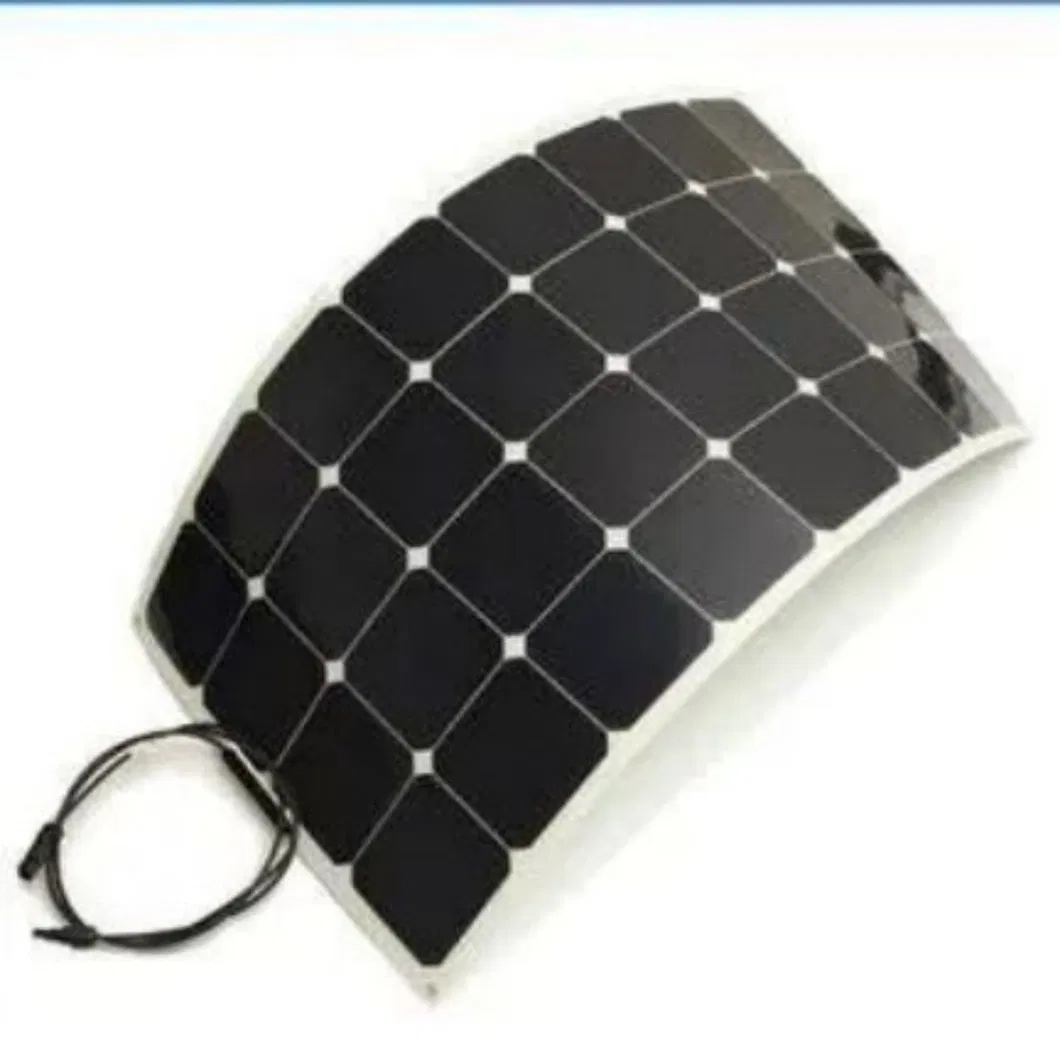

Solar Panel Showcase 3

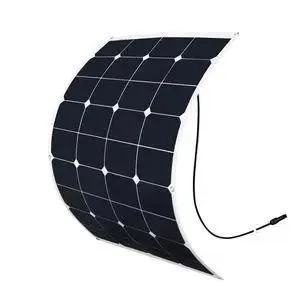

Solar Panel Application 1

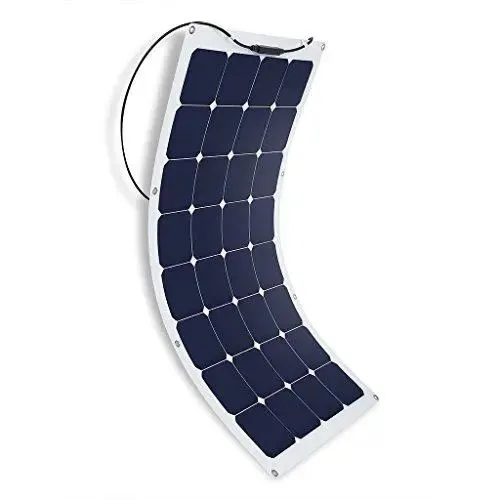

Solar Panel Application 2

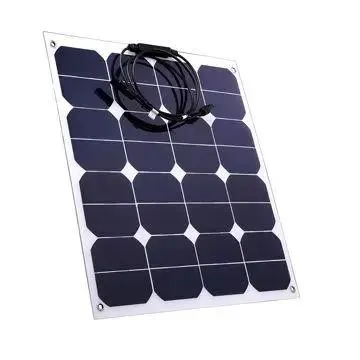

Solar Panel Application 3

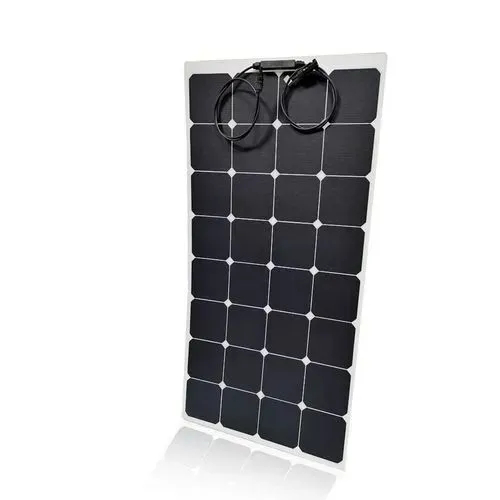

Detail View 1

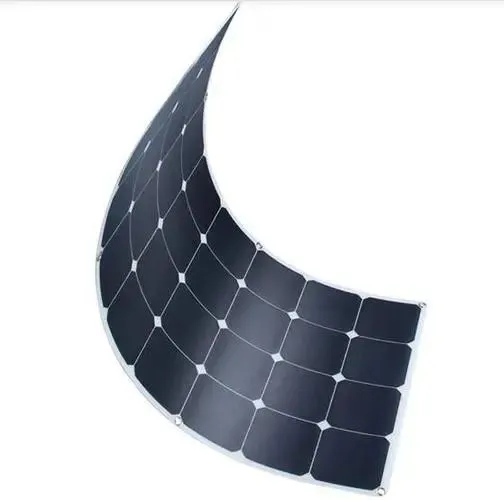

Detail View 2

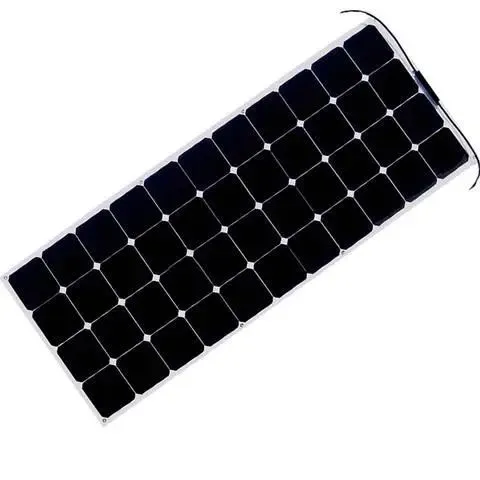

Detail View 3
❓ Frequently Asked Questions
What makes bendable PV modules different from traditional panels?
Flexible PV modules use high-efficiency back-contact solar cells that allow the panel to curve. They are significantly lighter and thinner than traditional glass-reinforced panels.
What is the maximum degree of bending for these modules?
These modules are designed to follow curved surfaces like yacht decks, RV roofs, or tents. While highly flexible, they should be installed according to specified curvature limits to maintain cell integrity.
Are these panels durable enough for marine environments?
Yes, they are widely used for yachts and boats. They are designed to withstand outdoor conditions, though proper mounting is essential for long-term performance.
Can I request customized dimensions or power ratings?
Absolutely. While we offer a wide range of standard options from 18W to 135W, customized specifications are supported and welcomed to meet your specific project needs.
How much more efficient are back-contact cells?
Our flexible modules use world-class back-contact cells which offer a conversion efficiency that can be up to 30% higher than conventional solar cells.
How are these panels typically installed?
Due to their lightweight and thin profile (usually 3mm), they can be attached using structural adhesives or through eyelets (if provided) for temporary setups like tents or backpacks.
