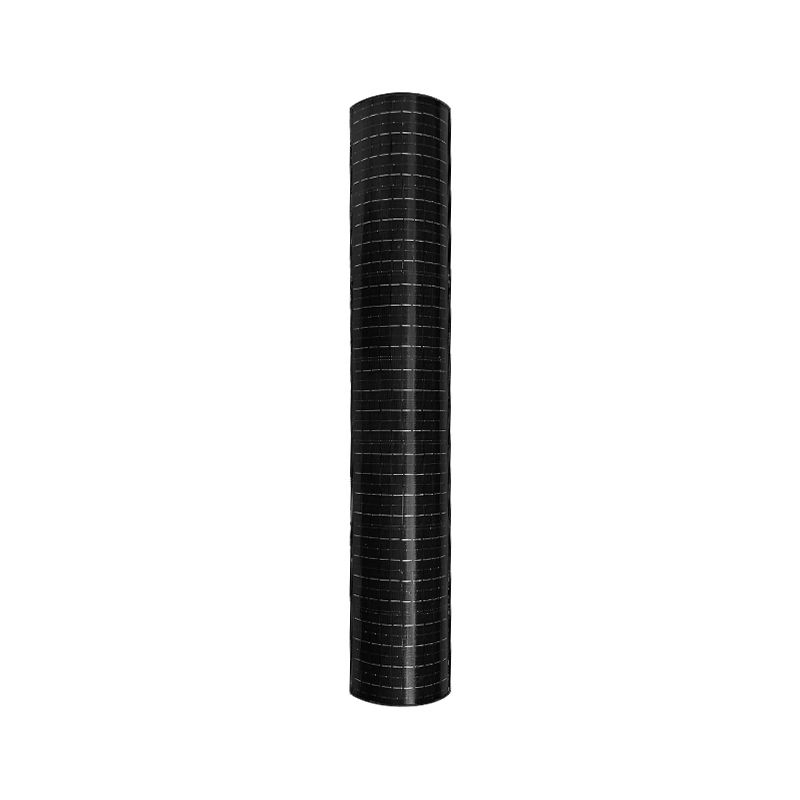

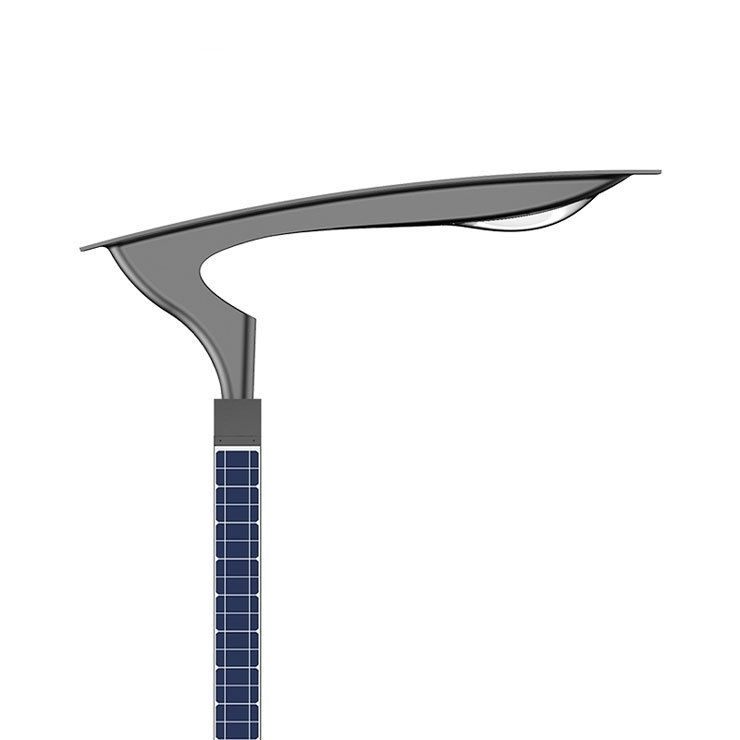

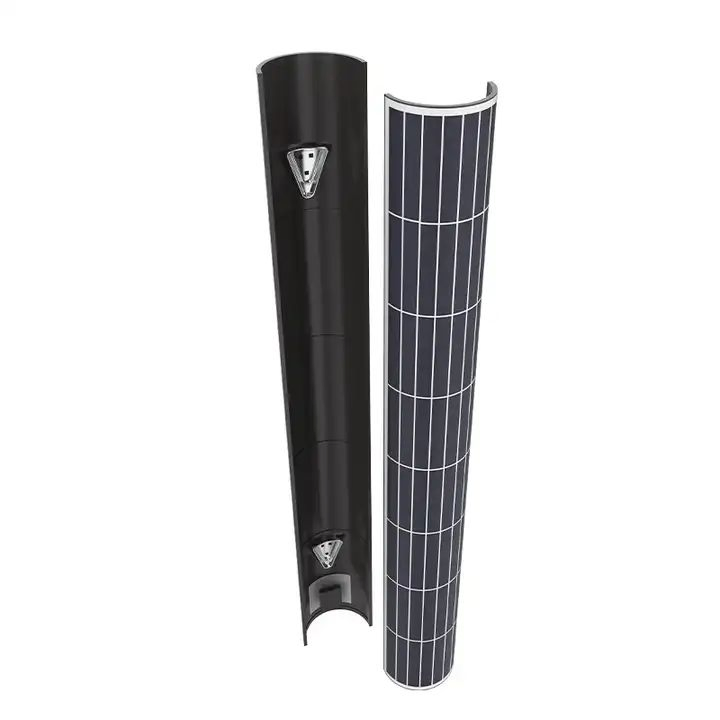

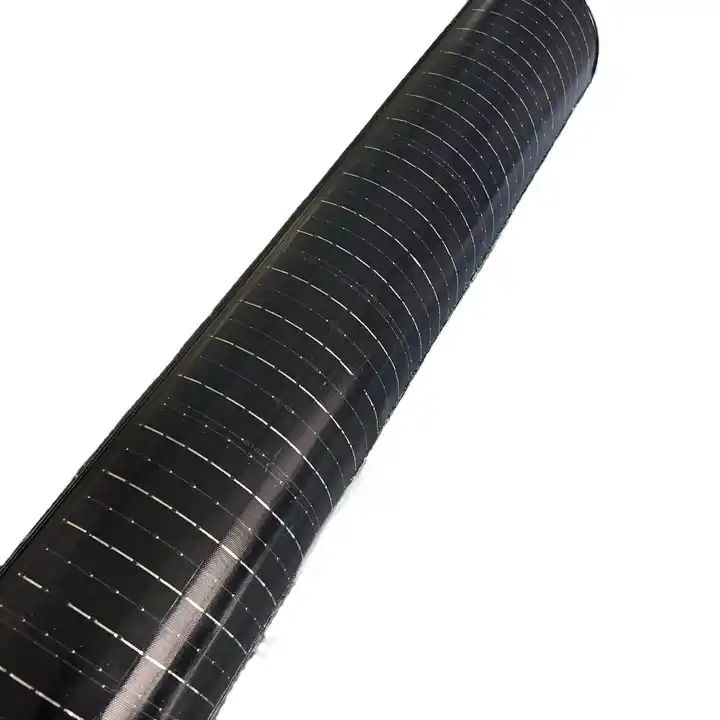

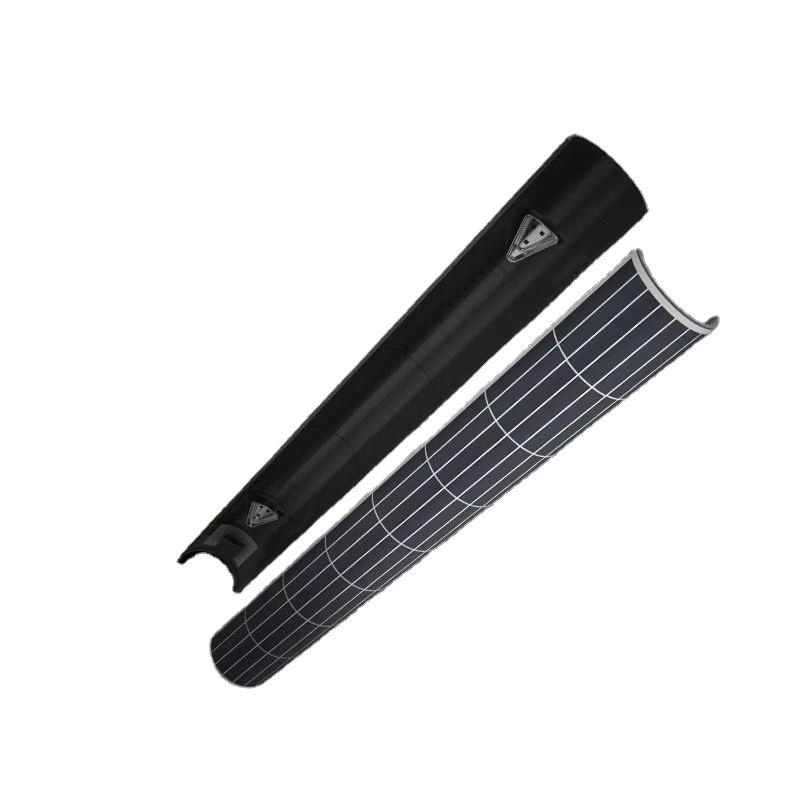

Curved Mono Crystalline Silicon Solar Street Lamp Panel 40W for Round Garden Light
Curved Mono Crystalline Silicon Solar Street Lamp Panel 40W for Round Garden Light
Curved Mono Crystalline Silicon Solar Street Lamp Panel 40W for Round Garden Light
Curved Mono Crystalline Silicon Solar Street Lamp Panel 40W for Round Garden Light
Curved Mono Crystalline Silicon Solar Street Lamp Panel 40W for Round Garden Light
1 / 5
Curved Mono Crystalline Silicon Solar Street Lamp Panel 40W for Round Garden Light
Curved Mono Crystalline Silicon Solar Street Lamp Panel 40W for Round Garden Light
Curved Mono Crystalline Silicon Solar Street Lamp Panel 40W for Round Garden Light
Curved Mono Crystalline Silicon Solar Street Lamp Panel 40W for Round Garden Light
Curved Mono Crystalline Silicon Solar Street Lamp Panel 40W for Round Garden Light

Curved Mono Crystalline Silicon Solar Street Lamp Panel 40W for Round Garden Light

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
HPS-tube solar 40w
Number of Cells
72pcs
Application
Light Industry
Condition
New
Certification
CE
Material
Monocrystalline Silicon
Product Name
Mono Crystalline Solar Panel
Frame
Anodized Aluminium Alloy
Panel Dimensions
40W
Panel Efficiency
20%
Type
Perc, Half Cell, All Black
OEM Order
Support
Voltage
18VDC
Transport Package
Pallet, Carton
Specification
1034*R67*9mm
Capacity
10000PCS/Week

Product Description

New design tube Mono solar panel 40w 18v for all in one solar street light using

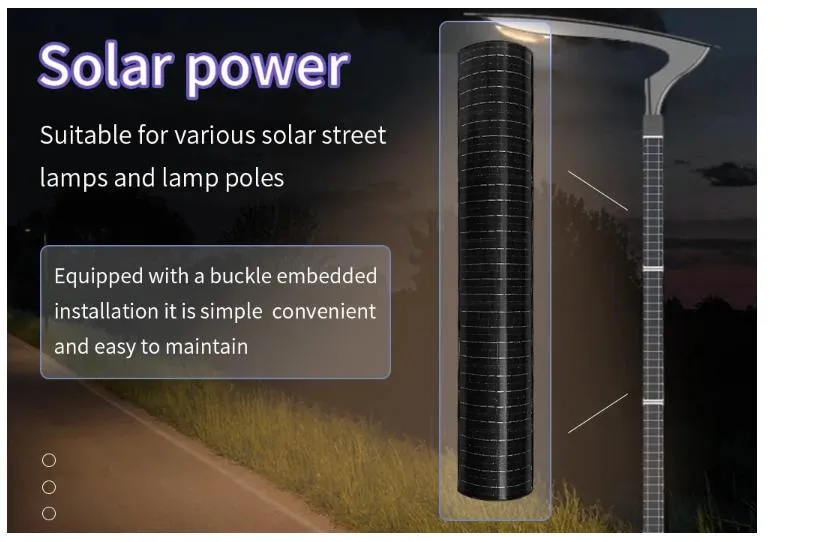

Solar Panel 40W
Solar Panel Design

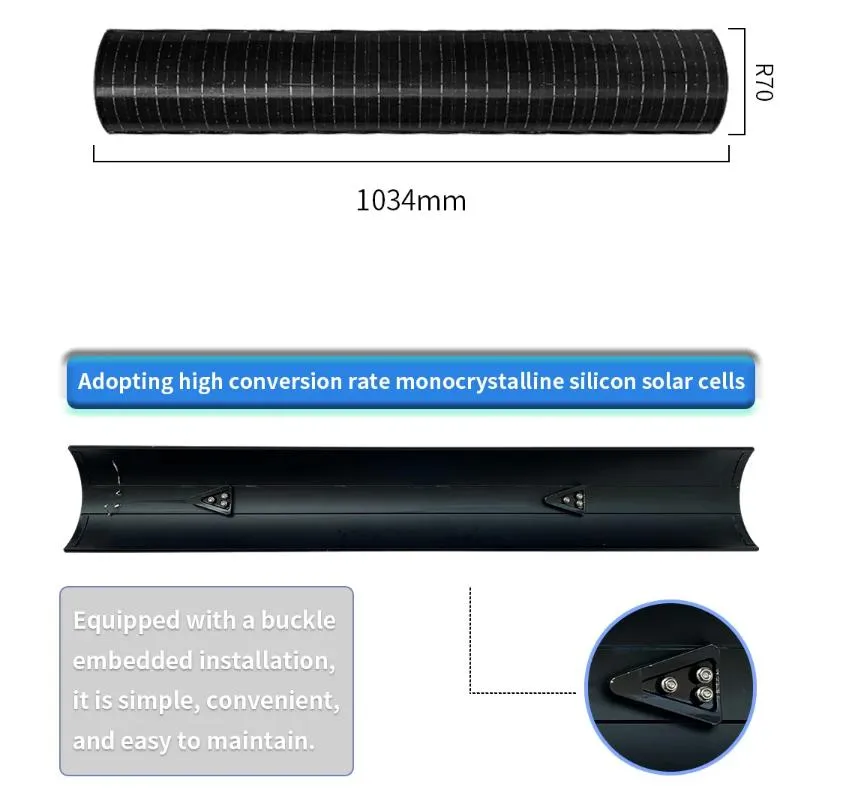

Solar Panel View
Key Features:
✓Positive Power Tolerance (0 ~ +5W) guaranteed
✓High module conversion efficiency (up to 21.7%)
✓Solar power degradation enabled by low LID Mono PERC technology: first year < 2%, 0.55% year 2-25
✓Solid PID resistance ensured by solar cell process optimization
✓Reduced resistive loss with lower operating current
✓Higher energy yield with lower operating temperature
✓Reduced hot spot risk with optimized electrical design

Mechanical Characteristics

Junction BoxIp65 rated
Operating Temperature- 40°C to +85°C
Maximum System Voltage1000VDC
WarrantyPm is not less than 90% in 10 years and 80% in 25 years
Resistances227g steel ball fall down from 1m height and 60m/s wind
Standard Test ConditionIrradiance 1000W/M², AM=1.5, Module temperature 25ºC
Noct48 ± 2ºC
Current Temperature Coefficient(0.05±0.01)%/K
Voltage Temperature Coefficient-(0.33±0.01)%/K
Power Temperature Coefficient-(0.42±0.05)%/K

Production Overview

Production Process
Factory View 1
Factory View 2
Quality Control
Storage

Packaging & Delivery

Package Size
104.00cm * 9.00cm * 3.00cm
Package Gross Weight
2.800kg

Frequently Asked Questions

When can I get the quotation?
We usually quote 24 hours after we get your inquiry. If you are very urgent to get the price, please notify us in your inquiry so that we will regard your inquiry priority.
How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality counter display. If you need the samples, we will charge for the sample Express fee, which may be refundable after order confirmation when your quantity meets the MOQ.
Can you do the design for us?
Yes. We have a professional team with rich experience in design and manufacturing. Just share your ideas and we will help carry them out. You can send us high-resolution images, logos, and text for arrangement.
How long can I expect to get the samples?
After you pay the sample charge and send confirmation files, the samples will be ready for delivery in 3-7 days. You can use your own express account or prepay the service.
What about the lead time for mass production?
It depends on the order quantity and the season. The lead time of MOQ is about 10 to 15 days. Generally, we suggest starting inquiries two months before you need the products.
What is your terms of delivery?
We accept EXW, FOB, C&F and CIF, etc. You can choose the one which is the most convenient or cost-effective for you.
