Trina Solar Panel 720W I Topcon Solar Panels with Marine Grade Protection for Seaside Installations
Trina Solar Panel 720W I Topcon Solar Panels with Marine Grade Protection for Seaside Installations
Trina Solar Panel 720W I Topcon Solar Panels with Marine Grade Protection for Seaside Installations
Trina Solar Panel 720W I Topcon Solar Panels with Marine Grade Protection for Seaside Installations
Trina Solar Panel 720W I Topcon Solar Panels with Marine Grade Protection for Seaside Installations
1 / 5
Trina Solar Panel 720W I Topcon Solar Panels with Marine Grade Protection for Seaside Installations
Trina Solar Panel 720W I Topcon Solar Panels with Marine Grade Protection for Seaside Installations
Trina Solar Panel 720W I Topcon Solar Panels with Marine Grade Protection for Seaside Installations
Trina Solar Panel 720W I Topcon Solar Panels with Marine Grade Protection for Seaside Installations
Trina Solar Panel 720W I Topcon Solar Panels with Marine Grade Protection for Seaside Installations

Trina Solar Panel 720W I Topcon Solar Panels with Marine Grade Protection for Seaside Installations

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

i

Basic Information

Model NO.
TSM-NEG21C. 20
Number of Cells
132
Cell Type
N-Type Mono-Crystalline
Application
Industrial
Certification
EST, ISO, CB, CE
Material
Monocrystalline Silicon
Weight
38.3kgs
Frame
Anodized Aluminium Alloy
Junction Box
IP68 Rated
Specification
2384*1303*33mm
P

Product Description

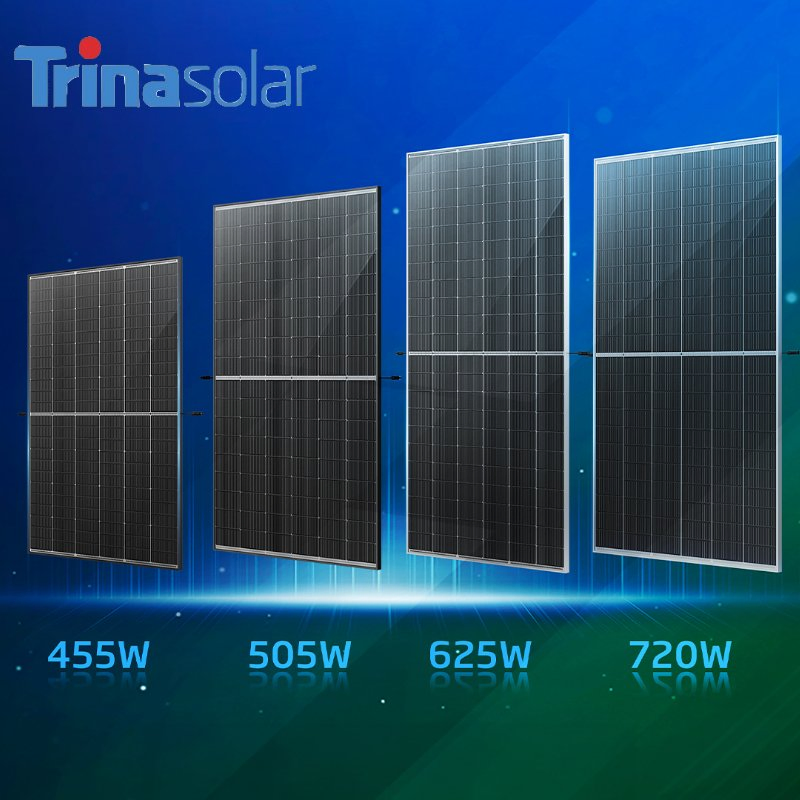

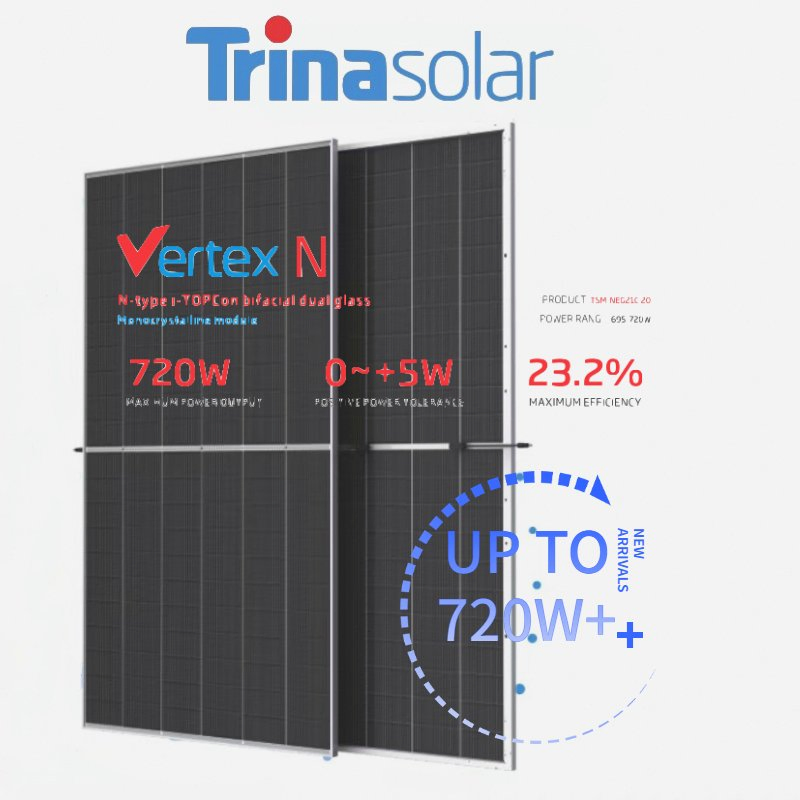

Trina Solar Panel 720W

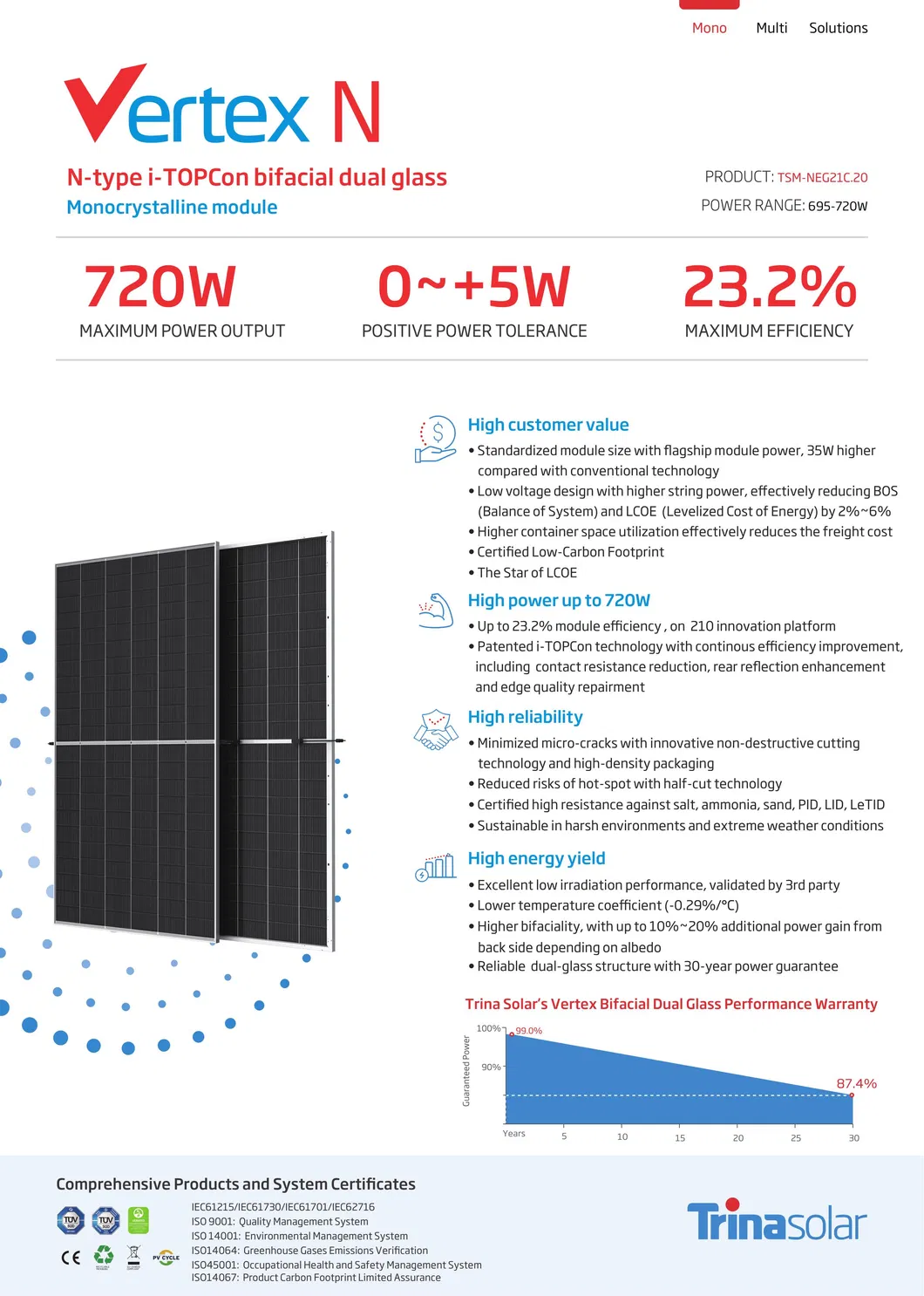

Topcon Solar Panels Specification

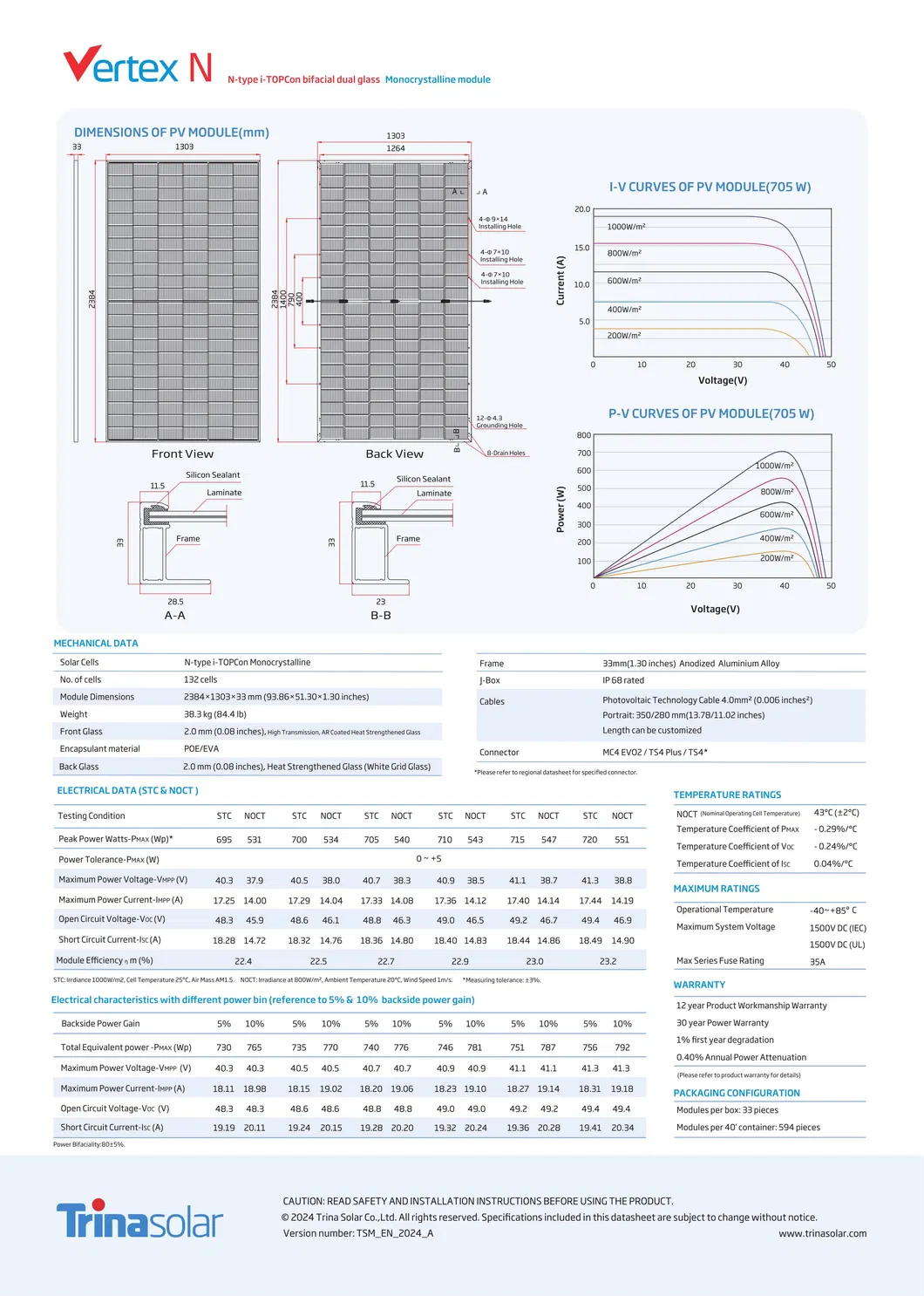

Marine Grade Protection
S

Specifications (STC)

Maximum Power - Pmax [Wp] 695 700 705 710 715 720
Maximum Power Voltage - Vmp [V] 40.30 40.50 40.70 40.90 41.10 41.30
Maximum Power Current - Imp [A] 17.25 17.29 17.33 17.36 17.40 17.44
Open-circuit Voltage - Voc [V] 48.30 48.60 48.80 49.00 49.20 49.40
Short-circuit Current - Isc [A] 18.28 18.32 18.36 18.40 18.44 18.49
Module Efficiency STC [%] 22.4 22.5 22.7 22.9 23 23.2
C

Certifications & Projects

Certification

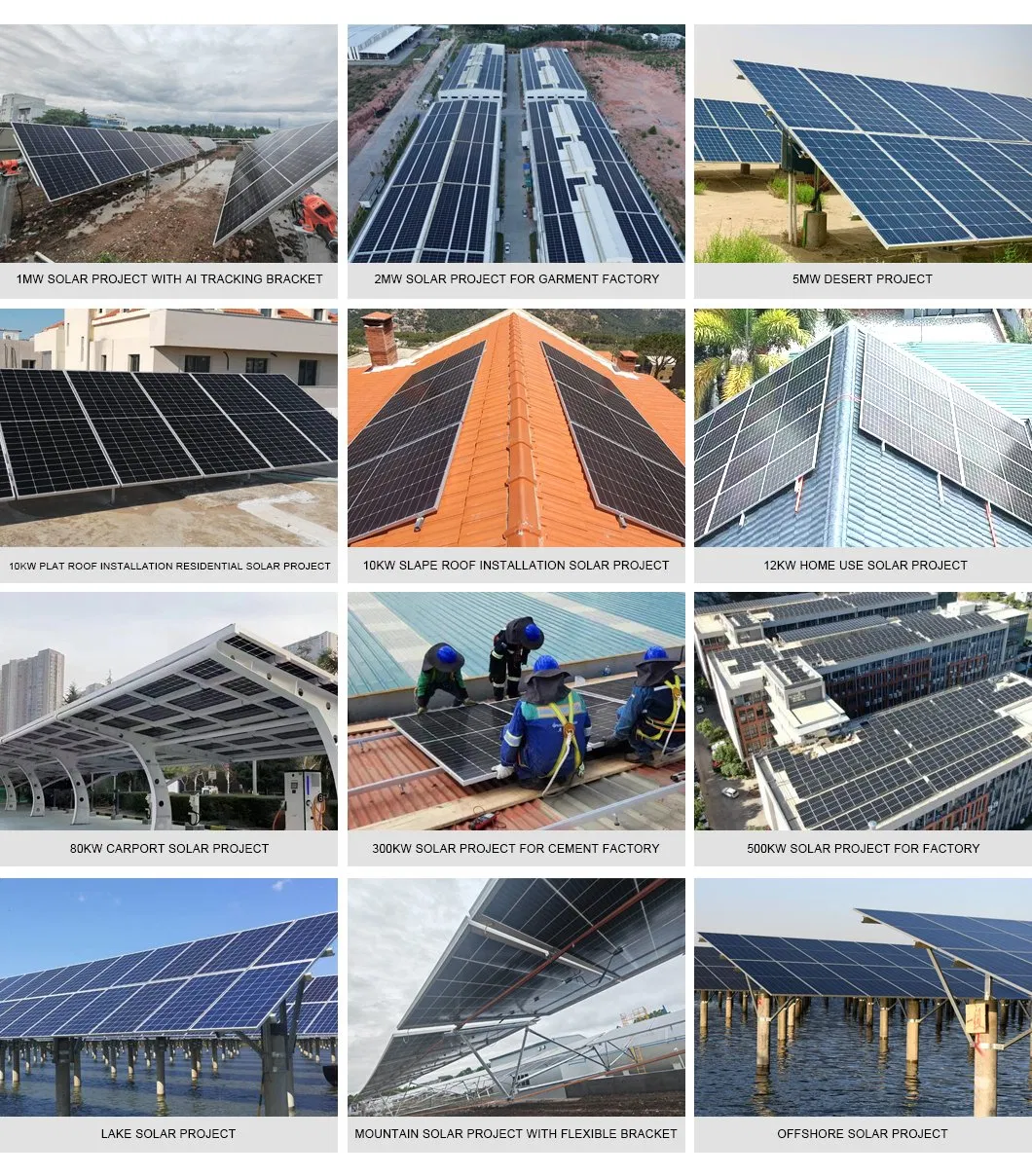

Project Case
W

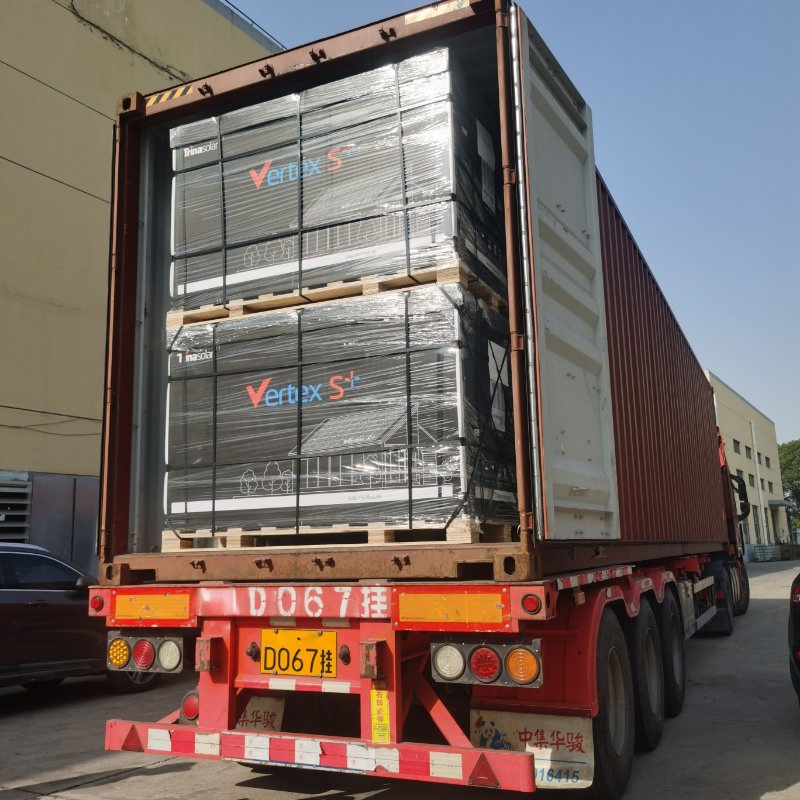

Warehouse & Logistics

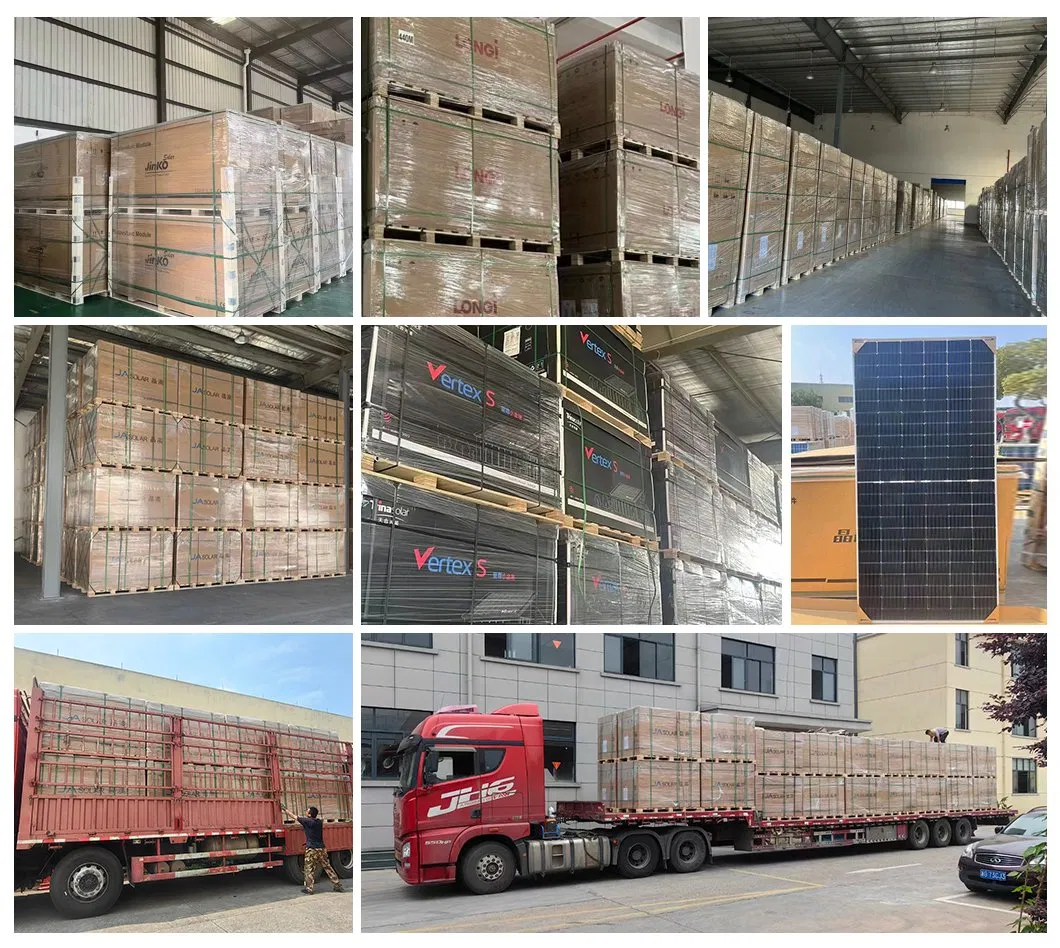

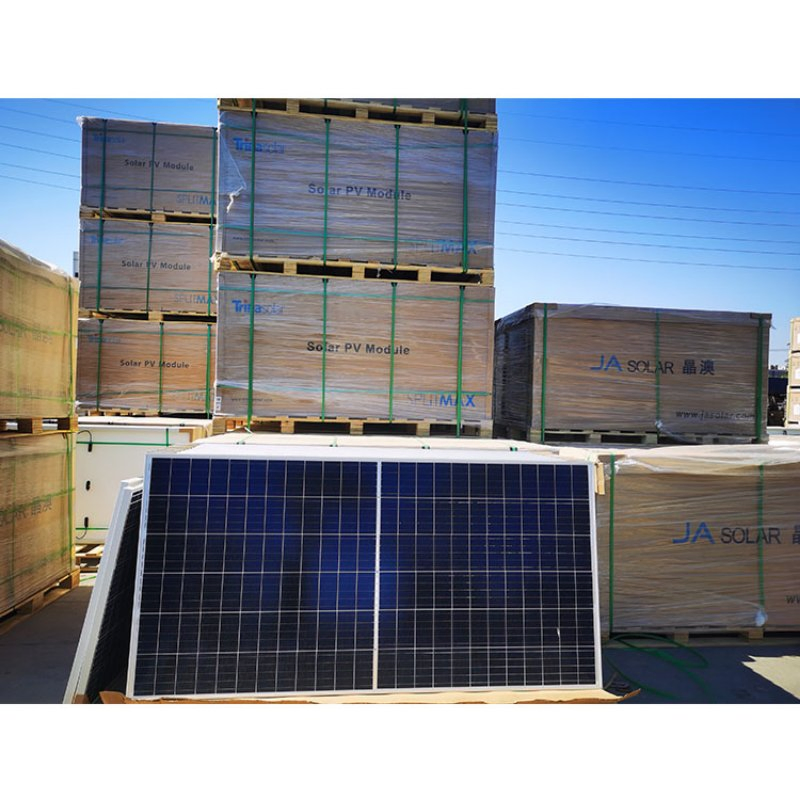

Warehouse Show
Packing Detail
33 pcs/pallets, 594 pcs/ 40'HQ Container
Package Size
240.00cm * 132.00cm * 110.00cm
A

About Us

Workplace
Being deeply engaged in foreign trade for 39 years, the company grows in step with global economic integration. We specialize in five main categories, including mechanical equipment, instruments, and new energy products. We export solar panels, systems, and energy storage solutions globally. With Authorized Economic Operator (AEO) certification and a high-rated tax credit status, we maintain deep cooperation with top Tier 1 solar brands.
?

Frequently Asked Questions

Q: What's your main products?
A: Solar Panels in different Tier 1 Brand; Solar Inverters (On Grid / Off Grid / Hybrid); Rack / Stack / Wall Mounted Lithium Batteries; Solar energy storage battery; ESS Stockage; Solar Energy System For Residential and Commercial Use.
Q: What's the delivery time?
A: Generally within 7-15 days, it will vary based on different products. Please kindly check with our customer service for details; we will arrange it for you as soon as possible.
Q: What kind of payment terms are acceptable?
A: We are flexible with payment conditions, it depends on your specific requirements and order scale.
Q: What are the advantages of your company?
A: We have our own factory and deep cooperation with world-leading brands such as Longi, JA Solar, Jinko, Trina Solar, Growatt, etc., to provide customers with competitive prices and diverse choices.
Q: How can I get quick technical support?
A: You can contact us online, and our professional sales and technical teams will reply within 10 minutes.
Q: Are the solar panels customizable?
A: Yes, aspects such as output cable length and certain specifications can be customized based on your project needs.
