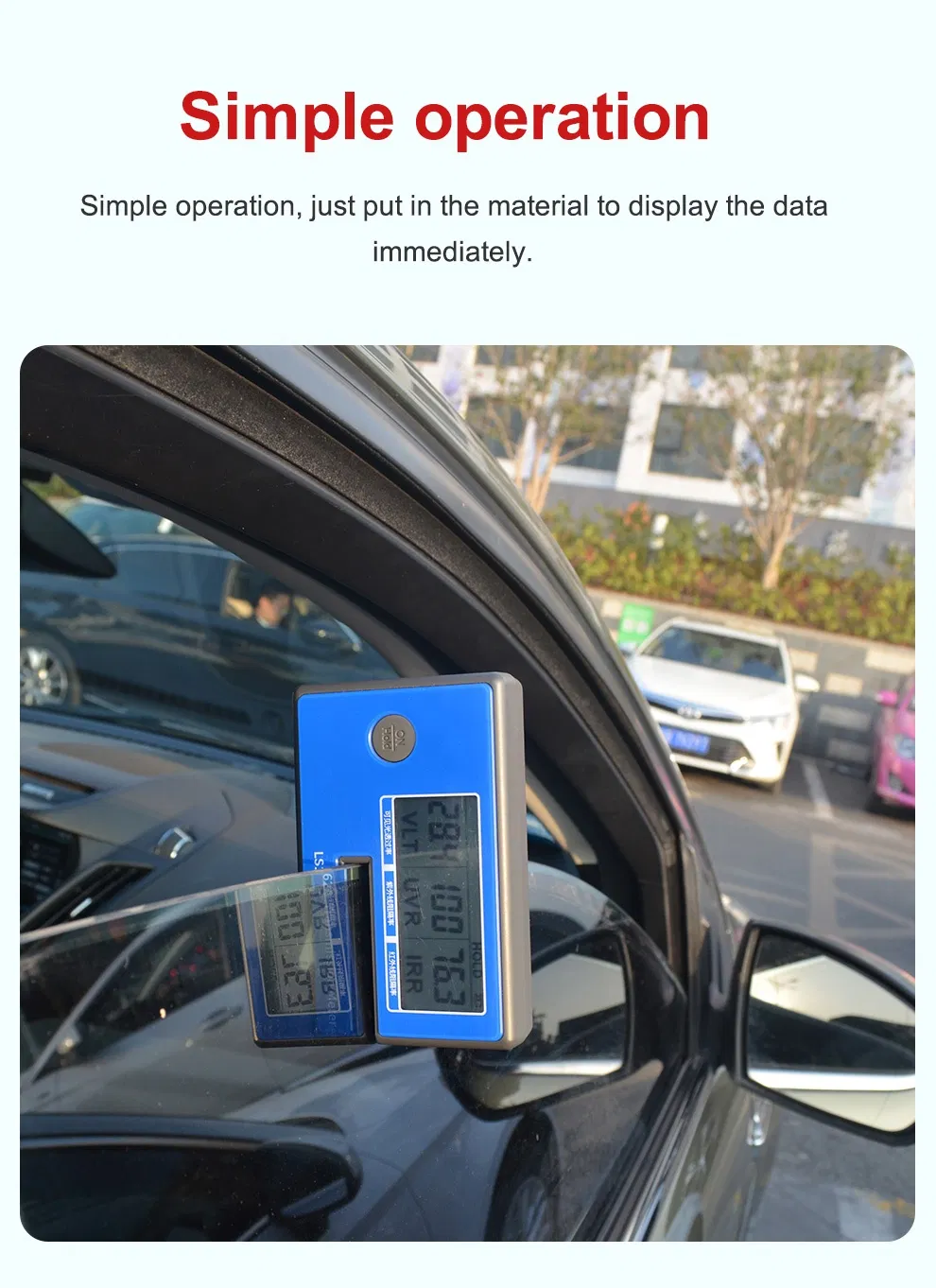

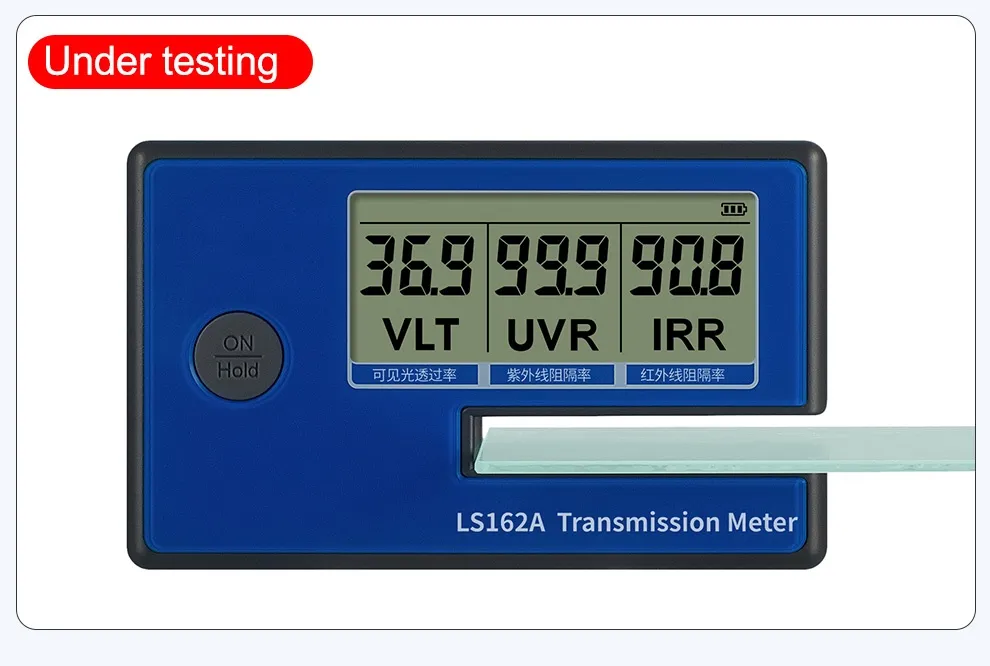

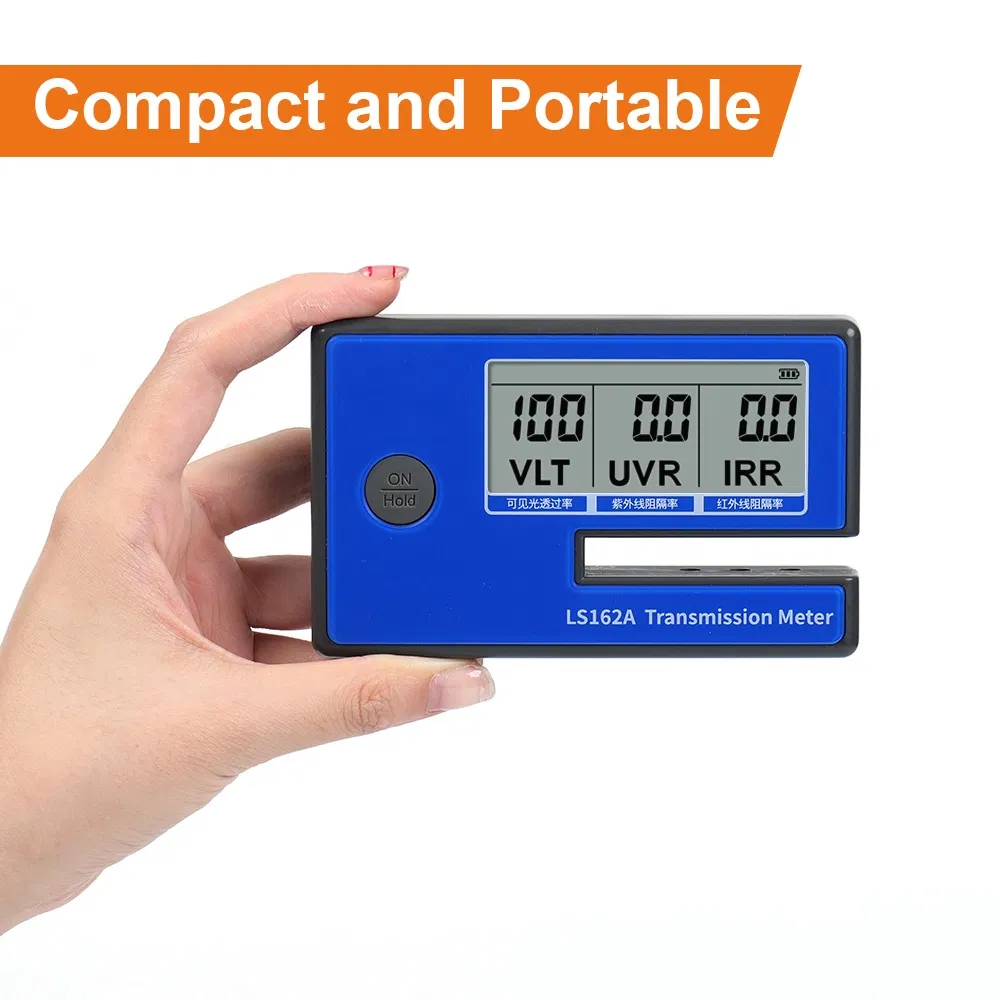

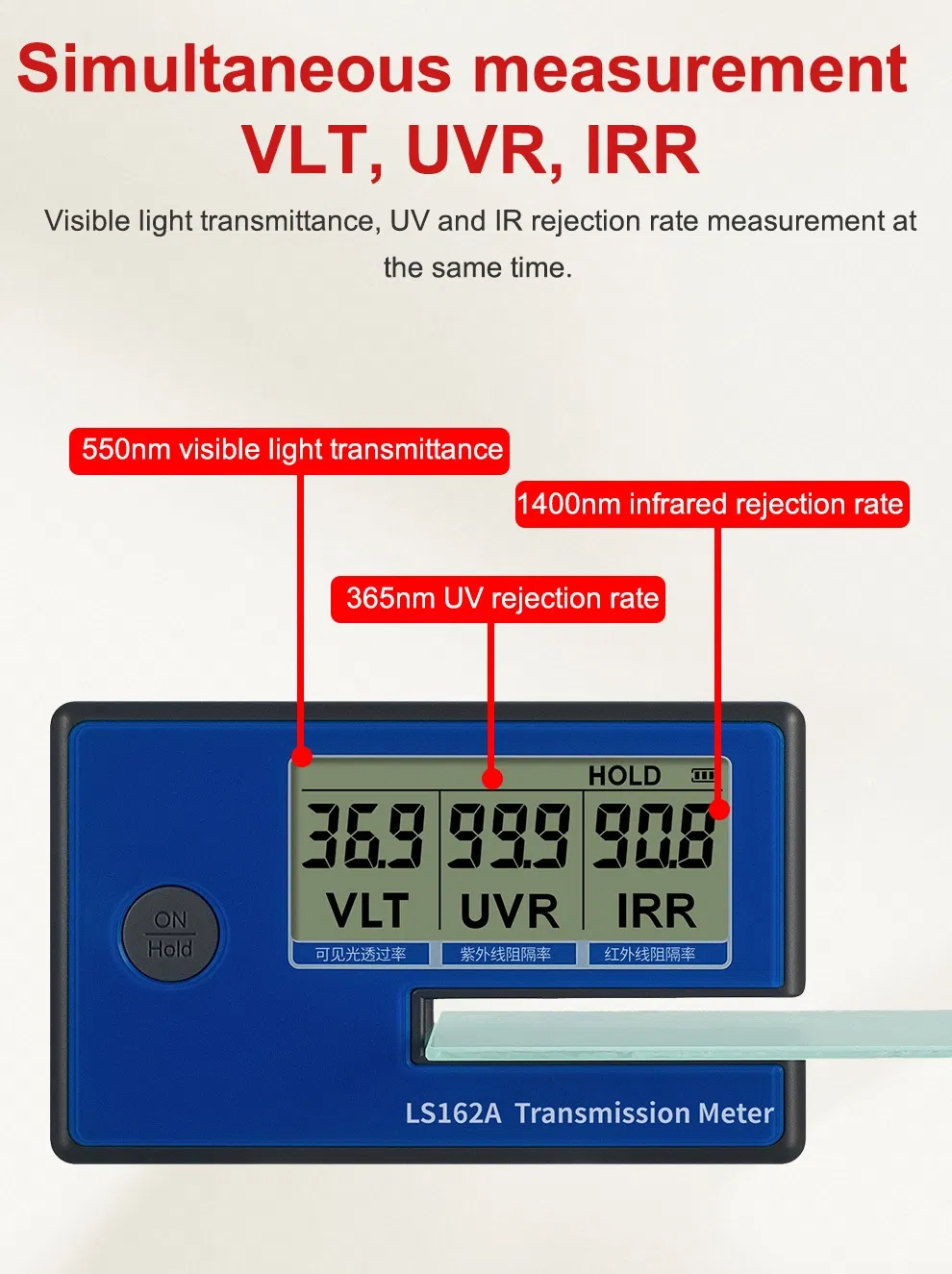

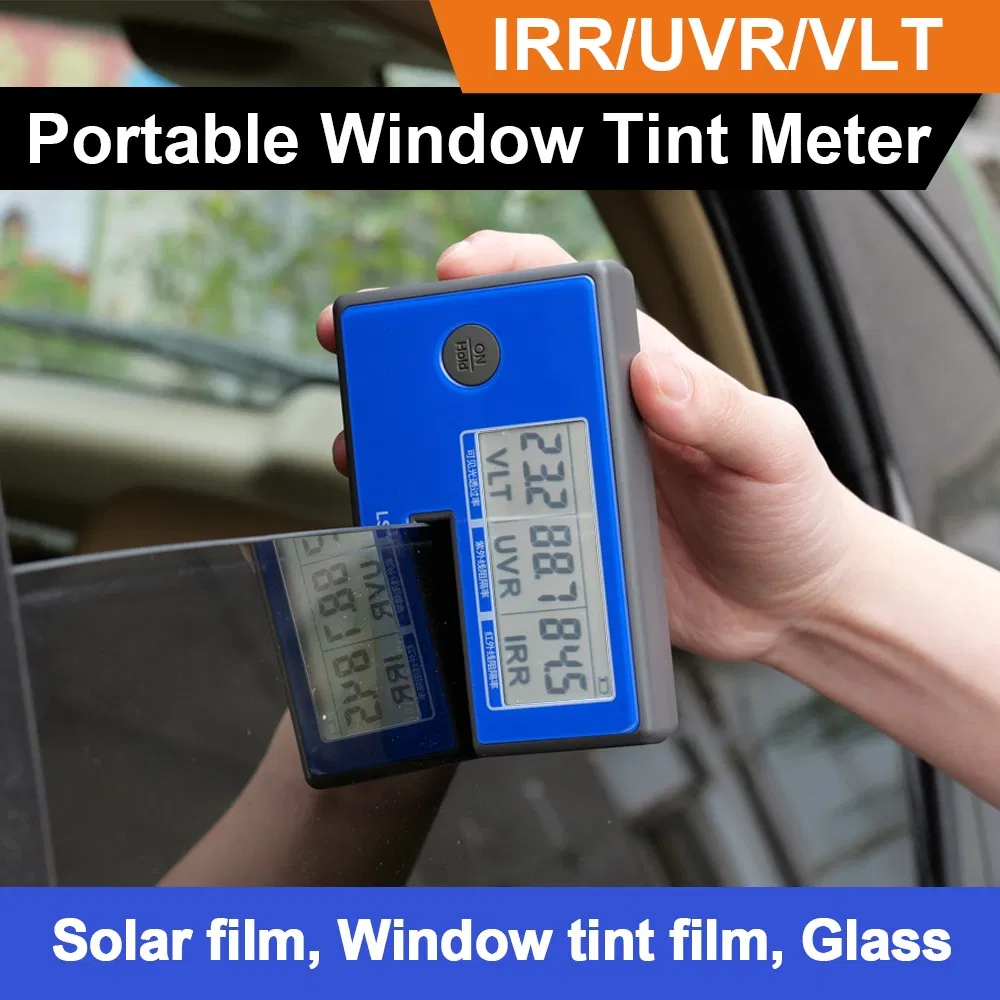

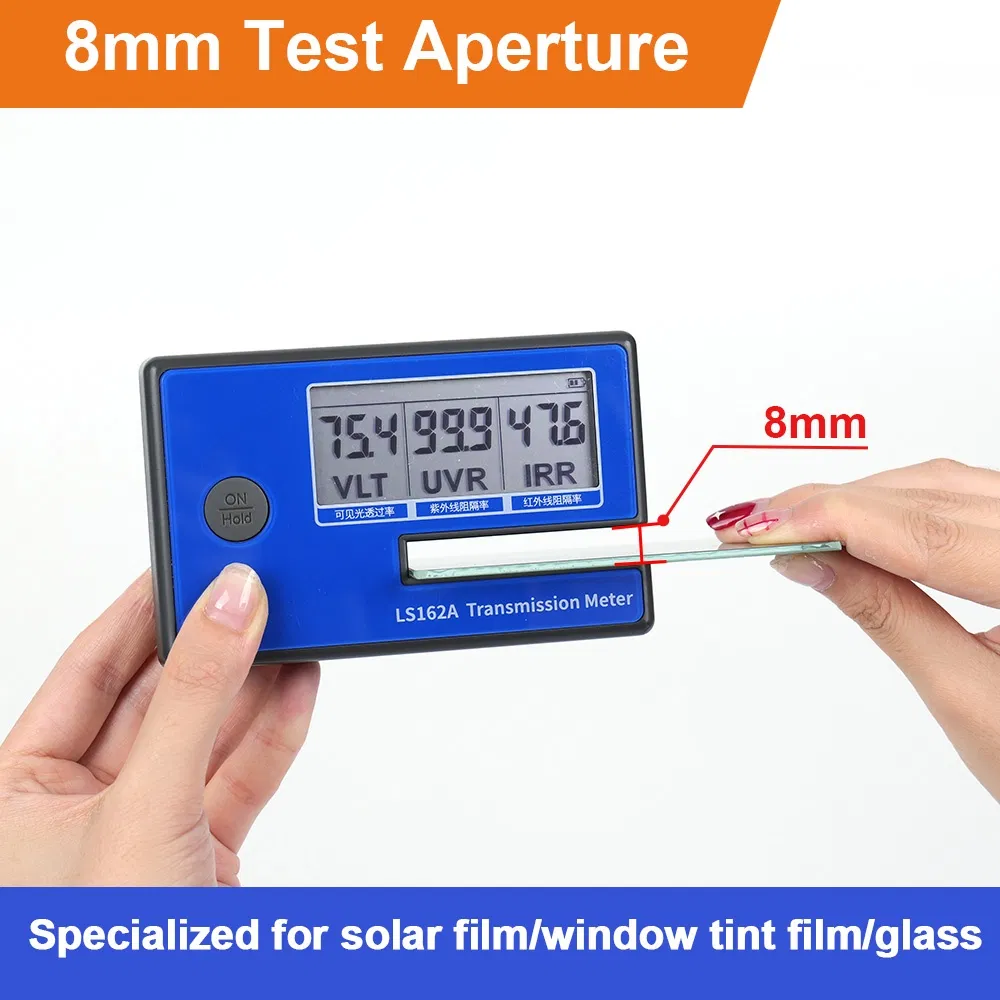

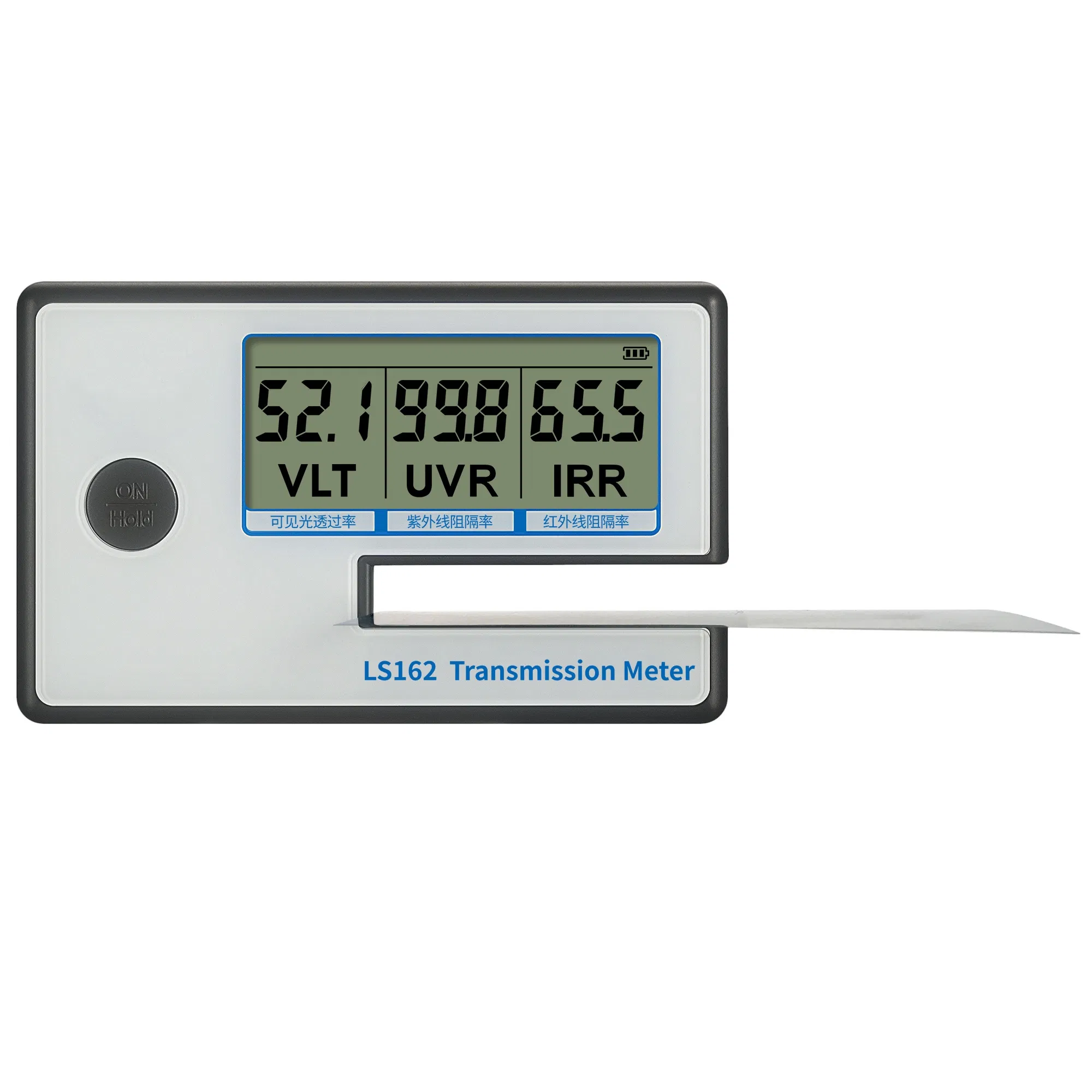

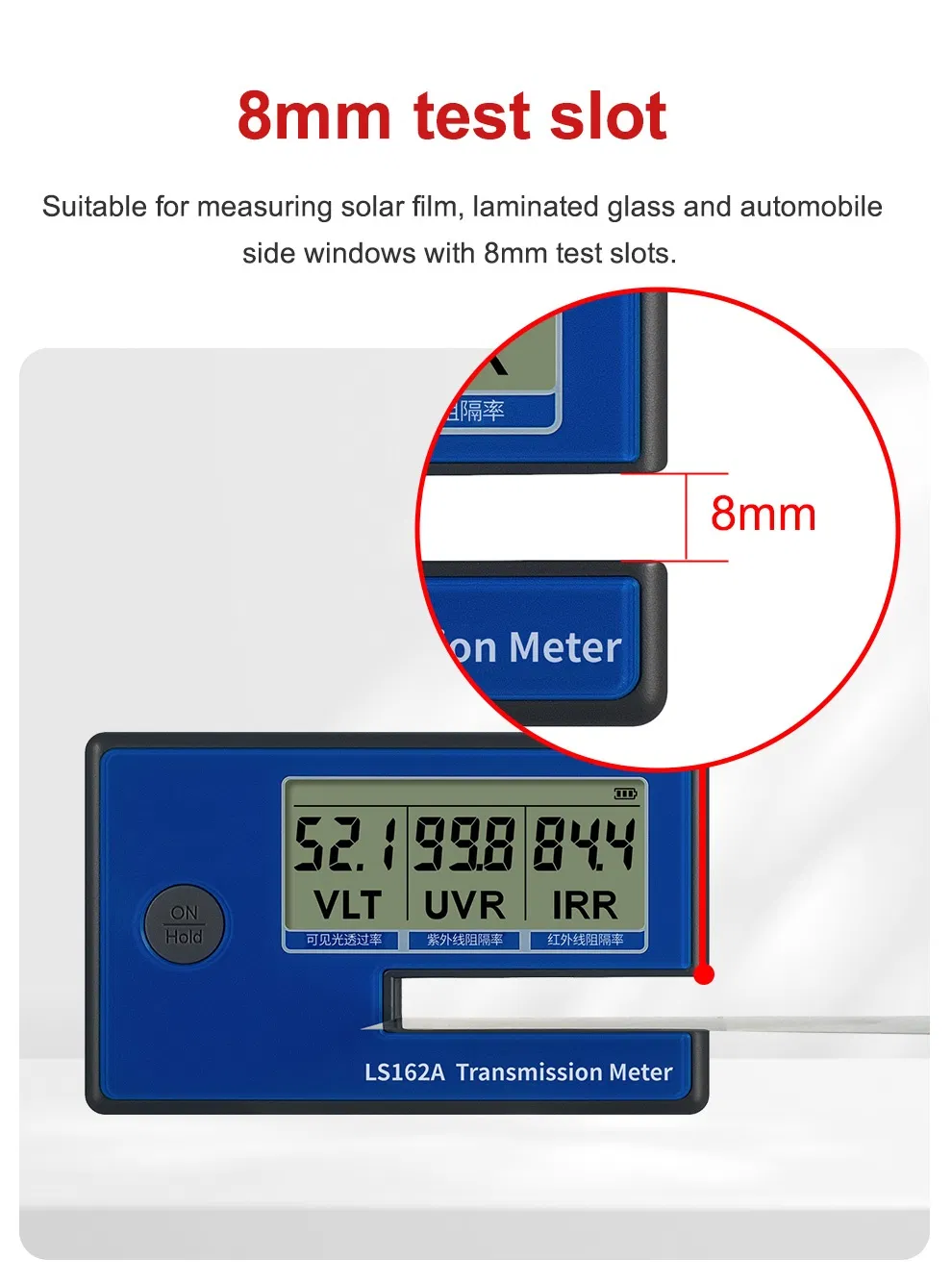

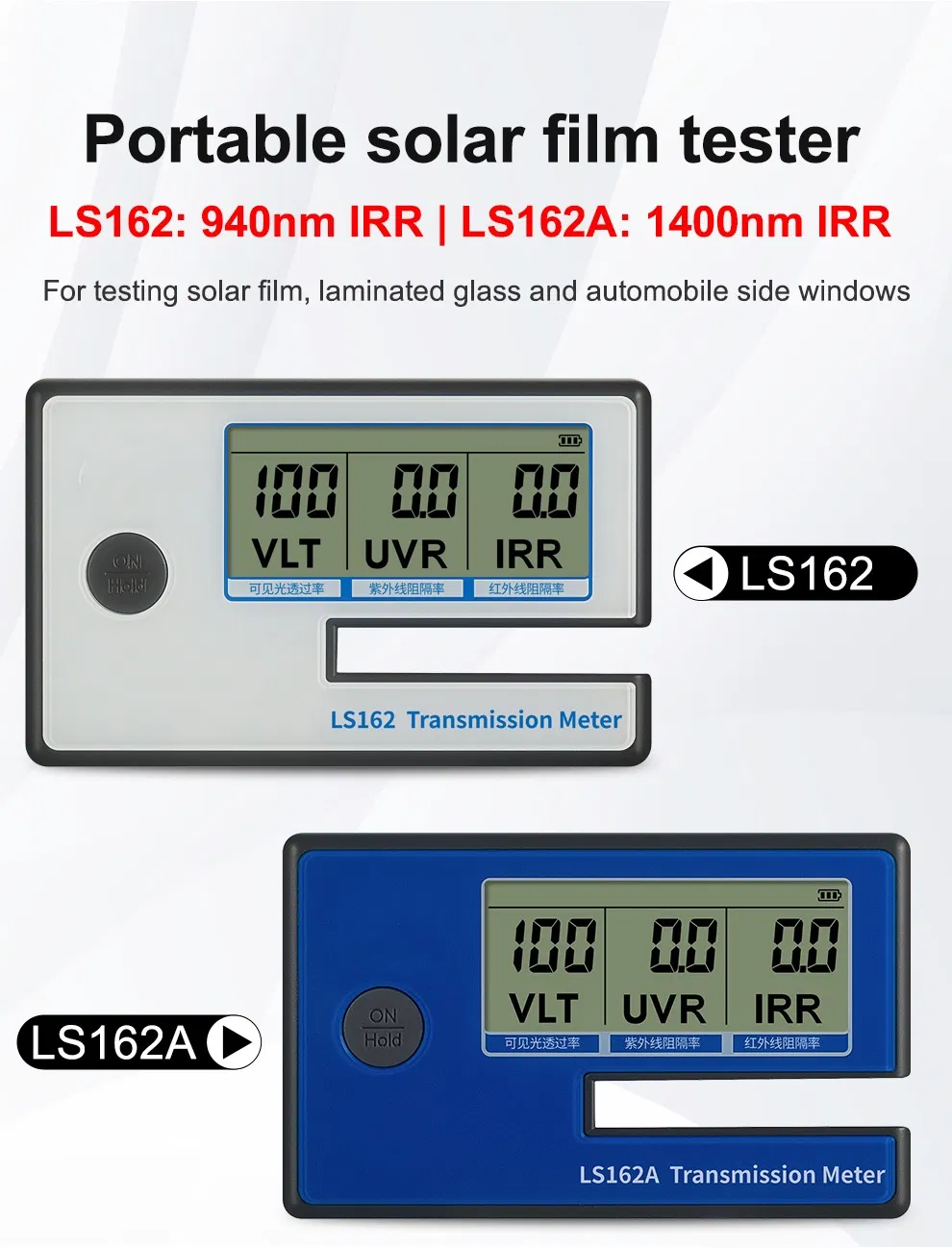

The LS162/LS162A window film tester is designed to measure light transmittance, UV rejection, and IR rejection (940nm or 1400nm) of various materials. Its compact, pocket-sized design makes it highly portable and easy to carry. Featuring an 8mm test slot and simple one-button operation, it is ideal for testing laminated glass and solar films.

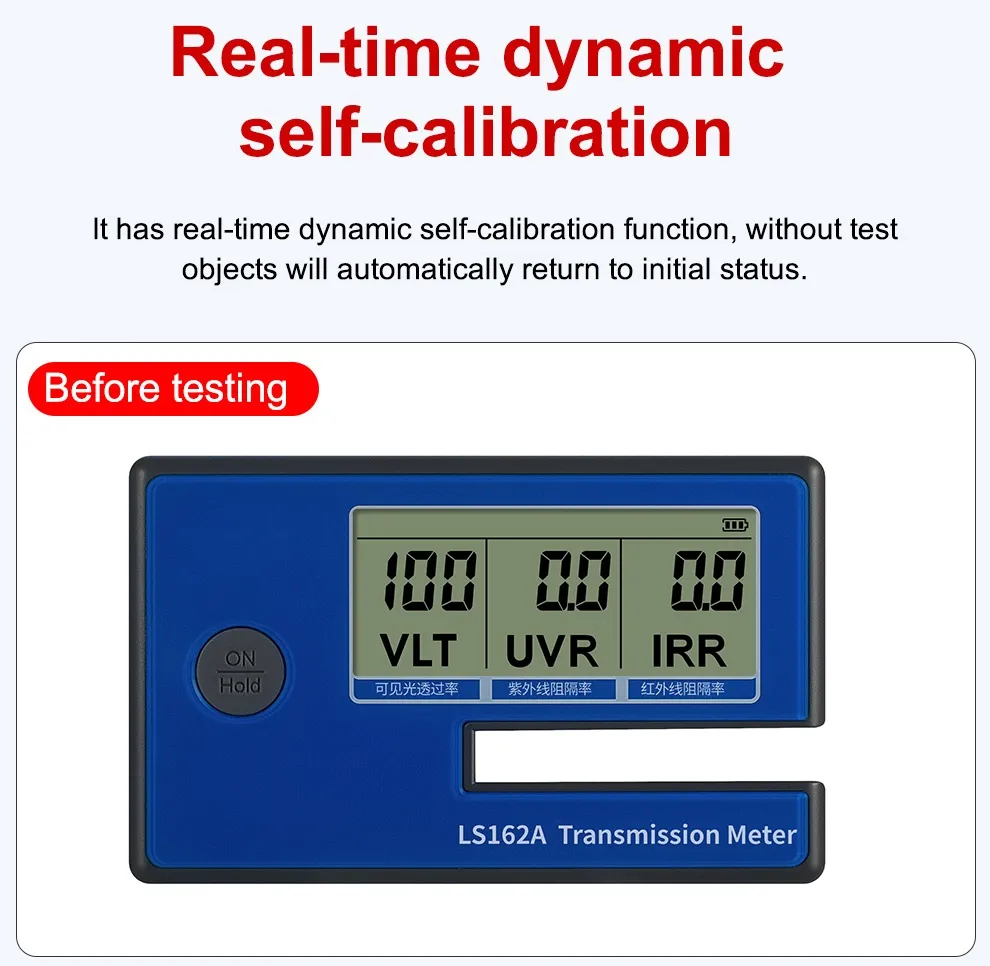

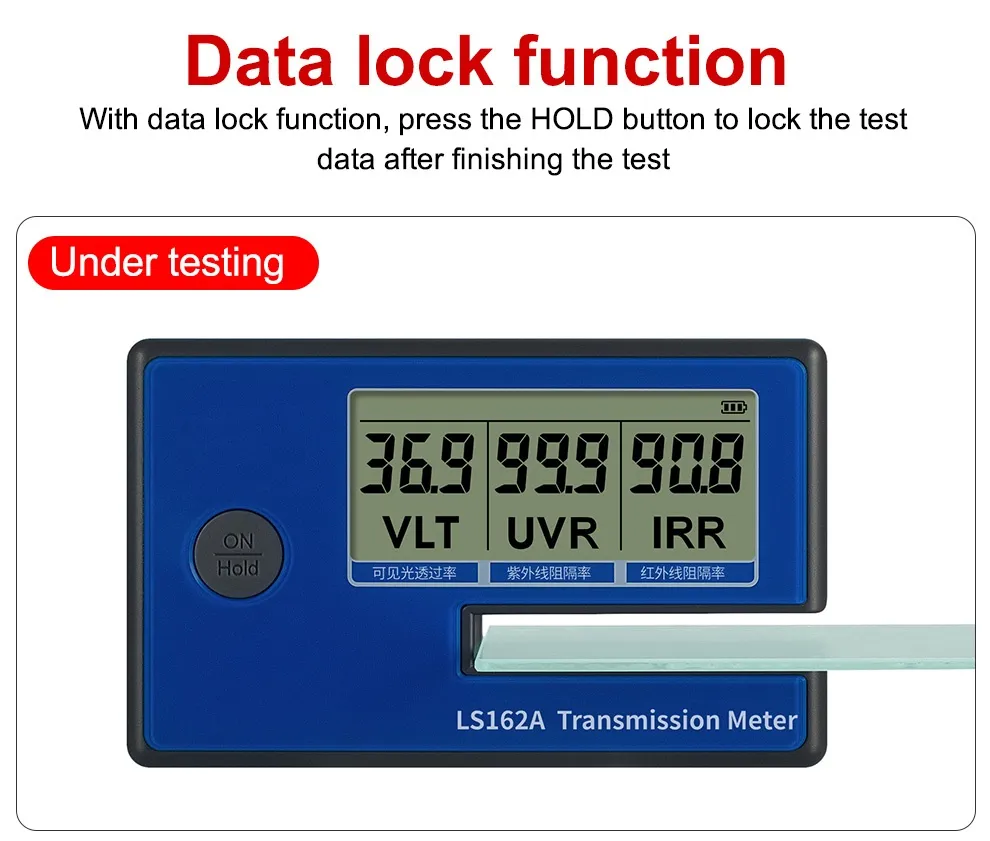

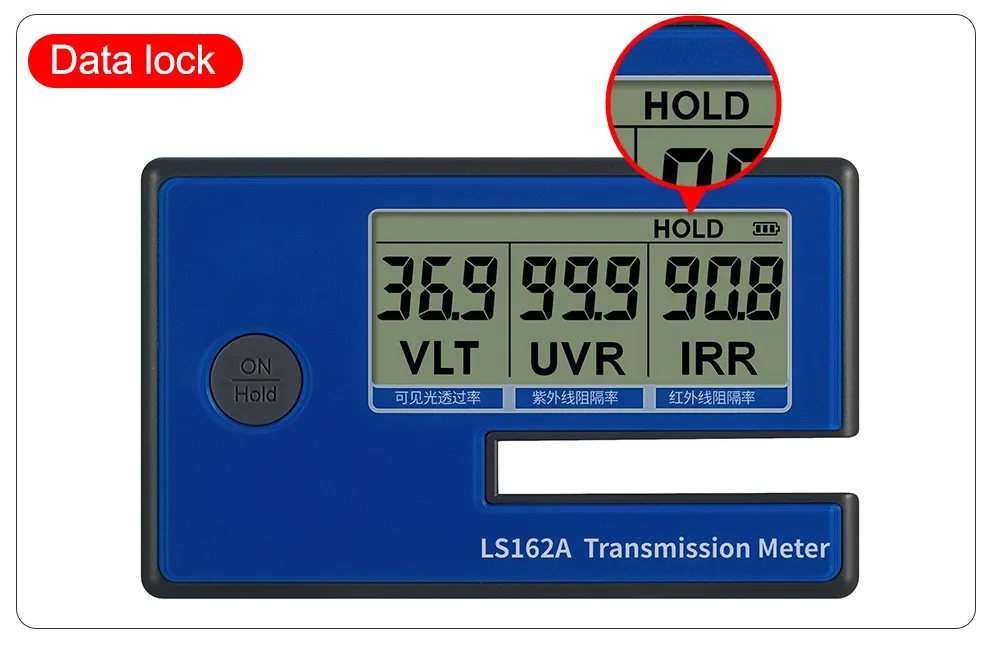

Equipped with a real-time dynamic self-calibration function, the device ensures consistent data accuracy. The integrated data lock (HOLD) function allows users to freeze the measurement results on the display for easy recording after testing.
| Parameter | LS162 | LS162A |
|---|---|---|
| UV Peak Wavelength | 365nm | 365nm |

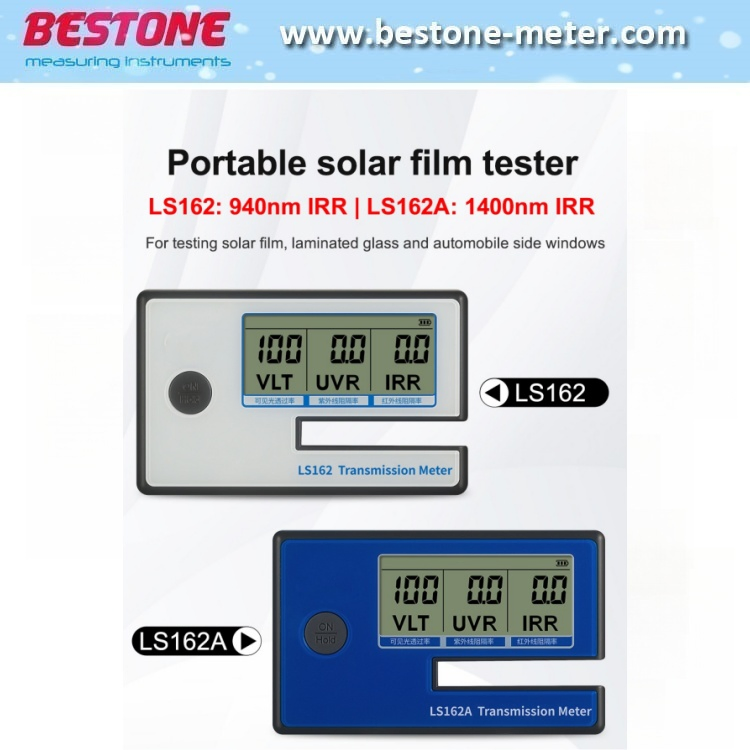

| IR Peak Wavelength | 940nm | 1400nm |
| Visible Light | 380nm-760nm full wavelength (CIE photopic luminosity) | |
| Resolution | 0.1% | |
| Accuracy | ±2% (colorless transparent material) | |
| Max Sample Thickness | <8mm | |

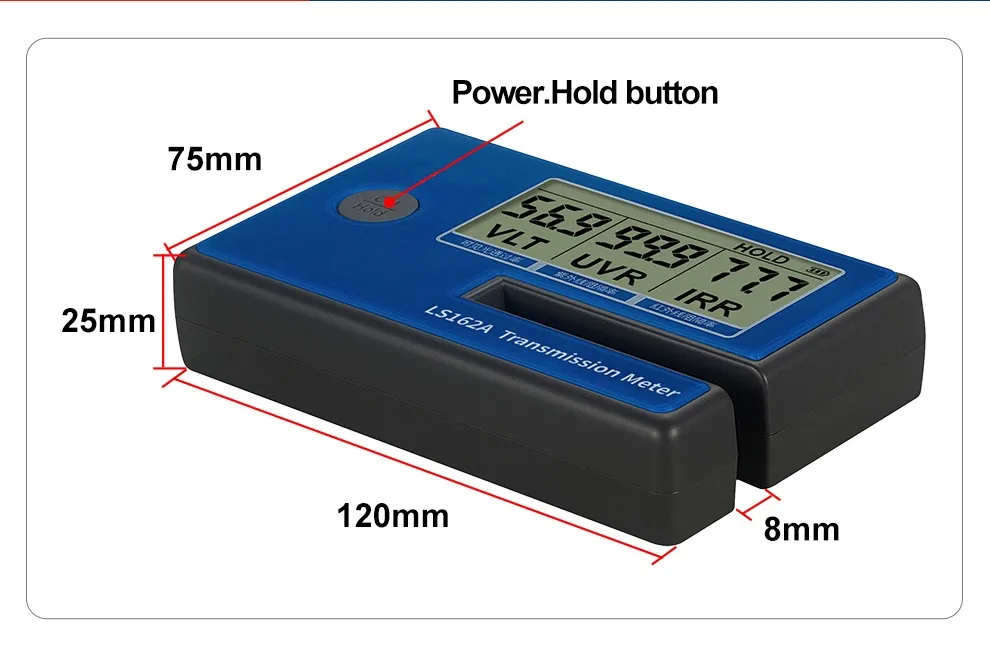

| Dimensions | 120mm × 25mm × 75mm | |
| Weight | Approx. 165g (batteries excluded) | |

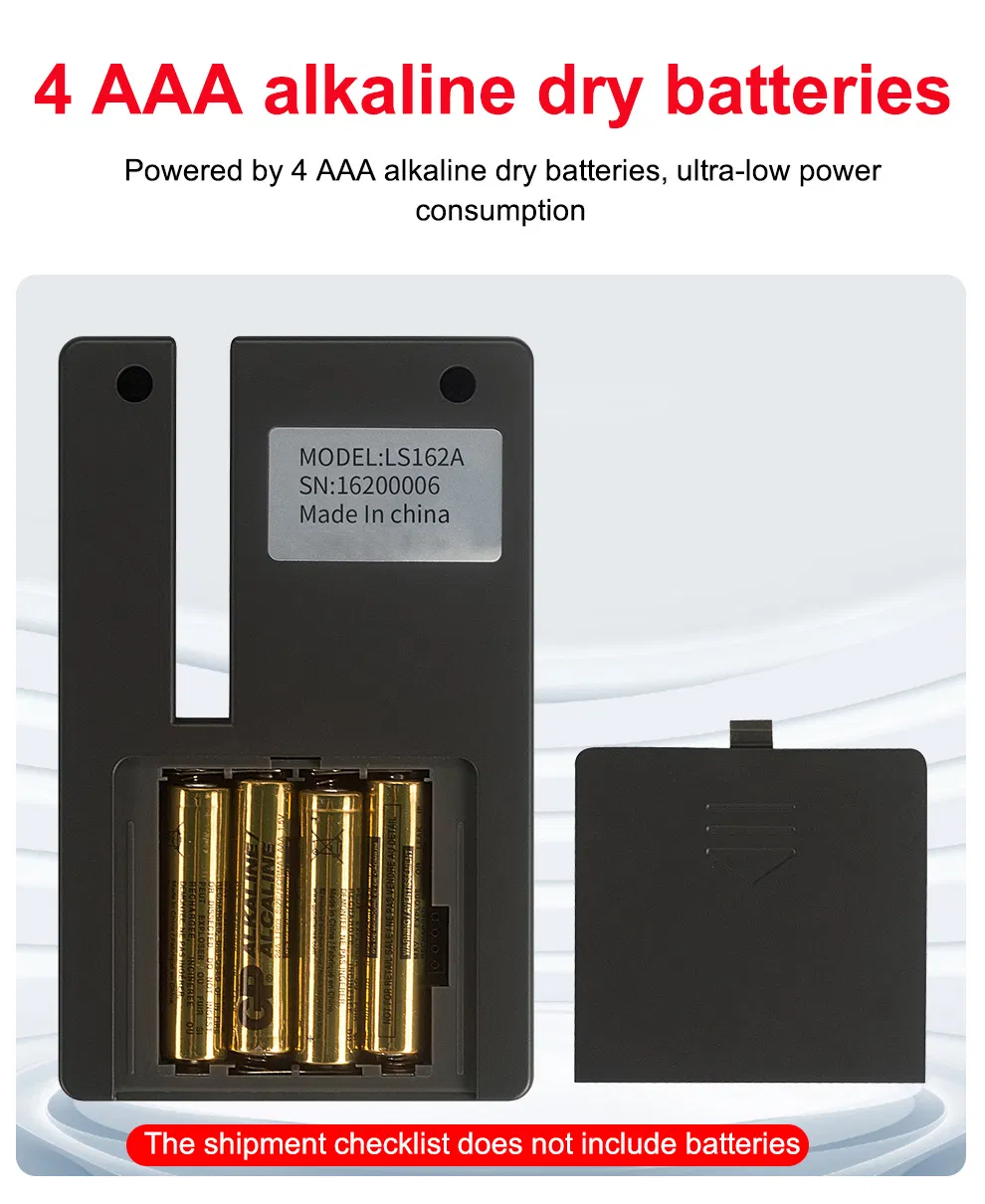

| Power Supply | 4 AAA alkaline dry batteries | |
