Ls160 Ls160A IR UV Rejection Portable Window Film Tint Checker Transmission Meter Solar Film Tester Window Tint Meter

1 / 5

Ls160 Ls160A IR UV Rejection Portable Window Film Tint Checker Transmission Meter Solar Film Tester Window Tint Meter

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

LS160 LS160A

IR for Ls160

Peak Wavelength 940nm

IR for Ls160A

Peak Wavelength 1400nm

UV Peak

365nm

Resolution

0.1%

Accuracy

±2% (Colorless/Transparent)

Test Slot Width

<0.8mm

Dimensions

16*9*5 cm

Product Description

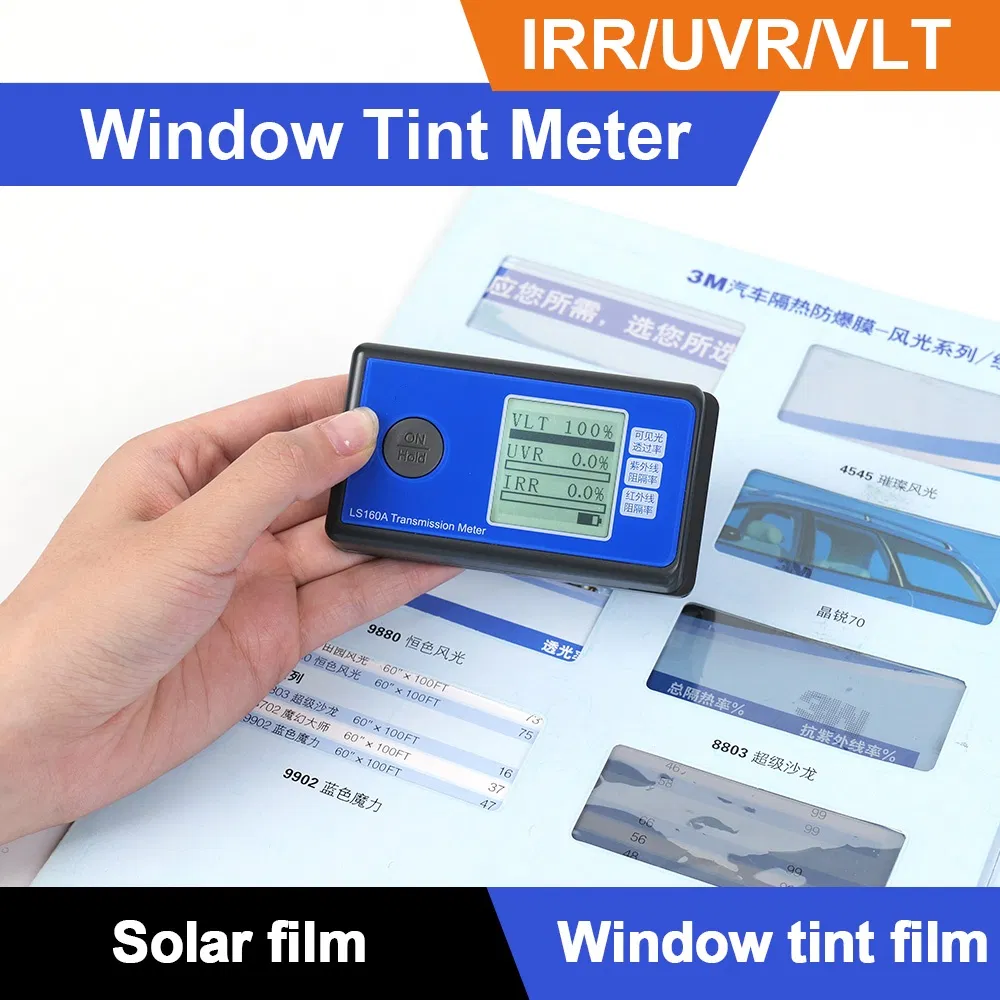

LS160/LS160A window tint meters measure the light transmittance of all kinds of solar film, architectural film, heat-insulating film, and heat-insulating coatings. These devices can test 530nm visible light transmittance, UV rejection, and 940nm/1400nm infrared rejection simultaneously. Compact and portable, these transmission meters feature real-time dynamic calibration, performing self-calibration automatically when no test object is present to ensure high accuracy. They also include a data lock function for convenient result checking and are fully CE certified.

Key Features

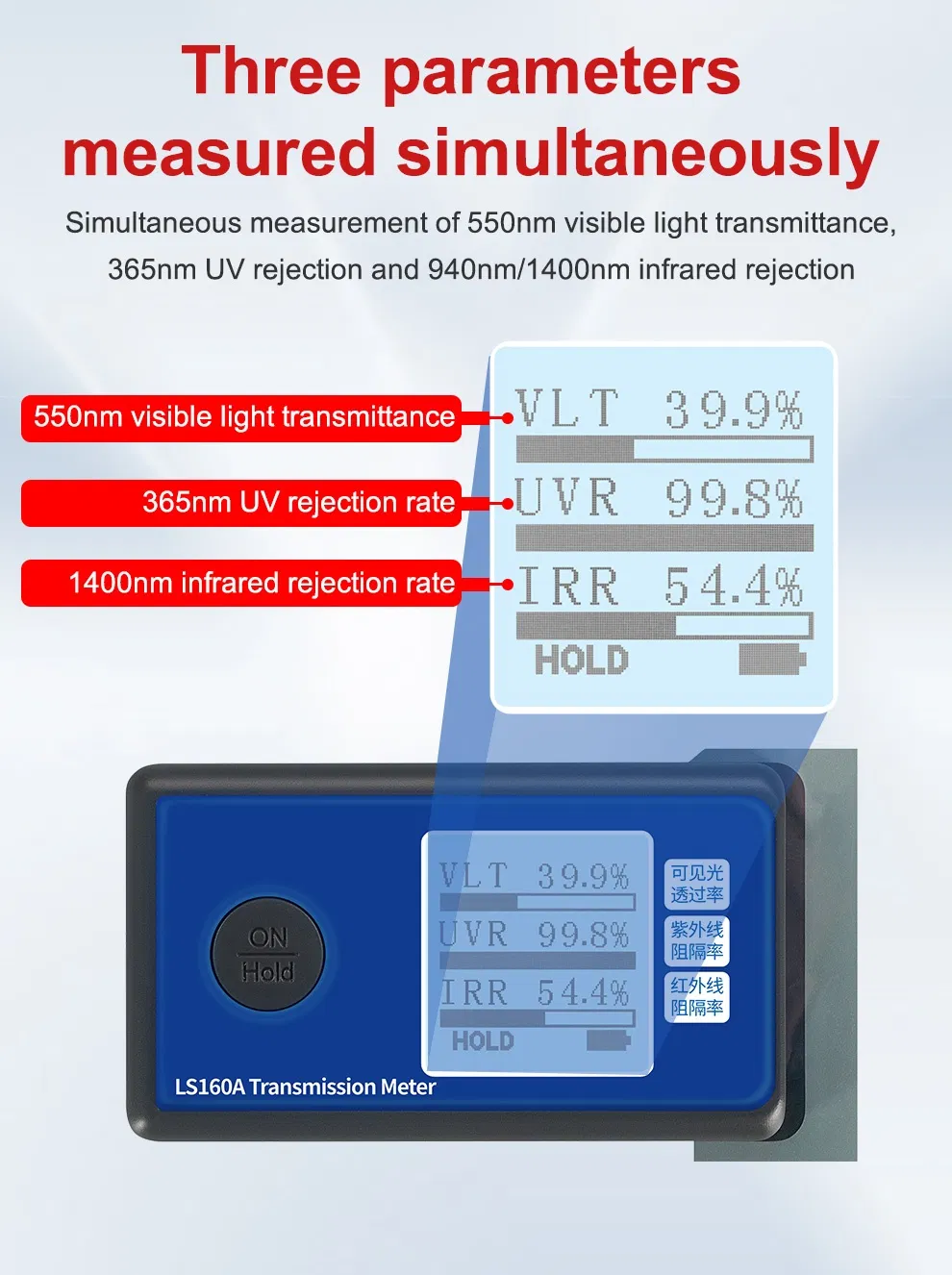

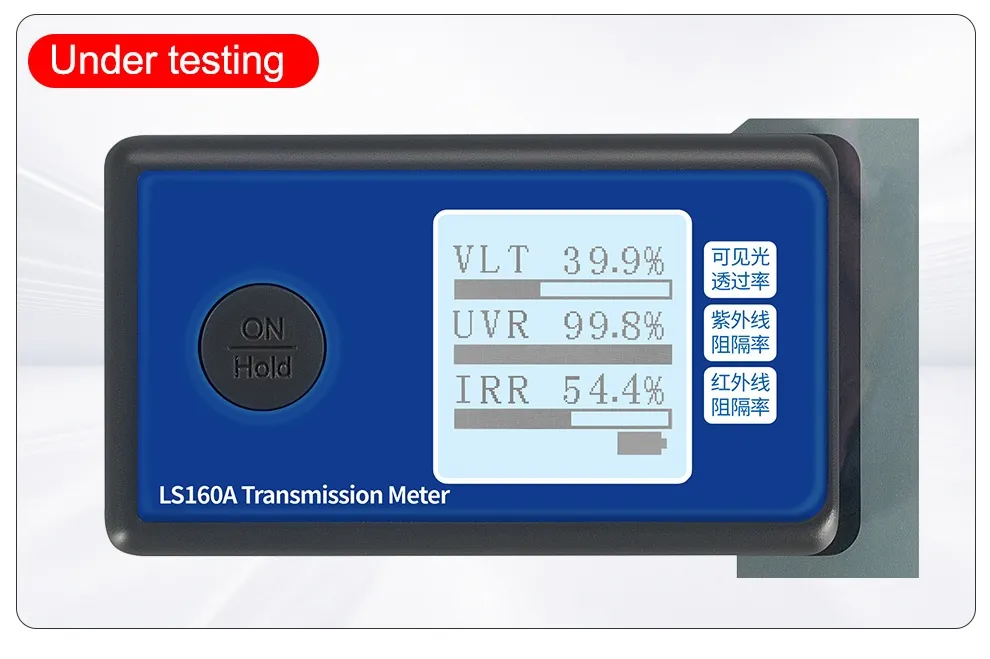

Simultaneous measurement of visible light transmittance, UV rejection, and infrared rejection.
Ultra-compact design for easy portability and field testing.

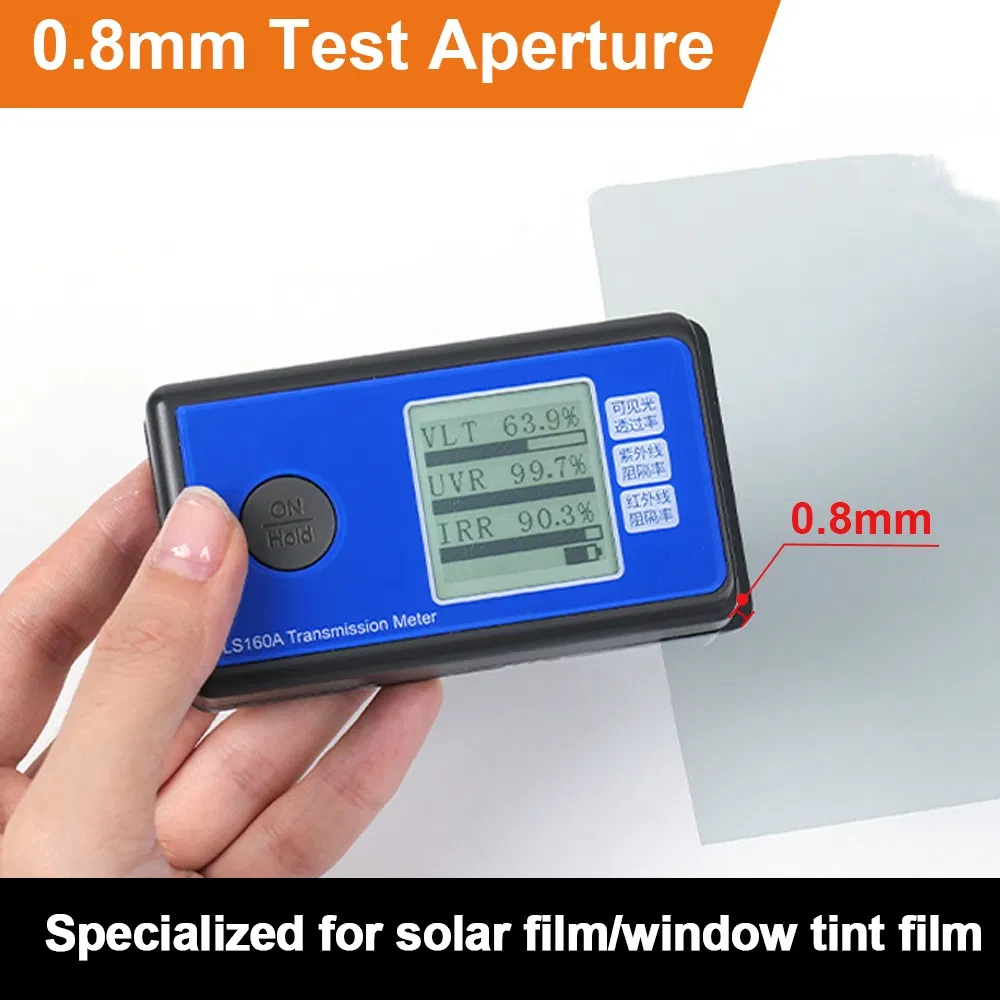

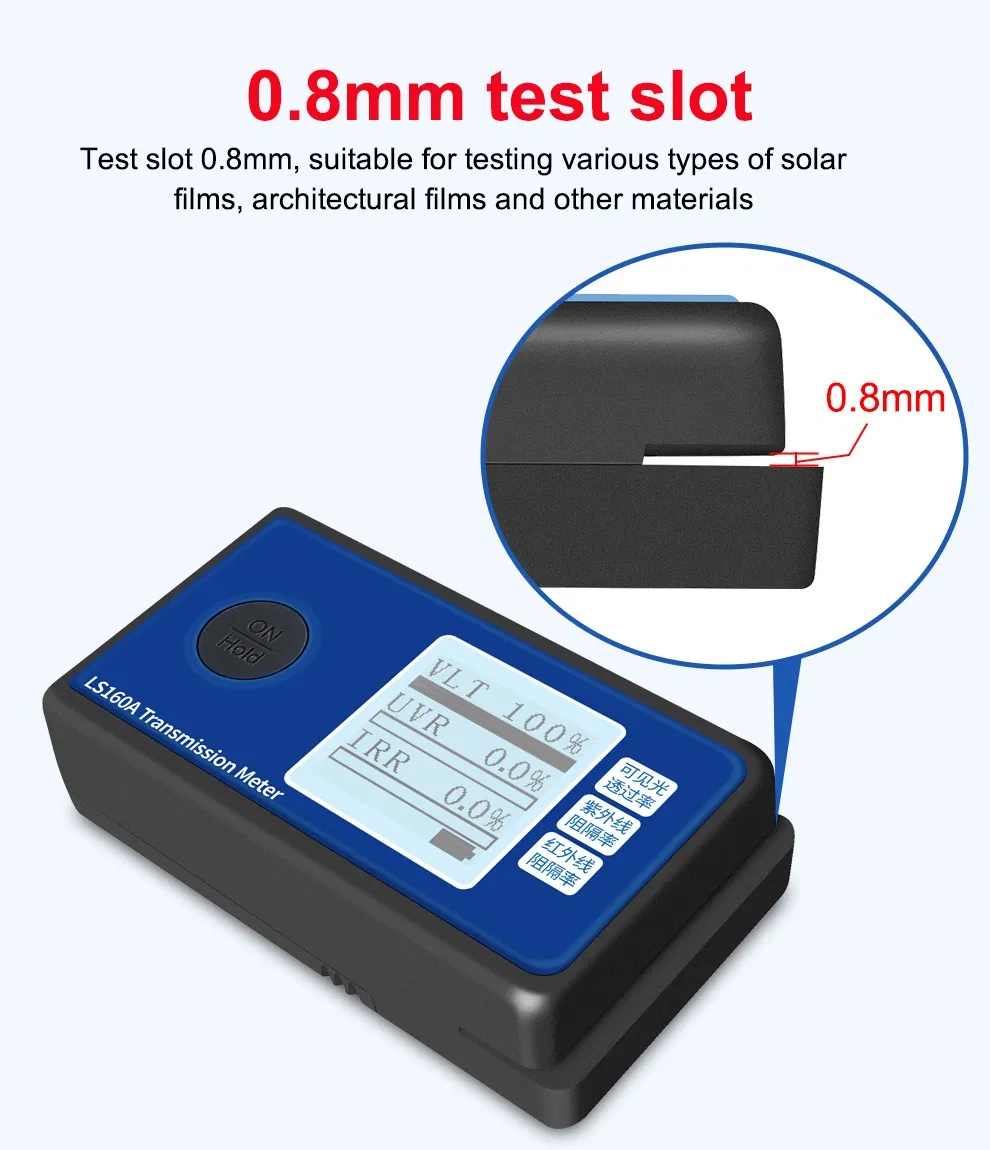

0.8mm test slot, ideal for various solar films and thin architectural materials.

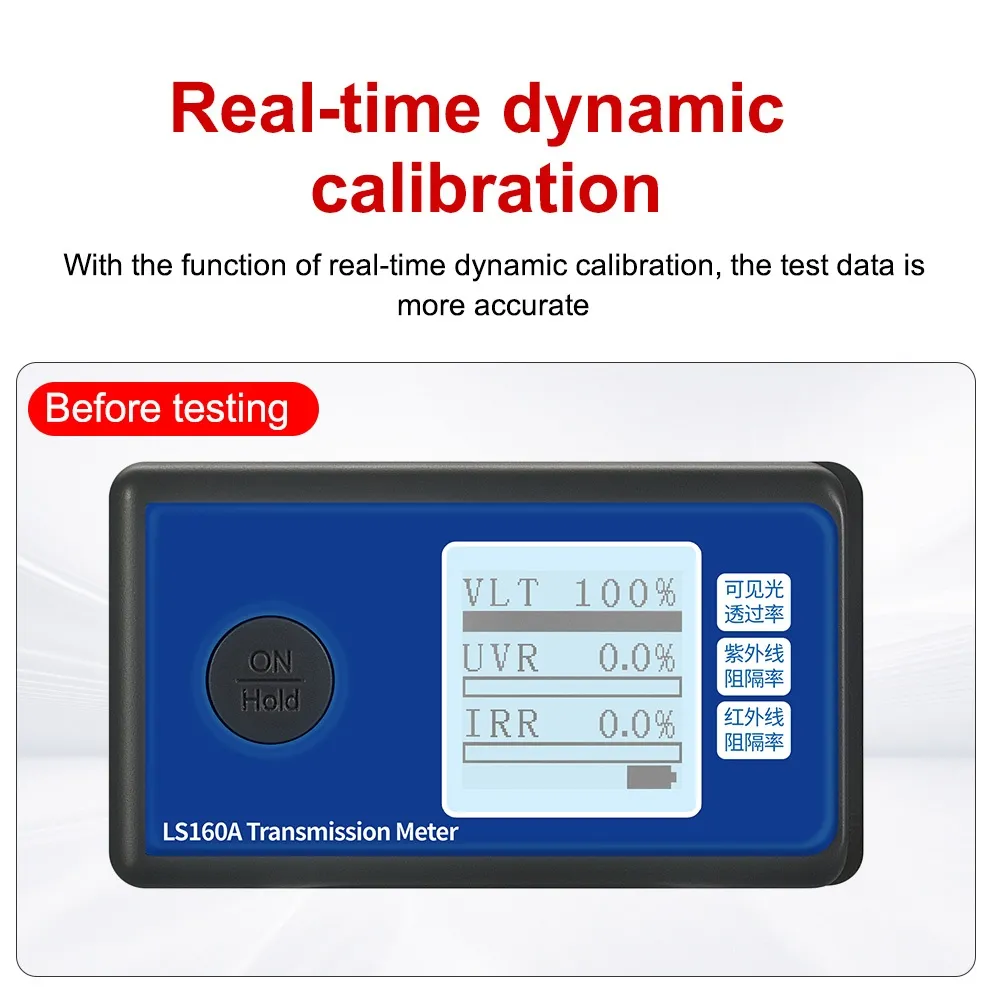

Real-time dynamic calibration ensures consistent and accurate data.

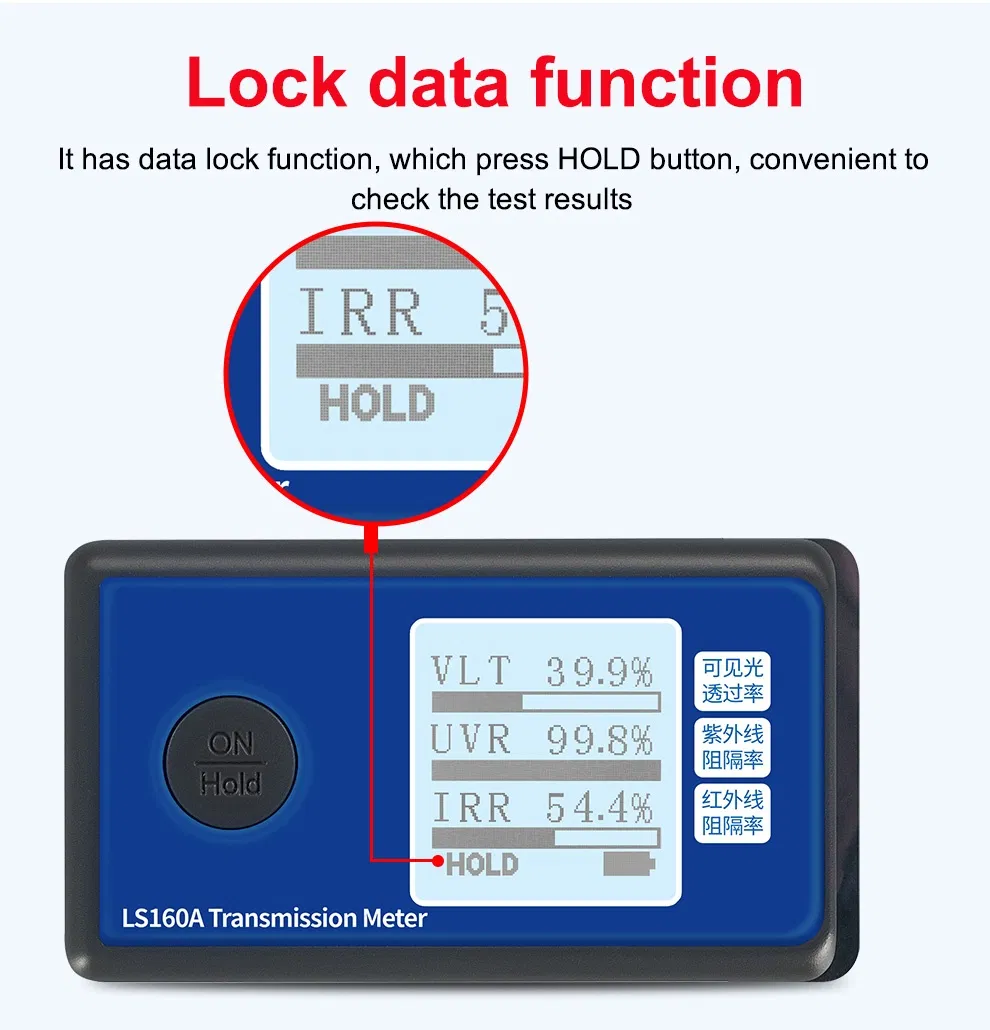

Integrated data lock function for easier recording of test results.
Energy-saving design with ultra-low power consumption.
Certified quality with CE compliance.

Technical Parameters

Parameter	LS160 Detail	LS160A Detail

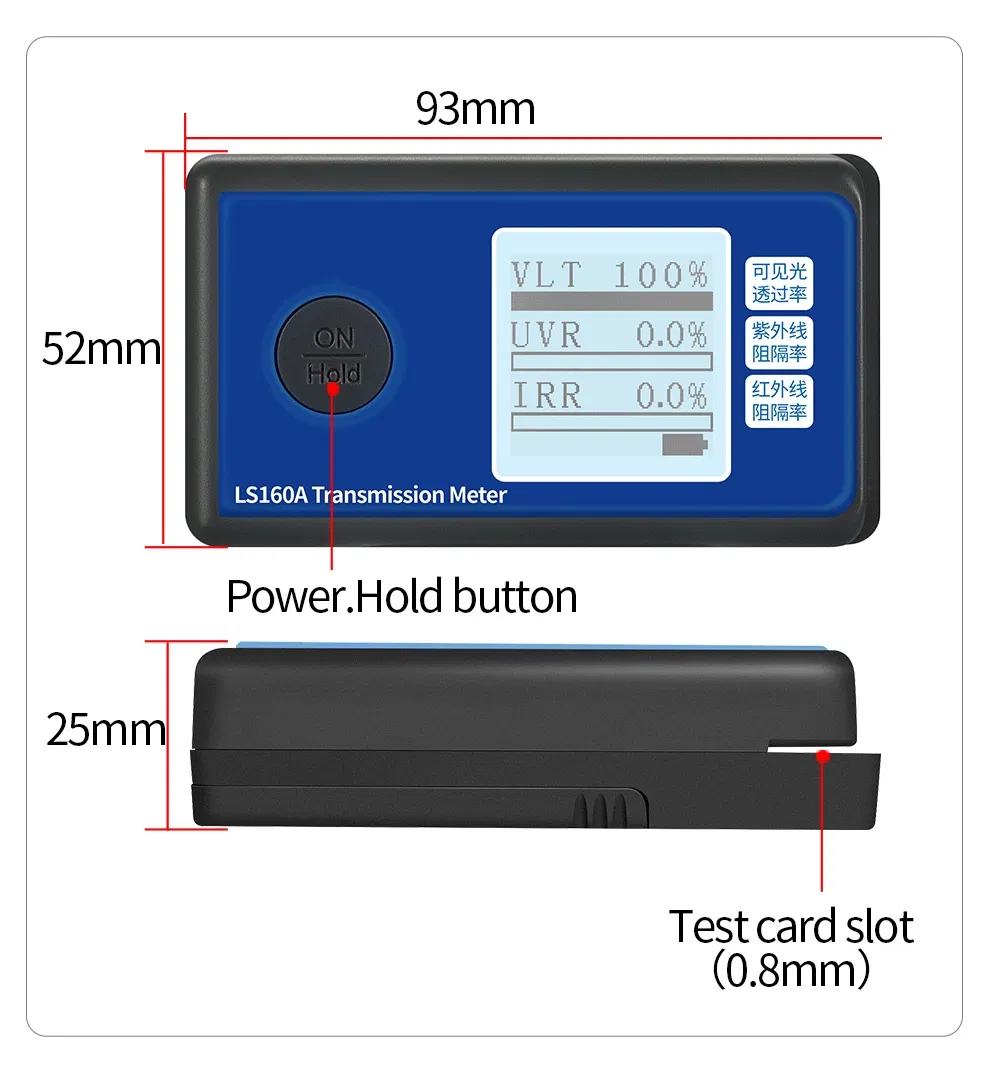

Size (LWH)	93mm 52mm 25mm	93mm 52mm 25mm
Weight	70g (excl. batteries)	70g (excl. batteries)
Max Sample Thickness	<0.8mm	<0.8mm
Resolution	0.1%	0.1%
Accuracy	±2%	±2%
Visible Light Peak	530nm	530nm
UV Peak Wavelength	365nm	365nm
IR Peak Wavelength	940nm	1400nm
Display	128*128 Dot matrix LCD	128*128 Dot matrix LCD

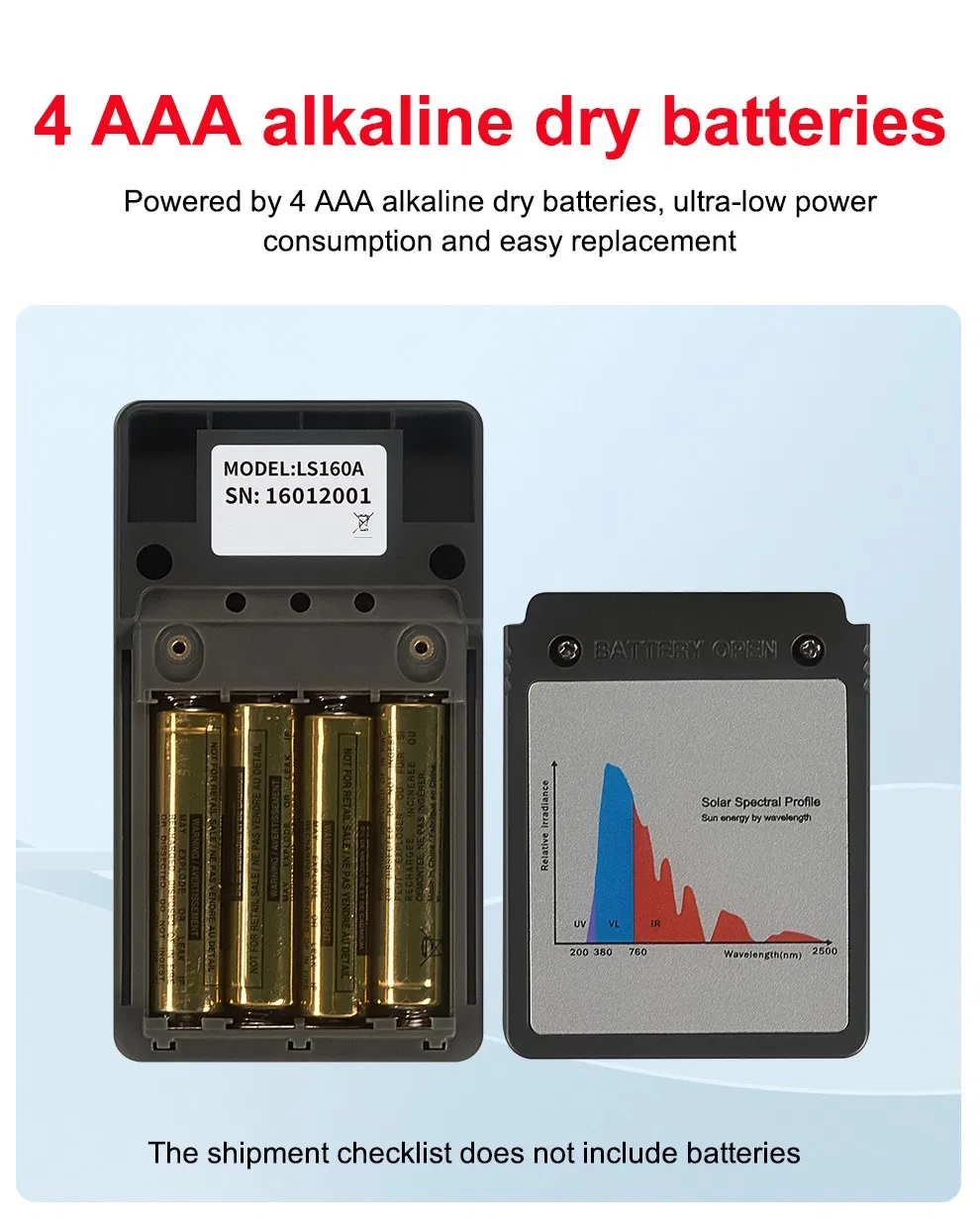

Battery	4*AAA alkaline battery	4*AAA alkaline battery

Detailed Gallery

Frequently Asked Questions

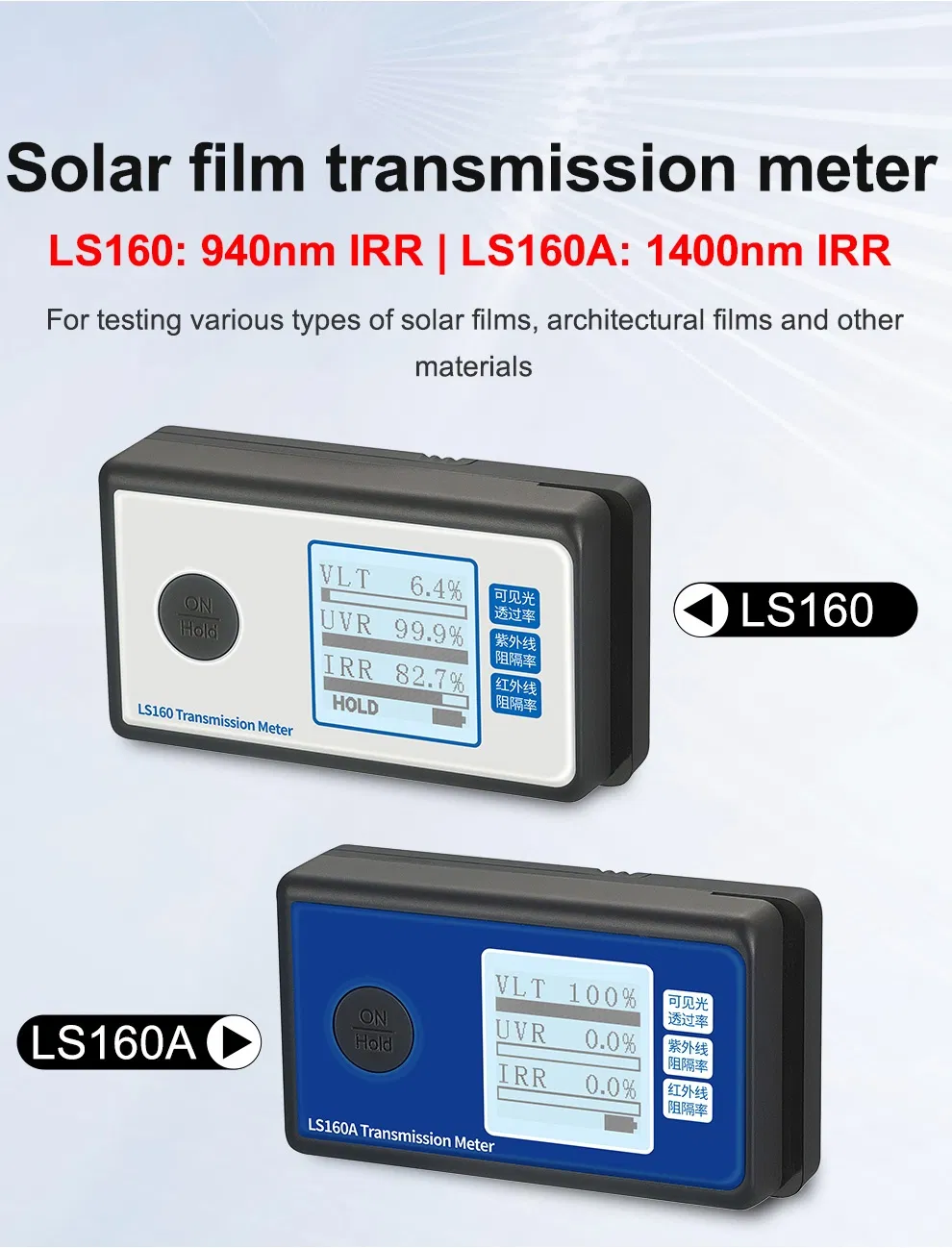

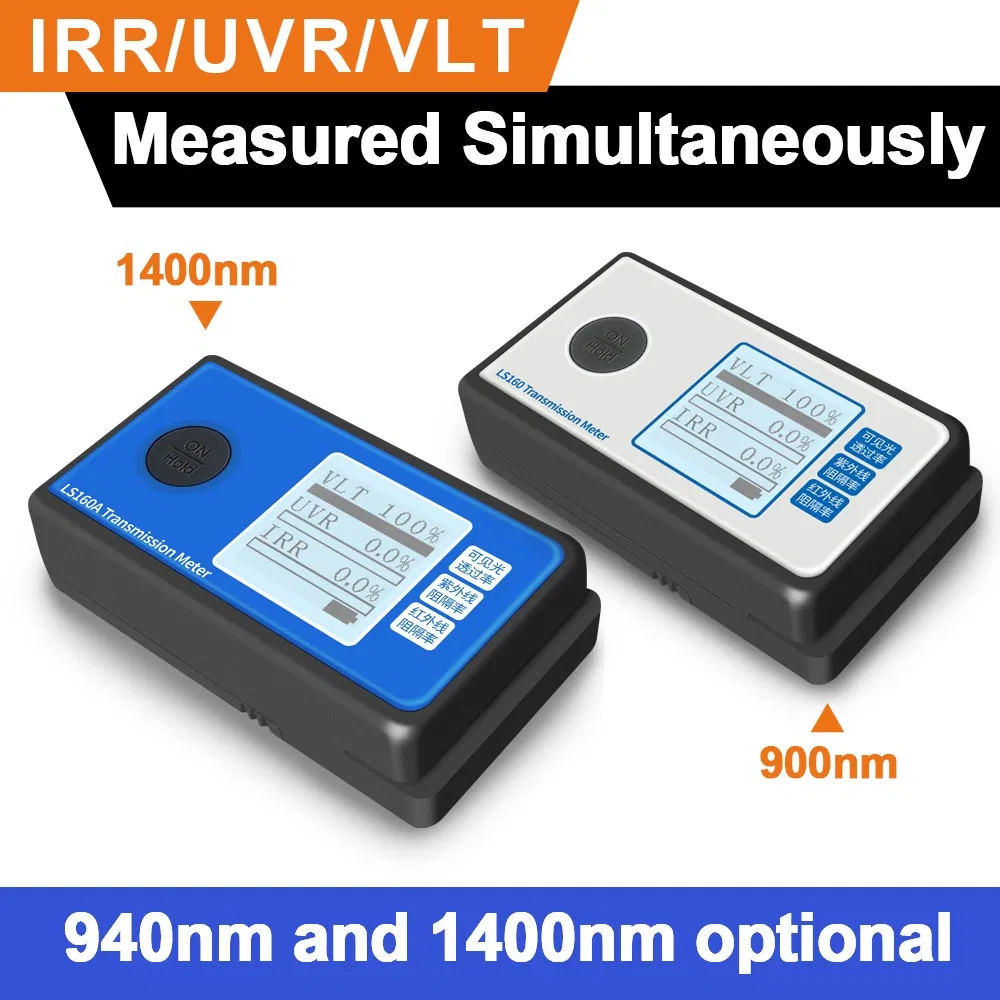

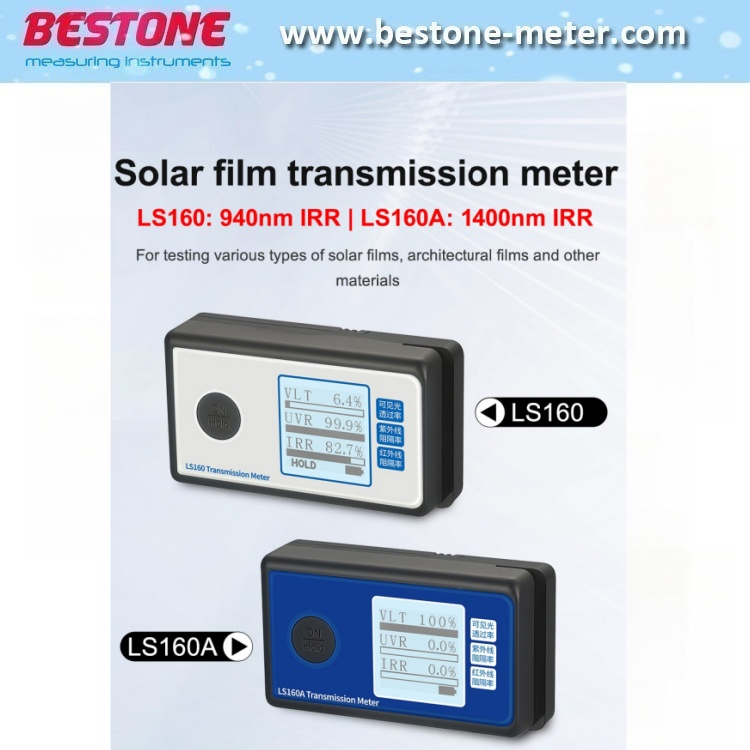

What is the main difference between LS160 and LS160A?

The main difference lies in the infrared peak wavelength: LS160 measures at 940nm, while LS160A measures at 1400nm.

What materials can I test with this meter?

It is designed for testing solar films, architectural films, heat-insulating films, and various heat-insulating coatings.

Does the device require manual calibration before each use?

No, the device features real-time dynamic self-calibration, which automatically calibrates the meter when no sample is inserted.

What is the maximum thickness of a sample that can be tested?

The test slot width is 0.8mm, so samples should be thinner than 0.8mm for accurate measurement.

Is the measurement data reliable for colorless materials?

Yes, for colorless and transparent materials, the accuracy is within ±2%.

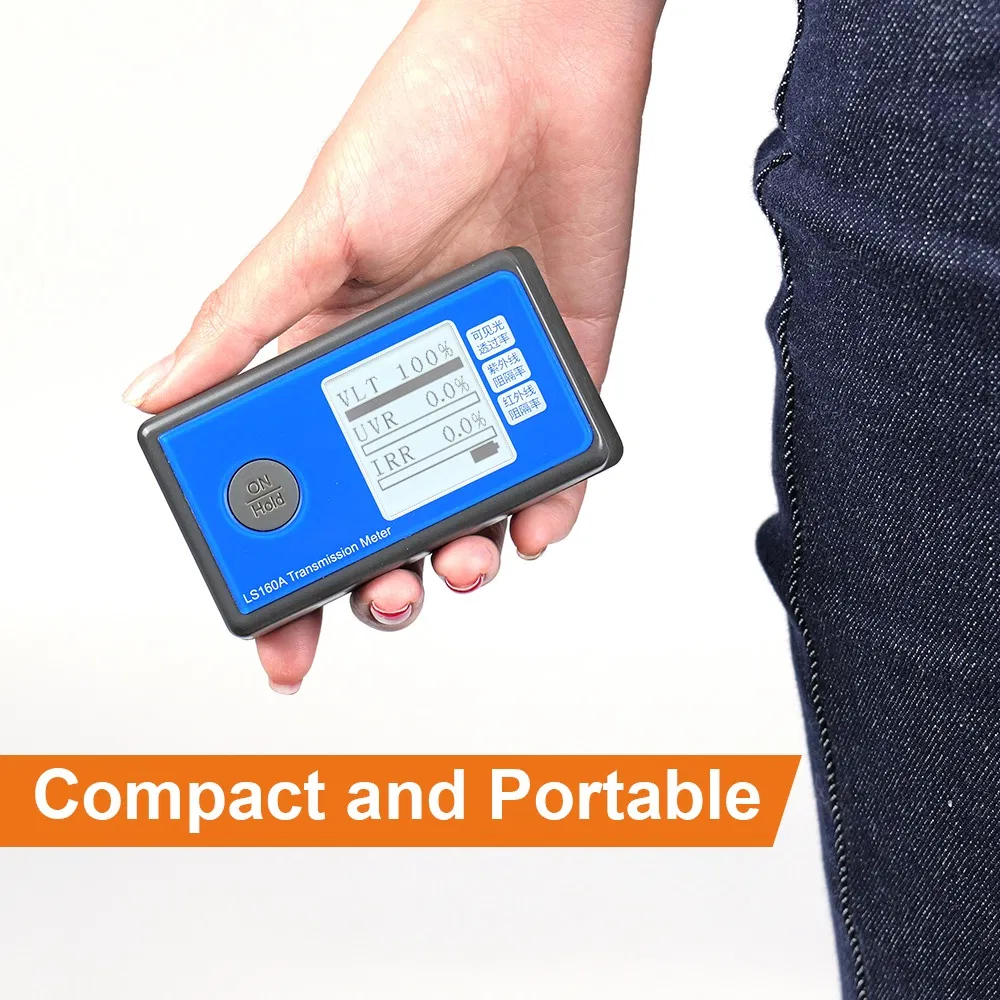

How portable is the transmission meter?

It is extremely portable, weighing only 70g (without batteries) and measuring just 93mm in length, making it easy to carry for field inspections.
