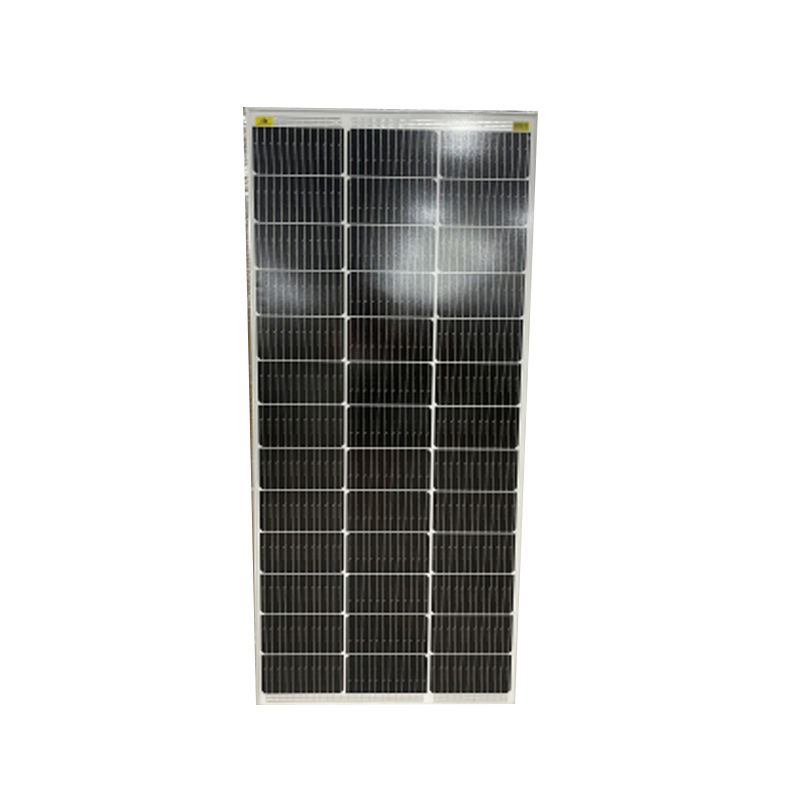

Marine Grade Solar Panel

Still deciding? Get samples of $ !
Request Sample

Product Description

Overview
Basic Info.
Application
Photovoltaic Venues, Greenhouse, Sun-shading Device, Curtain Wall
Max. Power
530W
Optimum Voltage
39.68 V
Open-Circuit Voltage
48.65V
Operating Temp
-40℃ to 85℃
Optimum Current
13.36A
Short-Circuit Voltage
14.02A
Max. System Voltage
DC 1000/ 1500V (IEC)
Power Tolerance
0-5W
Temp Coefficient
-0.26 %
Max. Fuse Current
25A
Junction Box
IP68
Package
Wooden Box
Specification
2400*1314*4mm
Product Description
Basic Specifications
ParameterData
Cell TypeTOPCon cell 182*91 mm
Cell Arrangement144 pcs(12*12)
Module Size2260*1219*3 mm
Module Weight9.1KG
Junction BoxEnclosure rating IP68
Output Cable4mm2, 500mm length (Customizable)
ConnectorMC4 compatibility
Static Load (Front)2400Pa
Technical Specifications Comparison
Parameter x-solar Crystalline Silicon ASP-S2-80 ASP-S2-85 ASP-54-85
MaterialCrystalline SiliconThin FilmThin FilmThin Film
Dimensions2260×1219×3mm1200×600×6.8mm1200×600×6.8mm1200×600×6.8mm
Nominal Power580W80W85W85W
Voc53.03V58.8V60.2V29.2V
Isc13.86A1.90A1.97A4.19A
Vm44.19V47.4V48.3V23.0V
Im13.13A1.68A1.76A3.71A
Power Temp Coeff-0.26 %/°C-0.214 %/°C-0.214 %/°C-0.214 %/°C

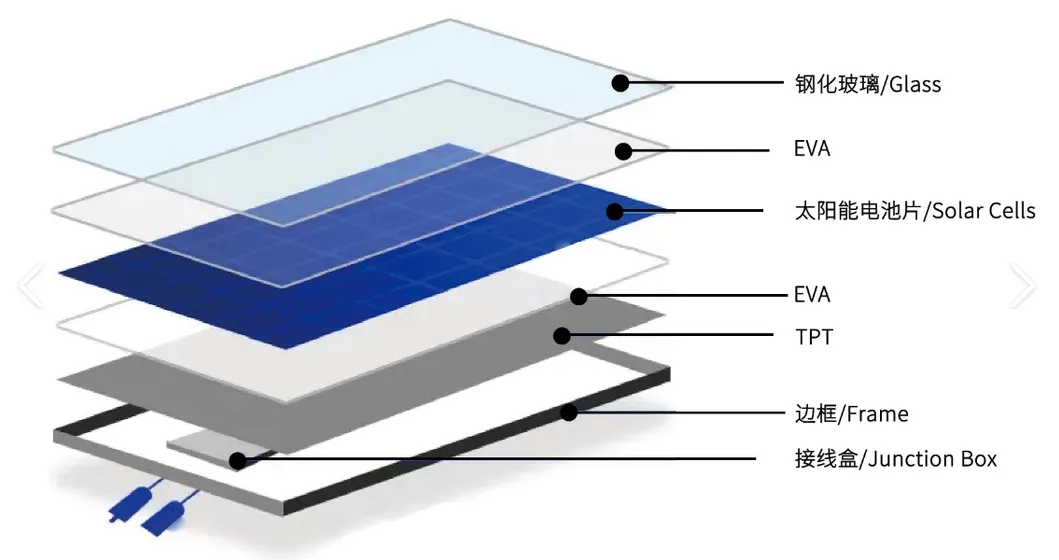

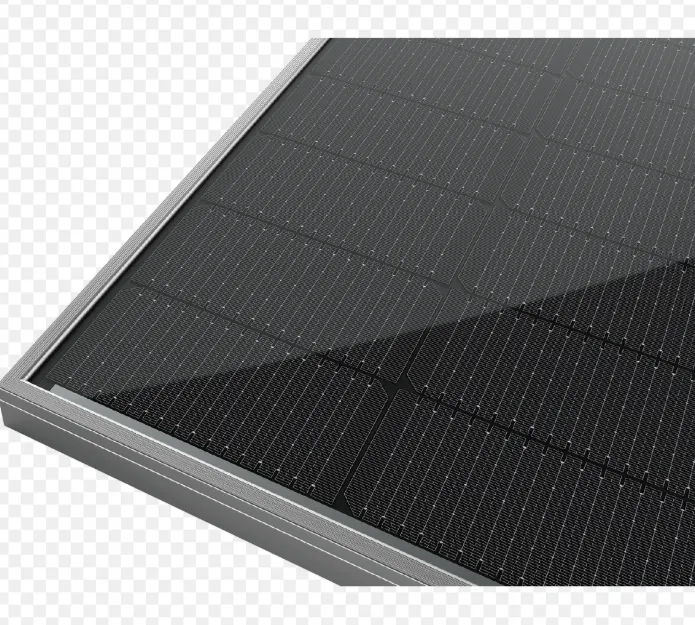

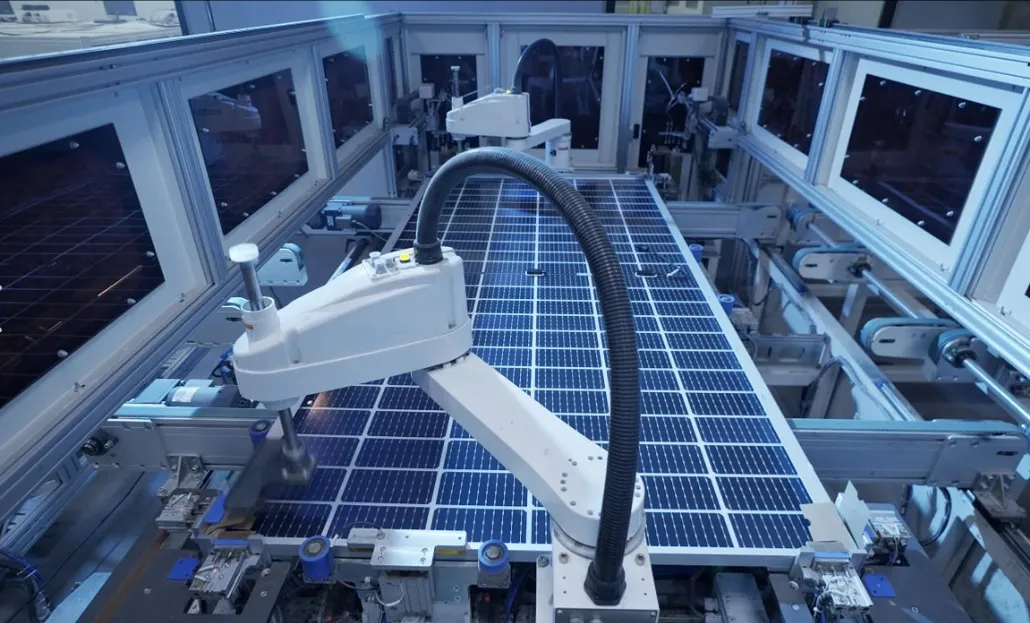

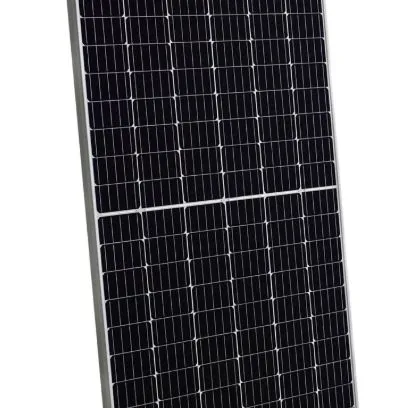

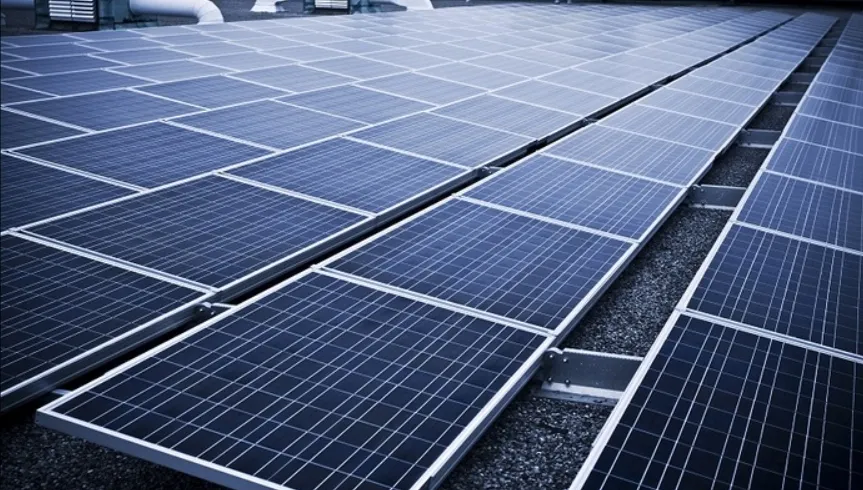

Detailed Photos
Product Parameters
Standard Thin Film Module ASP-S1/S4 Series
Parameter ASP-S1-100 ASP-S1-110 ASP-S1-120 ASP-S4-85
Nominal Power100W110W120W85W
Voc123.5V176.84V181.00V29.2V
Isc1.24A0.90A0.98A4.19A
Vm91.7V138.0V138.62V23V
Im1.09A0.80A0.87A3.71A
Weight12kg12kg12kgTo be specified
Packaging & Shipping
Packing Details
Transportation Platform Lorry (13m) Platform Lorry (17.5m) Container (40')
Pallet Count2228/
Pieces/Pallet4545/
Total Pieces9901260/
Our Advantages
  • 1
    Replaces traditional building decorative panels; applicable to eastern, southern, and western facades for green energy.
  • 2
    Versatile application in interlayers, sun shields, daylighting roofs, agricultural greenhouses, and sound barriers.
  • 3
    High-reliability packaging materials ensuring a service life of up to 30 years.
  • 4
    Customizable colors and patterns tailored to specific architectural and customer needs.
  • 5
    Conforms to standard building systems for easy and efficient installation.
Advantage Illustration
Frequently Asked Questions
Q1: How can I request a formal quotation? A1: You can leave us a message through the contact portal, and we will reply promptly. Alternatively, we can discuss details via online trade managers.
Q2: Are samples available before placing a bulk order? A2: Yes, typically our samples are available. We can produce items based on your technical drawings or build specific molds and fixtures as required.
Q3: How do you ensure product quality and reliability? A3: We maintain strict quality control and competitive pricing to ensure customer benefit. We treat every client with respect and focus on building long-term business friendships.
Q4: What are the typical warranty terms for your solar modules? A4: Our products typically carry a 10-year material and workmanship warranty and a 25-to-30-year linear power output guarantee depending on the specific model.
Q5: How is the transportation freight calculated? A5: Freight depends on total weight, packing dimensions, and delivery address. We support various methods including sea, air, and express, helping you choose the safest and most favorable option.
Q6: Can the products be customized for specific building projects? A6: Absolutely. We offer customizable colors, patterns, and cable lengths to ensure the modules conform perfectly to your building system and aesthetic requirements.
