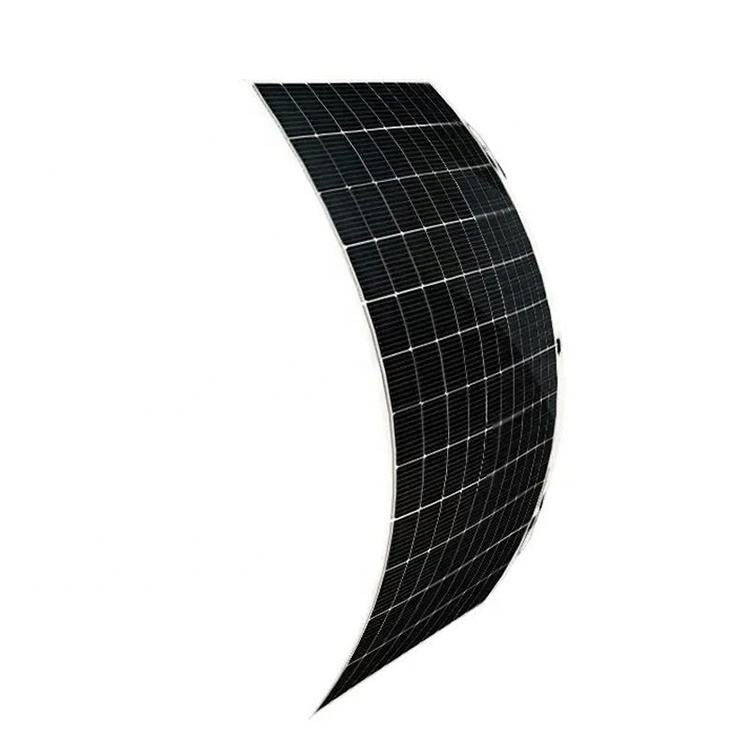

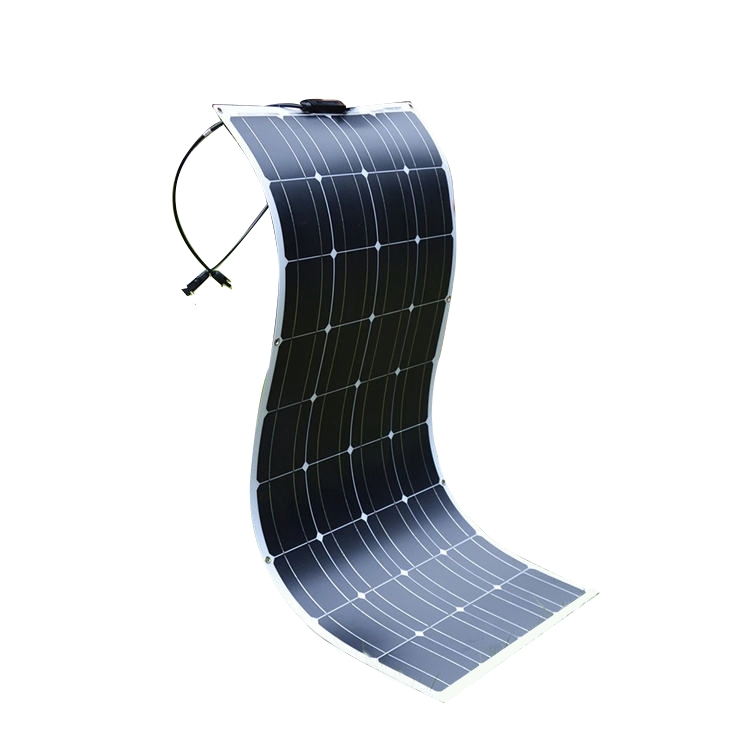

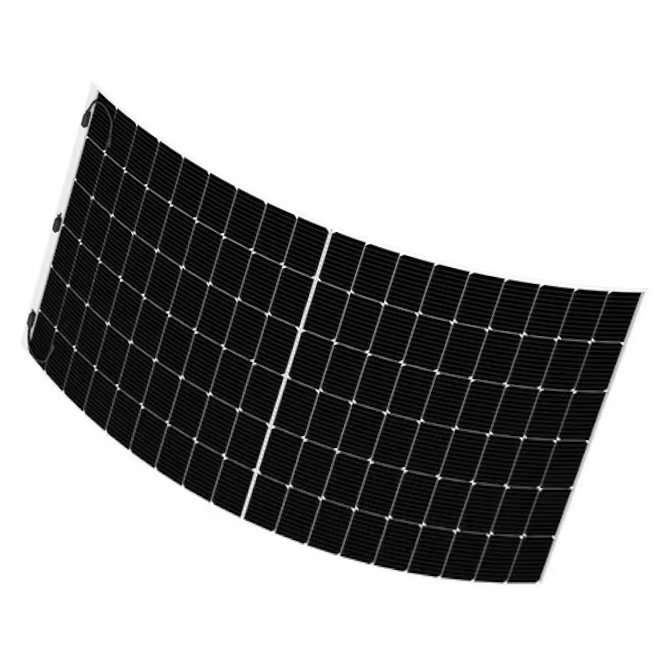

Marine Grade Flexible 530W Solar Panel for Yacht Boat RV off-Grid System

Customization:	Available
After-sales Service:	Online Service
Warranty:	25 Years

📊

Basic Information

Model NO.

HG-L530-72CW

Number of Cells

144(6*24)

Application

Light Industry / Marine

Condition

New

Certification

EST, ISO, CB, CE

Material

Monocrystalline Silicon

Max Power(Pmax)

530W

Module Efficiency

20.4%

Max System Voltage

1500V DC

Weight

10.5±0.5kg

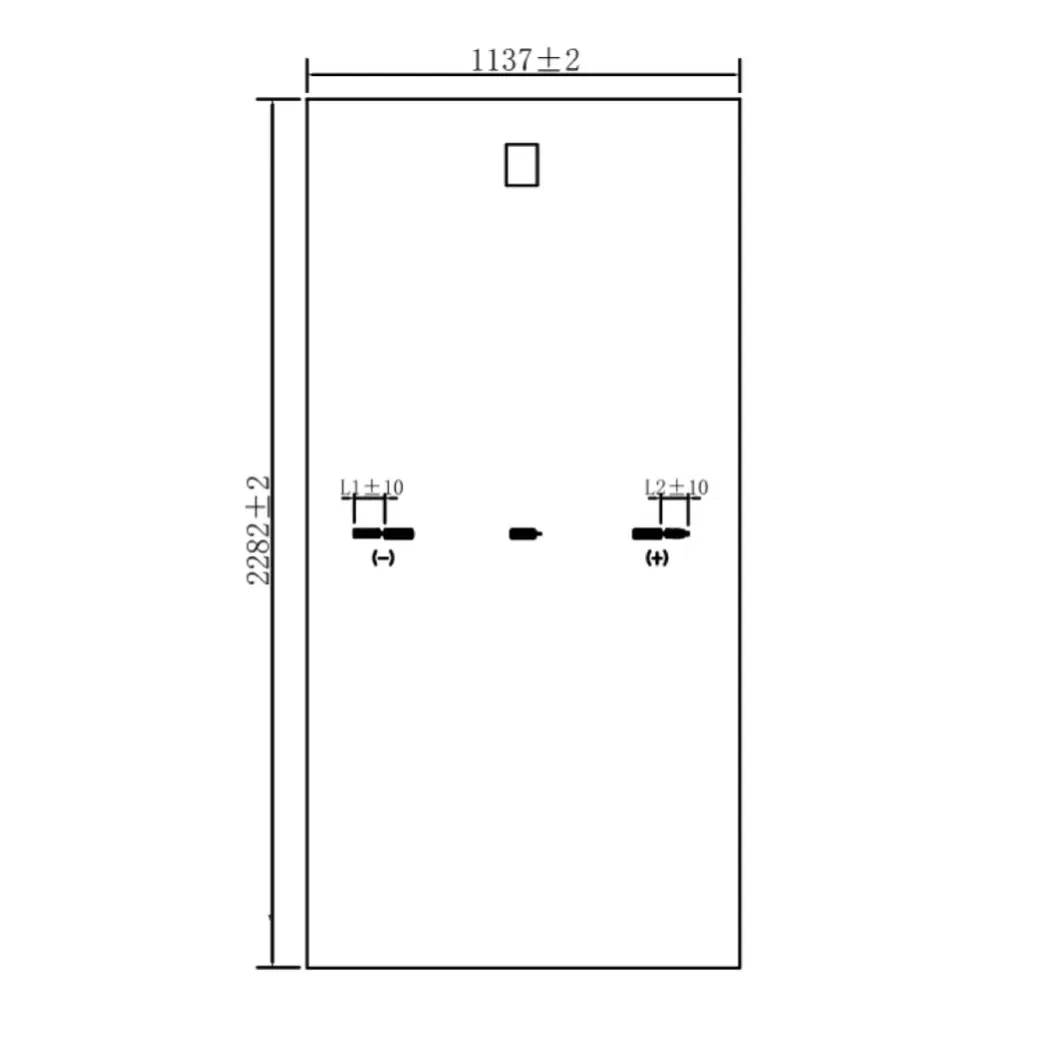

Dimensions

2282mm*1137mm

Origin

China

📝

Product Description

Marine Grade Flexible Solar Panel Banner

☀️ SOLAR PANELS: Premium solar panels are designed to maximize energy efficiency and deliver substantial cost savings for residential and commercial applications. These photovoltaic solar panel systems harness renewable solar energy to reduce electricity bills and carbon footprint while providing reliable, sustainable power generation.

⚙️

Technical Parameters

DETAILED SPECIFICATIONS
Product Name	Solar flexible panels HG-L530-72CW
Max Power	530W
Open Circuit Voltage (Voc)	49.90V
Short Circuit Current (Isc)	13.76A
Max Power Voltage (Vmp)	41.35V
Max Power Current (Imp)	12.83A
Module Efficiency STC	20.4%
Power Tolerance	0-+5W
Maximum System Voltage	1500V DC
Weight	10.5±0.5kg
Solar Cell	Mono crystalline 18291mm, 144(624)
Junction Box	IP68, 3 diodes, MC4 compatible
Operating Temperature	-40 to +85 °C

📸

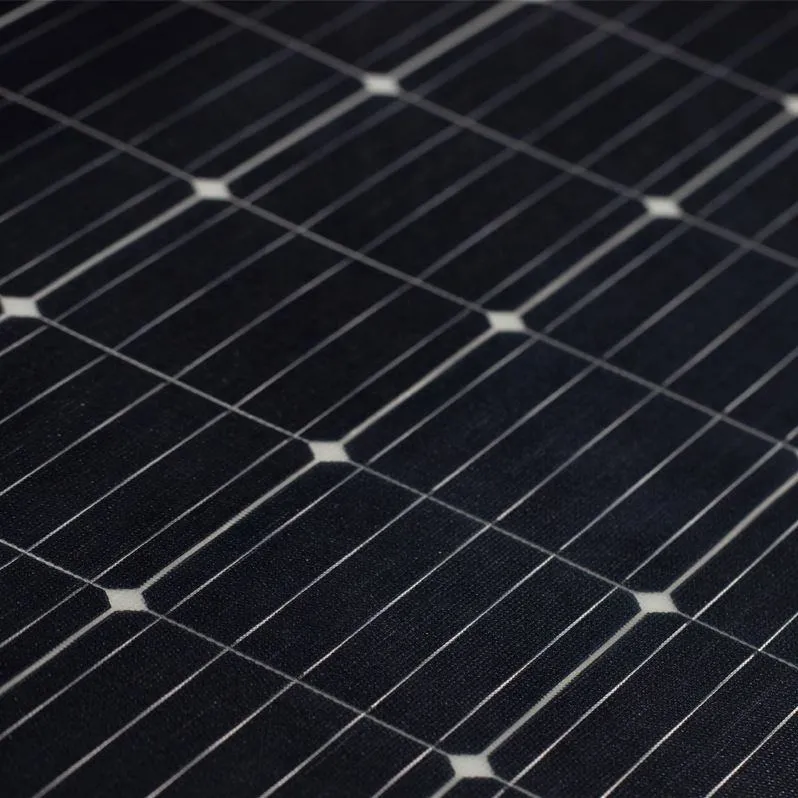

Detailed Photos

📜

Certifications

❓

Frequently Asked Questions

How can we guarantee product quality?

We ensure quality through a pre-production sample before mass production and a final inspection conducted before every shipment.

What are the main applications for these flexible panels?

These marine-grade flexible panels are ideal for yachts, boats, RVs, and various off-grid solar systems where lightweight and adaptable power is required.

What delivery and payment terms are accepted?

Accepted Delivery Terms: FOB, CFR, CIF, EXW. Accepted Payment Currencies: USD, EUR, CNY. Accepted Payment Types: T/T, L/C, Credit Card.

Is it possible to customize the panels with a logo?

Yes, we welcome OEM and ODM orders. Logos, stickers, and custom branding can be applied to the products.

Can I request samples for testing, and what is the lead time?

Yes, samples are available for testing. The standard lead time for sample orders is approximately 15 days, with the buyer covering sample and shipping costs.

What is the advantage of monocrystalline silicon in these panels?

Monocrystalline silicon provides higher efficiency (20.4%) and better performance in various lighting conditions compared to other materials, ensuring maximum power output in a compact size.
