Product Description

Product Overview

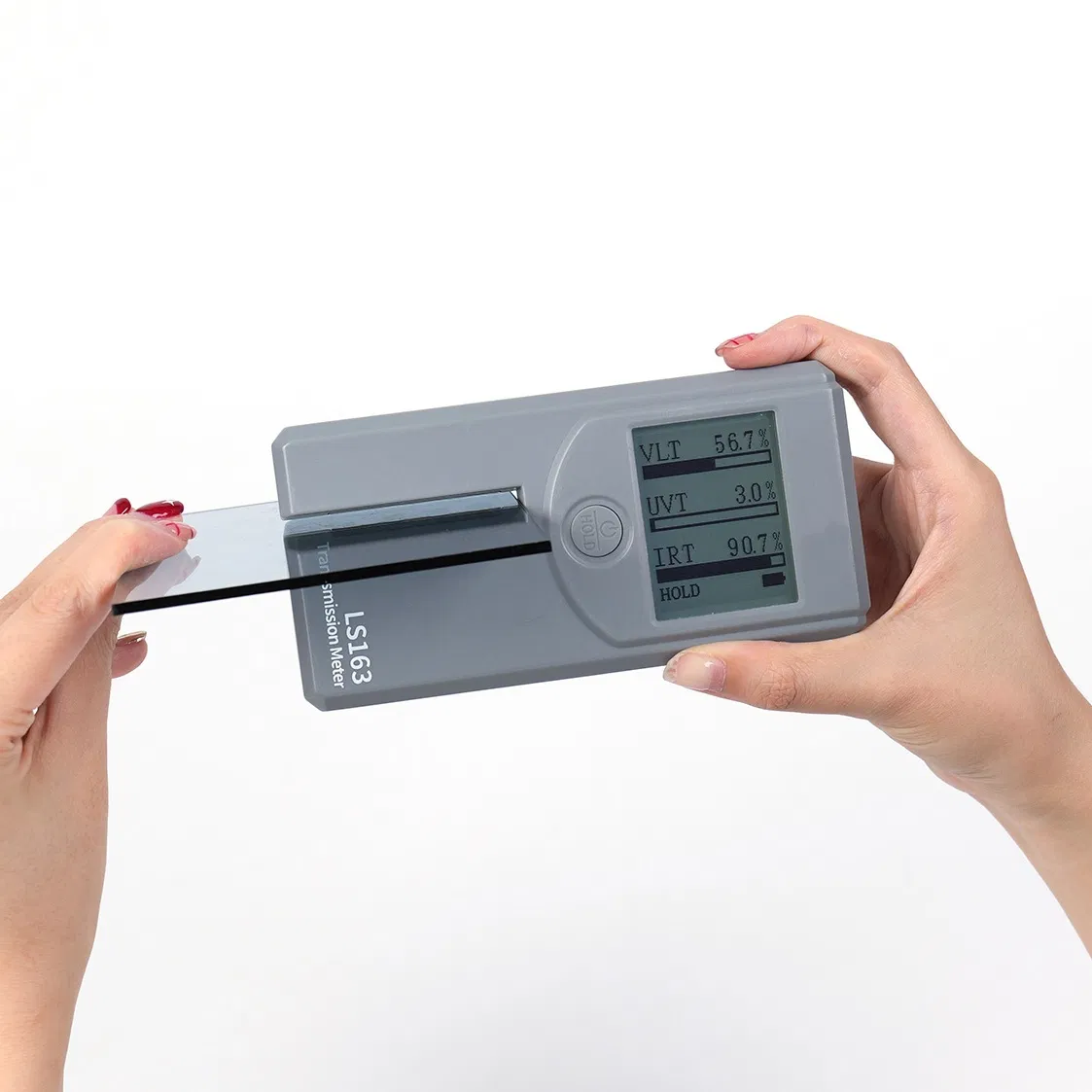

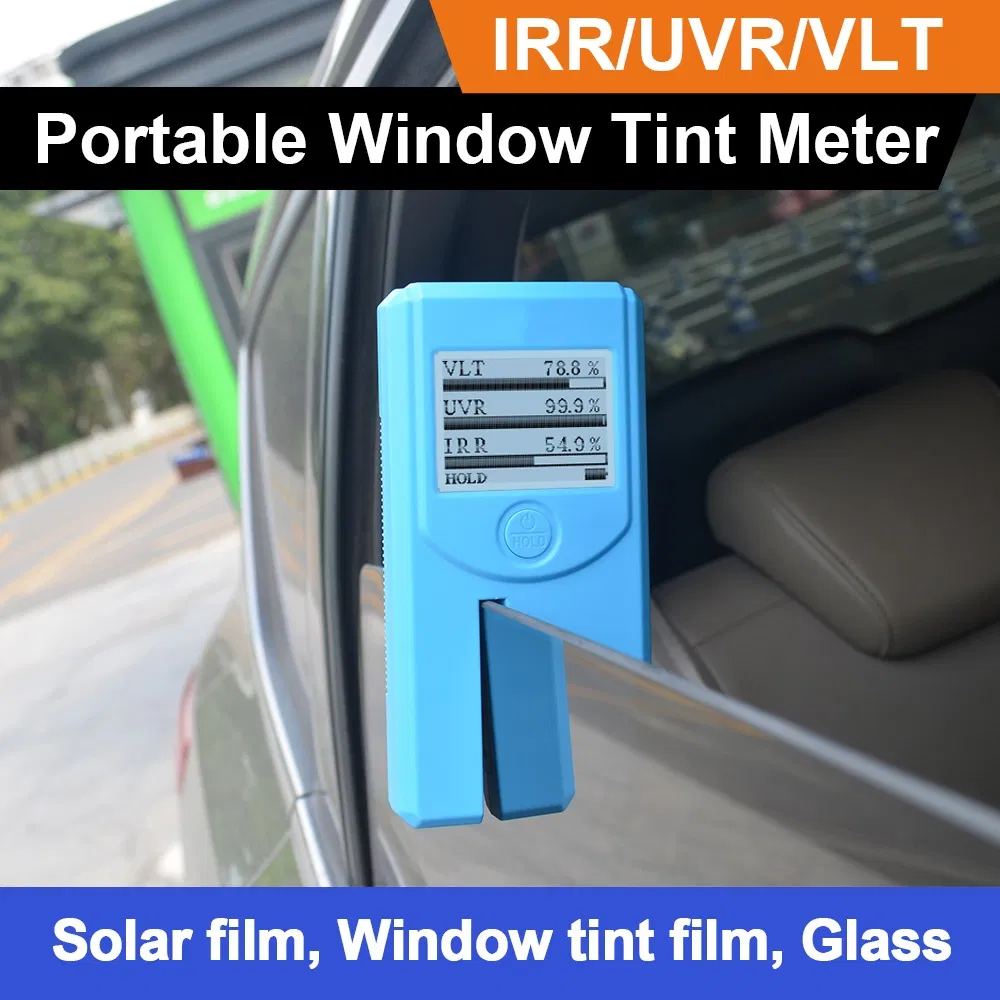

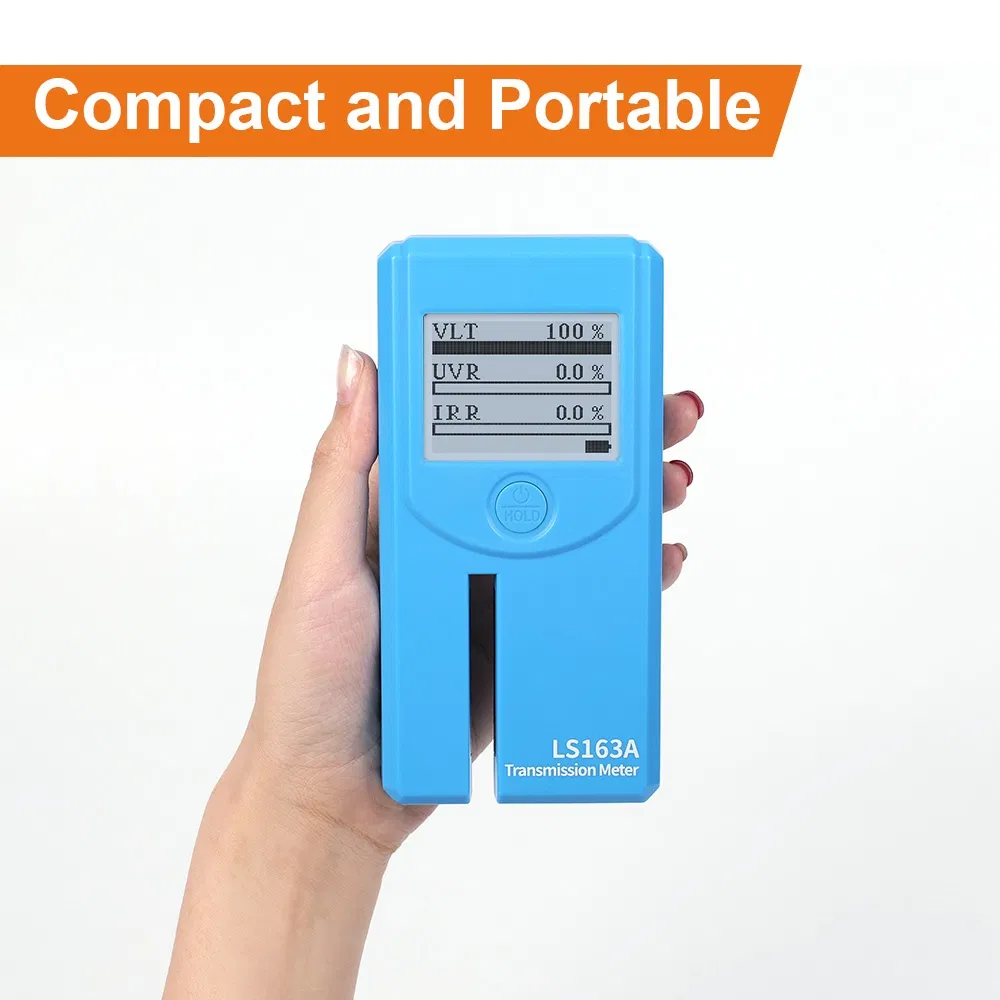

LS163/LS163A is a compact, portable window film transmission meter equipped with 3 different wavelength light sources: visible light, infrared, and UV. Featuring three optional display modes, it is designed to accurately test the light transmission performance of window film, stick-film glass, and automotive side windshields.

Model

LS163, LS163A

UV Peak

365nm

LS163 IR Peak

940nm

LS163A IR Peak

1400nm

Resolution

0.1%

Accuracy

±2%

Slot Width

6mm × 58mm

Power Supply

4 AAA Batteries

Key Features

Multi-Wavelength Testing: Built-in three light sources for visible light, ultraviolet light, and infrared light. One compact machine for comprehensive testing.

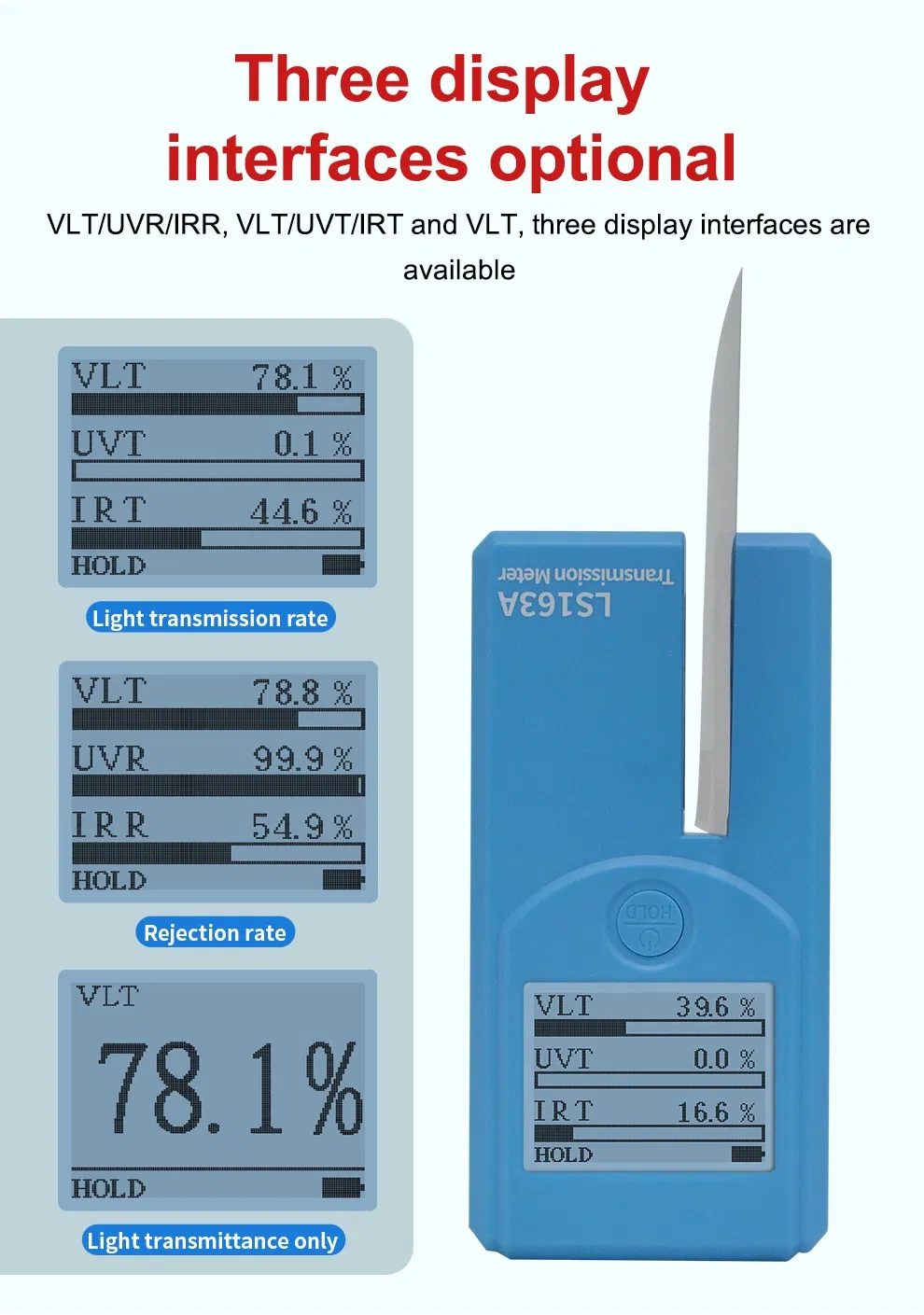

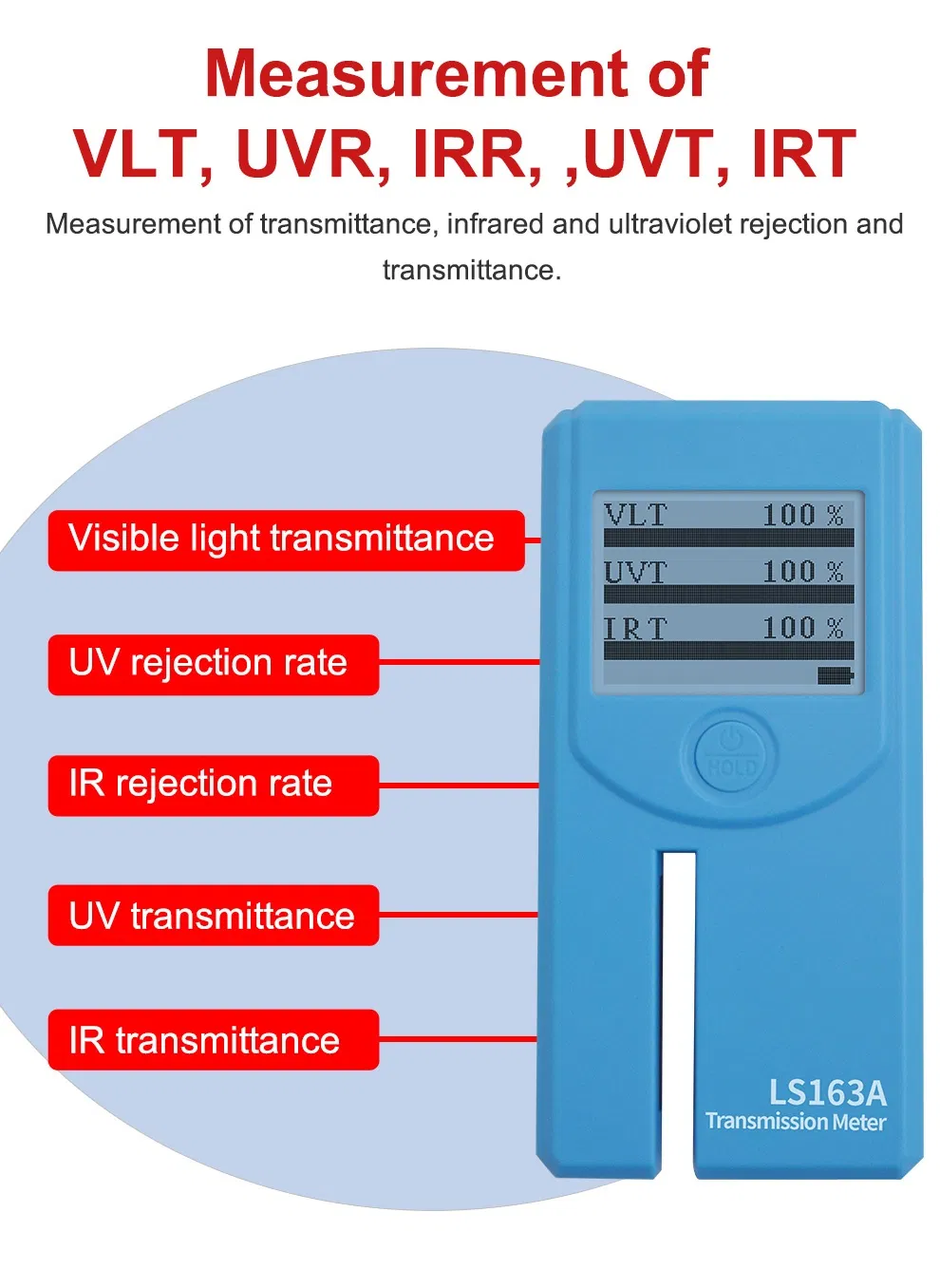

Switchable Display Interfaces: Easily switch between three display modes: VLT (Visible Light Transmittance), UVR (UV Rejection), and IRR (IR Rejection) data.

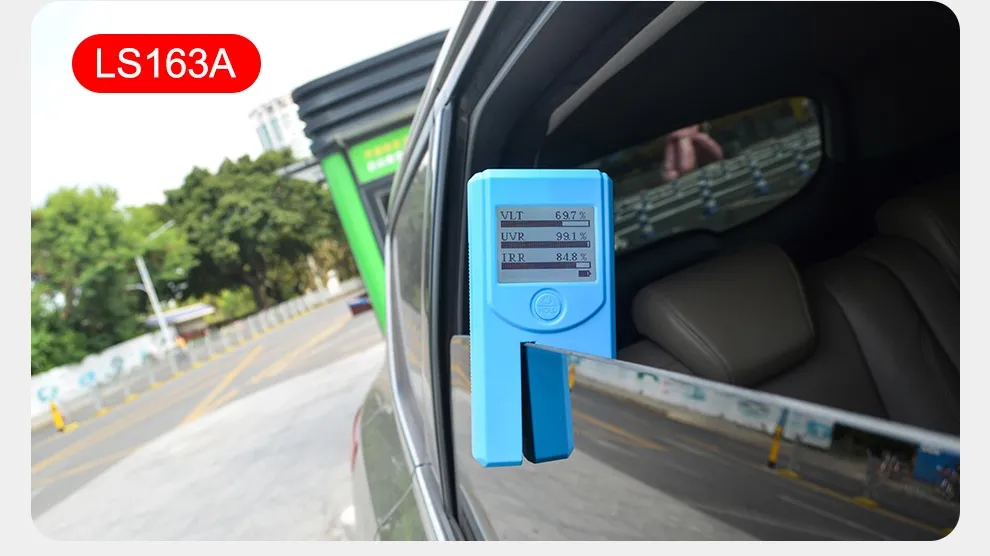

Parallel Light Path Design: Ensures accurate measurement for window films and side windshields up to 6mm thickness.

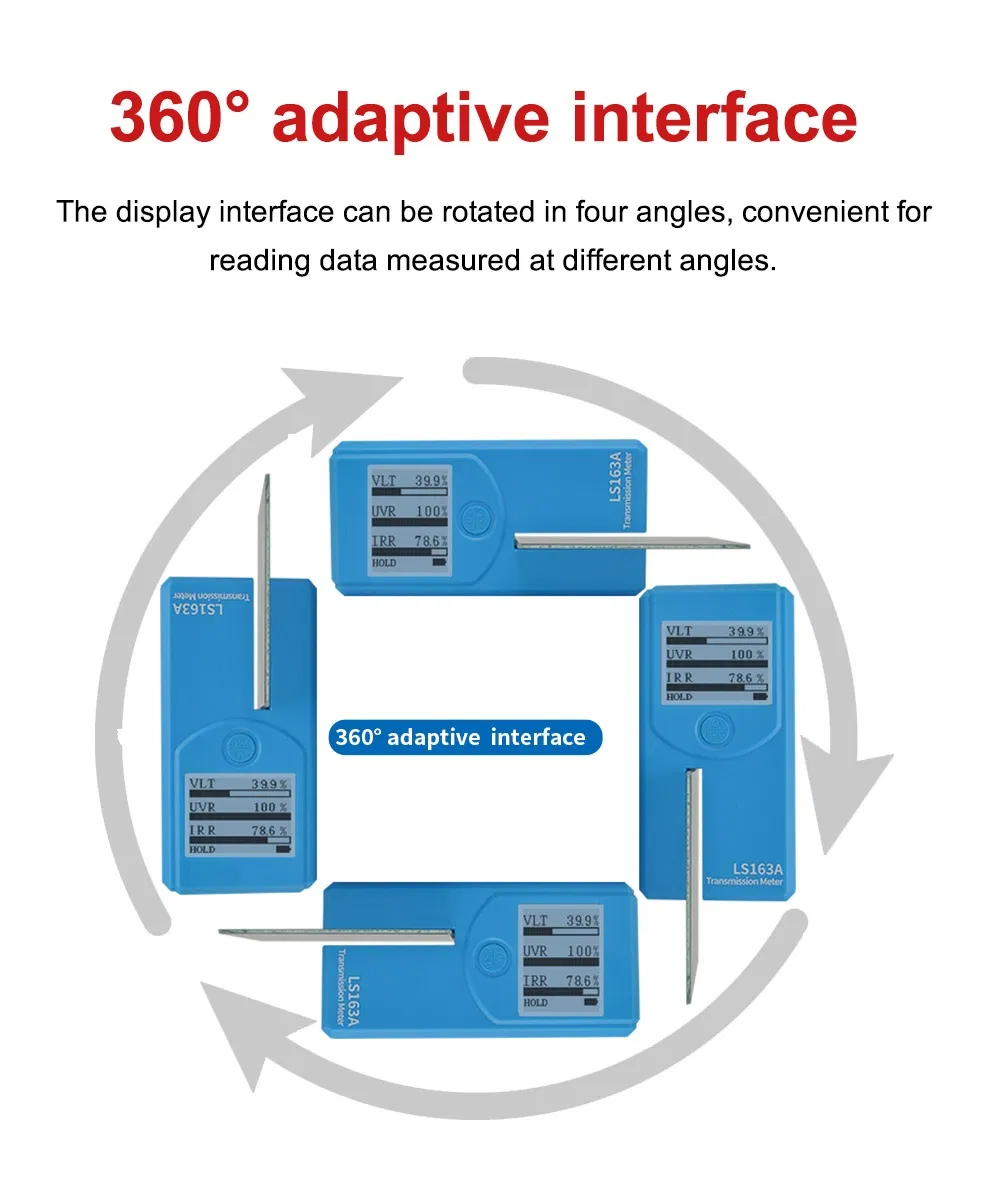

4-Direction Rotating Screen: The display can be rotated in 4 directions, allowing for easy reading regardless of the measurement angle.

VLT (Visible Light Transmittance): Higher values indicate better transparency.
UVT/UVR (UV Transmission/Rejection): Higher rejection (UVR) means better protection.
IRT/IRR (IR Transmission/Rejection): Higher rejection (IRR) means better heat insulation.

Technical Parameters

Parameter	LS163 (Gray)	LS163A (Blue)
UV Peak Wavelength	365nm	365nm
IR Peak Wavelength	940nm	1400nm
Visible Light	380nm-760nm full wavelength (CIE photopic luminosity function)
Resolution	0.1%	0.1%
Measurement Accuracy	Better than ± 2% (colorless and uniform transparent material)
Max Sample Thickness	6mm × 58mm (W × D)
Weight	About 187g (batteries excluded)
Display	Segment LCD
Dimension	146mm × 73mm × 24mm (LWH)
Power Supply	4 AAA alkaline dry batteries

Detailed Product Gallery

Frequently Asked Questions

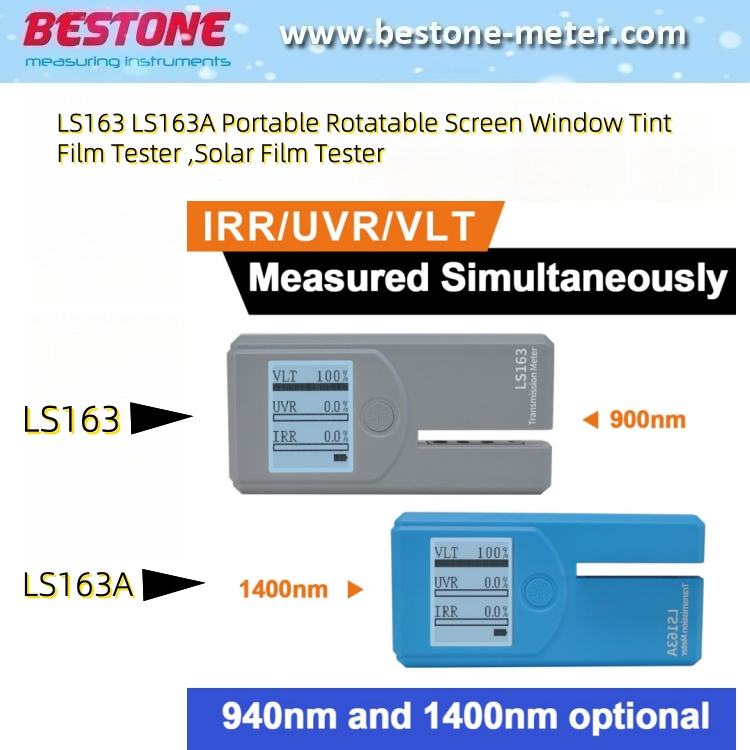

What is the difference between LS163 and LS163A?

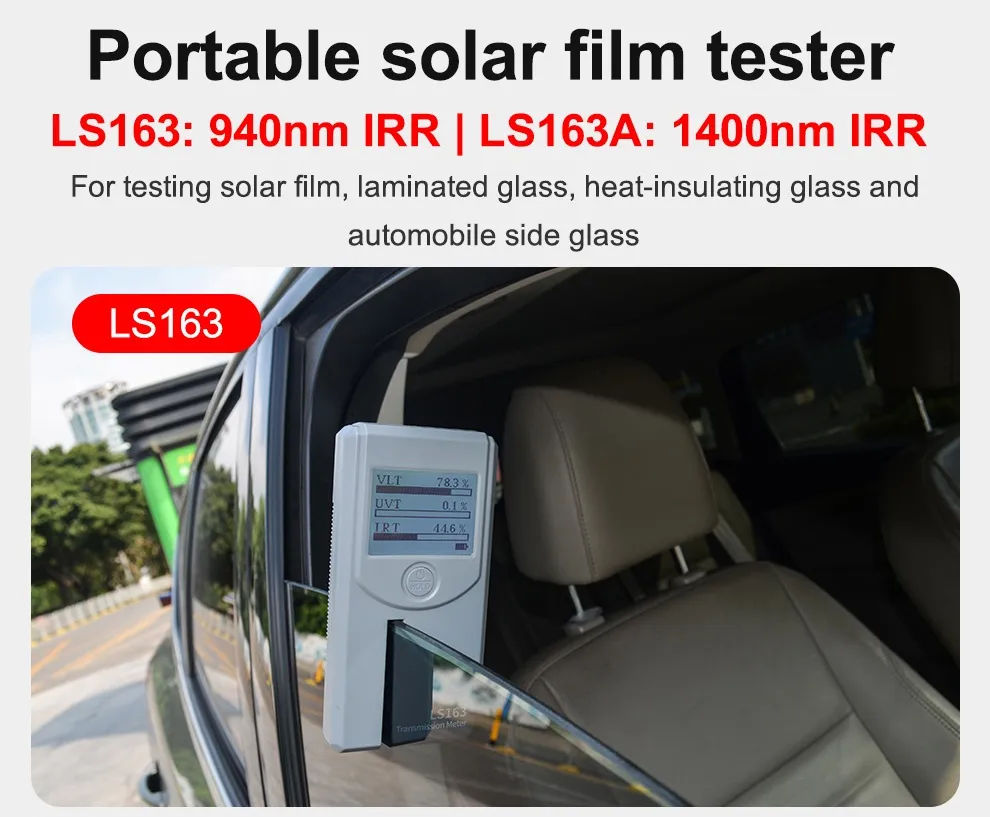

The main difference lies in the infrared peak wavelength. LS163 has a 940nm IR peak, while LS163A has a 1400nm IR peak, catering to different heat insulation testing requirements.

What is the maximum thickness the meter can measure?

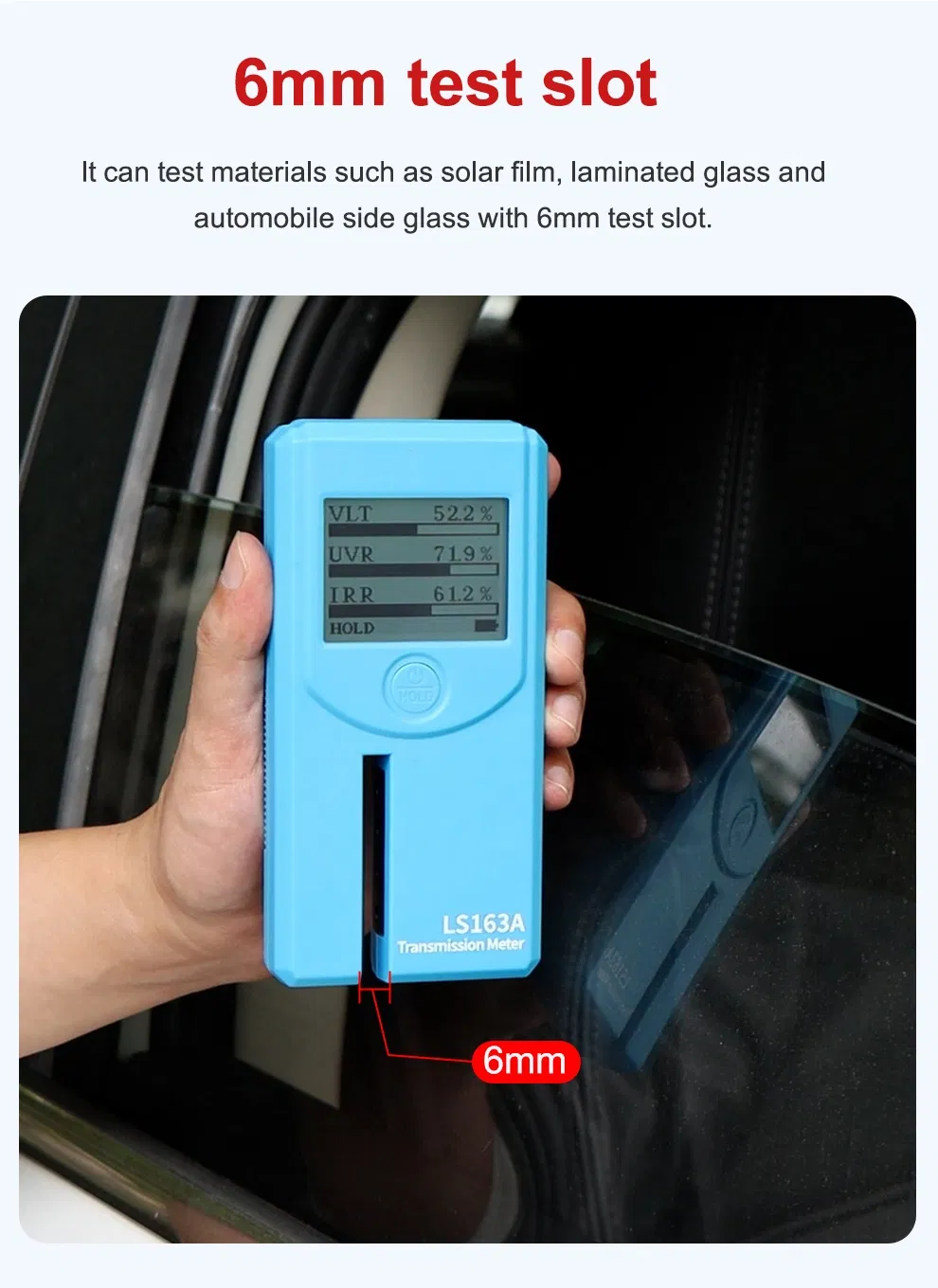

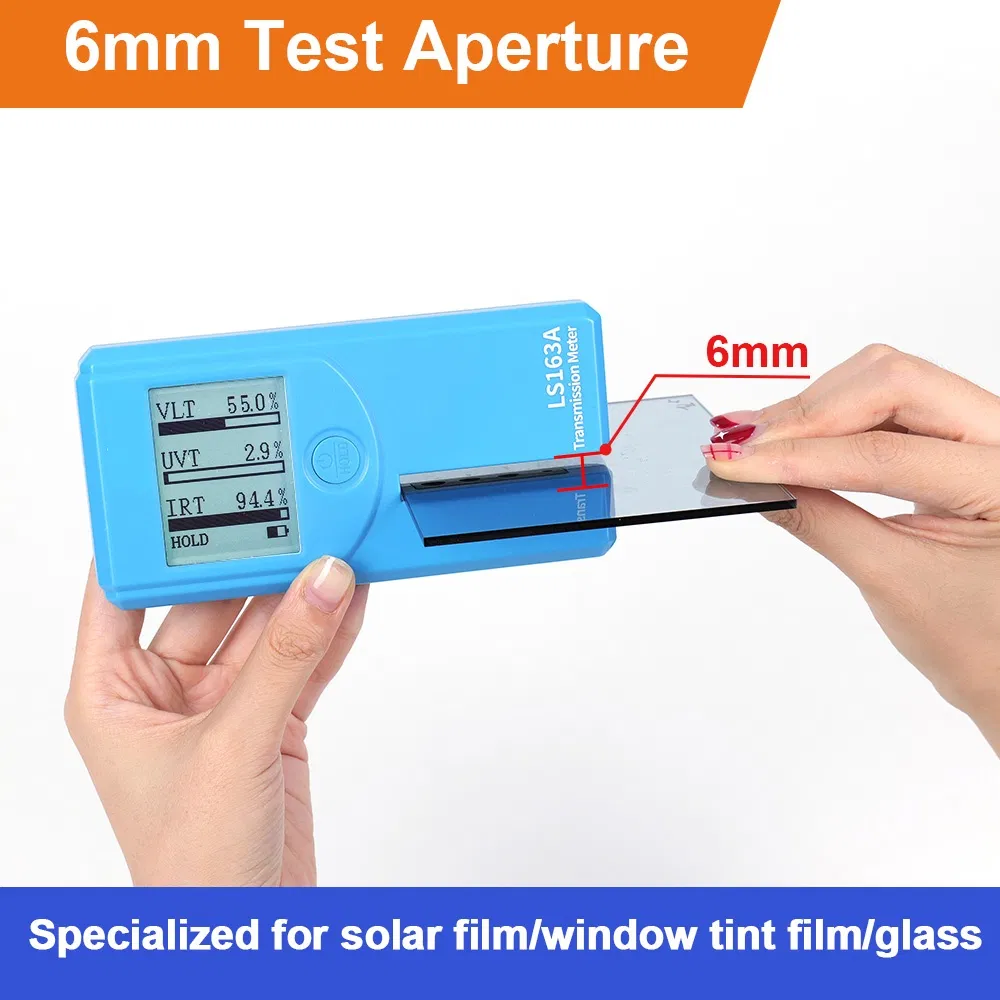

The device features a 6mm wide test slot, allowing it to measure window film, stick-film glass, and automotive side windshields up to 6mm thick.

Can the screen be read from different angles?

Yes, it features a rotating screen design that can be adjusted in 4 directions, making it very convenient to read data while measuring materials at various angles.

How many light sources does it use?

It integrates three light sources into one device: Visible light (380nm-760nm), Ultraviolet light (365nm), and Infrared light (940nm or 1400nm).

What is the measurement accuracy of these meters?

The measurement accuracy is better than ±2% for colorless and uniform transparent materials, with a high resolution of 0.1%.

What kind of power supply is required?

The meter is powered by 4 AAA alkaline dry batteries, making it highly portable for field testing.
