Sypower Solar
1 / 5

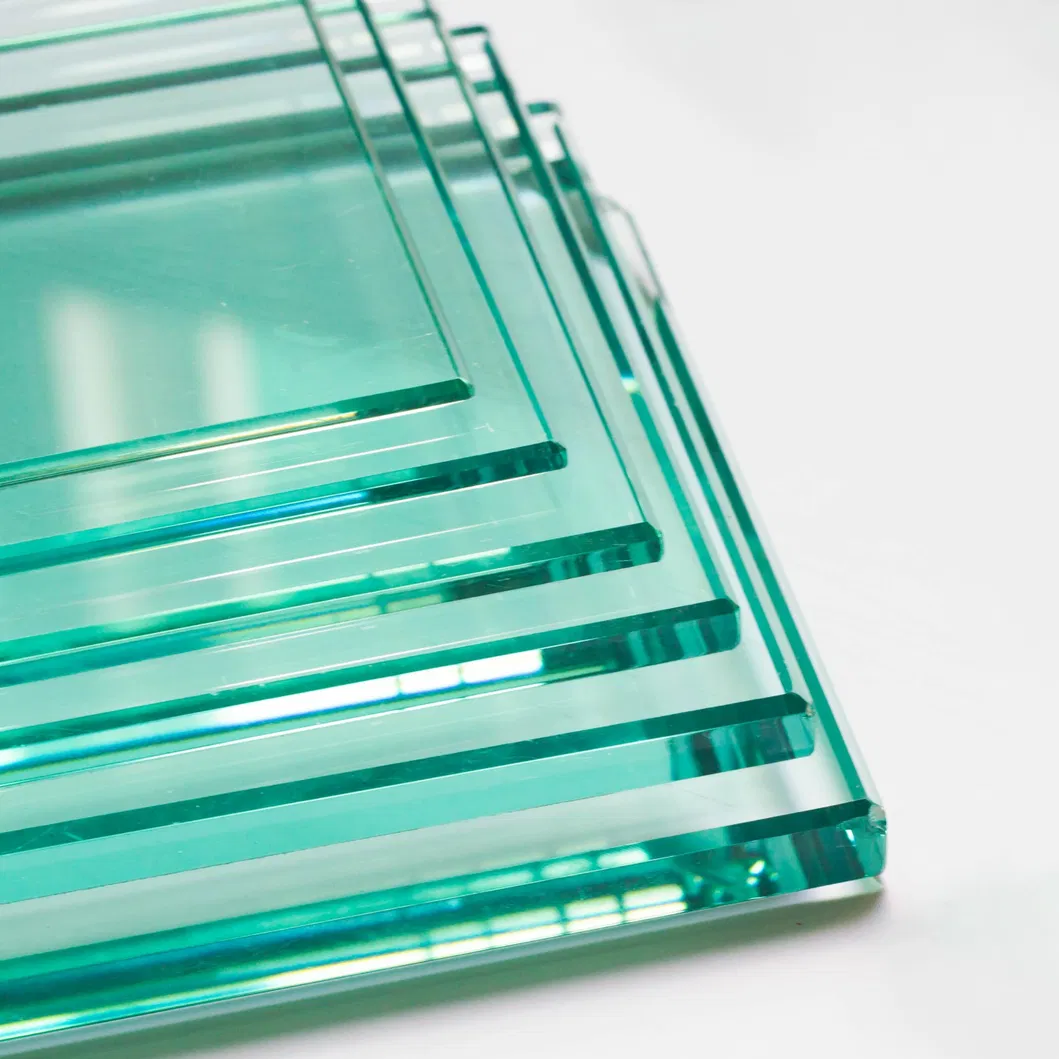

| Thickness | 3mm-19mm |
| Certificate | CCC, AS/NZS2208 |
| Size | Support Customized Size |
| Feature | Security Reinforcement |

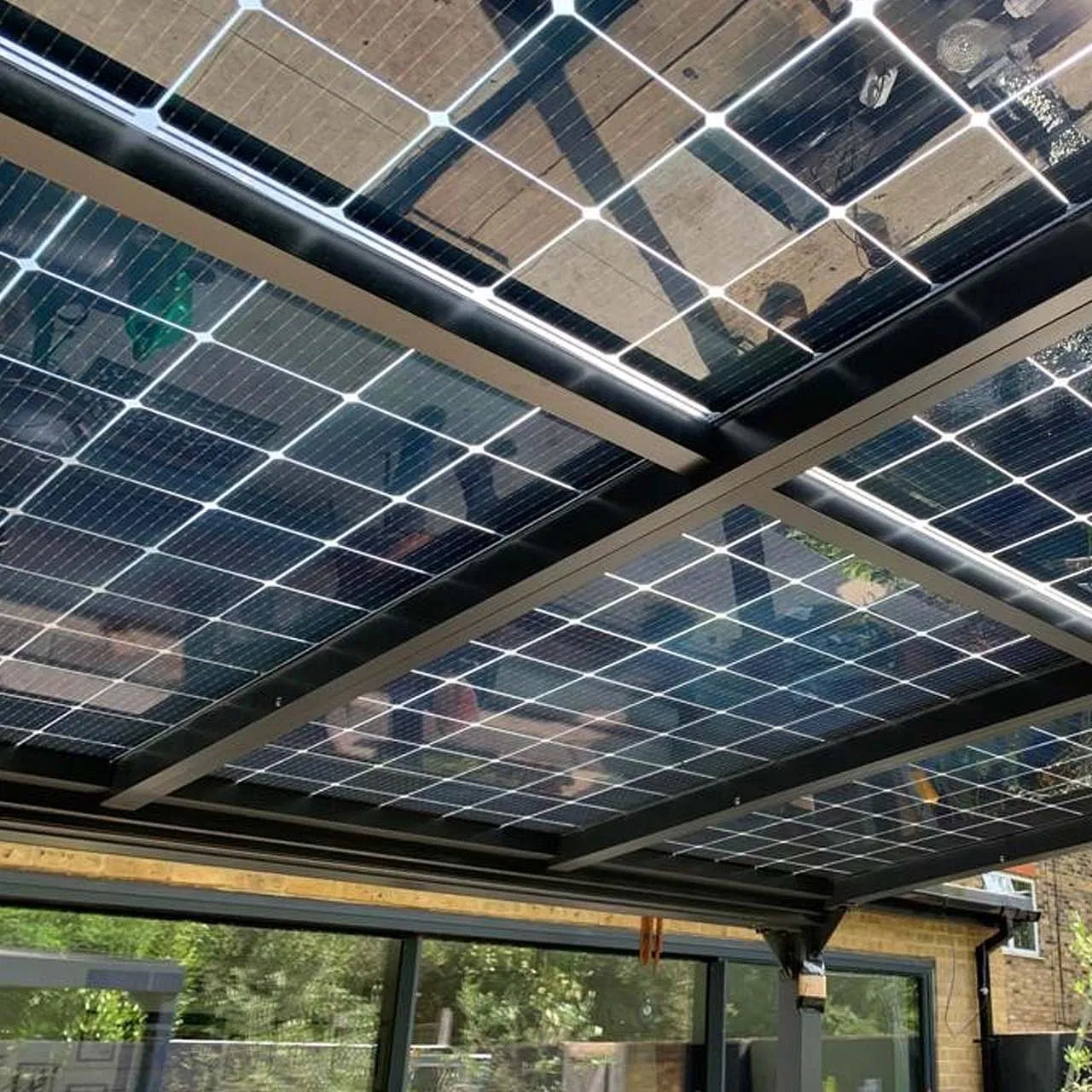

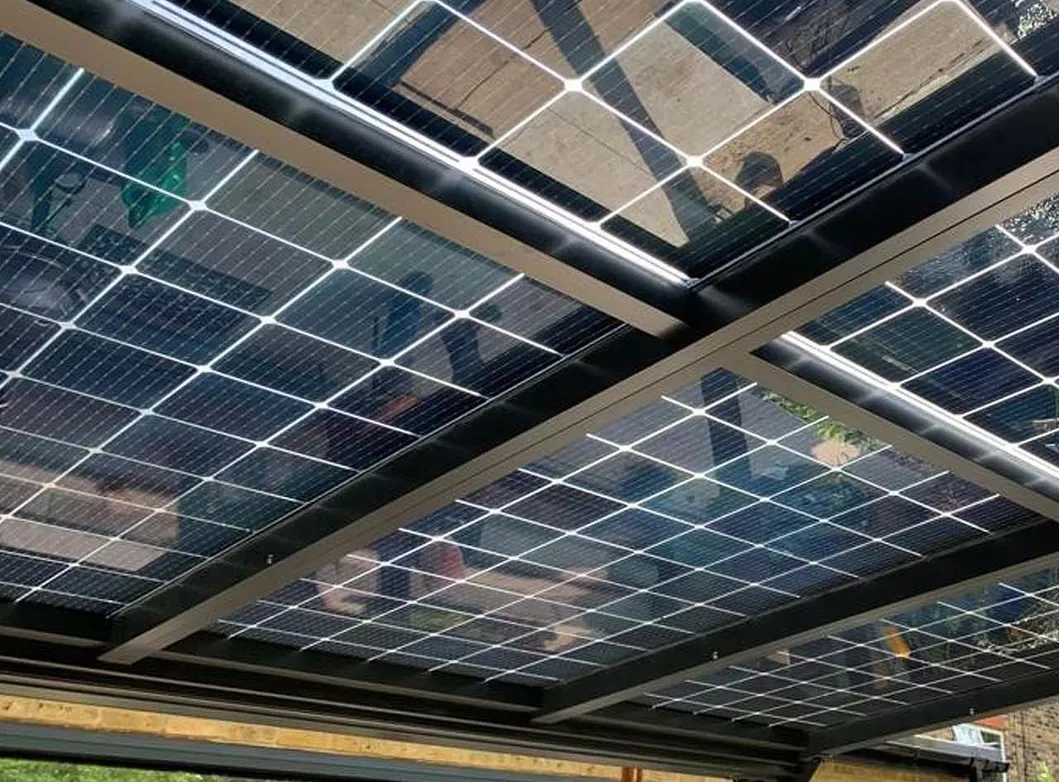

| Application | Skylights, Balconies, Glass Railings, Curtain Wall |

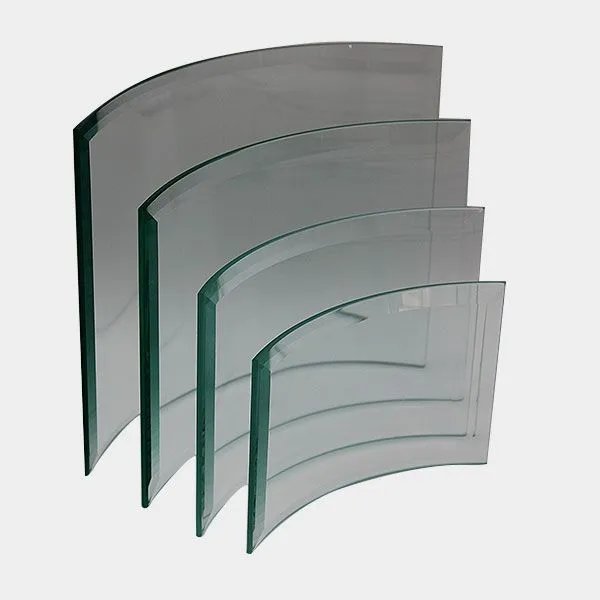

| Surface | Flat or Curved |
| Transport Package | Seaworthy Wooden Crates with Steel Belt |
| HS Code | 7007290000 |

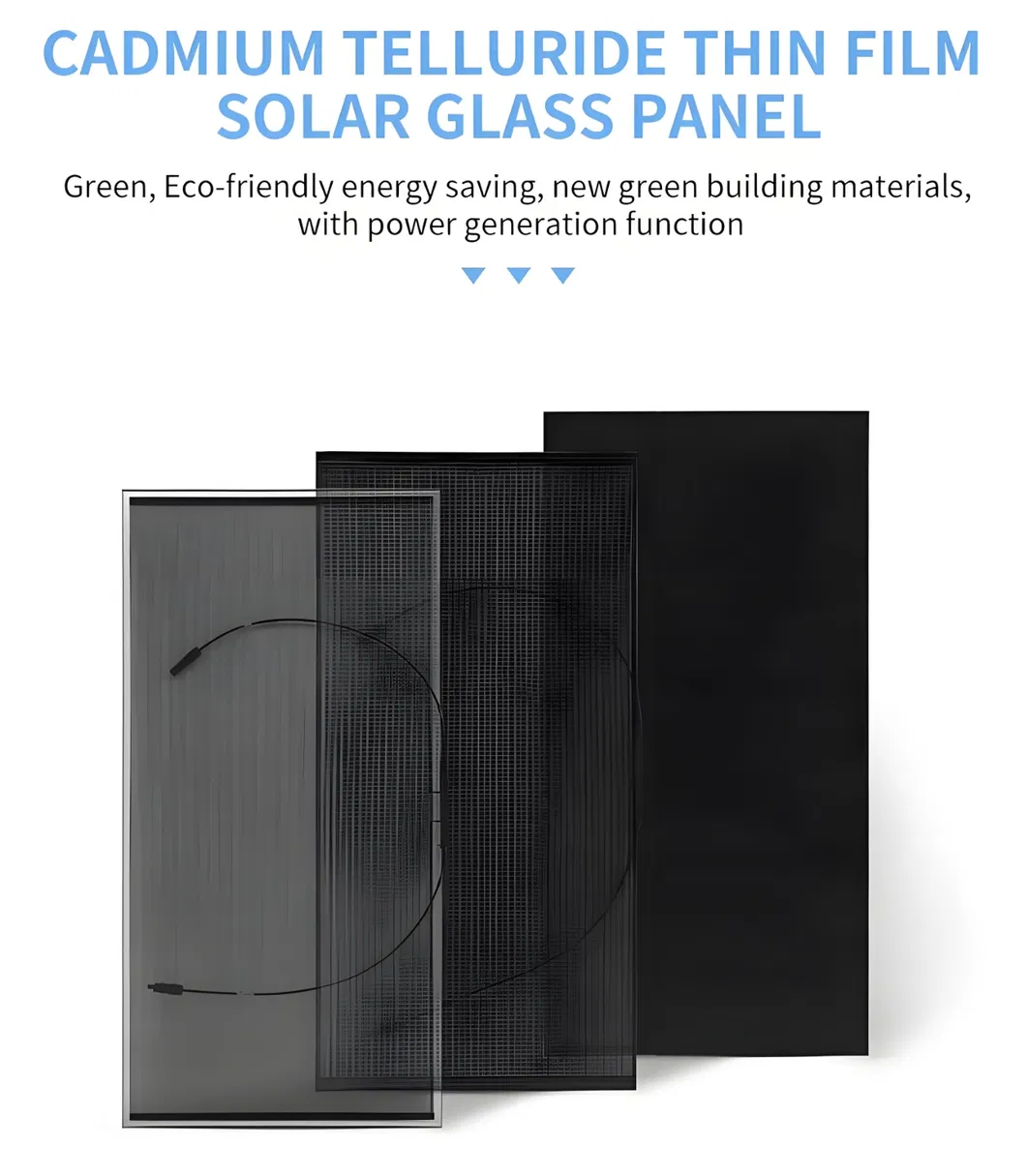

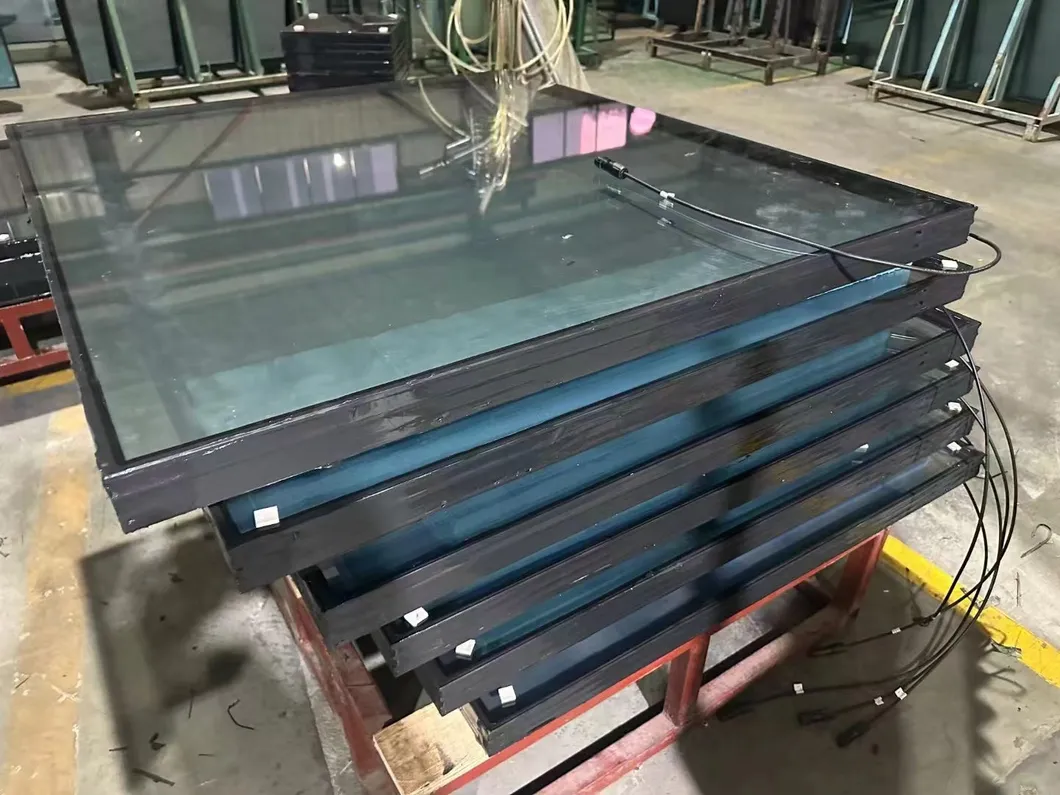

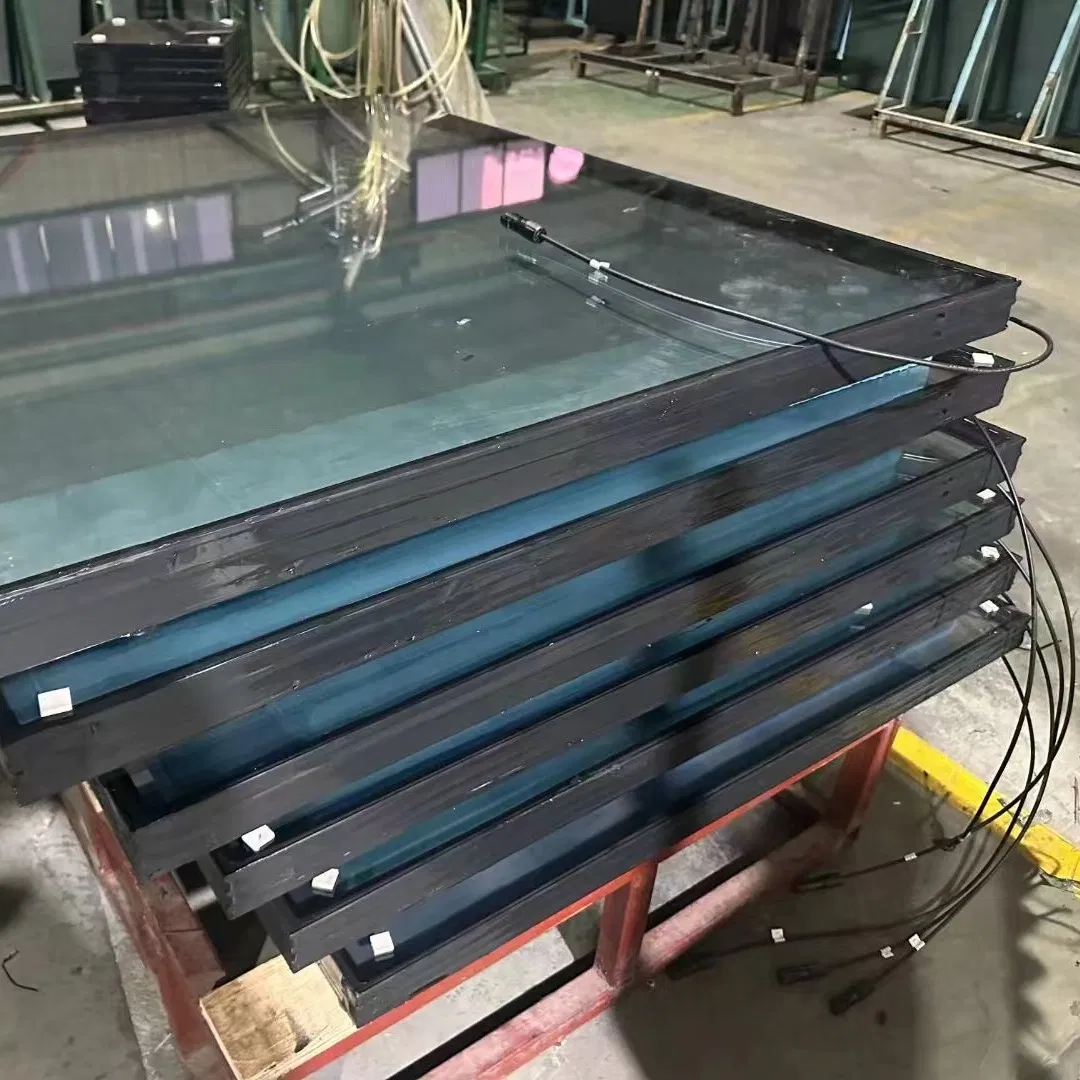

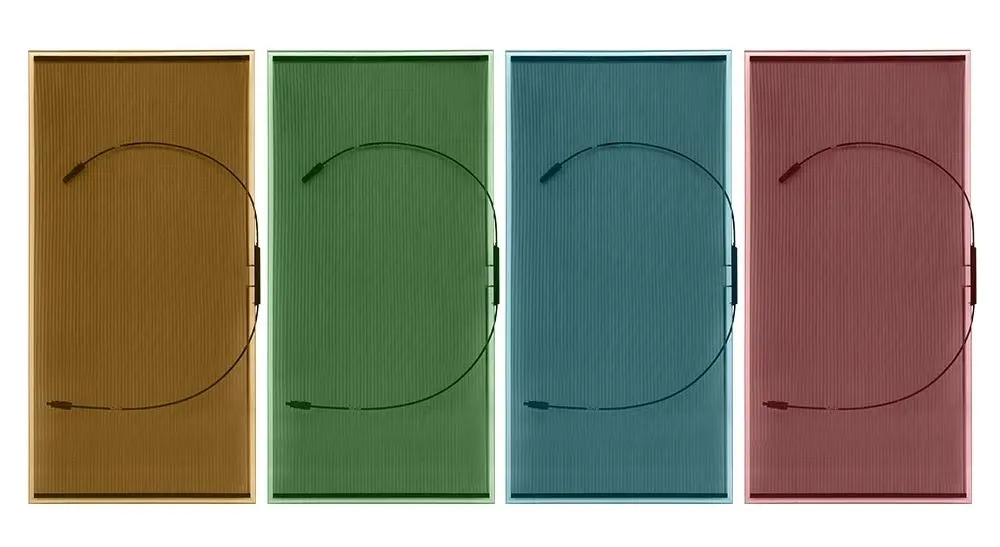

Cadmium telluride Solar glass panel is a new type of photovoltaic material that uses cadmium telluride thin films as photoelectric conversion layers and embeds them into glass substrates.
| Technical Specifications | |

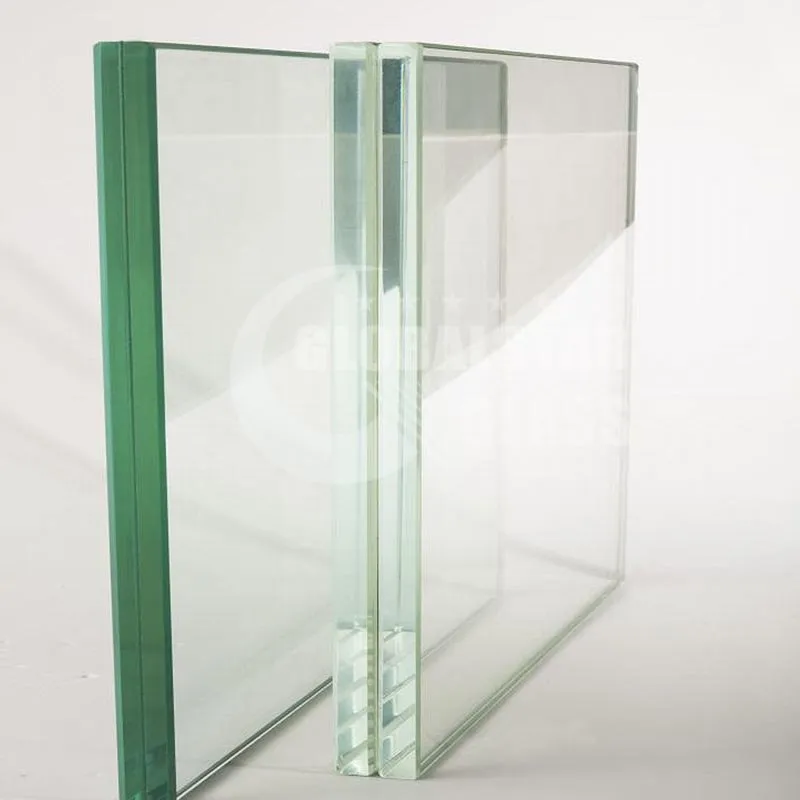

| Configuration | 3.2mm CdTe glass + 0.5mm EVA + 3.2mm semi-tempered glass / 5mm ultra-clear tempered glass + 1.52mm PVB + 3.2mm CdTe glass |
| Panel Efficiency | 15% ~ 22% |
| Power Output | 100-120W (varies by model) |
| Max System Voltage | DC 1000V |
| Voltage (Vmpp) | 48V ~ 100V |
| Current (Impp) | 1A ~ 3A |
| Standard Dimensions | 600x1200mm; 1200x1800mm (Customizable) |
| Waterproof Level | IP67 |

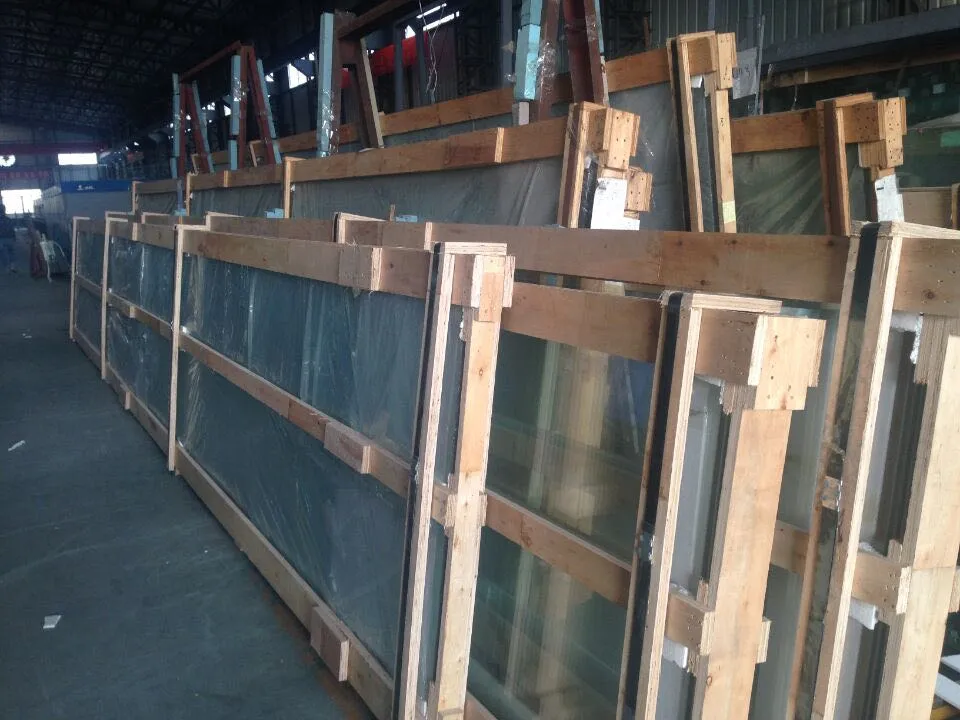

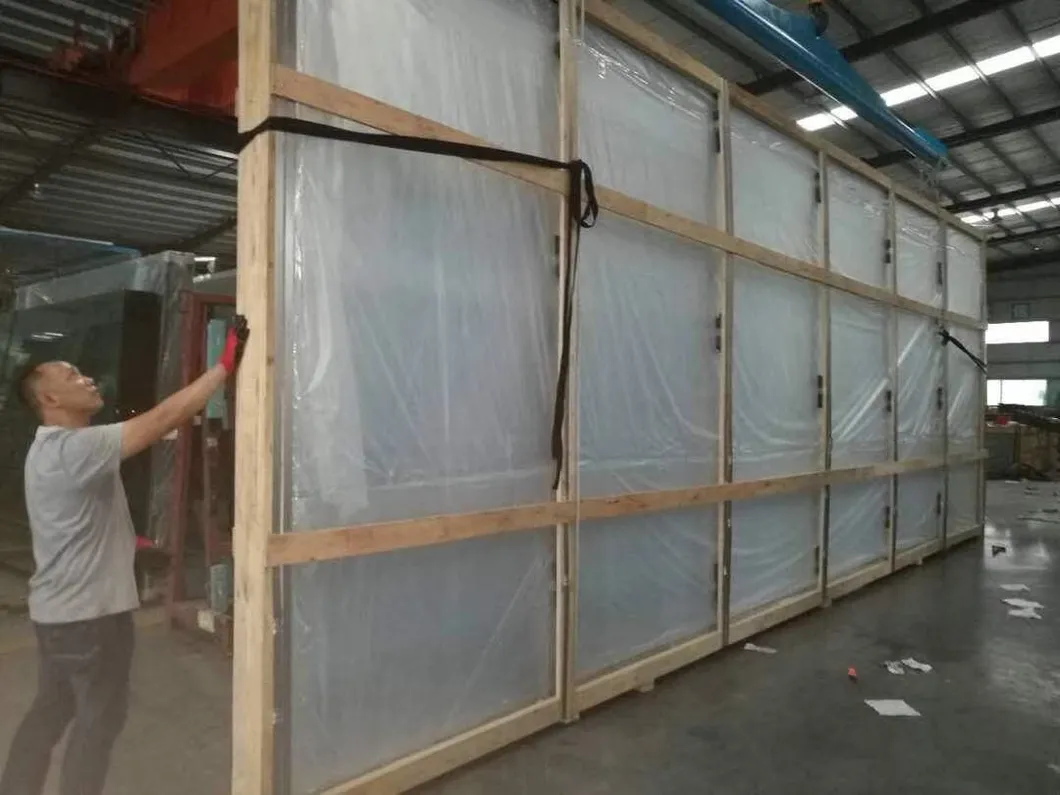

Robust Standard Packaging: Premium wooden crates fitted with shockproof foam and sturdy corner steel guards ensure unmatched protection during shipment.
Versatile Shipping: We support sea and land freight services (FOB/CIF terms) to accommodate logistical requirements globally.
