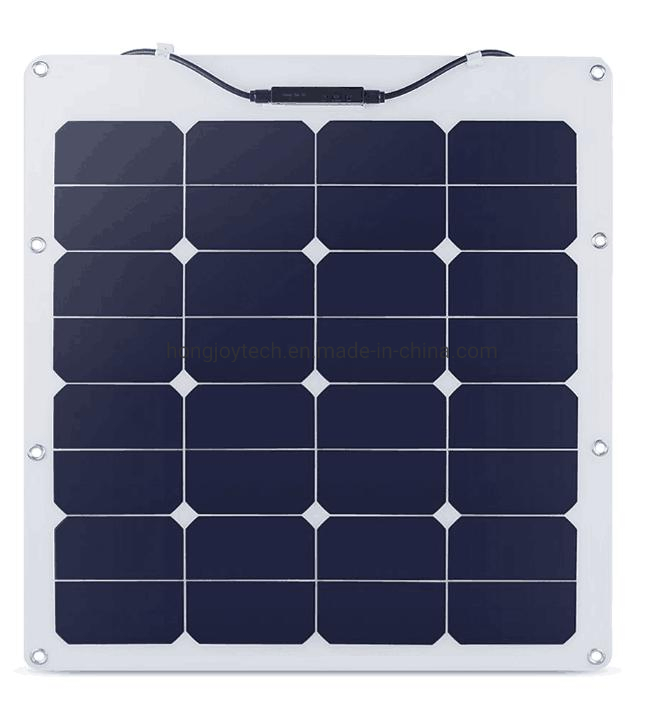

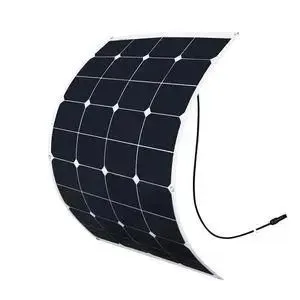

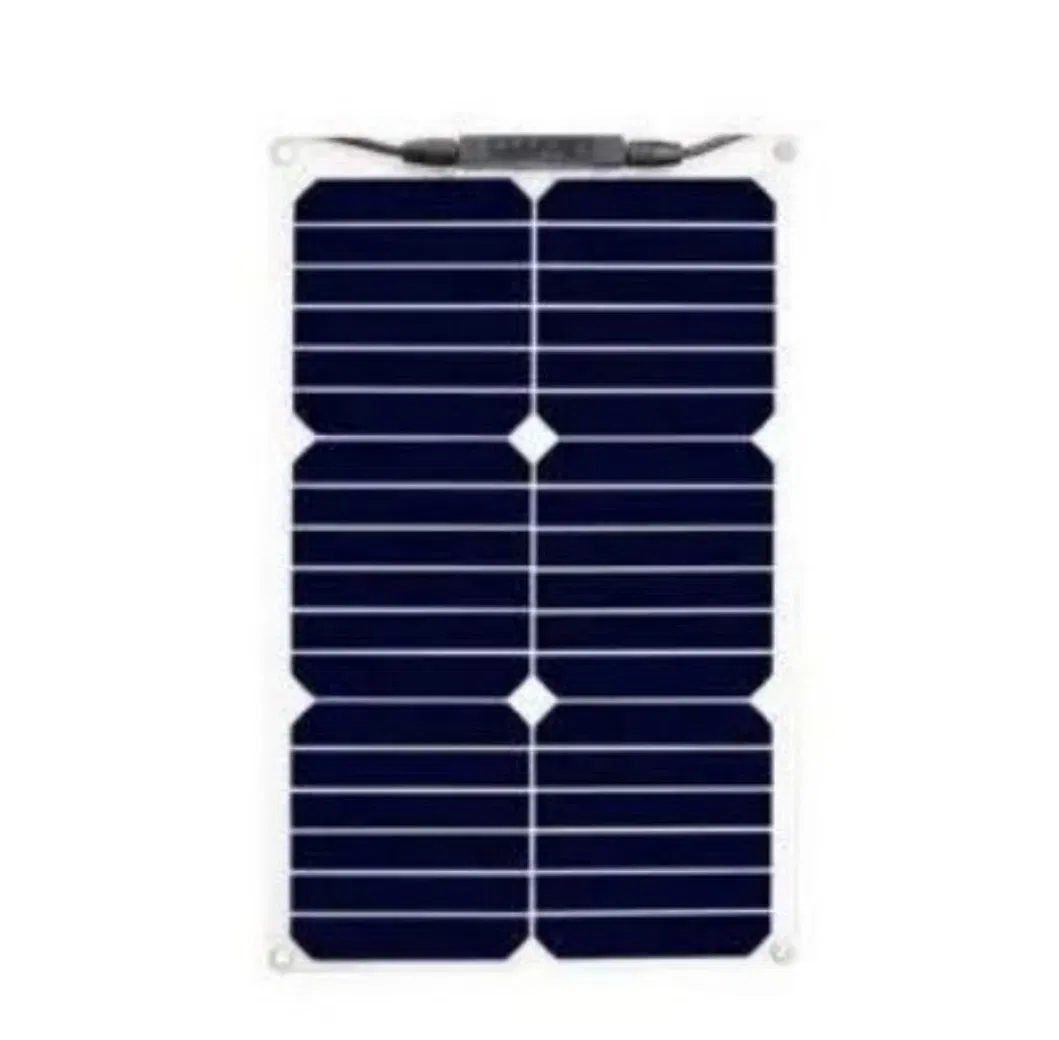

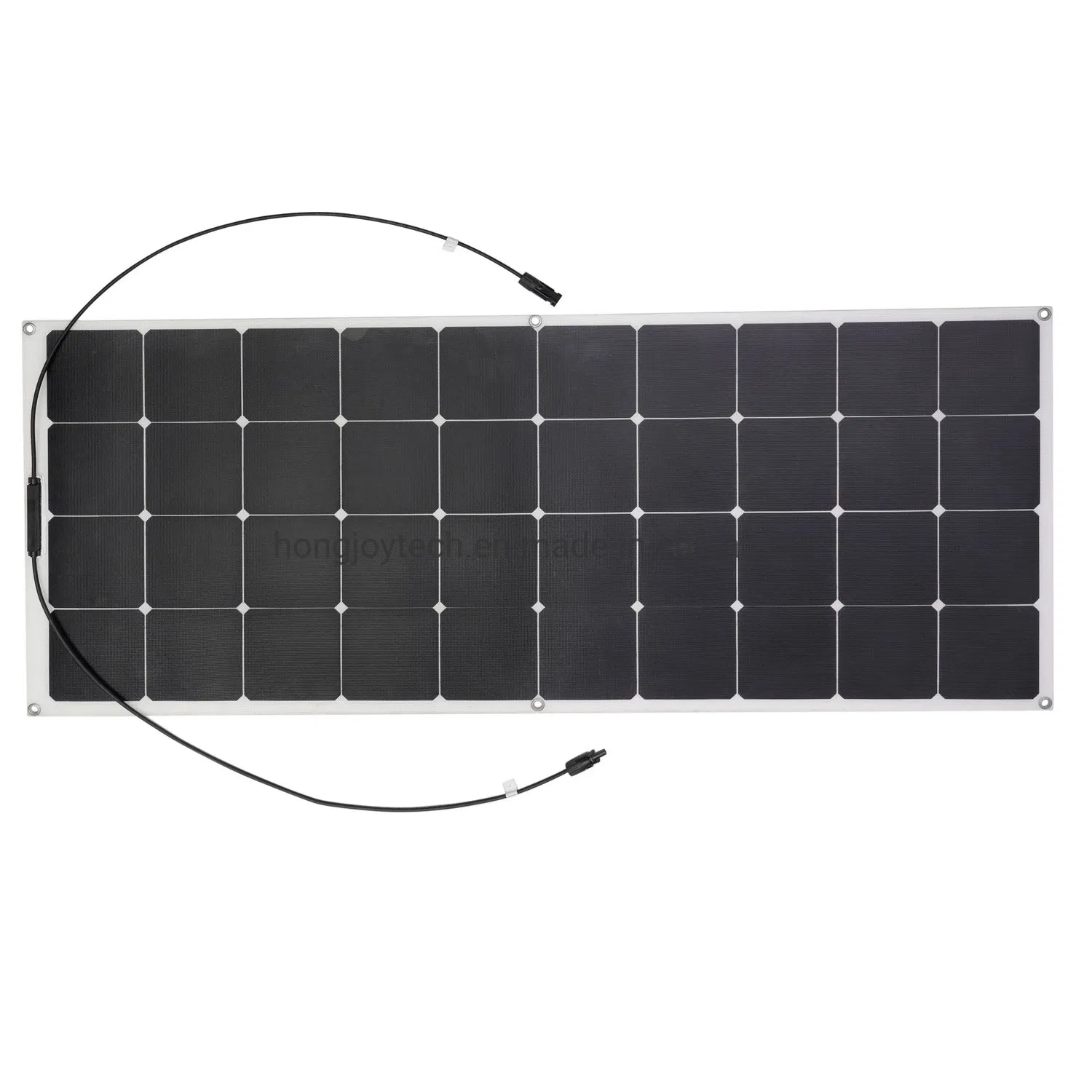

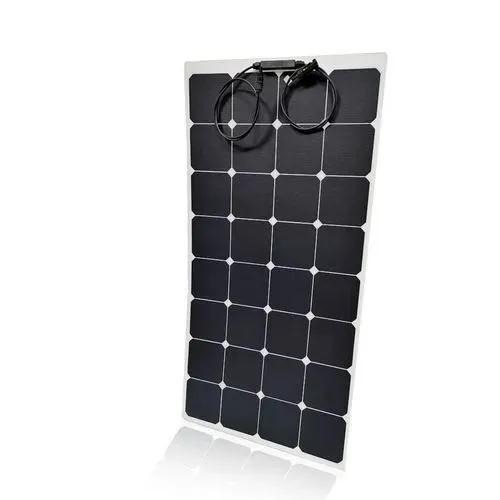

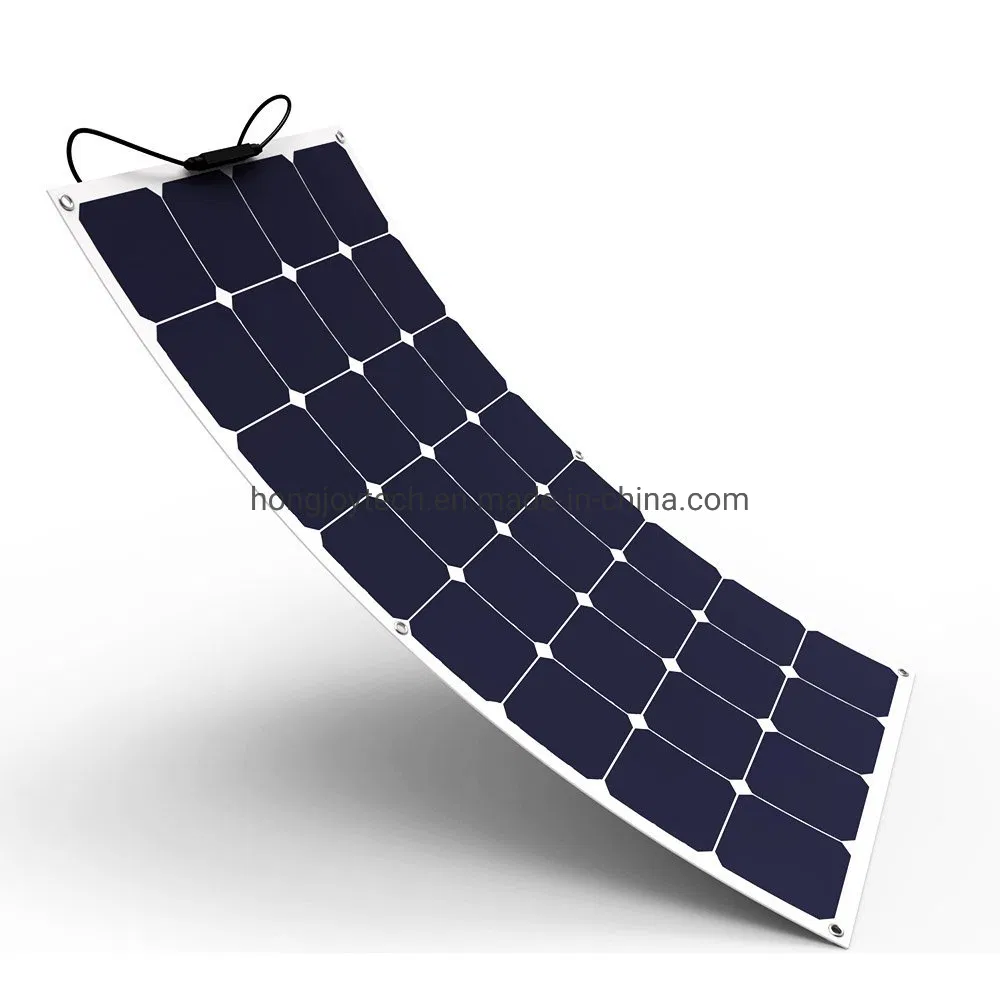

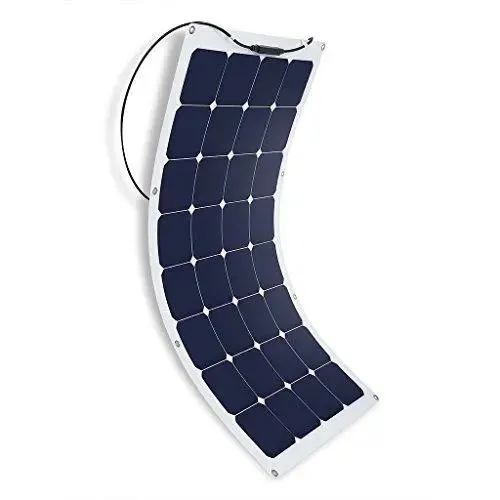

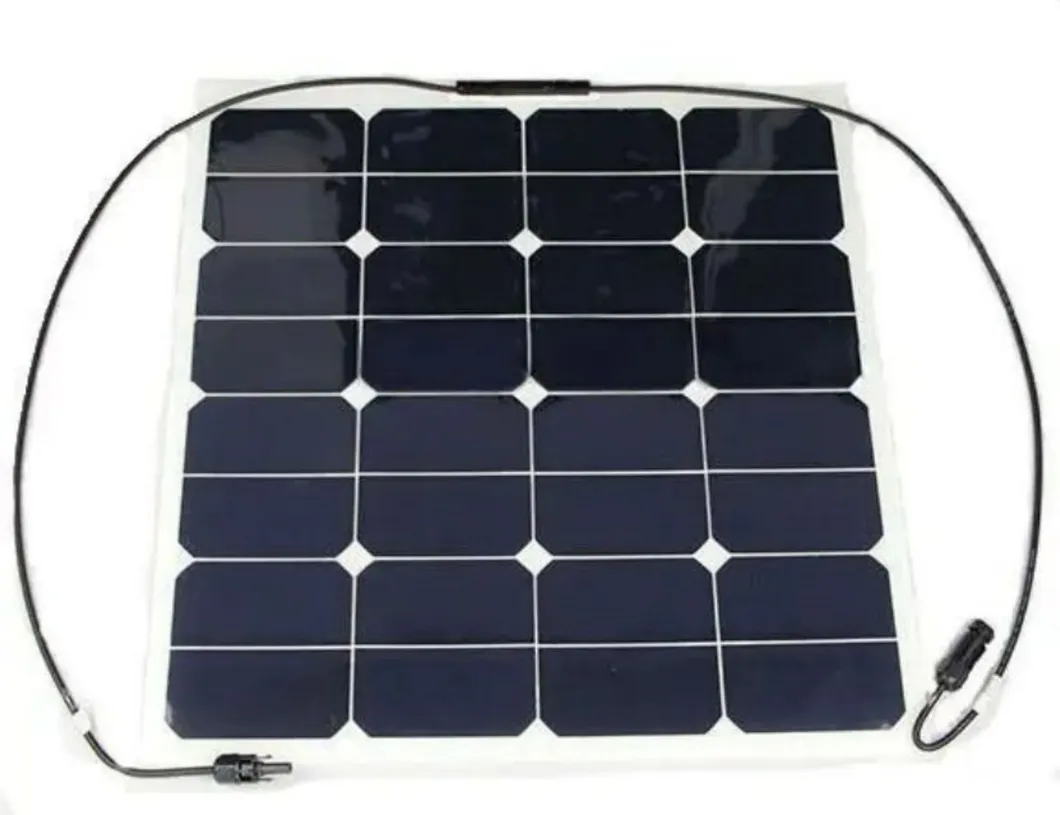

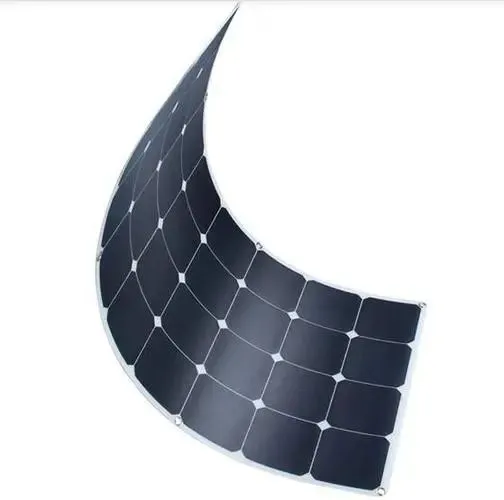

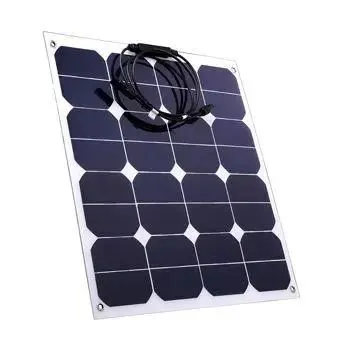

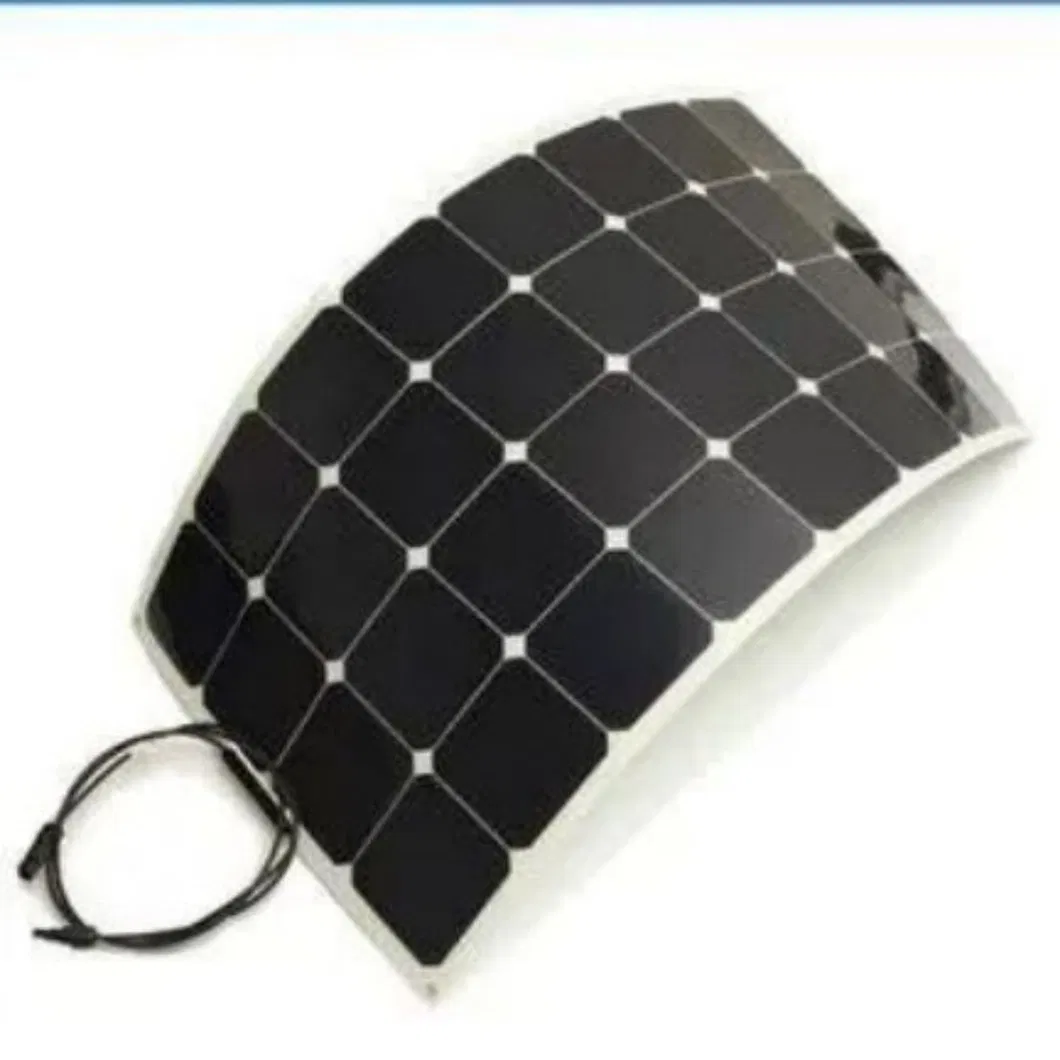

High Efficiency Bendable PV modules

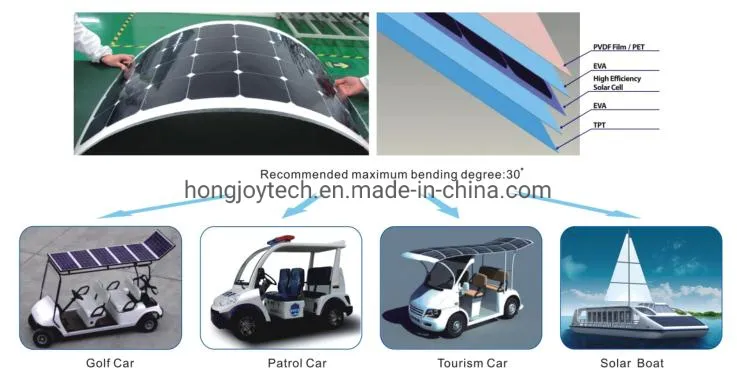

The high efficiency bendable PV modules (Flexible modules) adopt the world's highest conversion efficiency back-contact solar cells, the efficiency of the module is 30% higher than that of the conventional ones. As these modules are bendable, high efficiency bendable PV modules are widely applied to electric golf cars, patrol cars, tourism cars, yachts, roof power generation systems, backpacks, tents etc.
Product Specification: 100 Watt Monocrystalline Bendable Photovoltaic Module

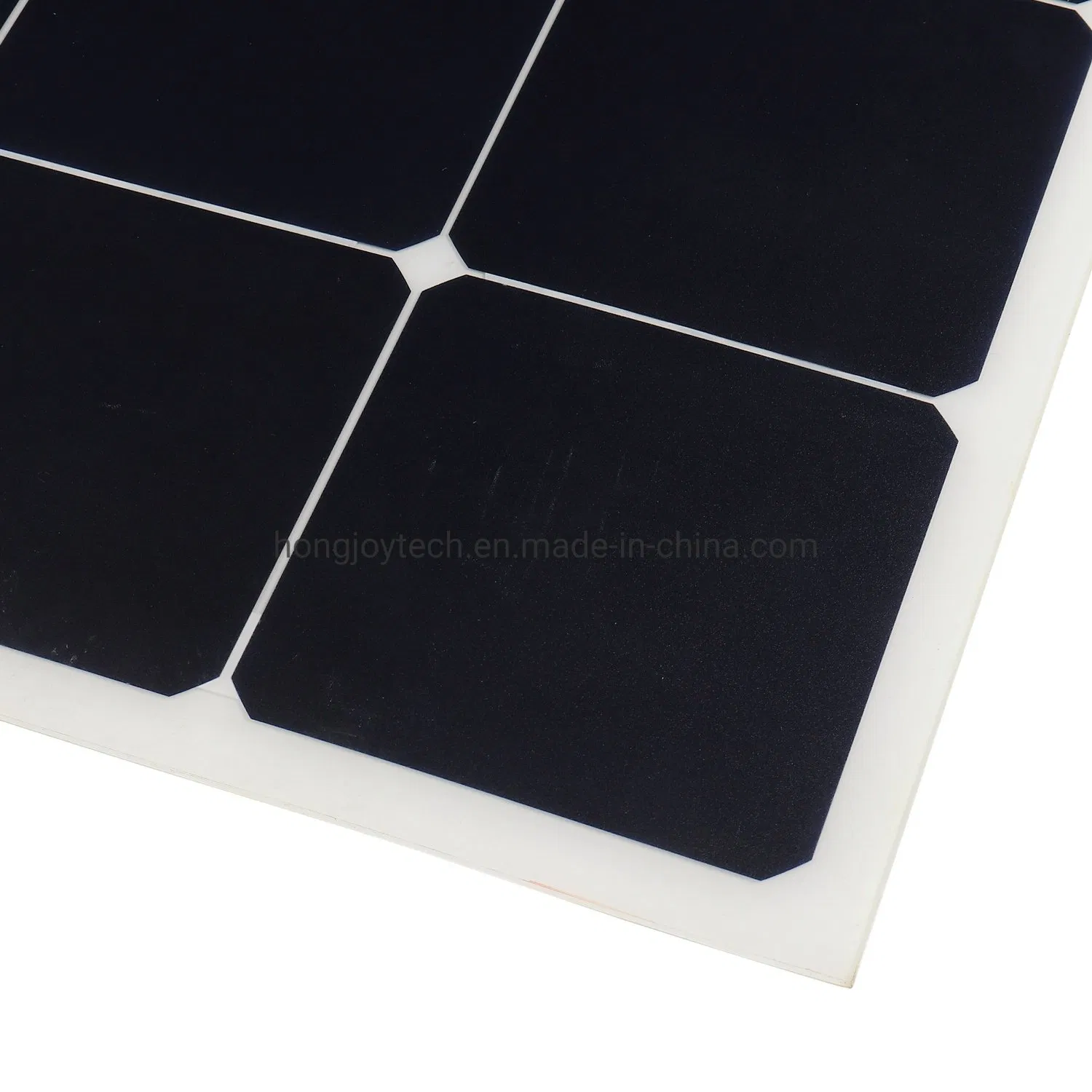

Made with high efficiency back-contact solar cells. Electrical Characteristics:
| Parameter | Symbol | Value |
|---|---|---|
| Max Power | Pmax | 100W |
| Max Power Voltage | Vmp | 17.8V |
| Open Circuit Voltage | Voc | 21.6V |
| Maximum System Voltage | Voc | 600V |
| Temperature Co-efficient (Power) | - | -0.38%/ºC |
| Temperature Co-efficient (Voltage) | - | -60.8mV/ºC |
| Temperature Co-efficient (Current) | - | 2.2mA/ºC |
| Cell Efficiency | - | 21% |
| Number of Cells in Series | - | 32 |
| Max Power tolerance | - | ±5% |
| Weight | KGS | 2.0KG |
| Dimension | mm | 1060*540*3 |
More options for your selection:
| Pm | Voc | Isc | Vmp | Imp | C-eff | N.W. | Dimension(mm) |
|---|---|---|---|---|---|---|---|
| 18W | 23.7V | 0.98A | 19.8V | 0.91A | 20.30% | 0.50kg | 434*277*3 |
| 30W | 21.2V | 1.83A | 17.6V | 1.70A | 19.50% | 0.75kg | 535*378*3 |
| 50W | 21.2V | 3.05A | 17.6V | 2.84A | 21.50% | 1.20kg | 545*535*3 |
| 60W | 42.3V | 1.86A | 35.2V | 1.71A | 19.20% | 1.46kg | 725*535*3 |
| 80W | 18.5V | 5.58A | 15.4V | 5.19A | 19.60% | 1.80kg | 922*540*3 |
| 90W | 21.4V | 5.52A | 17.6V | 5.12A | 19.00% | 2.00kg | 1050*540*3 |
| 95W | 21.4V | 5.77A | 17.7V | 5.37A | 20.00% | 2.00kg | 1050*535*3 |
| 100W | 21.6V | 5.97A | 17.8V | 5.62A | 21.00% | 2.00kg | 1050*540*3 |
| 110W | 23.7V | 5.91A | 19.8V | 5.56A | 20.60% | 2.22kg | 1175*540*3 |
| 120W | 26.4V | 5.87A | 22.0V | 5.45A | 20.50% | 2.45kg | 1305*540*3 |
| 130W | 29.4V | 5.76A | 24.4V | 5.32A | 20.00% | 2.67kg | 1435*540*3 |
| 135W | 29.6V | 5.90A | 24.6V | 5.49A | 20.70% | 2.67kg | 1435*540*3 |
More Specifications, customized are Supported and Welcomed.
