A BIPV system is an integral component of the building skin that simultaneously converts solar energy into electricity and provides essential building envelope functions such as:

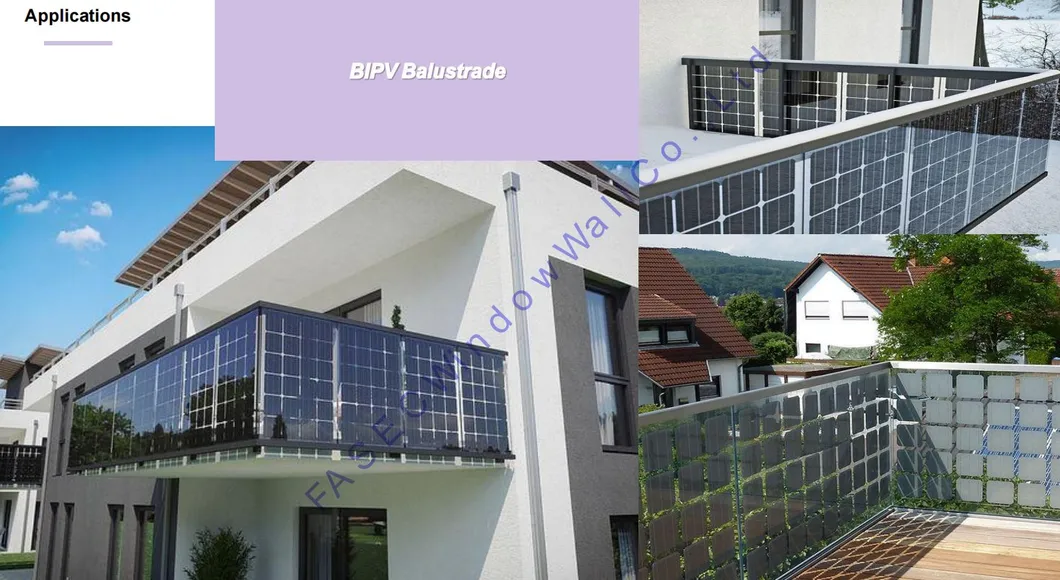

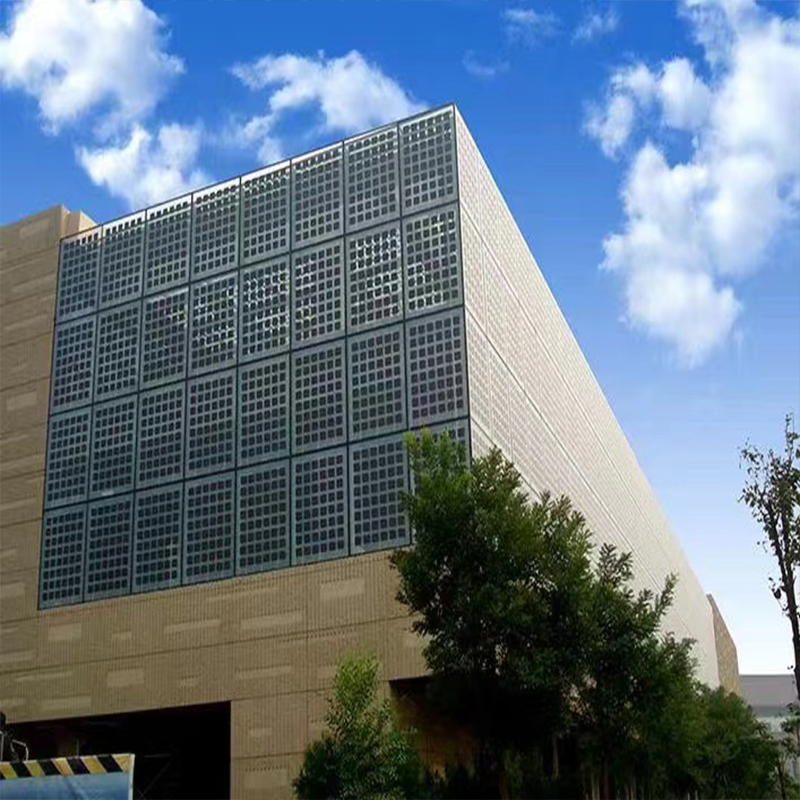

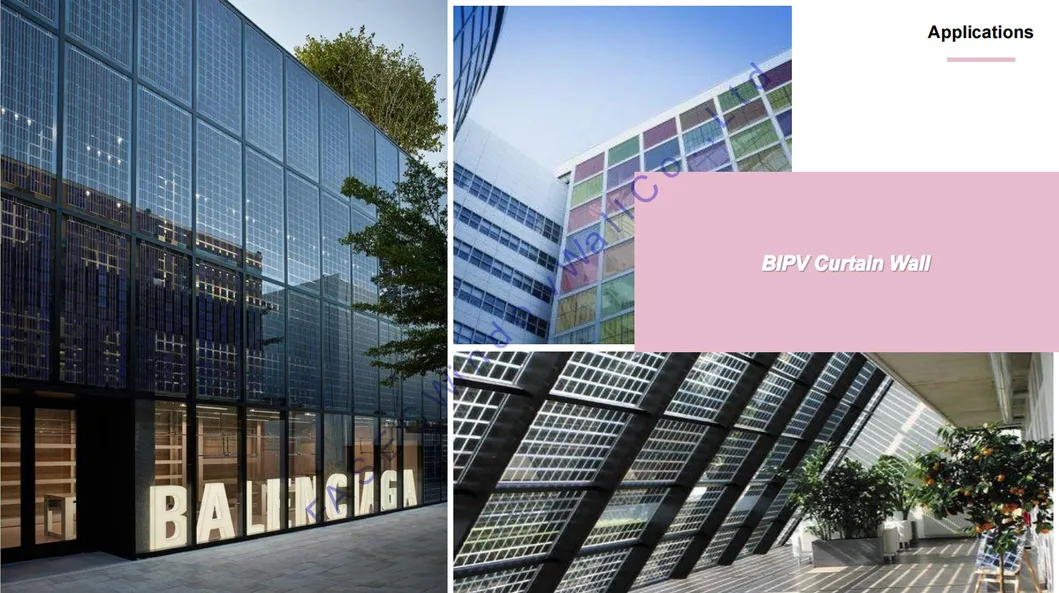

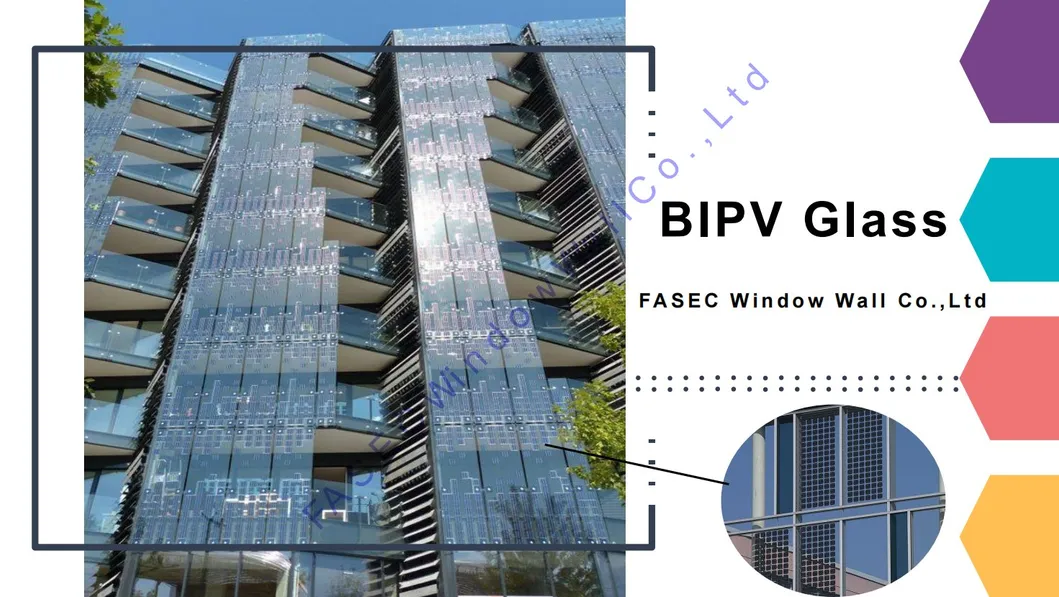

1. Facade: PV can be integrated into the sides of buildings, replacing traditional glass windows with semi-transparent thin-film or crystalline solar panels.

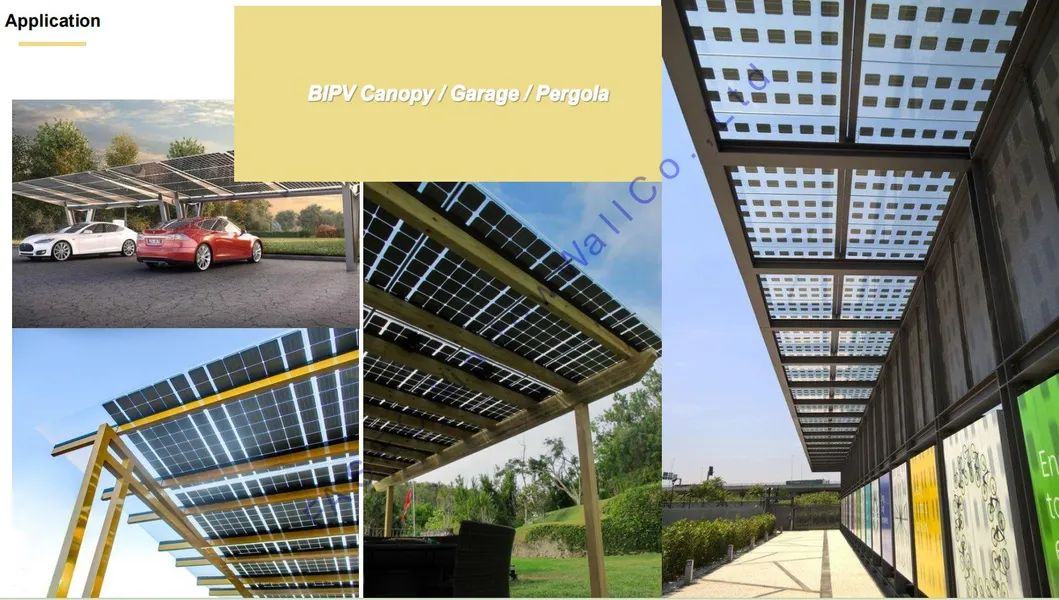

2. Rooftops: PV material replaces roofing material. Options include integrated single-piece solar rooftops made with laminated glass or solar shingles.

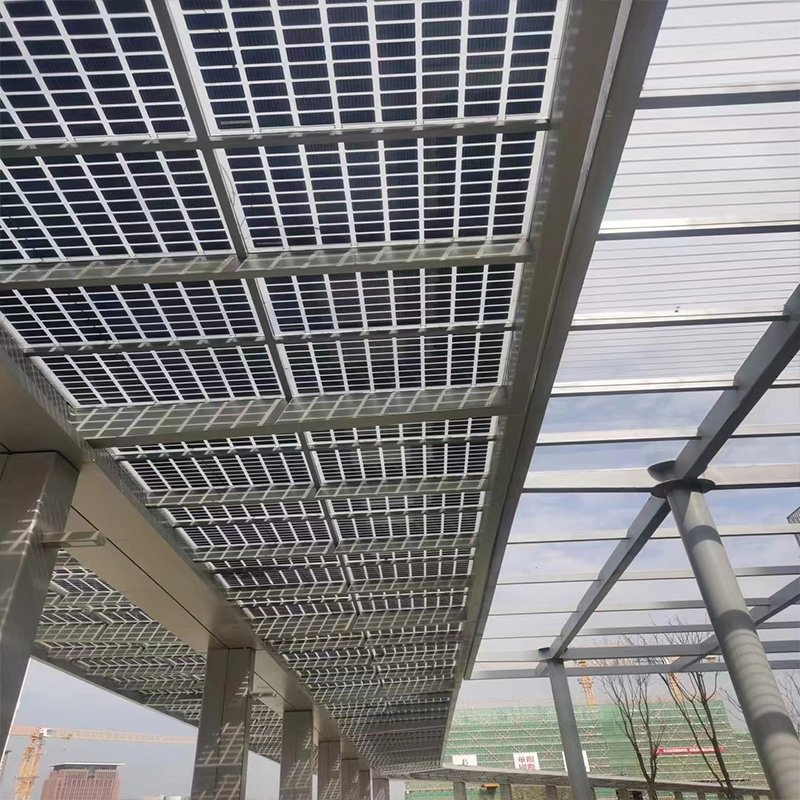

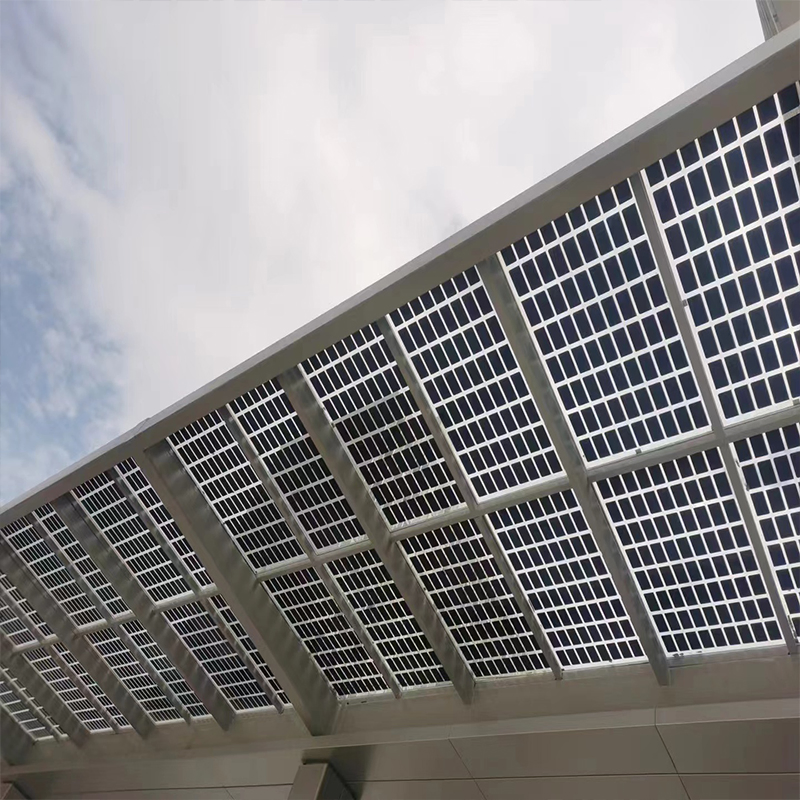

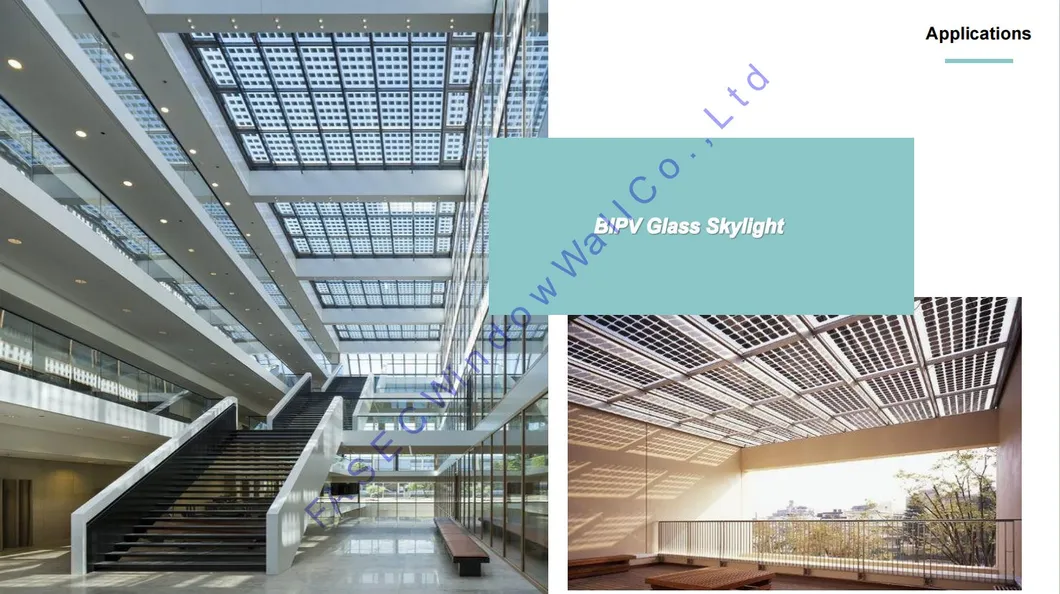

3. Glazing: Ultra-thin solar cells create semi-transparent surfaces, allowing daylight to penetrate while generating electricity, ideal for skylights or greenhouses.
| ELECTRICAL SPECIFICATIONS (STC) | |
|---|---|
| Peak Power (Pmax) | 320W |
| Maximum Power Voltage (Vmp) | 30.27V |
| Maximum Power Current (Imp) | 8.95A |
| Open Circuit Voltage (Voc) | 36.19V |
| Short Circuit Current (Isc) | 9.65A |
| Module Transparency | 48% |
| MECHANICAL SPECIFICATIONS | |
|---|---|

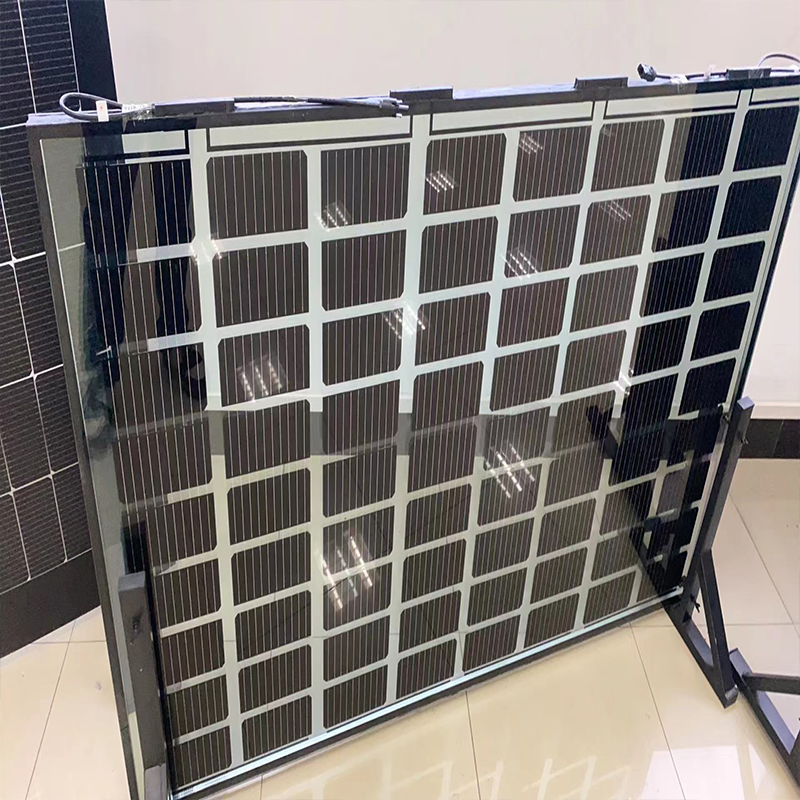

| Cell Type | 156Mono 66 Cells (16x4) |

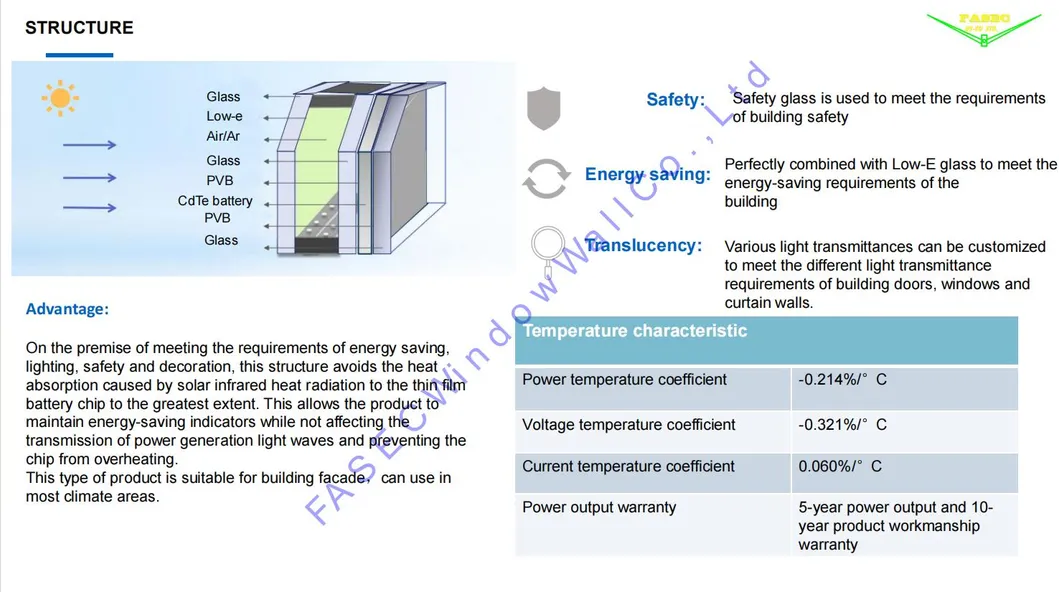

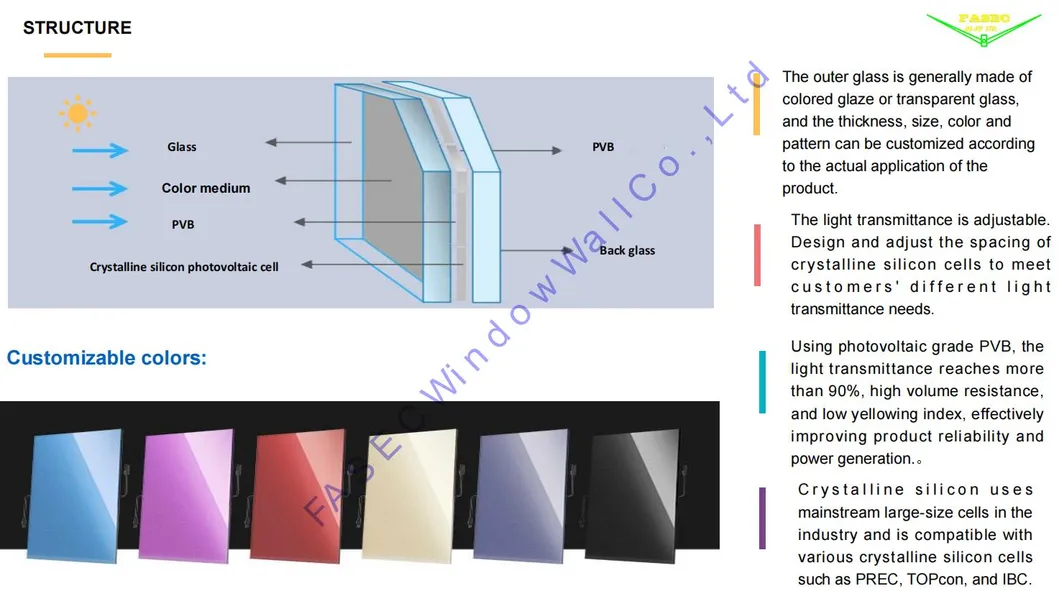

| Module Structure | 4mm Tempered Glass+PVB+Cells+PVB+4mm Tempered Glass |
| Junction Box | IP68/MC4 |
| Output Cable | PV 1-F 4mm² |
| Fire Safety | Class A |
| CHARACTER SPECIFICATIONS | |
|---|---|
| Operating Temperature | -40ºC ~ +85ºC |
| Power Tolerance | ±5W |
| Maximum System Voltage | DC1000V |
| Maximum Load | 9600Pa |
