Product Description
Product Structure:

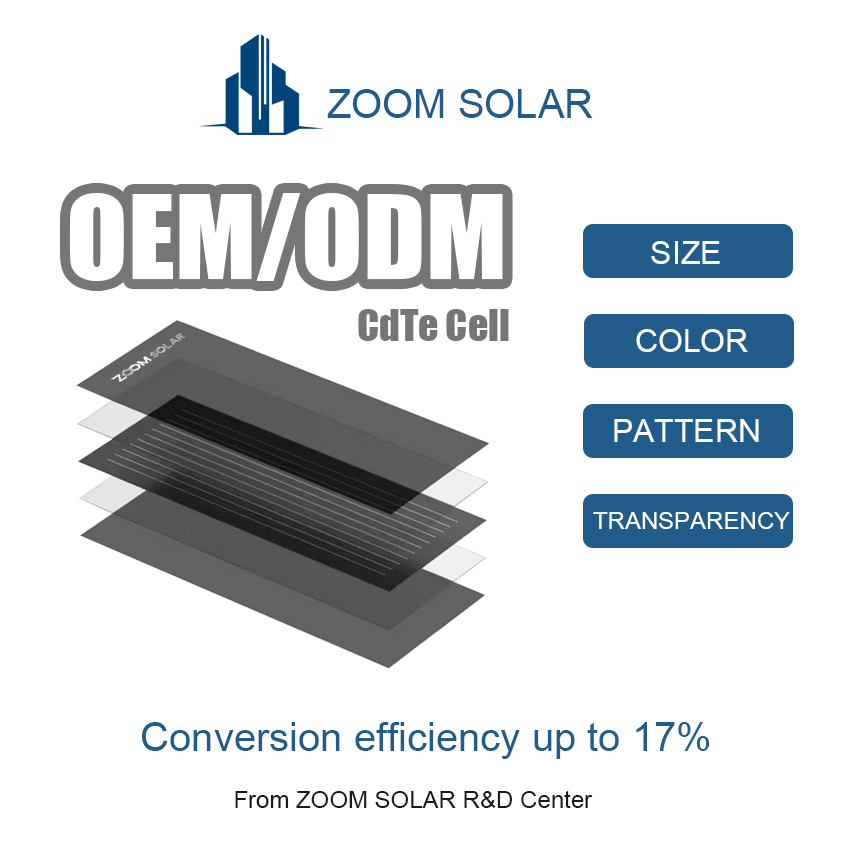

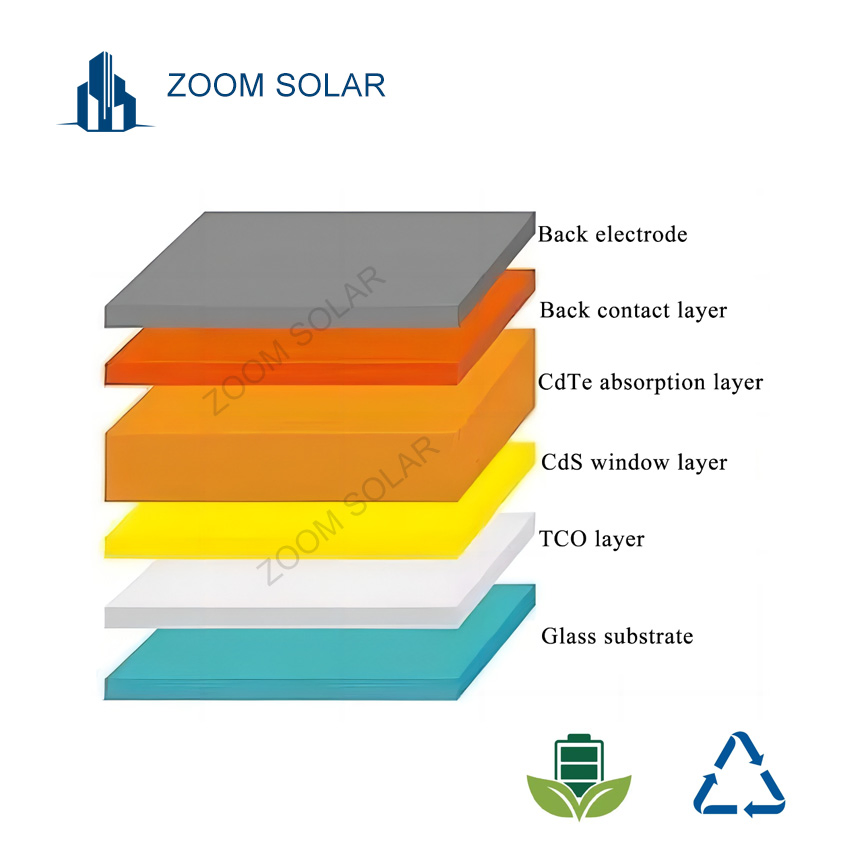

The structure of cadmium telluride thin-film solar cells consists of five layers: glass substrate, transparent conductive oxide layer (TCO layer), cadmium sulfide (CdS) window layer, cadmium telluride (CdTe) absorption layer, back contact layer, and back electrode.
| Specifications |
Parameter Range |
Applicable Scenarios |

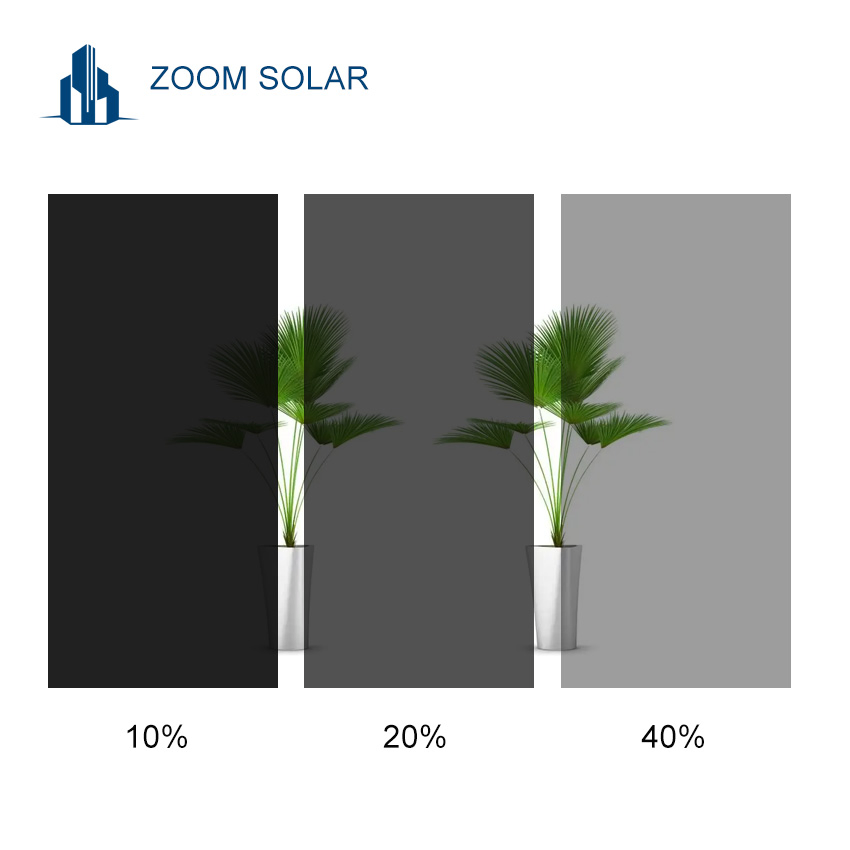

Thickness / Transmittance |
Power Output |
| Home |
1200×600mm / 1600×800mm / 1200×1600mm |
Home Roofs / Balcony Railings |
10-12mm / 10%-60% |
100W-300W/unit |
| Commercial |
2400×1200mm / 3000×1500mm / 2300×1215mm |
Factory Walls / Power Plants |
22mm / 10%-60% |
500W-1000W/unit |
| Custom |
1000-4000mm available |
Special Curtain Walls / Landscapes |
6-20mm / 10%-60% |
Calculated by size |
Key Services:
- Sample consultation and online purchase of cadmium telluride solar glass modules
- Pre-sales consultation and installation of residential photovoltaic systems
- Comprehensive solutions for industrial and commercial rooftop and facade projects
Product Features
- Good Weak Light Performance: CdTe is a direct bandgap material with excellent absorption. Performance in early morning, evening, or cloudy conditions is significantly better than crystalline silicon cells.
- Low Temperature Coefficient: Stability is maintained at high temperatures. The coefficient is about -0.21~0.25%/ºC, roughly half that of crystalline silicon.
- High Conversion Efficiency: Features a 1.47eV bandgap width, absorbing 90% of visible light with a thickness of only 1μm. Theoretical efficiency reaches 28-29%.
- Low Cost: Thin absorption layers and simple manufacturing processes make this technology highly competitive for large-scale production.
- Excellent Power Generation Stability: No light-induced degradation characteristics and superior performance in humid climates compared to traditional modules.
About Our Technology
We specialize in the R&D and production of cadmium telluride (CdTe) and perovskite thin-film solar cells. Focusing on BIPV (Building-Integrated Photovoltaics) and consumer electronics, our solutions cover centralized systems, urban renewal, renewable energy vehicles, and satellite antenna systems. Our products feature customizable shapes, dimensions, and transparency for seamless integration with curtain wall systems.
Frequently Asked Questions
Is this a manufacturing facility?

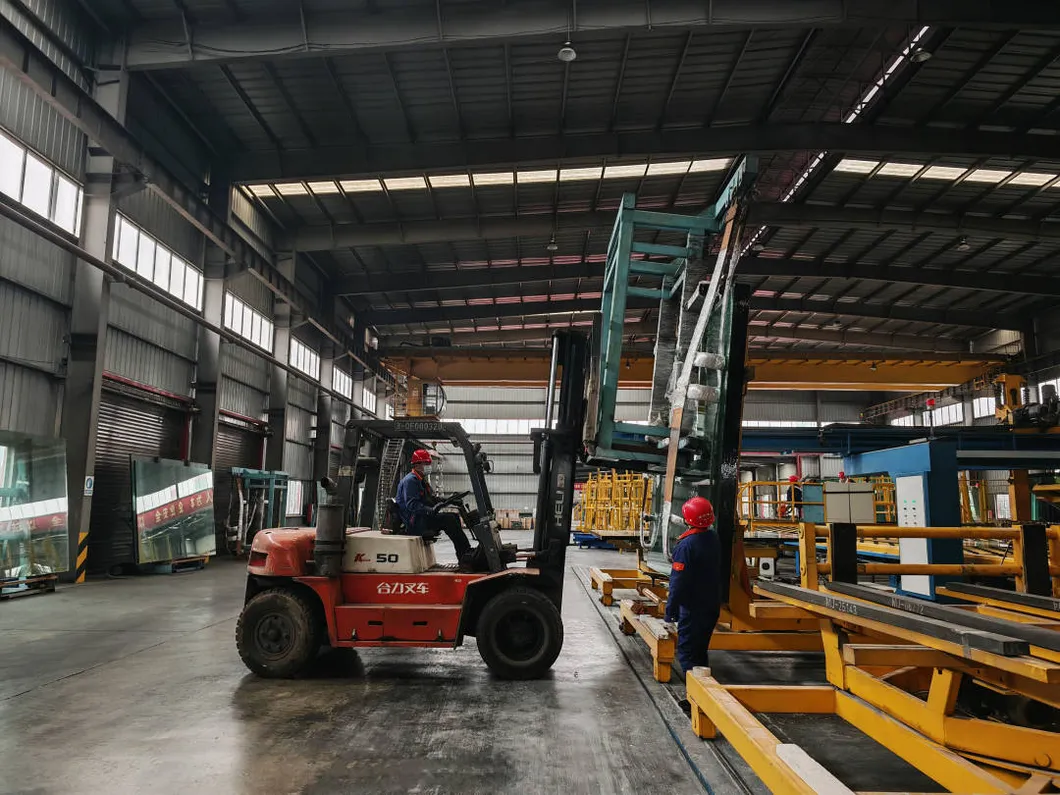

Yes, we are a high-tech enterprise focused on developing and producing cadmium telluride solar cell modules and perovskite cells. We manage global promotion and sales of solar glass solutions for diverse architectural scenarios.
Do you offer OEM/ODM services?
Yes, we provide full OEM/ODM services based on customer requirements. Our R&D team consists of over 20 highly skilled professionals dedicated to product customization.
What are the requirements for becoming a distributor?
We welcome partners with experience in the new energy or photovoltaic industry who identify with our core values of sustainable development.
What certifications do your products hold?
Our products hold CE, TUV, and CQC certifications. Our facility is ISO9001:2015 certified, and every batch includes a test report and certificate of conformity.
What kind of after-sales service is provided?
We offer a responsive support system including customization drawings, remote technical guidance, and on-site installation support by professional technicians.
Is there a Minimum Order Quantity (MOQ)?
No, we do not have a strict MOQ. Our mission is to bring green energy benefits to every corner of the world, supporting projects of all sizes.
