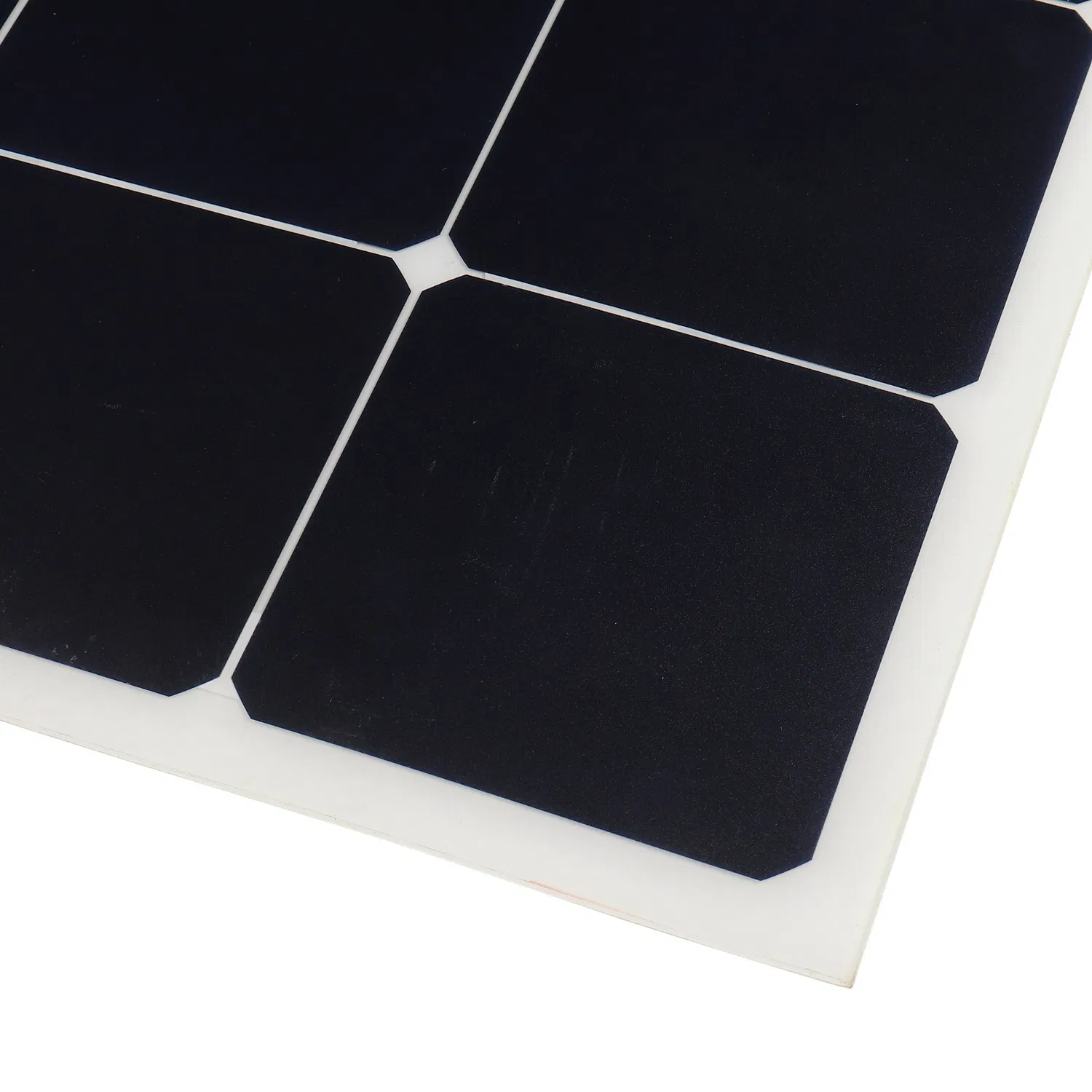

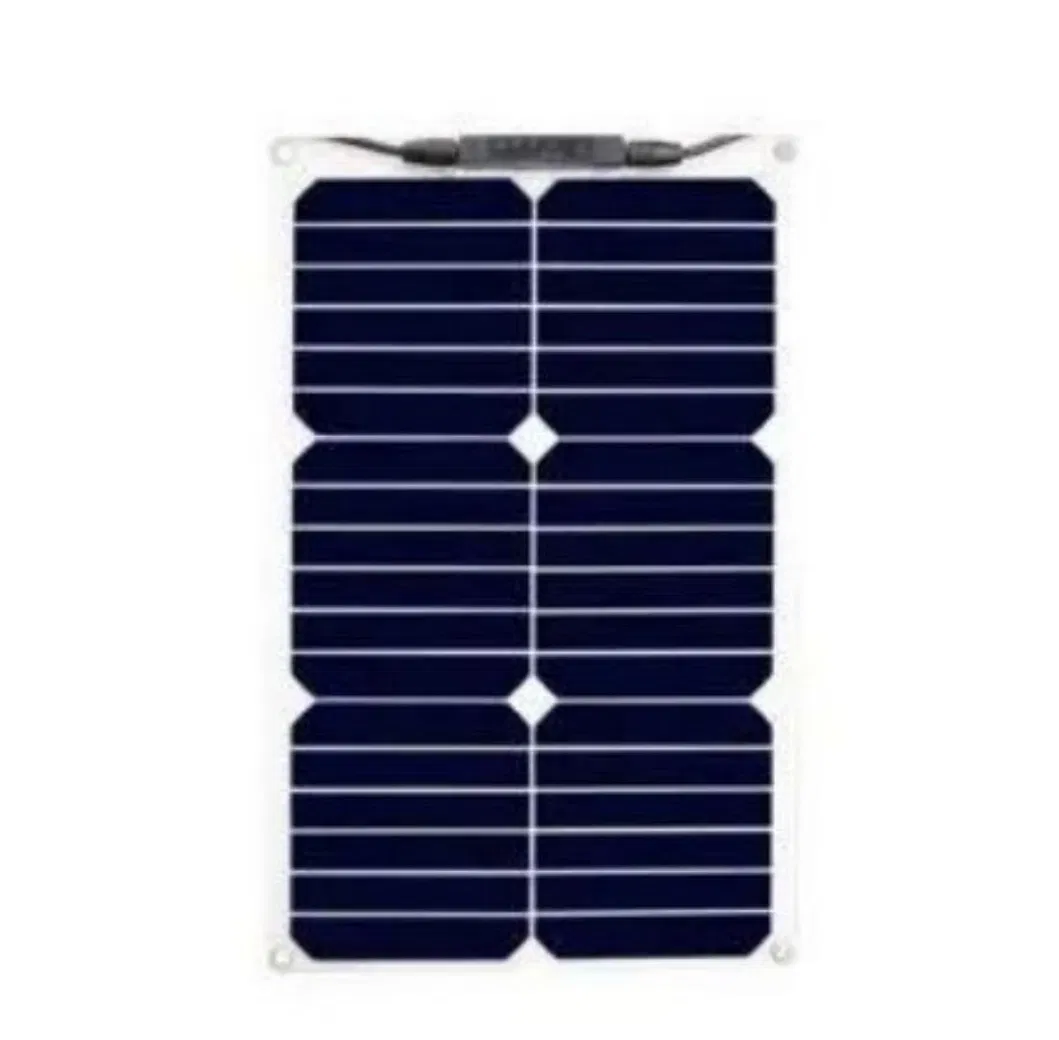

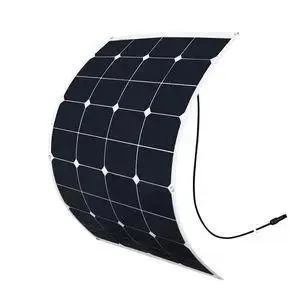

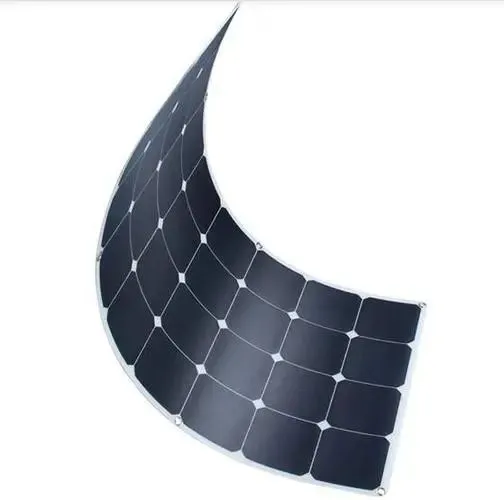

High Efficiency Bendable PV modules

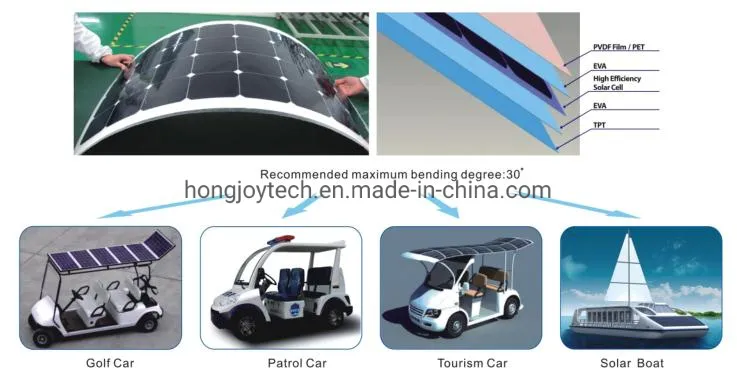

The high efficiency bendable PV modules (Flexible modules) adopt the world's highest conversion efficiency back-contact solar cells. The efficiency of the module is 30% higher than that of conventional ones. As these modules are bendable, they are widely applied to electric golf cars, patrol cars, tourism cars, yachts, roof power generation systems, backpacks, tents, etc.

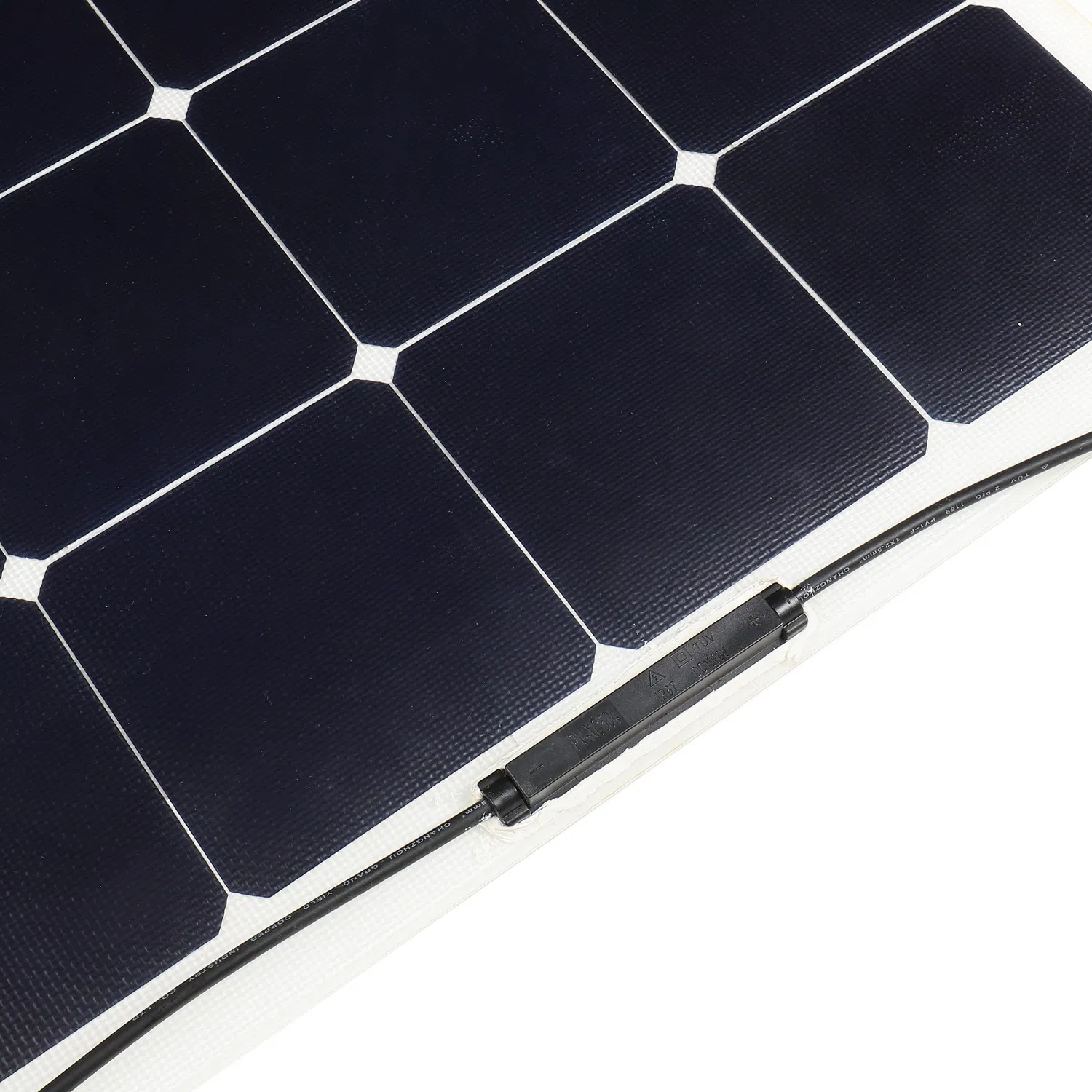

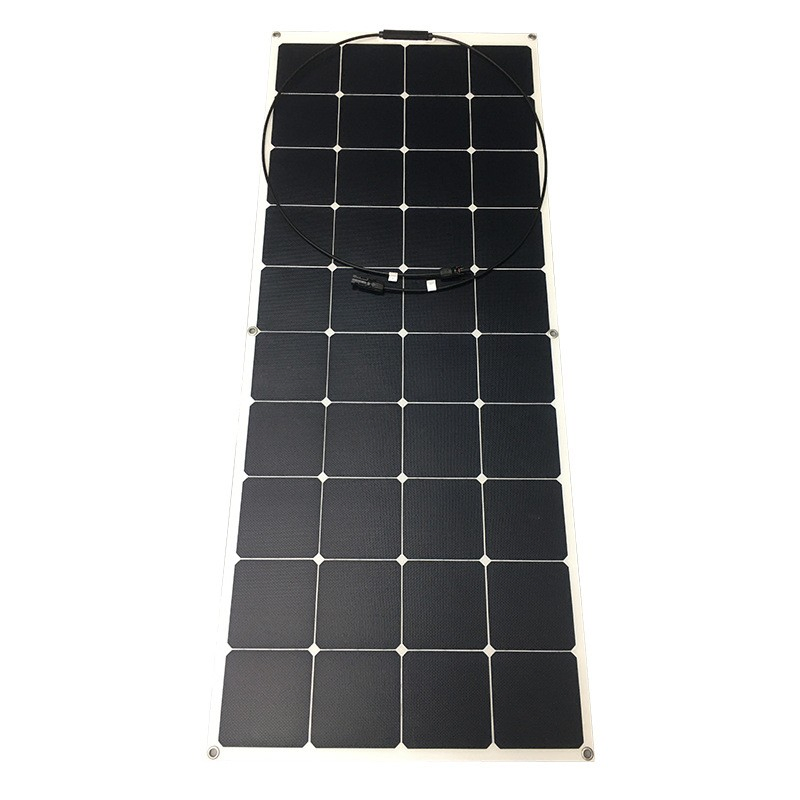

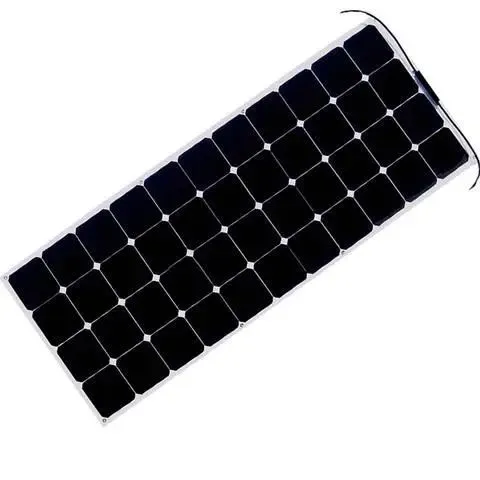

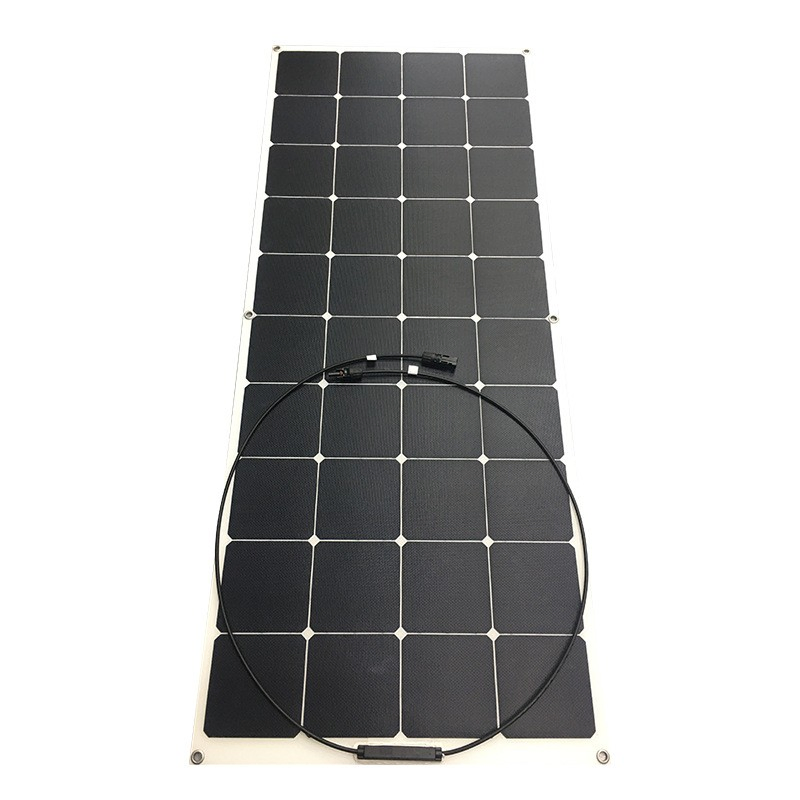

100 Watt Monocrystalline Bendable Photovoltaic Module
Made with high efficiency back-contact solar cells.
| Parameter | Symbol | Value |
|---|---|---|
| Max Power | Pmax | 100W |
| Max Power Voltage | Vmp | 17.8V |
| Open Circuit Voltage | Voc | 21.6V |
| Maximum System Voltage | Voc | 600V |
| Temp Co-efficient (Power) | - | -0.38%/ºC |
| Temp Co-efficient (Voltage) | - | -60.8mV/ºC |
| Temp Co-efficient (Current) | - | 2.2mA/ºC |
| Cell Efficiency | - | 21% |
| Number of Cells in Series | - | 32 |
| Max Power tolerance | - | ±5% |
| Weight | KGS | 2.0KG |
| Dimension | mm | 1060*540*3 |
| Pm | Voc | Isc | Vmp | Imp | C-eff | N.W. | Dimension(mm) |
|---|---|---|---|---|---|---|---|
| 18W | 23.7V | 0.98A | 19.8V | 0.91A | 20.30% | 0.50kg | 434*277*3 |
| 30W | 21.2V | 1.83A | 17.6V | 1.70A | 19.50% | 0.75kg | 535*378*3 |
| 50W | 21.2V | 3.05A | 17.6V | 2.84A | 21.50% | 1.20kg | 545*535*3 |
| 60W | 42.3V | 1.86A | 35.2V | 1.71A | 19.20% | 1.46kg | 725*535*3 |
| 80W | 18.5V | 5.58A | 15.4V | 5.19A | 19.60% | 1.80kg | 922*540*3 |
| 100W | 21.6V | 5.97A | 17.8V | 5.62A | 21.00% | 2.00kg | 1050*540*3 |
| 120W | 26.4V | 5.87A | 22.0V | 5.45A | 20.50% | 2.45kg | 1305*540*3 |
| 135W | 29.6V | 5.90A | 24.6V | 5.49A | 20.70% | 2.67kg | 1435*540*3 |
More Specifications, customized are Supported and Welcomed.
