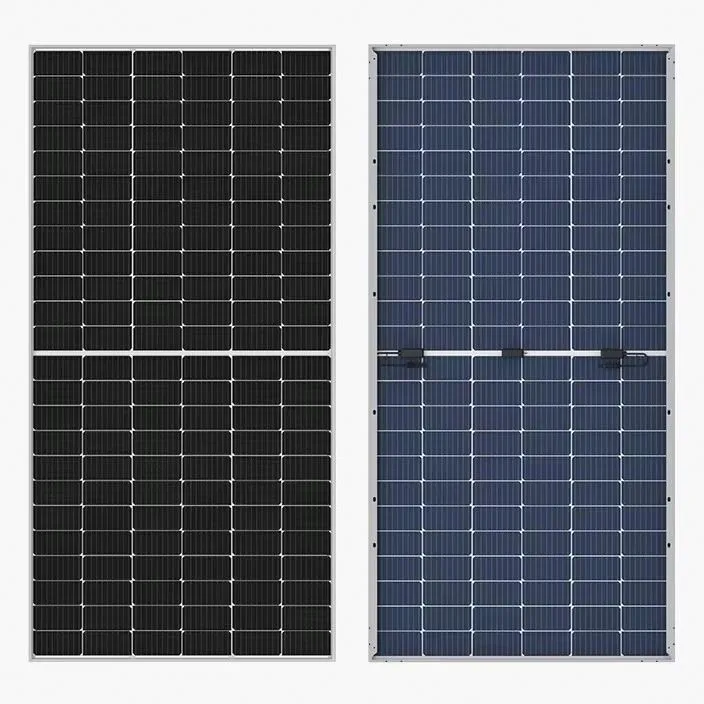

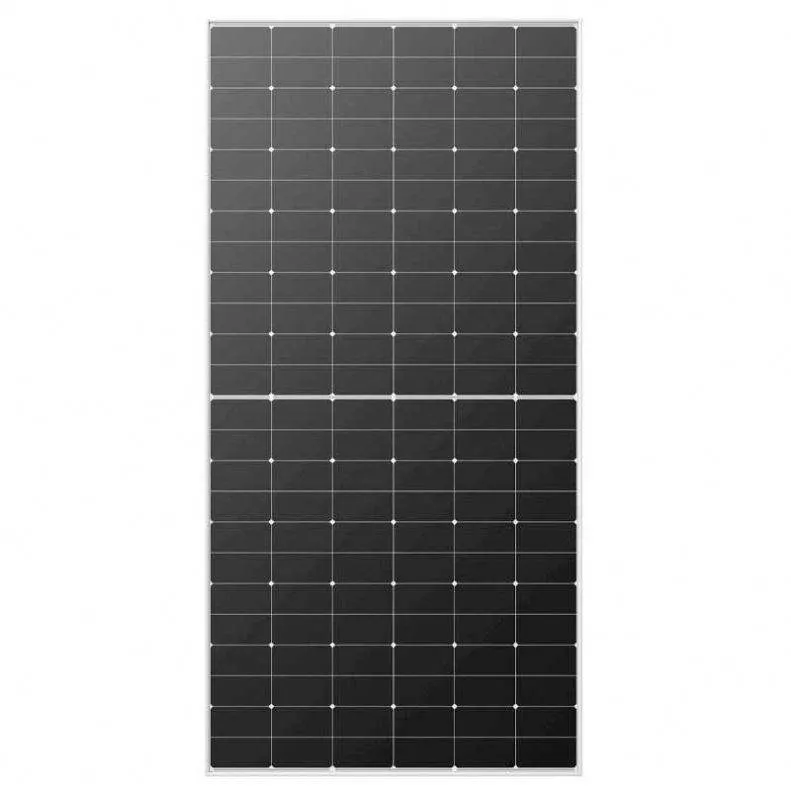

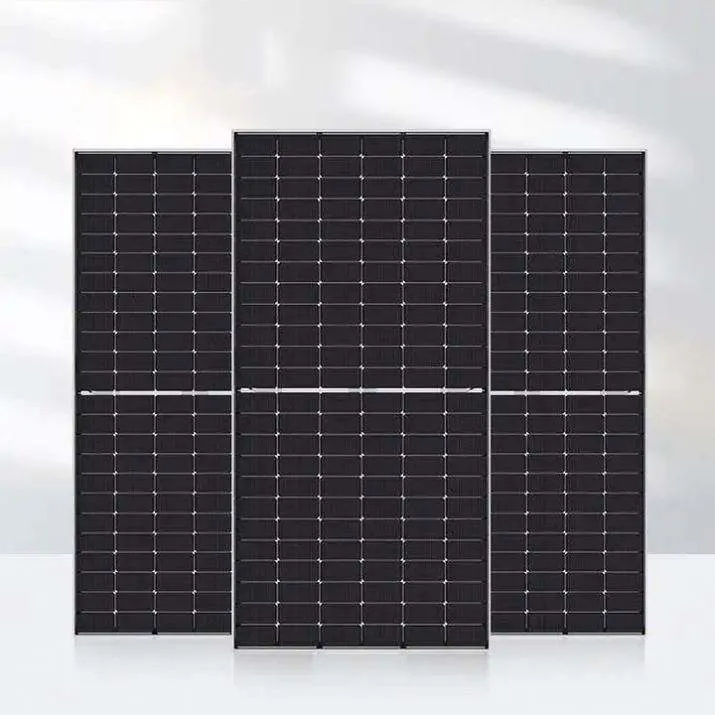

To produce a monocrystalline silicon cells, absolutely pure semiconduction material is necessary. Monocrystalline rods are extracted from melted silicon and then sawed into thin plates. This production process guarantees a relatively high level of efficiency silicon and makes monocrystalline panels one of the most efficient, producing smaller solar cells, and therefore smaller panels. Monocrystalline works very well in bright cool conditions.
| ELECTRICAL Characteristics (100W - 140W) | |||||
| Maximum Power-Pmax(w) | 100 | 110 | 120 | 130 | 140 |
| Open Circuit Voltage-Voc(V) | 20.60 | 21.23 | 21.60 | 21.95 | 23.16 |
| Short Circuit Current-Isc(A) | 5.94 | 6.41 | 6.87 | 7.21 | 7.46 |
| Max Power Voltage-Vmpp(V) | 17.82 | 18.15 | 18.48 | 19.08 | 19.80 |
| Max Power Current-Impp(A) | 5.62 | 6.07 | 6.50 | 6.82 | 7.08 |
| Module Efficiency(%) | 18.80 | 20.70 | 22.69 | 21.30 | 20.30 |
| Temperature Characteristics | |||||
| Pmax Temp Coeffcient | -0.40%/ºC | ||||
| Voc Temp Coeffcient | -0.32%/ºC | ||||
| Isc Temp Coeffcient | +0.05%/ºC | ||||
| Operating Temp | -40 to +85ºC | ||||
| ELECTRICAL Characteristics (150W - 190W) | |||||
| Maximum Power-Pmax(w) | 150 | 160 | 170 | 180 | 190 |
| Open Circuit Voltage-Voc(V) | 23.58 | 21.05 | 21.53 | 24.42 | 24.88 |
| Short Circuit Current-Isc(A) | 7.86 | 9.31 | 9.71 | 9.02 | 9.35 |
| Max Power Voltage-Vmpp(V) | 20.16 | 18.15 | 18.48 | 21.06 | 21.45 |
| Max Power Current-Impp(A) | 7.45 | 8.82 | 9.20 | 8.55 | 8.86 |
| Module Efficiency(%) | 21.70 | 19.50 | 20.70 | 17.80 | 18.80 |

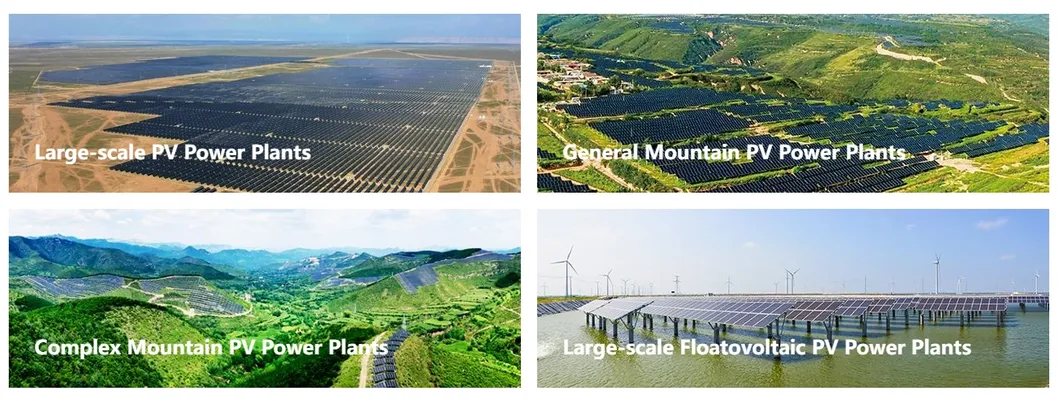

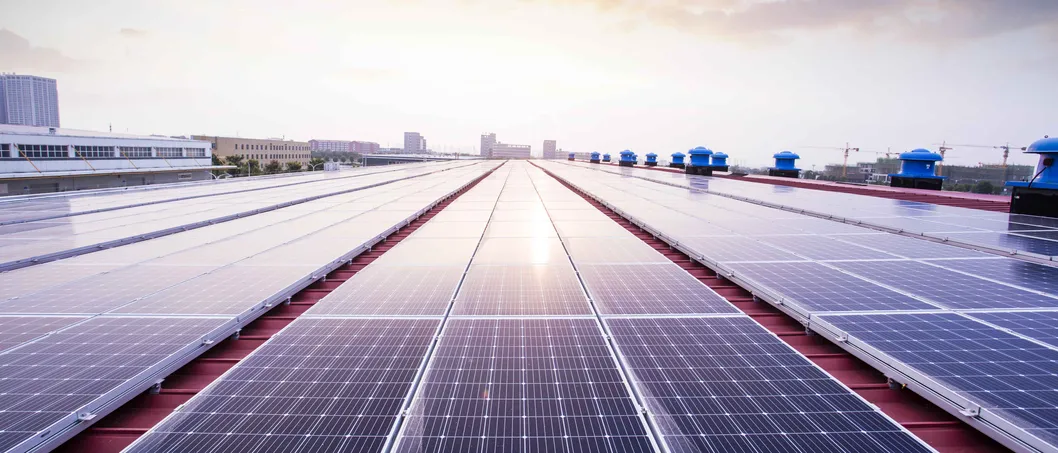

Grid-friendly, environmentally-friendly, and economic benefits-friendly solutions. Applications include large-scale plants on flat terrain, mountainous terrain, and floatovoltaics (floating on water).
Solar PV can be paired with high-energy-consuming enterprises' own power plants. PV also powers the production of green hydrogen as a replacement for carbon-producing fuels, helping decarbonization goals.

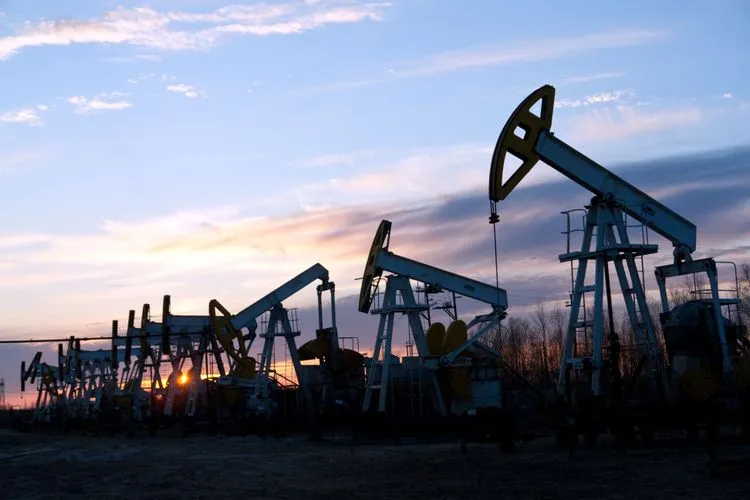

Helping petroleum enterprises become greener. Reduces energy consumption and pollution while improving regional environment and social value through long-term operating cost reduction.

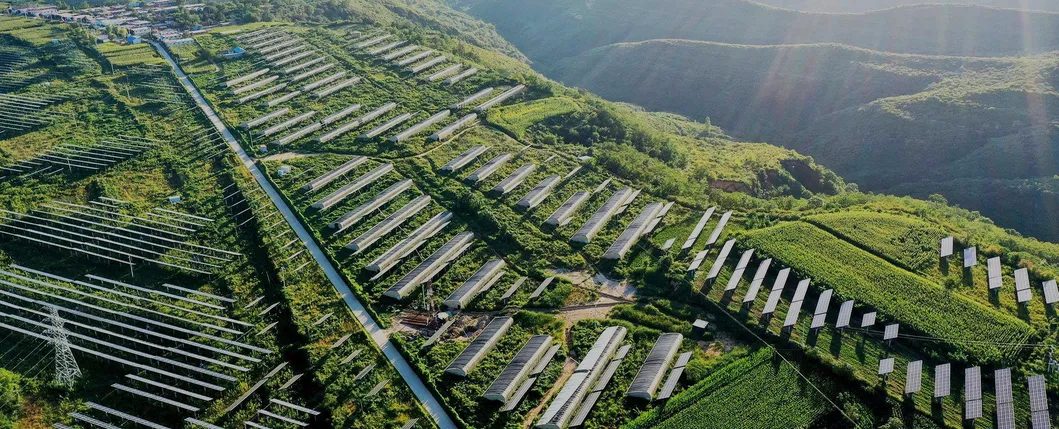

Depending on construction sites, installation locations and methods, we provide tailored solutions for large-scale, mountain, and floatovoltaic PV power plants.
