| Model NO. | FFXS-150W |
| Number of Cells | 36pcs |
| Application | Industrial |
| Certification | ISO, CB, CE |
| Material | Monocrystalline Silicon |
| Solar Cell | Mono Sunpower |
| Junction Box | IP67 Rated |
| Connector | Solar Mc4, Integrated Twist Locking Connectors |
| Frame | Anodized Aluminium Alloy |
| Panel Efficiency | 21.6% |
| HS Code | 8541402000 |
| Maximum Power (Pm) | 150W |
| Solar Panel Size | 1050*670*2.5mm |
| Net Weight | 2.74 KG |
| Voltage at Max Power (Vmp) | 17.6(V) |
| Current at Max Power (Imp) | 5.68(A) |
| Short Circuit Current (Isc) | 6.25(A) |
| Open Circuit Voltage (Voc) | 20.8(V) |
| Operating Temperature | -40ºC to +85ºC |

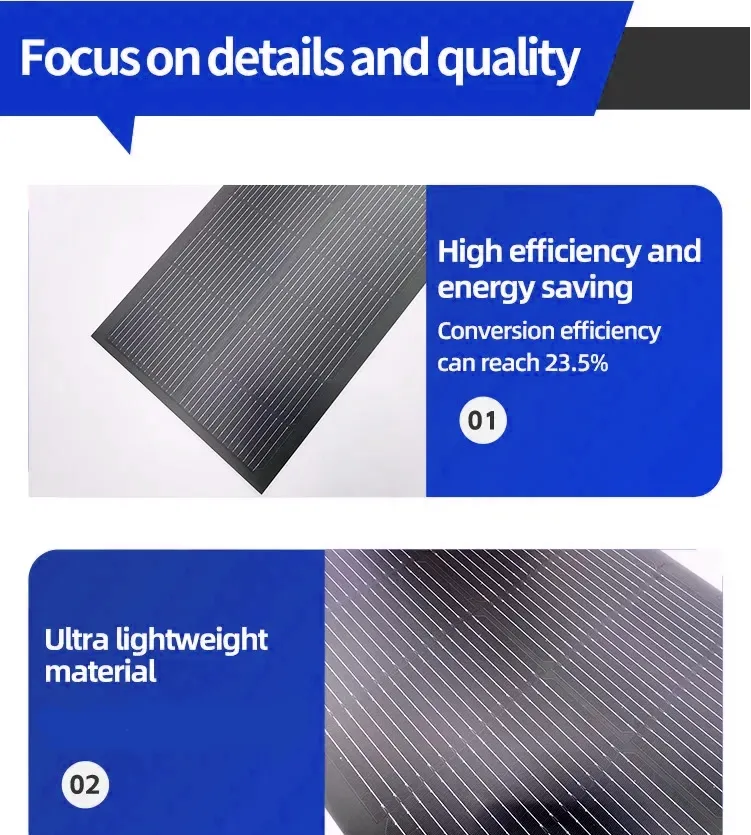

Efficiency of semi-flexible solar panels is up to 23.5%, significantly higher than the market standard of 22%.
Pre-drilled holes for fast mounting. Can be affixed by adhesive or grommets without roof reinforcements.

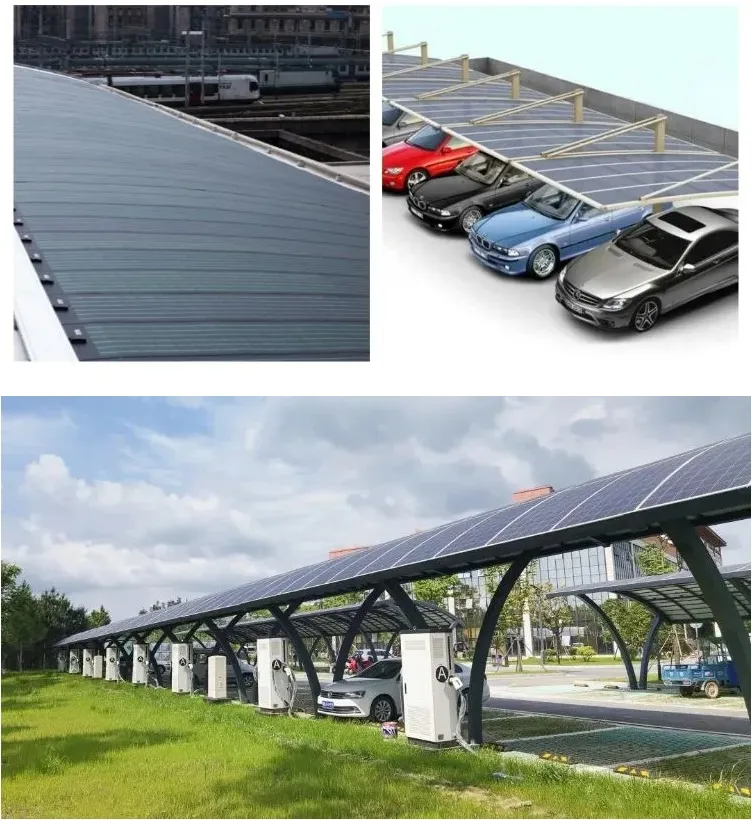

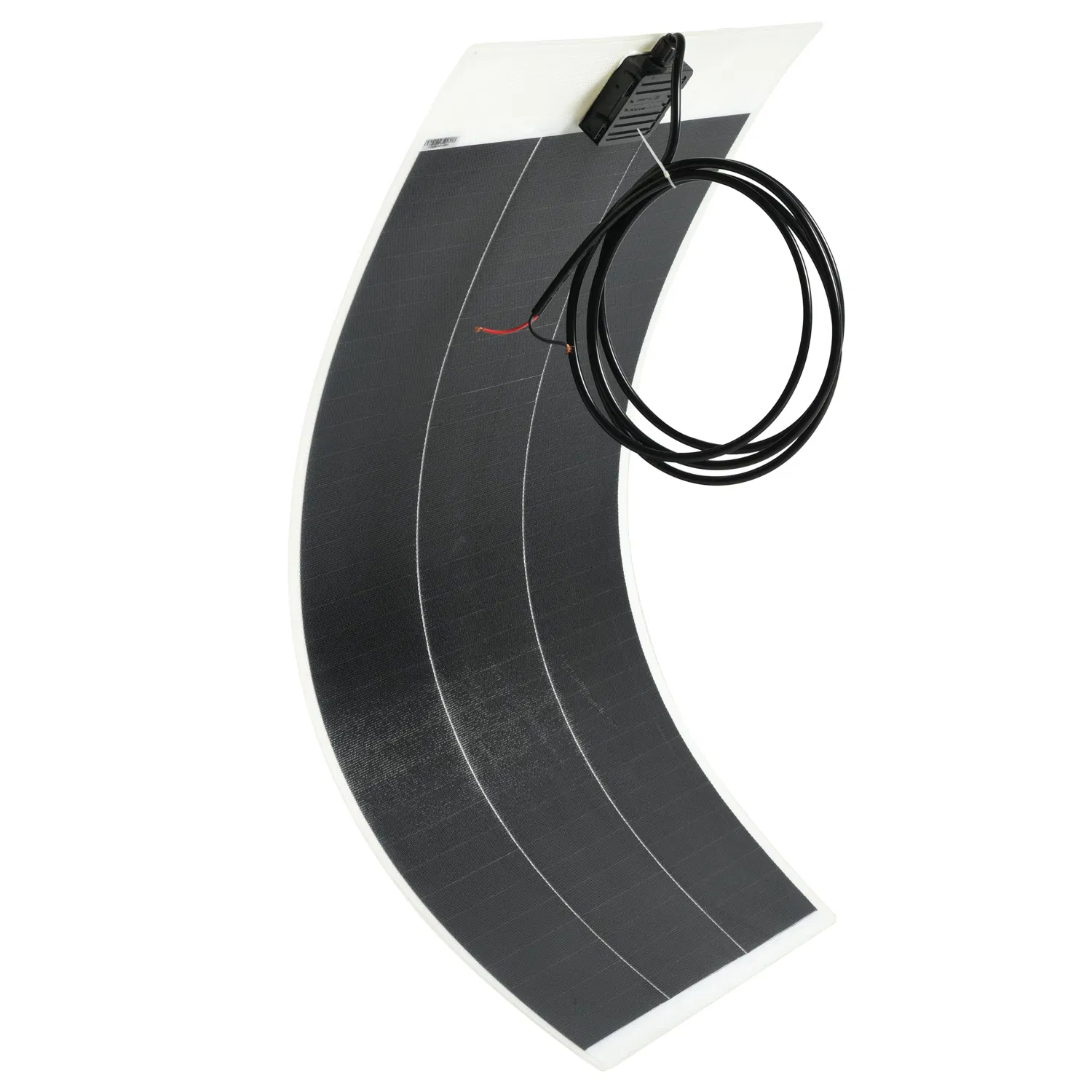

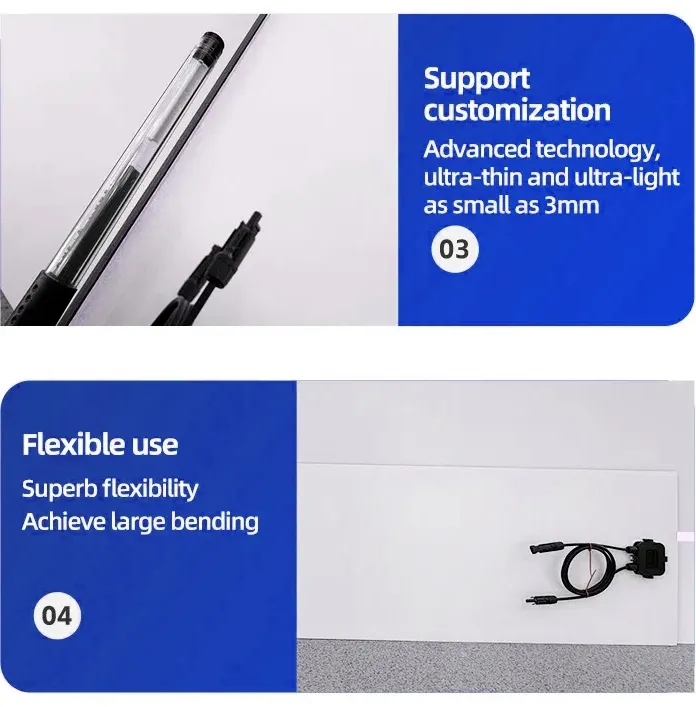

Can be curved to a maximum 30-degree arc, ideal for RVs, boats, yachts, and irregular surfaces.
IP65/IP67 waterproof junction box with bypass diodes to minimize performance drop from partial shade.
