Large Capacity Walk in Cold Storage Room Freezer Chambre Froide for Fish

1 / 5

Large Capacity Walk in Cold Storage Room Freezer Chambre Froide for Fish

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Overview - Basic Specifications

Model	Walk In Cold Storage Room
Voltage	380V
Type	Screw Refrigeration Machinery
Size	10X26X3.5m (Customizable)
Cooling Mode	Air-Cooled / Water-Cooled
Capacity	1~ 80 Tons
Insulation System	PU Panel, PIR Panel
Panel Density	42±2 Kg/ M³
Surface Material	Galvanized Steel, Stainless, Embossed Aluminum
Panel Thickness	50, 75, 100, 120, 150, 200mm
Flame Retardant	B1 / B2 Grade
Compressor	Bitzer, Copeland, Embraco, etc.
Refrigerant	R-404A, R-410A, R452A, R-448A, R-449A

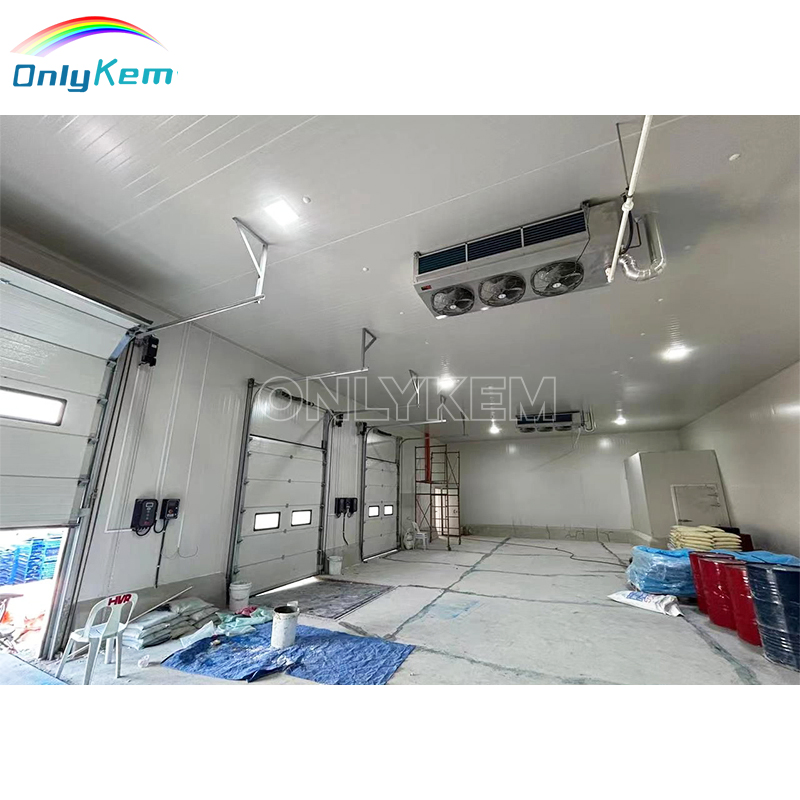

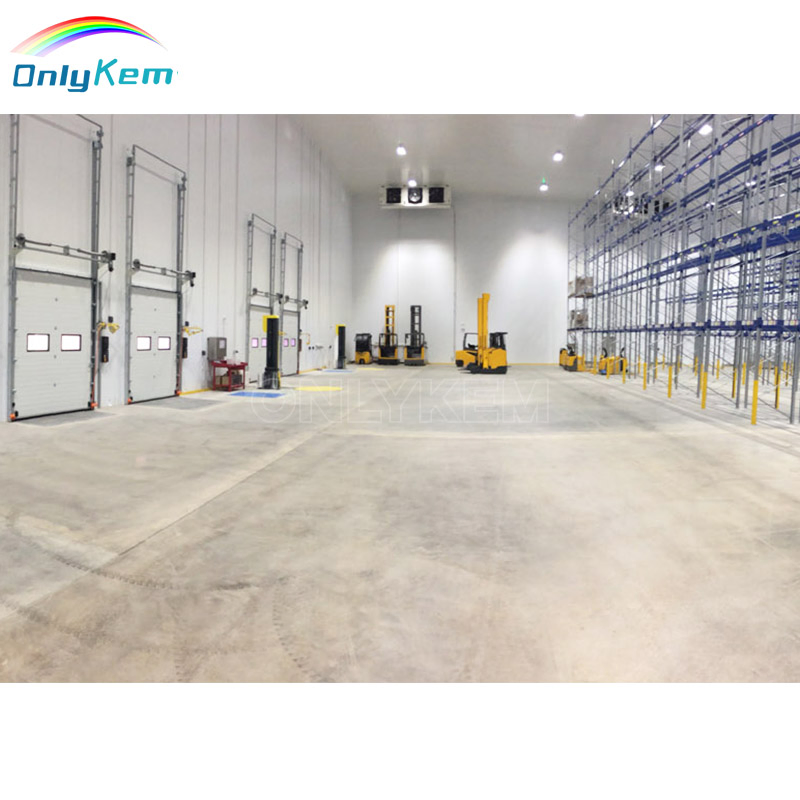

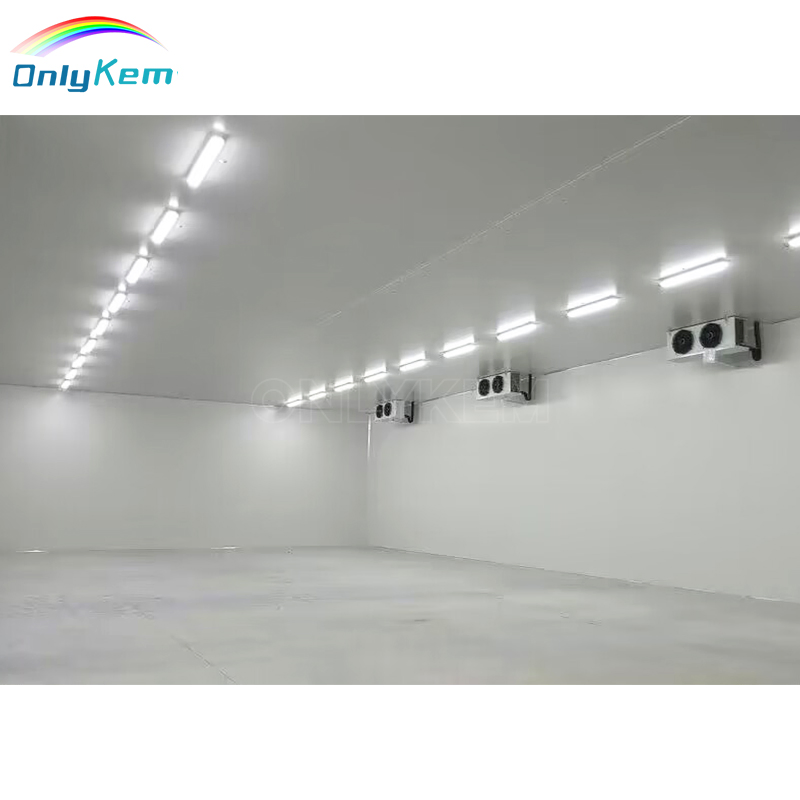

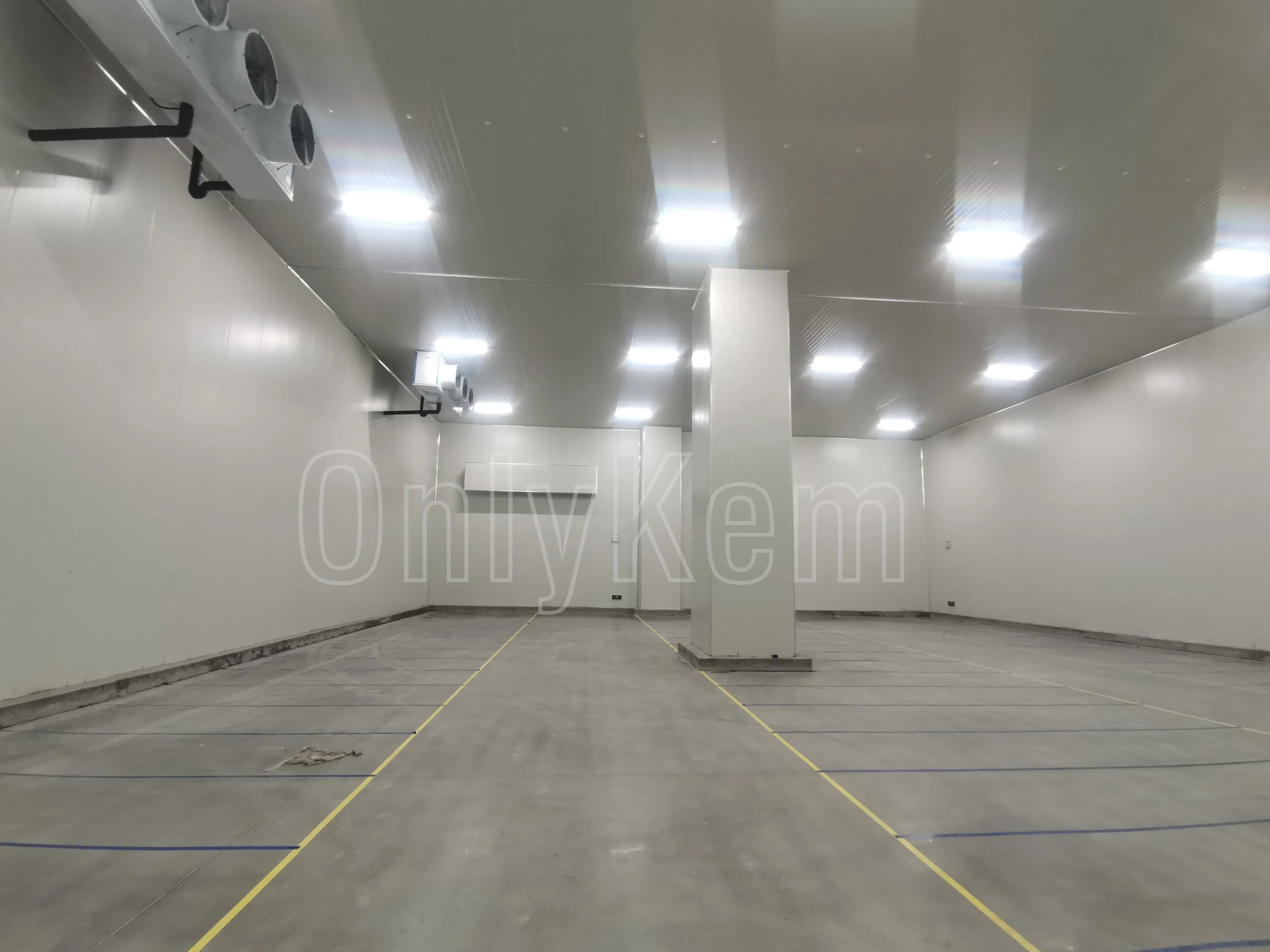

Large Capacity Walk in Cold Storage Room

Cold storage rooms are essential for maintaining the freshness, safety, and quality of temperature-sensitive products like seafood and ice cream. By precisely controlling temperature and humidity, our solutions slow bacterial growth, prevent spoilage, and significantly extend shelf life.

Key Features & Technologies

Temperature Zones: Chilled storage (0°C to 4°C) for fresh goods and Frozen storage (-18°C to -30°C) for long-term preservation.
Blast Freezing: Rapidly lowers temperature to lock in texture and flavor while minimizing ice crystals.
IQF (Individual Quick Freezing): Perfect for preserving individual portions like shrimp or fish fillets without clumping.
Hygiene Standards: Features stainless steel surfaces and antimicrobial coatings meeting HACCP, FDA, and EU standards.
Real-time Monitoring: Advanced control systems with alarms to prevent any temperature deviations.

Product Details & Components

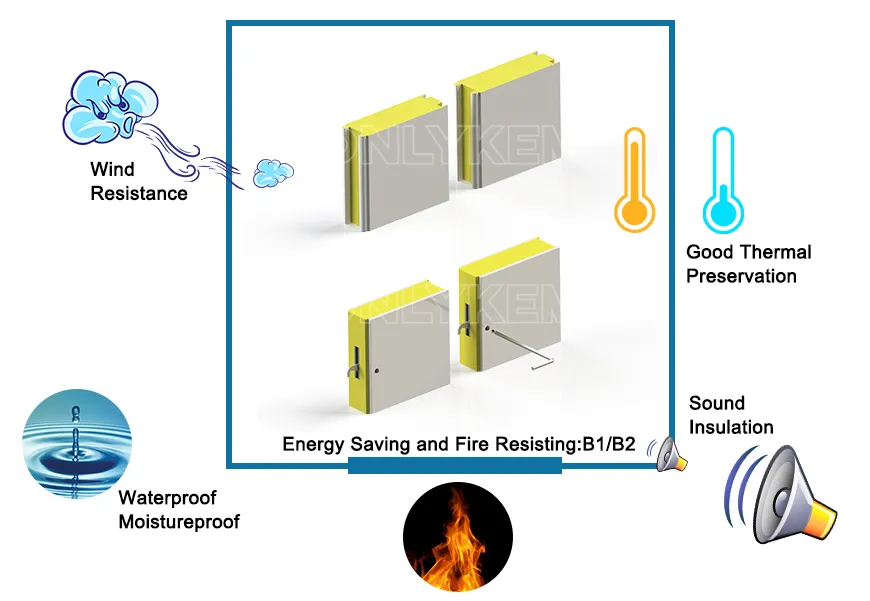

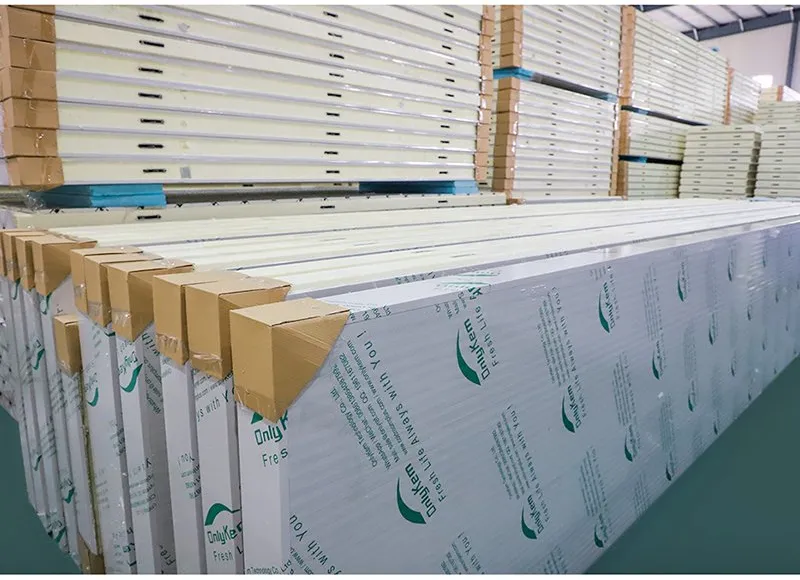

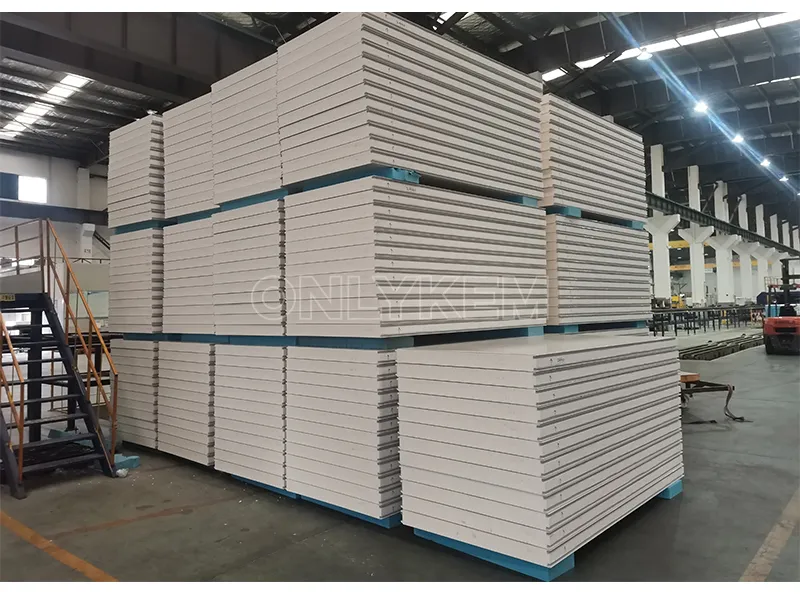

PUR / PIR Insulation Panels

Panel Material	Painted steel, Stainless steel, or Aluminum
PU Density	40~42 kg/m³ (Up to 45kg/m³ available)
Length & Width	Customize longest 11.8m; Standard width 960mm
Thickness Guide	50mm (+10°C) \| 100mm (-5°C to +5°C) \| 150mm (-20°C to -30°C) \| 200mm (-30°C to -45°C)

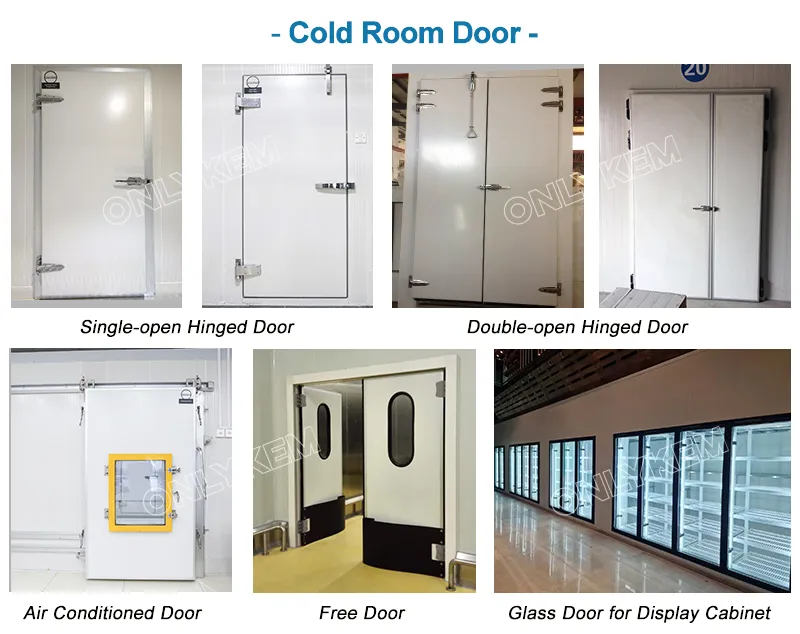

High-Efficiency Cold Room Doors

Double swing doors recommended for widths exceeding 1.2m to extend hinge life.

Hinged Door	Standard 0.8m * 1.8m (Customizable)
Sliding Door	Standard 1.5m * 2m, convenient for trolley access

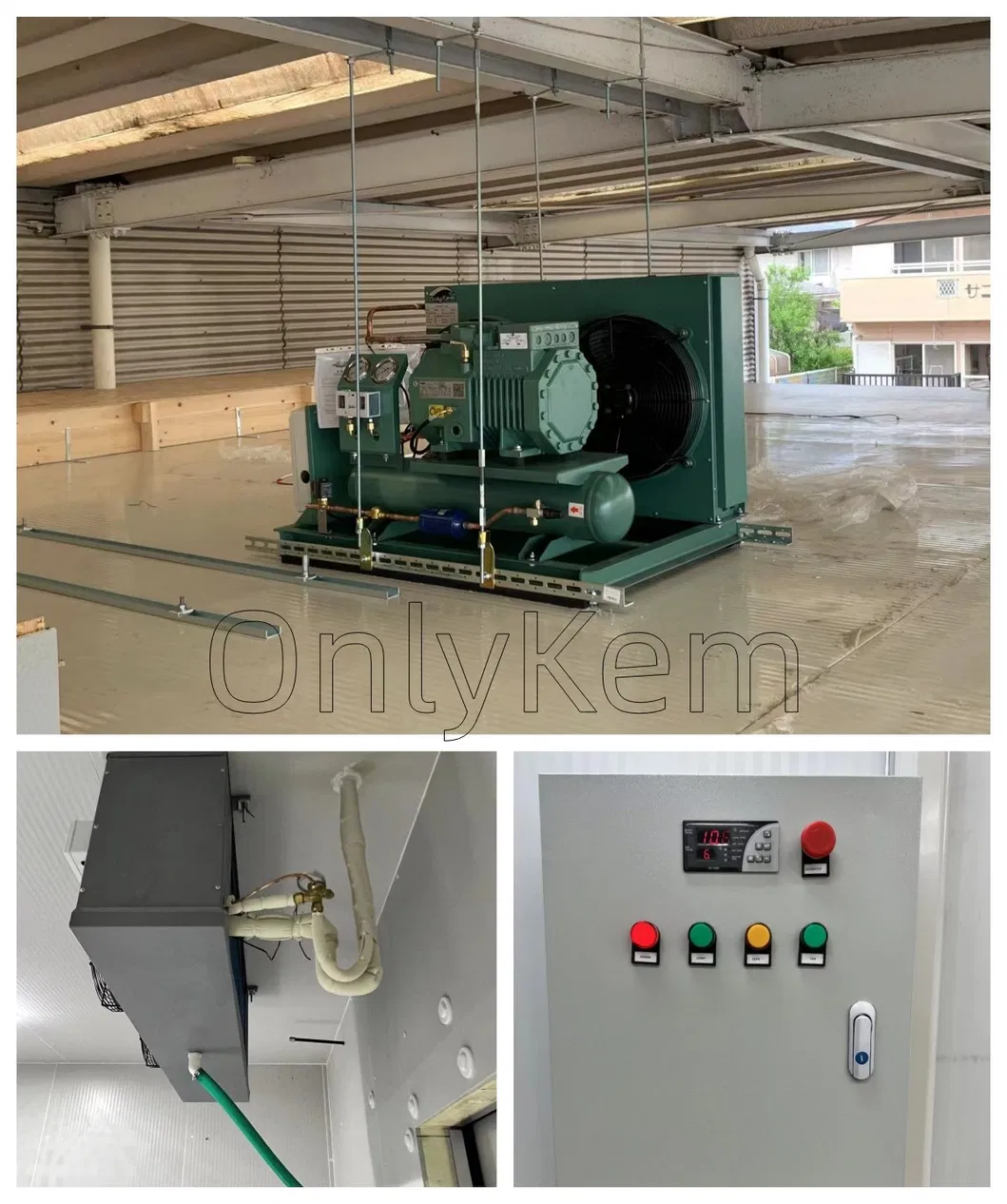

Refrigeration & Condensing Units

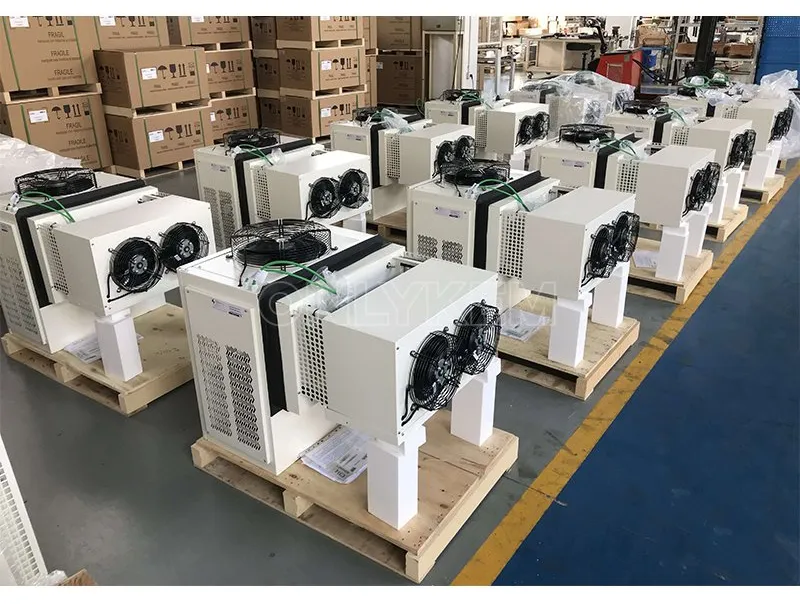

Monoblock Units: Compact and easy to install (requires only a simple cutout).

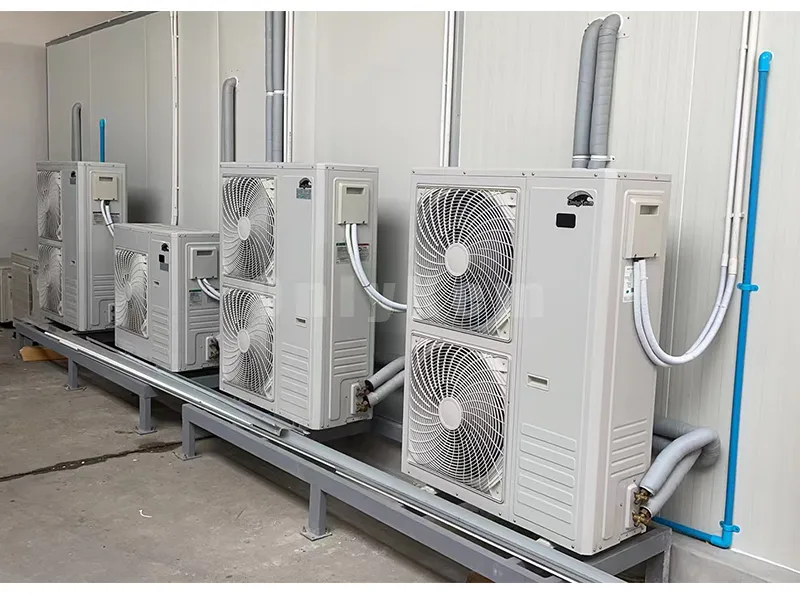

Smart Packaged Units: Features intelligent control panels and electric expansion valves for precision cooling.

Why Choose Our Solutions

To provide an accurate quote, please consider:

Dimensions of the cold room (Length * Width * Height).
Type of goods to be stored and required indoor temperature.
Local industrial voltage requirements.

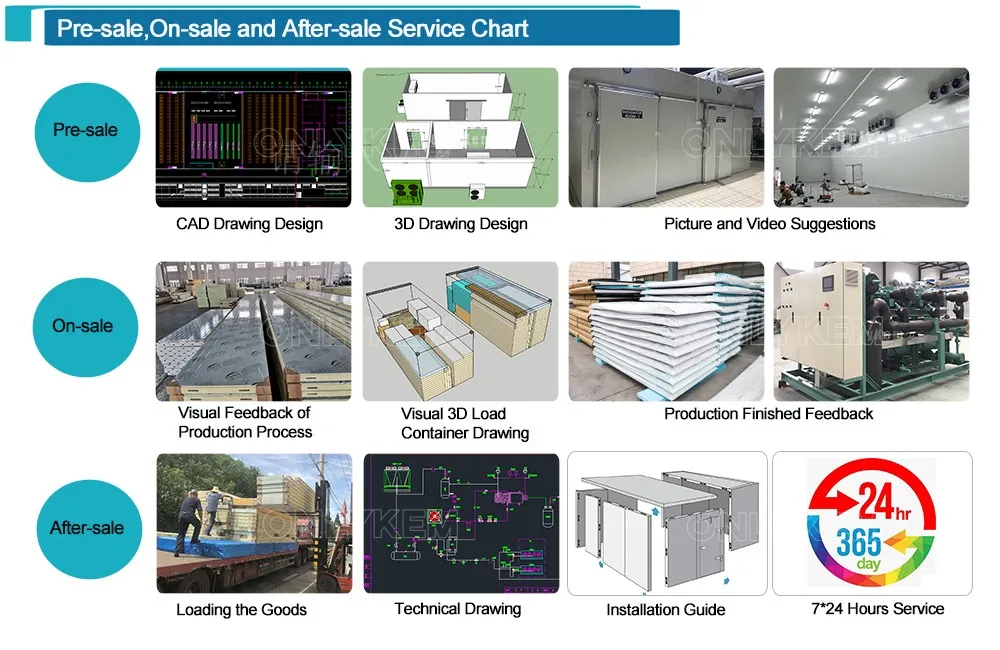

Our Professional Service Workflow

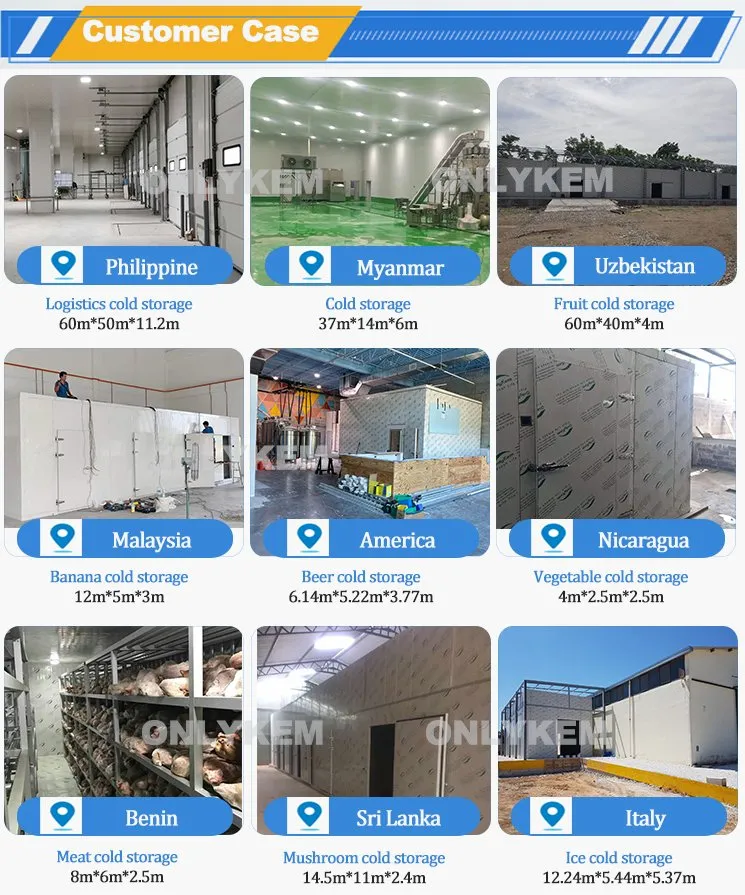

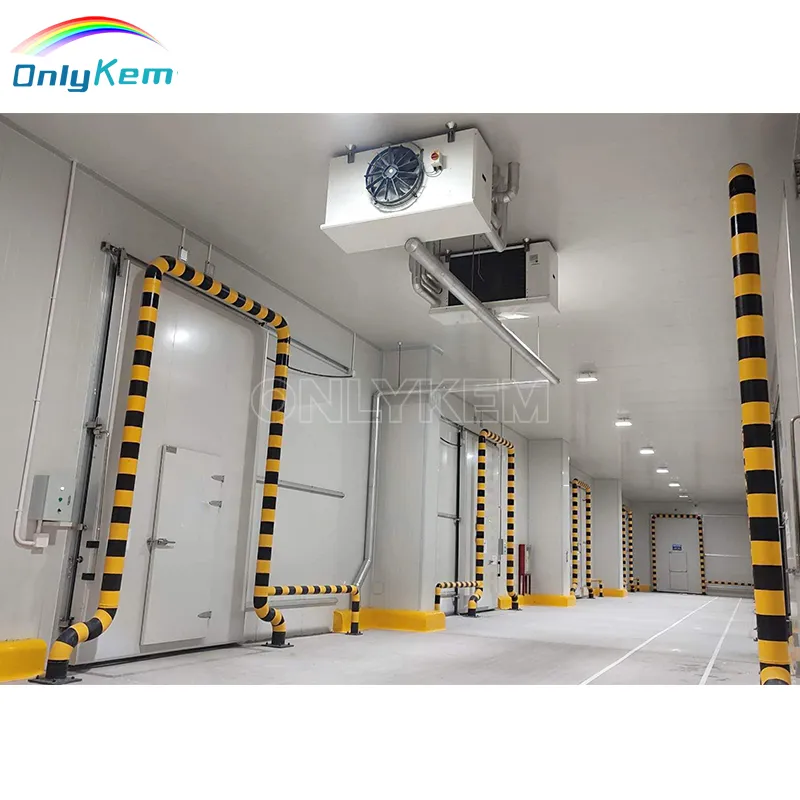

Global Customer Case Study

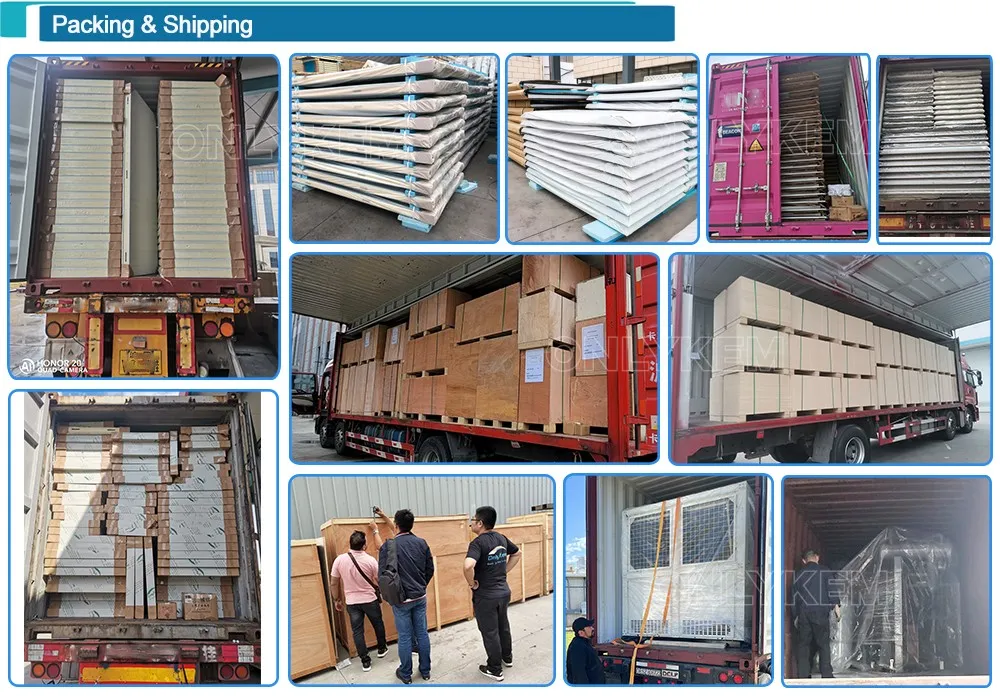

Packaging & Shipping

Refrigeration Units: Secured in wooden boxes to prevent vibration damage during transit.
PU Panels: Wrapped in protective film with four-corner cardboard shielding to prevent scratches and impact.
Logistics: Neatly loaded and reinforced to ensure stable transport to any global destination.

Professional Experience

With over 13 years of expertise in the refrigeration industry, we are dedicated craftsmen focused on engineering the perfect cold storage environment. Our products are trusted by clients across South America, Asia, the Middle East, Europe, Oceania, and Africa.

Frequently Asked Questions

Q1: What temperature range can your cold rooms achieve?

A: Our cold rooms can be customized for various needs, from chilled storage (+5°C to -5°C) for vegetables to deep freezing (-18°C to -45°C) for meat and seafood.

Q2: How do I choose the right thickness for insulation panels?

A: Thickness depends on the target temperature: 50-75mm for above 0°C, 100mm for -5°C to +5°C, 120-150mm for -15°C to -30°C, and 200mm for extreme deep freezing down to -45°C.

Q3: Is the cold room size customizable?

A: Yes, all our cold storage rooms are fully customizable in terms of length, width, and height to fit your specific warehouse space and storage capacity needs.

Q4: What brands of compressors do you use?

A: We utilize world-renowned brands such as Bitzer, Copeland, and Embraco to ensure high reliability, low noise, and high energy efficiency.

Q5: Can I install the cold room by myself?

A: Yes, we provide detailed installation instructions. For smaller setups, monoblock units are particularly easy to install. For large projects, we offer engineering guidance.

Q6: Are your panels fire-resistant?

A: Yes, our PU and PIR sandwich panels meet B1 or B2 fire retardant grades, ensuring safety and compliance with international building standards.
