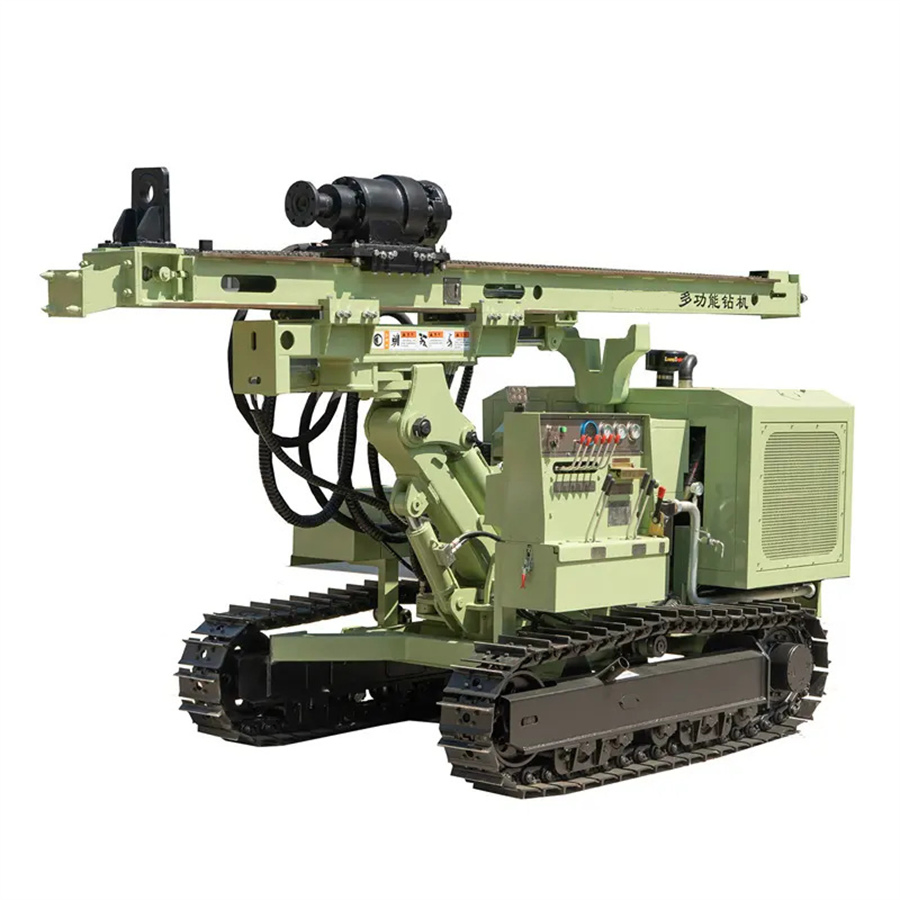

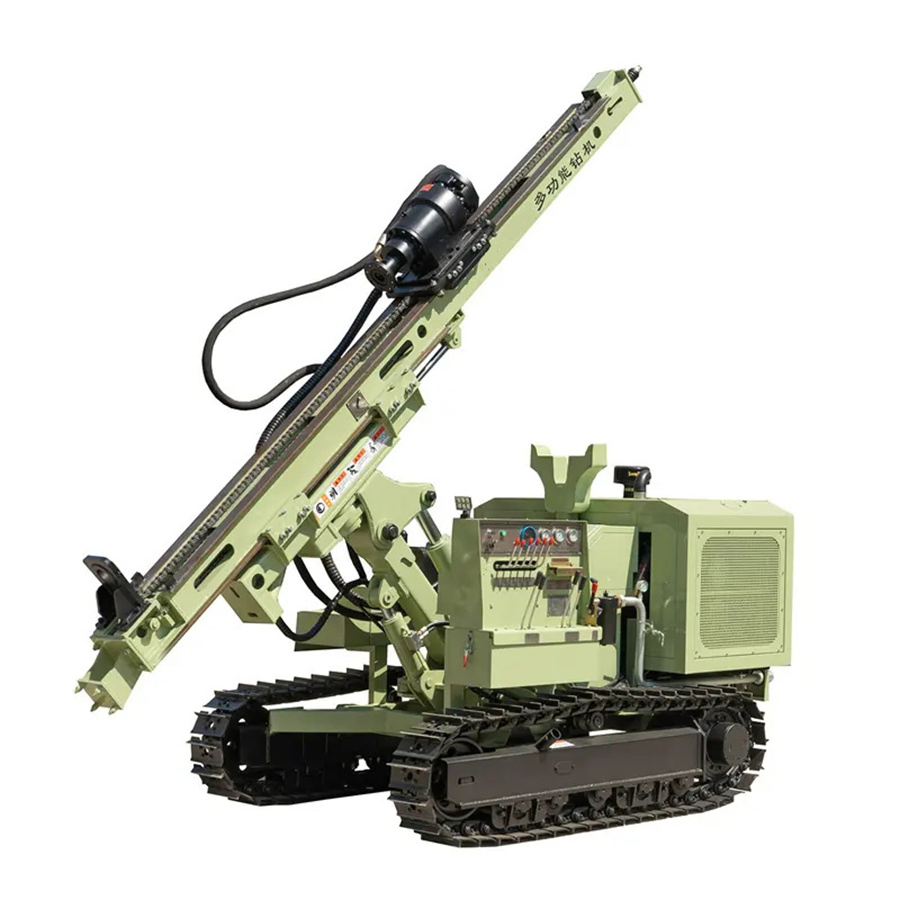

Solar Power Pile Driver Driving Ground Piles Screwing Piles Solar Panel Post

1 / 5

Solar Power Pile Driver Driving Ground Piles Screwing Piles Solar Panel Post

Customization:	Available
After-sales Service:	Online Technical Service, Field Training Service
Warranty:	1 Year

Send Inquiry

Product Description

Basic Information

Model NO.

SPV-385Y

Type

Drill

Pressure Pile Driver

Hydraulic Pile Driver

Pile Hammer Type

Solar Pile Driving Machine

Power Source

Diesel

Motor Power

84kw

Certification

EPA, CE, ISO 9001:2000, ISO 9001:2008

Condition

New

Overall Size

5300*1970*2620mm

Drilling Method

DTH Drilling, Auger Rod Drilling, Screwing Piles

Drill Pipe

76mm, 89mm

Application

Solar Pile Installation, Borehole, Micro Pile

Transport Package

Nude Packing in 20' Container

Production Capacity

300sets/Year

Product Description

Solar power pile driver driving ground piles screwing piles solar panel post

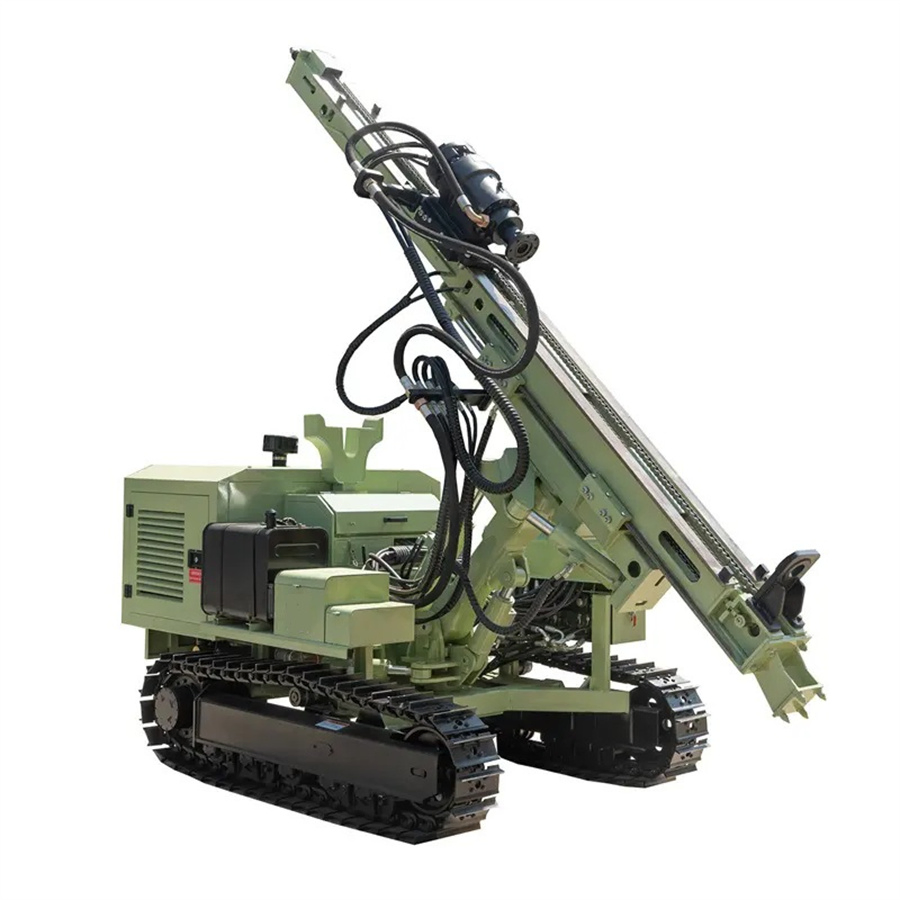

The SPV-385Y hydraulic photovoltaic pile driver, also known as a solar pile driver, solar pile driving machine, photovoltaic pile driving machine, PV drilling rig, or solar PV pile driver, is an advanced piece of equipment designed for efficient and precise installation of support piles in solar photovoltaic (PV) systems. It is widely used in various applications such as solar photovoltaic installation, ground-mounted PV systems, solar farms, and photovoltaic power station construction.

⚙️ Main Features

1. Using new type of hydraulic technology, low consumption, large rotary torque, convenient hole deflection.

2. The drilling machine structure is compact, while the mast has adjustable compensation function.

3. Reliable performance, high efficiency, suitable for various operating conditions.

🏗️ Multi-functional Application

This rig is multi-functional with top head driving, capable of screwing earthing rods, rotary mud drilling, DTH hammer drilling, and auger pile drilling. Widely used for PV solar pile installation, air hammer blasting, water wells, and micro piles.

Product Parameters

Bore diameter (hammer)	90-300mm
Bore depth	20-150m
Air consumption	10-26m³/min
Air pressure	0.7-1.6Mpa (medium) / 1.6-2.46Mpa (high)
Pipe diameter	76mm/89mm
For rock hardness	F=6-20
Bore diameter (screw)	Max 400mm
Bore depth (screw)	0-30m
Screw pipe diameter	130-400mm
Once promotion	3200mm
Skid pitch	120º
Rotation speed	0-110r/min
Host power	84Kw
Climb ability	35º
Dimension (LWH)	530019702620mm
Weight	5800Kg
Walk speed	0-2.5km/h

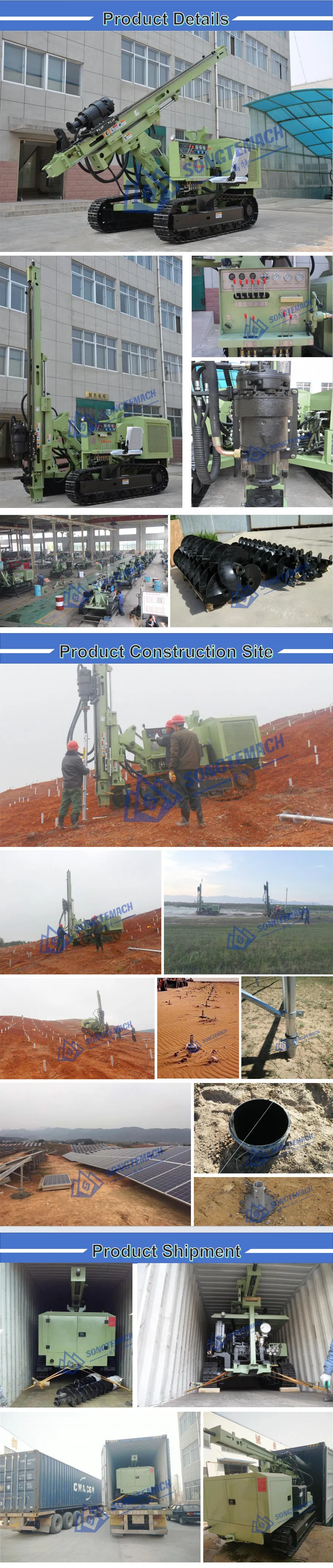

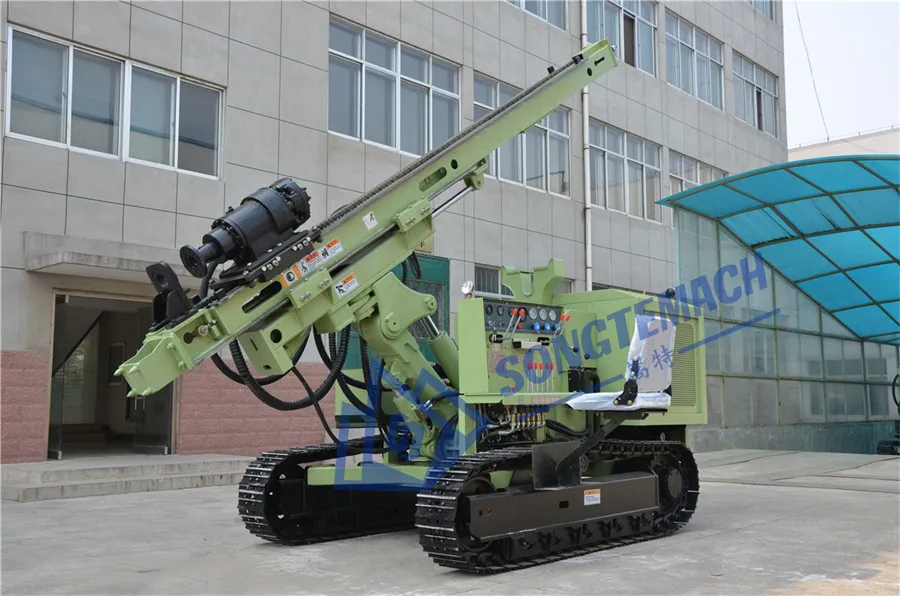

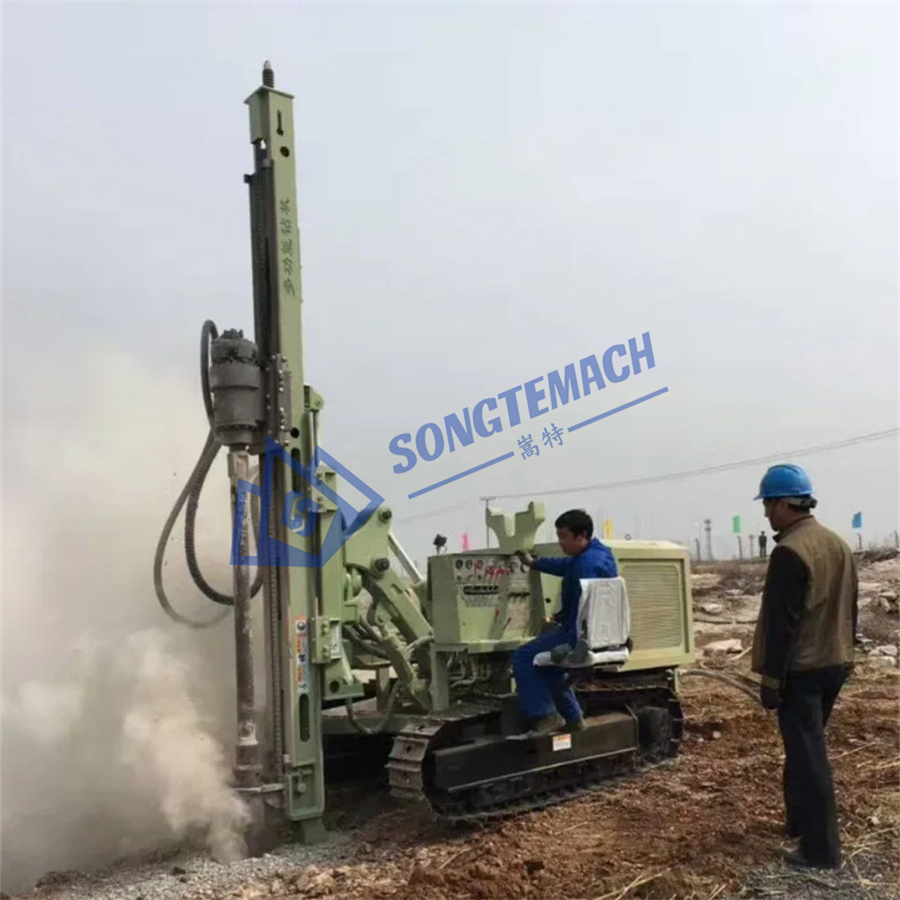

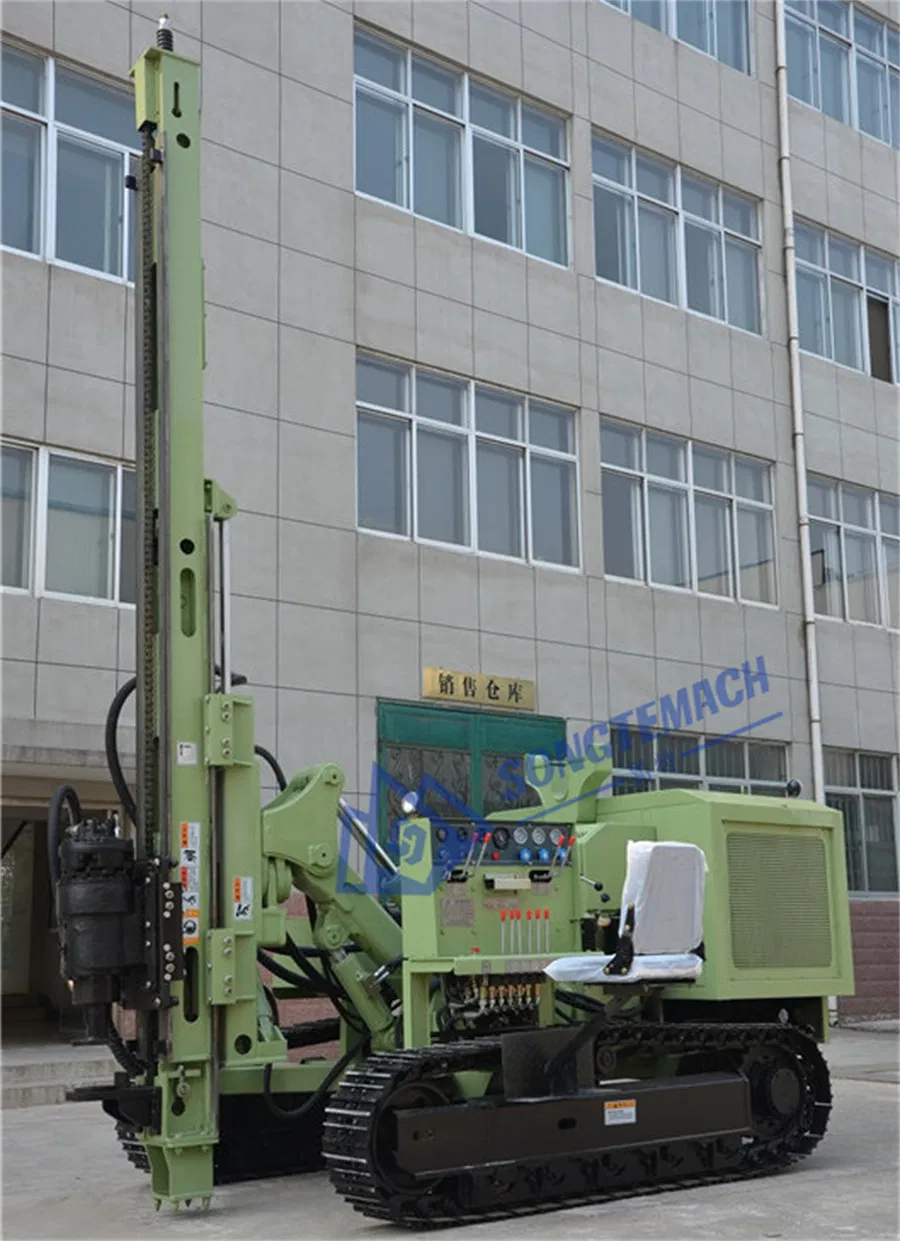

Detailed Photos

Frequently Asked Questions

What are the primary drilling methods supported by the SPV-385Y?

The SPV-385Y is a multi-functional rig that supports DTH (Down-the-Hole) drilling, auger rod drilling, and screwing piles, making it ideal for various soil and rock conditions.

Can this machine handle steep terrain on solar farm sites?

Yes, the machine is designed with a climb ability of 35º, allowing it to operate effectively on uneven ground and sloped terrains commonly found in solar photovoltaic projects.

What is the maximum bore diameter for screw pile installation?

For screwing pile applications, the SPV-385Y can achieve a maximum bore diameter of 400mm with a depth range of up to 30 meters.

What type of power source does the rig use?

The rig is powered by a high-performance 84Kw diesel engine, providing reliable power for heavy-duty hydraulic operations in remote locations.

Is the SPV-385Y suitable for water well or micro pile projects?

Absolutely. Beyond solar installations, its high torque and flexible drilling capabilities make it suitable for water wells, micro piles, and borehole projects.

What certifications does this equipment hold?

This model is manufactured under strict quality standards and holds EPA, CE, ISO 9001:2000, and ISO 9001:2008 certifications, ensuring international compliance and safety.
