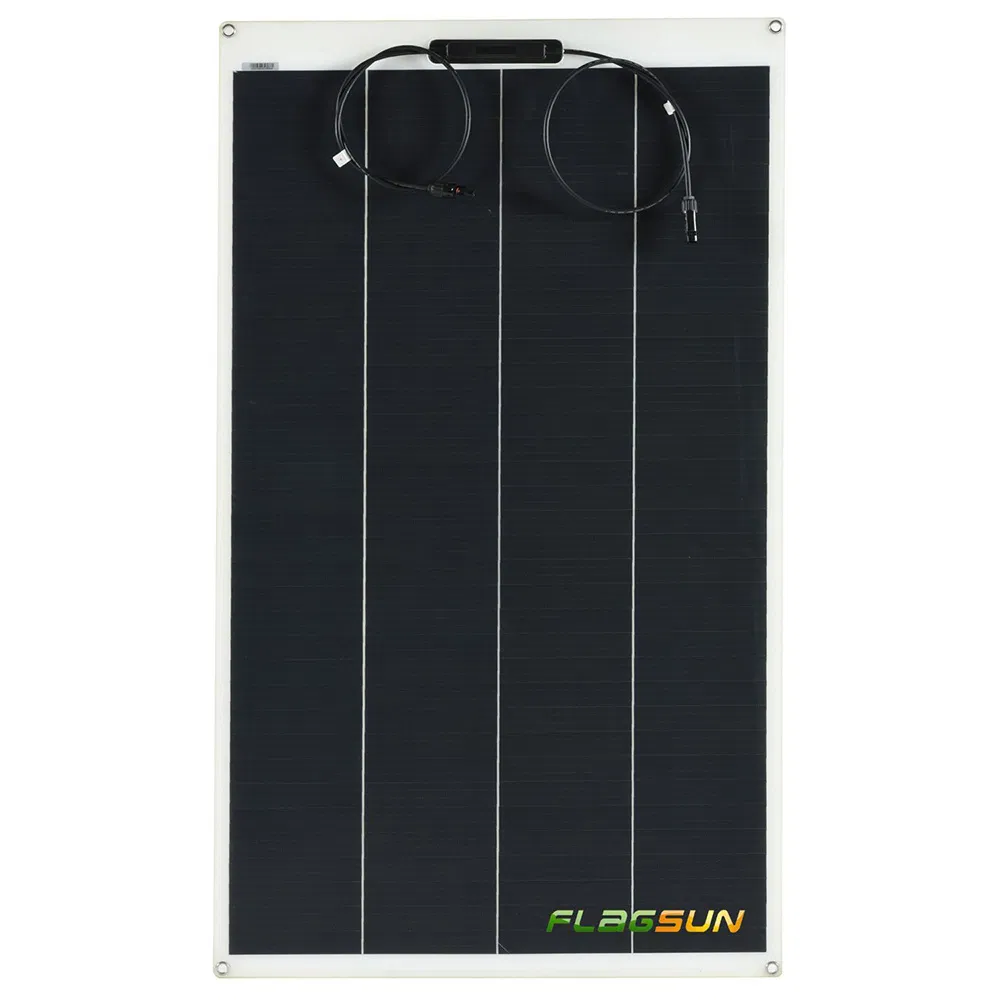

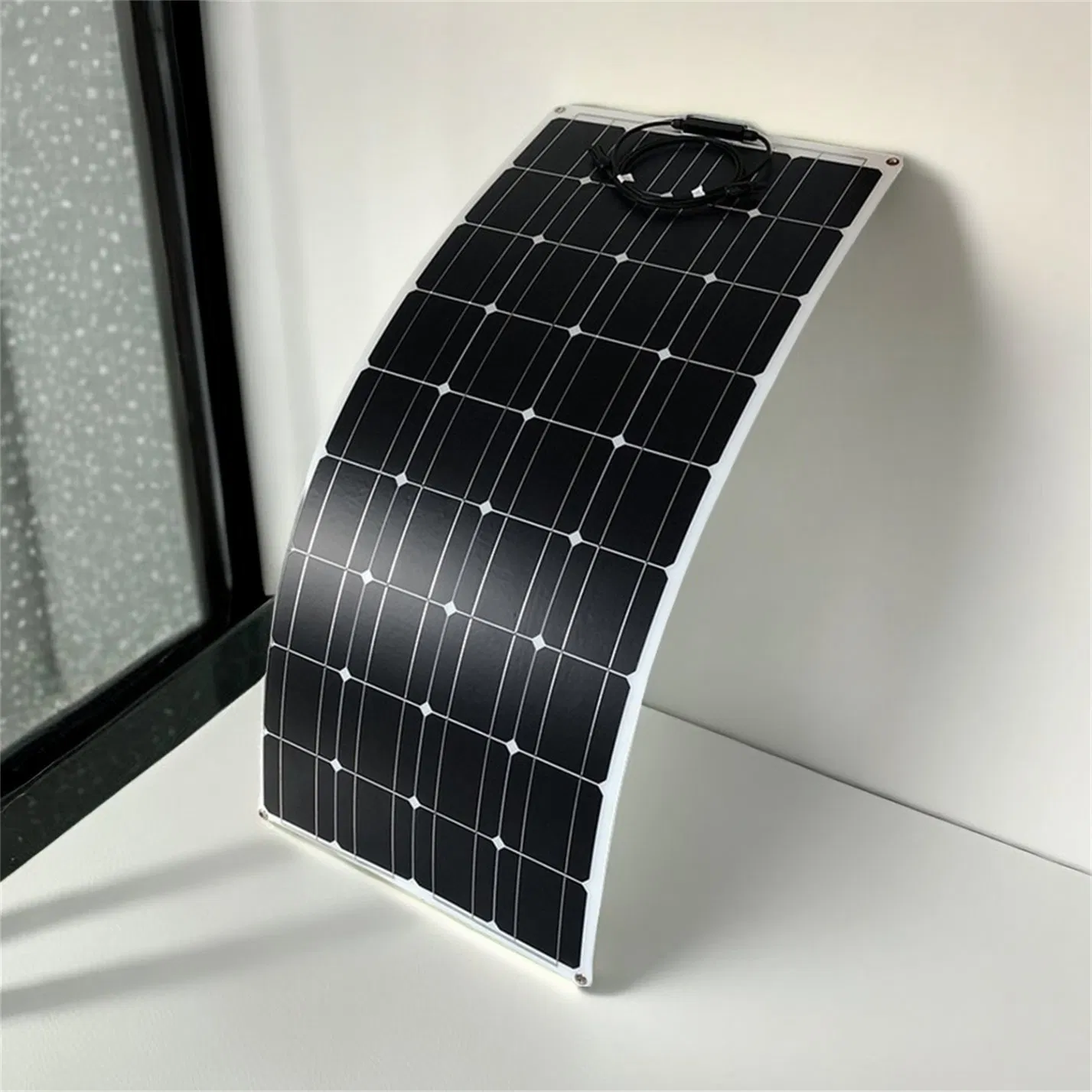

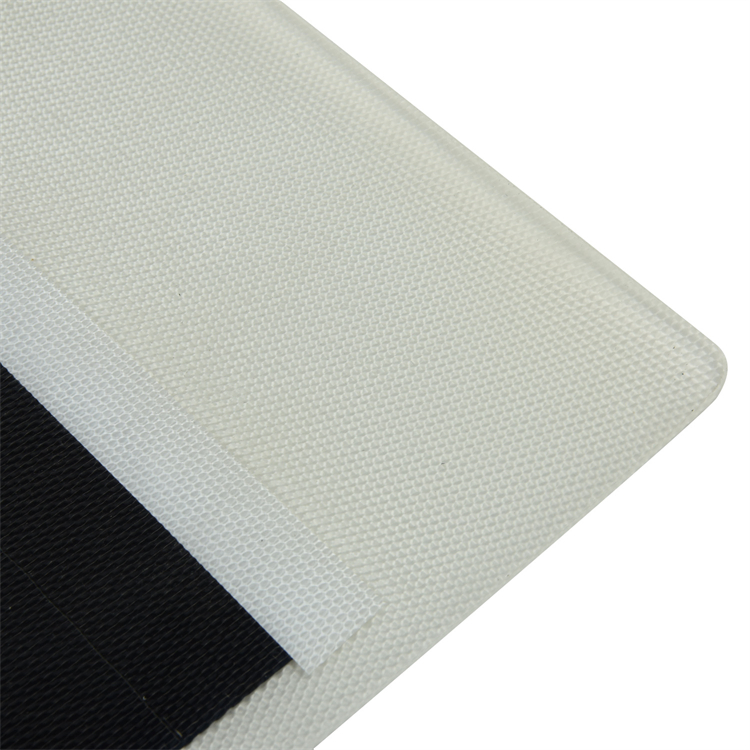

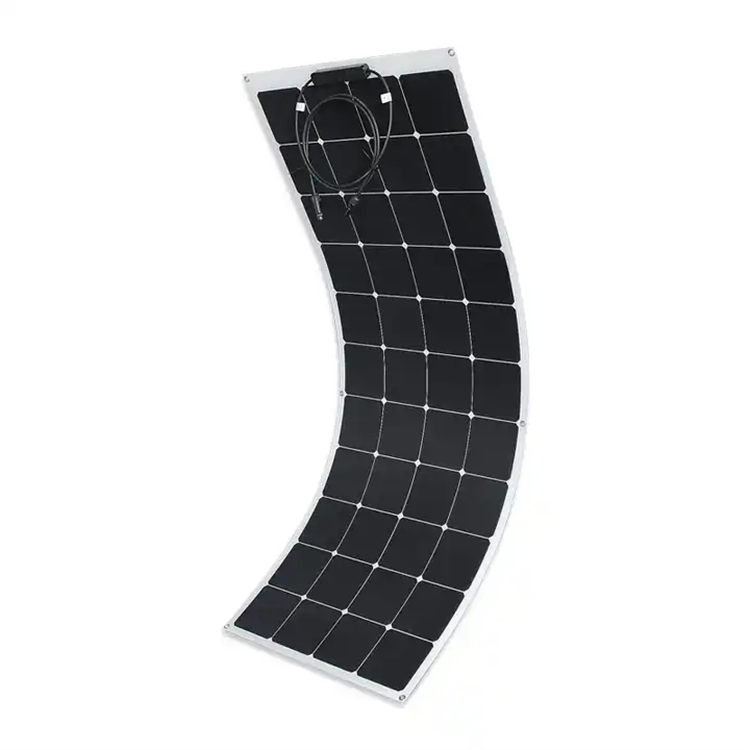

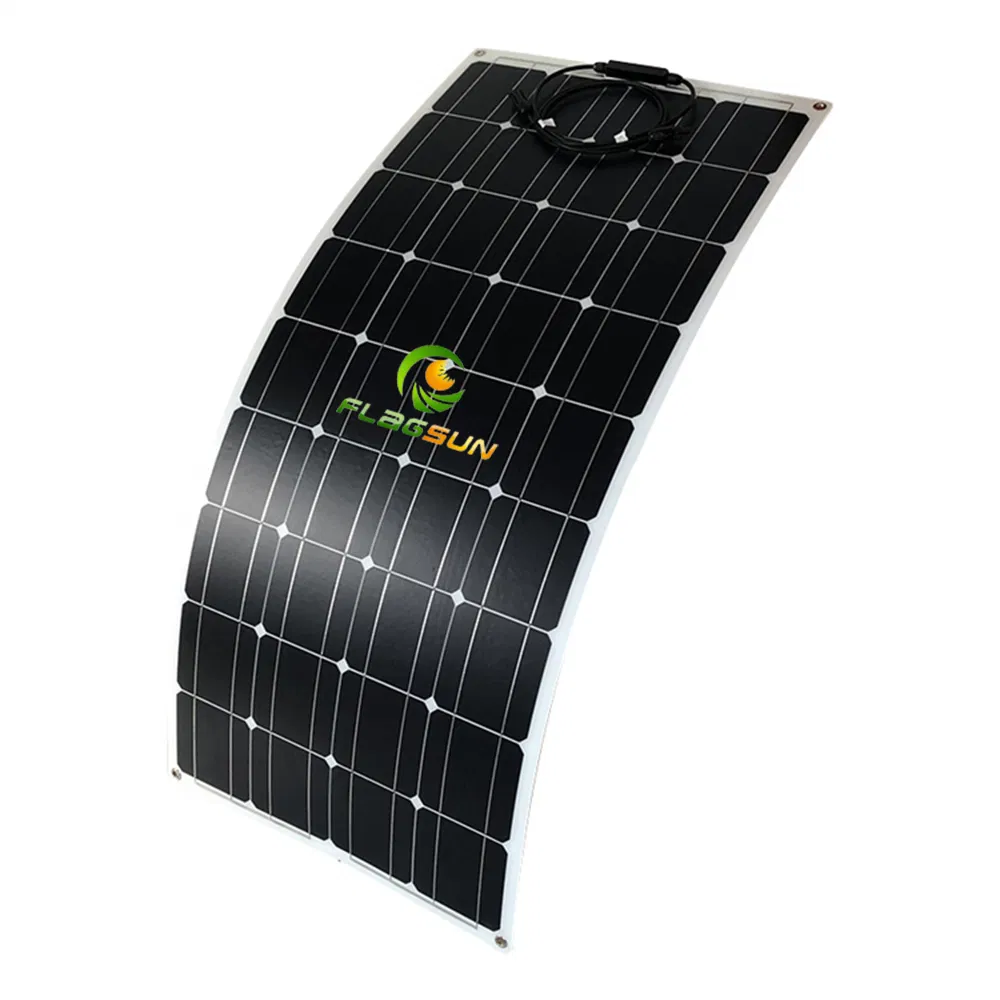

Portable Semi Thin Film Solar Panels Bendable Flexible PV Moudle for RV, Yachts, Marine Power Supply
Portable Semi Thin Film Solar Panels Bendable Flexible PV Moudle for RV, Yachts, Marine Power Supply
Portable Semi Thin Film Solar Panels Bendable Flexible PV Moudle for RV, Yachts, Marine Power Supply
Portable Semi Thin Film Solar Panels Bendable Flexible PV Moudle for RV, Yachts, Marine Power Supply
Portable Semi Thin Film Solar Panels Bendable Flexible PV Moudle for RV, Yachts, Marine Power Supply
1 / 5
Portable Semi Thin Film Solar Panels Bendable Flexible PV Moudle for RV, Yachts, Marine Power Supply
Portable Semi Thin Film Solar Panels Bendable Flexible PV Moudle for RV, Yachts, Marine Power Supply
Portable Semi Thin Film Solar Panels Bendable Flexible PV Moudle for RV, Yachts, Marine Power Supply
Portable Semi Thin Film Solar Panels Bendable Flexible PV Moudle for RV, Yachts, Marine Power Supply
Portable Semi Thin Film Solar Panels Bendable Flexible PV Moudle for RV, Yachts, Marine Power Supply

Portable Semi Thin Film Solar Panels Bendable Flexible PV Moudle for RV, Yachts, Marine Power Supply

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO.
FFXS-150W
Number of Cells
36pcs
Application
Industrial
Condition
New
Certification
ISO, CB, CE
Material
Monocrystalline Silicon
Solar Cell
Mono Sunpower
Junction Box
IP67 Rated
Connector
Solar Mc4, Integrated Twist Locking
Frame
Anodized Aluminium Alloy
Panel Efficiency
21.6%
HS Code
8541402000
Specifications
Model No :FFXS-150W
Solar panel size :1050*670*2.5mm
Product net weight :2.74 KG
Solar cell:Sunpower solar cell
Efficiency:21.50%
Maximum power(Pm):150W
Voltage at max power(Vmp):17.6(V)
Current at max power(Imp):5.68(A)
Short circuit current(Isc):6.25(A)
Open circuit voltage(Voc):20.8(V)
Number of cells and connections :32pcs(4*8)
Connector :MC4
Junction box :IP65
Operating Temperature :- 40ºC to +85ºC
Product Features & Advantages

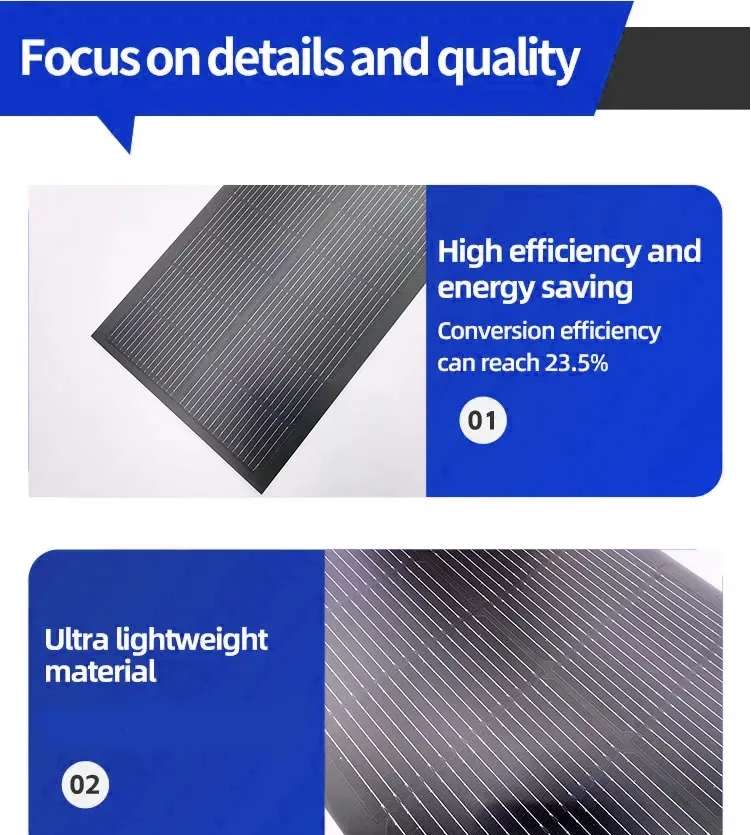

Flexible Solar Panel Detail

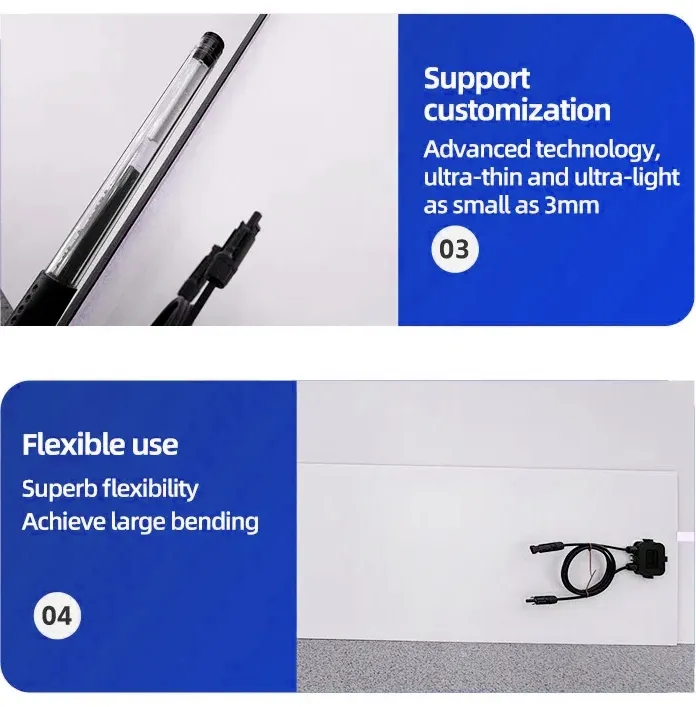

Flexible Solar Panel Overview
✓
More efficiency: The efficiency of dual spirits semi flexible solar panel is up to 23.5%.
✓
Easy Installation: Pre-drilled holes for fast mounting; can be affixed by adhesive or grommets.
✓
Widely Compatibility: Perfect for Boats, Yachts, RVs, Expedition Vehicles, and Remote Communication sites.
✓
Highly Flexible: Can be curved to a maximum 30-degree arc for irregular surfaces.
✓
Reliable & Productive: Waterproof junction box and bypass diodes to minimize performance drop from shade.
Applications
Solar Application 1

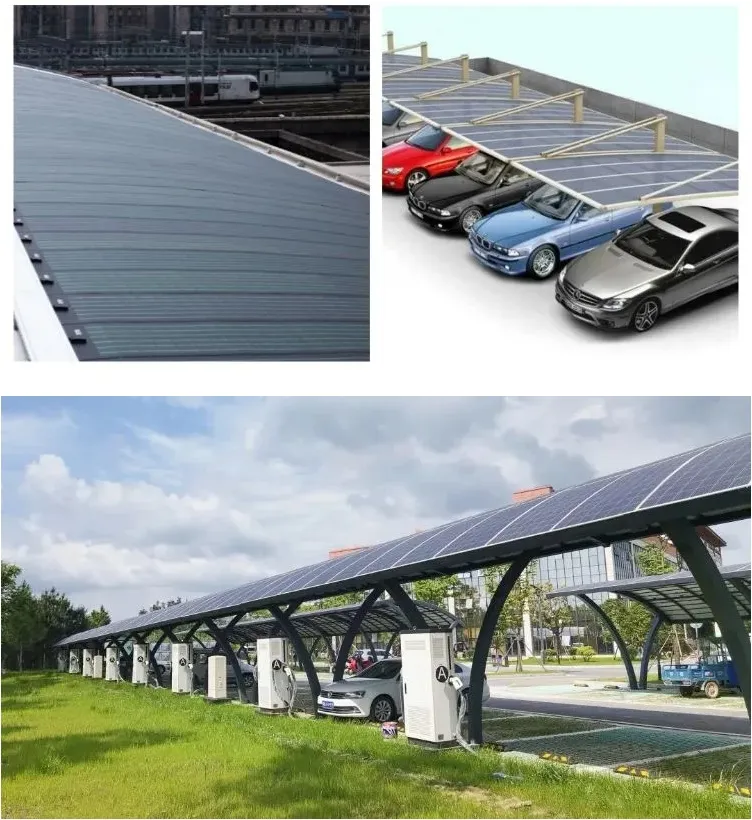

Solar Application 2

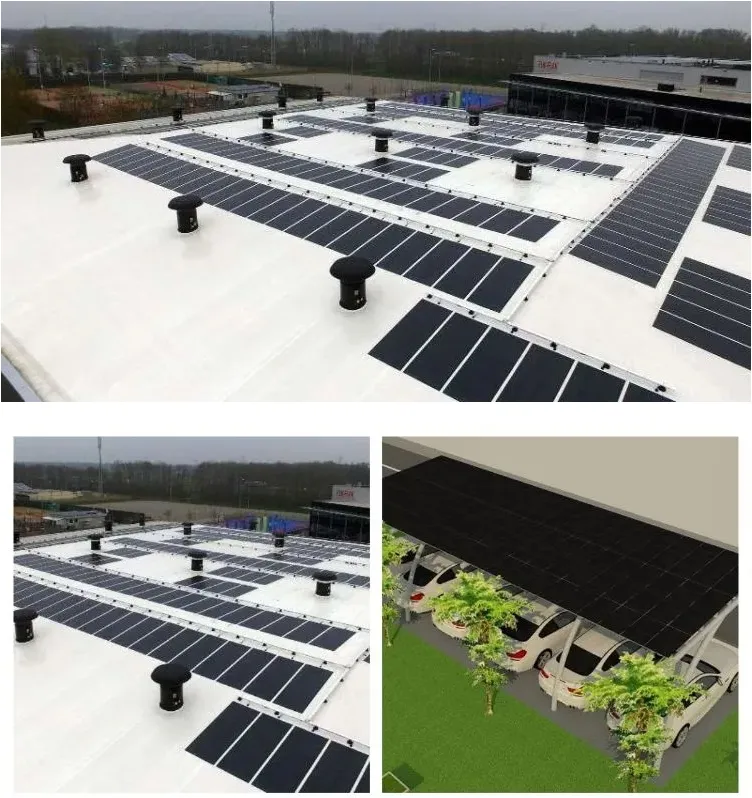

Solar Application 3

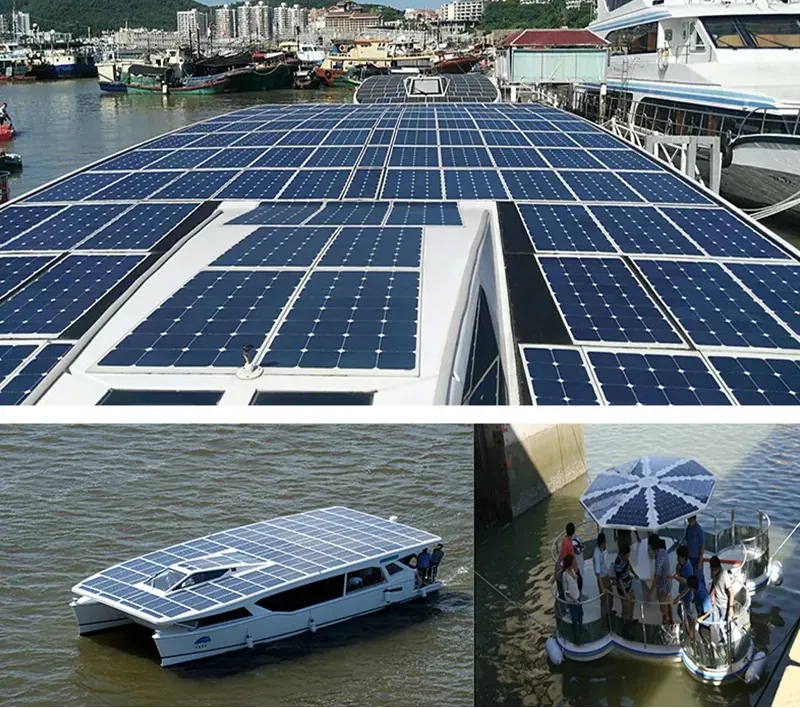

Solar Application 4

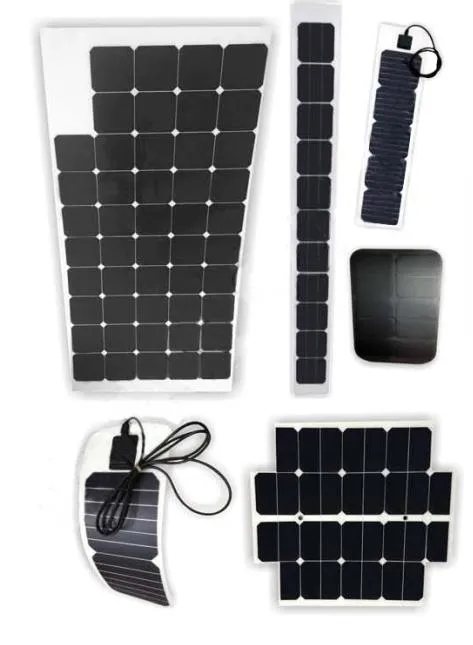

Solar Application 5
Premium Materials
●
Solar Cell: Conversion efficiency of 17%-24%, ensuring high performance.
●
Front Glass: 3.2mm high transmission, low iron tempered glass for stiffness and impact resistance.
●
EVA: Excellent anti-aging EVA to enhance rigidity and stability.
●
TPT: Flame resistance hot seal.
●
Junction Box: IP65/IP67 rated with diode protection and drainage holes.
Certifications & Shipping
Certifications
Packaging
Shipping
Manufacturing Excellence

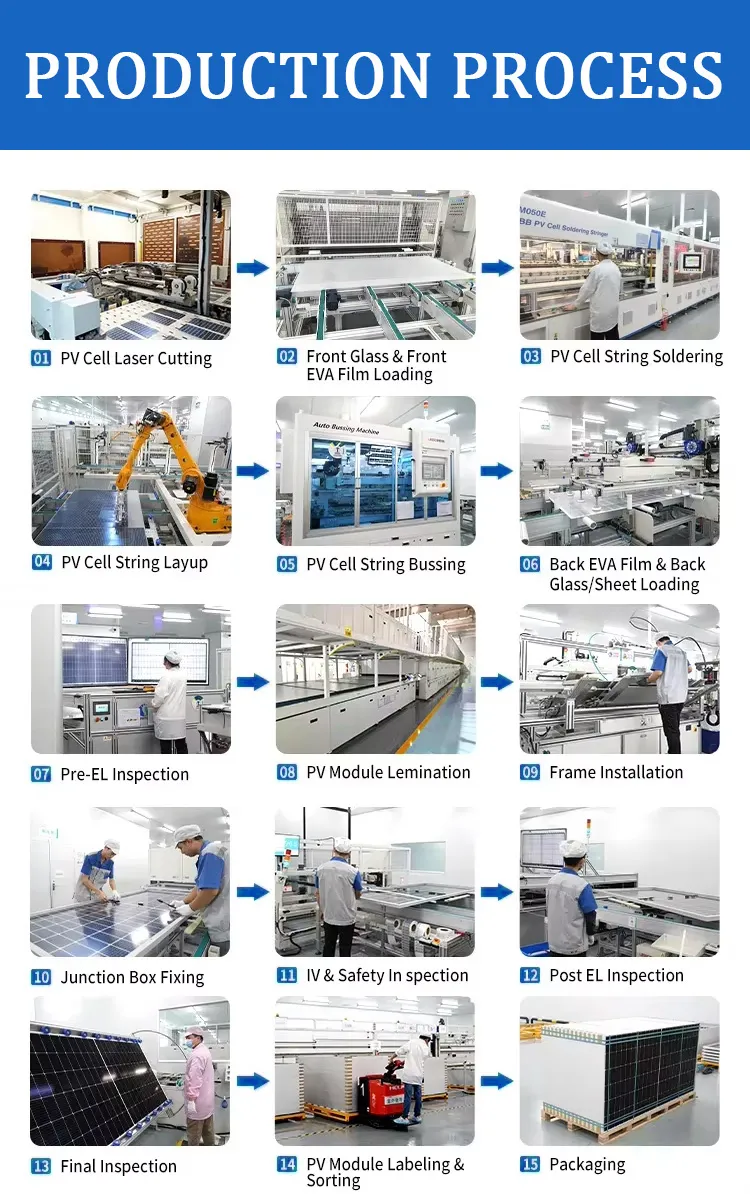

Factory 1

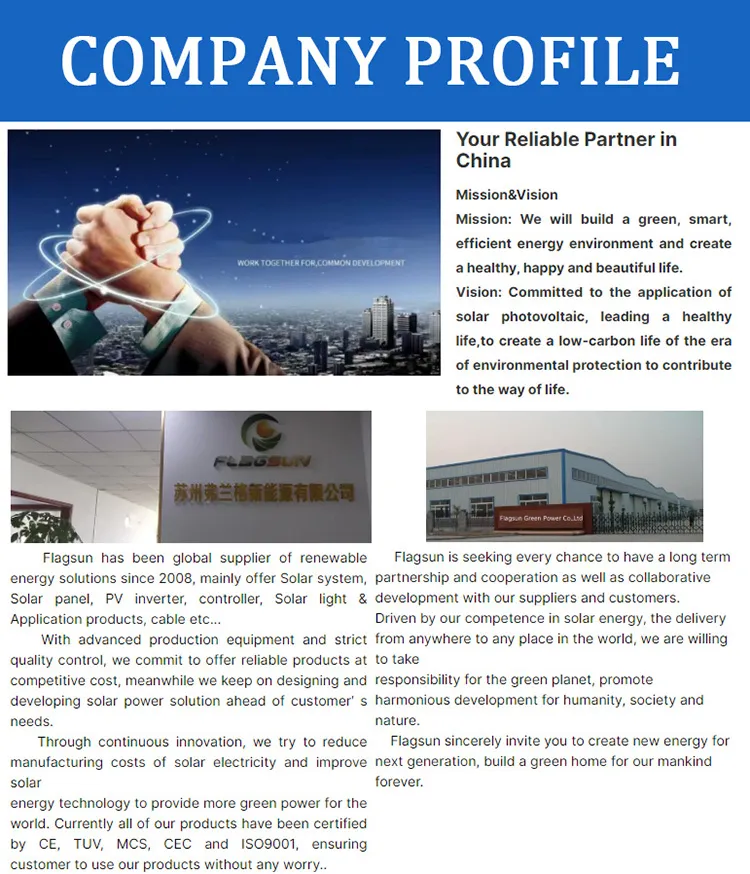

Factory 2
Factory 3
Factory 4
Factory 5
Frequently Asked Questions
How flexible is the FFXS-150W solar panel?
The panel is designed to be semi-flexible and can be curved to a maximum 30-degree arc, making it ideal for installation on irregular surfaces like RV roofs or boat decks.
What is the efficiency of the Sunpower cells used?
These panels utilize high-efficiency Sunpower solar cells with a conversion efficiency of up to 23.5%, which is significantly higher than standard conventional panels.
Is the panel waterproof and durable for marine use?
Yes, the junction box is IP65/IP67 rated and sealed to be waterproof. The materials include tempered glass and anti-aging EVA, ensuring durability in harsh marine environments.
Can I install these panels myself?
Absolutely. The panels come with pre-drilled holes for fast mounting and can be secured using adhesives or grommets, perfect for both permanent and non-permanent installations.
Does partial shade affect the performance?
The panels include integrated bypass diodes which minimize the performance drop caused by partial shade and prevent battery discharge during the night.
What are the main applications for this model?
It is widely used for boats, sailboats, yachts, motorhomes, RVs, commercial trucks, trailers, and remote off-grid communication sites.
