Photovoltaic Panels Solar Panel Cleaning Robot

Customization:	Available
After-sales Service:	Video Call After Service
Automation:	Automatic

◈ BASIC INFO

Model NO.

ZT1305

Clean Type

High Pressure Cleaning

Cleaning Process

Cold Water Cleaning

Control

CNC

Fuel

Electric

Principle

Physical Cleaning

Travel Speed

22 M/Min

Cleaning Width

1100 mm

Endurance

8 Hours

Cleaning Type

Dry Cleaning

Working Angle

20 Degree

Specification

1200*1000*350mm

◈ PRODUCT DESCRIPTION

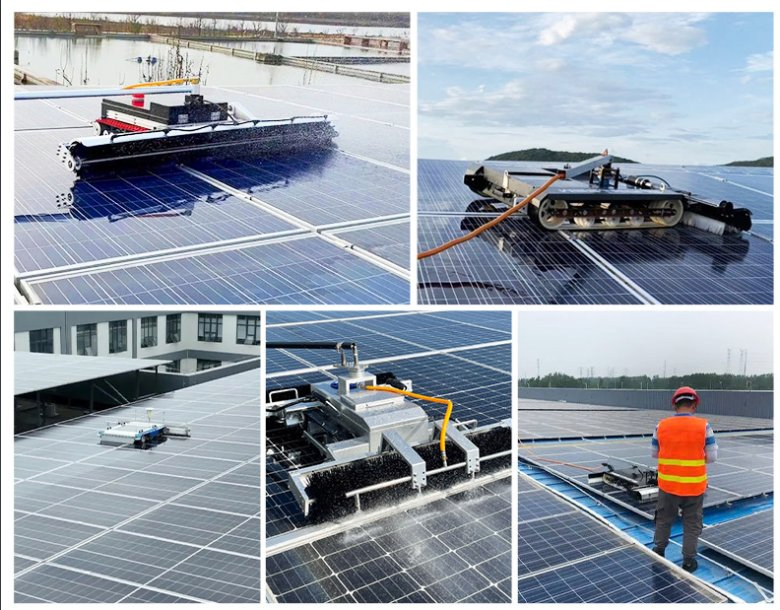

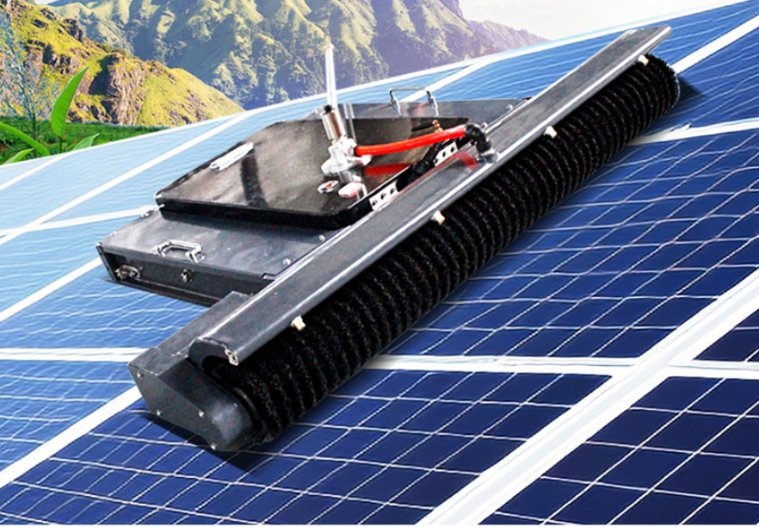

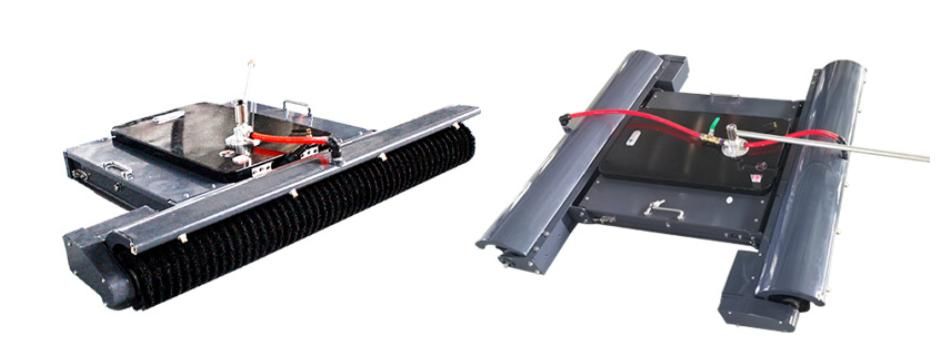

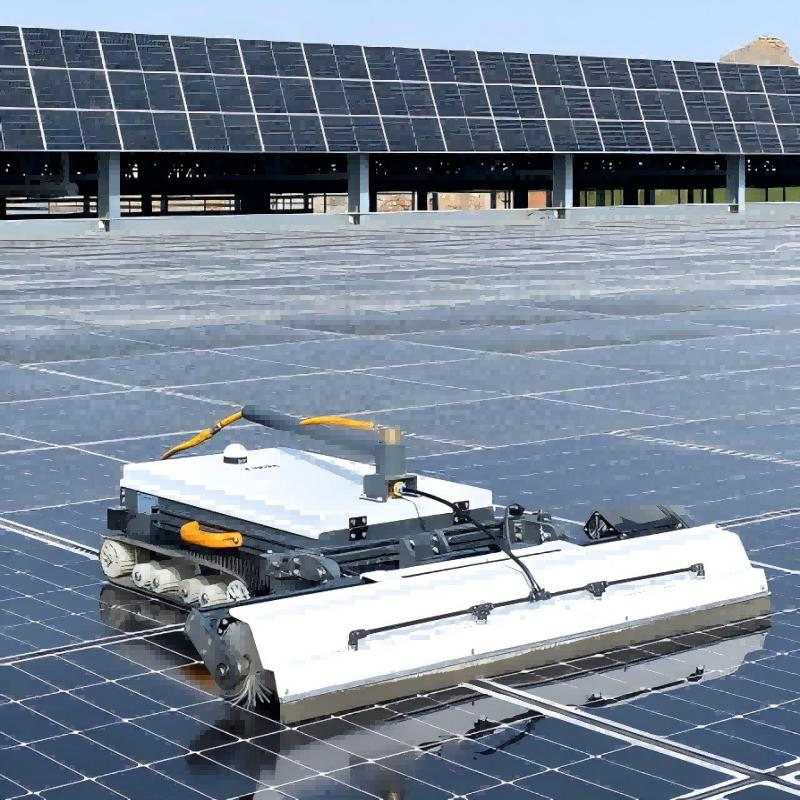

Photovoltaic Cleaning Robot

The Photovoltaic cleaning robot adopts intelligent walking technology, which can automatically walk and adhere to photovoltaic panels. Through the waterless self-cleaning design, it can clean foreign objects such as sand, dust, and fallen leaves on the surface of solar panels. Suitable for complementary power stations such as large-scale ground power stations, fish-photovoltaics, and distributed rooftop power stations.

◈ PRODUCT PARAMETERS

Operating Voltage	24V
Idle Speed	250 rpm
Travel Speed	22m/min
Cleaning Width	1100mm
Endurance	6 hours
Cleaning Type	Washing/Dry cleaning
Working Angle	Washing 15°/Dry cleaning 15°
Power Supply Mode	Lithium battery (24V)*2
Max Water Consumption	20L/min
Operating Temp Range	-20-50ºC
Brush Wire Material	New nylon yarn
Equipment Weight	29kg (excluding battery)
Outline Dimension	12001000350mm

◈ PRODUCT DETAILS

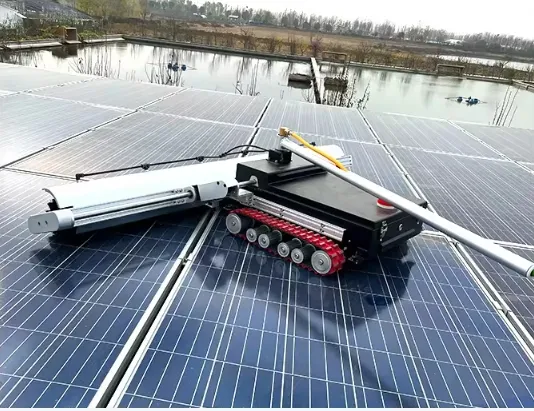

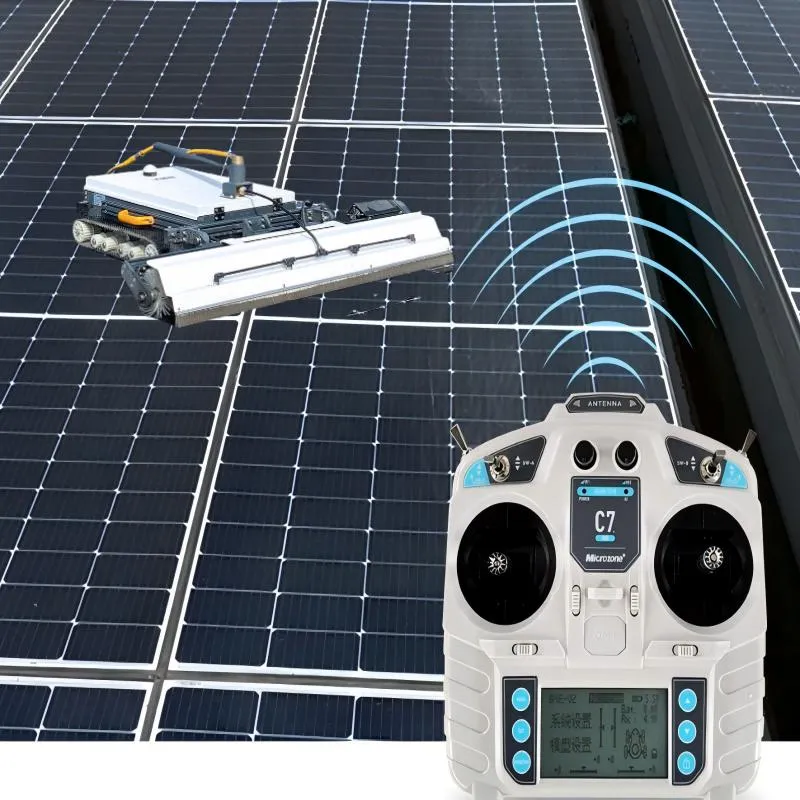

REMOTE CONTROL 250M & ANTI-FALL SYSTEM

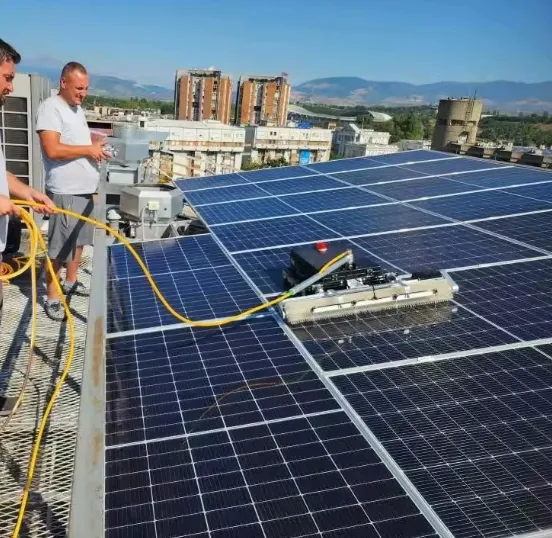

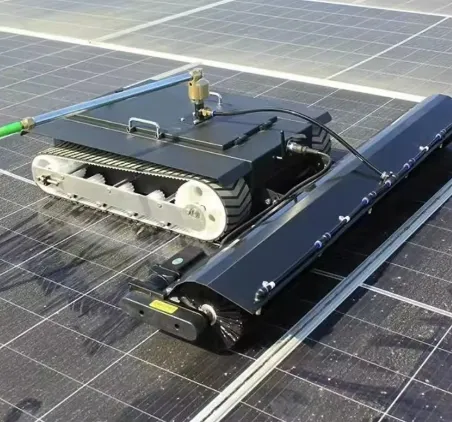

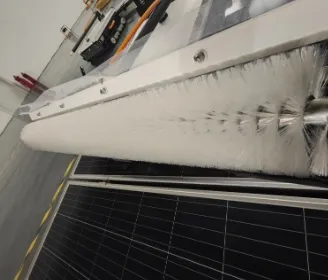

1100MM ROLLER BRUSHES & CRAWLER CHASSIS

With the crawler chassis, the robot can move forward, backward, turn left and right under remote control, achieving walking in any direction of the photovoltaic panels and cleaning operations without blind spots.

◈ PRODUCT FEATURES

✔ High Efficiency: Each person can clean 0.5 to 0.8MW per day using the robot system.

✔ Versatile Application: Suitable for deserts, hills, and various photovoltaic power stations.

✔ Dual Cleaning Modes: Supports both dry cleaning and water washing functionality.

◈ PACKAGING & SHIPPING

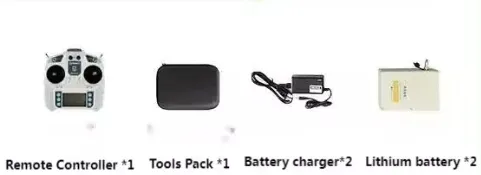

The system consists of a main unit, a remote control, two lithium batteries (24/26Ah), two 24v 3A battery chargers, a lithium-ion battery backpack, and a spare tool accessory.

◈ MANUFACTURING CAPABILITY

We are a professional supplier of photovoltaic module cleaning products integrating R&D, manufacturing, sales and service. With an advanced production base and a complete supply chain system, we provide efficient and safer products to reduce labor and safety risks. Our product line includes manual rotating brushes, remote control cleaning robots, and fixed cleaning robots.

◈ FAQ

How can you guarantee the product quality?

We have a comprehensive pre-sales and after-sales service system. We track the entire process from factory production, ensuring quality at every step of the order process.

Are sample orders available for testing?

Yes, sample orders are welcomed. We encourage testing our robots to ensure they meet your specific power station requirements.

Do you provide OEM & ODM services?

Yes, we provide OEM and ODM services for most of our products. Customization can be discussed based on your specific project needs.

What other products can we purchase from your range?

Beyond cleaning robots, we provide Solar Panels, BIPV solutions, Batteries, Portable power supplies, and other solar energy components.

Is the equipment currently in stock?

For most standard models, we maintain inventory for immediate delivery. For large volume orders, we will calculate and communicate the lead time accordingly.

What is the typical cleaning efficiency per day?

A single operator using our robot can typically clean between 0.5MW to 0.8MW of solar panels per day depending on the site conditions.
