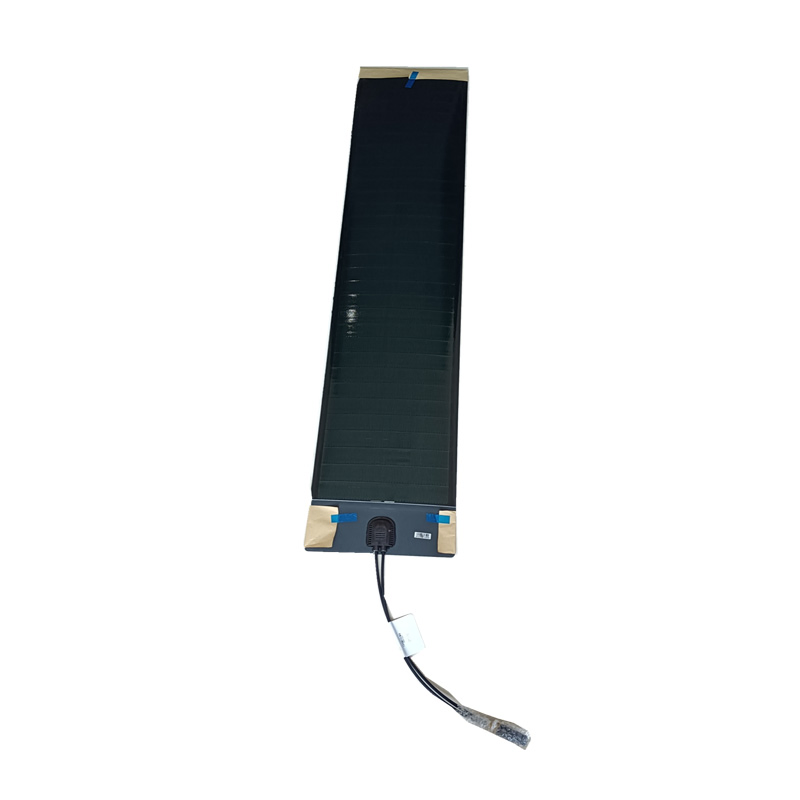

Flex-03ns-80W Miasole Flexible Thin-Film CIGS Cell Solar Panel for RV

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

FLEX-03NS-70W 75W 80W

Number of Cells

Application

Industrial

Condition

New

Certification

Material

Amorphous Silicon

Peak Power

80W

Module Efficiency

16.3%

Max Power Voltage

19.3V

Max Power Current

4.15A

Length

1710mm

Width

348mm

Product Description

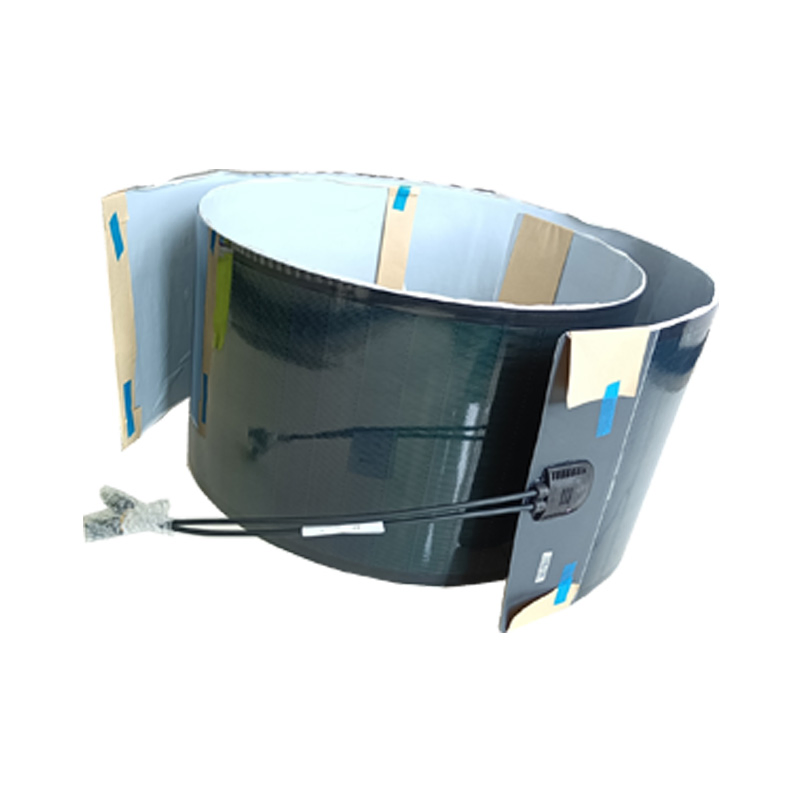

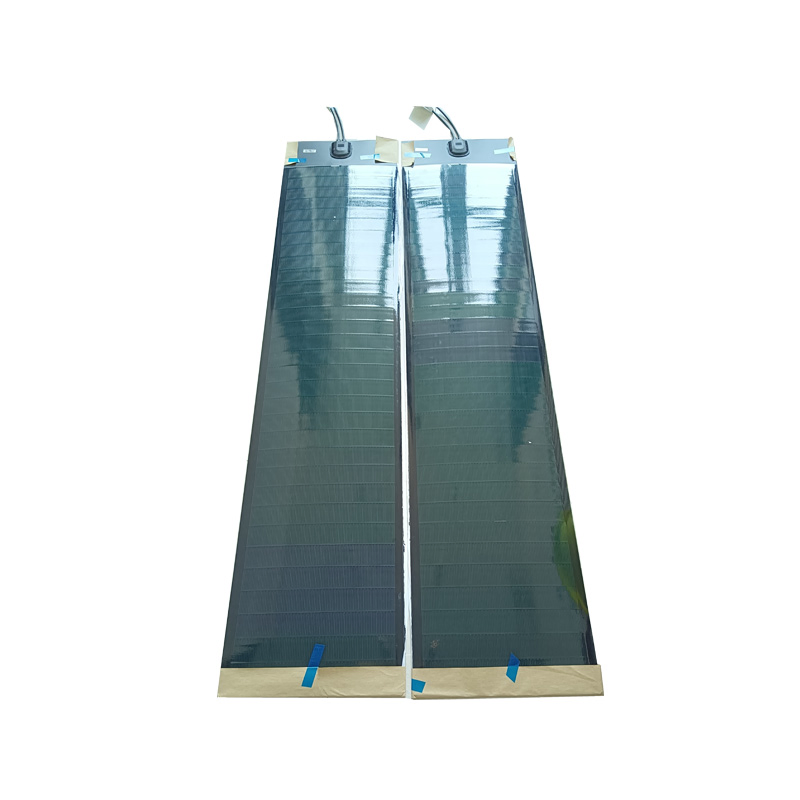

FLEX-03NS-80W flexible thin-film CIGS cell solar panel

The flexible solar panel adopts CIGS technology, which has an aperture efficiency as high as 17%, rivaling that of rigid glass panels.

General Production Process

High-grade stainless steel foil combined with an advanced PVD semiconductor deposition process creates the most controlled and powerful flexible stainless steel CIGS cell. The structure is protected by special transparent water barrier plastics and a backsheet with internal aluminum film to ensure longevity and prevent erosion.

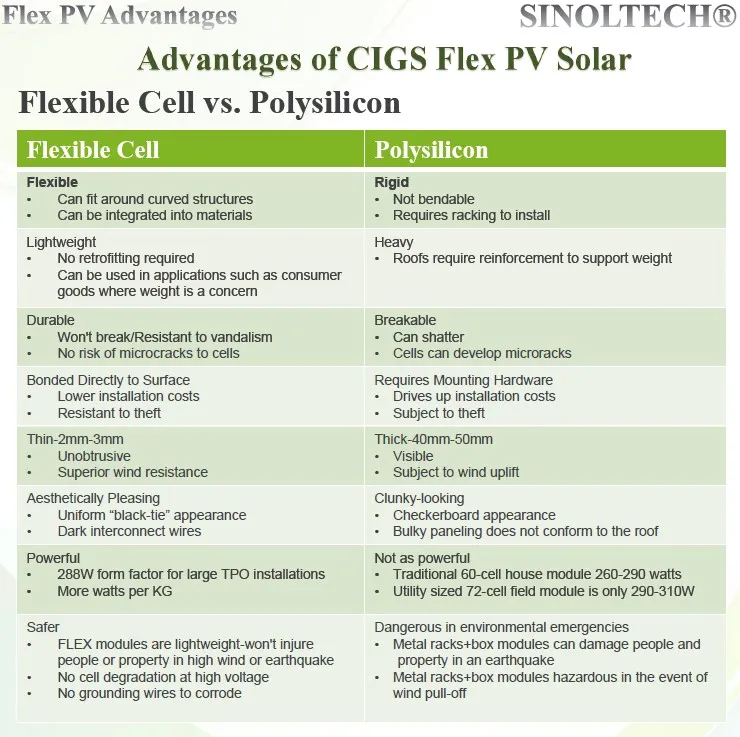

Key Benefits

Lightweight: Less than 2.4 kg/m², ideal for building structures with low dead load limitations or vehicles like RVs and trucks.
Powerful: Highest efficiency thin-film CIGS modules in production, providing over four times the power generation per kilogram of silicon.
Easy Installation: Peel-and-stick application eliminates structural penetrations and reduces the chance of leaks.

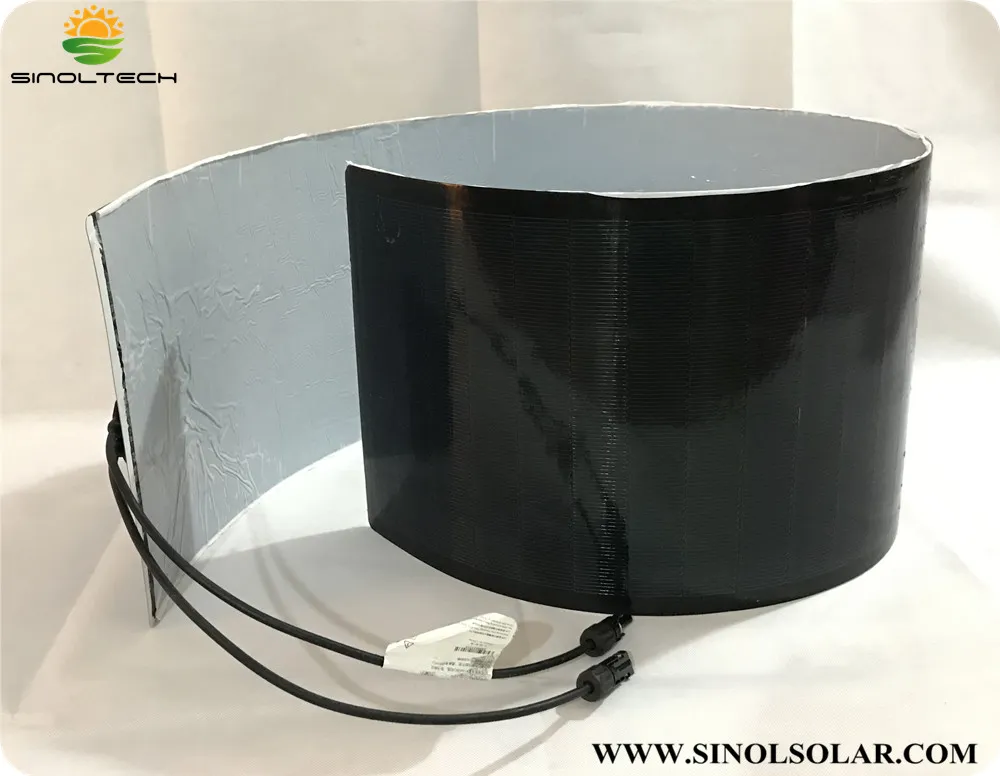

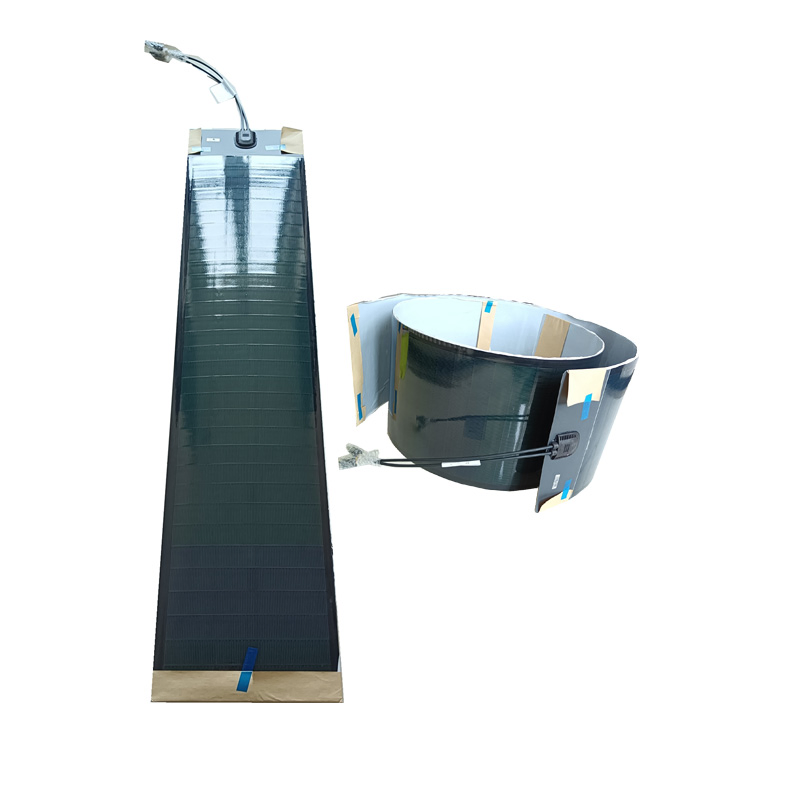

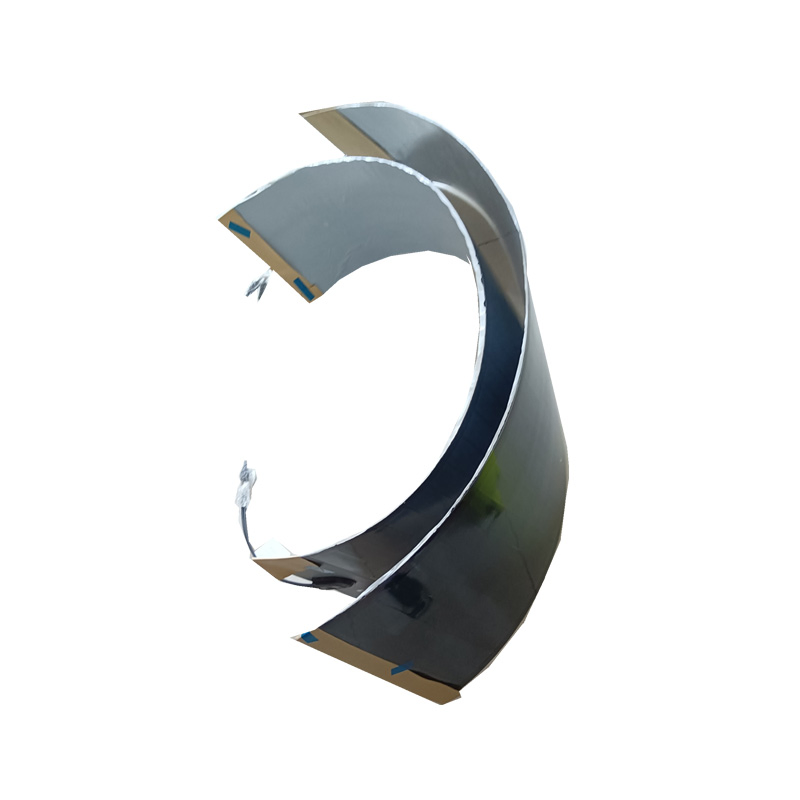

Flexible: Conforms to curved surfaces, enabling power generation on non-traditional surfaces.
Resistant: Shatterproof and thin (2.5mm), providing excellent wind and seismic resistance.
Reliable: Unique redundant interconnect design for industry-leading reliability.

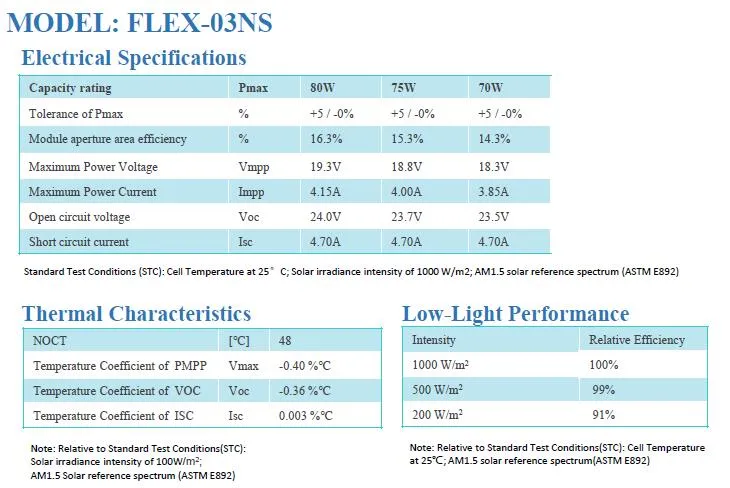

Technical Data

Capacity Rating	Pmax	80W	75W	70W
Tolerance of Pmax	%	+5 / -0%	+5 / -0%	+5 / -0%
Module aperture area efficiency	%	16.3%	15.3%	14.3%
Maximum Power Voltage	Vmpp	19.3V	18.8V	18.3V
Maximum Power Current	Impp	4.15A	4.00A	3.85A
Open circuit voltage	Voc	24.0V	23.7V	23.5V
Short circuit current	Isc	4.70A	4.70A	4.70A

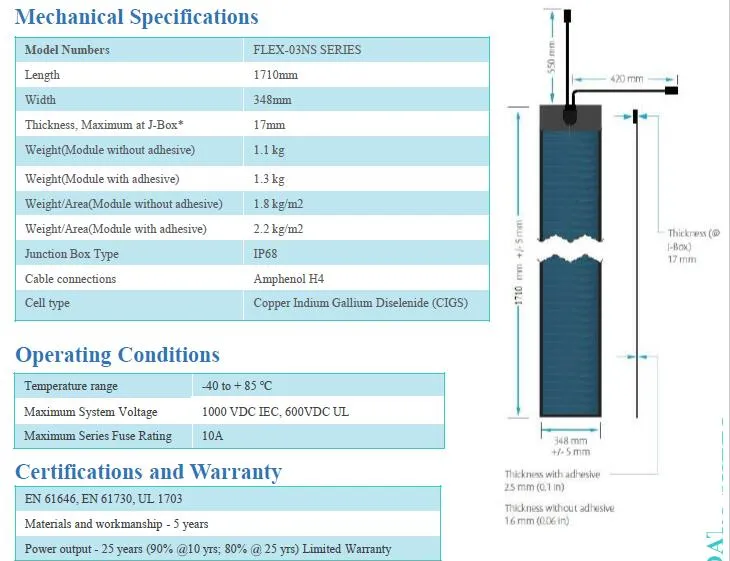

Mechanical Characteristics
Length	1710mm
Width	348mm
Thickness, Maximum at J-Box	17mm
Weight (Module without adhesive)	1.1 kg
Weight (Module with adhesive)	1.3 kg
Junction Box Type	IP68
Cell type	Copper Indium Gallium Diselenide (CIGS)

Product Visuals

Frequently Asked Questions

What makes CIGS technology different from traditional panels?

CIGS (Copper Indium Gallium Diselenide) technology allows for high efficiency (up to 17%) in a thin, flexible form factor, making it much lighter and more versatile than rigid glass silicon panels.

How is the solar panel installed?

These modules feature a peel-and-stick application. This eliminates the need for racks, ballasts, or roof penetrations, significantly simplifying the installation process.

Can these panels be used on curved surfaces?

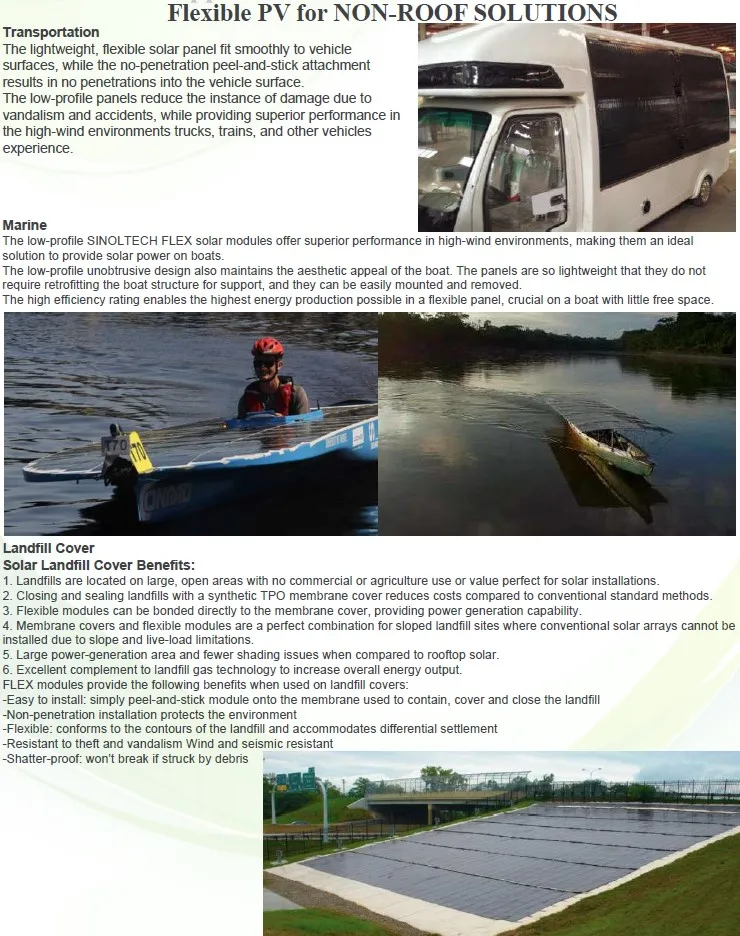

Yes, the FLEX series modules conform to curved surfaces, enabling solar power generation on surfaces like RV roofs, trucks, and curved building facades where traditional panels cannot be mounted.

Are these panels durable enough for extreme weather?

Absolutely. They are shatterproof and directly bond to the surface, providing excellent resistance against high winds and seismic activity. They won't break if struck by debris.

What is the weight and thickness of the module?

The panels are extremely thin (approx. 2.5mm for the laminate) and lightweight (less than 2.4 kg/m²), making them ideal for structures with low load-bearing capacity.

What kind of warranty is provided?

The FLEX series includes a 5-year warranty on workmanship and a 10/25 year warranty against power loss.
