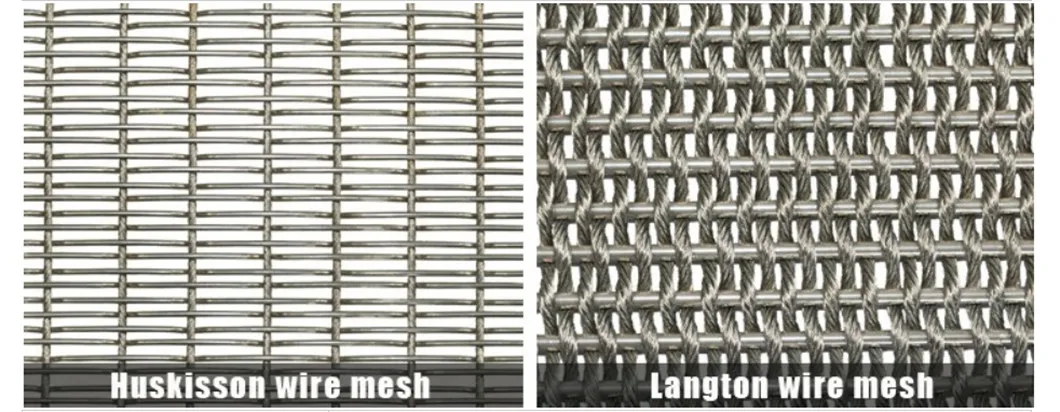

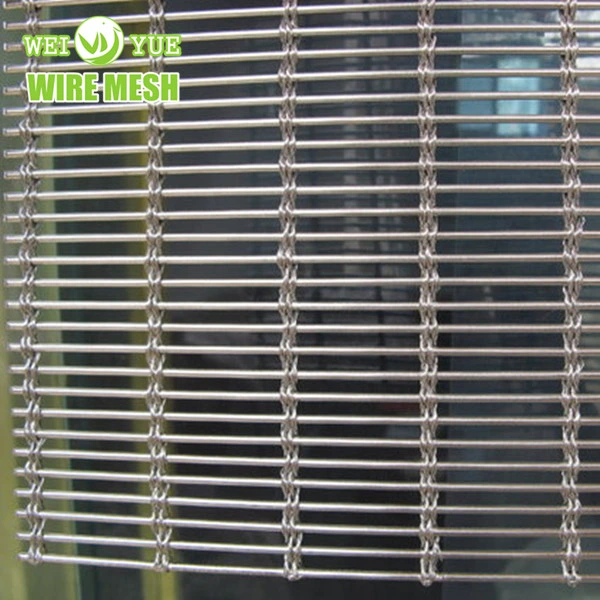

Weft and warp weaved and combined soft with rigid, wire mesh can be widely applied to the decoration industry to create any effect the designer can dream. Cable metal mesh is combined with braided steel cables and steel rod. Commonly the warp wire is steel cables and the weft wire is steel rod.
| Design | Open area | Cable wire dia. | Cable pitch | Bar dia. | Bar pitch | Thickness | Weight |
|---|---|---|---|---|---|---|---|
| 1 | 40% | 1x1.8 mm | 4 mm | 1.5 mm | 5.5 mm | 5.1 mm | 7.74kg/m2 |
| 2 | 43% | 1x2.5 mm | 6 mm | 2 mm | 8 mm | 5.5 mm | 7.87kg/m2 |
| 3 | 62% | 2x2.75 mm | 40 mm | 4 mm | 14.5 mm | 9.5 mm | 9.41kg/m2 |
| 4 | 37.20% | 3x0.5 mm | 3.5 mm | 0.5 mm | 1.4 mm | 1.3 mm | 2.4kg/m2 |
| 5 | 71% | 3x1.6 mm | 80 mm | 2.5 mm | 10 mm | 5.7 mm | 4.58kg/m2 |
| 6 | 65% | 3x2 mm | 80 mm | 3 mm | 10 mm | 7 mm | 6.67kg/m2 |
| 7 | 65.90% | 3x2.75 mm | 110 mm | 4 mm | 14.5 mm | 10 mm | 8.5kg/m2 |

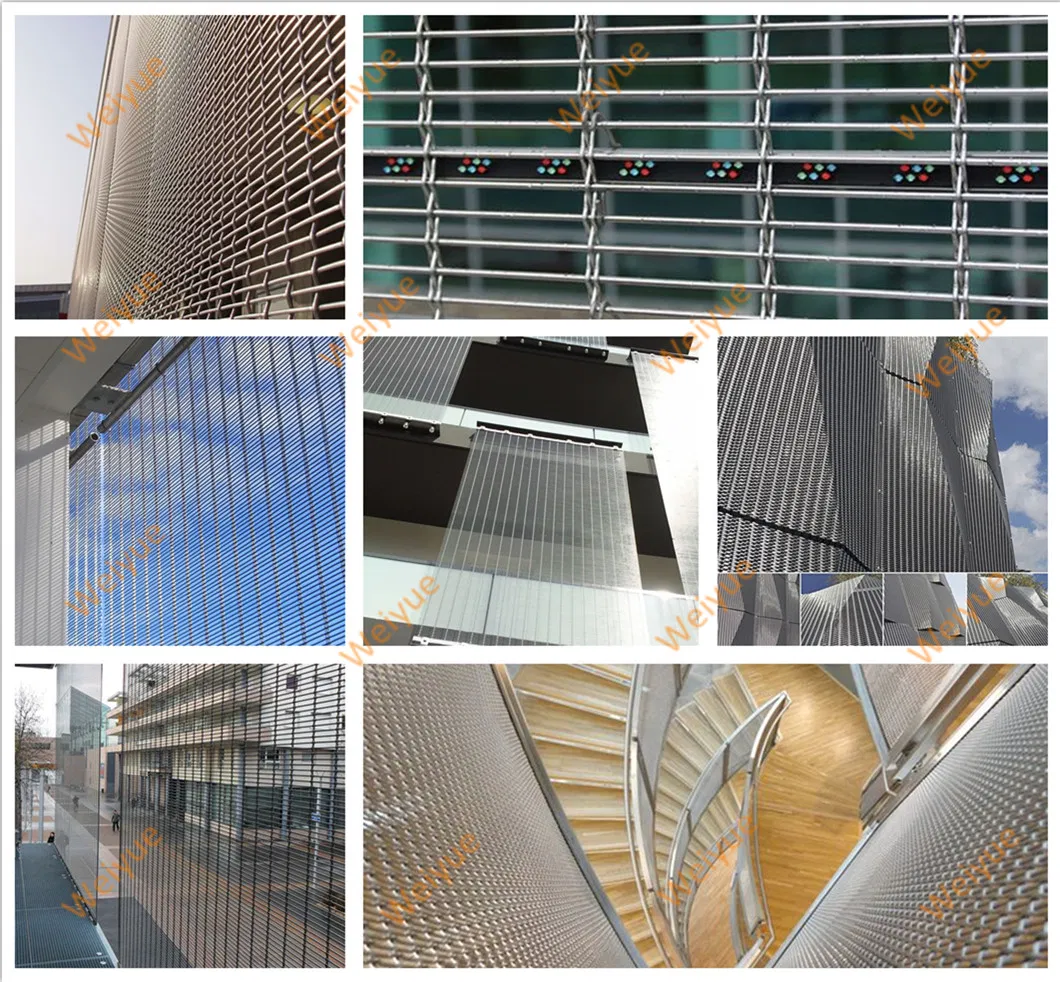

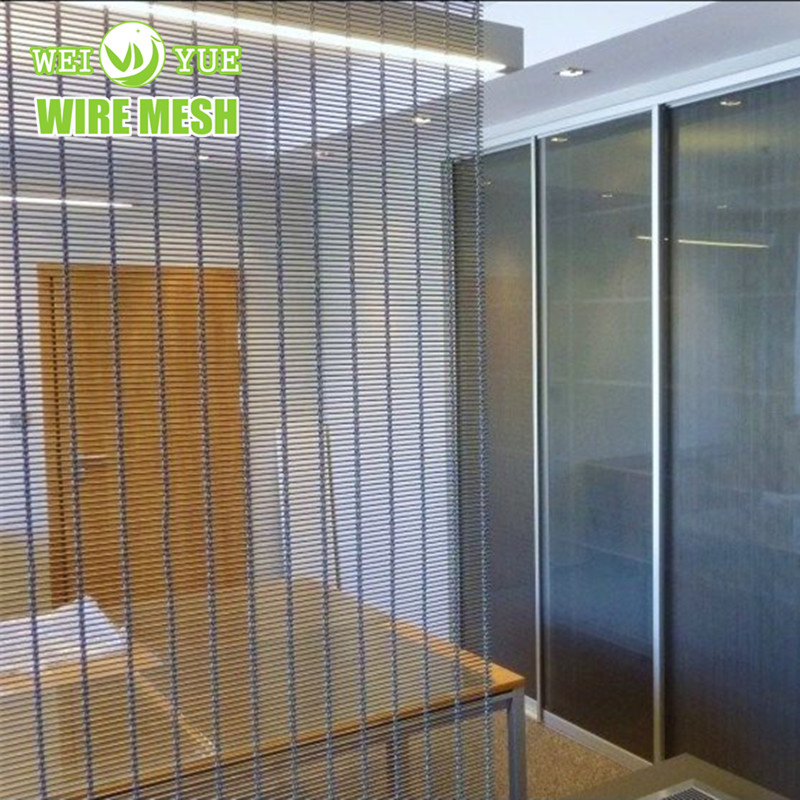

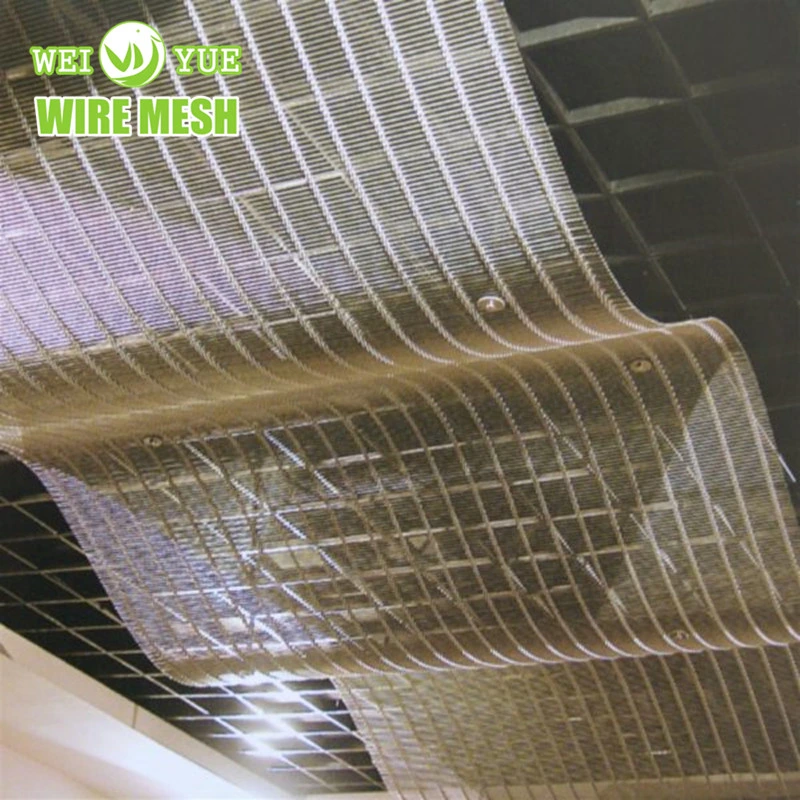

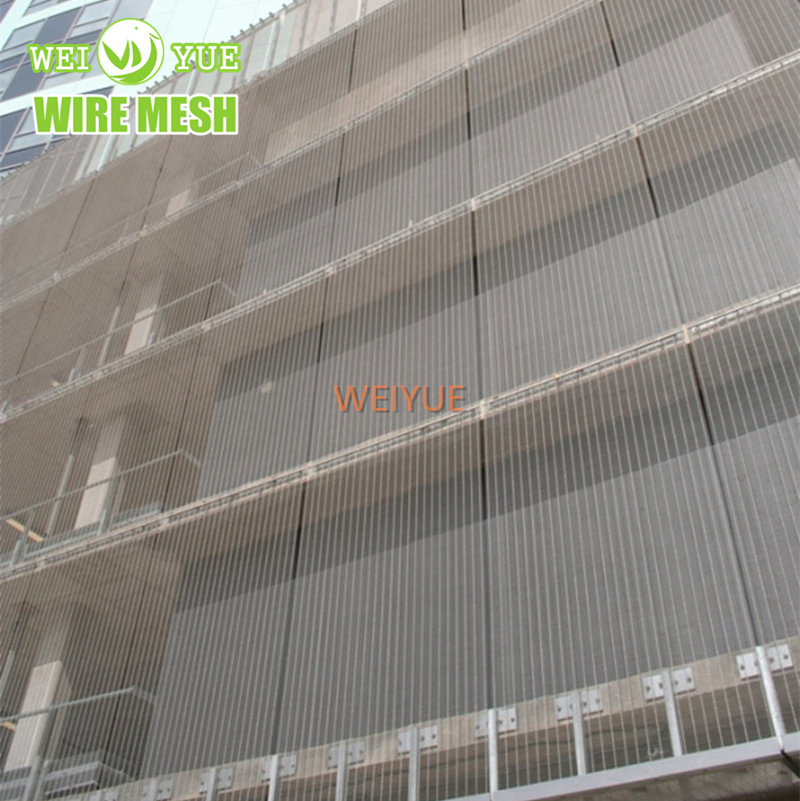

Cable mesh products are widely used in interior and exterior decorations such as hotels, high-rise buildings, elevators, and luxury office spaces.
Nonflammable material with high strength, ensuring long-lasting safety and performance.
Simple to clean with a cloth. Resists dirt and maintains its metallic luster easily.
Chic appearance that reflects unlimited creativity and artistic appeal for architects.
Variety of openings and sizes available to meet specific architectural inspirations.
