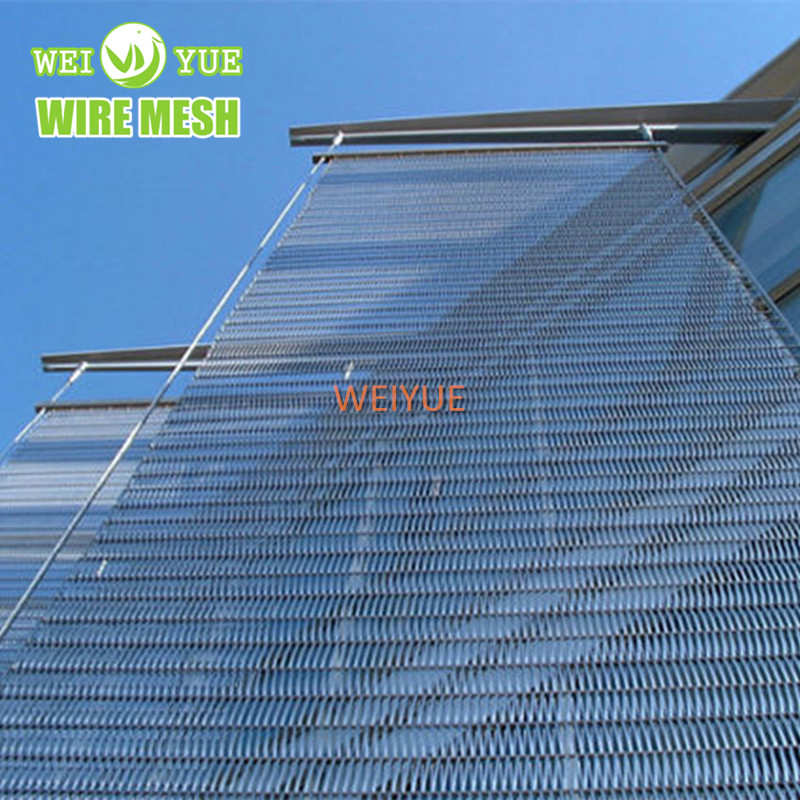

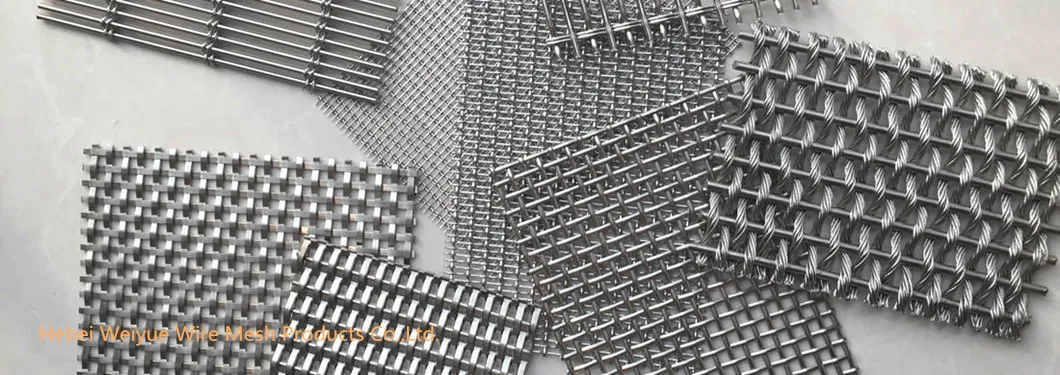

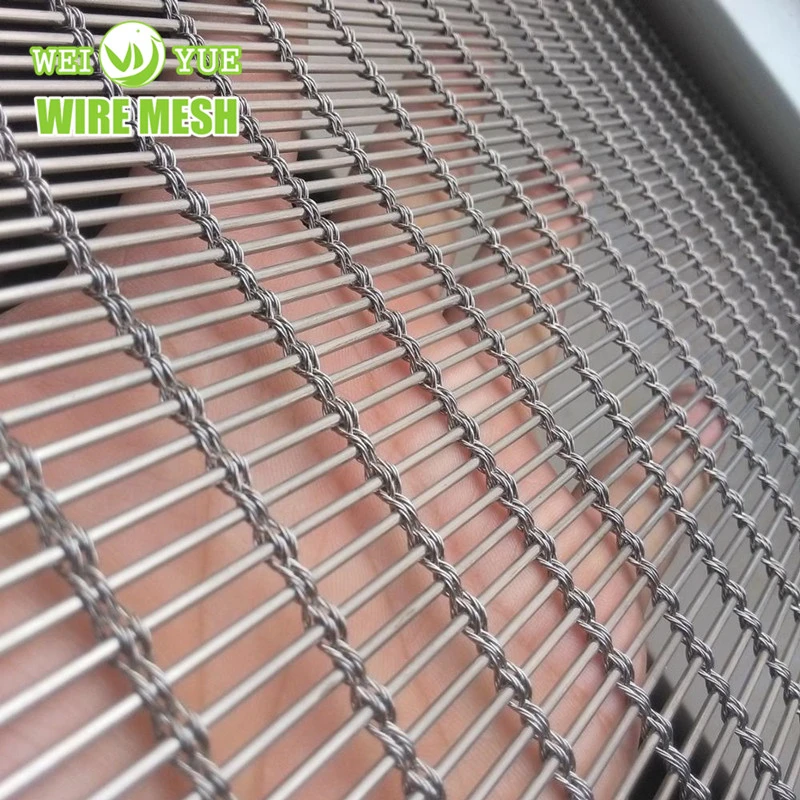

Our Decorative Cable Mesh is a sophisticated architectural material combining braided steel cables and steel rods. This unique combination of soft and rigid elements allows designers to create stunning visual effects in the decoration industry.

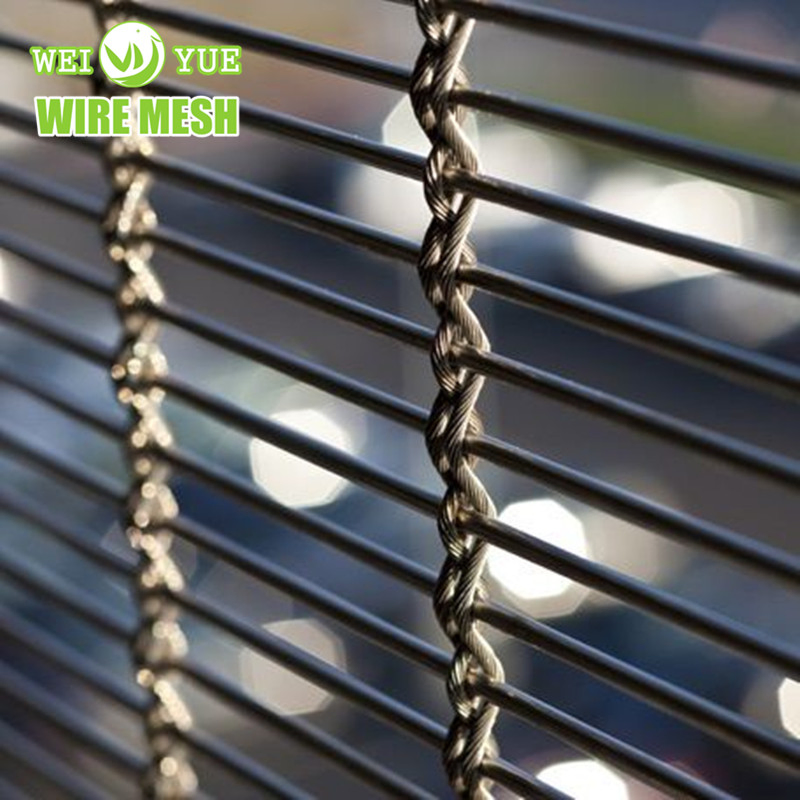

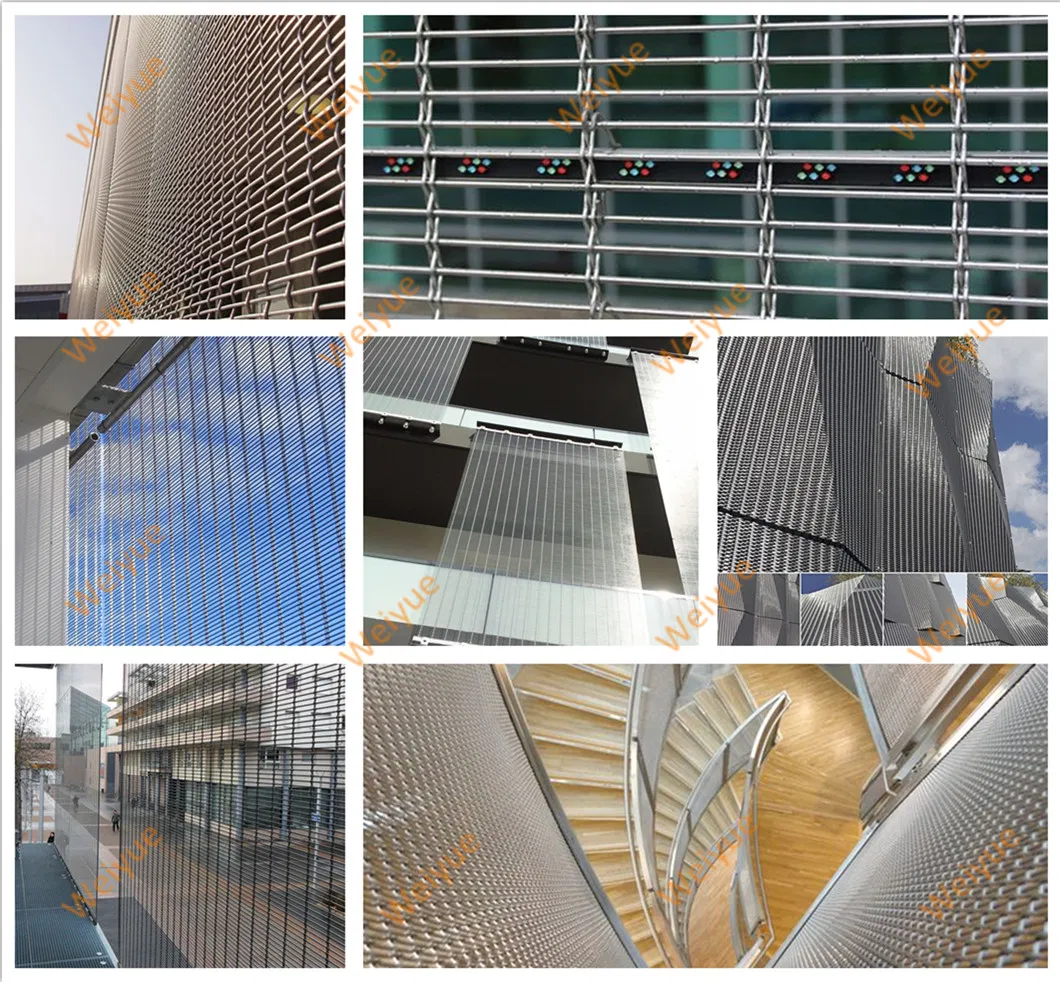

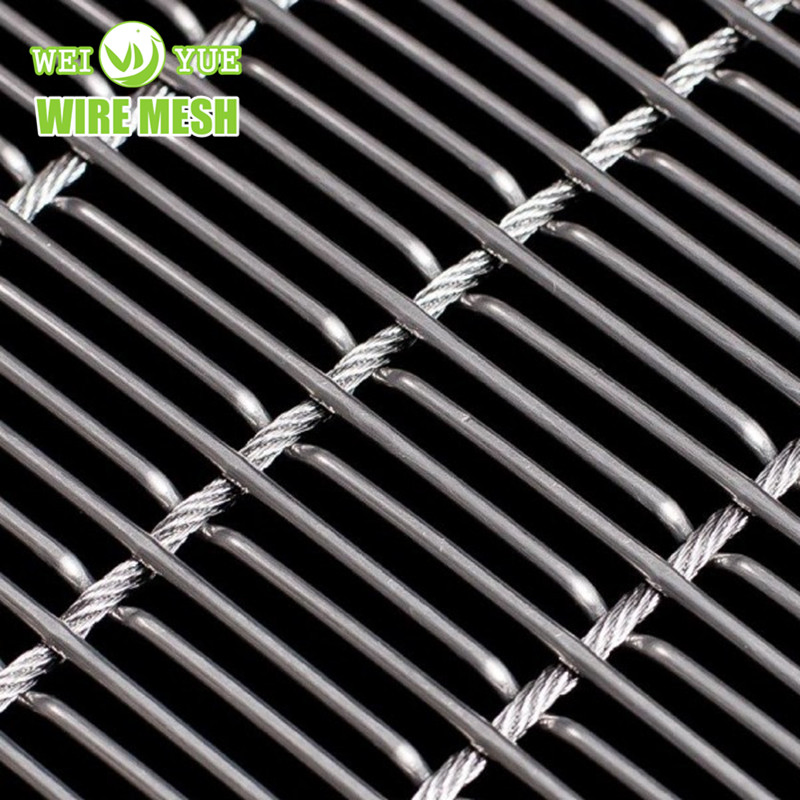

Commonly, the warp wires consist of high-strength steel cables, while the weft wires are solid steel rods. It is widely used for both functional and aesthetic purposes.
| Design | Open Area | Cable Dia. | Cable Pitch | Bar Dia. | Bar Pitch | Thickness | Weight |
|---|---|---|---|---|---|---|---|
| 1 | 40% | 1x1.8 mm | 4 mm | 1.5 mm | 5.5 mm | 5.1 mm | 7.74kg/m2 |
| 2 | 43% | 1x2.5 mm | 6 mm | 2 mm | 8 mm | 5.5 mm | 7.87kg/m2 |
| 3 | 62% | 2x2.75 mm | 40 mm | 4 mm | 14.5 mm | 9.5 mm | 9.41kg/m2 |
| 4 | 37.2% | 3x0.5 mm | 3.5 mm | 0.5 mm | 1.4 mm | 1.3 mm | 2.4kg/m2 |
| 5 | 71% | 3x1.6 mm | 80 mm | 2.5 mm | 10 mm | 5.7 mm | 4.58kg/m2 |
| 6 | 65% | 3x2 mm | 80 mm | 3 mm | 10 mm | 7 mm | 6.67kg/m2 |

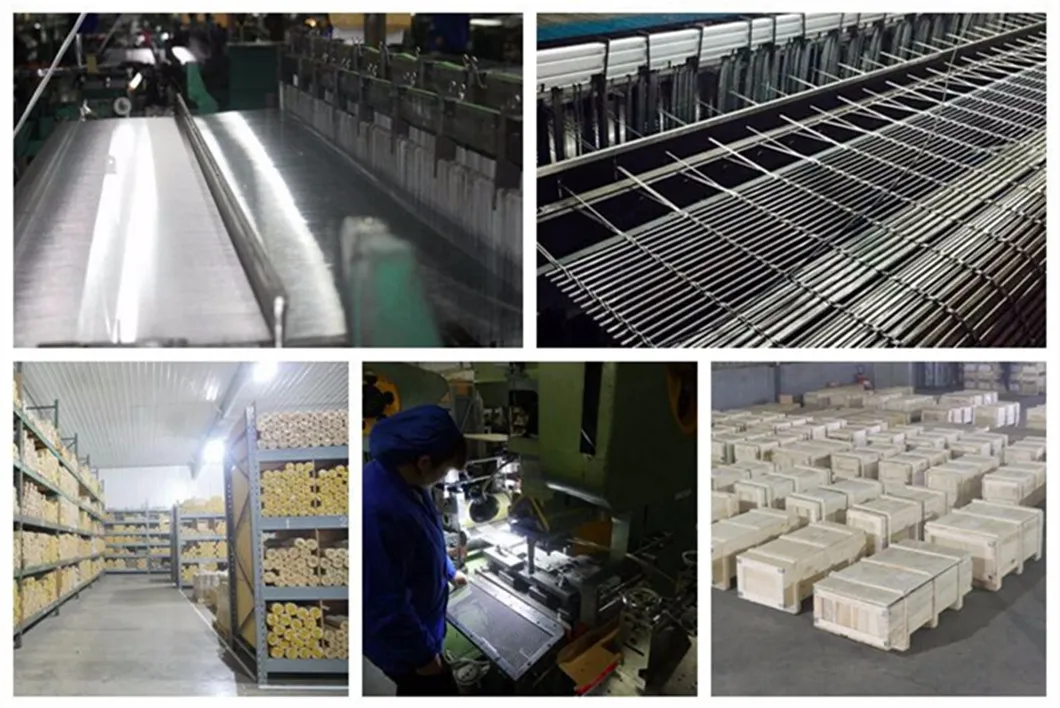

To ensure safe transit, our products are packed using professional methods:
