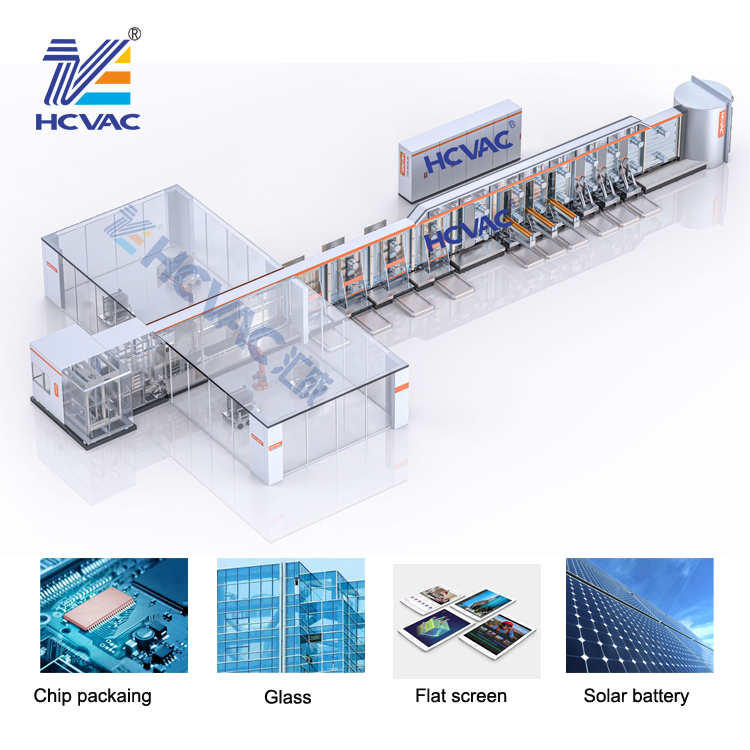

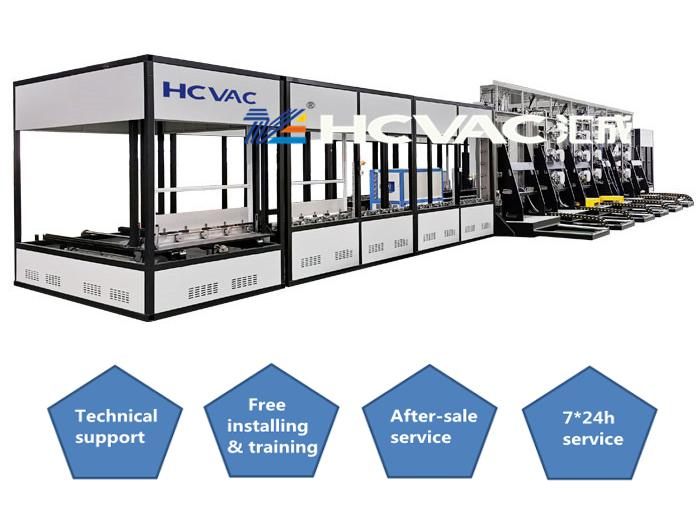

ITO Film Solar Cell Transparent Conductive Film Magnetron Sputtering Production Inline

ITO film Solar cell transparent conductive film magnetron sputtering production Inline

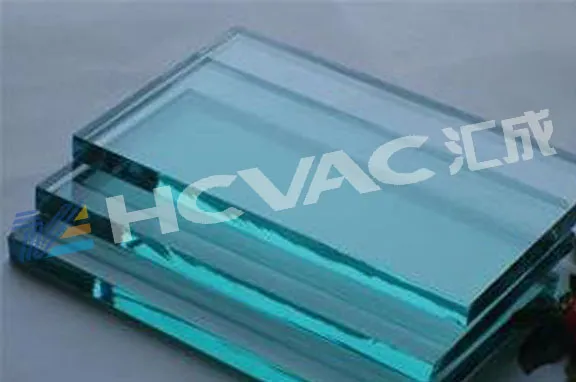

The Inline coating system is mainly used in flat glass, acrylic, PC, and PE materials to obtain high-quality, multi-functional metal films, electromagnetic shielding films, reaction films, transparent conductive films, anti-reflection (AR) & enhanced reflectance films, and Low-E coatings (single, double, triple silver).

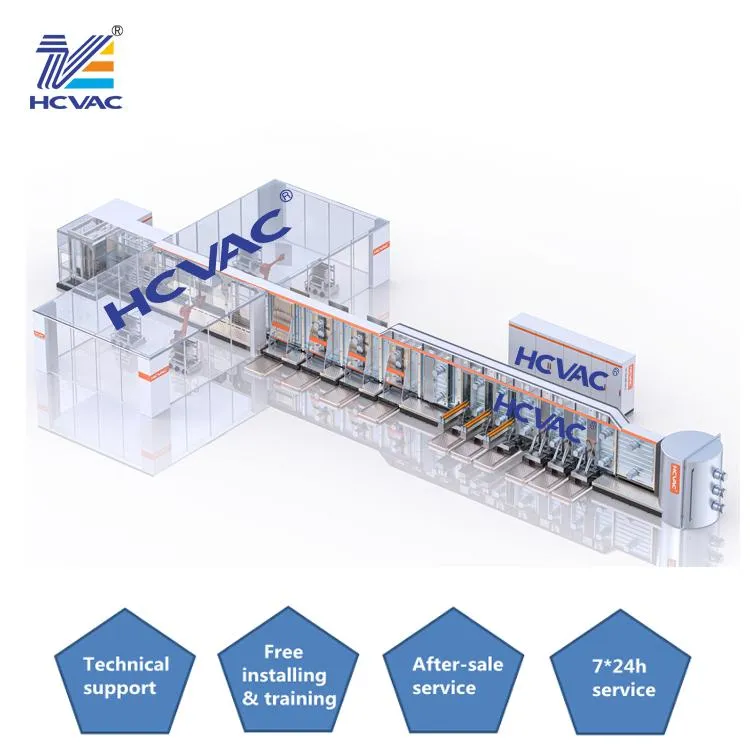

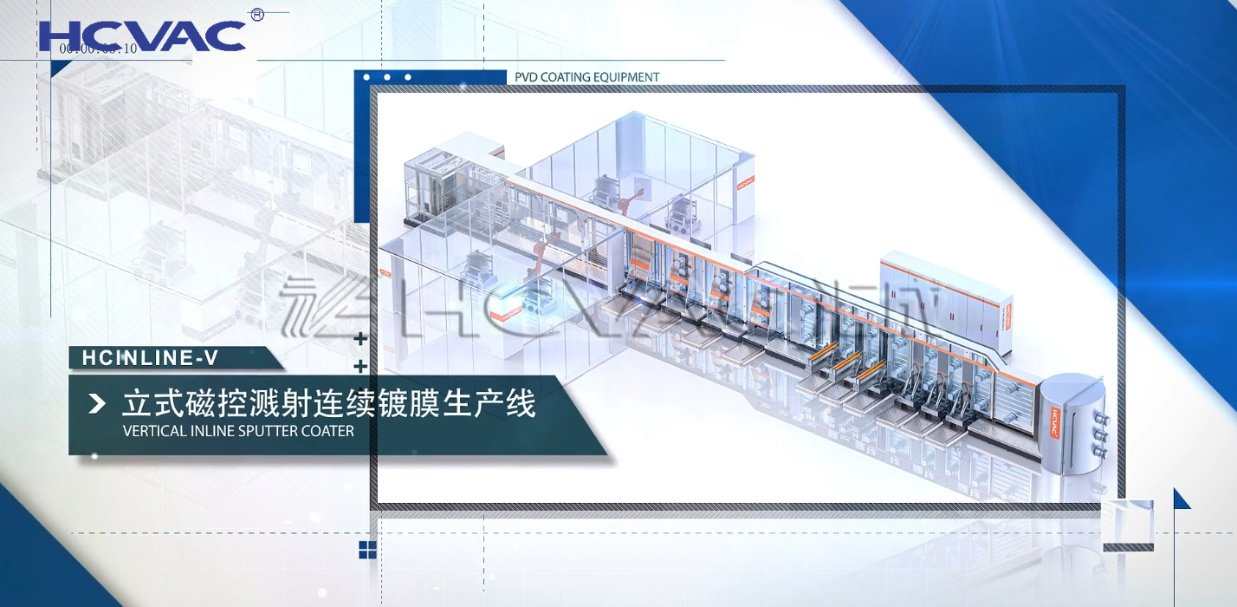

This continuous Magnetron Sputtering Coating production line is optimized for touch screens, ceramics, mobile shells, computers, and PET. Whether for architectural facades, display screens, or specialized functional layers, this equipment ensures high precision and repeatability for millions of square meters of production.

• Advanced Gas Supply: Features a sophisticated five-section gas supply system.
• High Efficiency: Utilizes rotating cathode technology, increasing target usage by over 200%.
• Infrared Heating: Reaches 400°C in 1-1.5 hours, consuming less than 1/3 the energy of conventional systems.

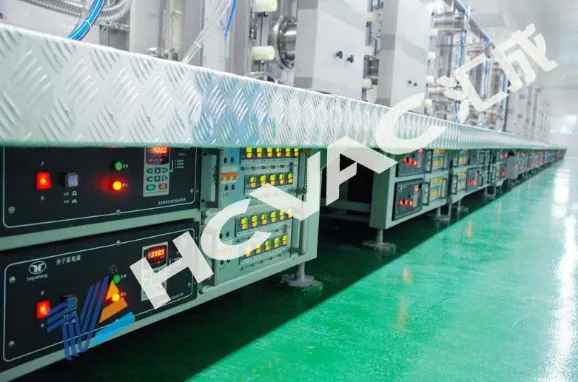

• Automation: Industrial Computer Control System combined with Programmable Logic Controllers (PLC).
• Uniformity: Particle control technology ensuring superior film thickness uniformity.

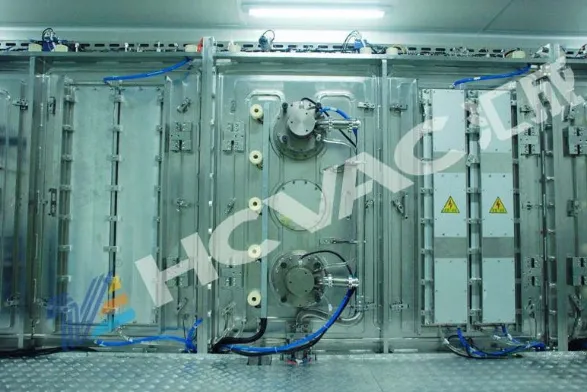

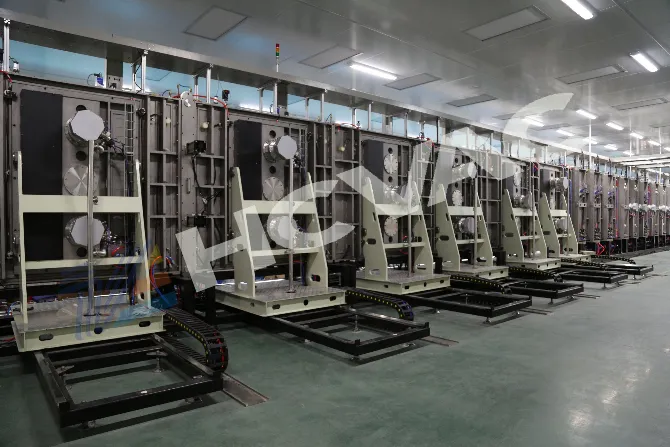

The process chamber is equipped with multiple stations in a sputter-down arrangement, allowing simultaneous processing of different material compositions from metal and ceramic targets.

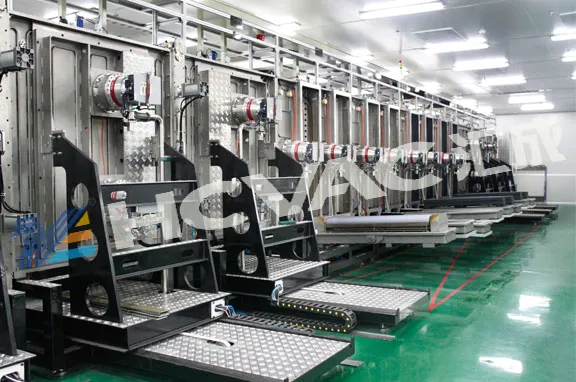

Whole Plant Output Options:

• Monolithic glass touch panel production

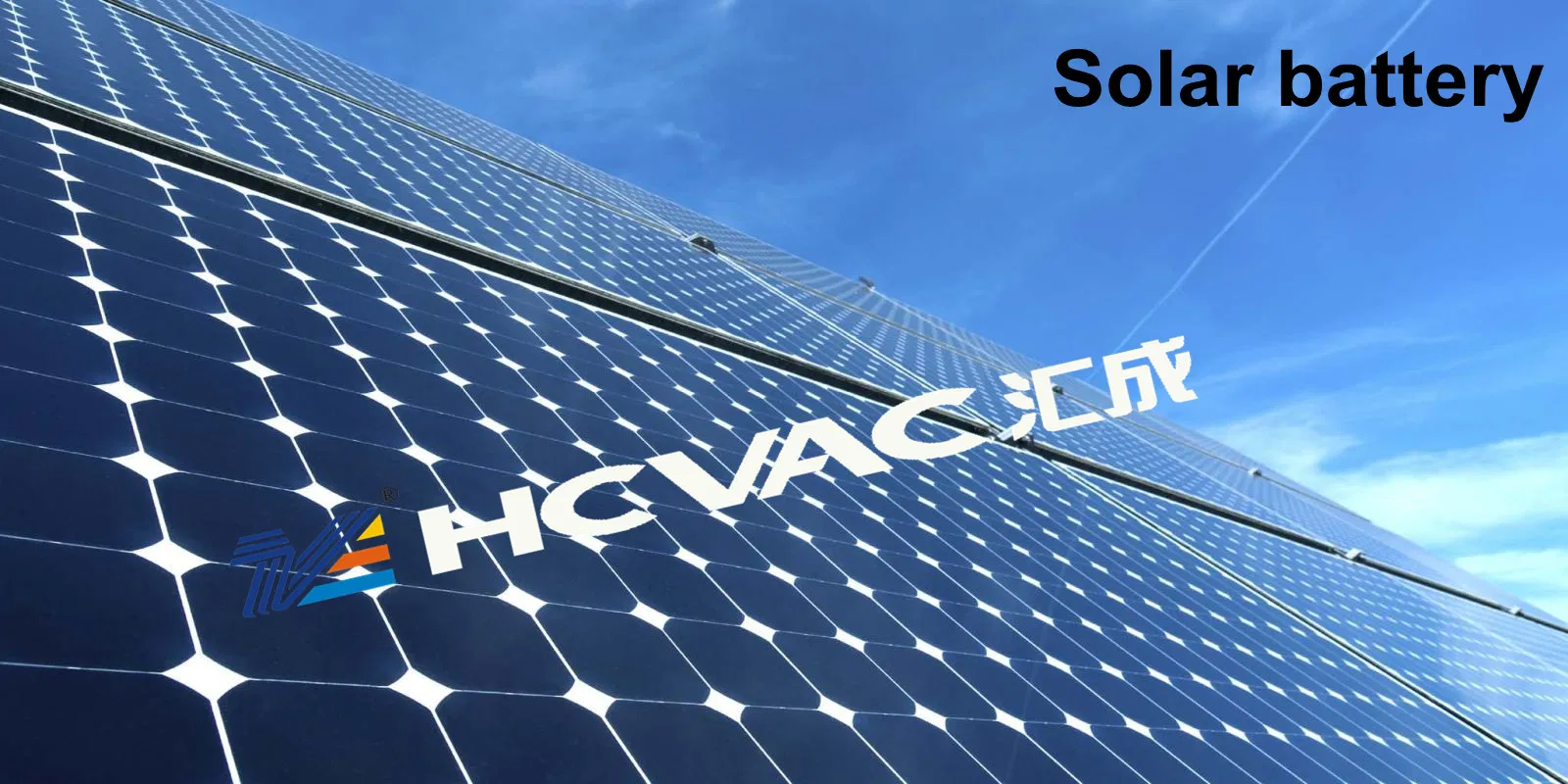

• CIGS and Solar energy whole plant output
• Coil-to-Coil ITO film production
• 4AR/6AR anti-reflective coating lines

• Over 3000 systems installed worldwide.
• Quick cycle times and high production capability.
• Low energy consumption design with space-saving footprint.
• Steel process chambers built for a minimum 25-year working life.
• Eco-friendly operation meeting ISO 9001 standards.
