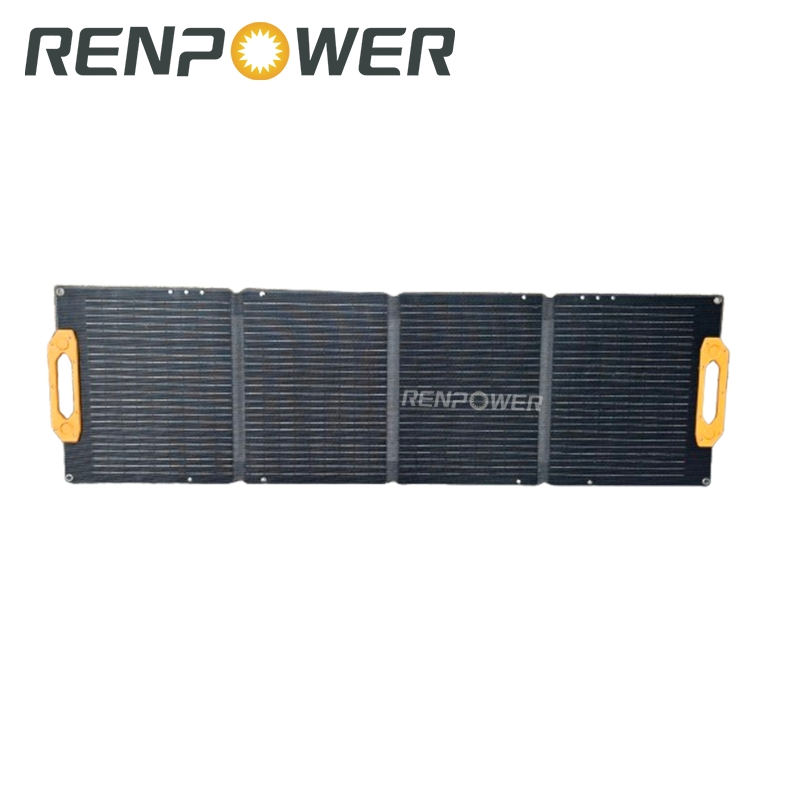

10W, 20W, 30W, 120W, 200W, 400W Hpbc Foldable Portable Solar Blanket Solar Panel

1 / 5

10W, 20W, 30W, 120W, 200W, 400W Hpbc Foldable Portable Solar Blanket Solar Panel

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Info.

Application

Solar Energy

Condition

New

Certification

ISO, CE, TUV

Material

Hpbc

Power

200W

Working Voltage

17.228V

Working Current

11.61A

Voc

21.98V

Isc

12.59A

Weight

8.1kg

Output

Xt60

Transport Package

Carton Box

Specification

600*625*45mm

Origin

China

Production Capacity

500000

Product Description

HPBC NEW TECHNOLOGY INTEGRATED FOLDABLE SOLAR PANEL

200W IP67 Waterproof Foldable Solar Panels for Power Station Generator, High Efficiency for Camping, RV, or Power Outage

Technical Specifications

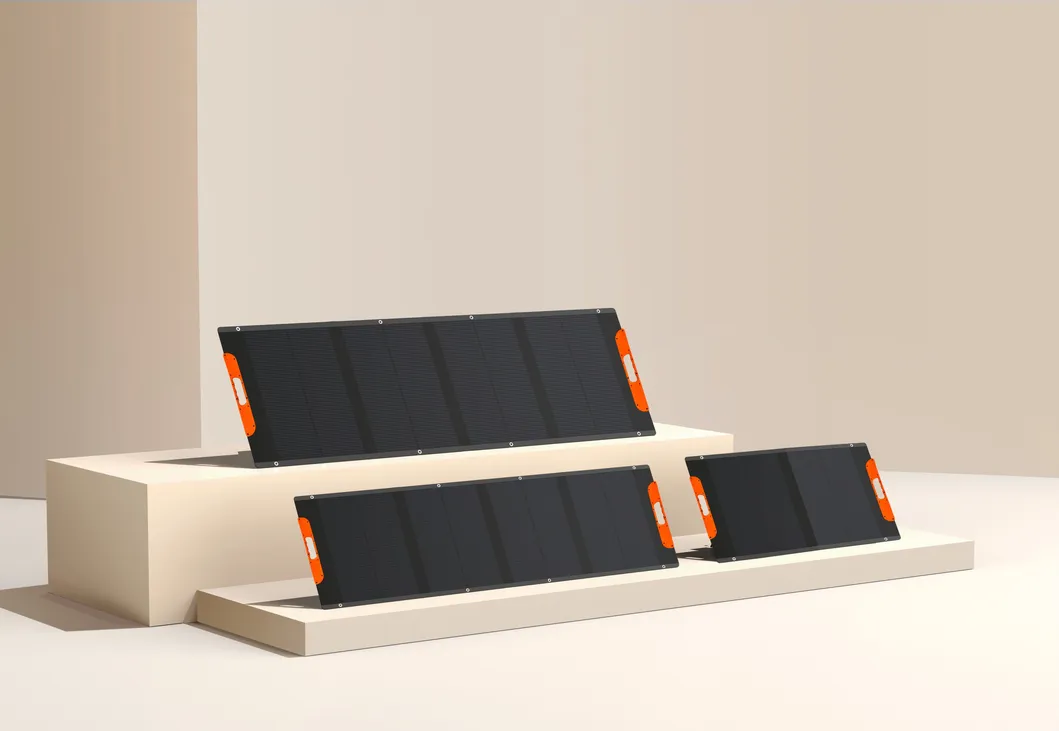

(10W-60W TILED TYPE / 100W-400W WITH KICKSTAND)

OUTPUT POWER (W)	WORKING VOLTAGE (VMP)	WORKING CURRENT (IMP)	DIMENSIONS (FOLDED) (MM)	DIMENSIONS (UNFOLDED) (MM)	OPEN-CIRCUIT VOLTAGE (VOC)	SHORT-CIRCUIT CURRENT (ISC)	WEIGHT (KG)
10W	5V	2A	15524722	31224718	-	-	0.25KG
20W	3-12V	7.61A	20537820	41537717	-	-	0.65KG
30W	3-12V	9.8A	20037326	59837316	-	-	0.9KG
120W	19.42V	6.18A	60038445	141760030	24.22V	6.67A	5.2KG
200W	17.228V	11.61A	60062545	238360030	21.98V	12.59A	8.1KG
400W	17.96V	22.4A	86567560	268885630	22.2V	24.3A	16.1KG

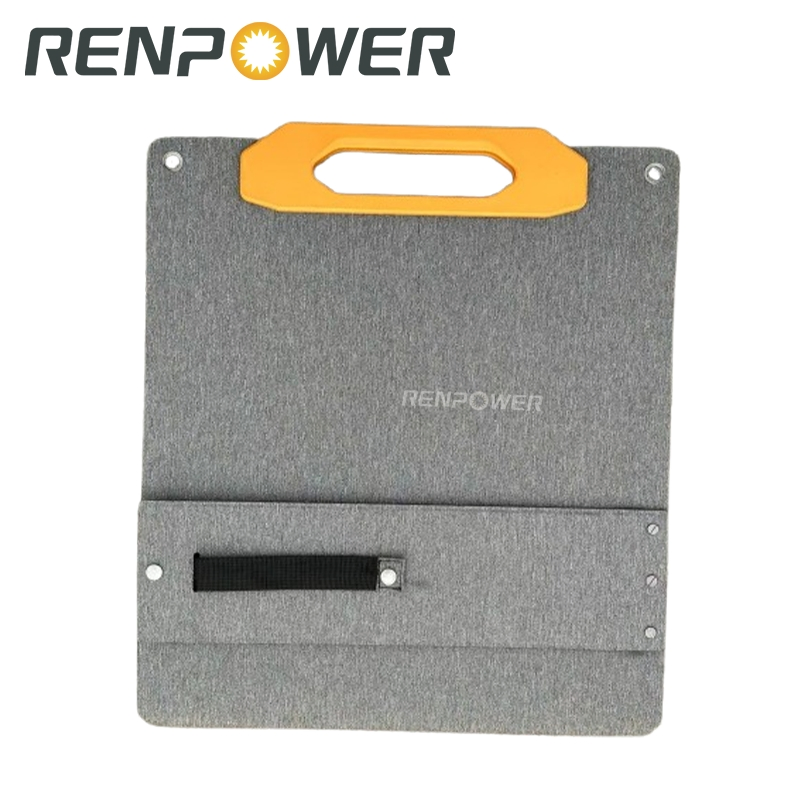

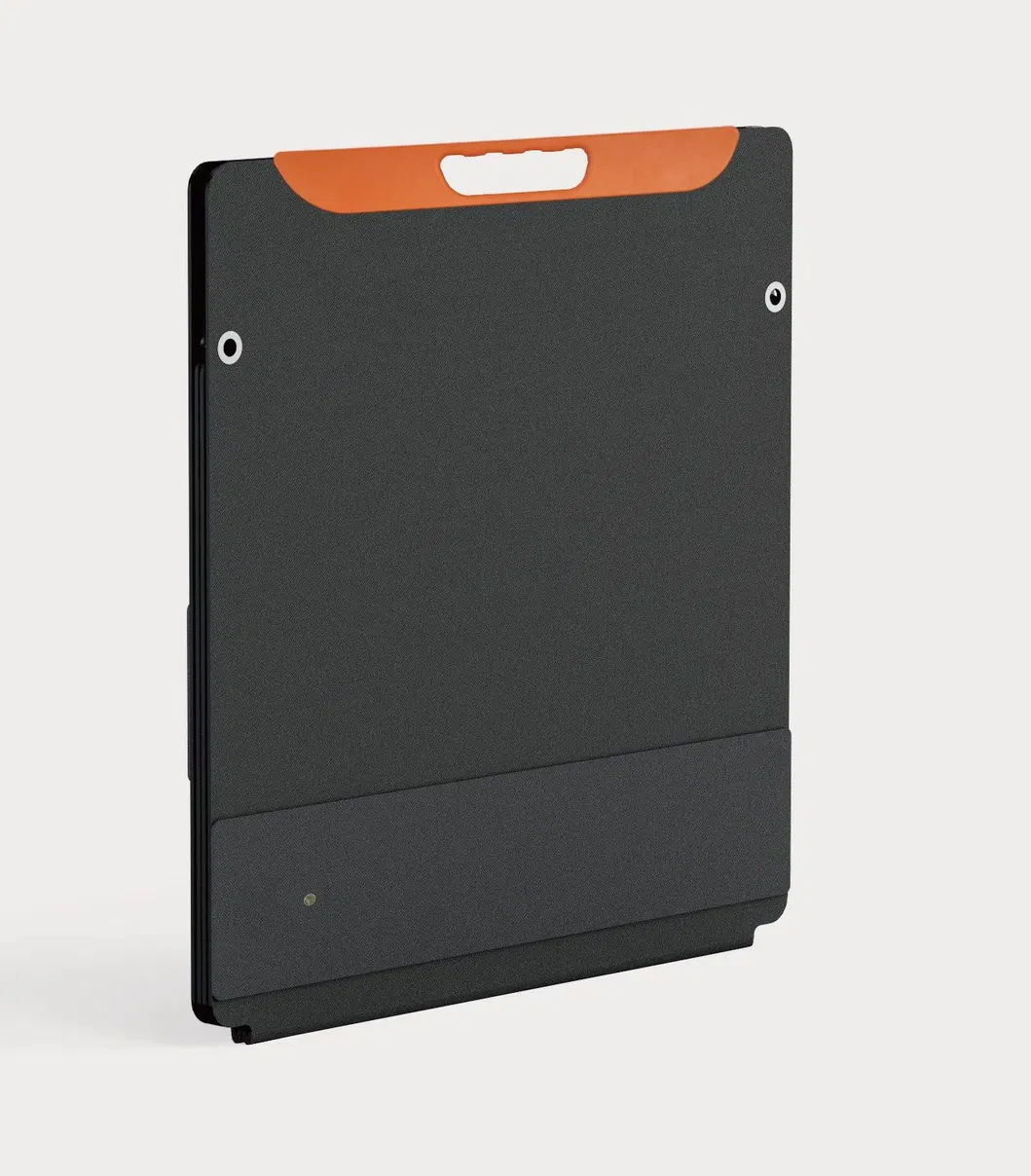

Convenient Carrying

20% lighter and smaller than comparable solar panels. The foldable design allows it to be folded up tightly and carried easily for your off-grid adventures.

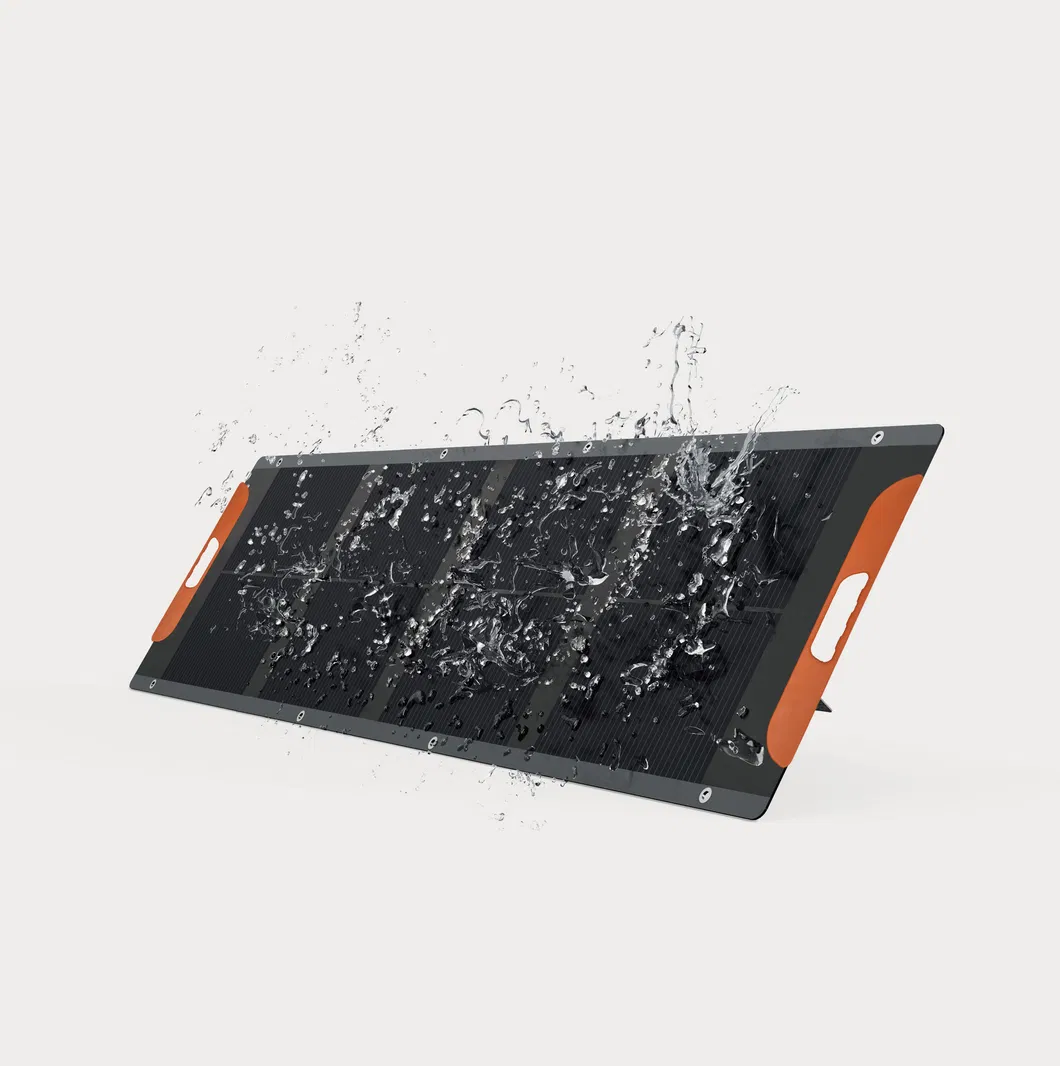

Built to Last

The ETFE-laminated case ensures the solar panel is durable and long-lasting. Additionally, the IP67 Waterproof Rating allows it to withstand harsh and wet weather conditions.

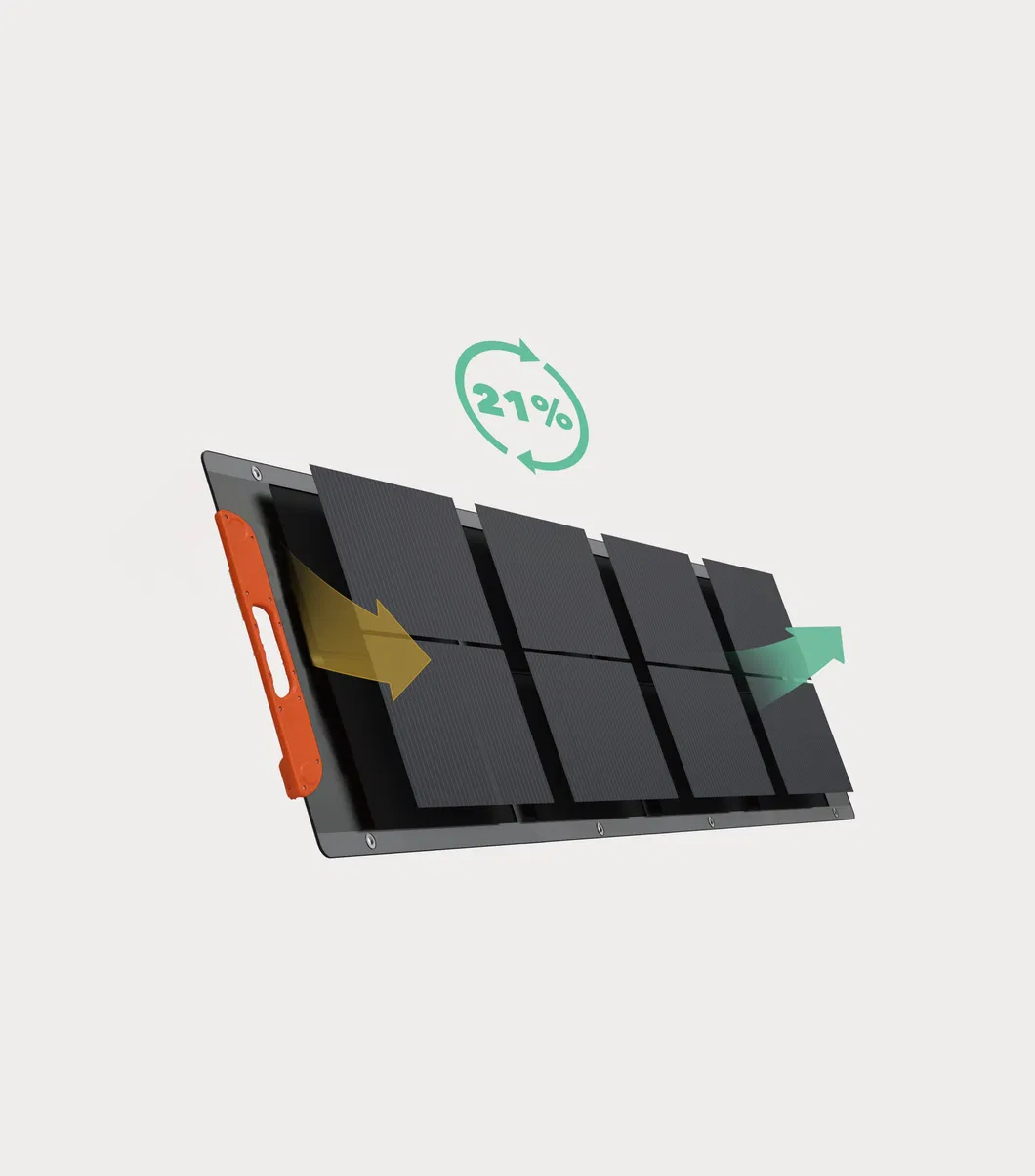

Powerful Core

Full monocrystalline silicon inner core provides up to 21% energy conversion rate, making solar charging faster and more efficient.

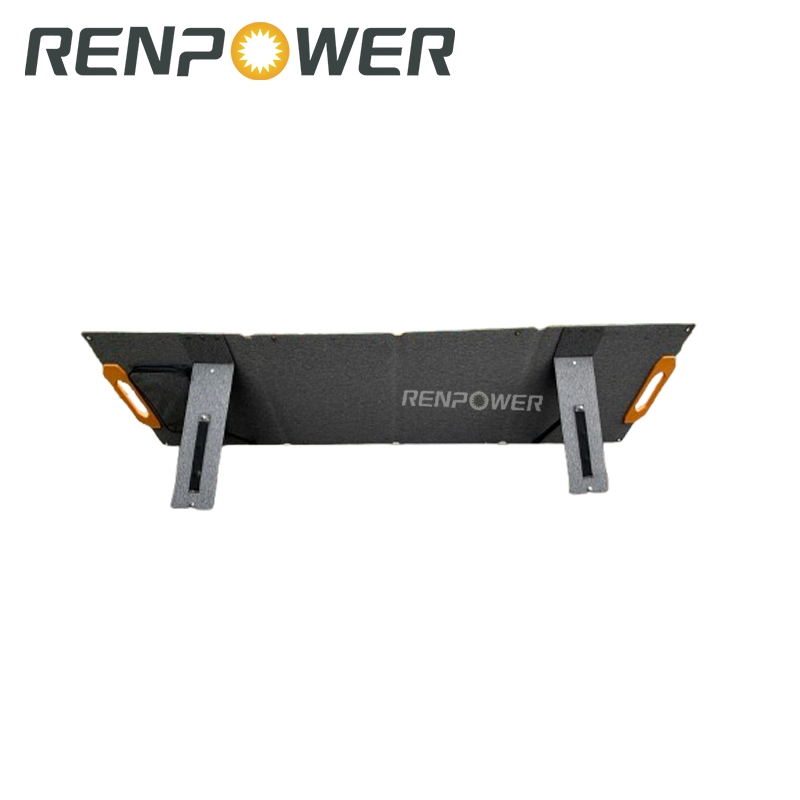

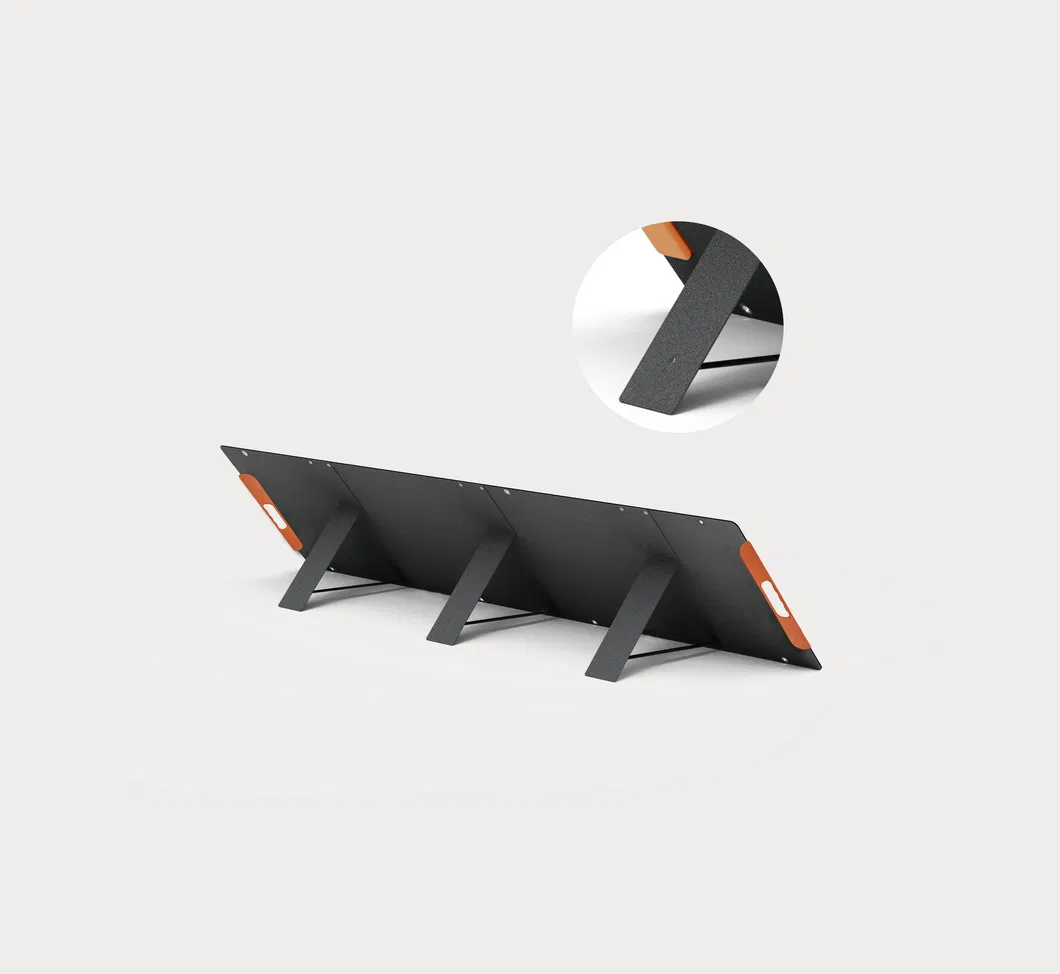

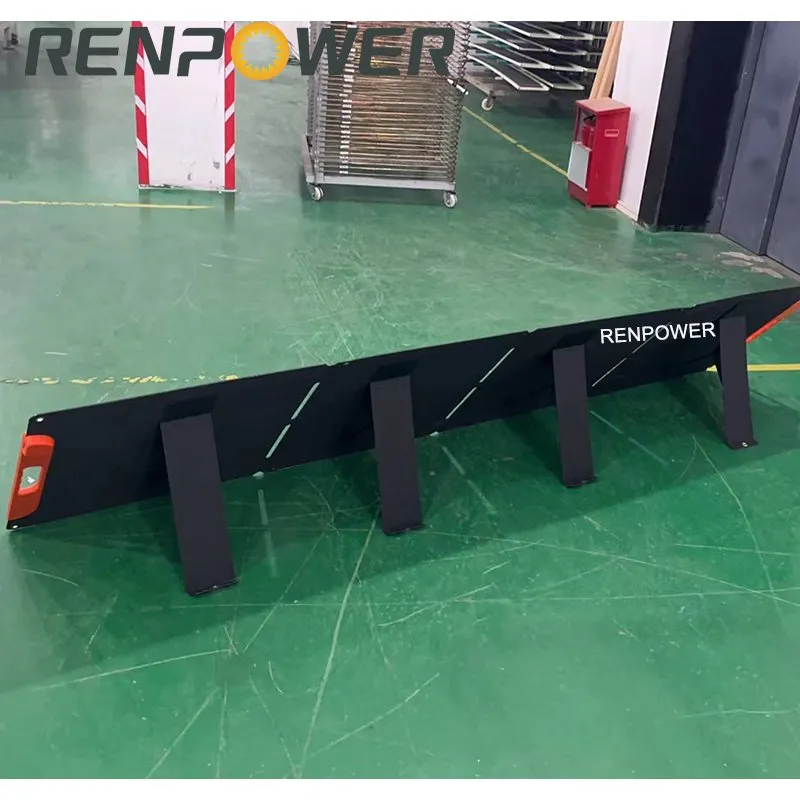

Self-supportable

Simply unfold the panel and use its integrated kickstand bracket to achieve the perfect angle for maximum sun exposure.

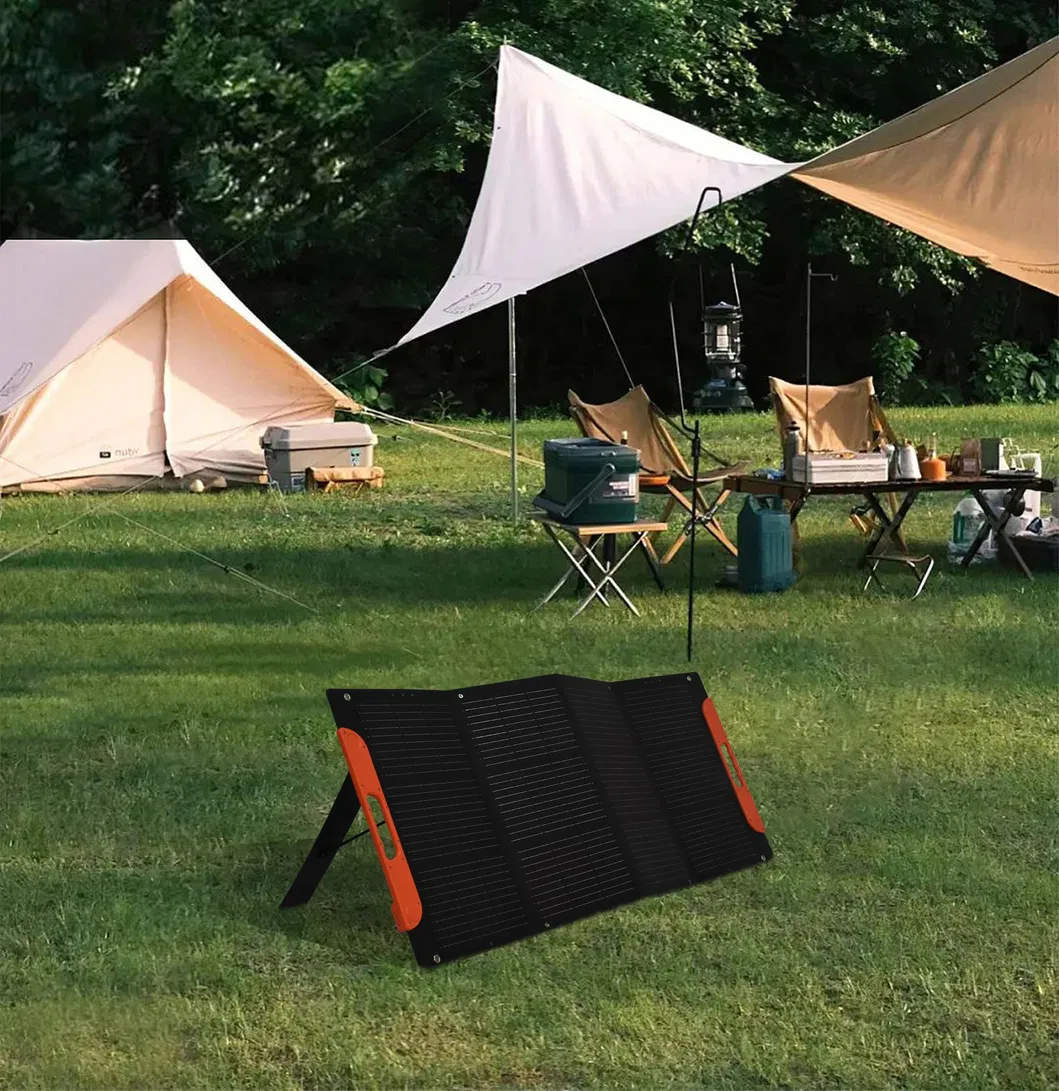

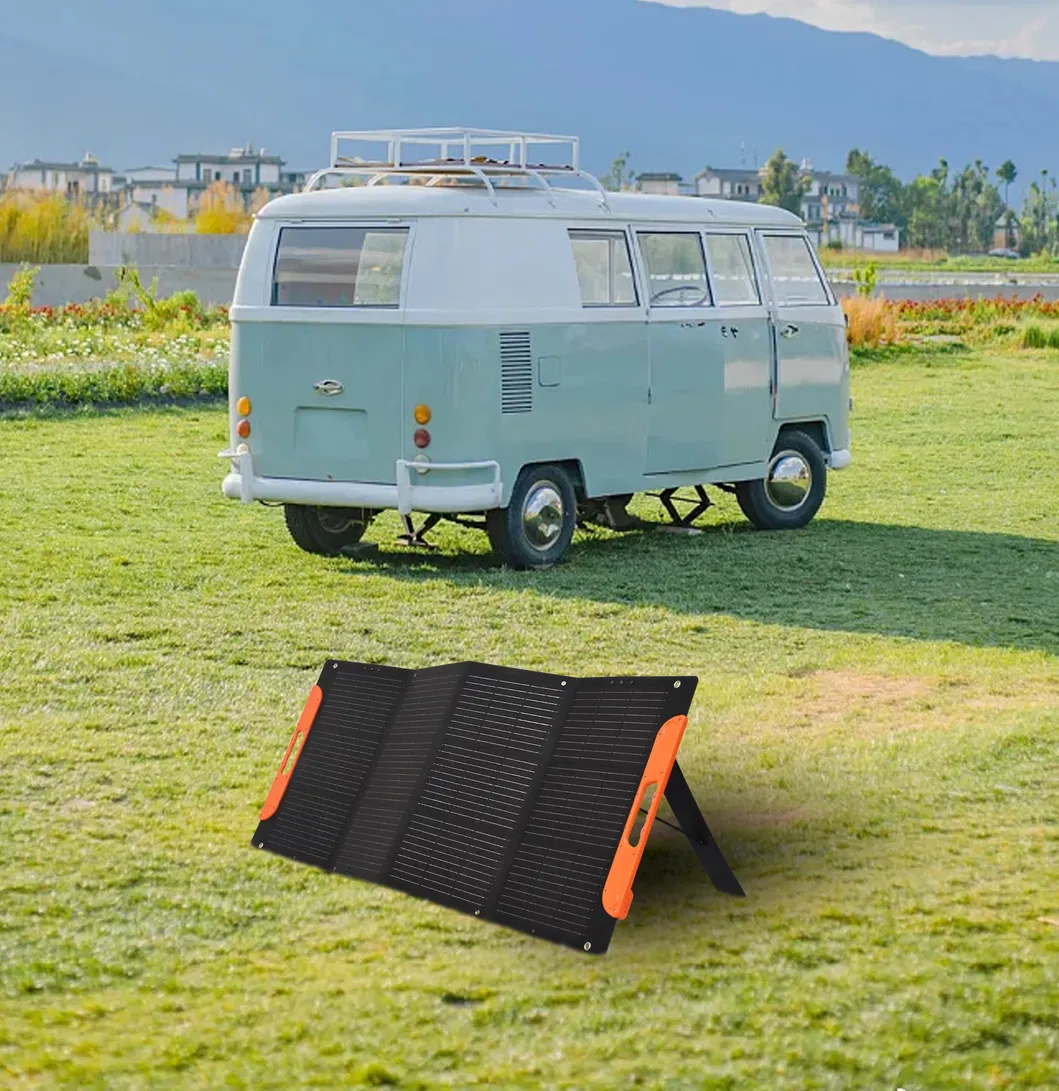

Application

Integrated Foldable Solar Panel with USB Type-C

● New HPBC technology

● High output and power

● Compatible with common electronic devices (Smartphone/PC/Macbook)

● Designed for outdoor use, lightweight and portable

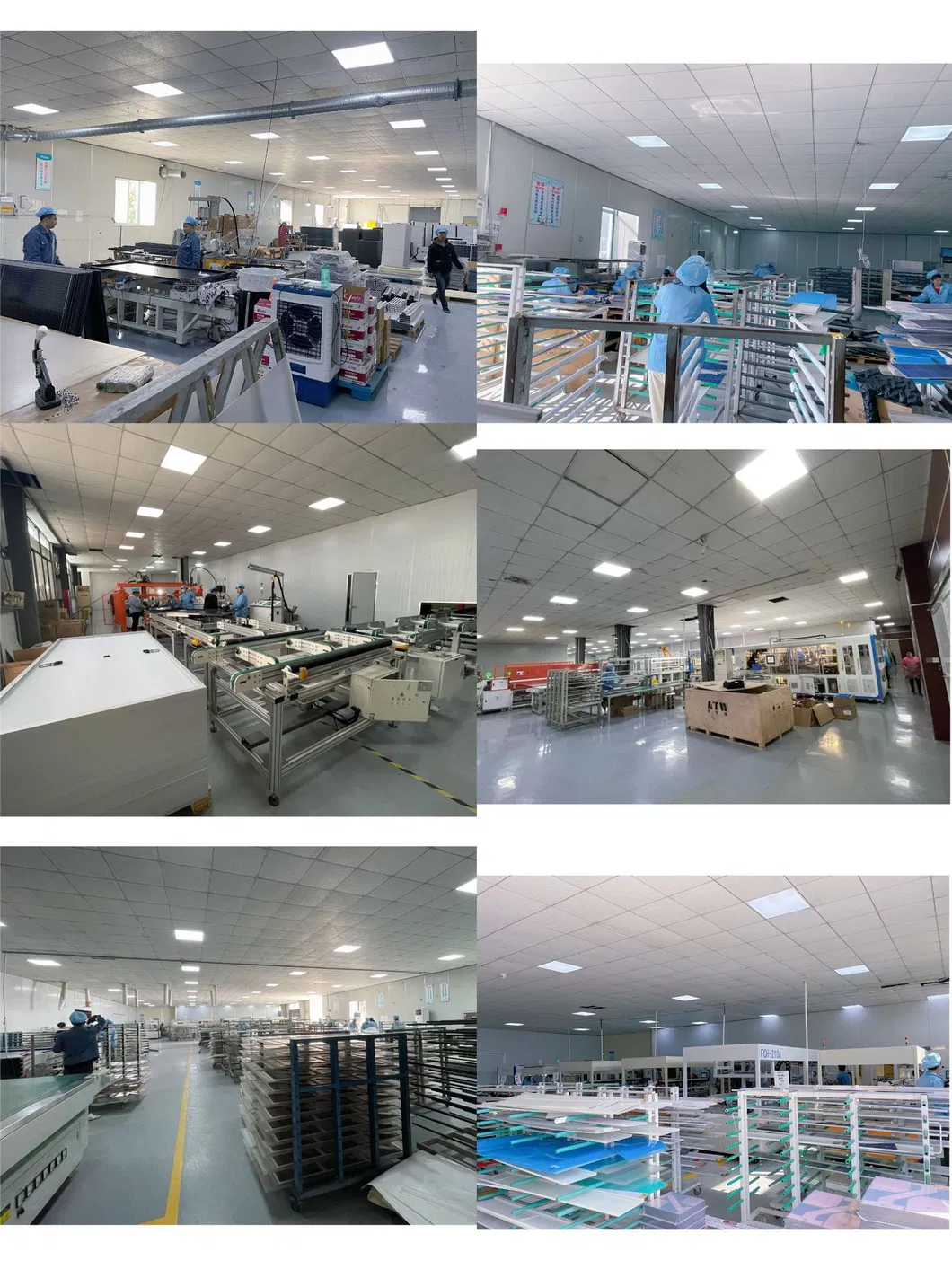

Factory Overview

The facility covers an area of 7000 square meters and features three finished product warehouses totaling 1500 square meters, ensuring consistent supply and quality control.

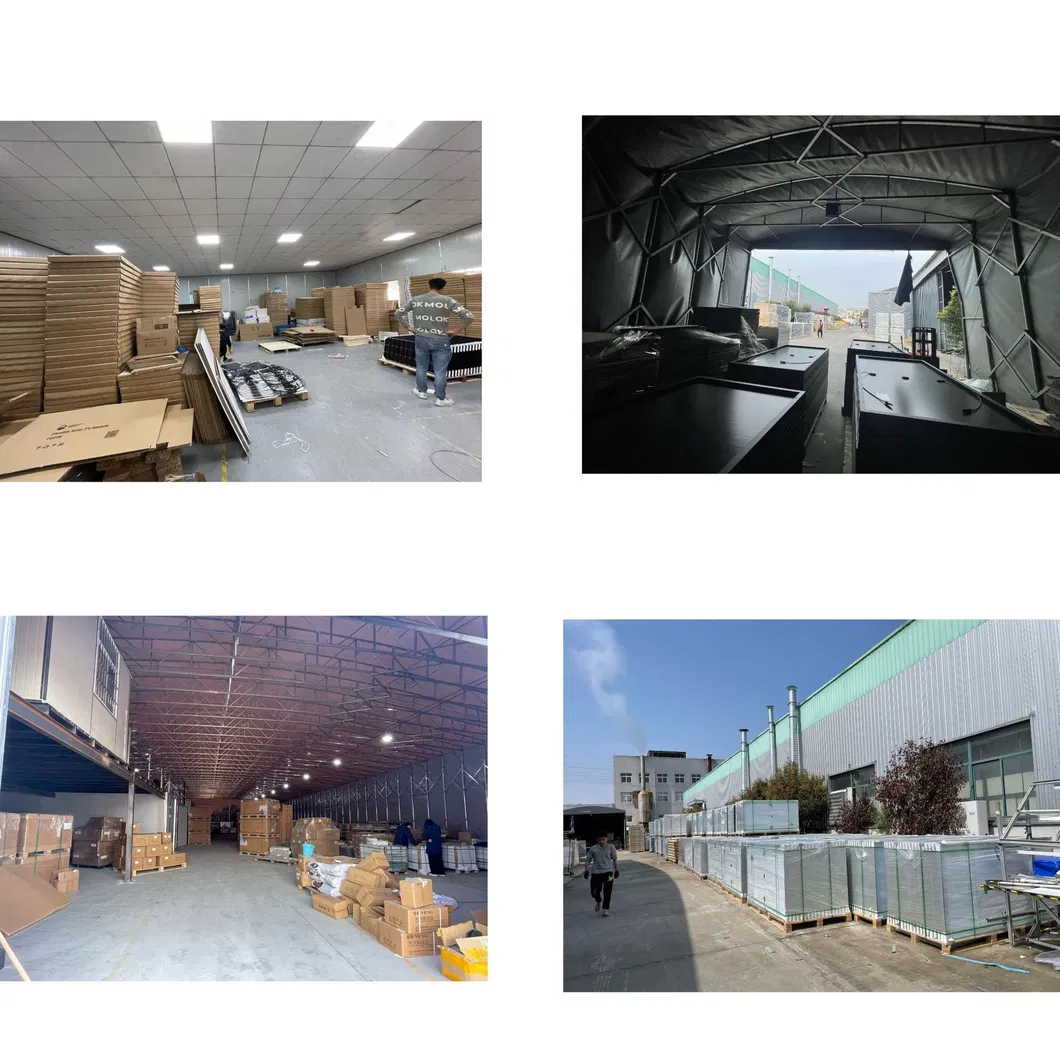

Packaging & Shipping

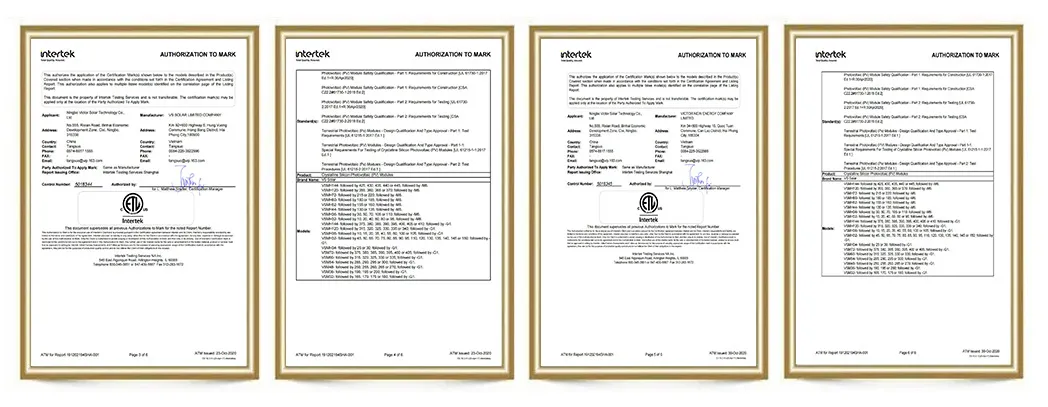

Certifications

Frequently Asked Questions

Why can't the solar panel charge my device quickly?

Charging speed is affected by light intensity and the panel's angle. Please test under full sunlight and ensure no shadows are cast on the surface. The sun's rotation also changes the optimal angle throughout the day.

Is the solar panel waterproof?

While many components are rated for outdoor use, to maximize the lifespan of the module, please avoid soaking it or leaving it in heavy rain for extended periods.

How should I clean the solar panel surface?

Use a soft cloth to remove dust. For tougher dirt, use a damp cloth. Remove any bird droppings or adhesives as soon as possible to avoid performance reduction.

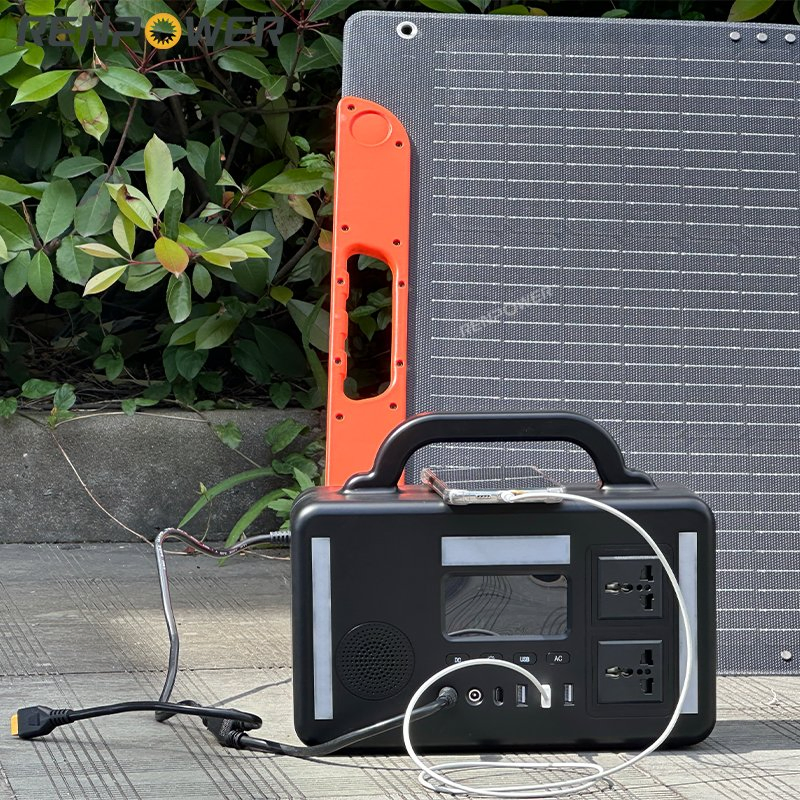

Can I use this solar panel to charge a portable power station?

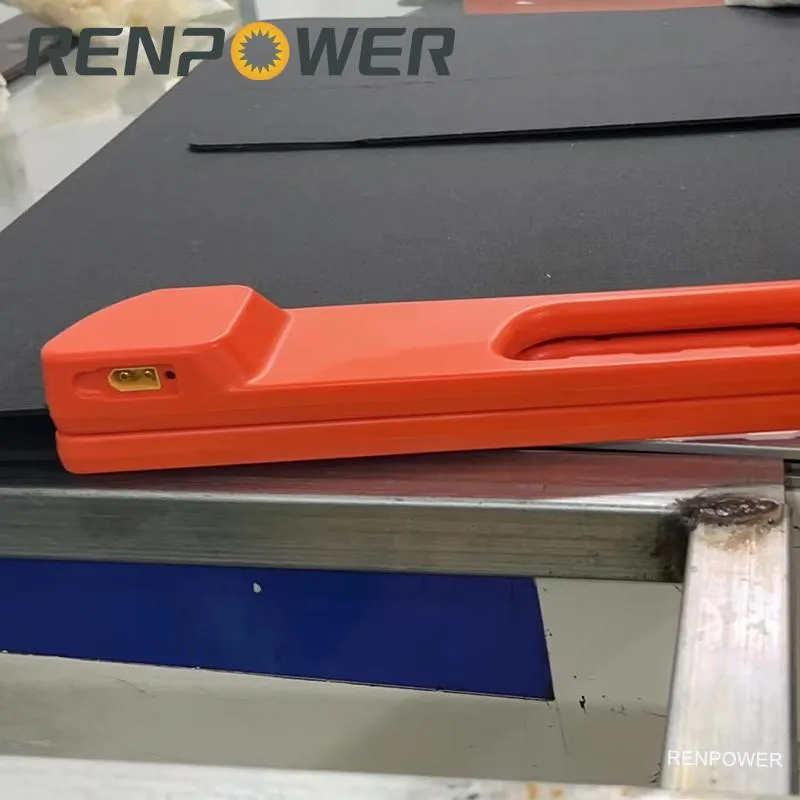

Yes, the 200W panel is specifically designed for power stations. It usually features an XT60 or DC output compatible with most portable generators.

What is HPBC technology?

HPBC (Hybrid Passivated Back Contact) is a high-efficiency cell technology that places contacts on the back, allowing the front to capture more sunlight and provide higher conversion rates.

How do I store the panel when not in use?

Clean the surface, fold the panel along its original creases, and store it in a cool, dry place inside its protective carrying case to prevent accidental damage.
