Cold storage of perishable items has become an important stage in the distribution between manufacturers/processors and retail locations. The bulk storage of large or small quantities requires refrigeration that enables cold store facilities to be safe, energy conscious and compliant with government requirements and standards. Professional collaboration ensures appropriate refrigeration concepts to create facilities that make for efficient and economical distribution.
Technical Capabilities
- ✓ Integration of processing and storage units.

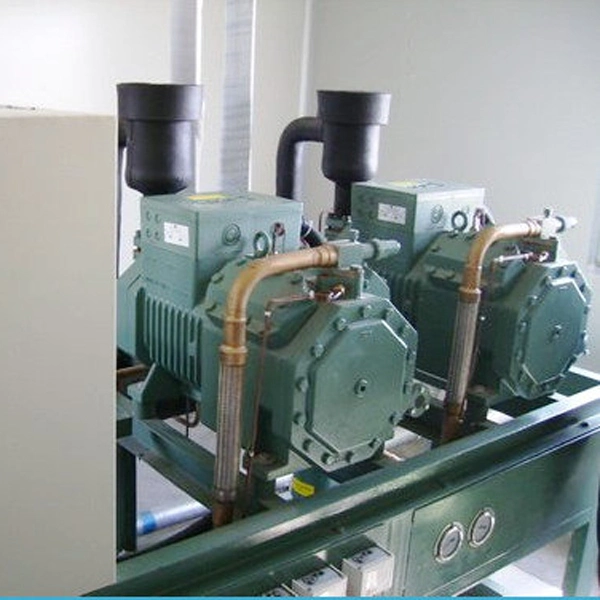

- ✓ Selection of high-performance compressors for excellent refrigerating efficiency and low power consumption.
- ✓ High quality air coolers (direct expansion or flooded) for even temperature distribution.
- ✓ Galvanized, high capacity, individually-controlled condensers for low condensing pressure.
- ✓ Computerized control and monitoring systems for automatic capacity regulation and energy saving.
- ✓ Optimized valve stations for minimal pressure loss and easy maintenance.
Cold Room Features & Advantages
1. Concavo Convex Structure: Panels are joined by tongue and groove and locked by cam-locks to ensure air tight joints without rivets, saving cost and time.
2. Modular Design: Fast installation, easily expanded or removed in the future.

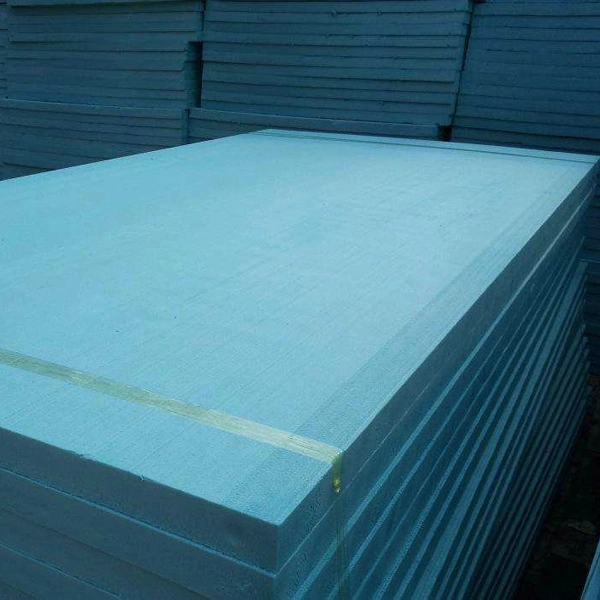

3. Perfect Heat Insulation: High density thermo insulated PUR foam (up to 38kg/m³ or above).
4. Material Choices: Color steel sheet, Stainless steel sheet, or Embossed aluminum sheet.
5. Fire Safety: Low flammable PUR foam with fire retardant B2 grade.
6. Hermetical Sealing: Silica gel used on joint parts to avoid cooling air leakage or moisture penetration.
7. Load Bearing: Compressive strength above 150kpa, supporting foot traffic and trolleys.
Construction Quality & Attention to Detail
◈ Cladding designed for optimum protection against rough local conditions.
◈ Precise heat load calculations using standardized computer programs.
◈ Superior insulation panels to reduce heat transfer and operating costs.
◈ Custom automatic or manual door systems built to requirements.
◈ Compliance with local, national, and international standards.
What type of insulation material is used in the panels?
We use high-density thermo insulated PUR (Polyurethane) foam with a density of 38kg/m³ or above to ensure maximum thermal efficiency.
What is the fire rating of the cold room panels?
The panels are made with low flammable PUR foam that meets the fire retardant B2 grade standards.
Can the floor of the cold room handle heavy equipment?
Yes, the compressive strength is above 150kpa, which allows for regular foot traffic and the use of trolleys inside the unit.
How are the panels connected during installation?
Panels utilize a concavo-convex structure (tongue and groove) and are secured with built-in cam-locks for an airtight seal without the need for rivets.
What surface materials are available for the panels?
You can choose from color steel sheets, stainless steel sheets, or embossed aluminum sheets depending on your specific environmental needs.
Do the cold storage solutions comply with international standards?
Yes, our solutions are designed to comply with ISO and CE certifications, and can be customized to meet specific national or international regulatory standards.
