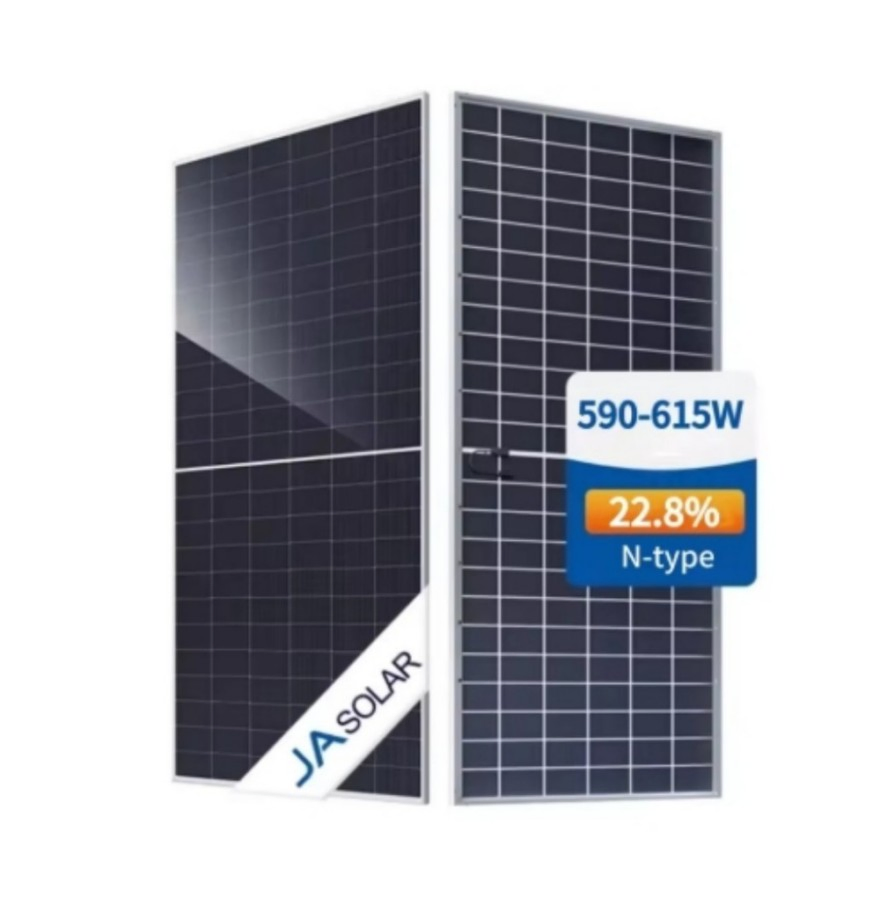

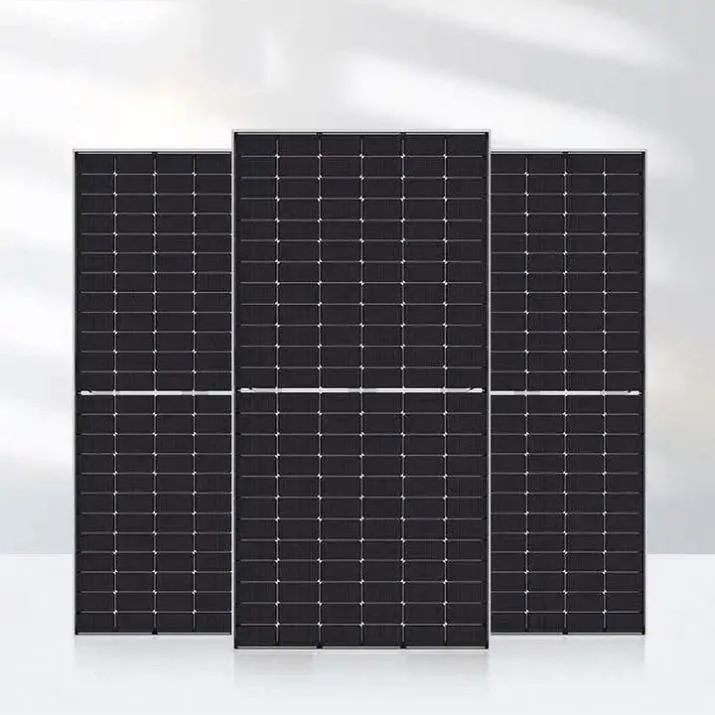

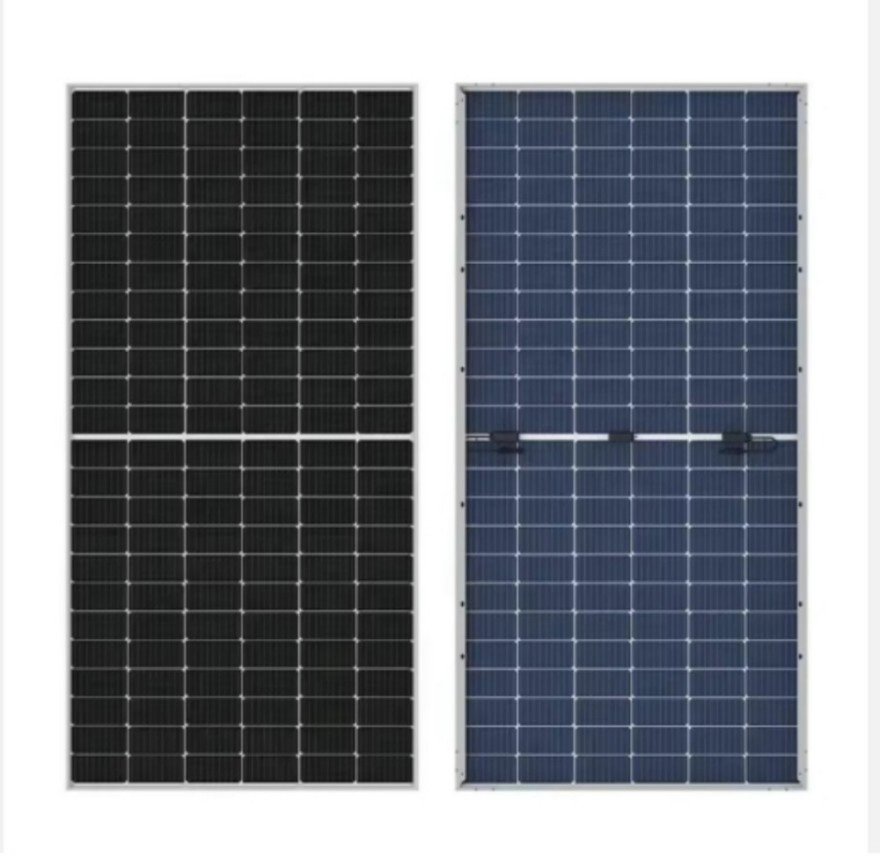

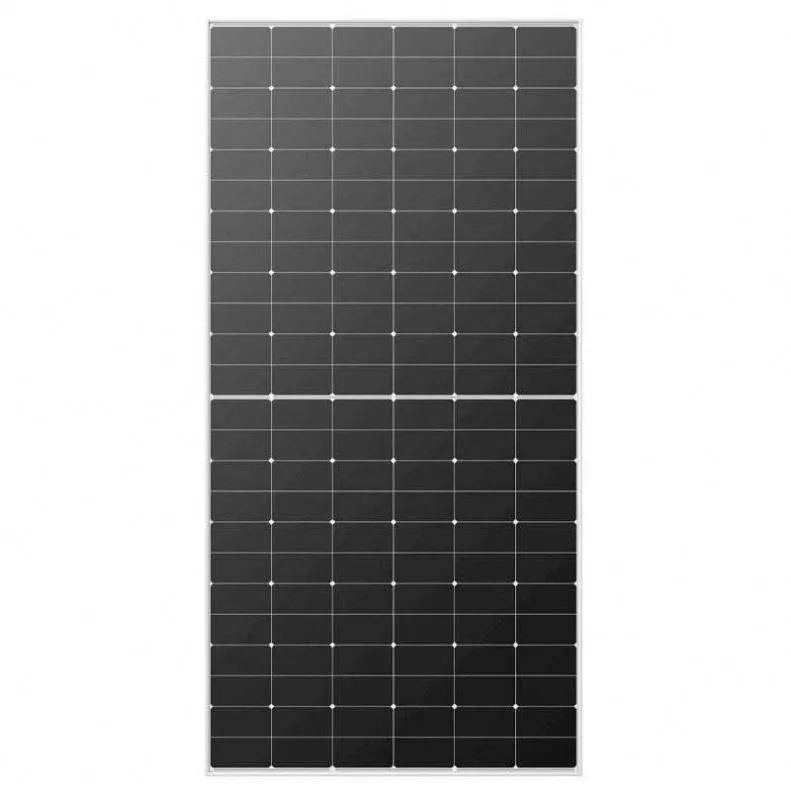

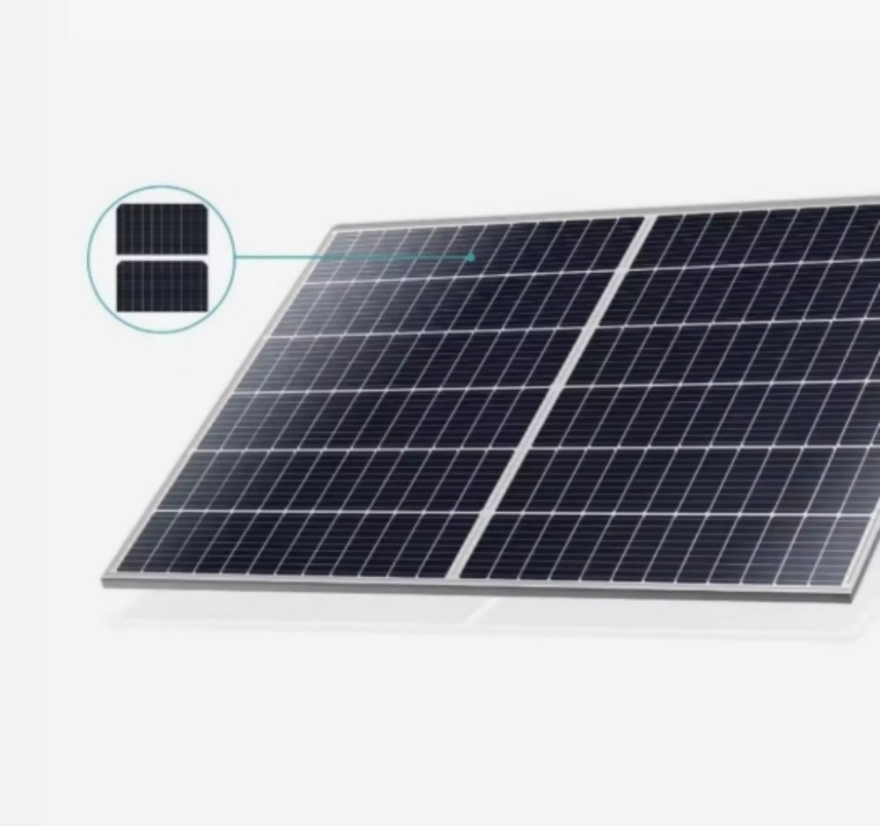

Mono Solar Panel: To produce a monocrystalline silicon cells, absolutely pure semiconduction material is necessary. Monocrystalline rods are extracted from melted silicon and then sawed into thin plates. This production process guarantees a relatively high level of efficiency silicon and makes monocrystalline panels one of the most efficient, producing smaller solar cells, and therefore smaller panels. Monocrystalline works very well in bright cool conditions.
| ELECTRICAL CHARACTERISTICS | |||||
| Maximum Power-Pmax(w) | 100 | 110 | 120 | 130 | 140 |
| Open Circuit Voltage-Voc(V) | 20.60 | 21.23 | 21.60 | 21.95 | 23.16 |
| Short Circuit Current-Isc(A) | 5.94 | 6.41 | 6.87 | 7.21 | 7.46 |
| Maximum Power Voltage-Vmpp(V) | 17.82 | 18.15 | 18.48 | 19.08 | 19.80 |
| Maximum Power Current-Impp(A) | 5.62 | 6.07 | 6.50 | 6.82 | 7.08 |
| Module Efficiency(%) | 18.80 | 20.70 | 22.69 | 21.30 | 20.30 |
| Temperature Characteristics | |||||
| Pmax Temperature Coeffcient | -0.40%/ºC | ||||
| Voc Temperature Coeffcient | -0.32%/ºC | ||||
| Operating Temperature | -40-+85ºC | ||||

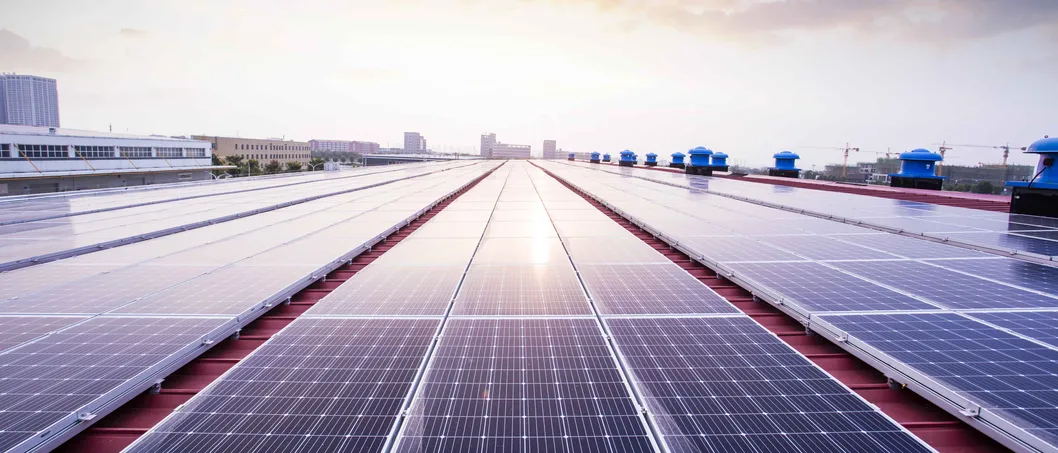

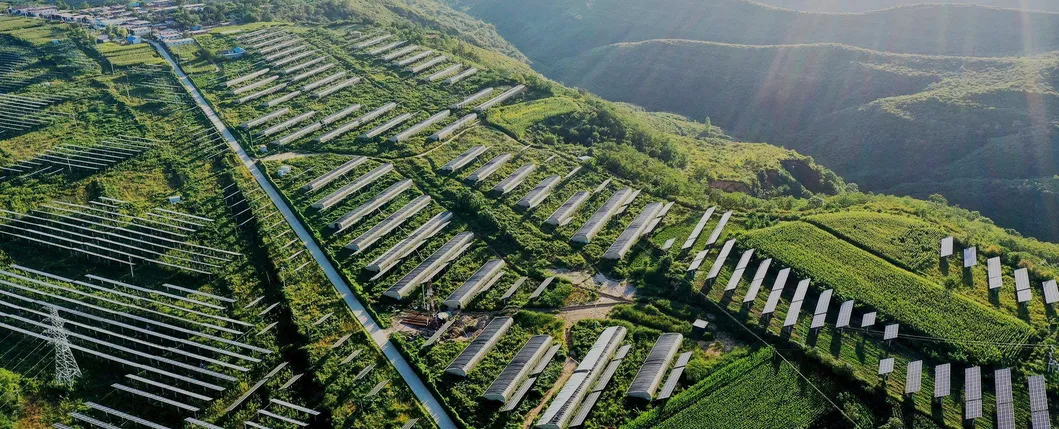

Grid-friendly and economic benefits-friendly. Applications include large-scale PV power plants on flat terrain, mountainous terrain, and floating PV systems (floatovoltaics).

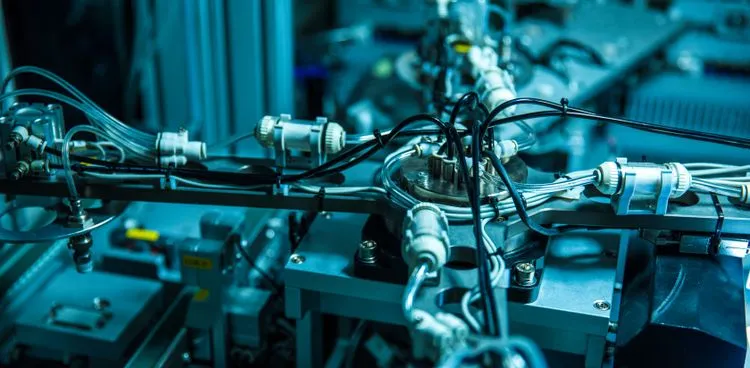

Paired with high-energy-consuming enterprises to meet demand. PV powers green hydrogen production as a replacement for carbon-producing fuels.
Reduce energy consumption and pollution, improving regional environments and long-term operating costs.
Create a new industrial paradigm with clean energy as the main energy system, promoting global green environmental protection.
