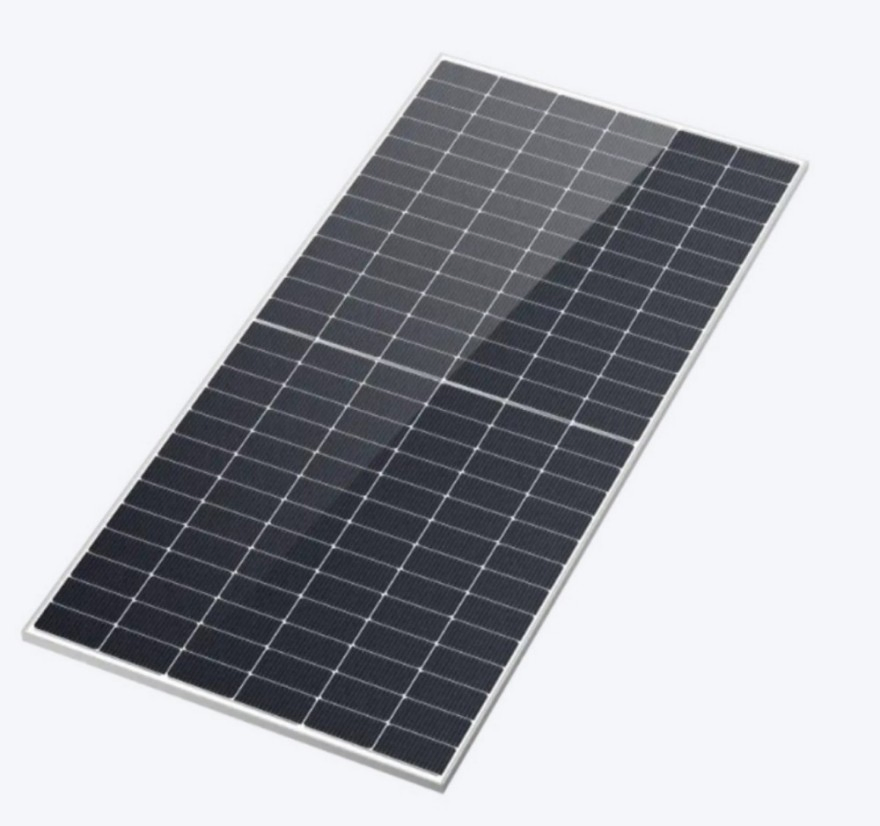

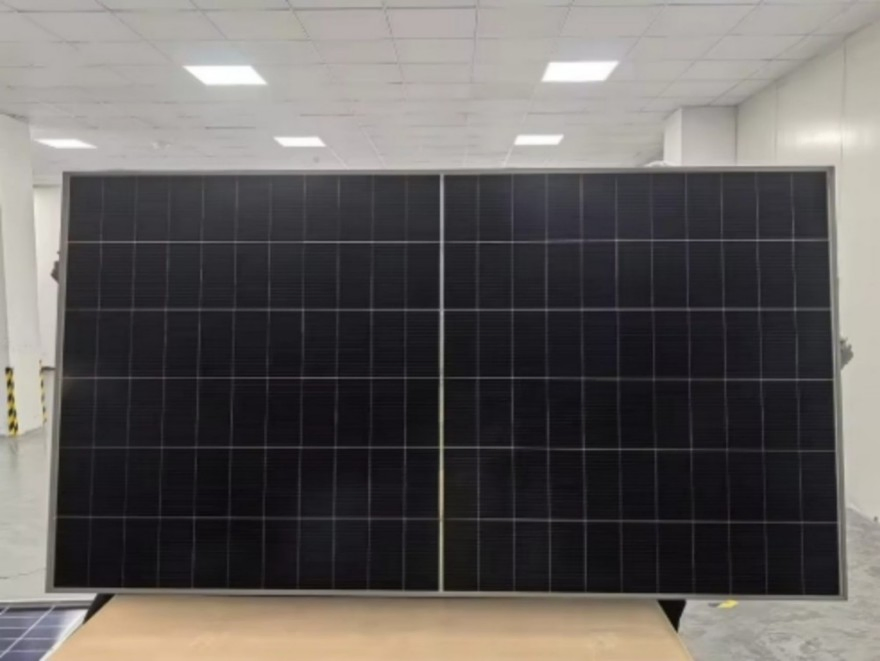

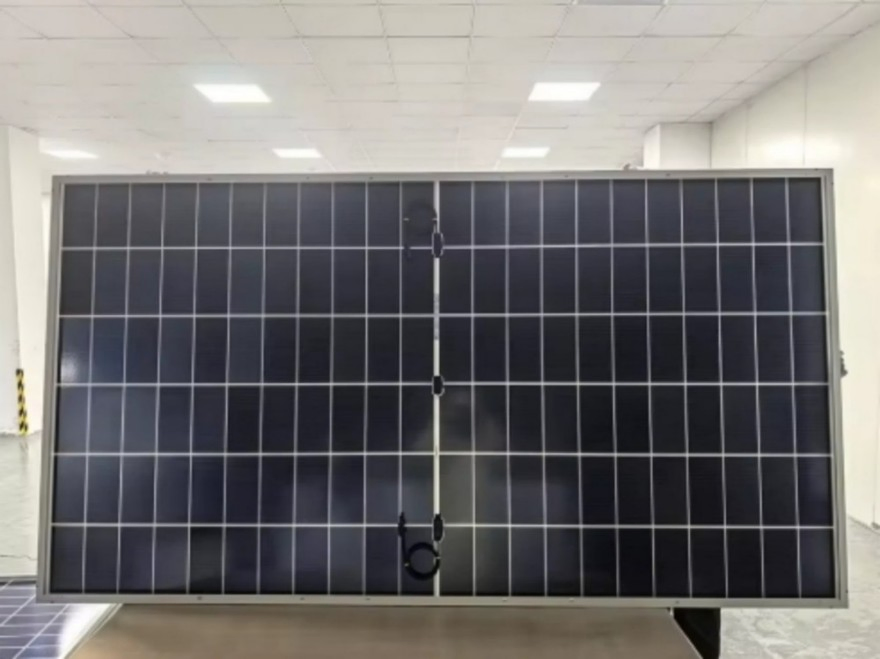

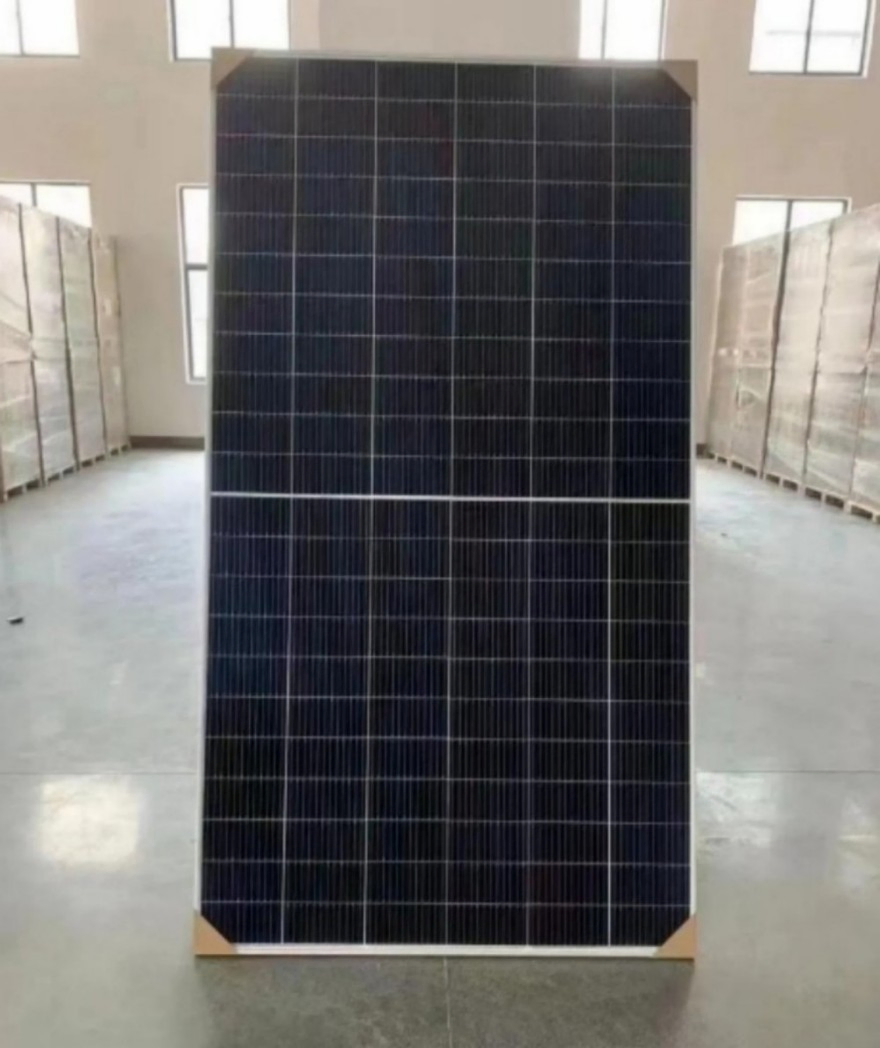

To produce monocrystalline silicon cells, absolutely pure semiconducting material is necessary. Monocrystalline rods are extracted from melted silicon and then sawed into thin plates. This production process guarantees a relatively high level of efficiency silicon and makes monocrystalline panels one of the most efficient, producing smaller solar cells, and therefore smaller panels. Monocrystalline works very well in bright cool conditions.
| ELECTRICAL CHARACTERISTICS (100W-140W) | |||||
| Maximum Power-Pmax(w) | 100 | 110 | 120 | 130 | 140 |
| Open Circuit Voltage-Voc(V) | 20.60 | 21.23 | 21.60 | 21.95 | 23.16 |
| Short Circuit Current-Isc(A) | 5.94 | 6.41 | 6.87 | 7.21 | 7.46 |
| Maximum Power Voltage-Vmpp(V) | 17.82 | 18.15 | 18.48 | 19.08 | 19.80 |
| Maximum Power Current-Impp(A) | 5.62 | 6.07 | 6.50 | 6.82 | 7.08 |
| Module Efficiency(%) | 18.80 | 20.70 | 22.69 | 21.30 | 20.30 |
| ELECTRICAL CHARACTERISTICS (150W-190W) | |||||
| Maximum Power-Pmax(w) | 150 | 160 | 170 | 180 | 190 |
| Open Circuit Voltage-Voc(V) | 23.58 | 21.05 | 21.53 | 24.42 | 24.88 |
| Short Circuit Current-Isc(A) | 7.86 | 9.31 | 9.71 | 9.02 | 9.35 |
| Maximum Power Voltage-Vmpp(V) | 20.16 | 18.15 | 18.48 | 21.06 | 21.45 |
| Maximum Power Current-Impp(A) | 7.45 | 8.82 | 9.20 | 8.55 | 8.86 |
| Module Efficiency(%) | 21.70 | 19.50 | 20.70 | 17.80 | 18.80 |
| TEMPERATURE CHARACTERISTICS | |
| Pmax Temperature Coefficient | -0.40%/ºC |
| Voc Temperature Coefficient | -0.32%/ºC |
| Isc Temperature Coefficient | +0.05%/ºC |
| Operating Temperature | -40 to +85ºC |
| Nominal Operating Cell Temperature(NOCT) | 45±2ºC |

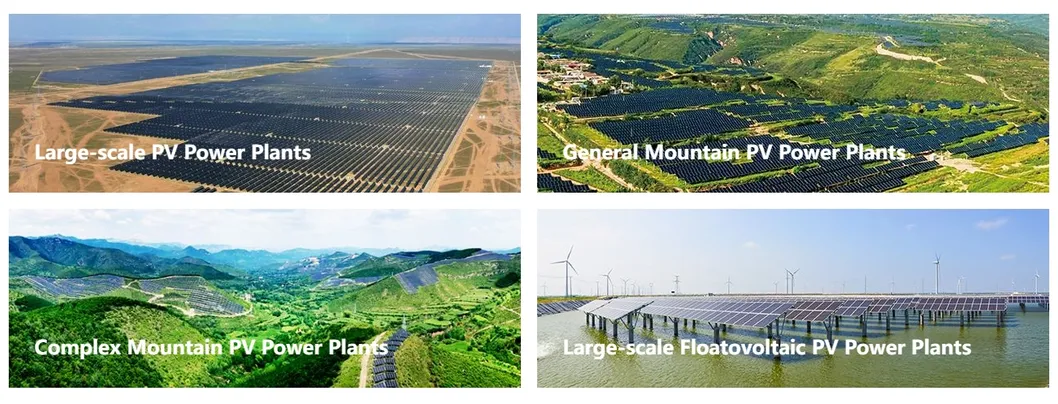

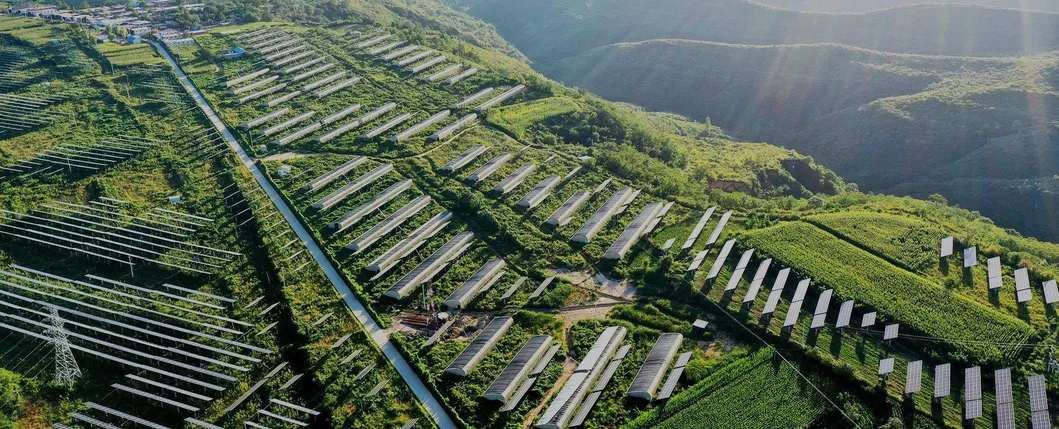

Grid-friendly and environmentally-friendly applications. Solutions include large-scale plants on flat terrain, mountainous regions, and complex terrains, as well as floatovoltaics for water surfaces.

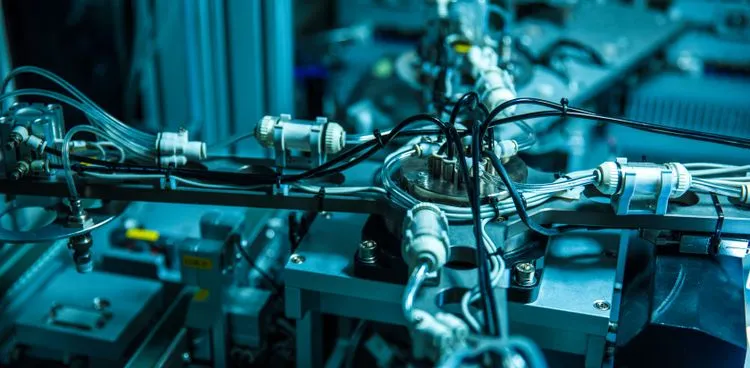

Pairing solar PV with high-energy-consuming enterprises to meet demand. Solar energy can also power green hydrogen production, helping companies achieve their decarbonization goals.

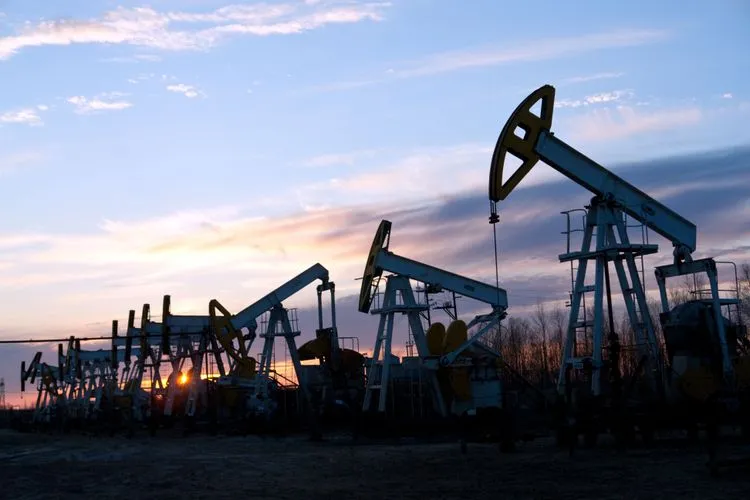

Enhancing environmental protection and brand equity for petroleum enterprises. Reduces energy consumption, local pollution, and long-term operating costs.
Creating a new industrial paradigm with clean energy as the primary system, promoting global green environmental protection and sustainability.
✔ Depending on construction sites and installation methods, we provide tailored solutions for large-scale, mountain-based, and floatovoltaic PV power plants.
