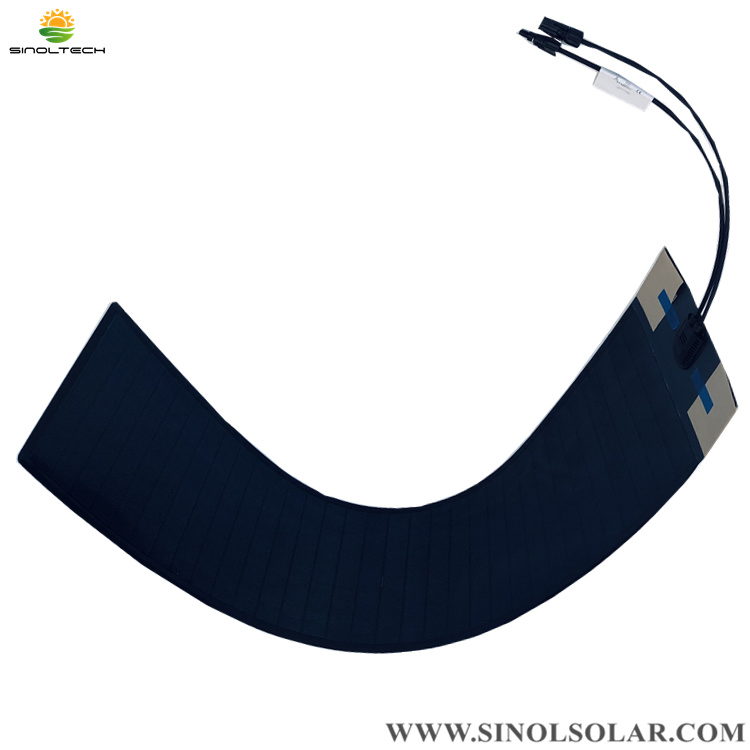

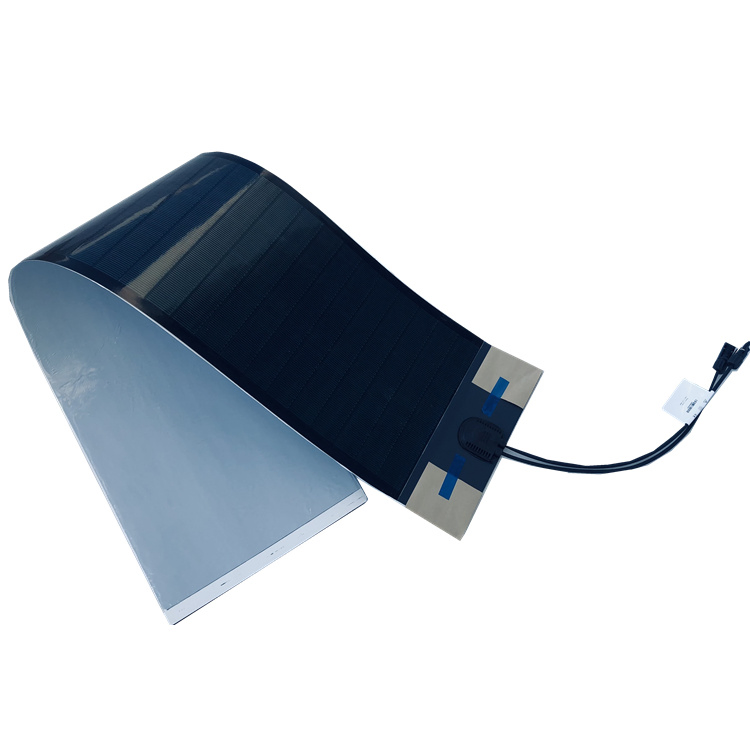

Flex-03ns 75W 80W Flexible Thin Film CIGS Cell Solar Panel for Marine

Basic Information

Model NO.FLEX-03NS 70W 75W 80W

Number of Cells36pcs

ApplicationIndustrial / Marine

CertificationCE / IEC / UL

MaterialCIGS (Copper Indium Gallium Diselenide)

InstallationPeel-and Stick

Thin0.33mm

Weight7.5 GM (Cell)

EfficiencyUp to 16.3%

RollableYes

Bypass DiodesYes

Back AdhesiveYes

Product Description

FLEX-03NS 75W 80W Flexible Thin Film CIGS Cell Solar Panel for Marine

Unique solar cells and modules are the key to the world's most powerful lightweight flexible thin-film CIGS solar modules. These modules are ideal for a wide variety of applications not suitable for fragile, heavy, rigid silicon modules.

✓

Thin Film Technology: CIGS solar cells on stainless steel substrate have high efficiency levels and provide significant advantages over conventional, rigid solar cells.

✓

Cell Features: Efficiency level of up to 16.5% in a flexible form factor. Ultra-thin (0.33mm) and lightweight (7.5g).

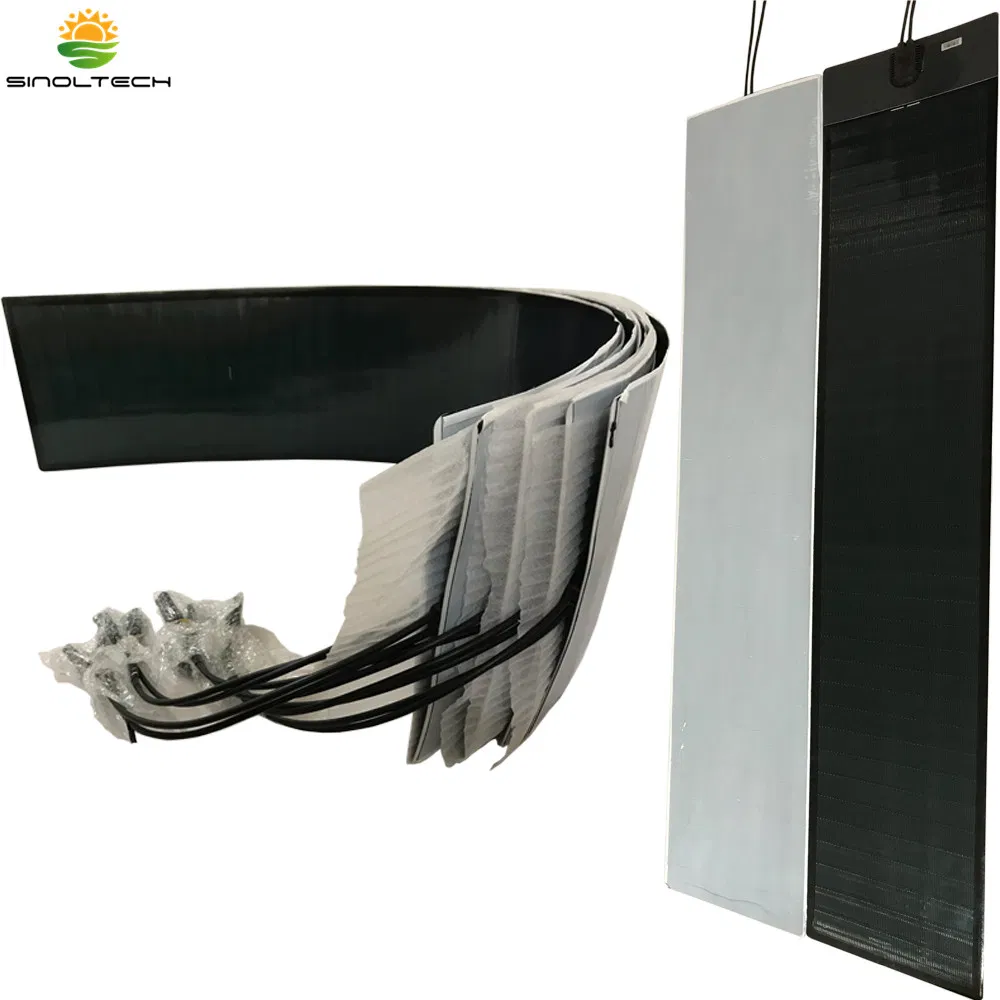

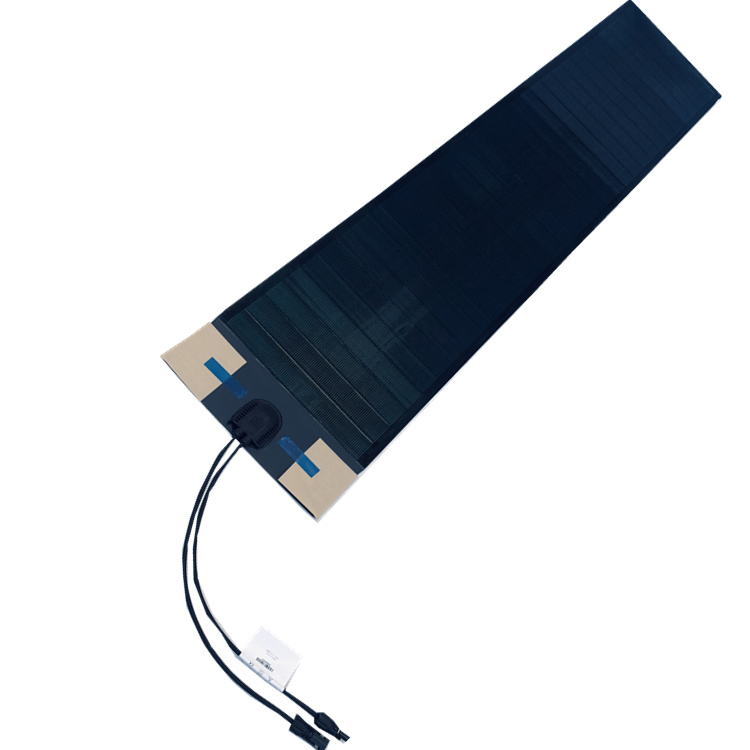

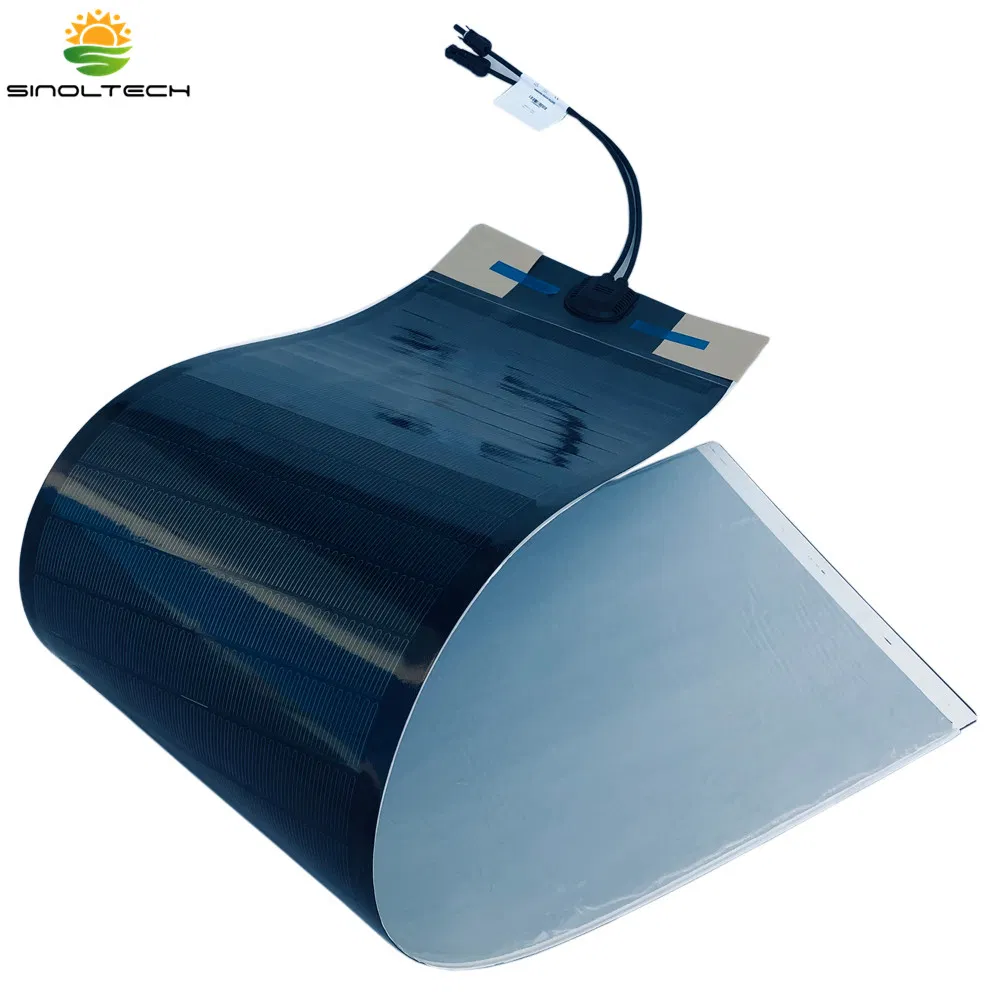

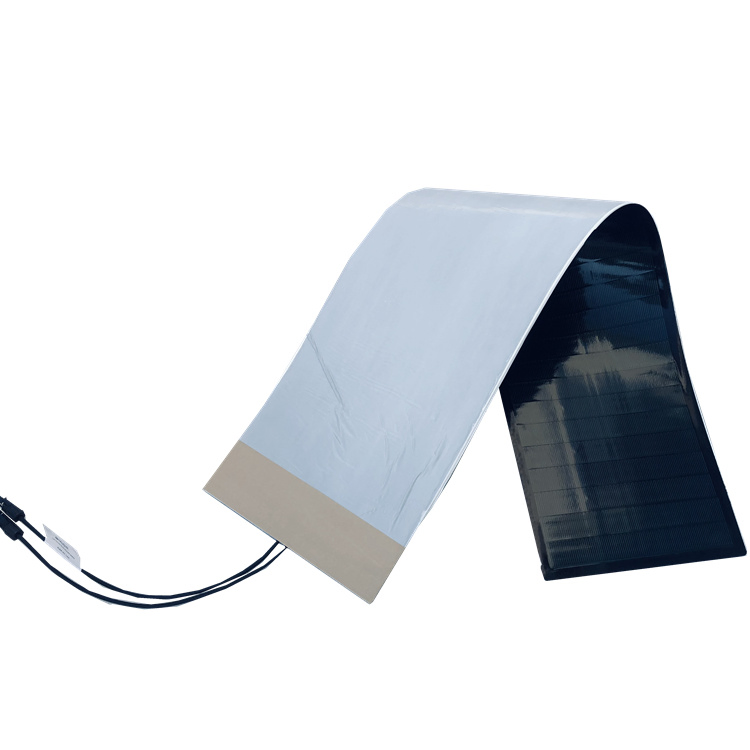

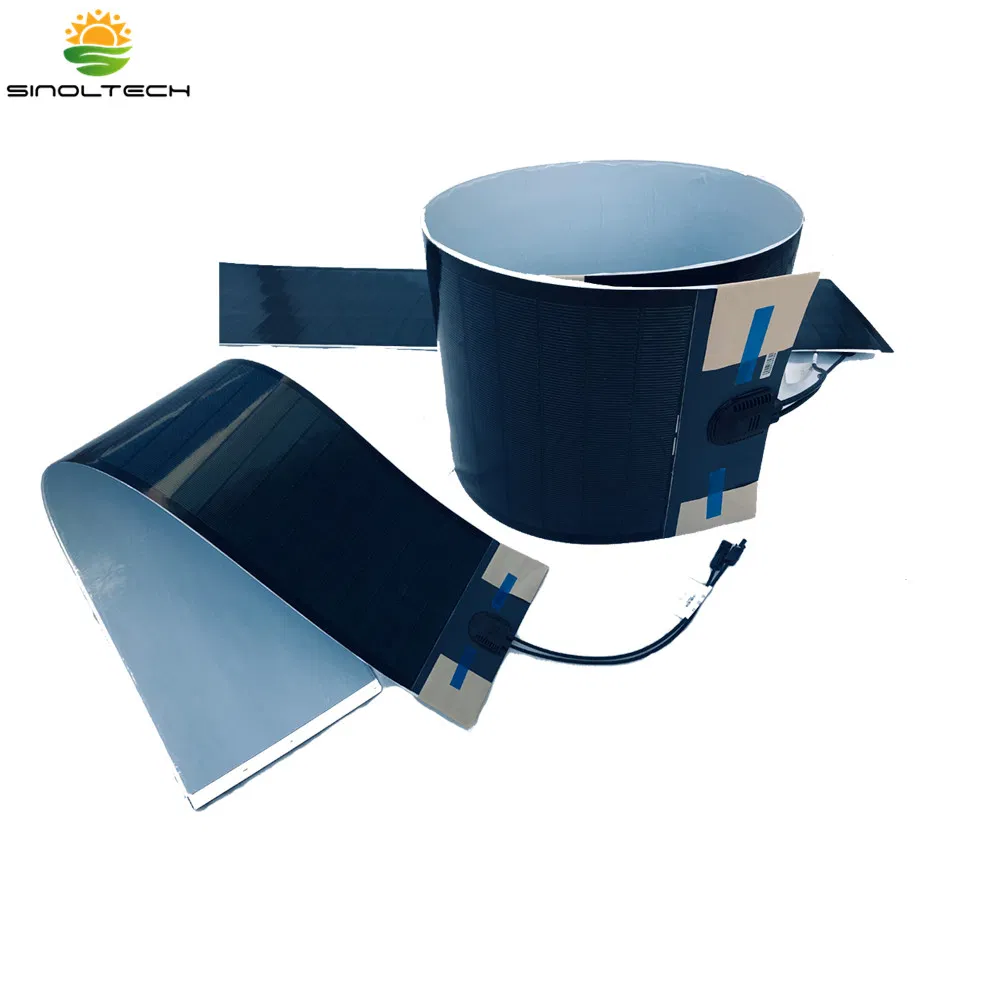

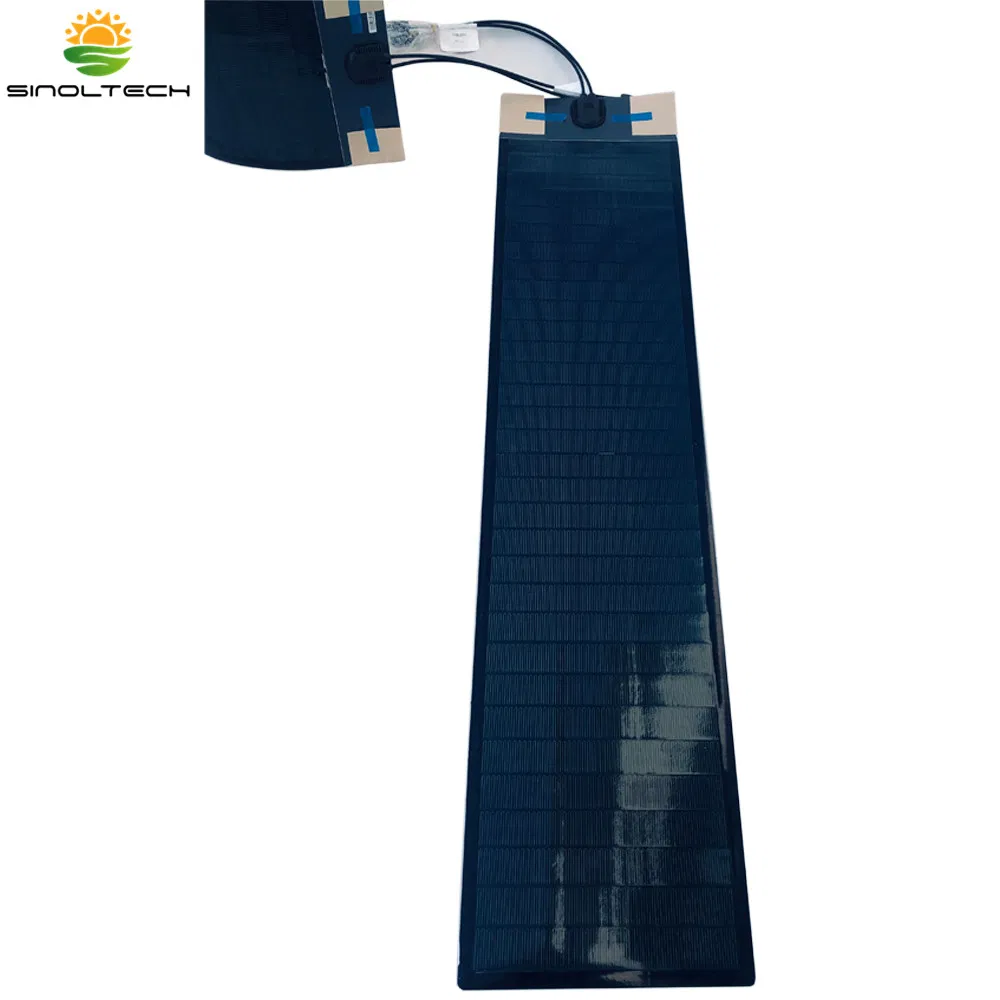

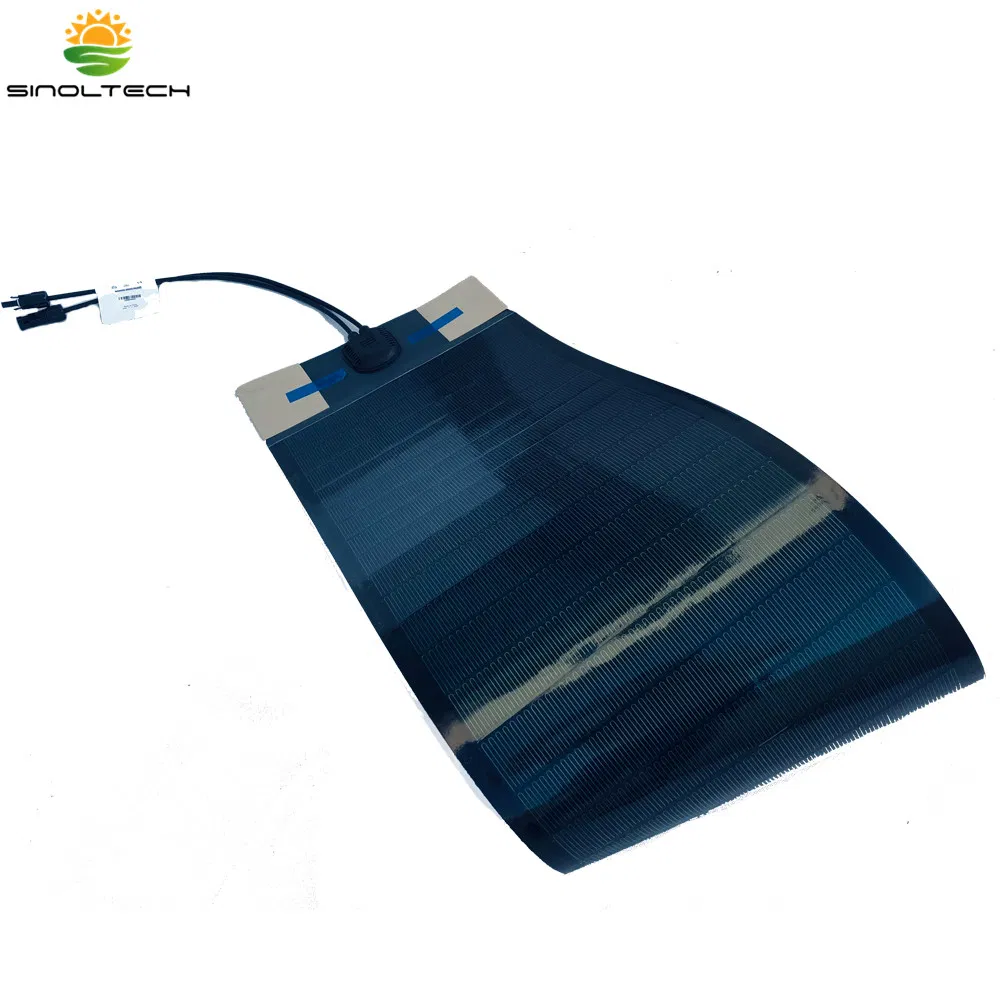

Detailed Photos

Our Advantages

★

Record Efficiency: Highest efficiency levels in a CIGS flexible form factor.

★

Low Weight: Installed weight at less than 2.2 kg/m2 (<0.5 lb/ft2).

★

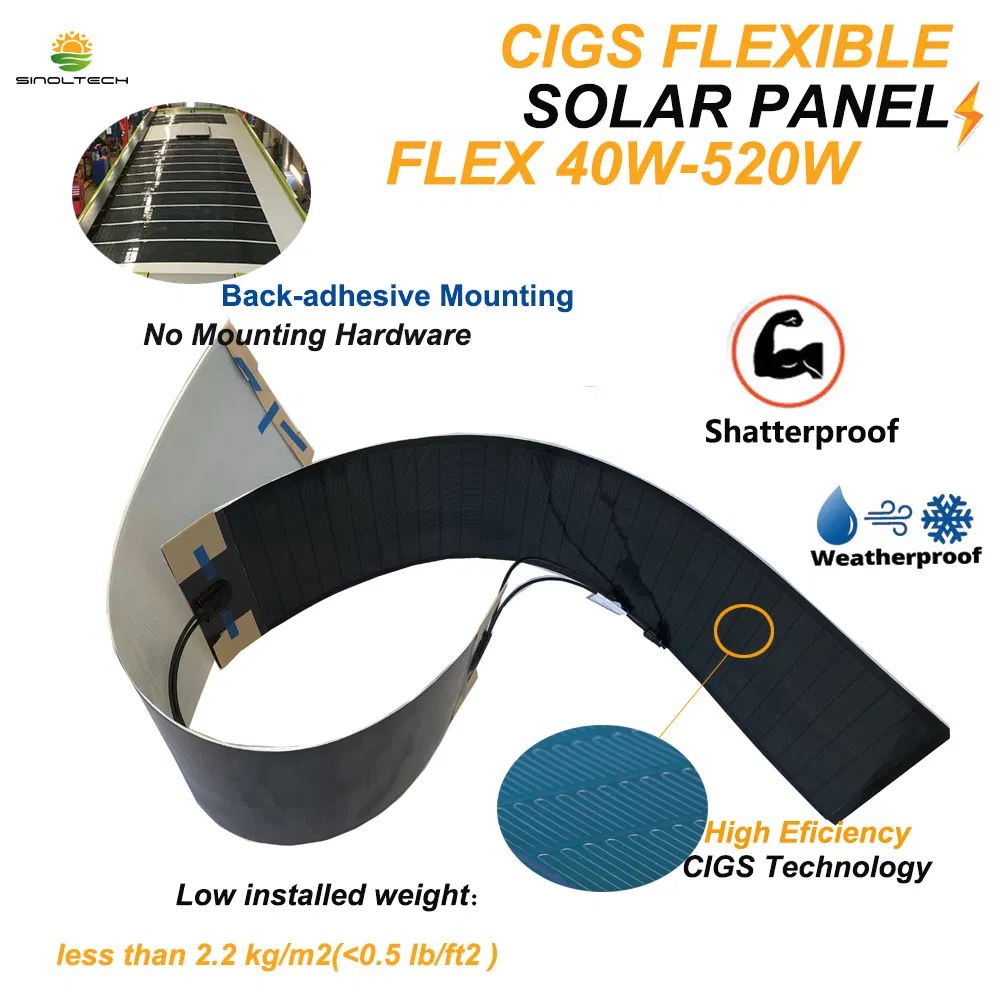

Easy Installation: No penetrations, ballast or racking required; directly bonds to many surfaces.

★

Durability: Applicable for high wind load and high seismic hazard areas; shatter-proof and bendable.

Product Parameters

Electrical Parameter (STC):

Model Selection	Pmax	Vmpp	Impp	Voc	Isc	Efficiency
03NS-70	70W	18.3V	3.85A	23.5V	4.70A	14.2%
03NS-75	75W	18.8V	4.00A	23.7V	4.70A	15.3%
03NS-80	80W	19.3V	4.15A	24.0V	4.70A	16.3%

Mechanical Specifications:

Length	1710 mm (67.3 in)
Width	348 mm (13.7 in)
Thickness	17 mm (J-Box), 2.5 mm (Module)
Weight (with adhesive)	1.3 kg (2.9 lb)
Junction Box	IP68, Amphenol H4 Connections

Certifications & Reliability

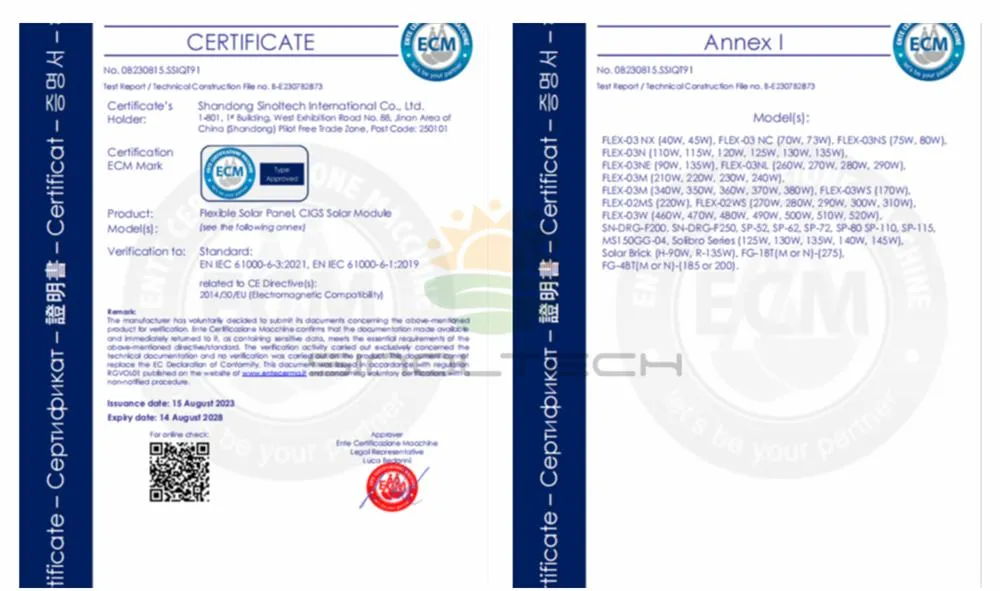

RELIABILITY AND SAFETY: IEC 61646, IEC 61730, UL1703, CE.

WARRANTY: 5 years workmanship; 5/10/25 years warranty against power loss.

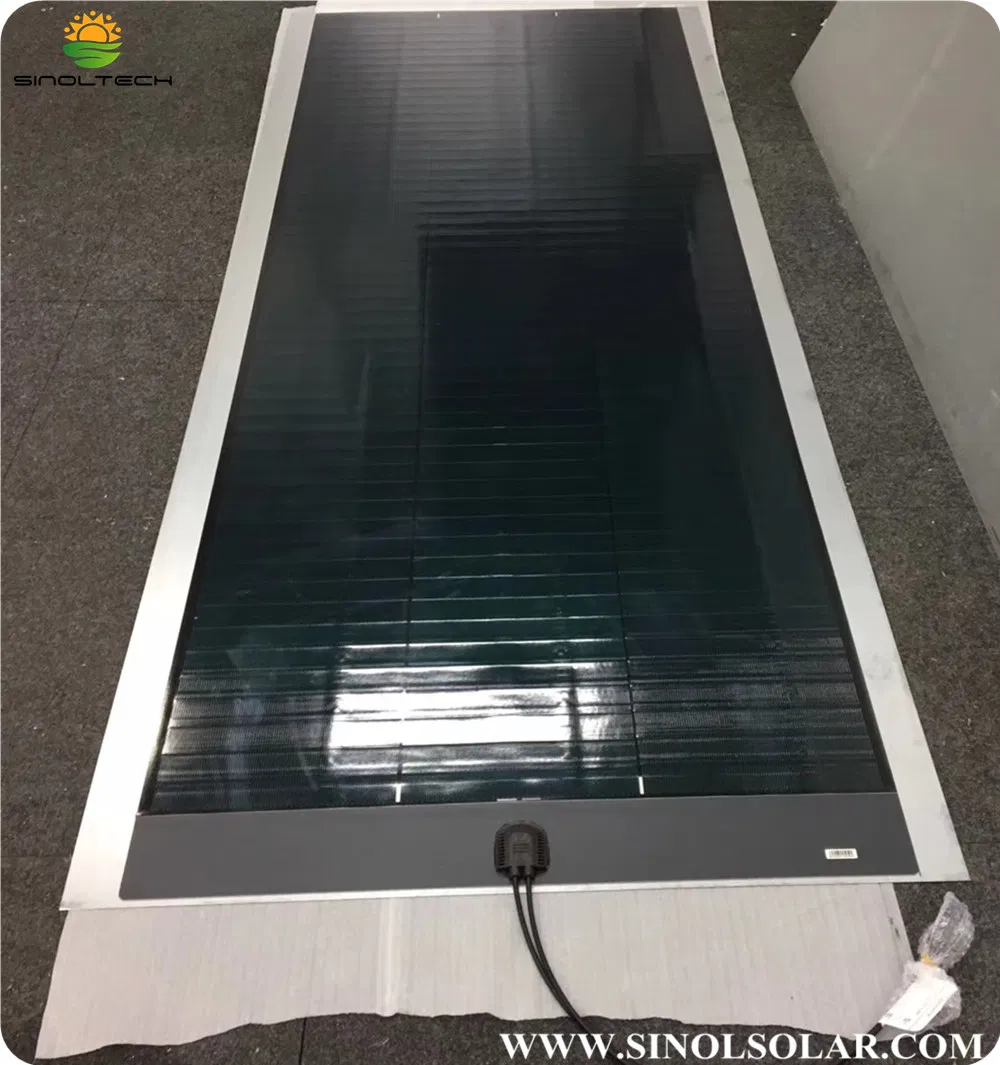

Application Examples

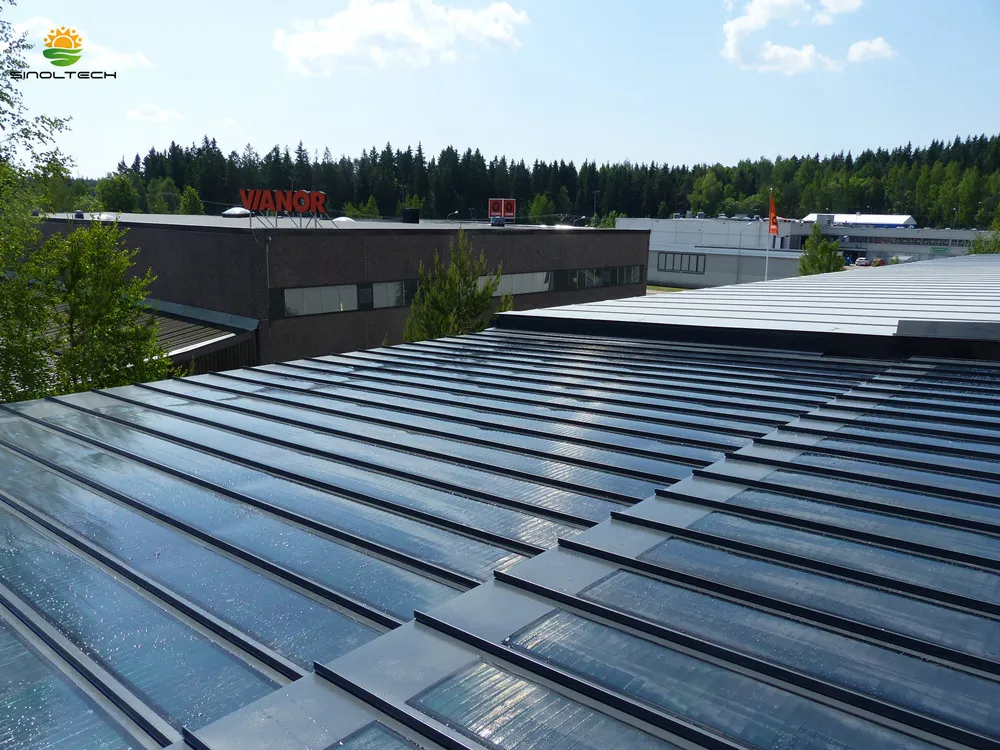

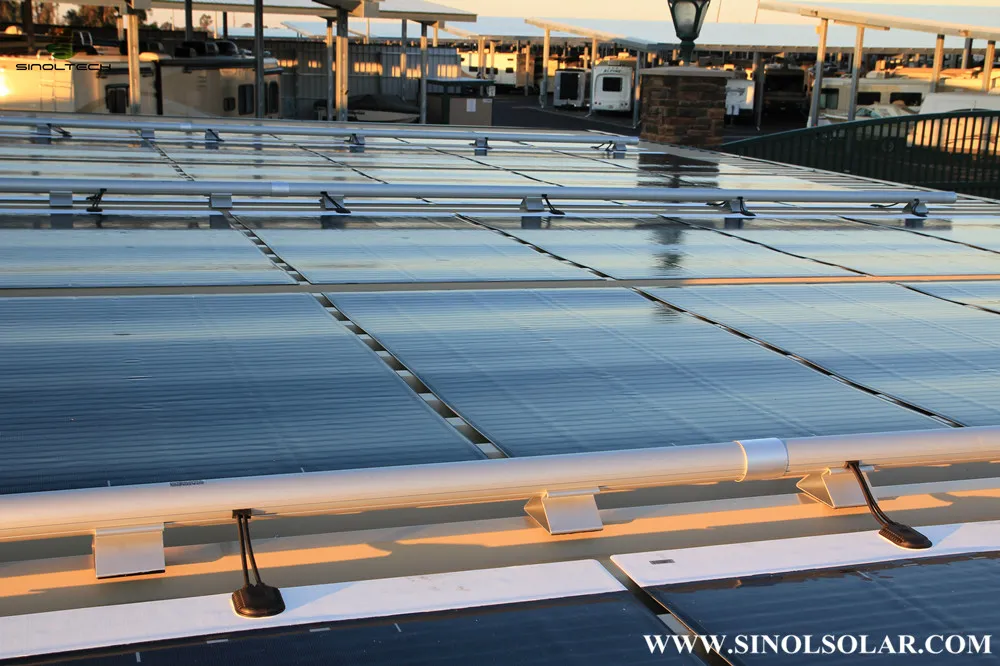

Widely used in marine, industrial rooftops, and specialized portable solar charging solutions.

Packaging & Shipping

Packing Info: 10 modules per crate, 80 modules per pallet.

Frequently Asked Questions

What are the main advantages of CIGS flexible solar panels?

CIGS technology provides a lightweight, ultra-thin, and flexible form factor that can be rolled. It offers superior efficiency compared to other thin-film technologies and performs exceptionally well in low-light conditions.

How do I install the FLEX-03NS solar panel?

The panels feature a "Peel-and-Stick" back adhesive tape. They can be directly bonded to many approved surfaces without the need for penetrations, ballast, or complex racking systems.

Is the panel durable enough for marine environments?

Yes, the FLEX-03NS is shatter-proof and bendable. Its stainless steel substrate and flexible architecture make it ideal for marine applications where rigid panels might crack or be too heavy.

Does shading significantly affect the power output?

The modules include bypass diodes which help to reduce PV system shading losses, ensuring better performance even when parts of the panel are partially obscured.

What is the weight and thickness of these modules?

The module is only 2.5mm thick (17mm at the Junction Box) and weighs approximately 2.2 kg/m² with the adhesive, making it significantly lighter than traditional glass solar panels.

What certifications do these panels hold?

The panels are fully certified under IEC 61646, IEC 61730, UL 1703, and hold CE markings for safety and reliability.
