Product Description

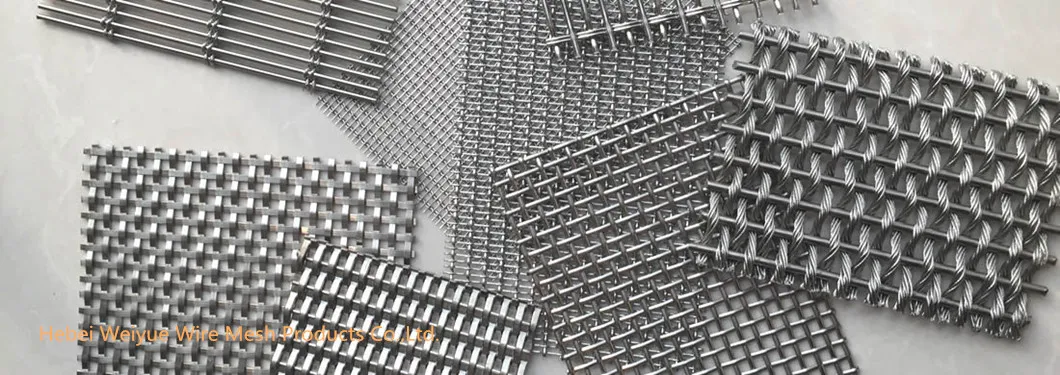

Decorative Cable Mesh

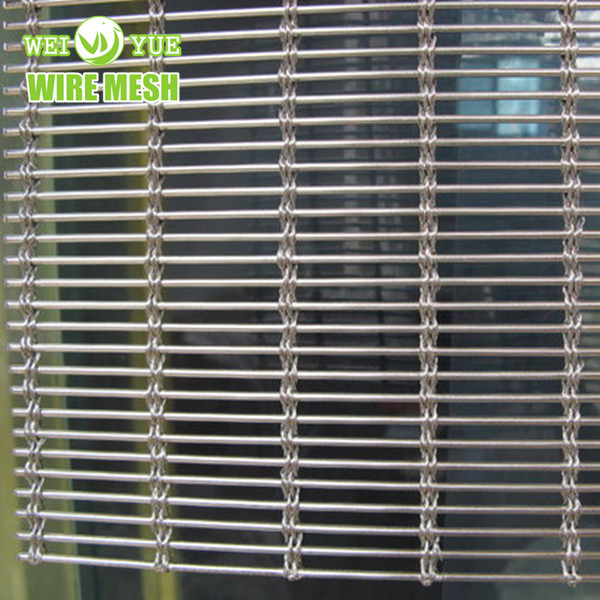

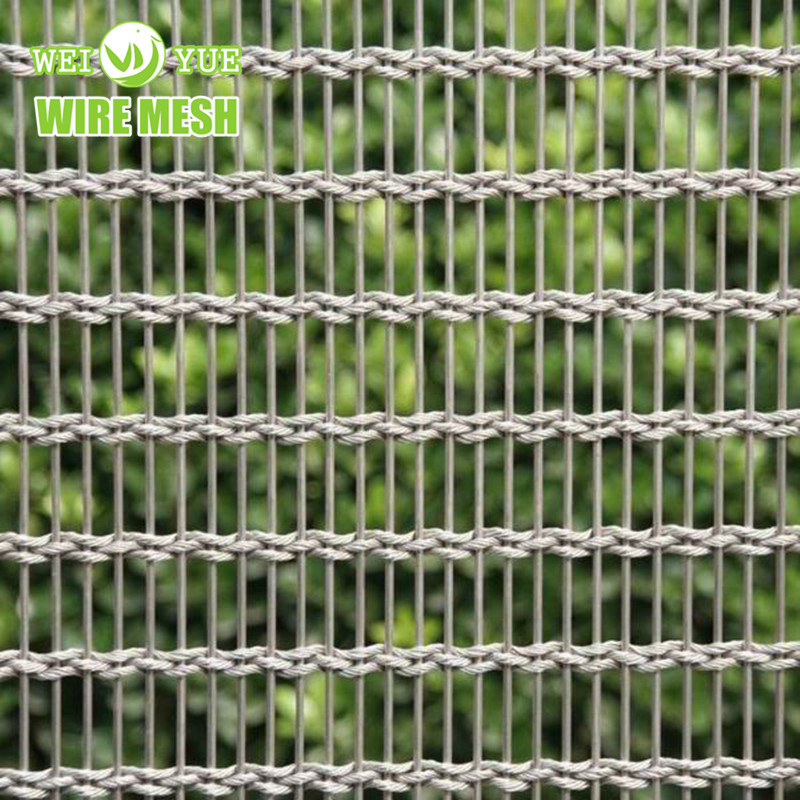

Weft and warp weaved and combined soft with rigid wire mesh can be widely applied to the decoration industry to create any effect the designer can dream. Cable metal mesh is combined with braided steel cables and steel rod. Commonly the warp wire is steel cables and the weft wire is steel rod.
Materials
Stainless steel, aluminum, brass, copper wire, phosphor bronze.
| Design |
Open Area |
Cable Dia. |
Cable Pitch |
Bar Dia. |
Bar Pitch |
Thickness |
Weight |
| 1 | 40% | 1x1.8 mm | 4 mm | 1.5 mm | 5.5 mm | 5.1 mm | 7.74kg/m2 |
| 2 | 43% | 1x2.5 mm | 6 mm | 2 mm | 8 mm | 5.5 mm | 7.87kg/m2 |
| 3 | 62% | 2x2.75 mm | 40 mm | 4 mm | 14.5 mm | 9.5 mm | 9.41kg/m2 |
| 4 | 37.20% | 3x0.5 mm | 3.5 mm | 0.5 mm | 1.4 mm | 1.3 mm | 2.4kg/m2 |
| 5 | 71% | 3x1.6 mm | 80 mm | 2.5 mm | 10 mm | 5.7 mm | 4.58kg/m2 |
| 6 | 65% | 3x2 mm | 80 mm | 3 mm | 10 mm | 7 mm | 6.67kg/m2 |
Product Application

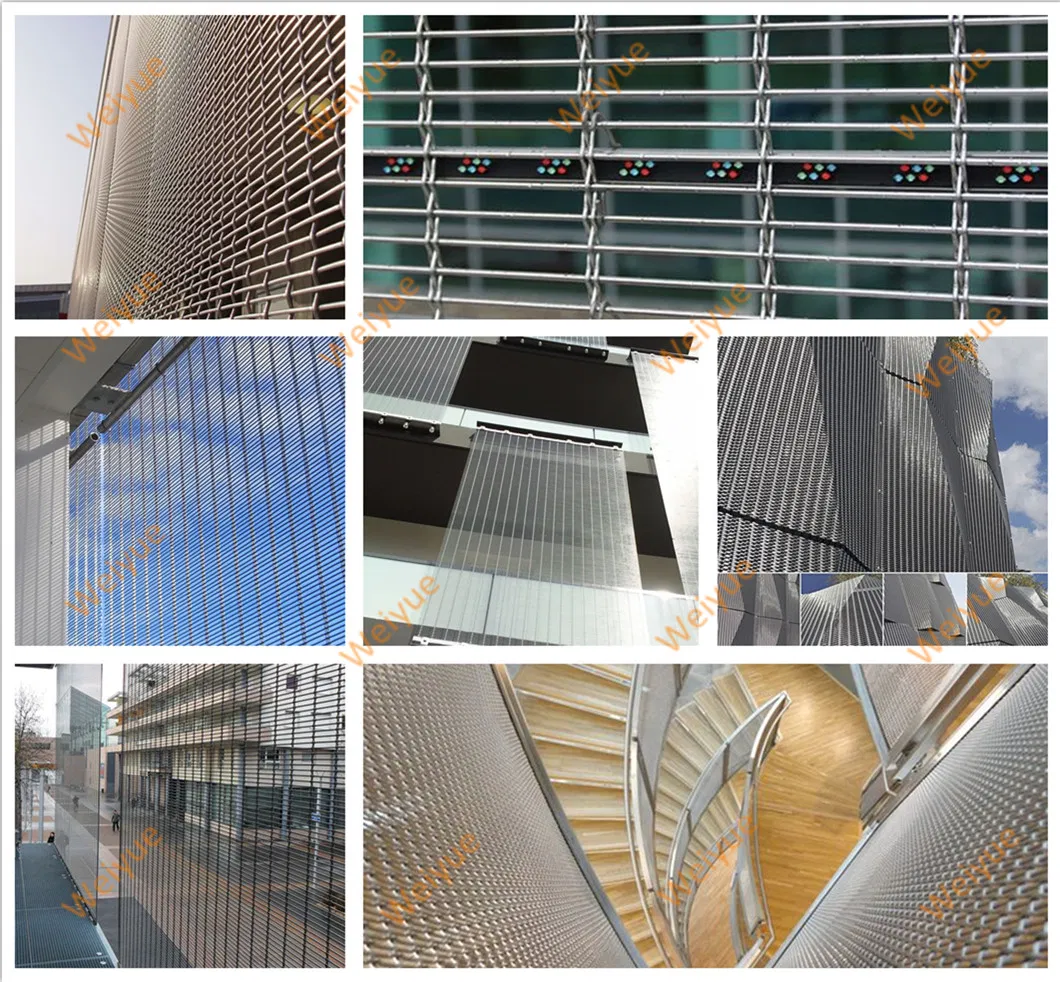

Cable mesh products are widely used in interior and exterior decorations such as hotels, high buildings, elevators, luxury office buildings, grand ballrooms, and business halls.
Windows screens & Space dividers
Wall & Ceiling decoration

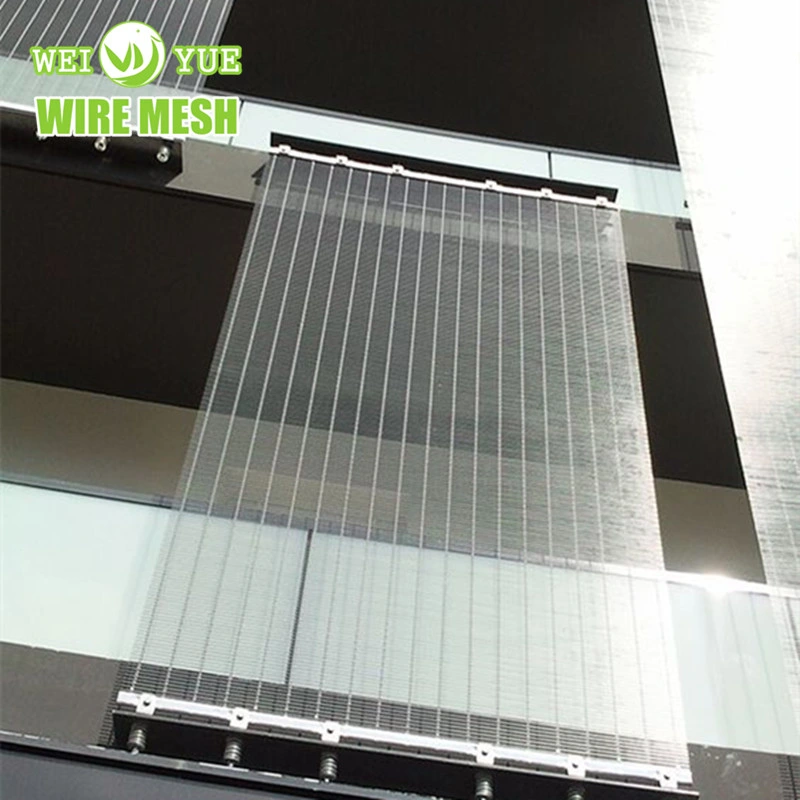

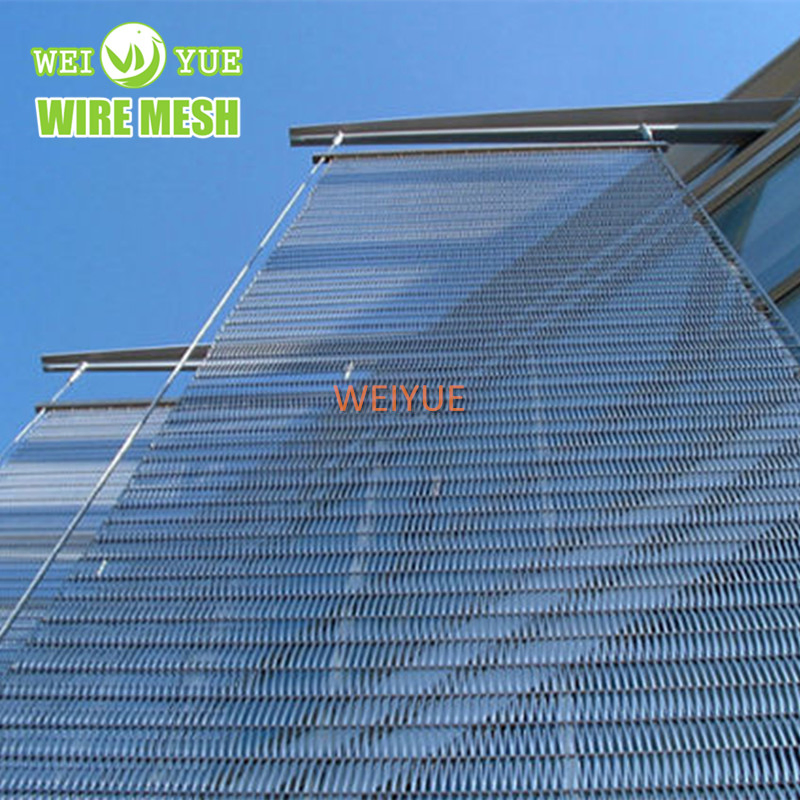

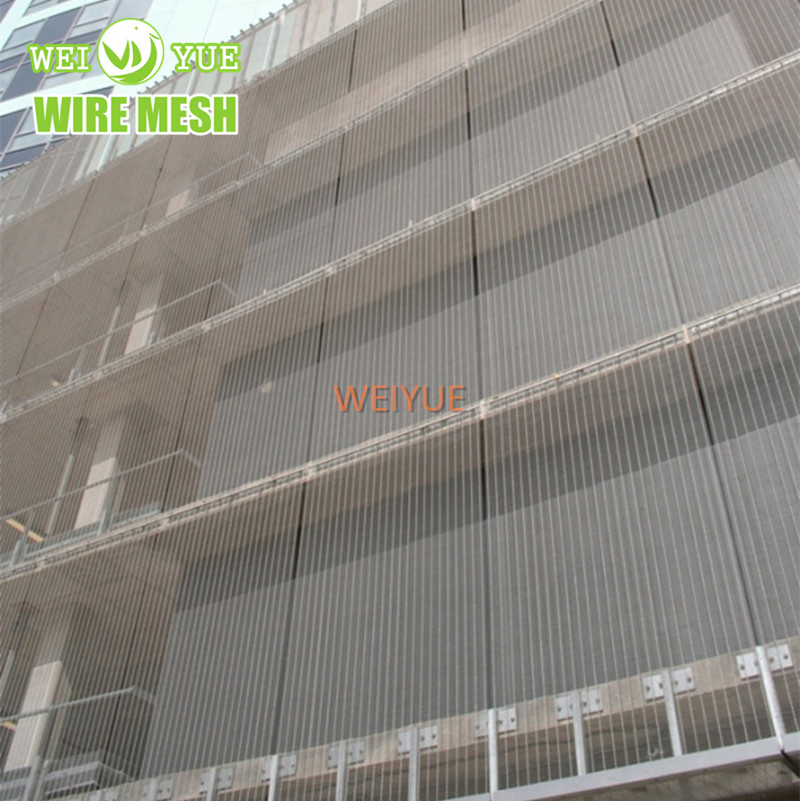

Facade cladding & Sunshades
Elevator cabins screen
Handrail balustrade
Security door & Partition screens
Product Features
Fireproof: Nonflammable and high-strength material.
Easy Cleaning: Simple wipe-down maintenance.
Quick Installation: Chic and elegant appearance, fast to set up.
Durable: Luxurious and high-grade aesthetic.
Versatile: Variety of openings and sizes available.
Packing & Delivery

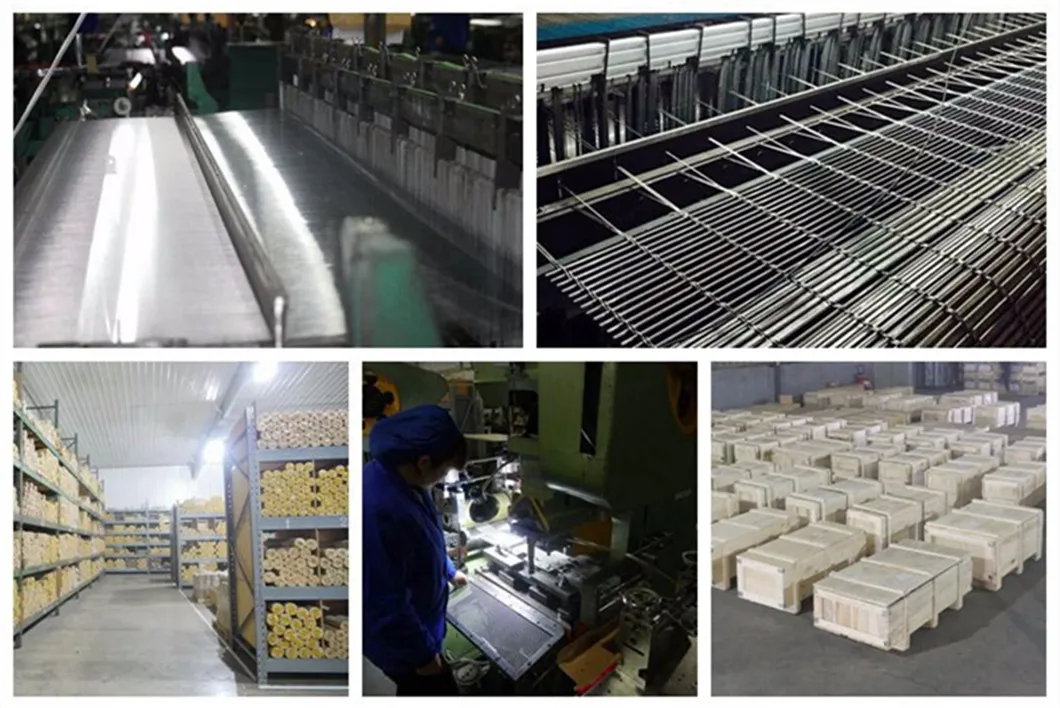

Standard export packaging includes: carton boxes, simple pallets with waterproof cloth, wooden cases with air bubble film, or shrink film with woven bags.
FAQ
1. What materials are used for the decorative mesh?
We use low carbon steel, stainless steel plate, aluminum plate, copper plate, nickel plate, and aluminum-magnesium alloy plates.
2. Can you provide samples for testing?
Yes, we can offer free samples for your testing. Products can also be customized according to your specific sample requirements.
3. Is there a minimum order quantity (MOQ)?
The minimum quantity requirements vary depending on the specific goods and design requested.
4. What are your standard export packing methods?
We typically use waterproof paper inside and wooden cases outside, or waterproof cloth on pallets, and shrink film for rolls.
5. How do you ensure production quality?
All products undergo multiple checks throughout the entire manufacturing process to ensure they meet your quality expectations.
6. Can you guarantee on-time delivery?
Yes, we arrange production immediately upon receiving an order and promise to deliver the goods on the scheduled timeline.
