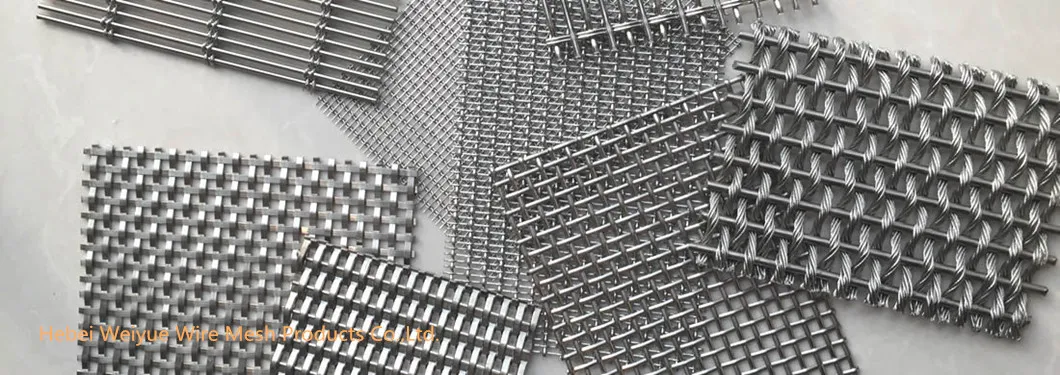

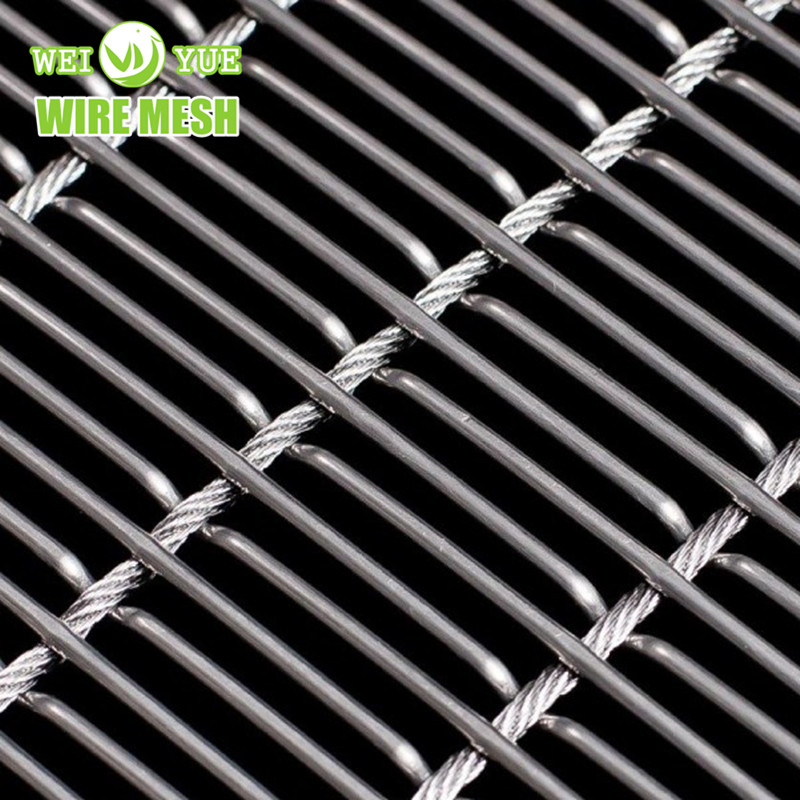

Weft and warp weaved and combined soft with rigid, wire mesh can be widely applied to the decoration industry to create any effect the designer can dream. Cable metal mesh is a kind of decorative metal mesh combined with braided steel cables and steel rods. Commonly the warp wire is steel cables and the weft wire is steel rod.
| Design | Open area | Cable wire dia. | Cable pitch | Bar dia. | Bar pitch | Thickness | Weight |
|---|---|---|---|---|---|---|---|
| 1 | 40% | 1x1.8 mm | 4 mm | 1.5 mm | 5.5 mm | 5.1 mm | 7.74kg/m2 |
| 2 | 43% | 1x2.5 mm | 6 mm | 2 mm | 8 mm | 5.5 mm | 7.87kg/m2 |
| 3 | 62% | 2x2.75 mm | 40 mm | 4 mm | 14.5 mm | 9.5 mm | 9.41kg/m2 |
| 4 | 37.20% | 3x0.5 mm | 3.5 mm | 0.5 mm | 1.4 mm | 1.3 mm | 2.4kg/m2 |
| 5 | 71% | 3x1.6 mm | 80 mm | 2.5 mm | 10 mm | 5.7 mm | 4.58kg/m2 |
| 10 | 62% | 4x1 mm | 36 mm | 2 mm | 6.6 mm | 4 mm | 4.55kg/m2 |

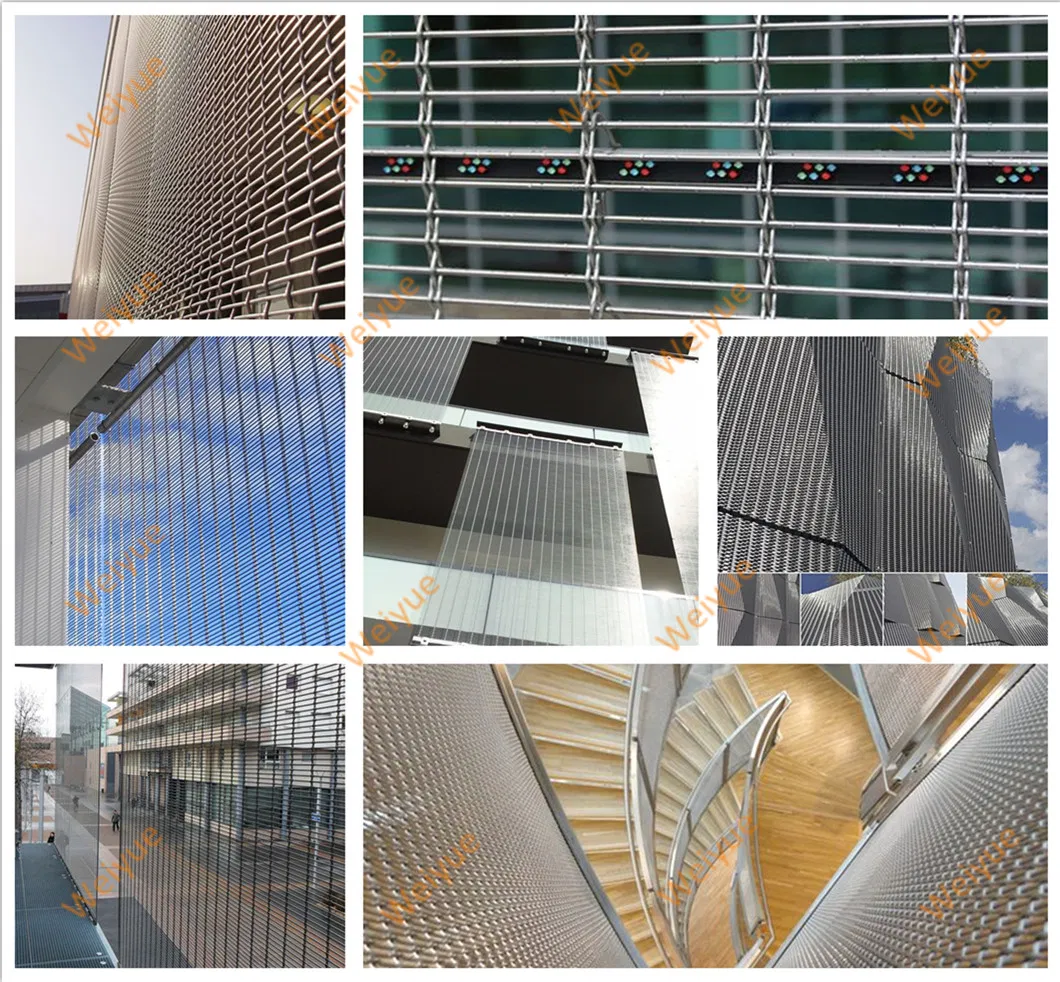

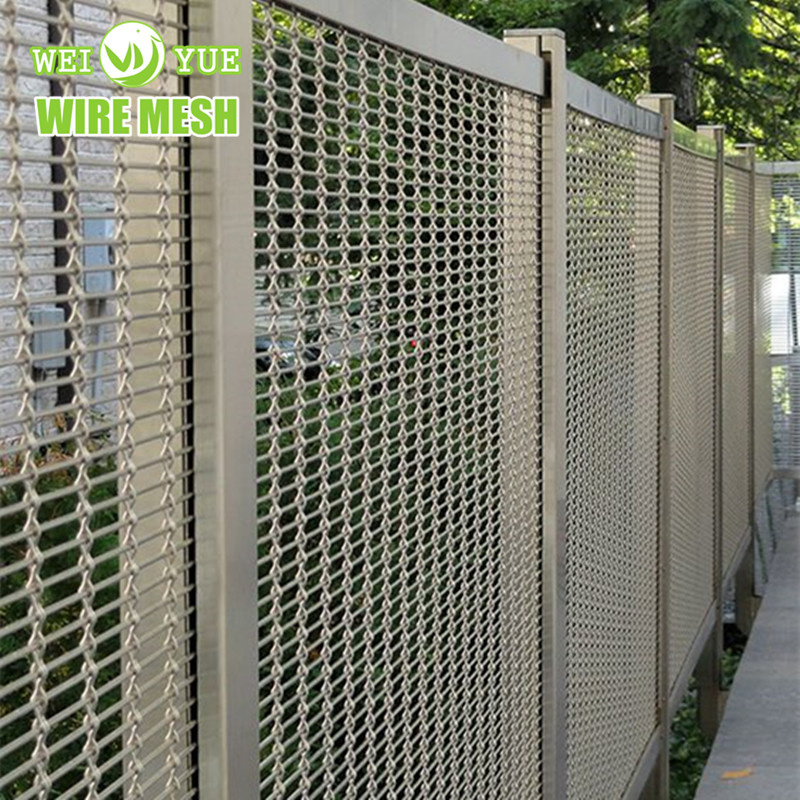

Cable mesh products are widely used in interior and exterior decorations such as hotels, high-rise buildings, elevators, luxury office buildings, and grand ballrooms.

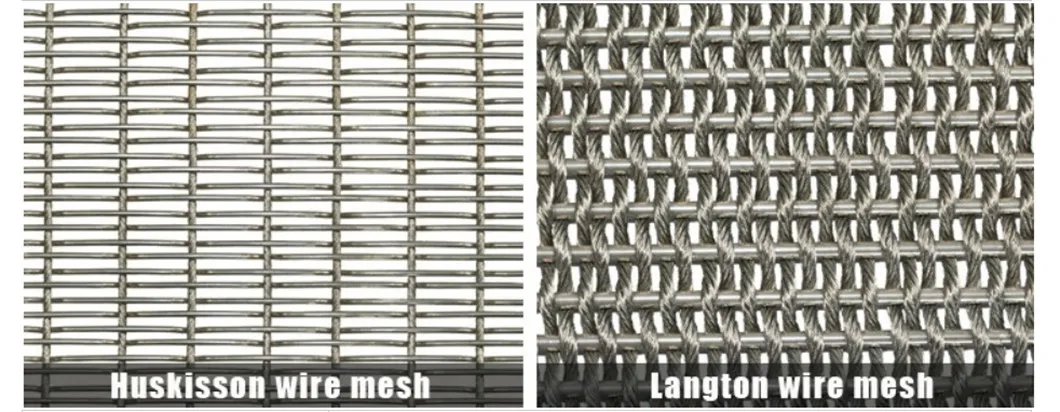

| Product Name | Material | Rods/Wire | Cable | Open Area | Weight |
|---|---|---|---|---|---|
| Huskisson Mesh | Stainless Steel 316 | 4mm (Pitch 11mm) | 3mm (Pitch 5mm) | 25% | 14.8 Kg/m2 |
| Langton Mesh | Stainless Steel 316 | 1.5mm (Pitch 3.5mm) | 2mm (Pitch 17.5mm) | 50% | 5.2 Kg/m2 |

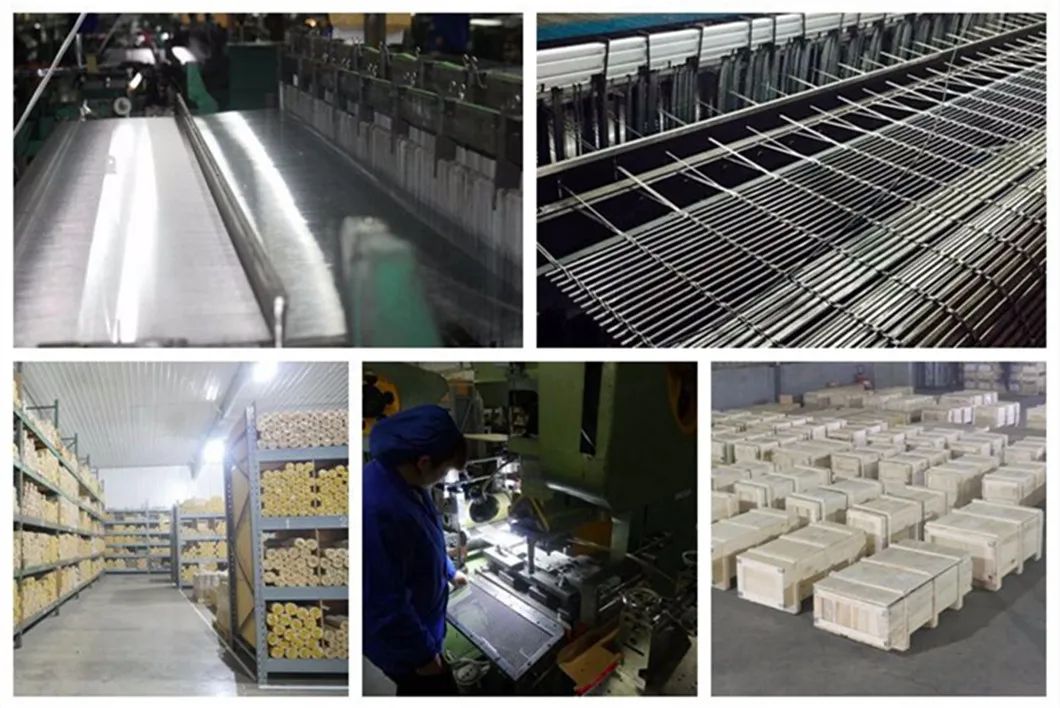

We provide secure packaging options to ensure safe delivery:
