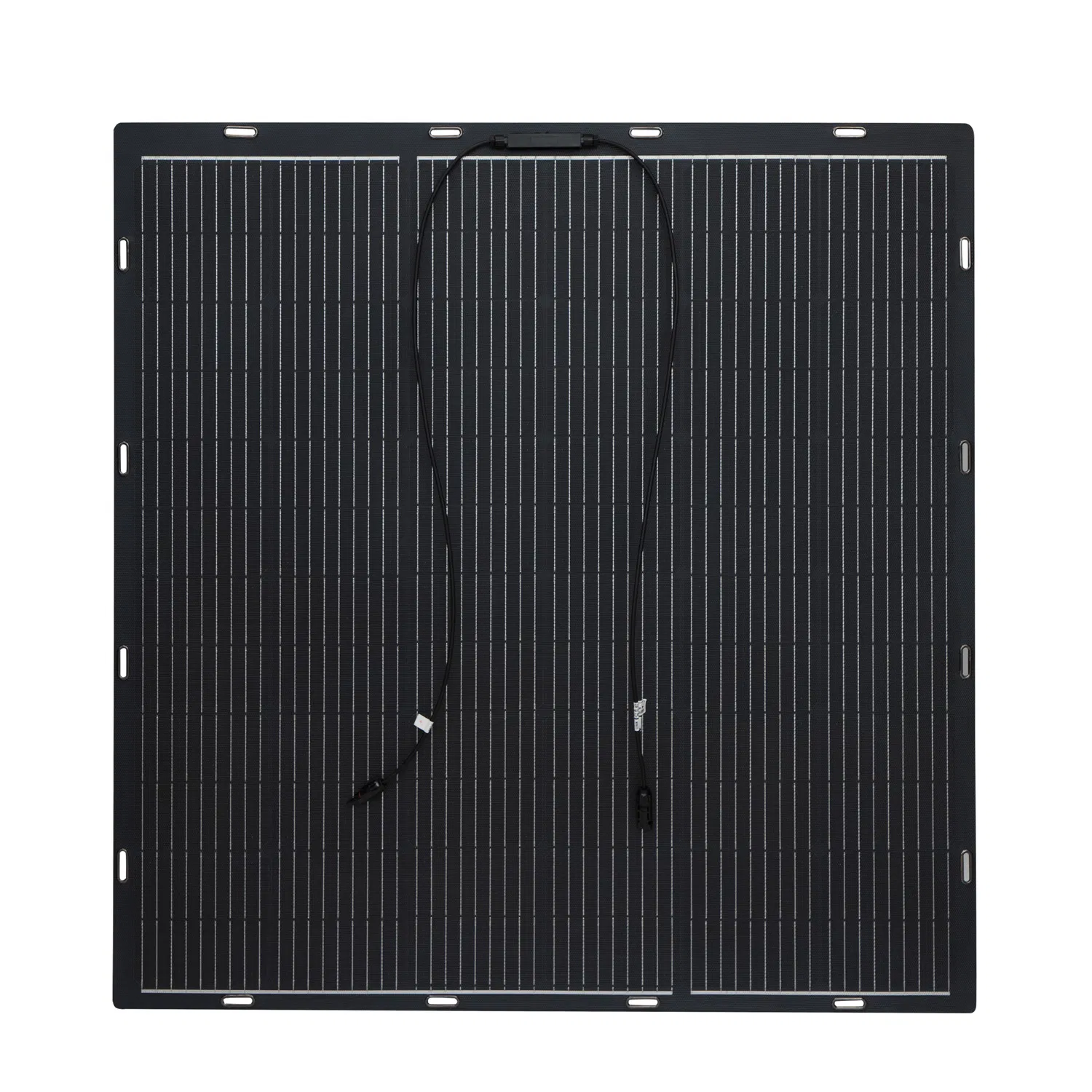

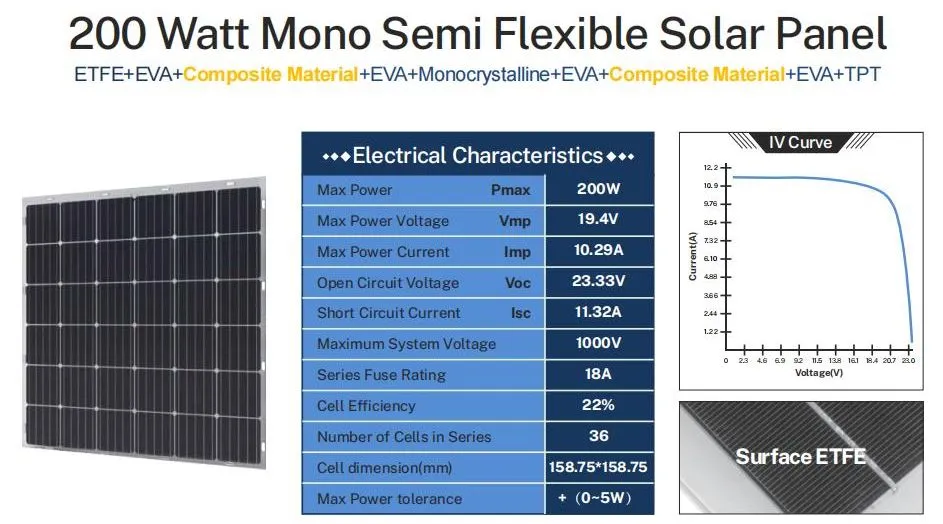

| Model NO. | 200 Watt Mono Semi Flexible Solar Panel |
| Number of Cells | 36pcs |
| Application | Industrial |
| Condition | New |
| Certification | EST, ISO, CB, CE |
| Max Power | 200W |
| Max Power Voltage | 19.4V |
| Max Power Current | 10.29A |
| Open Circuit Voltage | 23.33V |
| Short Circuit Current | 11.32A |
| Maximum System Voltage | 1000V |
| Series Fuse Rating | 18A |
| Cell Efficiency | 22% |
| Cell Dimension(mm) | 158.75*158.75 |
| Max Power Tolerance | +(0~5W) |
| Origin | China |
| Production Capacity | 100000 Pieces Per Year |

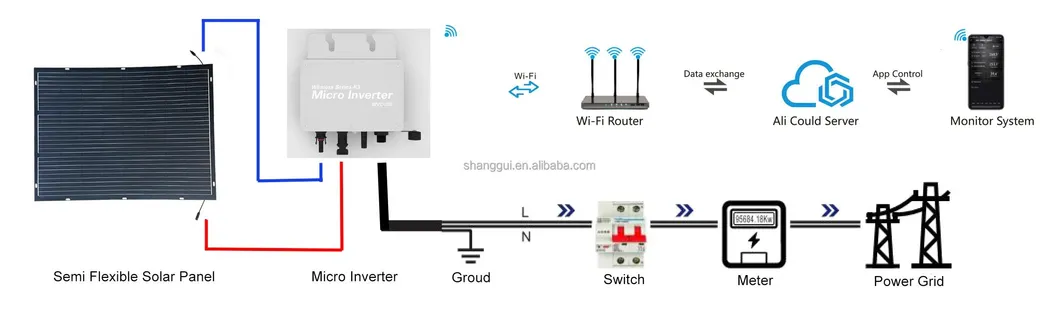

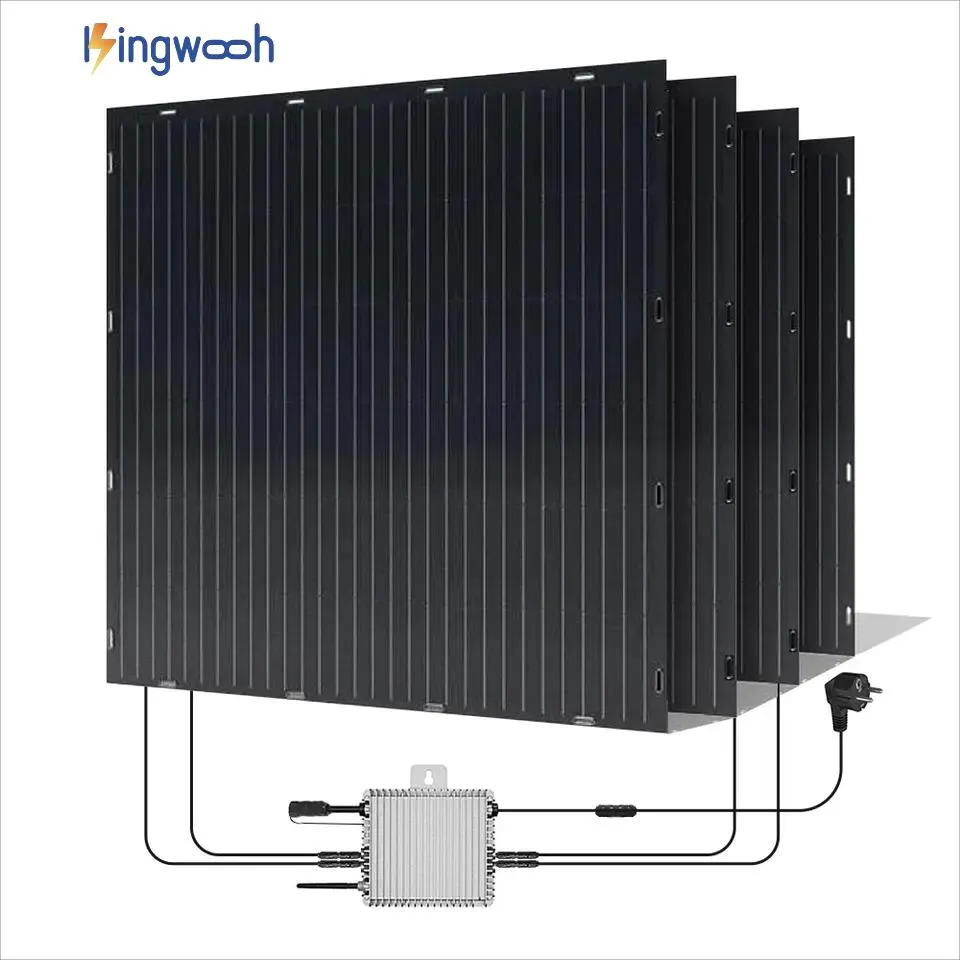

The micro grid-connected photovoltaic power generation system is a new type of network structure, specifically designed for residential balconies. These flexible solar panels are installed on the sunny side of railings, connected to a micro grid-connected inverter. This system efficiently converts solar energy into electricity for household appliances, providing a sustainable power source for urban living.
| Mechanical Details | |
| Weight | 2.0 KG |
| Dimension | 1010 * 990 * 2 mm |

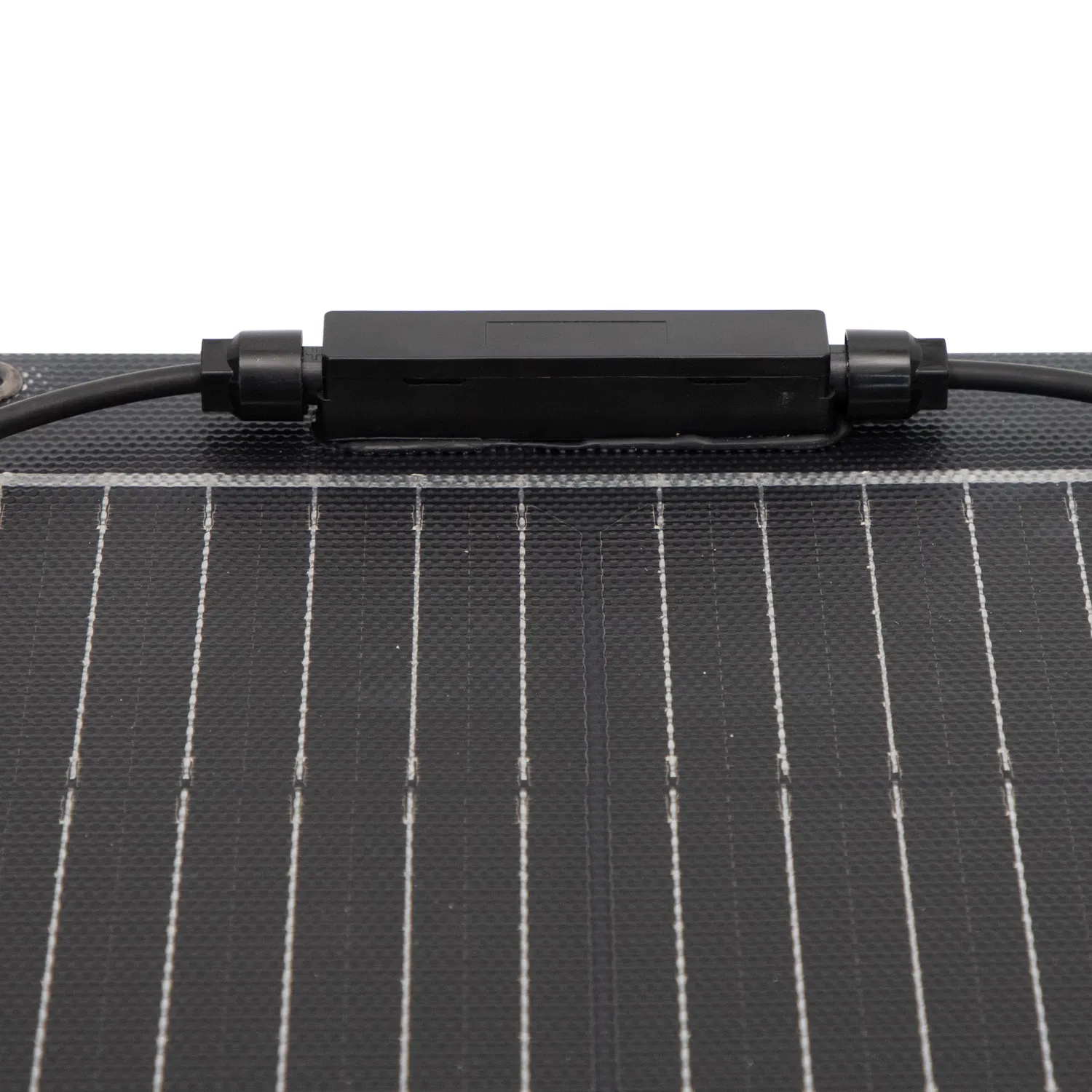

| Cable | 35cm 2*4mm MC4 connector |
