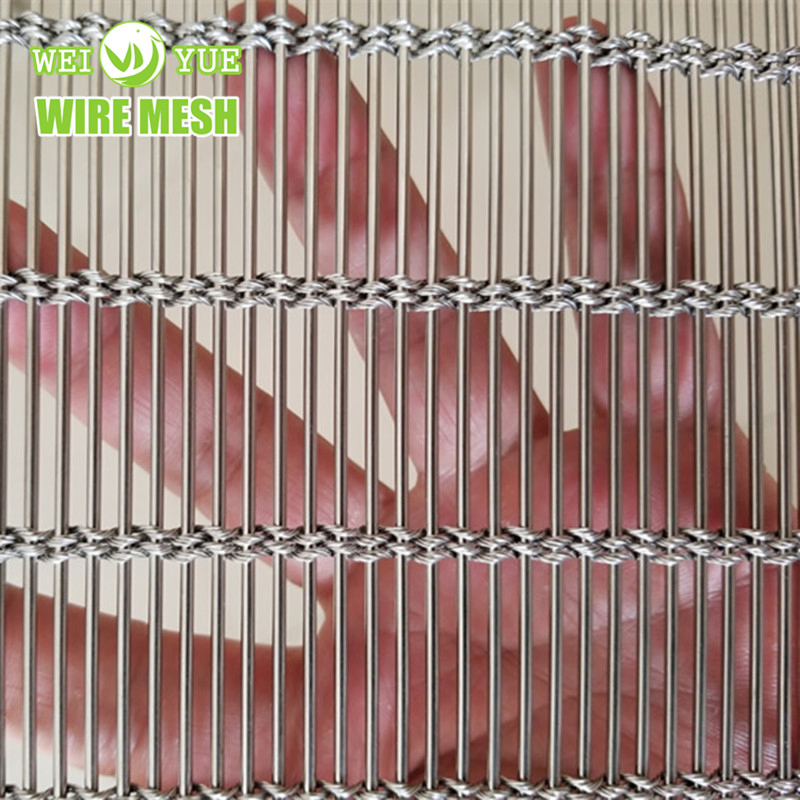

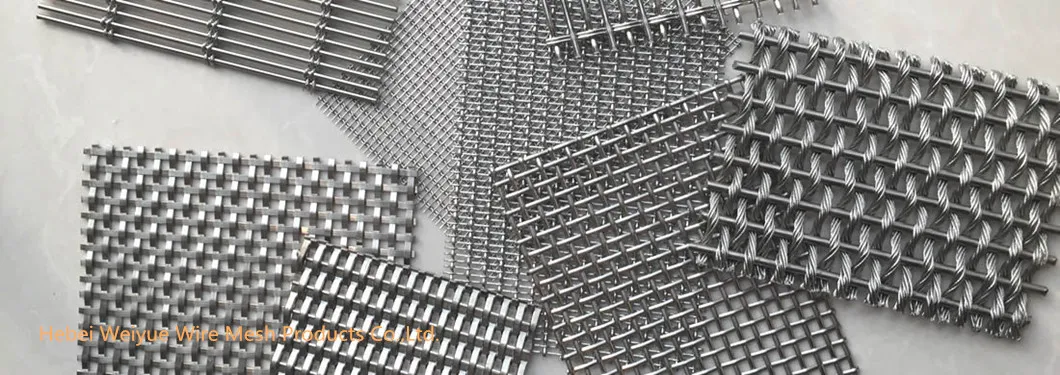

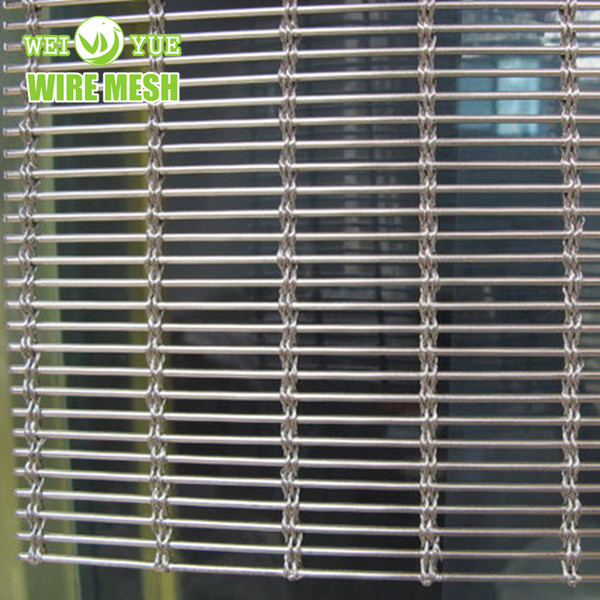

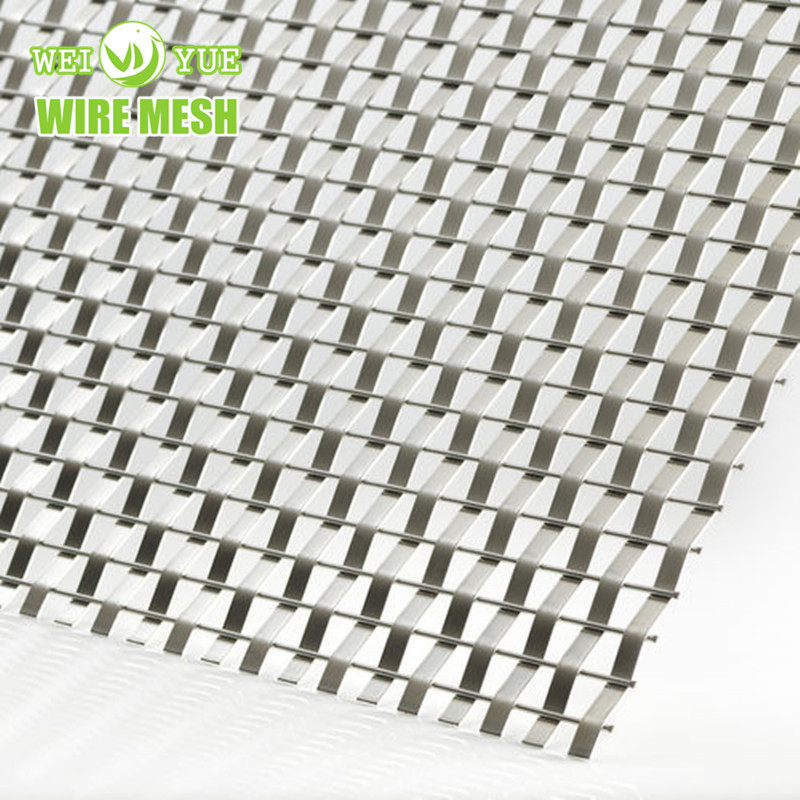

Weft and warp weaved and combined soft with rigid materials, our wire mesh is widely applied in the decoration industry to create stunning architectural effects. Cable metal mesh is a premium decorative solution combining braided steel cables (warp) and steel rods (weft).
| Design | Open Area | Cable Dia. | Cable Pitch | Bar Dia. | Bar Pitch | Weight |
|---|---|---|---|---|---|---|
| 1 | 40% | 1.8 mm | 4 mm | 1.5 mm | 5.5 mm | 7.74kg/m2 |
| 2 | 43% | 2.5 mm | 6 mm | 2 mm | 8 mm | 7.87kg/m2 |
| 3 | 62% | 2x2.75 mm | 40 mm | 4 mm | 14.5 mm | 9.41kg/m2 |
| 4 | 37.20% | 3x0.5 mm | 3.5 mm | 0.5 mm | 1.4 mm | 2.4kg/m2 |
| 5 | 71% | 3x1.6 mm | 80 mm | 2.5 mm | 10 mm | 4.58kg/m2 |
| 6 | 65% | 3x2 mm | 80 mm | 3 mm | 10 mm | 6.67kg/m2 |
| 7 | 65.90% | 3x2.75 mm | 110 mm | 4 mm | 14.5 mm | 8.5kg/m2 |
| 8 | 67% | 3x3 mm | 110 mm | 4 mm | 14.2 mm | 8.6kg/m2 |

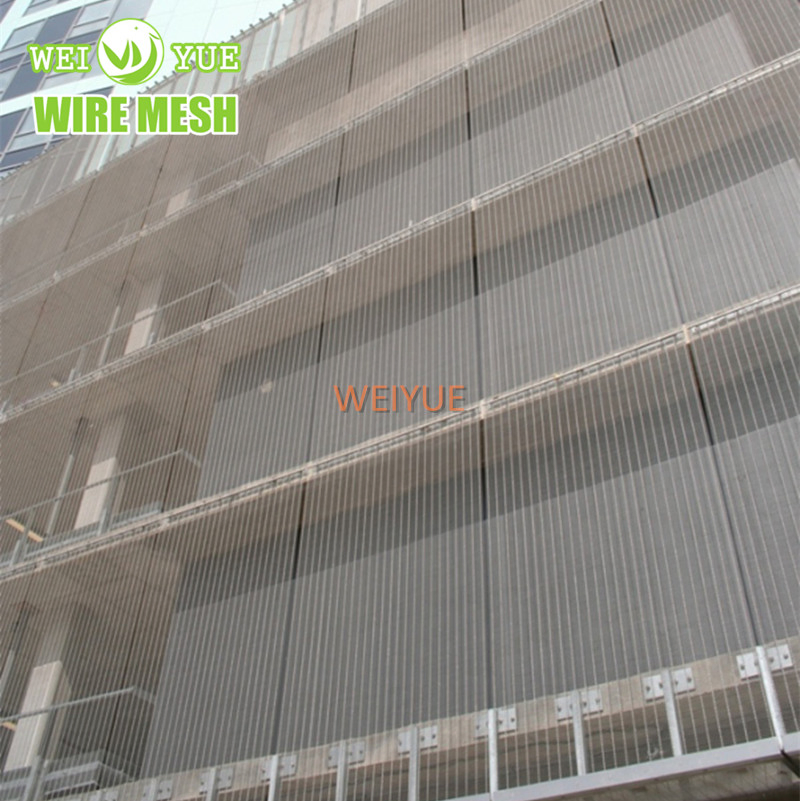

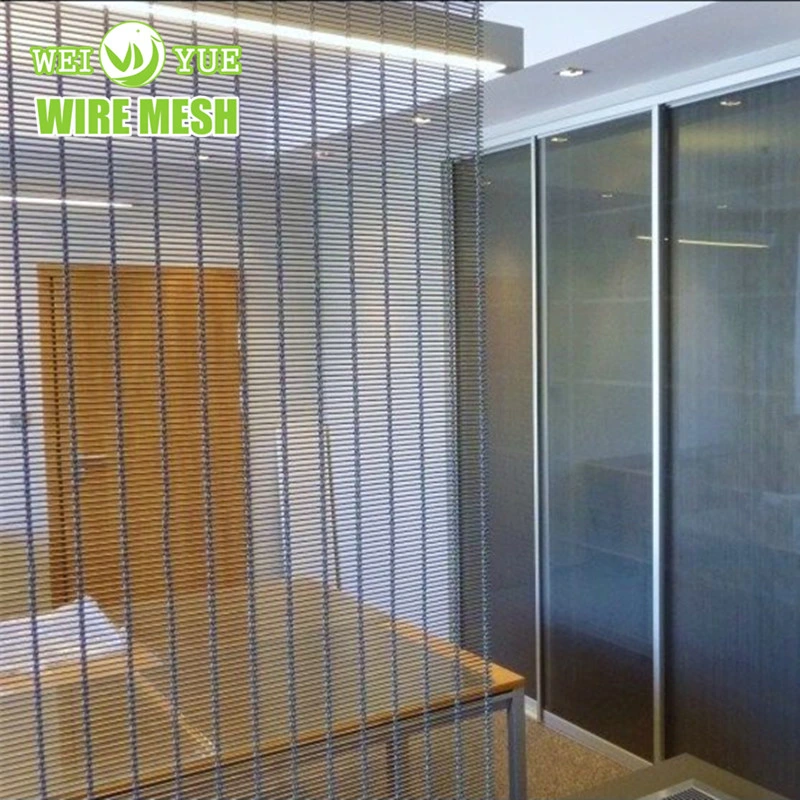

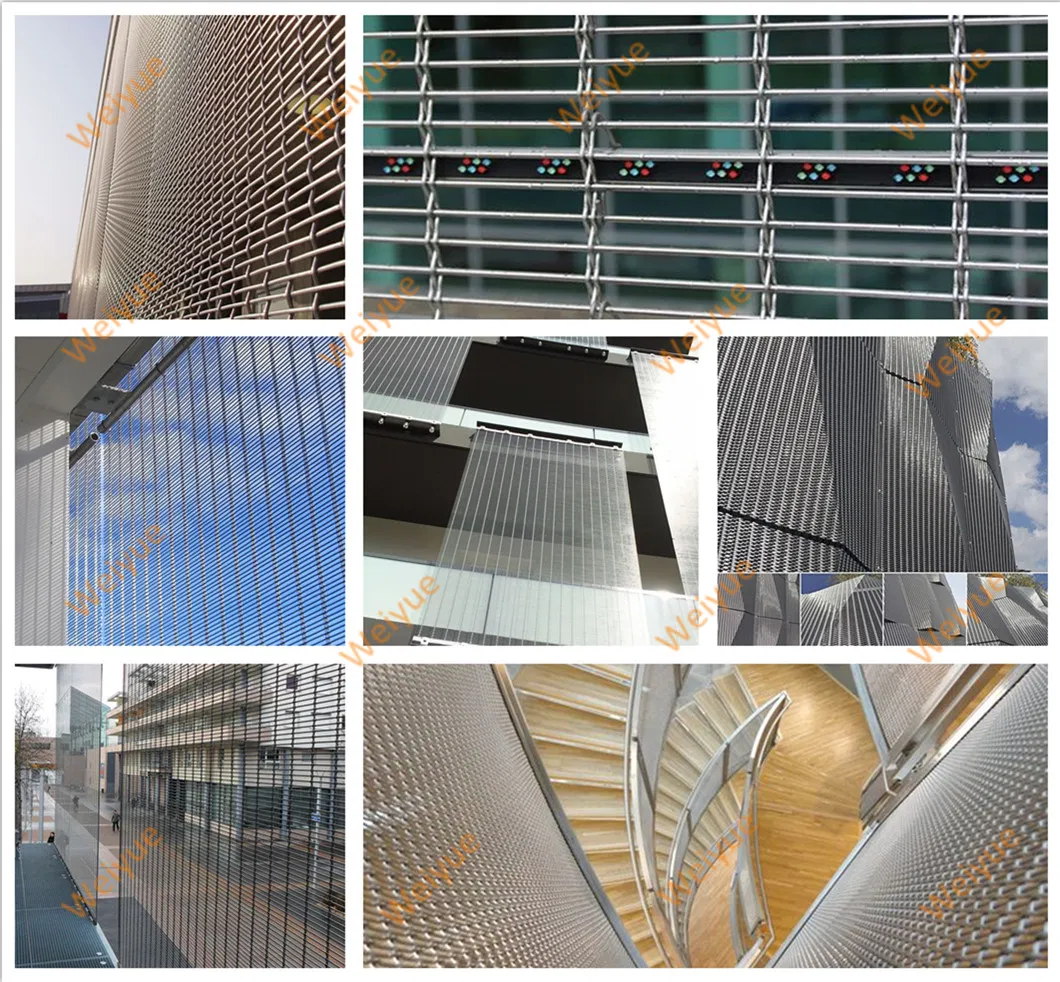

Cable mesh products are ideal for both interior and exterior architectural designs, including hotels, luxury offices, and grand halls.
Nonflammable metallic material with high-strength performance.
Simple cleaning with a rag; highly functional and long-lasting.
Reflects unlimited creativity and artistic aesthetic for modern architects.

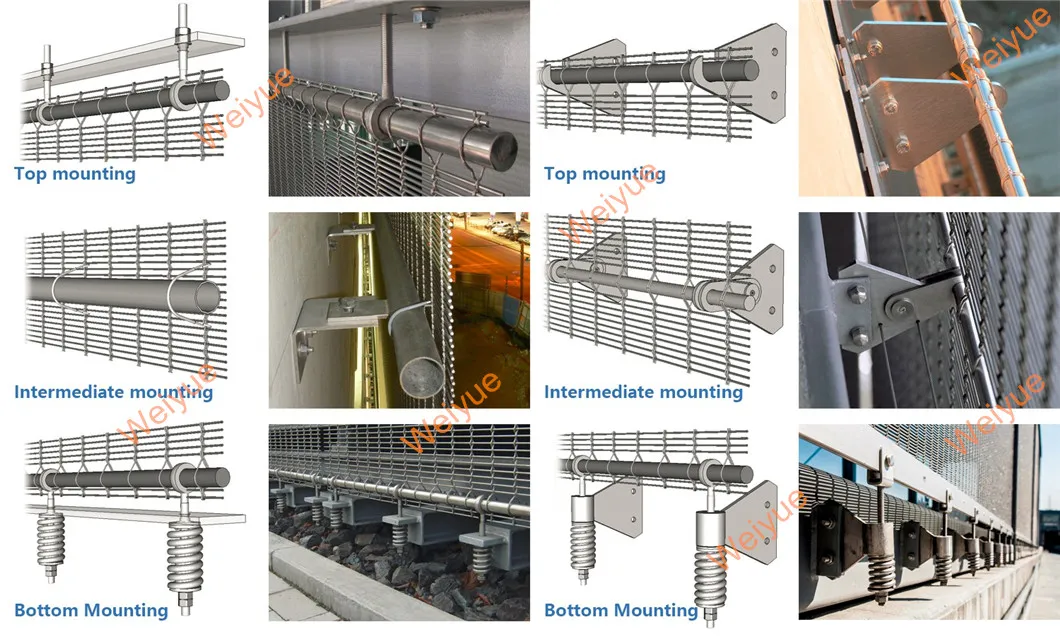

Designed for fast and easy setup with elegant final appearance.
| Material | Stainless steel 316 | Open Area | 25% - 50% |
| Rod/Wire | 1.5mm - 4mm | Weight | 5.2 - 14.8 Kg/m2 |
