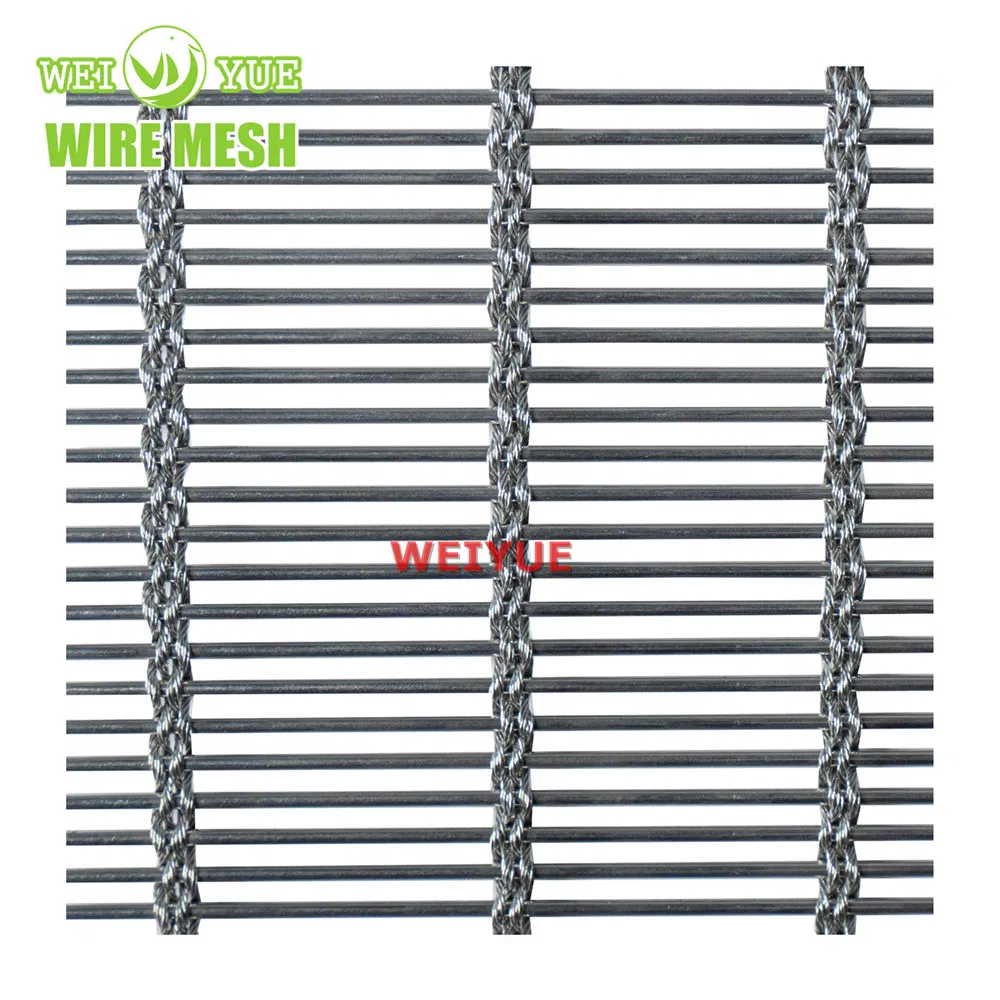

Aluminum Stainless Steel Woven Metal Decorative Crimped Wire Mesh for Building Exterior Wall Cladding Panel

Still deciding? Get samples of $ !
Request Sample

Product Description

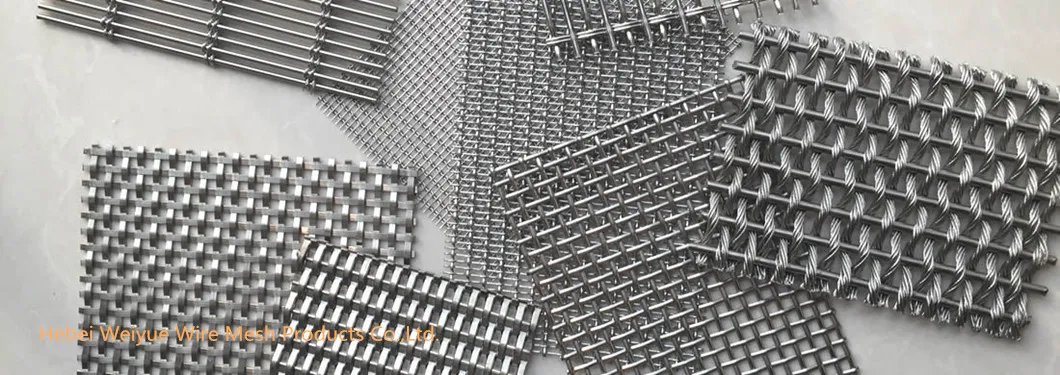

Decorative Crimped Wire Mesh

Basic Specifications

Application
Filter, Construction Wire Mesh, Protecting Mesh, Screen, Decorative Mesh, Fence Mesh, Facade, Cladding
Type
Stainless Steel Crimped Wire Mesh
Material Type
Stainless Steel Wire
Weave Technique
Plain Weave / Woven
Wire Diameter
0.4-3mm
Cable Pitch
3.5mm - 80mm
Certification
ISO9001
Surface Treatment
Painting, Anodized, Polished
Production Capacity
1000m2/Day
HS Code
7314140000

Product Description

Architectural decorative metal wire mesh is made with super quality stainless steel, aluminum alloy, brass, copper or other alloy materials. It is widely used as curtains, screens for dining halls, isolation in hotels, ceiling decoration, animal containment, and security fencing. With its versatility, unique texture, variety of colors, durability, and flexibility, metal wire mesh fabric offers a modern decoration style for constructions.

Key Features

  • Fireproof: Nonflammable high-strength material.
  • Easy Maintenance: Simple cleaning with a cloth.
  • Easy Installation: Fast setup with an elegant, chic appearance.
  • Creative Aesthetic: Reflects unlimited artistic creativity.
  • Variety: Multiple openings and sizes available for architecturally inspired designs.

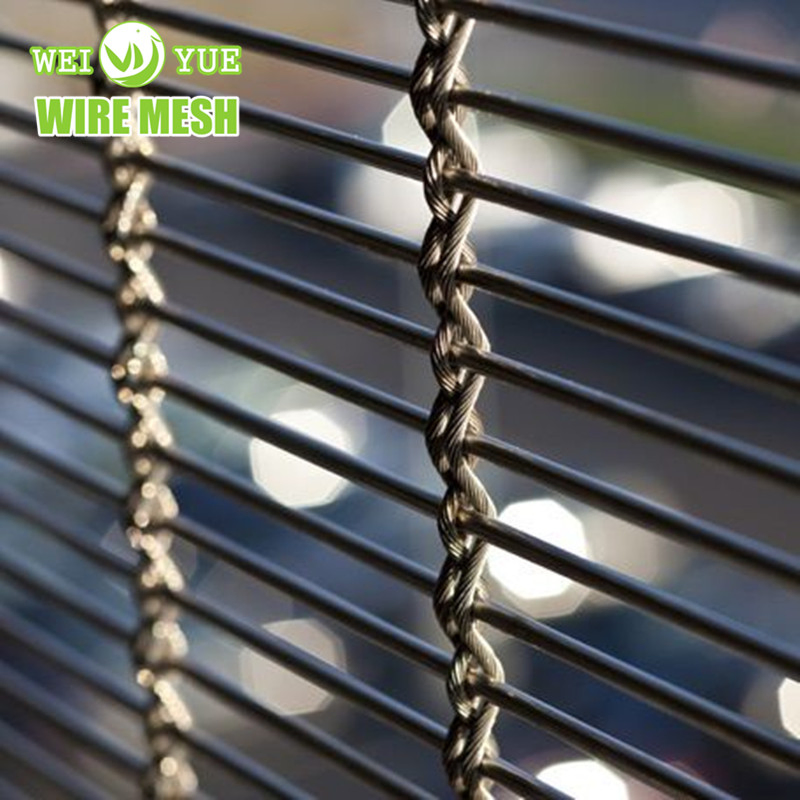

Cable Metal Mesh Details

Cable metal mesh is a combination of braided steel cables and steel rods. Typically, the warp wire consists of steel cables and the weft wire consists of steel rods.
Materials: Stainless steel (popular), aluminum, brass, and copper.
Vertical Dia: 0.5-2.5mm | Horizontal Dia: 1.5-8mm.

Case Reference & Technical Data

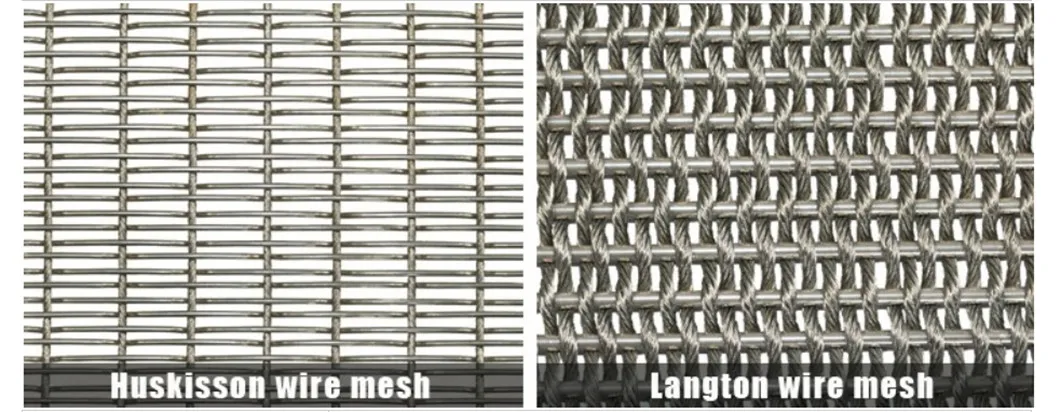

Case Reference
Product Name Material Rods/Wire Cable Open Area Weight
Huskisson Mesh Stainless Steel 316 4mm (Pitch 11mm) 3mm (Pitch 5mm) 25% 14.8 Kg/m2
Langton Mesh Stainless Steel 316 1.5mm (Pitch 3.5mm) 2mm (Pitch 17.5mm) 50% 5.2 Kg/m2

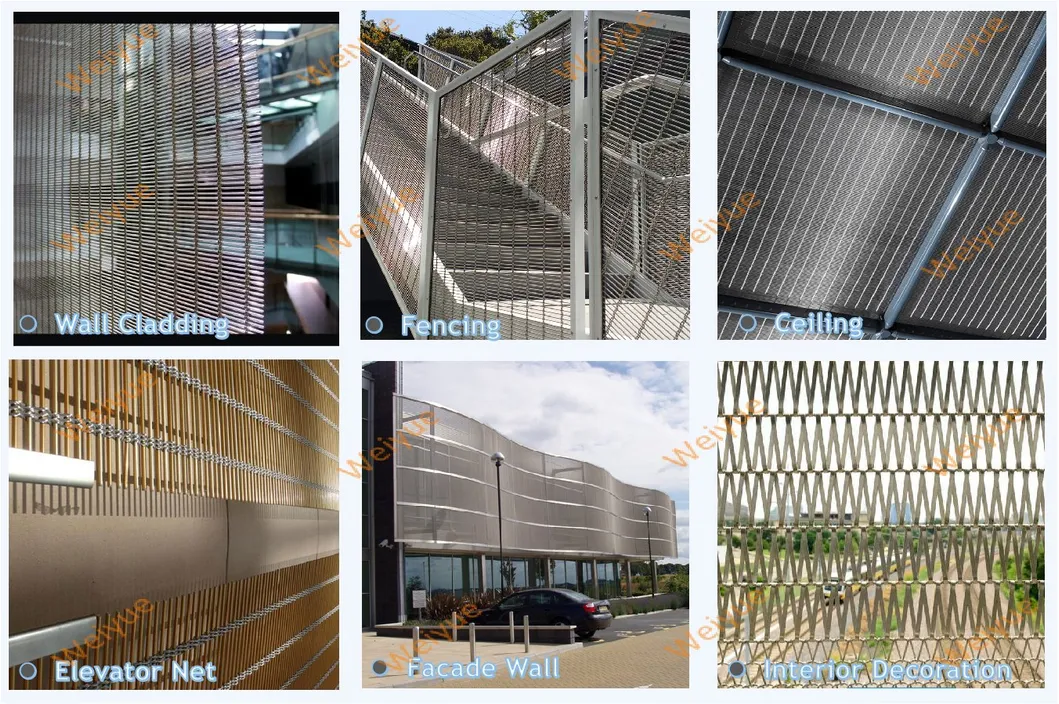

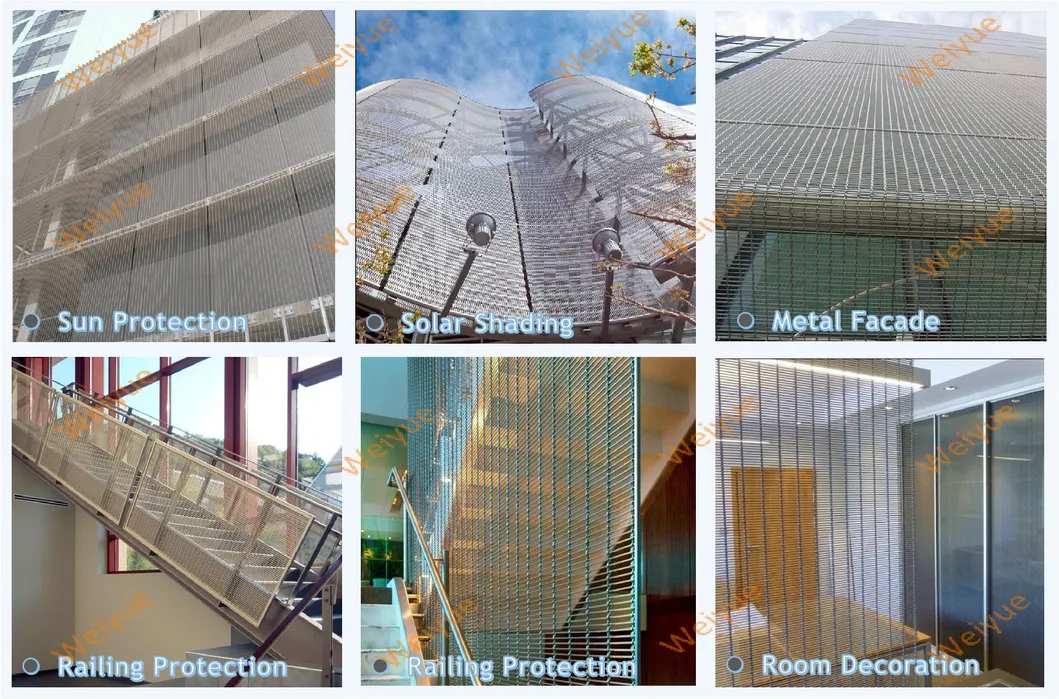

Product Applications

  • Space dividers and mesh curtains
  • Wall and ceiling decoration
  • Handrail balustrades and sunshades
  • Facade cladding and elevator cabins
  • Shop-exhibition stands and security doors
Application 1 Application 2

Common Specifications

Design Open Area Cable Dia. Cable Pitch Bar Dia. Bar Pitch Weight
140%1x1.8 mm4 mm1.5 mm5.5 mm7.74kg/m2
243%1x2.5 mm6 mm2 mm8 mm7.87kg/m2
362%2x2.75 mm40 mm4 mm14.5 mm9.41kg/m2
571%3x1.6 mm80 mm2.5 mm10 mm4.58kg/m2
1062%4x1 mm36 mm2 mm6.6 mm4.55kg/m2

Installation & Patterns

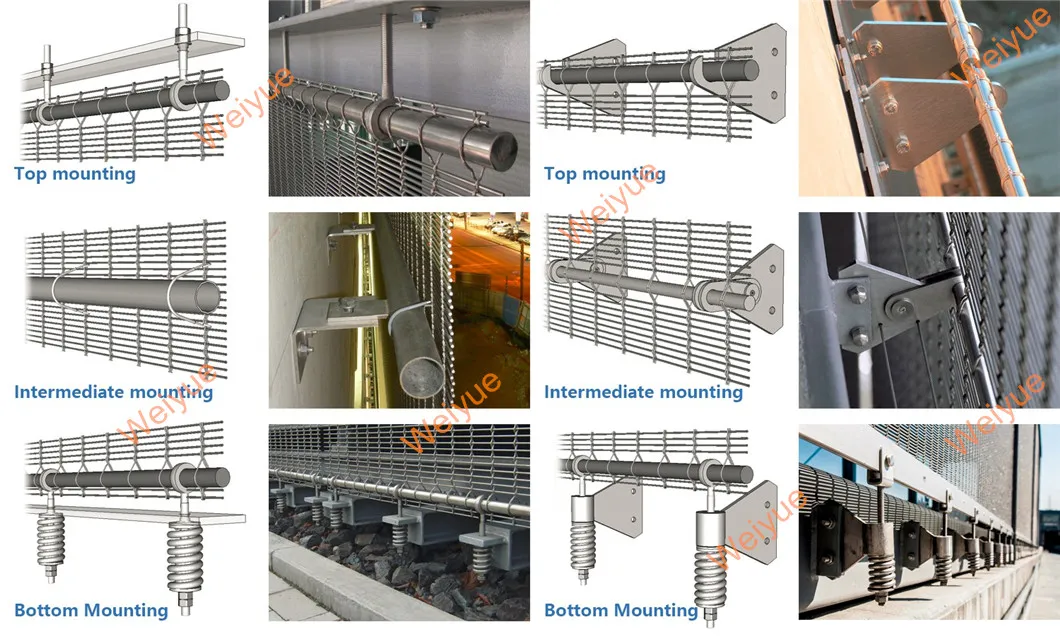

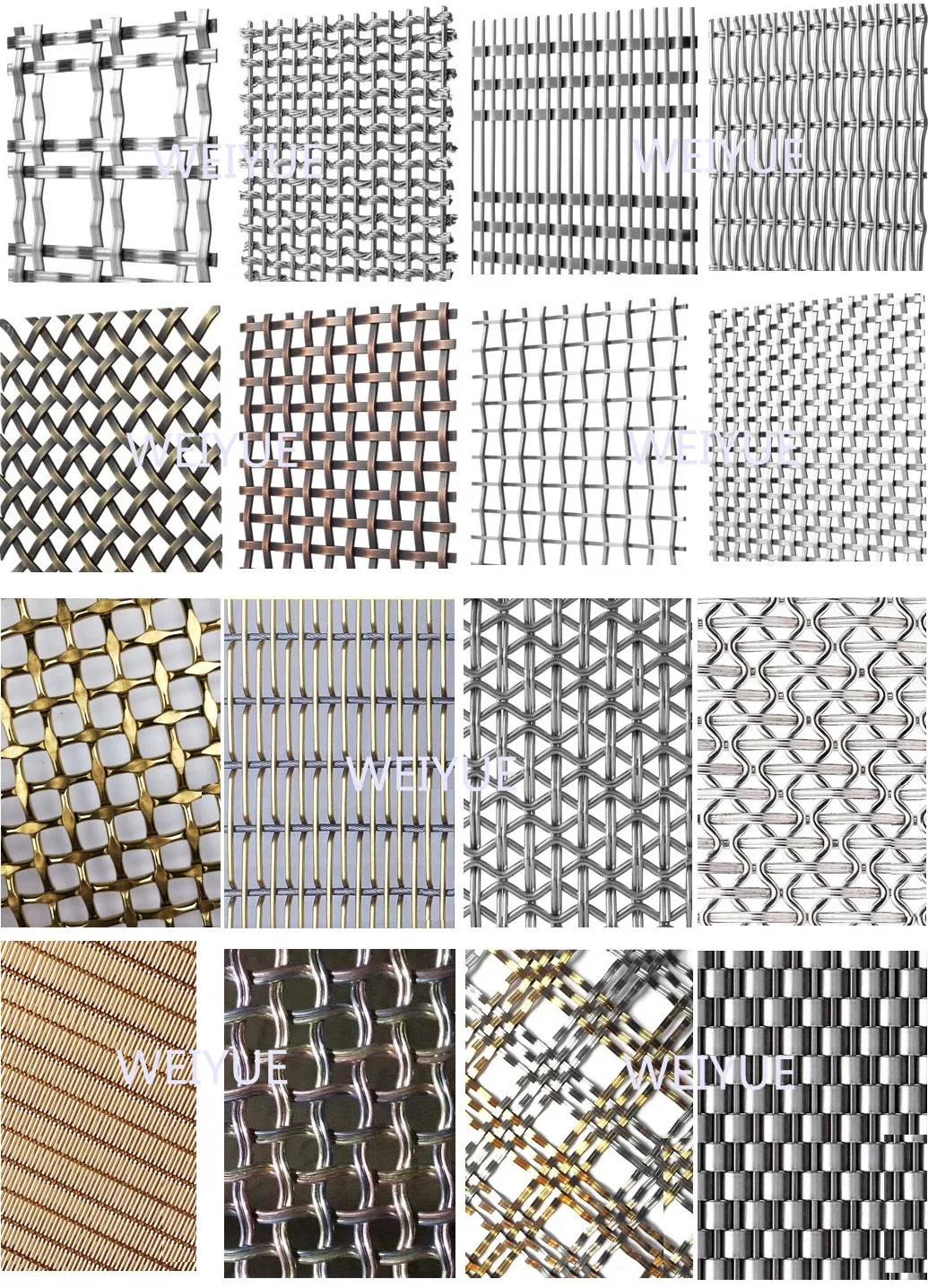

Installation Method Mesh Patterns

Frequently Asked Questions

1. How do I inquire about metal mesh curtains?
Please provide the material, aperture diameter, wire diameter, cable pitch, and quantity. Any special requirements for surface treatment should also be mentioned.
2. Can you provide samples for testing?
Yes, samples can be provided for quality testing and can be customized to meet your specific sample requirements.
3. Is there a Minimum Order Quantity (MOQ)?
There is no strict minimum order quantity; we aim to support projects of all sizes.
4. What is the standard export packing?
Commonly, we use waterproof paper inside and wooden cases outside. Roll products may be wrapped in shrink film and woven bags.
5. How do you ensure production delivery on schedule?
Production is arranged immediately upon order receipt. Our daily capacity of 1000m2 ensures timely delivery.
6. Is there quality control during manufacturing?
Yes, all products undergo multiple checks throughout the manufacturing process to meet international standards.
