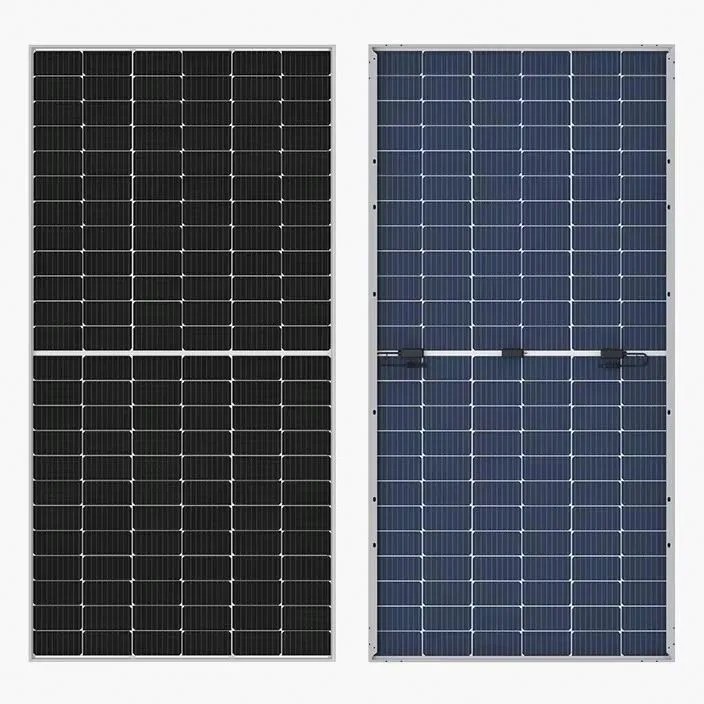

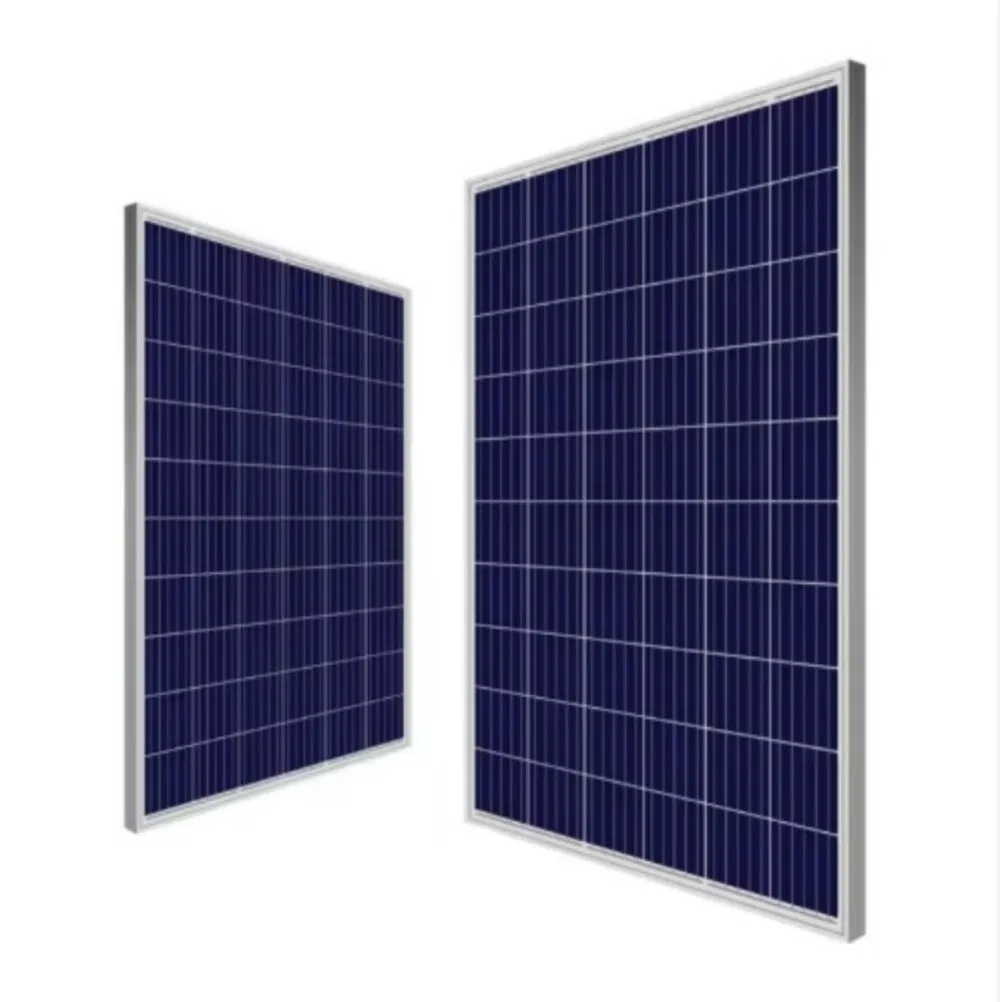

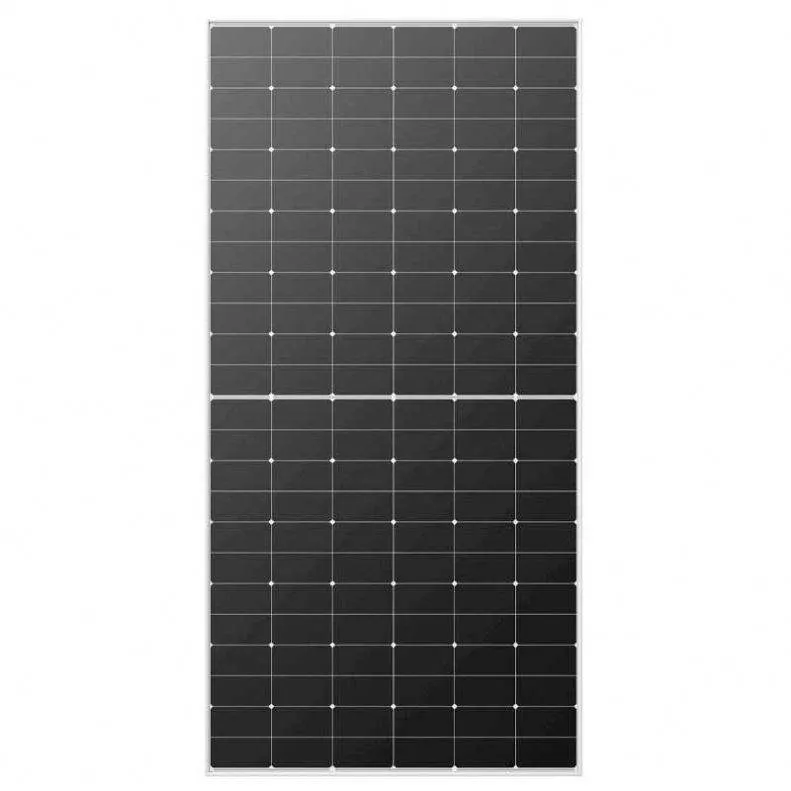

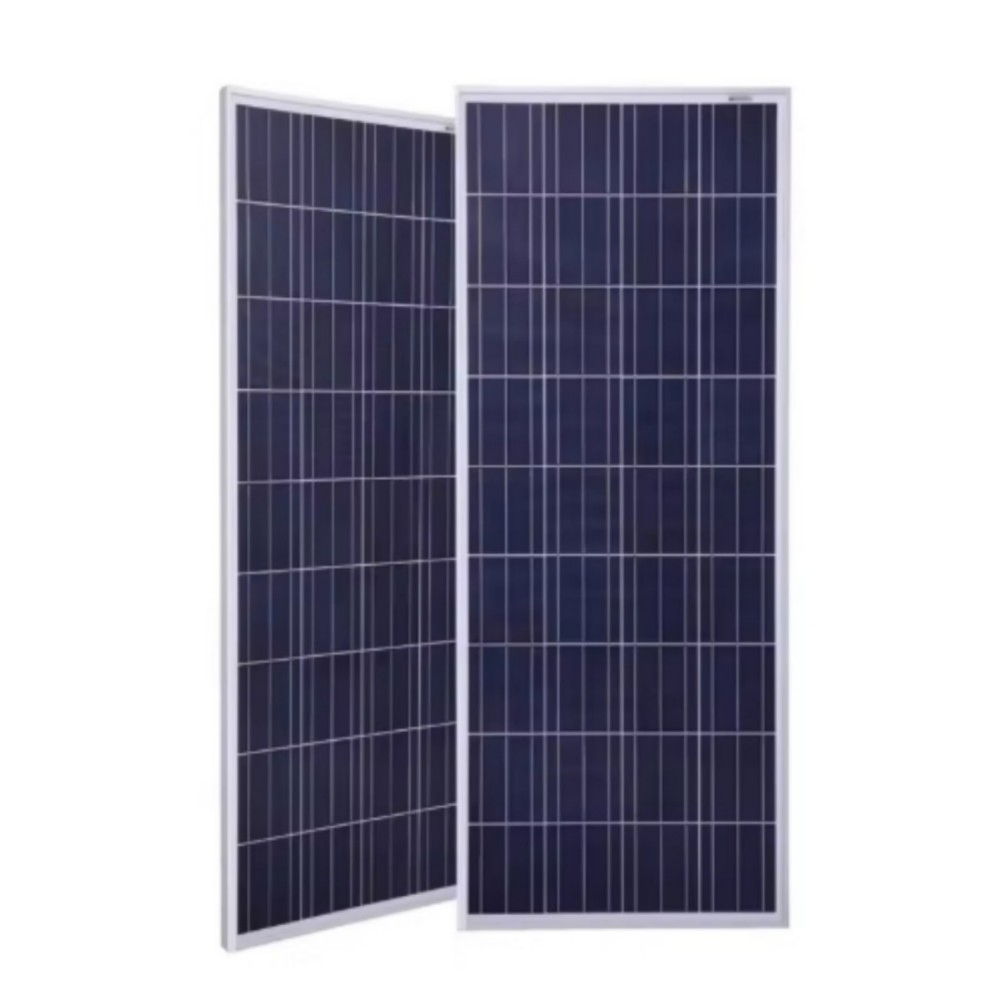

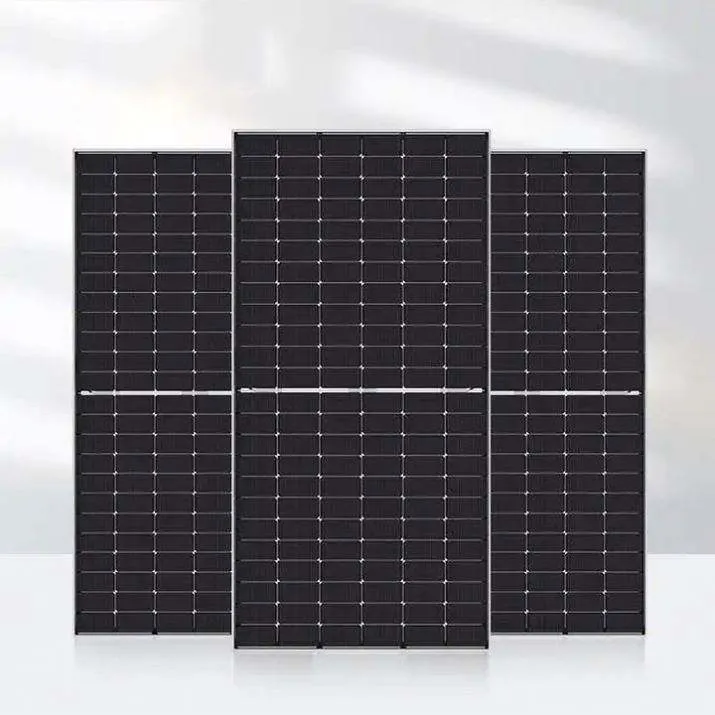

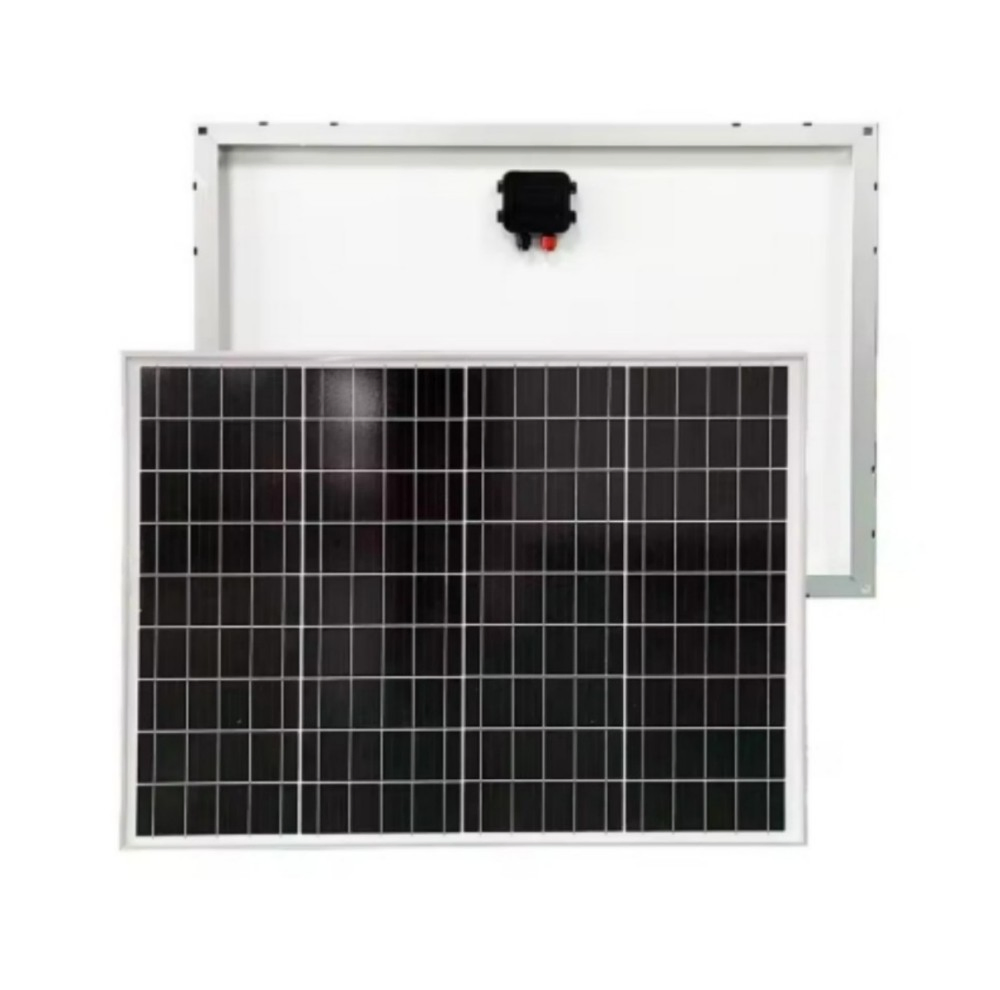

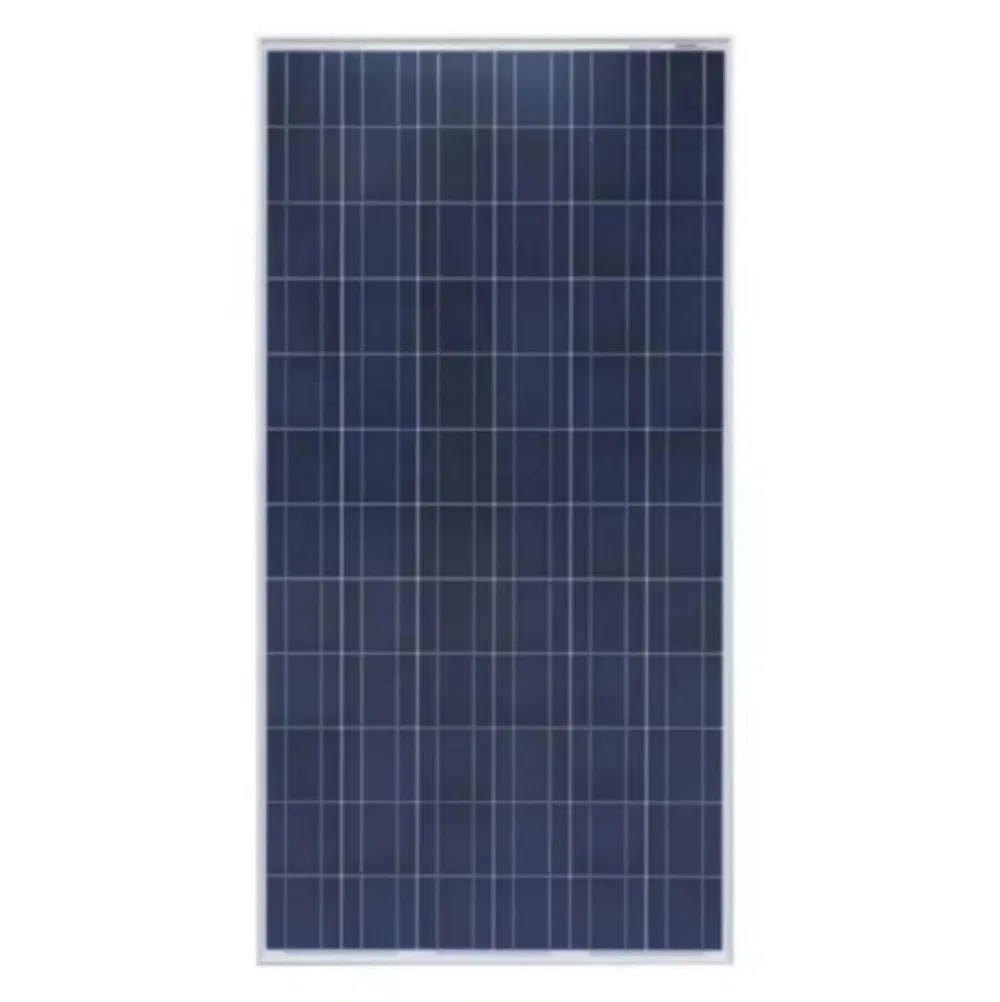

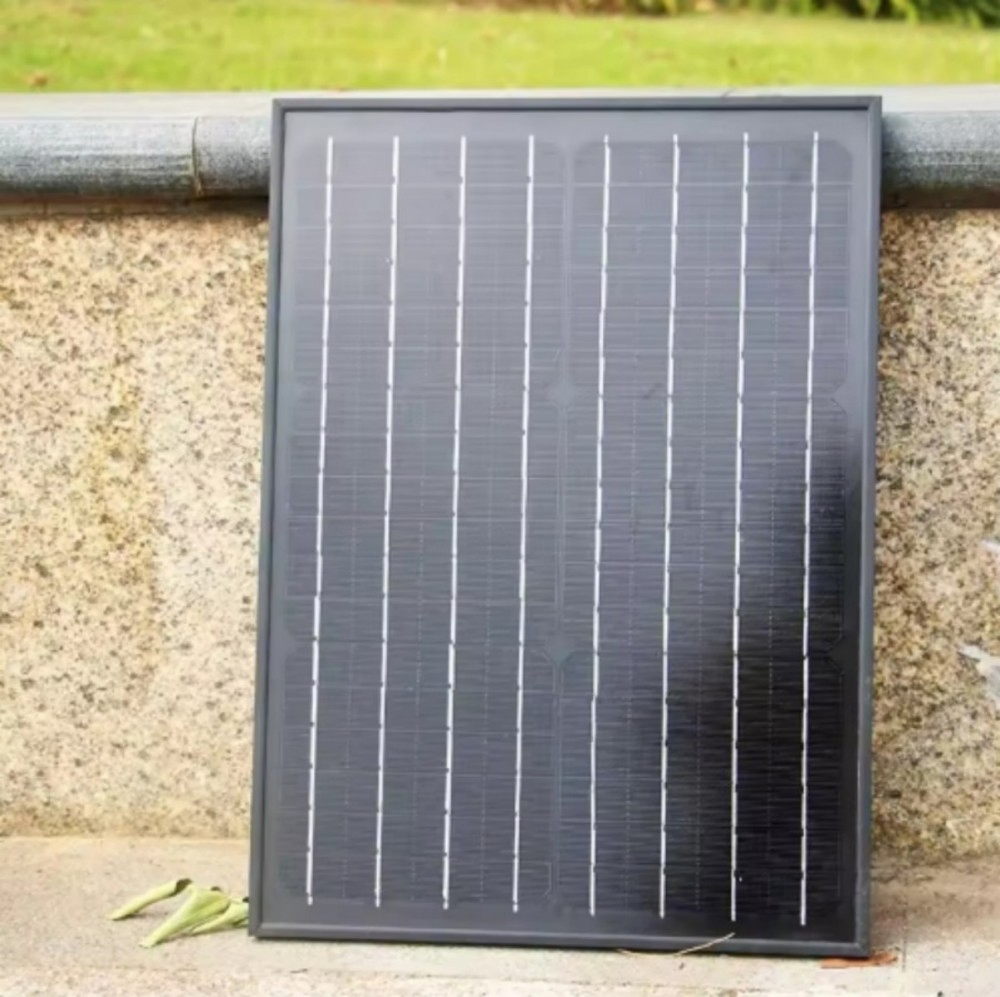

To produce a monocrystalline silicon cells, absolutely pure semiconduction material is necessary. Monocrystalline rods are extracted from melted silicon and then sawed into thin plates. This production process guarantees a relatively high level of efficiency silicon and makes monocrystalline panels one of the most efficient, producing smaller solar cells, and therefore smaller panels. Monocrystalline works very well in bright cool conditions.
| ELECTRICAL Characteristics | |||||
| Maximum Power-Pmax(w) | 100 | 110 | 120 | 130 | 140 |
| Open Circuit Voltage-Voc(V) | 20.60 | 21.23 | 21.60 | 21.95 | 23.16 |
| Short Circuit Current-Isc(A) | 5.94 | 6.41 | 6.87 | 7.21 | 7.46 |
| Maximum Power Voltage-Vmpp(V) | 17.82 | 18.15 | 18.48 | 19.08 | 19.80 |
| Module Efficiency(%) | 18.80 | 20.70 | 22.69 | 21.30 | 20.30 |
| Temperature Characteristics | |||||
| Operating Temperature | -40 to +85ºC | ||||
| NOCT | 45±2ºC | ||||

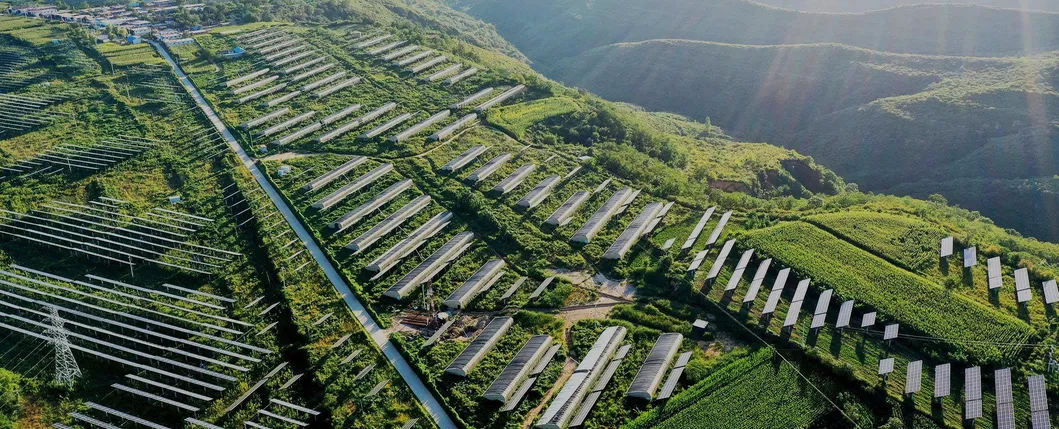

Grid-friendly and environmentally optimized. Applications include large-scale flat terrain plants, mountainous terrain solutions, and floating photovoltaics (floatovoltaics) for water surfaces.
Solar PV pairs with high-energy-consuming enterprises to meet demand and power green hydrogen production, helping companies achieve global decarbonization goals.

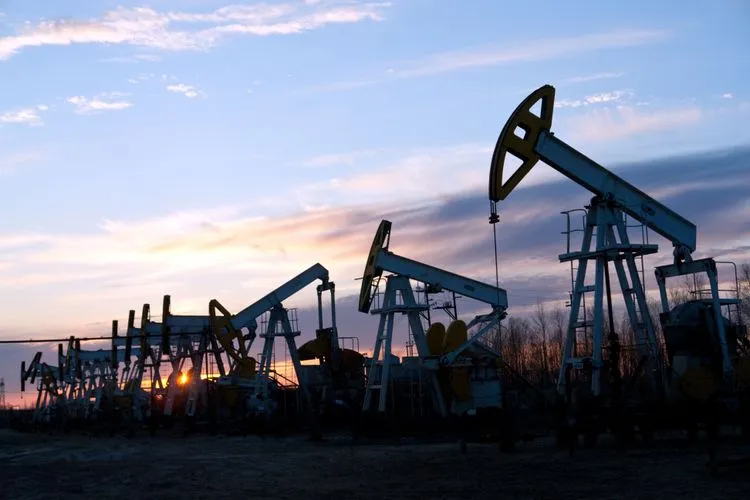

Helping petroleum enterprises become greener. Reduce energy consumption, improve regional environmental public service levels, and lower long-term operating costs.

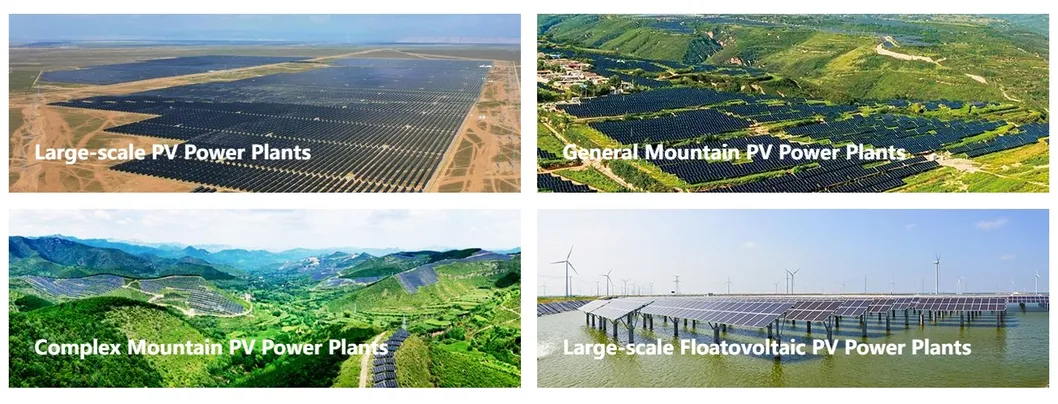

Depending on construction sites and methods, we provide tailored solutions for mountainous, large-scale, and floating PV power plants.
