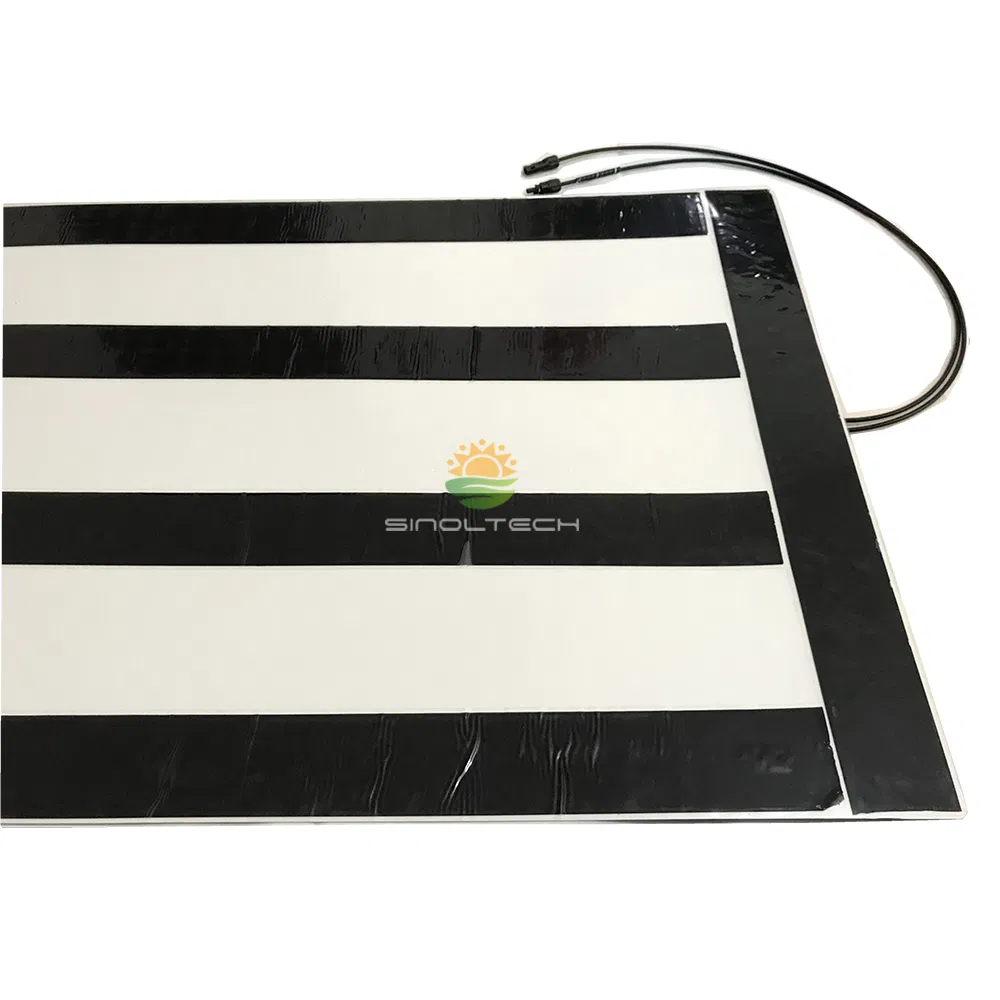

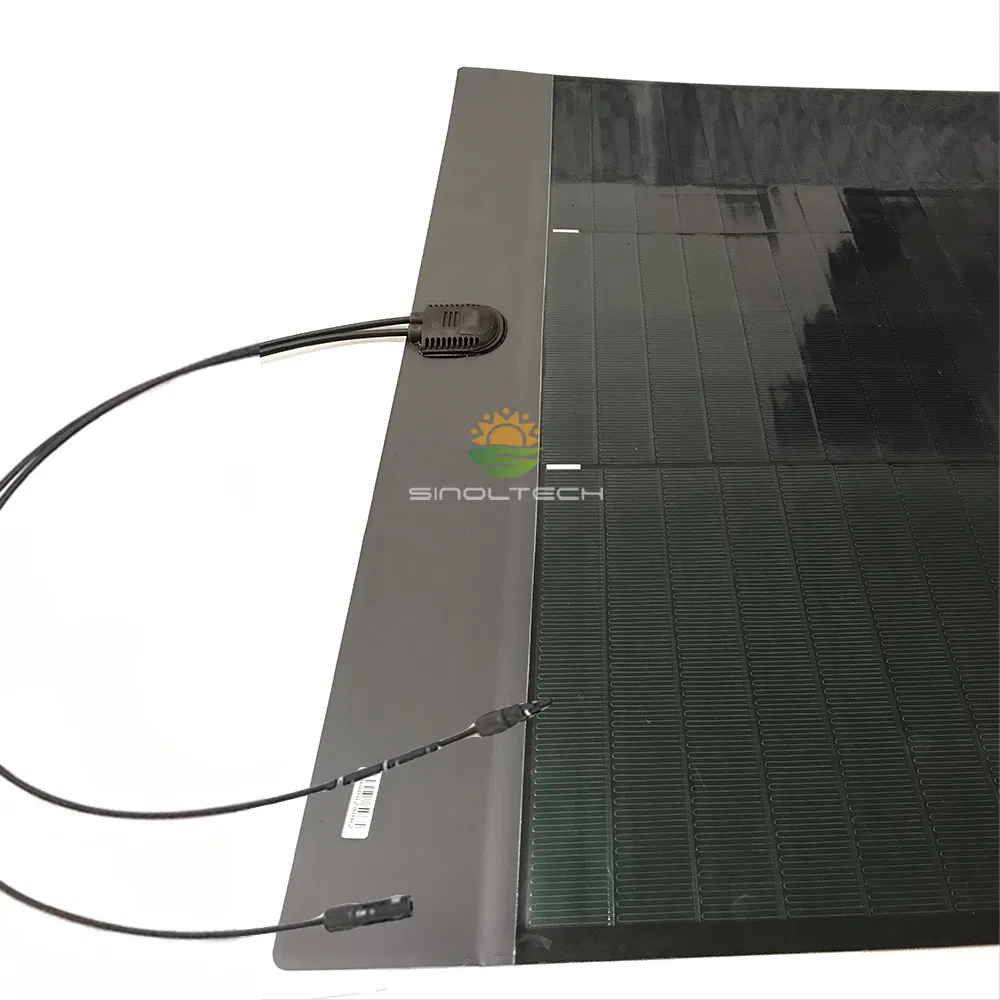

210W CIGS Flexible Solar Panel (Flex-03M-1.7M)

Basic Specifications

Model NO.

Flex-03M-1.7M

Number of Cells

1

Application

Light Industry

Certification

CE

Material

Amorphous Silicon

Capacity Rating

210W

Module Efficiency

14.2%

Max Power Voltage

18.1V

Max Power Current

11.6A

Length

1710mm

Width

973mm

Weight (w/o Adhesive)

3.4 Kg

Product Description

210W CIGS Flexible Solar Panel (Flex-03M-1.7M)

Technology: Our flexible solar panel adopts CIGS technology, which has an aperture efficiency as high as 17%, rivaling that of rigid glass panels.

General Production Process: We begin with high-grade stainless steel foil and use an advanced semiconductor deposition process, PVD, to produce the most controlled, stable, and powerful flexible stainless steel CIGS cell in the world. The transparent water barrier is key to the longevity of the Flexi module series.

⚖️ Light Weight: Less than 2.4 kg/m². Ideal for building structures with low dead load and environmental limitations (such as snow). Perfect for autos, trucks, and RVs.

⚡ Powerful: Highest efficiency flexible thin-film CIGS modules in production, providing over four times the power generation per kilogram of silicon.

🛠️ Easy Installation: Peel-and-stick application eliminates penetrations, reducing the chance of leaks and lowering balance-of-systems (BOS) costs.

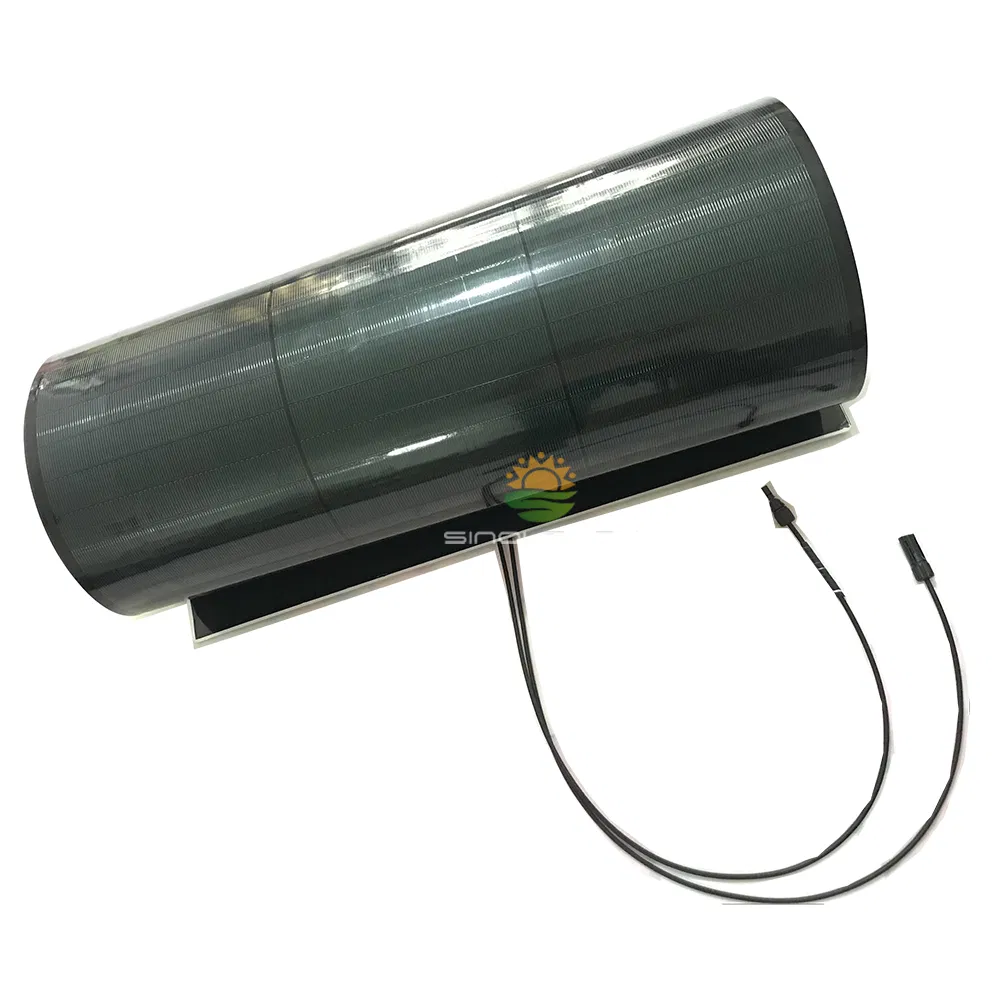

🔄 Flexible: Conforms to curved surfaces, enabling power generation on surfaces not suited to traditional rigid panels.

Key Features

✔ Record efficiency levels in a flexible form factor
✔ Low installed weight at less than 2.4 kg/m2
✔ No penetrations, ballast or racking required
✔ Bypass diodes reduce PV system shading losses
✔ Directly bonds to many approved surfaces

Technical Parameters

Capacity rating	Pmax	210W	220W	230W	240W
Module Efficiency	%	14.2%	14.9%	15.6%	16.3%
Max Power Voltage	Vmpp	18.1V	18.8V	19.4V	20.0V
Max Power Current	Impp	11.6A	11.8A	11.9A	12.0A
Open Circuit Voltage	Voc	23.2V	23.7V	24.2V	24.7V
Short Circuit Current	Isc	14.0A	13.9A	13.7A	13.6A

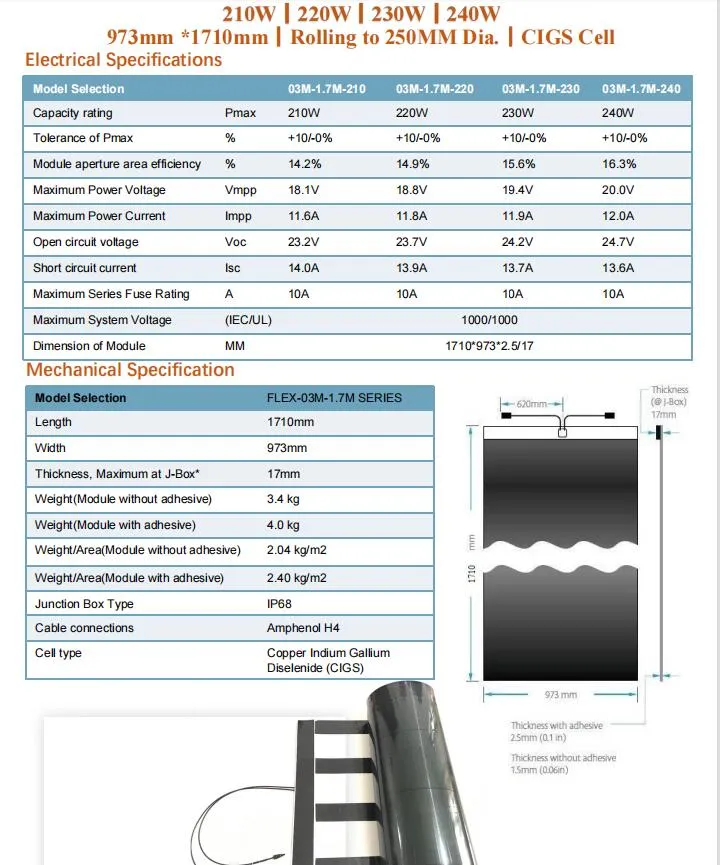

210W CIGS Flexible Solar Panel Data Sheet

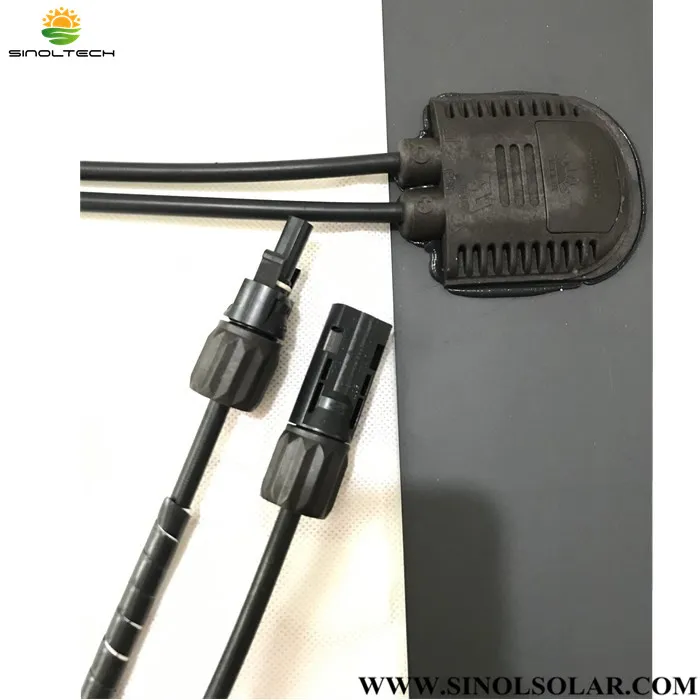

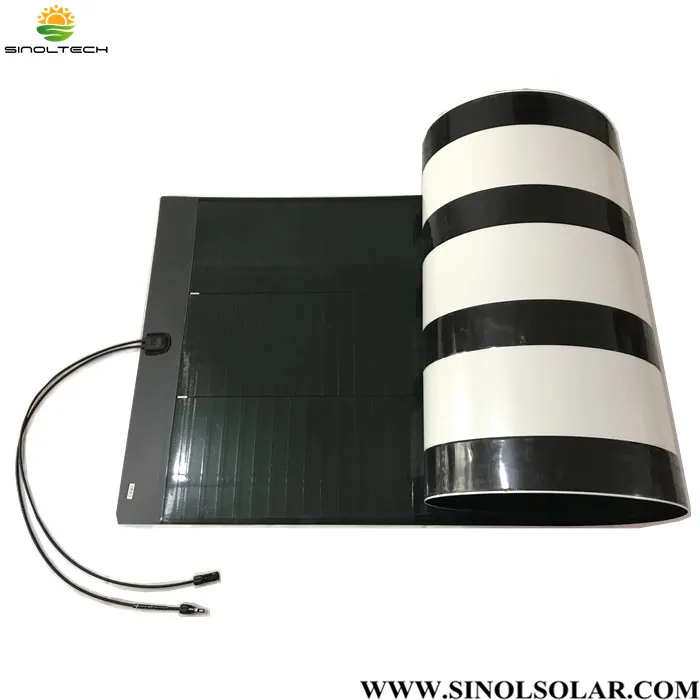

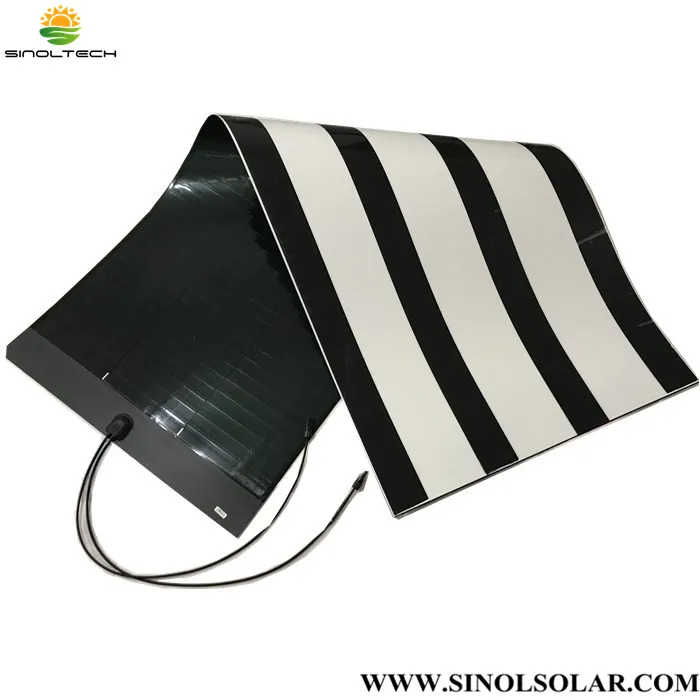

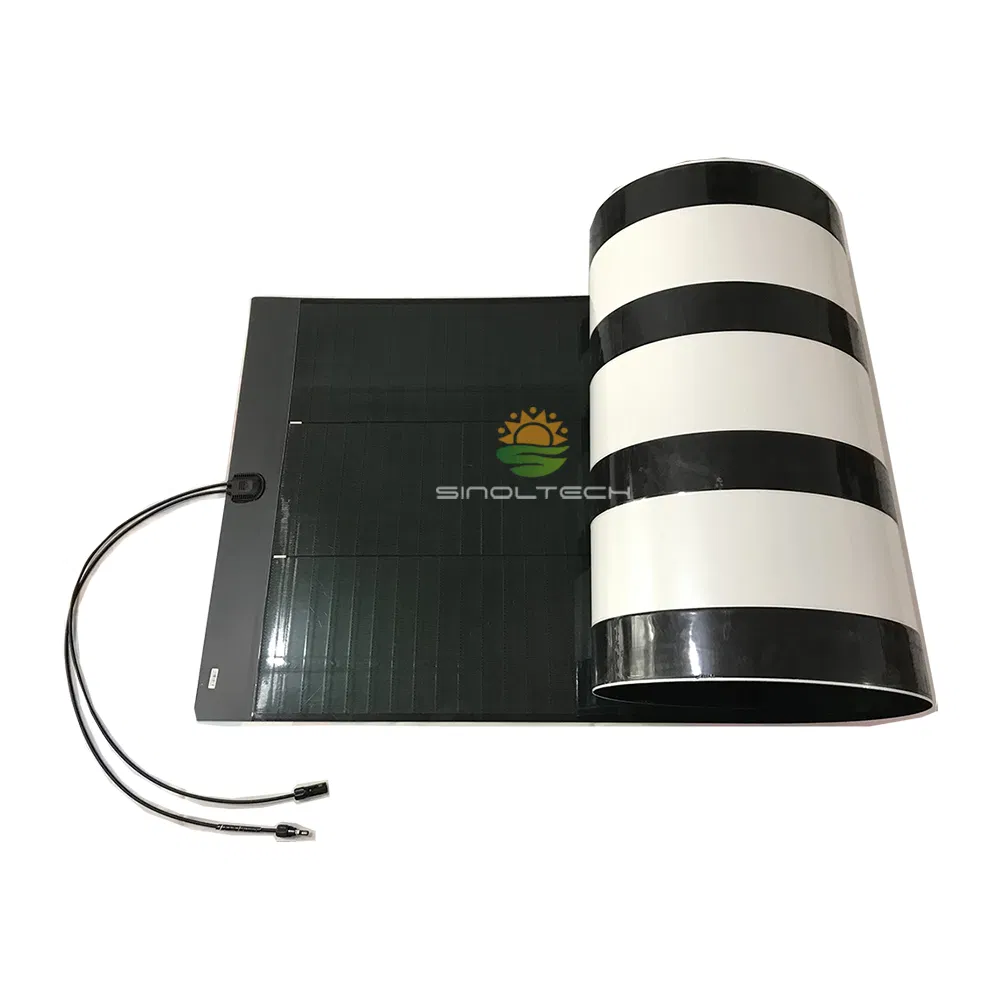

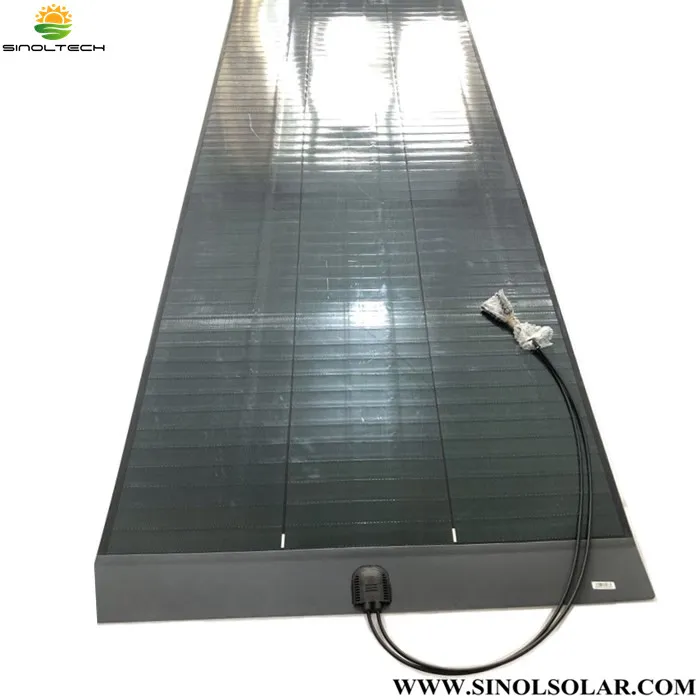

Product Showcase

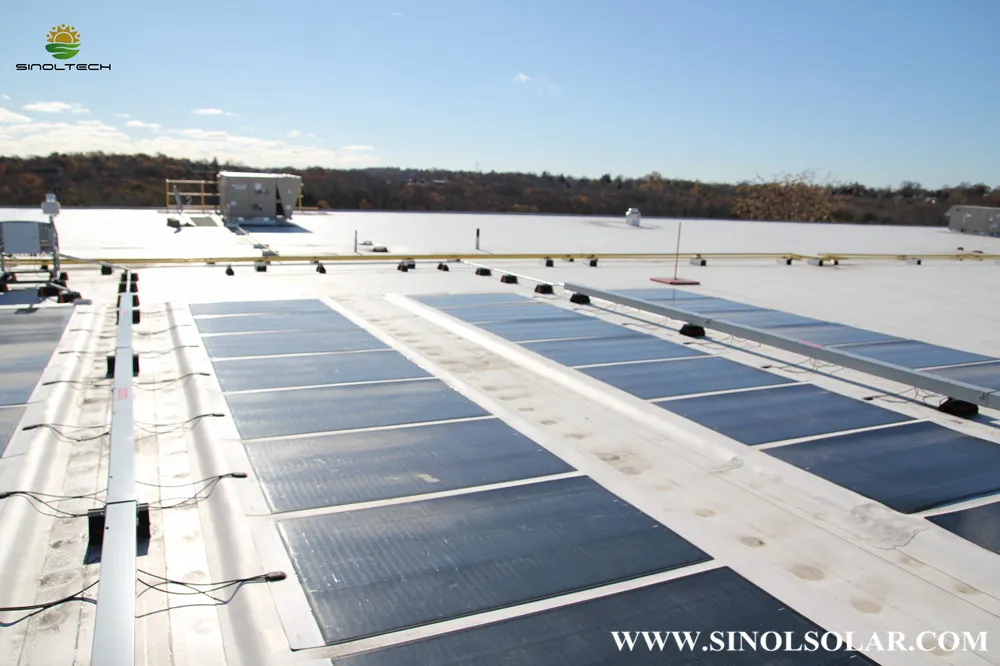

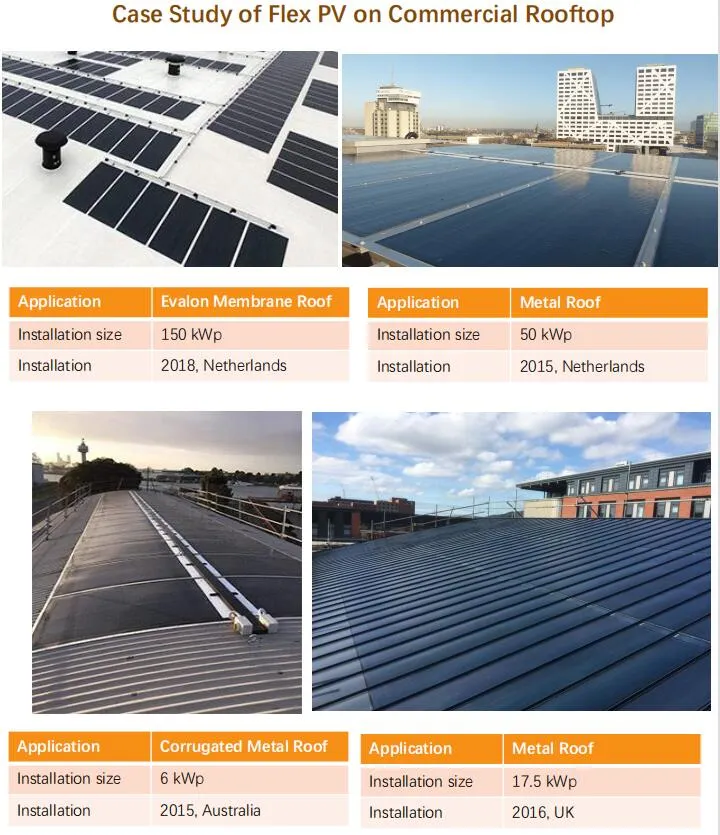

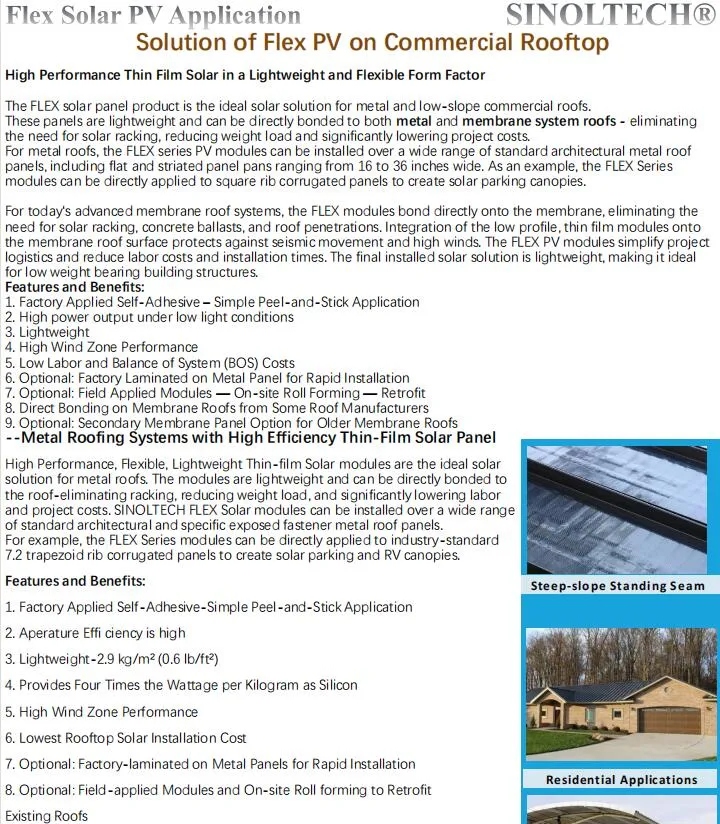

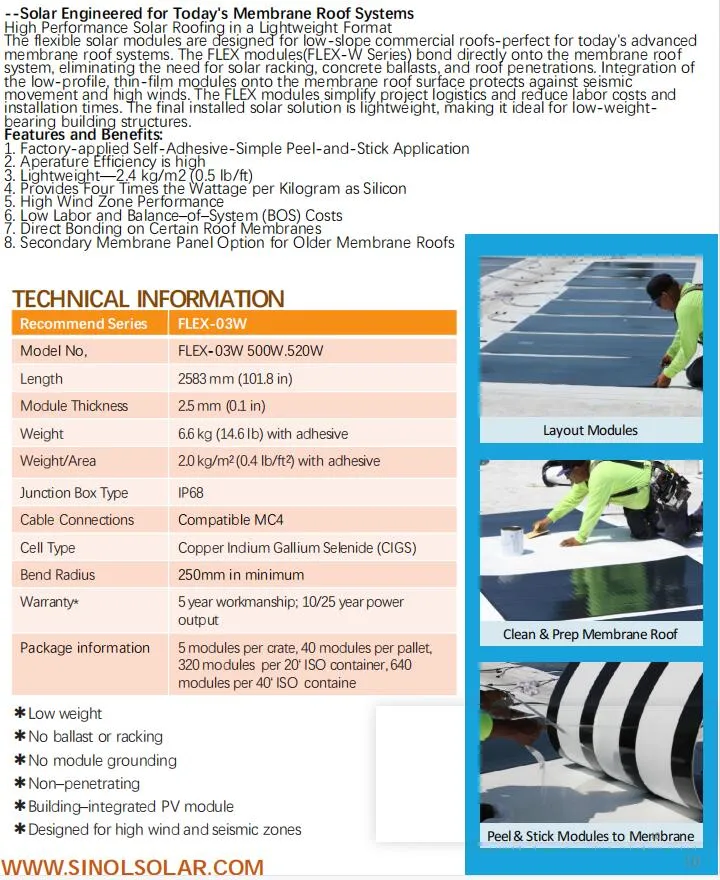

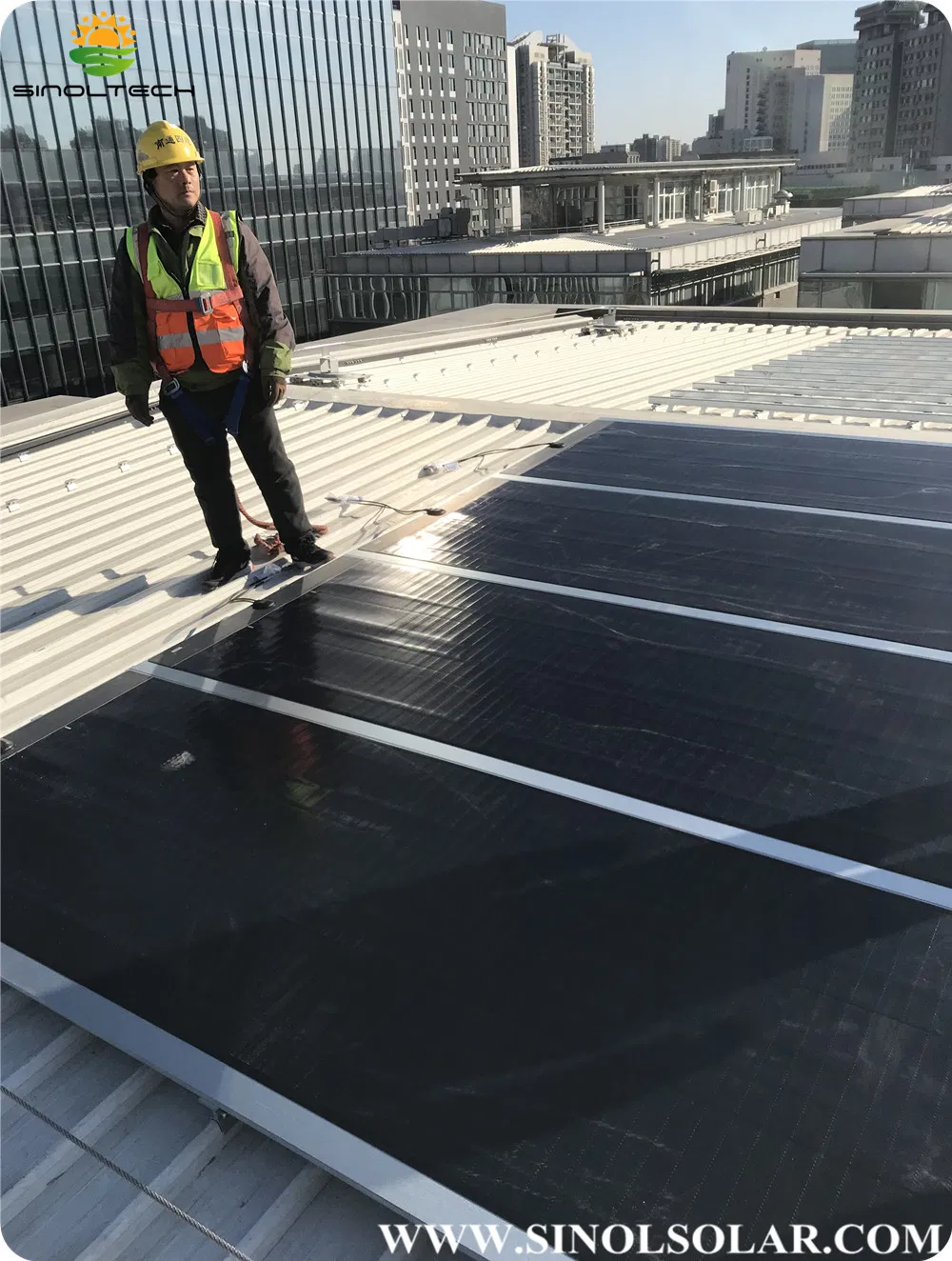

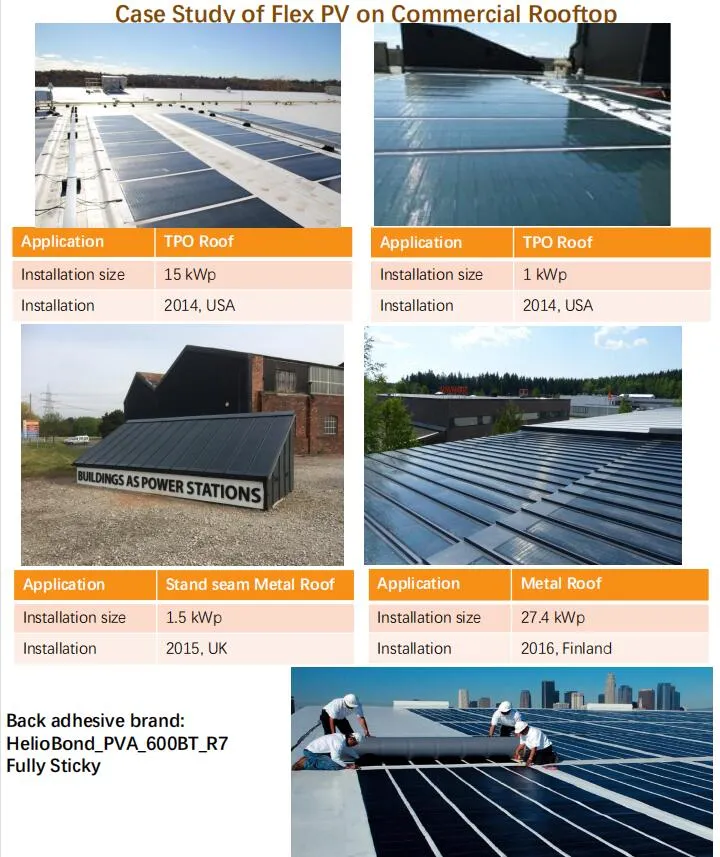

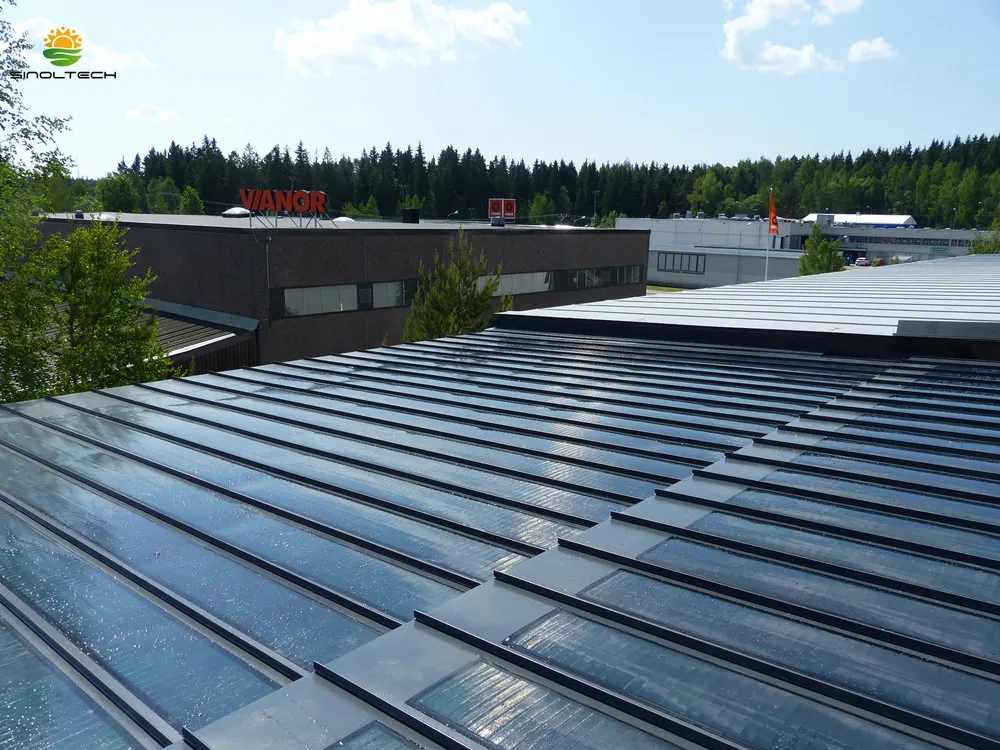

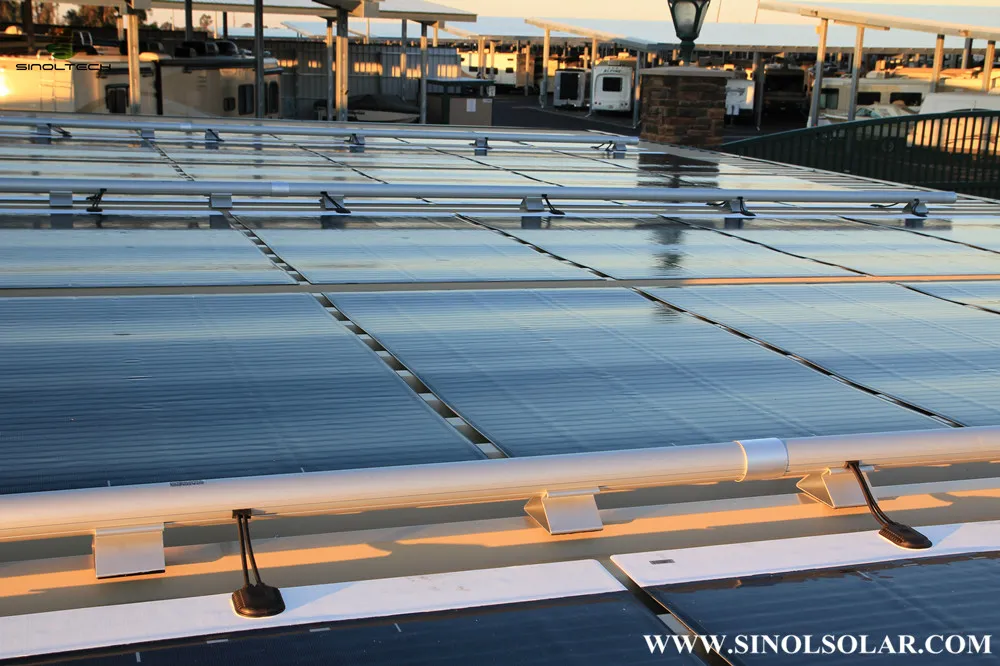

Application Cases

Frequently Asked Questions

What are the advantages of CIGS technology?

CIGS (Copper Indium Gallium Selenide) provides high efficiency in a thin-film format, offering better performance in low-light conditions and superior flexibility compared to traditional crystalline silicon panels.

How do I install these flexible panels?

The panels feature a peel-and-stick adhesive backing, allowing them to be directly bonded to many approved surfaces without the need for racking, ballast, or roof penetrations.

Are these panels durable enough for extreme weather?

Yes, they are highly resistant to wind and seismic hazards. Being shatterproof and flexible, they won't break like glass panels if struck by debris or subjected to vibration.

Can these be used on curved roofs?

Absolutely. FLEX modules are designed to conform to curved surfaces, making them ideal for RVs, trucks, and architectural structures with non-flat surfaces.

How light is the 210W flexible solar panel?

The module weighs approximately 3.4 kg without adhesive, which translates to less than 2.4 kg/m², making it perfect for weight-sensitive installations.
