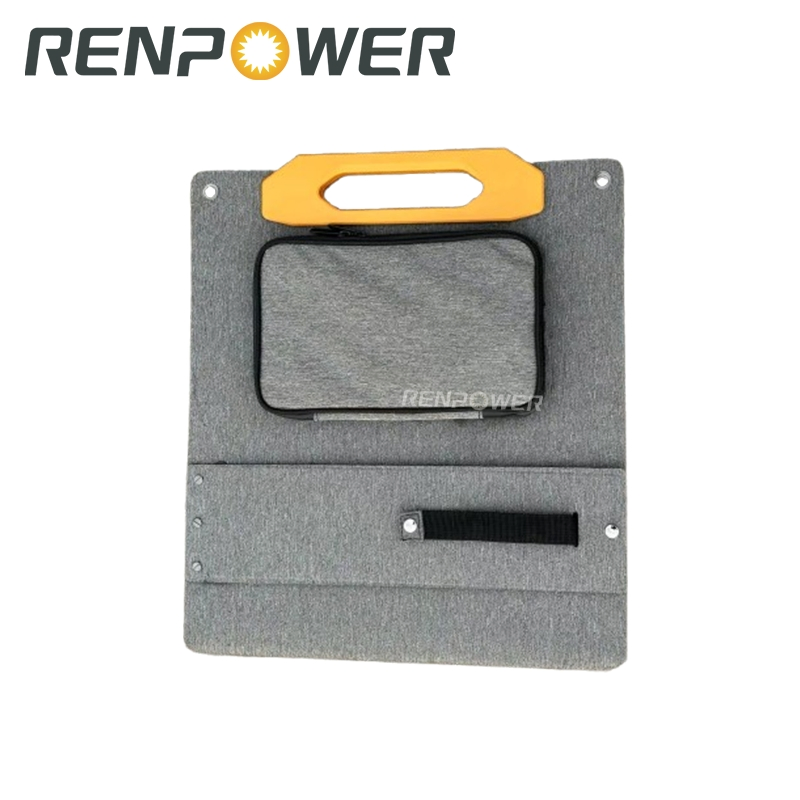

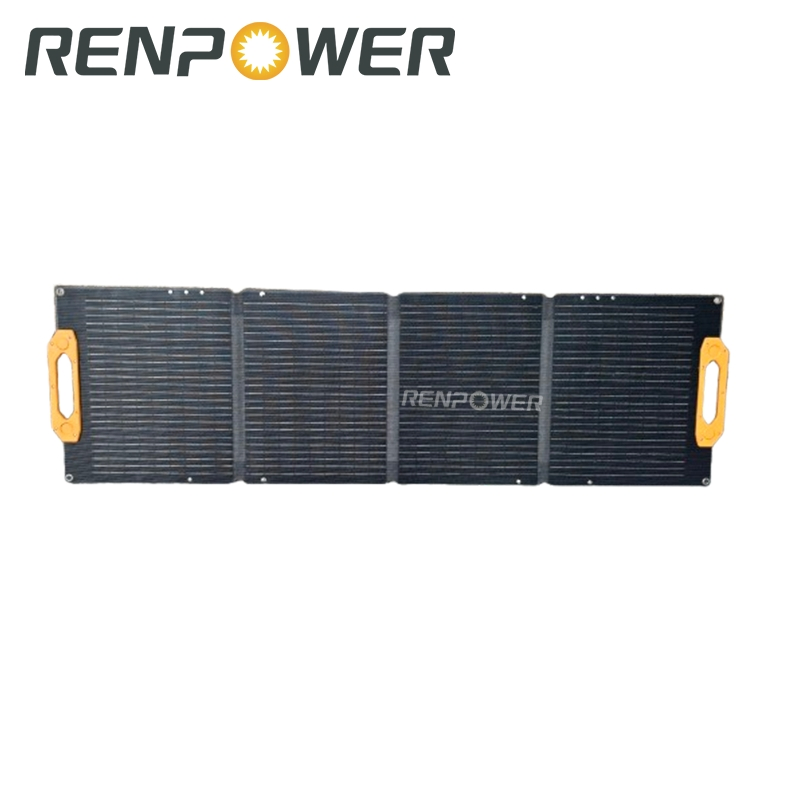

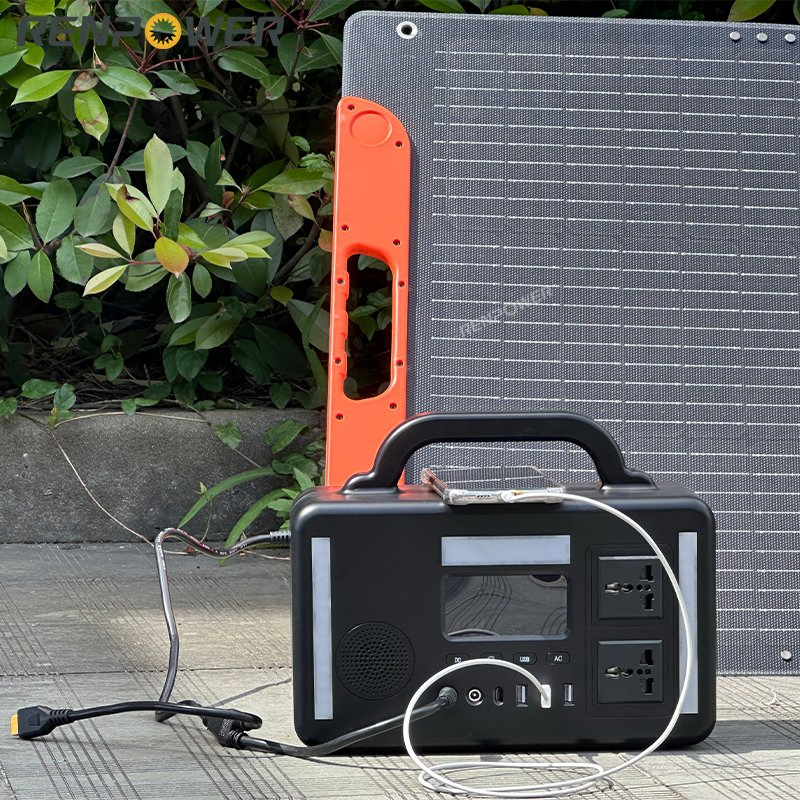

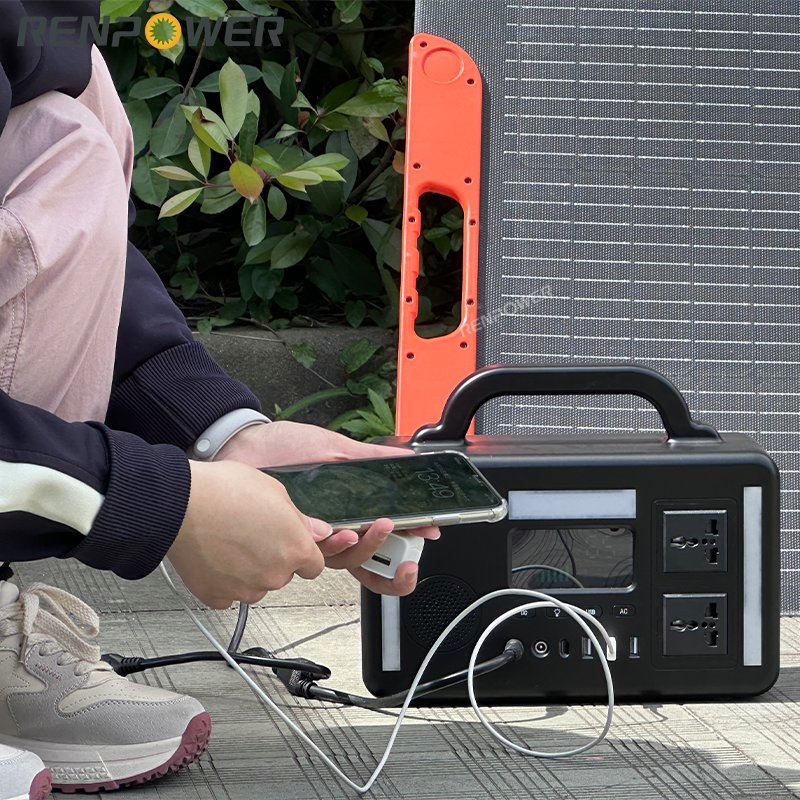

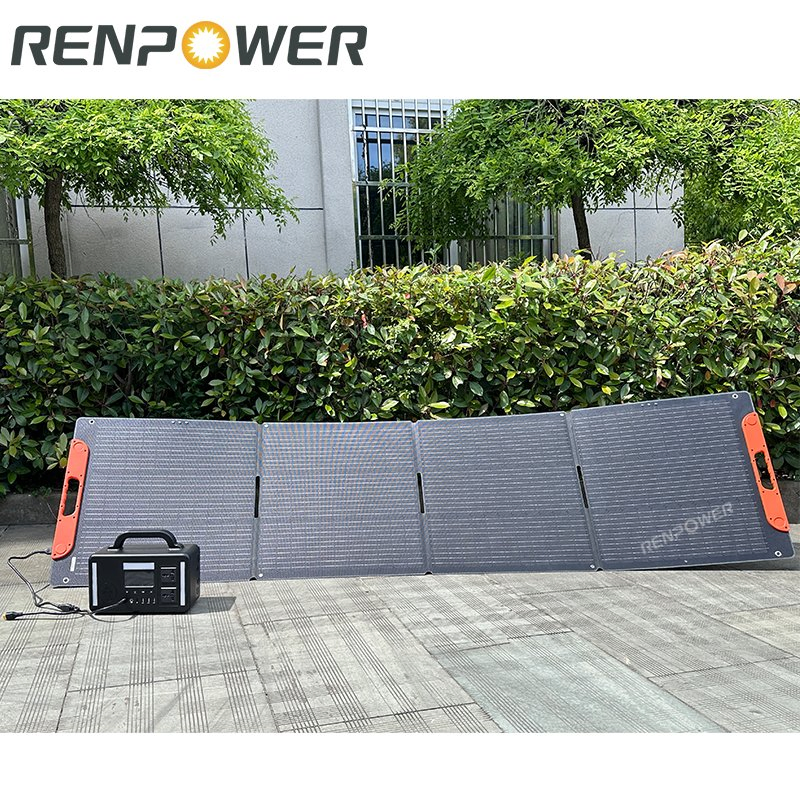

Power Customerized 200W Portable and Foldable Solar Panel Charger Solar Blanket

Product Overview

Application

Solar Energy

Condition

New

Certification

ISO, CE, TUV

Material

HPBC

Power

200W

Working Voltage

17.228V

Working Current

11.61A

Voc

21.98V

Isc

12.59A

Weight

8.1kg

Output

XT60

Transport Package

Carton Box

Specification

600*625*45mm

Product Description

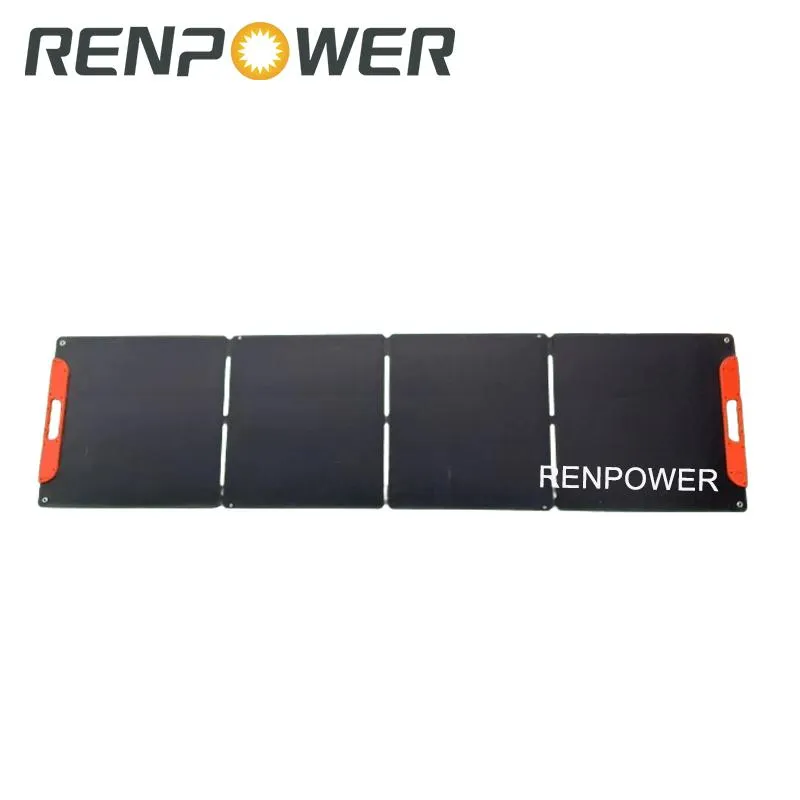

200W IP67 Waterproof Foldable Solar Panels for Power Station Generator

HPBC NEW TECHNOLOGY INTEGRATED FOLDABLE SOLAR PANEL

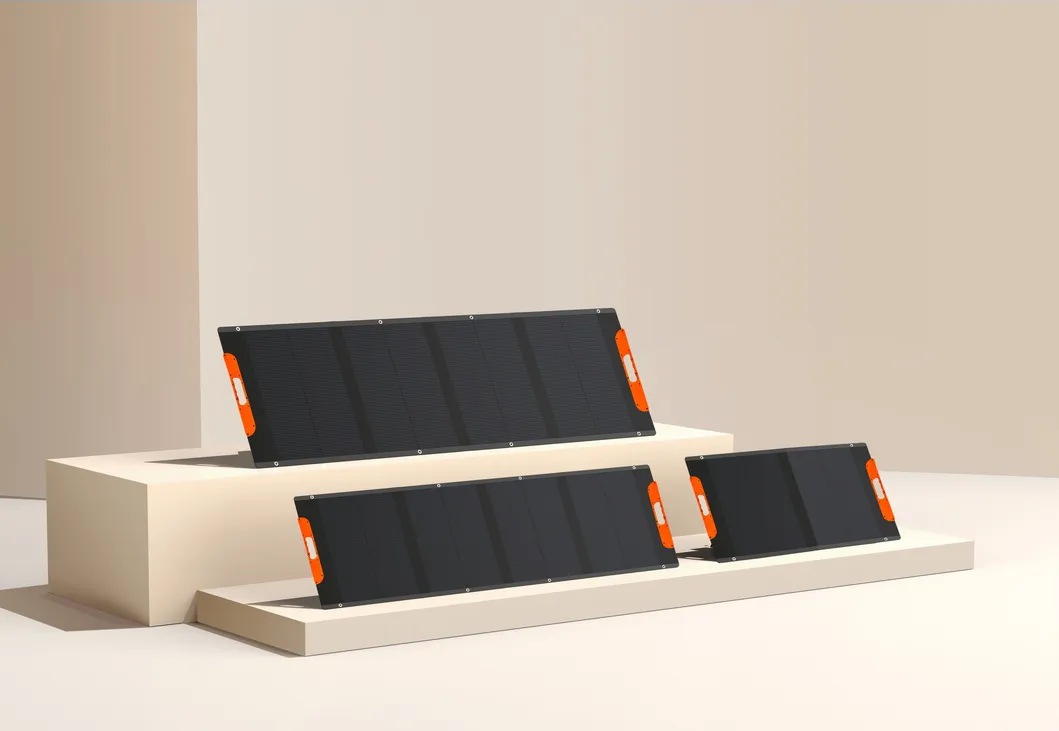

Detailed Specifications

OUTPUT POWER (W)	WORKING VOLTAGE (VMP)	WORKING CURRENT (IMP)	DIMENSIONS (FOLDED) (MM)	DIMENSIONS (UNFOLDED) (MM)	VOC	ISC	WEIGHT (KG)
10W	5V	2A	15524722	31224718	-	-	0.25KG
20W	3-12V	7.61A	20537820	41537717	-	-	0.65KG
30W	3-12V	9.8A	20037326	59837316	-	-	0.9KG
120W	19.42V	6.18A	60038445	141760030	24.22V	6.67A	5.2KG
200W	17.228V	11.61A	60062545	238360030	21.98V	12.59A	8.1KG
400W	17.96V	22.4A	86567560	268885630	22.2V	24.3A	16.1KG

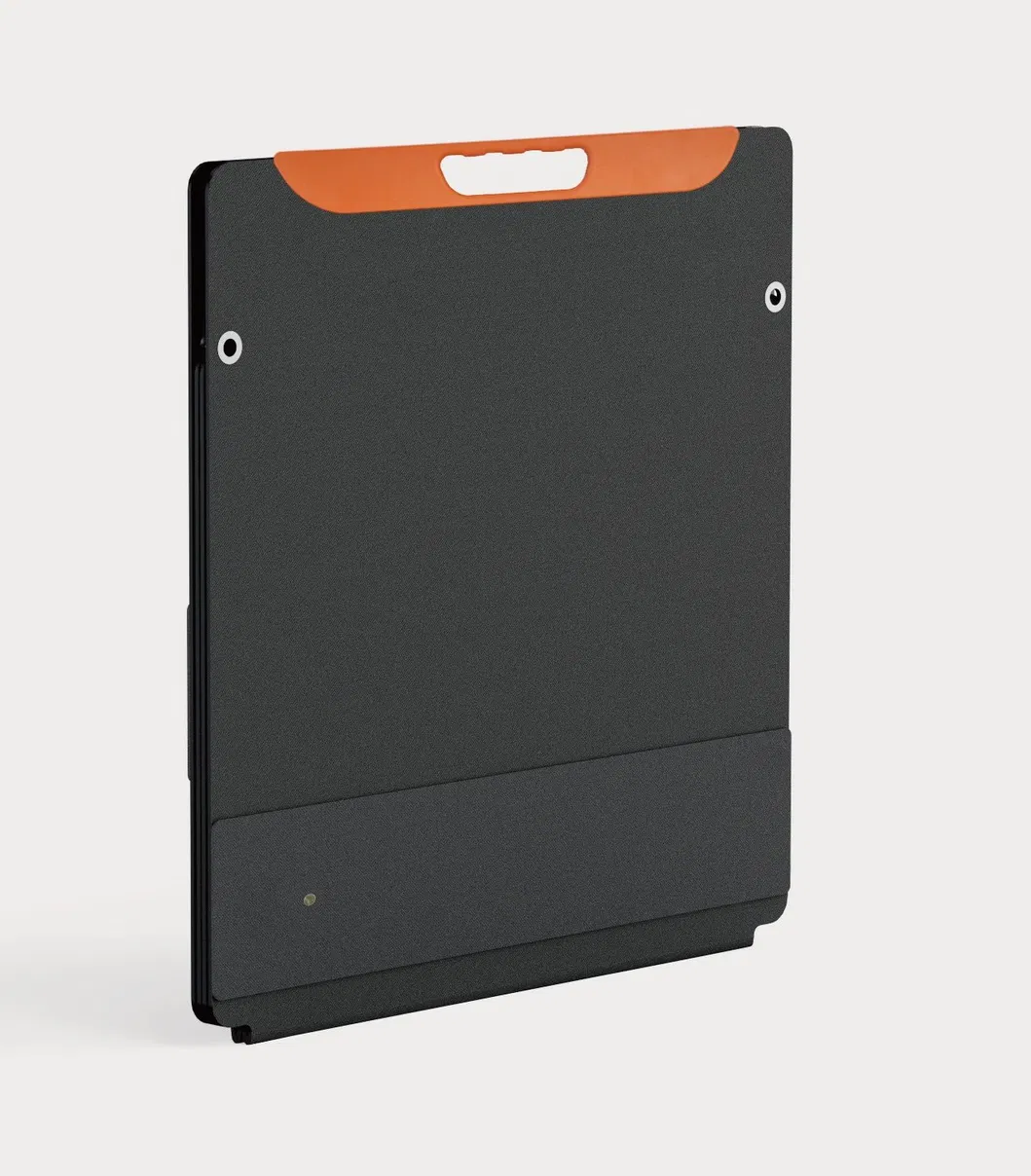

1Convenient Carrying

20% lighter and smaller than comparable solar panels. The foldable design allows it to be foldable up tightly and carried on your off-grid system.

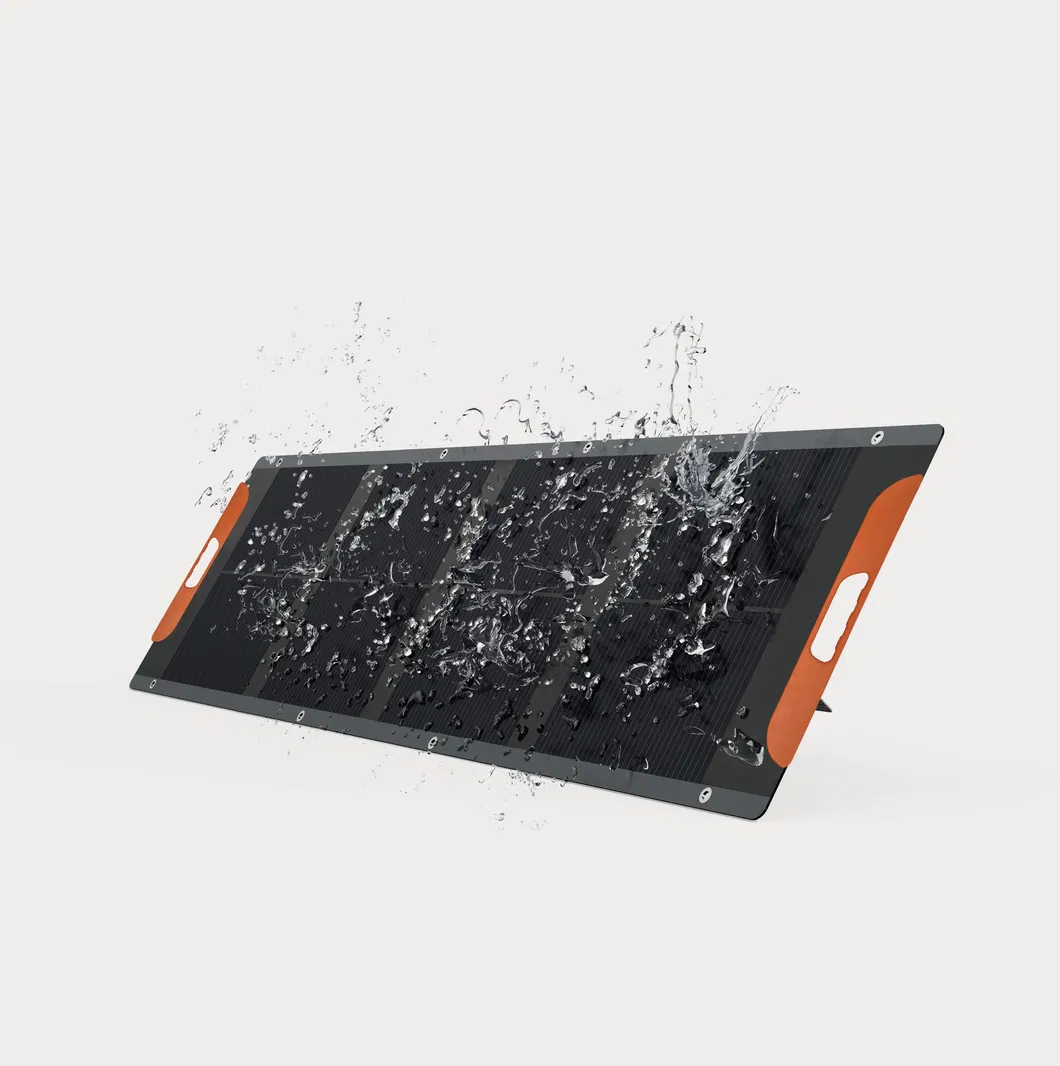

2Built to Last

The ETFE-laminated case ensures the solar panel is durable and long lasting. Additionally the IP67 Waterproof Rating allows it to withstand harsh and wet weather.

3Powerful Core

Full monocrystalline silicon inner core provides up to 21% energy conversion rate, making solar charging faster and easier.

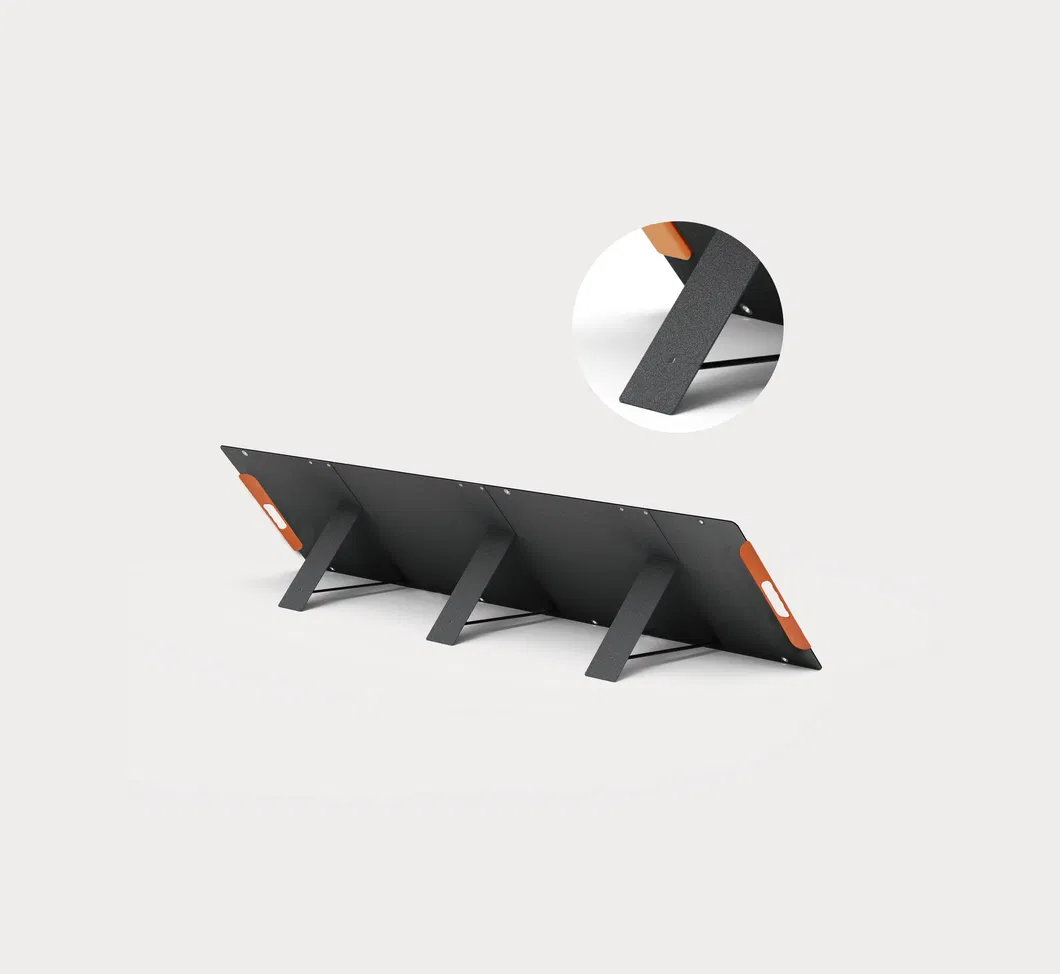

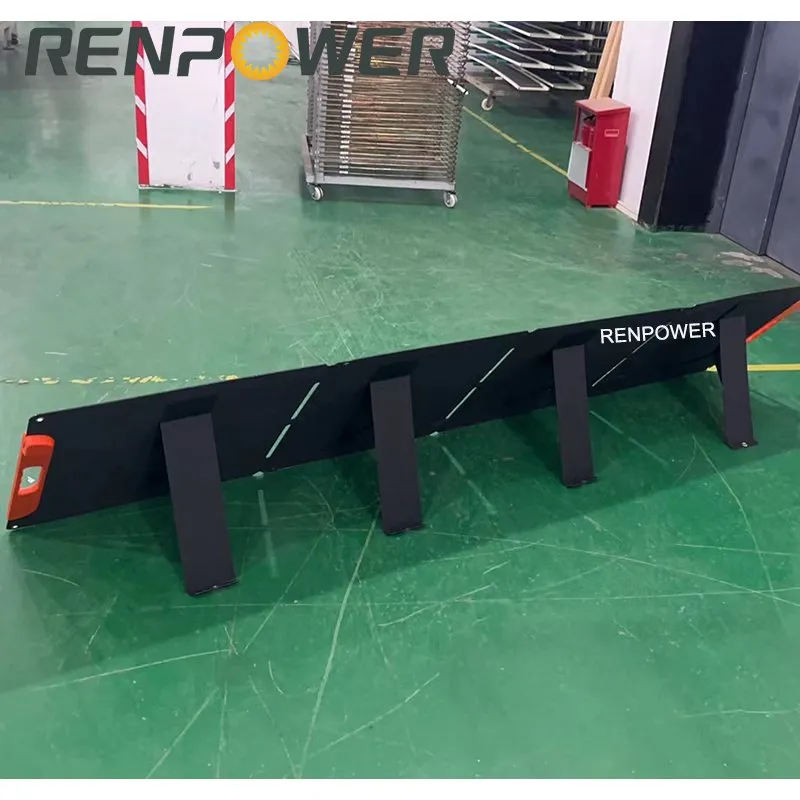

4Self-supportable

Simply unfold the panel and use its self-supporting bracket to get the sun exposure exactly right for maximum efficiency.

Application

Integrated Foldable Solar Panel with USB Type-C

✔ New technology (HPBC)
✔ High output and power
✔ Compatible with common electronic devices
✔ Designed for outdoor use, lightweight, and portable

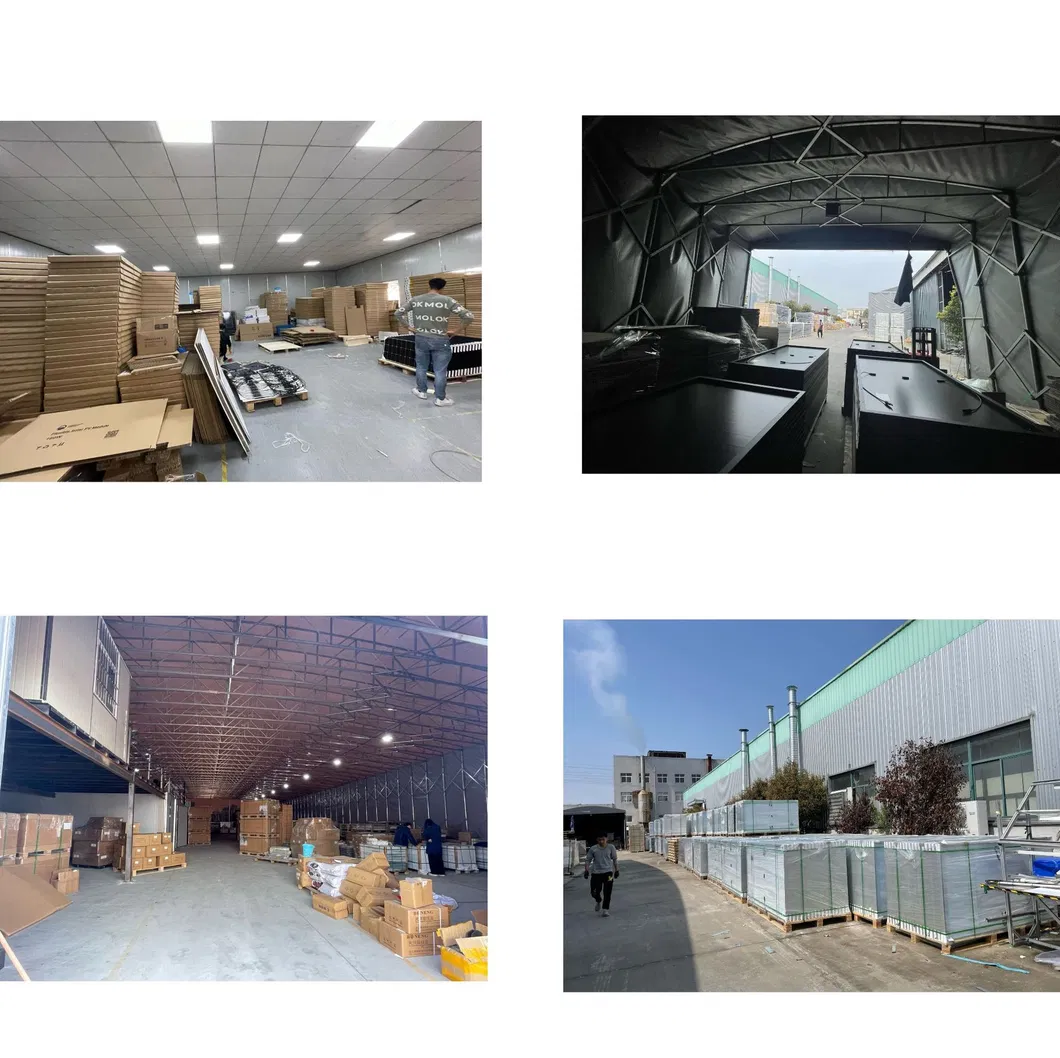

Packaging & Shipping

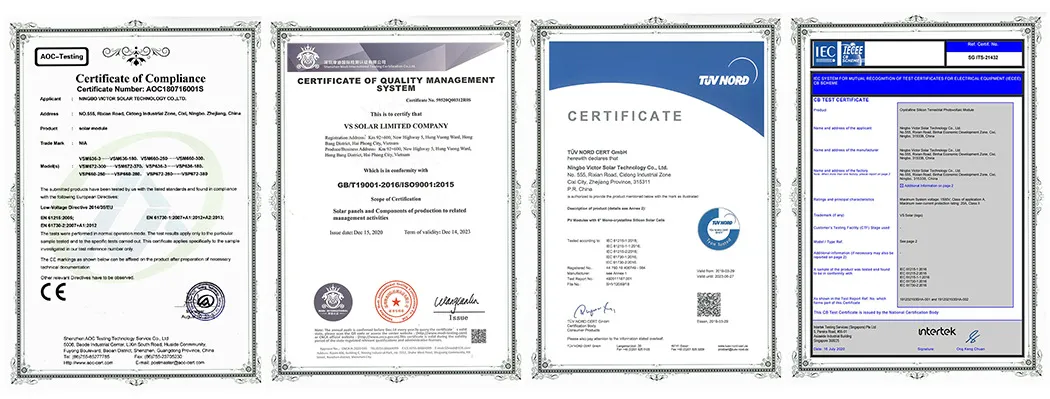

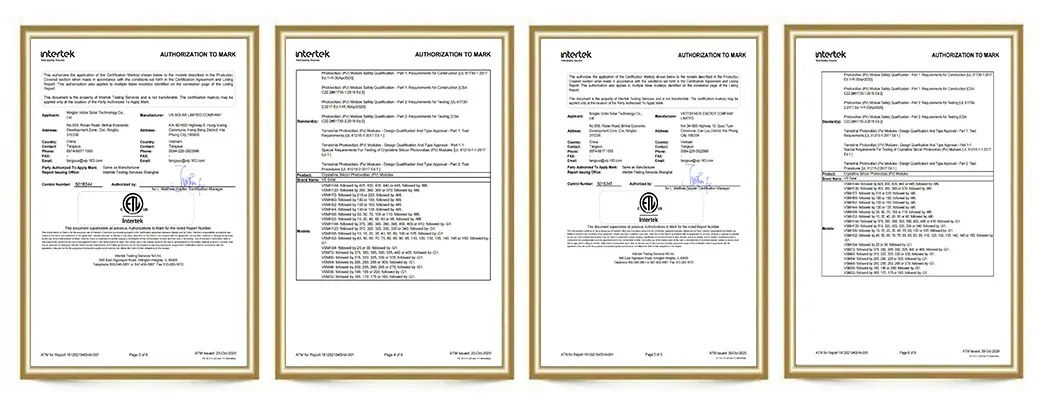

Certifications

Frequently Asked Questions

Q1: Why doesn't the solar panel work quickly when connected to the device?

Solar panels are affected by many factors, such as light intensity and the angle of the panel on the ground. Intensity and angle change with the rotation of the sun. Please test under full sunlight and ensure no shadows are cast on the panel.

Q2: Is the solar panel waterproof?

While it features an IP67 rating for some modules, it is best to maximize lifespan by avoiding prolonged exposure to wet conditions. Always keep the output ports dry.

Q3: How do I clean the solar panel surface?

Use a soft, damp cloth to remove dust and dirt. Any adhesive materials like bird droppings should be removed as soon as possible to avoid a reduction in performance.

Q4: Can this solar panel charge a laptop?

Yes, if used with a compatible power station or a suitable voltage regulator/adapter, it can charge laptops, smartphones, and other common electronic devices.

Q5: What is HPBC technology?

HPBC (Hybrid Passivated Back Contact) is a new generation of high-efficiency solar cell technology that provides better energy conversion and performance in various lighting conditions.

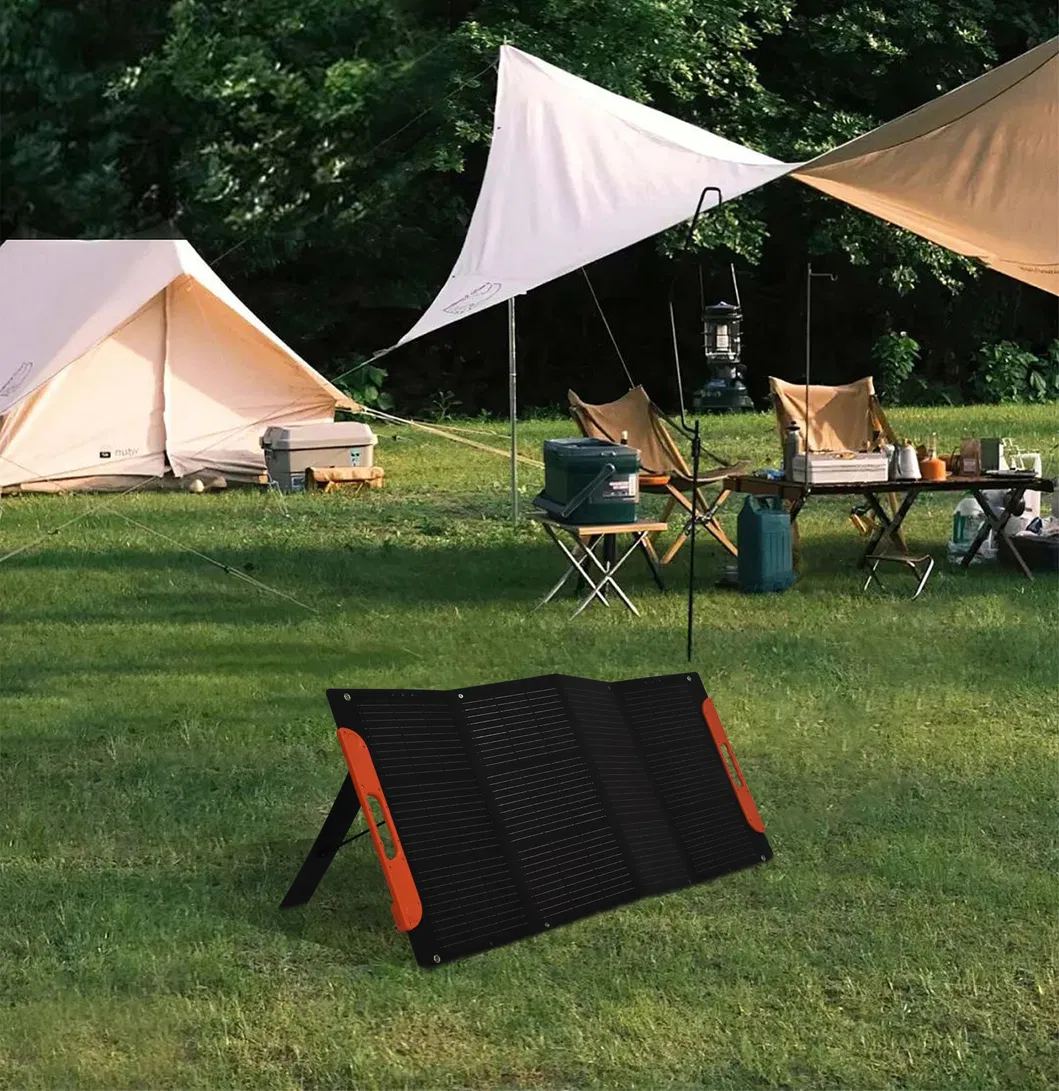

Q6: Is it easy to transport for camping?

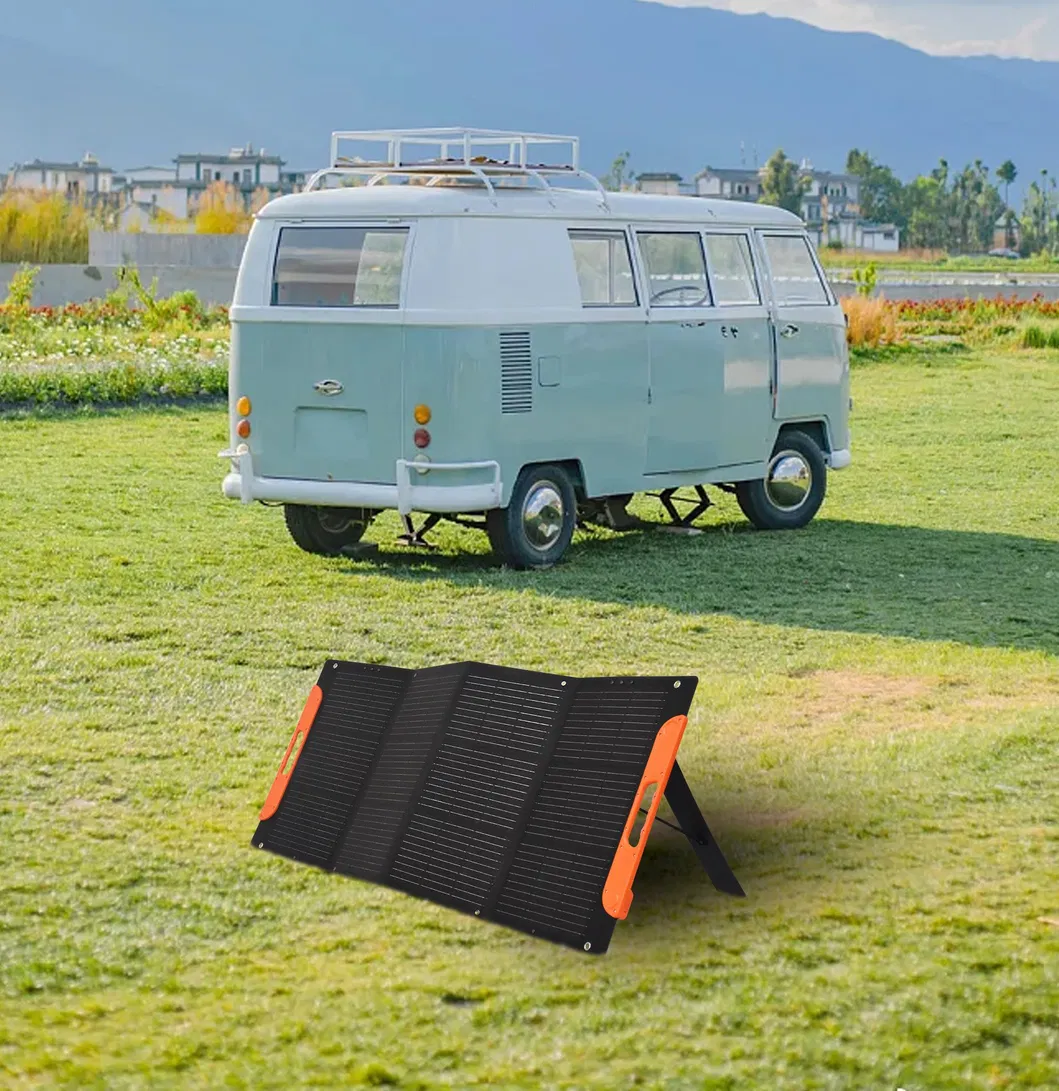

Absolutely. Its foldable design and lightweight material make it 20% smaller and lighter than traditional panels, specifically designed for RVs and outdoor camping.
