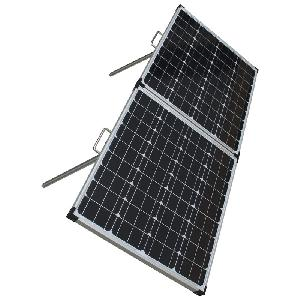

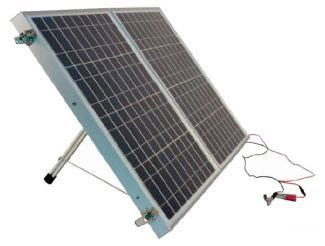

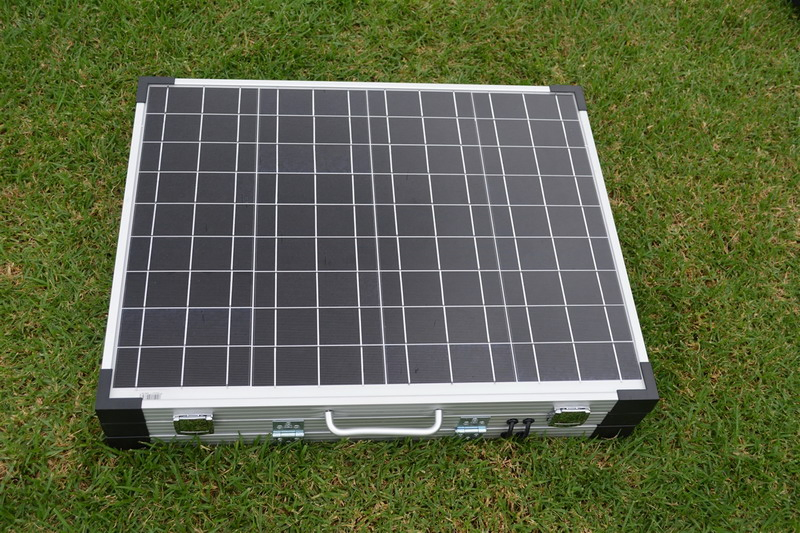

180W Portable Folding Solar Panel Kit with Handle for Camping Caravan

Basic Information

Model NO.

FFS-180W

Certification

ISO, CE

Application

Home, Industrial, Commercial

Specification

Normal, FSF-180W

Power

180W

Type

Foldable

Cell

Mono

Voltage

17.8V

Weight

10kg

HS Code

8541402000

Certifications

Product Description

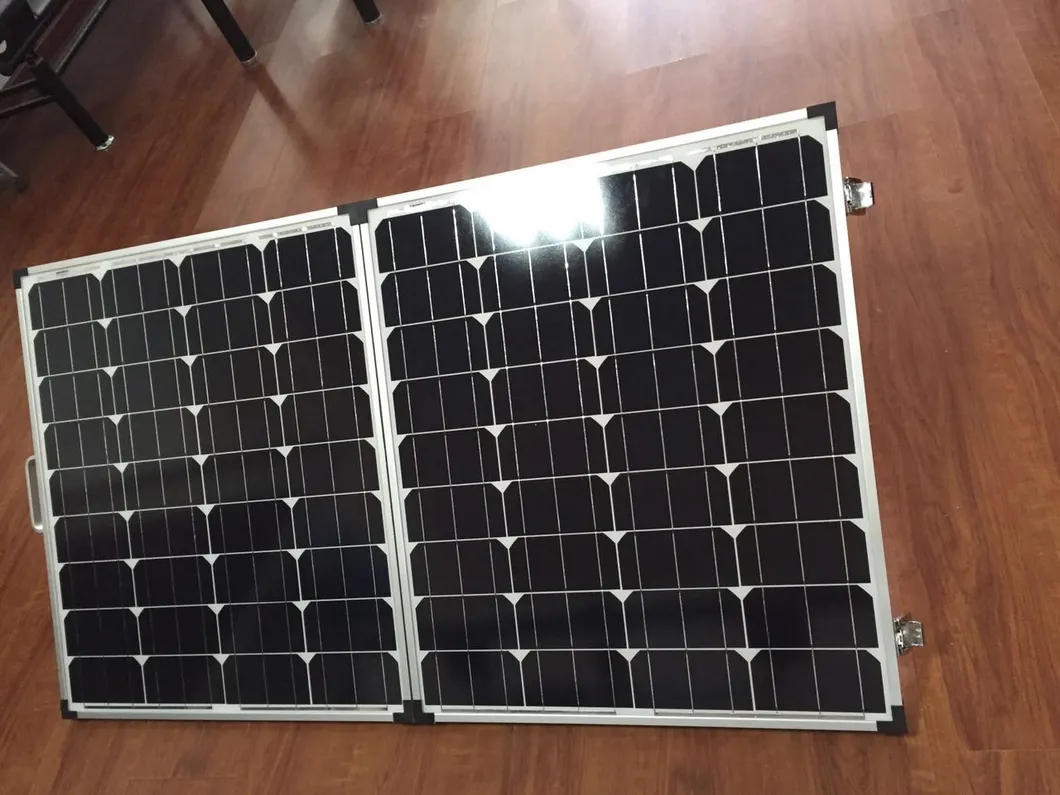

Folding module kits are designed to provide portable 12 volt power wherever you need it. Power available from 20W to 240W.

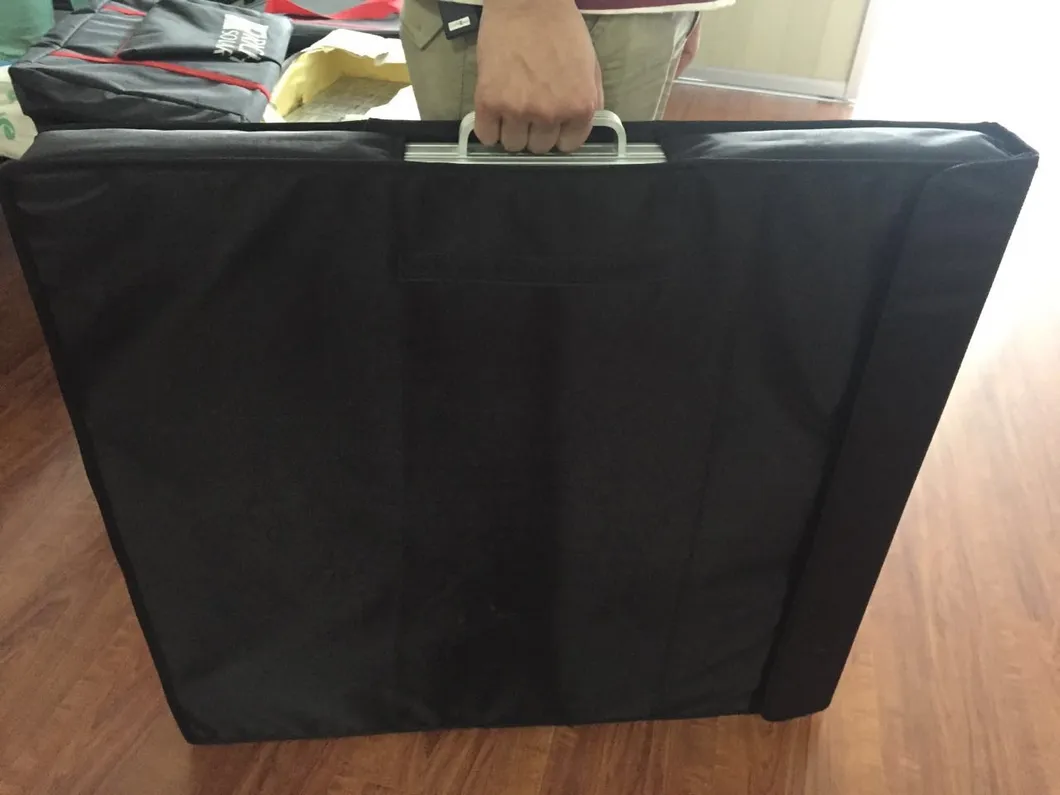

Padded, moulded carry bag

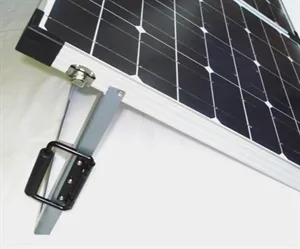

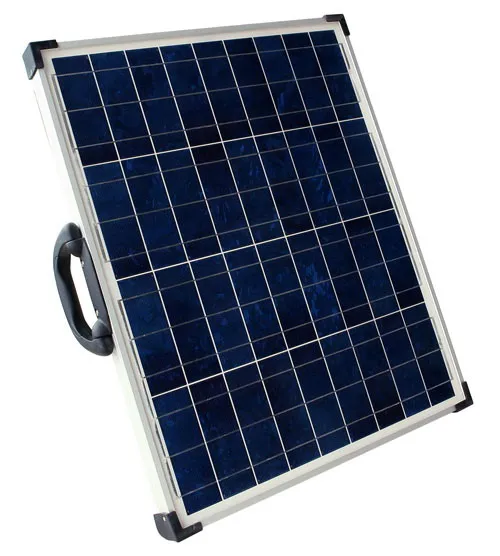

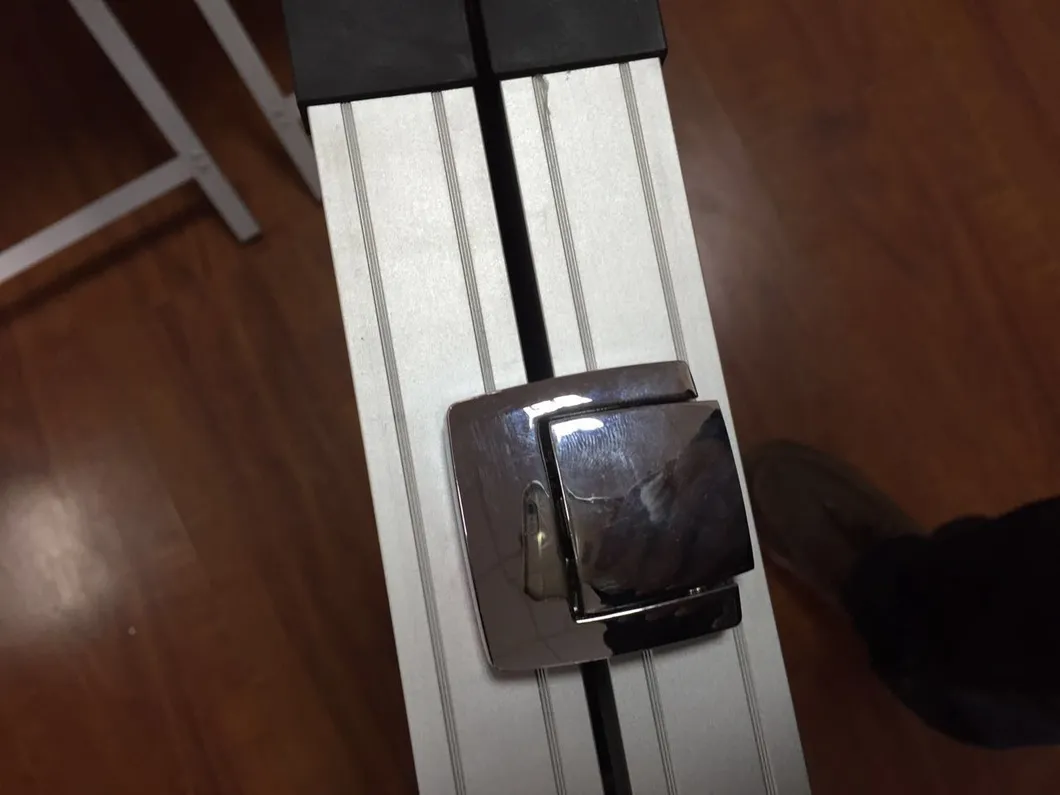

Heavy duty carry handle, hinges and clasps Stainless steel telescopic & adjustable legs

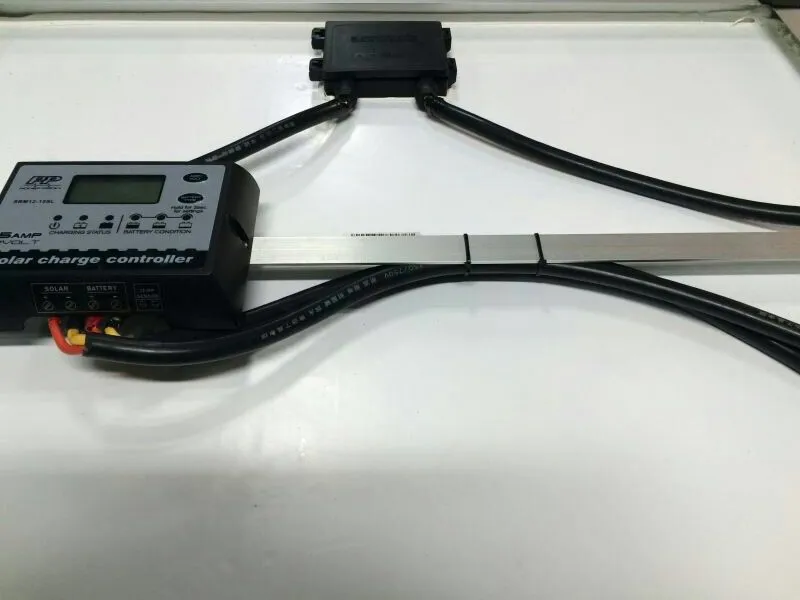

Weatherproof solar charge controller with LED indicator
5m cable with heavy duty Anderson connectors between module-regulator & regulator-battery clamps
All cabled up ready to use
2 year warranty

These kits are the ideal solution for 4WD, camping, caravaning, boating and recreational activities wherever power is required for lights, small TV, camping fridge, pump or other small appliances.

Specifications

Model	FSF-80W-M	FSF-120W-M	FSF-160W-M	FSF-200W-M
Nominal Peak Power	80W (2 x 40W)	120W (2 x 60W)	160W (2 x 80W)	200W (2 x 100W)
Power tolerance	3%
Cell type	Monocrystalline/Polycrystalline
Open circuit voltage (Voc)	21.6V
Voltage at maximum power (Vmp)	17.6V	17.5V	17.5V	17.5V
Short circuit current (Isc)	4.9A	7.4A	9.88A	12.34A
Current at maximum power (Imp)	4.54A	6.86A	9.14A	11.42A
Maximum system voltage	1000VDC
Module folded size (mm)	505x550x60	505x825x80	505x1005x70	670x1005x70
Module net weight (kg)	9.2	13	15.2	19
Solar charge controller	PWM 12V 10A; IP65		PWM 12V 20A; IP65

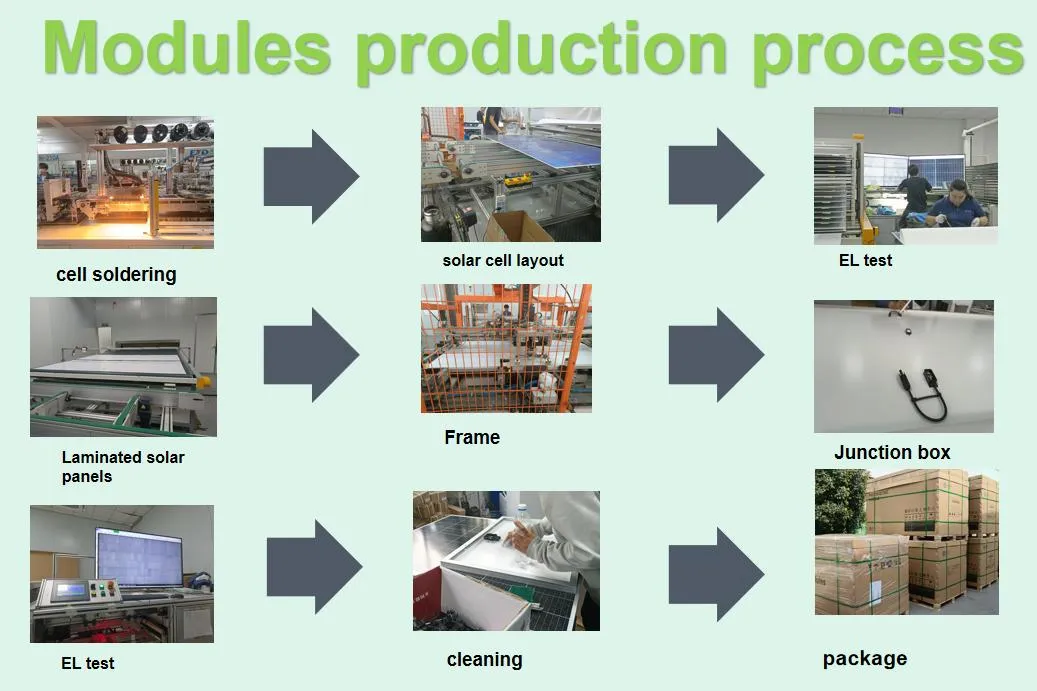

Production Process

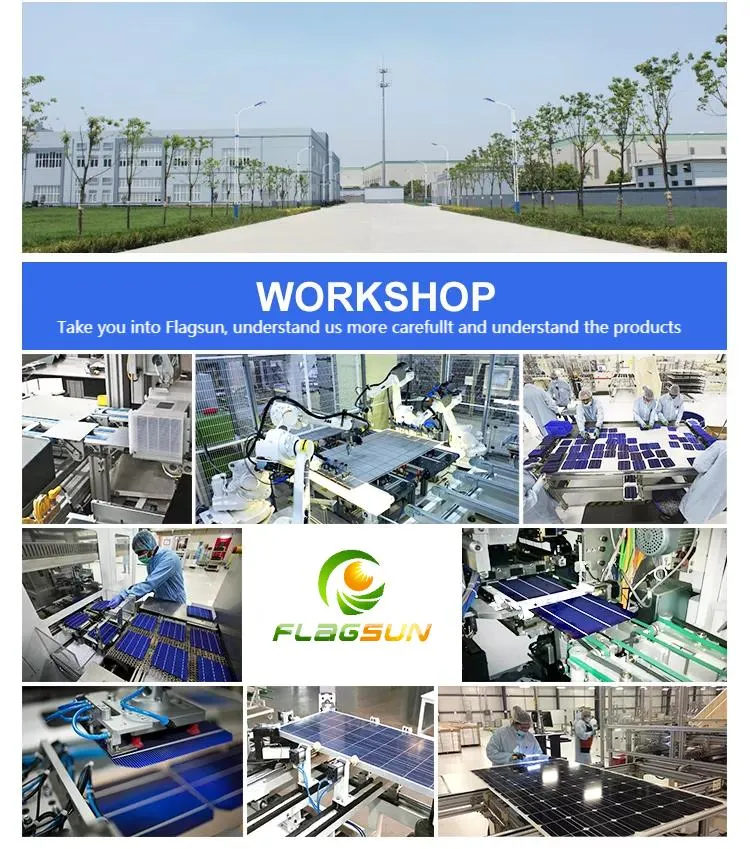

Factory Overview

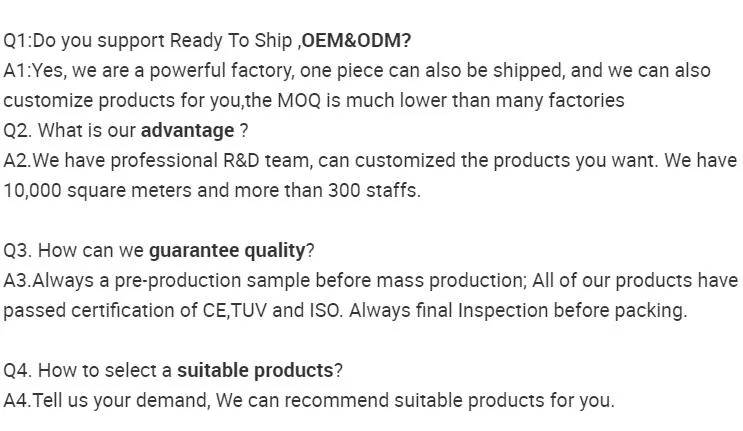

FAQ

Are these solar panels waterproof?

Yes, the solar panels and the included PWM charge controller are IP65 rated, making them weatherproof and suitable for outdoor use in various conditions.

What type of batteries can this kit charge?

The kit is designed for 12V systems and is compatible with most lead-acid, AGM, and Gel batteries commonly used in caravans and camping setups.

Does the kit include everything needed for setup?

Yes, the kit comes fully cabled and ready to use, including a 5m cable with Anderson connectors and battery clamps.

How do the adjustable legs help?

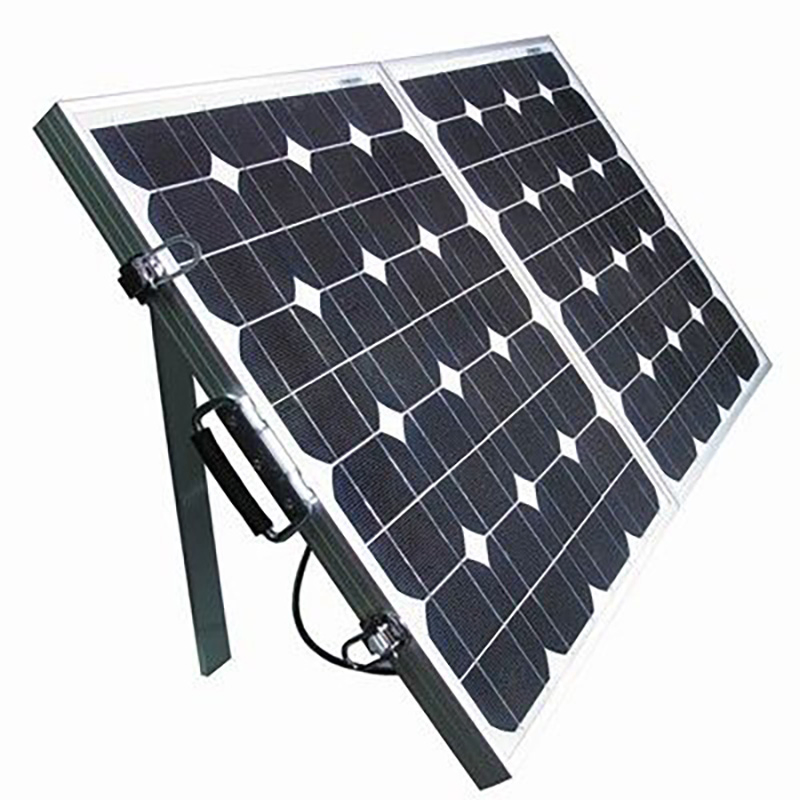

The stainless steel telescopic legs allow you to angle the panels directly towards the sun, maximizing energy absorption throughout the day.

Is it easy to transport?

Absolutely. The panels fold down into a compact size and come with a padded, moulded carry bag and a heavy-duty handle for easy portability.

What is the warranty period for this product?

This portable folding solar panel kit comes with a 2-year warranty covering manufacturing defects.
