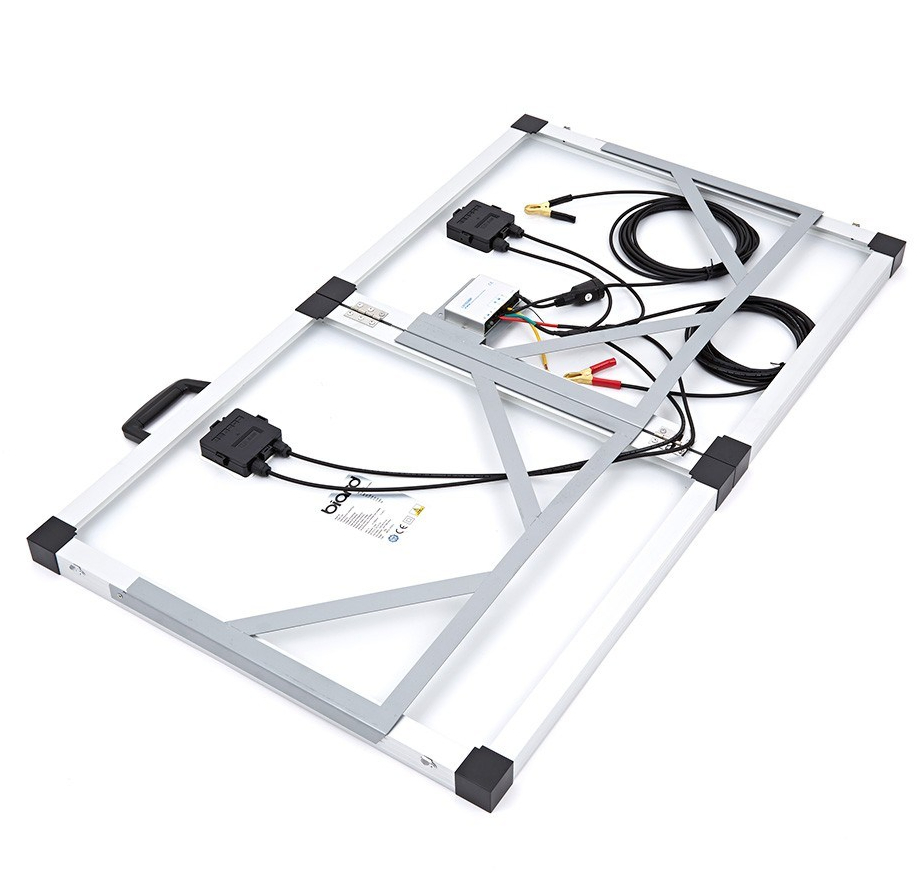

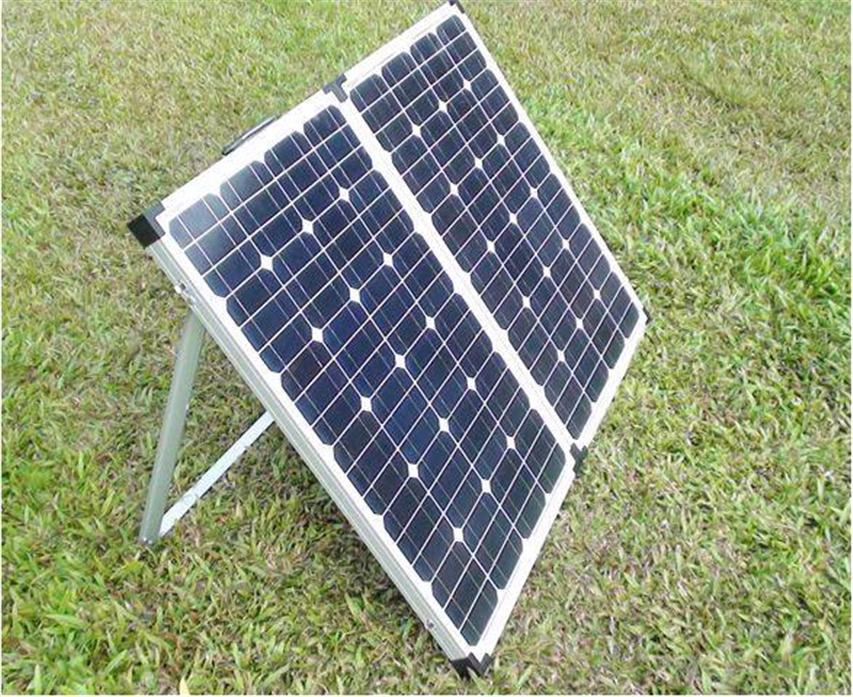

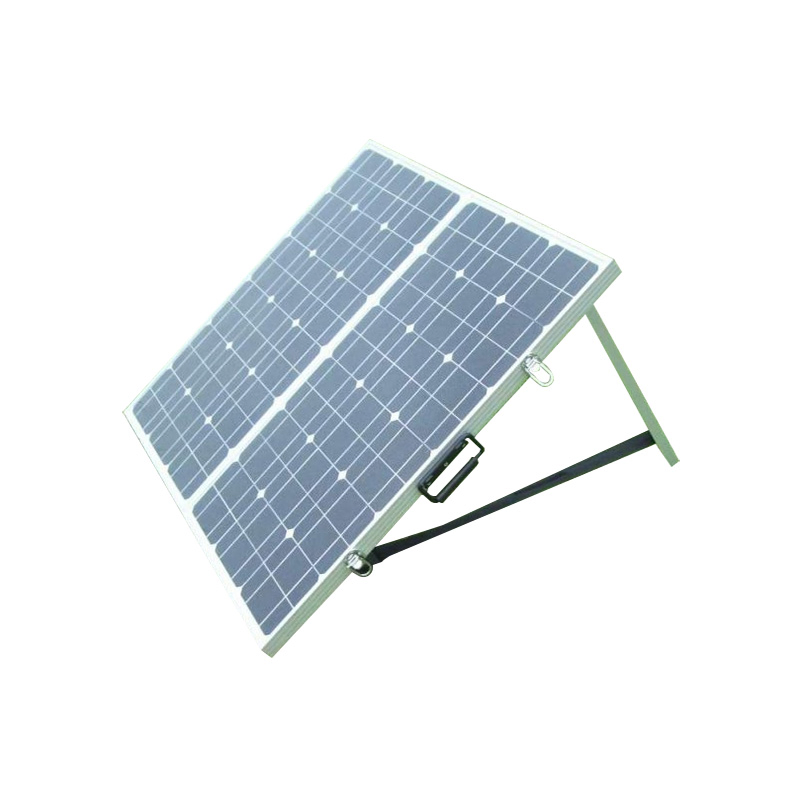

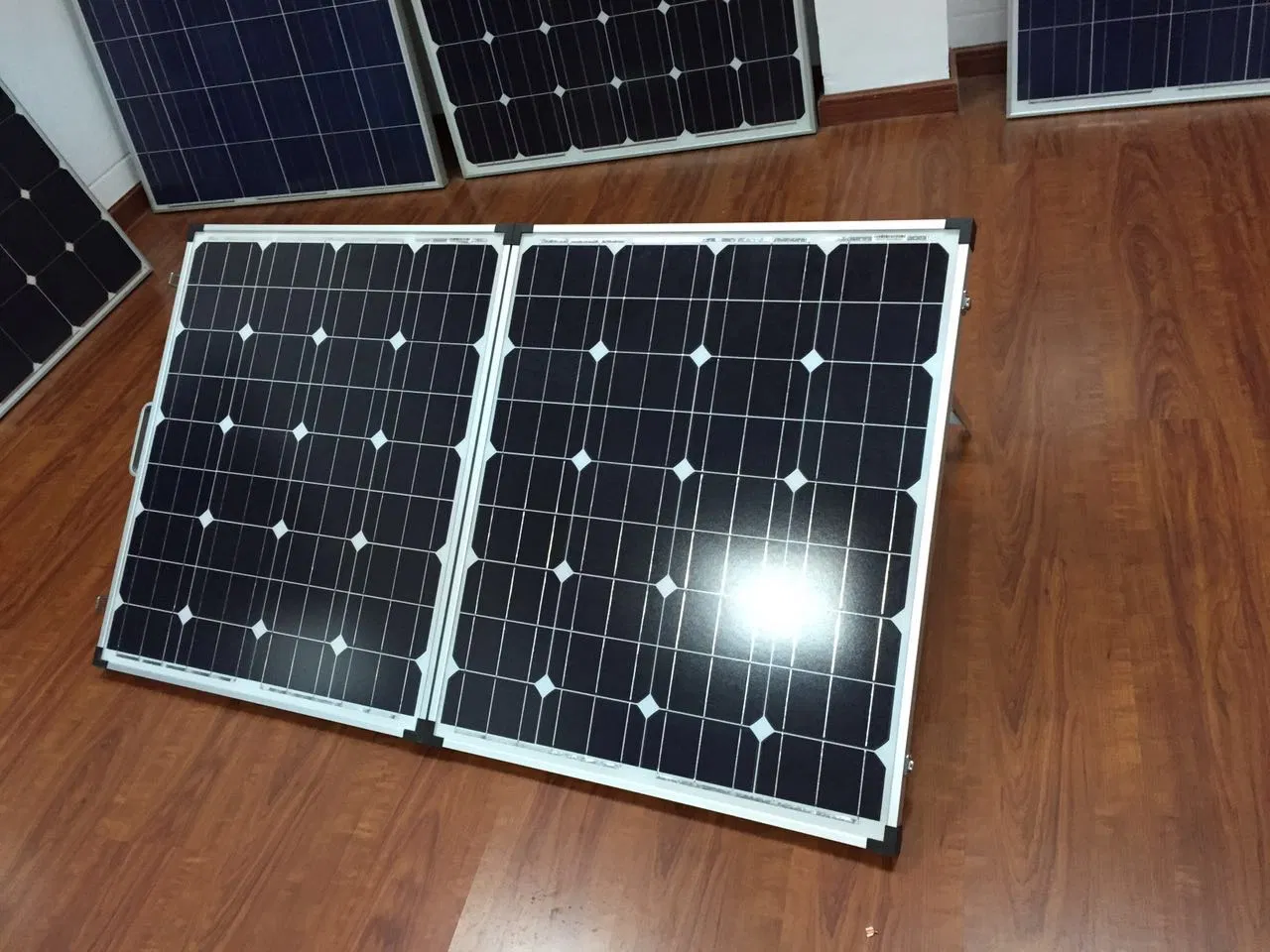

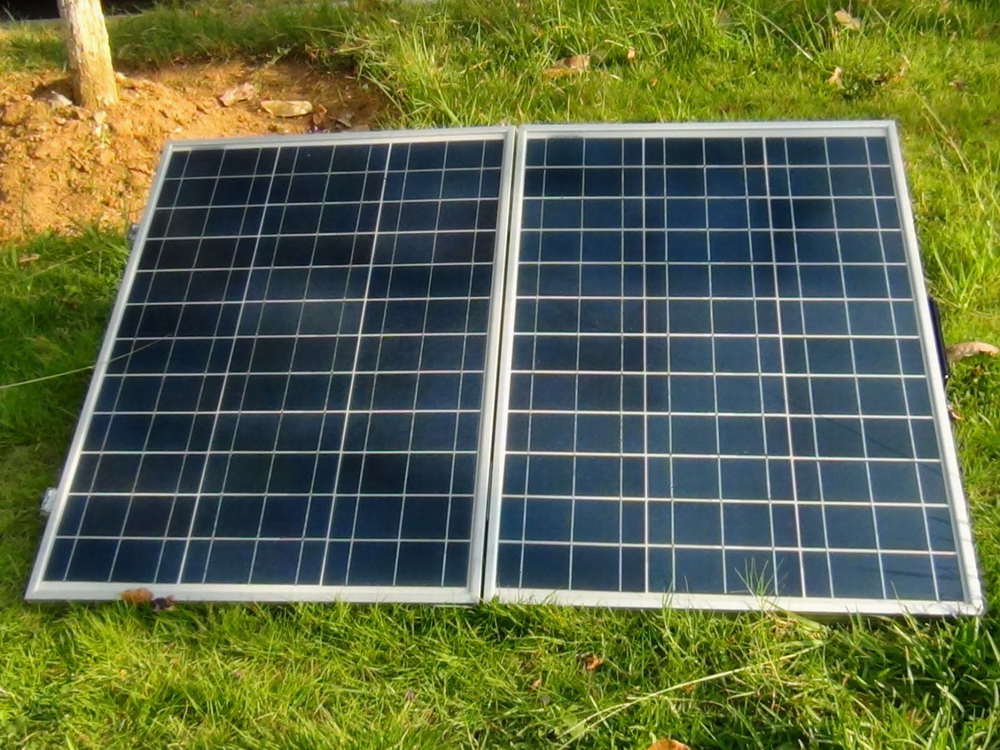

140W Portabe Folding Solar Panel Foldable Kits with Anderson Plug Solar Controller

Still deciding? Get samples of $ !
Order Sample

Product Description

i

Basic Information

Model NO.
FSF-140W
Application
Commercial, Home, Industrial
Material
Monocrystalline Silicon
Power
120W
Type
Foldable
Voltage
18V
Certification
ISO, CE
Weight
10kg
Thickness
60mm
Operating Temp
-40℃ to +80℃
S

Technical Specifications

Model FSF-80W-M FSF-120W-M FSF-160W-M FSF-200W-M
Nominal Peak Power 80W (2 x 40W) 120W (2 x 60W) 160W (2 x 80W) 200W (2 x 100W)

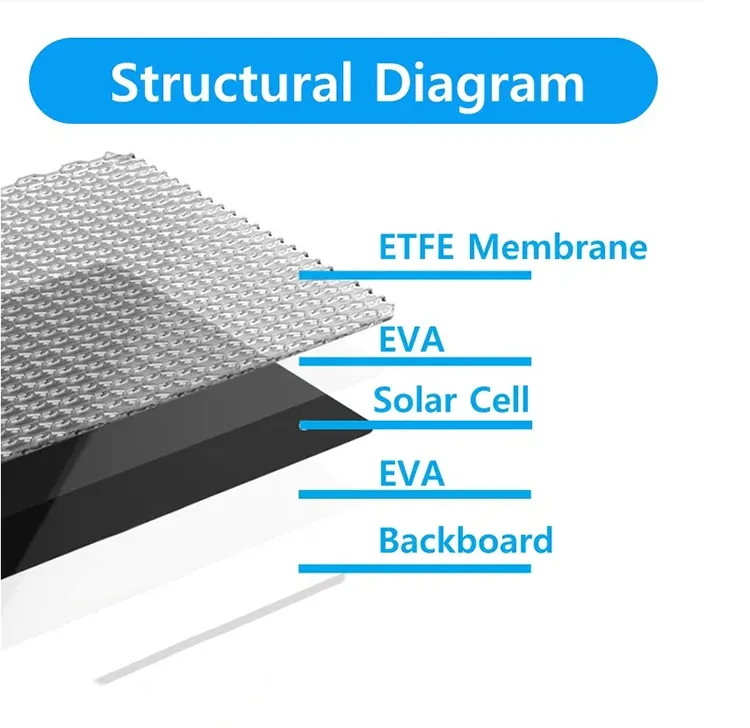

Cell type Monocrystalline/Polycrystalline
Open circuit voltage (Voc) 21.6V
Max Power Voltage (Vmp) 17.6V 17.5V 17.5V 17.5V
Short circuit current (Isc) 4.9A 7.4A 9.88A 12.34A
Max Power Current (Imp) 4.54A 6.86A 9.14A 11.42A
Folded size (mm) 505x550x60 505x825x80 505x1005x70 670x1005x70
Net weight (kg) 9.2 13 15.2 19

Key Features

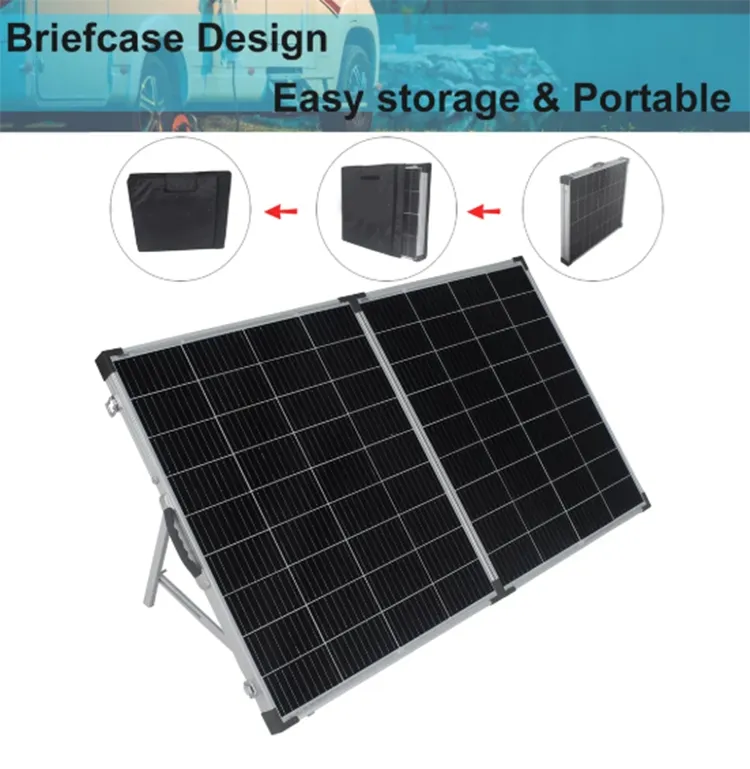

  • Padded, moulded carry bag for protection
  • Heavy duty carry handle, hinges and clasps

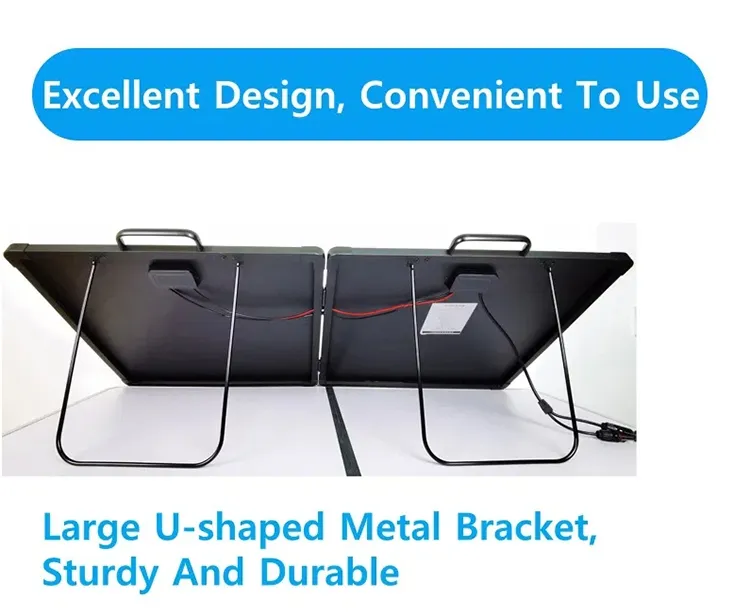

  • Stainless steel telescopic & adjustable legs

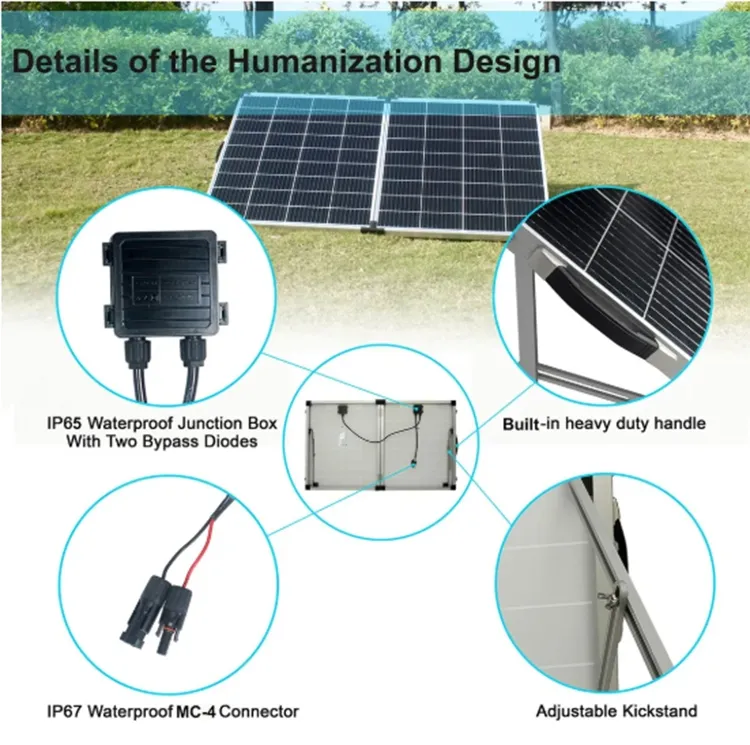

  • Weatherproof solar charge controller with LED indicator
  • 5m cable with heavy duty Anderson connectors
  • All cabled up ready to use immediately

These kits are the ideal solution for 4WD, camping, caravanning, boating and recreational activities wherever power is required for lights, small TV, camping fridge, pump or other small appliances.

P

Product Gallery

A

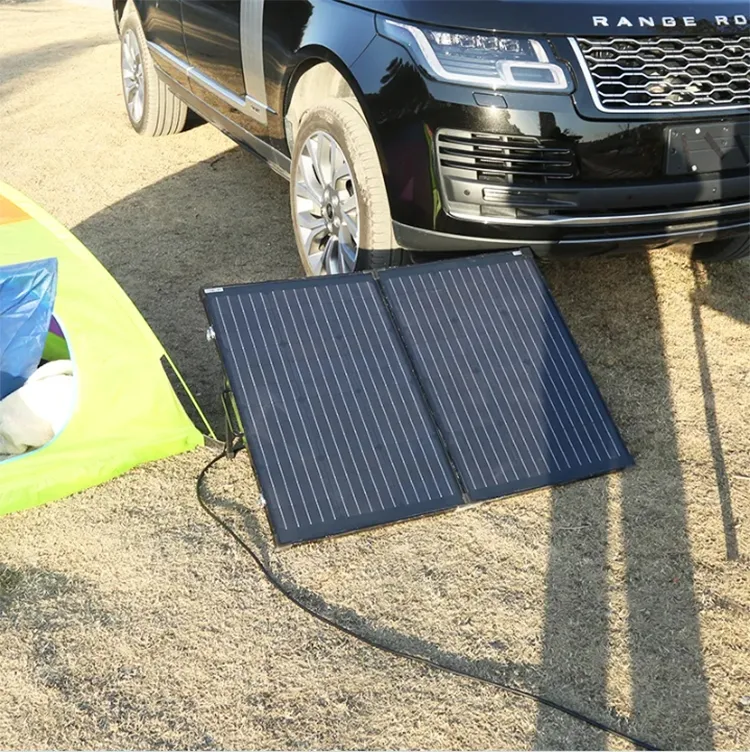

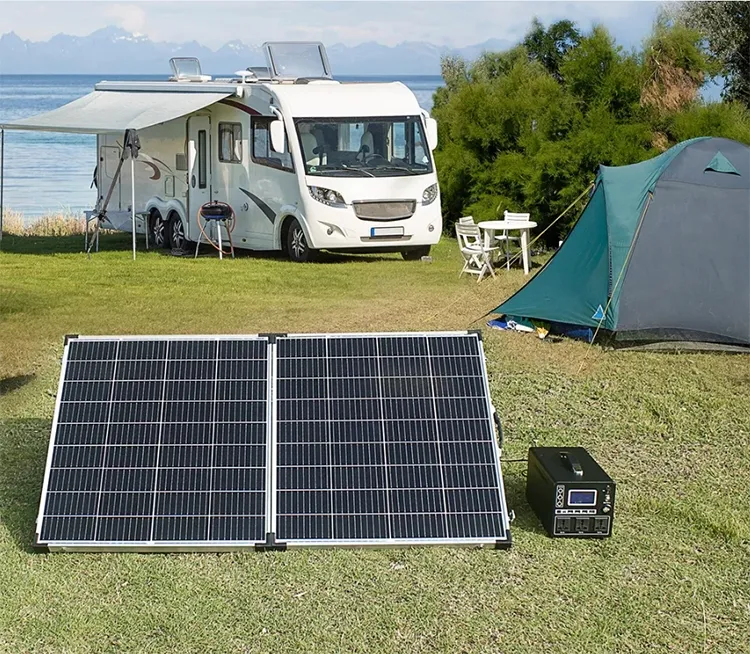

Applications

L

Logistics & Certification

?

Frequently Asked Questions

What is the warranty period?
We provide a 10-year product warranty and a 25-year linear power output warranty.
How can I get the best price?
Please provide more details regarding your requirements, such as power capacity, material, and quantity. We will then suggest the most suitable solution and quote our best price.
Can I request a sample order?
Yes, we welcome sample orders to test and check the quality. Mixed samples are also acceptable.
How do I proceed with an order?
First, let us know your requirements. Second, we quote based on those needs. Third, the customer confirms samples and places a deposit. Finally, we arrange production.
Is logo printing available?
Yes, it is possible to print your logo on the products. Please inform us formally before production and confirm the design based on our sample.
How is quality guaranteed?
A professional product quality inspection team ensures a low defective rate. We take full responsibility through our comprehensive after-sales support system.
